Singer M2100 User manual

Instruction ManualM2100 / M2105

This household sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be followed,
including the following:
Read all instructions before using this household sewing machine. Keep the instructions at a
suitable place close to the machine. Make sure to hand them over if the machine is given to a
third party.
DANGER - To reduce the risk of electric shock:
- A sewing machine should never be left unattended when plugged in. The electrical socket,
to which the machine is plugged in should be easily accessible. Always unplug this sewing
machine from the electric outlet immediately after using and before cleaning, removing
covers, lubricating or when making any other user servicing adjustments mentioned in the
instruction manual.
WARNING - To reduce the risk of burns, re, electric shock, or injury to
person:
- Do not allow to be used as a toy. Close attention is necessary when this sewing machine is
used by or near children.
- Use this sewing machine only for its intended use as described in this manual. Use only
I

attachments recommended by the manufacturer as contained in this manual.
- Never operate this sewing machine if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return the sewing
machine to the nearest authorized dealer or service center for examination, repair, electrical
or mechanical adjustment.
- Never operate the sewing machine with any air openings blocked. Keep ventilation openings
of the sewing machine and foot control free from the accumulation of lint, dust, and loose
cloth.
- Keep ngers away from all moving parts.Special care is required around the sewing machine
needle.
- Always use the proper needle plate. The wrong plate can cause the needle to break.
- Do not use bent needles.
- Do not pull or push fabric while stitching. It may deect the needle causing it to break.
- Wear safety glasses.
- Switch the sewing machine o󰀨 (“0”) when making any adjustment in the needle area, such as
threading needle, changing needle, threading bobbin, or changing presser foot, etc.
- Never drop or insert any object into any opening.
- Do not use outdoors.
- Do not operate where aerosol (spray) products are being used or where oxygen is being
administrated.
- To disconnect, turn all controls to the o󰀨 (“0”) position, then remove plug from outlet.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- The foot control is used to operate the machine. Never place other objects on the foot control.
II

- Do not use the machine if it is wet.
- If the LED lamp is damaged or broken, it must be replaced by the manufacturer or its service
agent or a similarly qualied person, in order to avoid a hazard.
- If the cord connected with the foot control is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualied person, in order to avoid a hazard.
- This sewing machine is provided with double insulation. Use only identical replacement parts.
See instructions for Servicing of Double-Insulated Appliances.
SAVE THESE INSTRUCTIONS
FOR CENELEC COUNTRIES ONLY:
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
The noise level under normal operating conditions is less than 75dB(A).
The machine must only be used with foot control of type FC-2902D, (220-240V) manufactured
by Zhejiang Founder Motor Corporation, LTD. (Vietnam) / 4C-326G (230V) / 4C-336G (240V)
manufactured by Wakaho Electric Ind. Co., Ltd. (Vietnam).
III

FOR NON CENELEC COUNTRIES:
This sewing machine is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the sewing machine by a person
responsible for their safety. Children should be supervised to ensure that they do not play with
the sewing machine.
The noise level under normal operating conditions is less than 75dB(A).
The machine must only be used with foot control of type KD-1902, FC-1902 (110-120V) / KD-
2902, FC-2902A, FC-2902C, FC-2902D, (220-240V) manufactured by Zhejiang Founder Motor
Corporation, LTD. (Vietnam) / 4C-316B (110-125V) / 4C-316C (127V) /4C-326C (220V) / 4C-326G
(230V) / 4C-336G (240V) manufactured by Wakaho Electric Ind. Co., Ltd. (Vietnam).
SERVICING OF DOUBLE INSULATED PRODUCTS
In a double-insulated product, two systems of insulation are provided instead of grounding. No
ground means is provided on a double-insulated product, nor should a means for grounding
be added to the product. Servicing of a double-insulated product requires extreme care and
knowledge of the system and should be done only by qualied service personnel. Replacement
parts for a double-insulated product must be identical to those parts in the product. A double-
insulated product is marked with the words ‘DOUBLE INSULATION’ or ‘DOUBLE INSULATED’.
IV

V

VI
List of contents
Machine Basics
Principal Parts of the Machine ..................................................................................................................................................1
Connecting Machine to Power Source......................................................................................................................................3

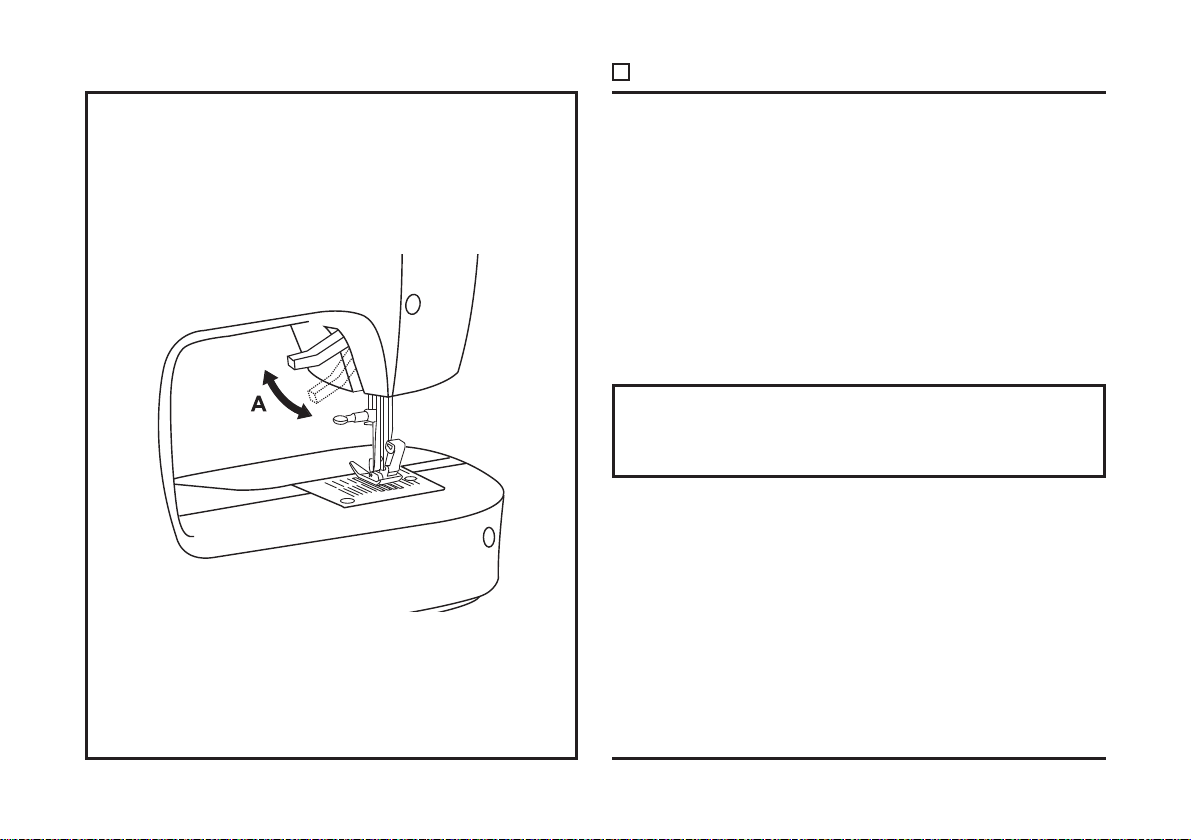

Two Step Presser Foot Lifter.....................................................................................................................................................4
Accessories...............................................................................................................................................................................5
Threading the Machine

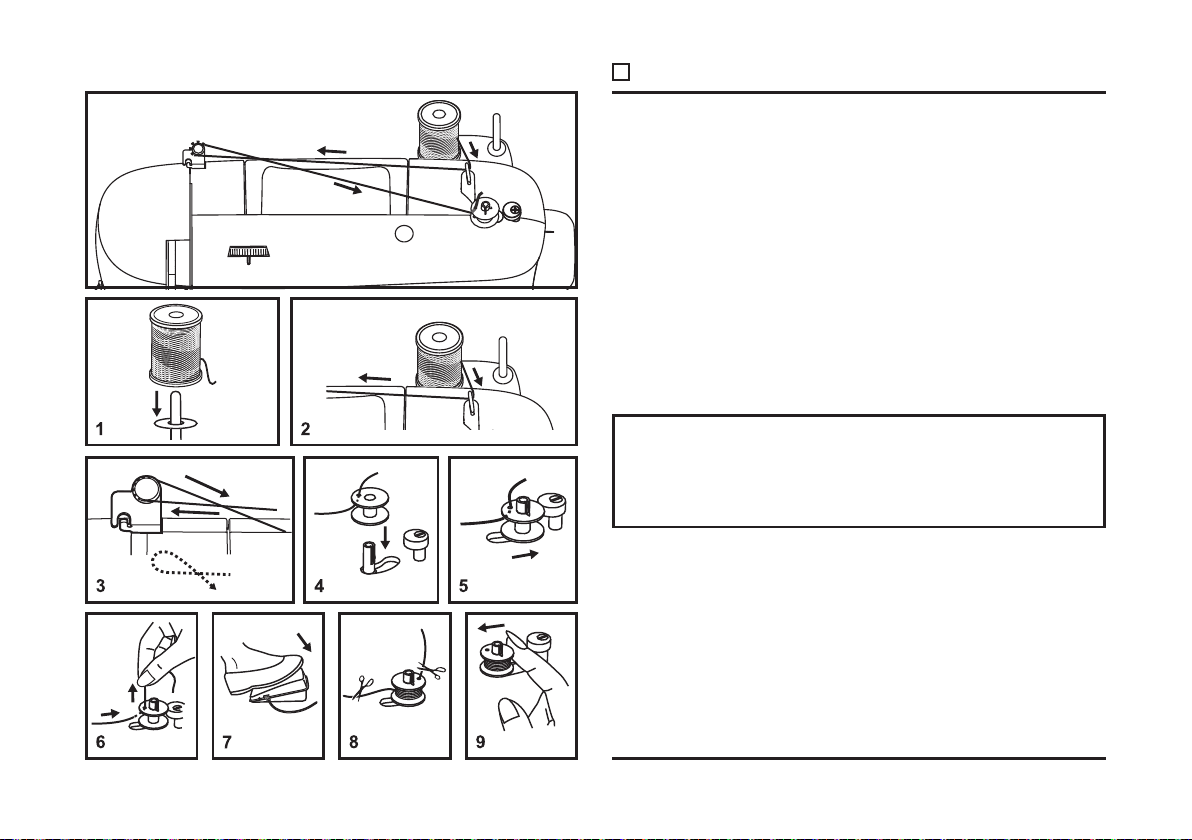

Winding the Bobbin ...................................................................................................................................................................6
Inserting the Bobbin ..................................................................................................................................................................7
Threading the Upper Thread.....................................................................................................................................................8
Raising the Bobbin Thread........................................................................................................................................................9
Thread Tension........................................................................................................................................................................10
Sewing
How to Choose Your Pattern ..................................................................................................................................................11
Sewing Straight Stitch .............................................................................................................................................................12
Reverse Sewing ......................................................................................................................................................................13
Removing the Work.................................................................................................................................................................13
Cutting the Thread...................................................................................................................................................................13
Blind Hem................................................................................................................................................................................14
Buttonholes .............................................................................................................................................................................15
Sewing on Buttons ..................................................................................................................................................................16
Zippers and Piping ..................................................................................................................................................................17
Free Motion Darning, Stippling................................................................................................................................................18
General Information
Installing the Removable Extension Table ..............................................................................................................................19
Changing the Presser Foot .....................................................................................................................................................20
Needle/ Fabric/ Thread Chart .................................................................................................................................................21

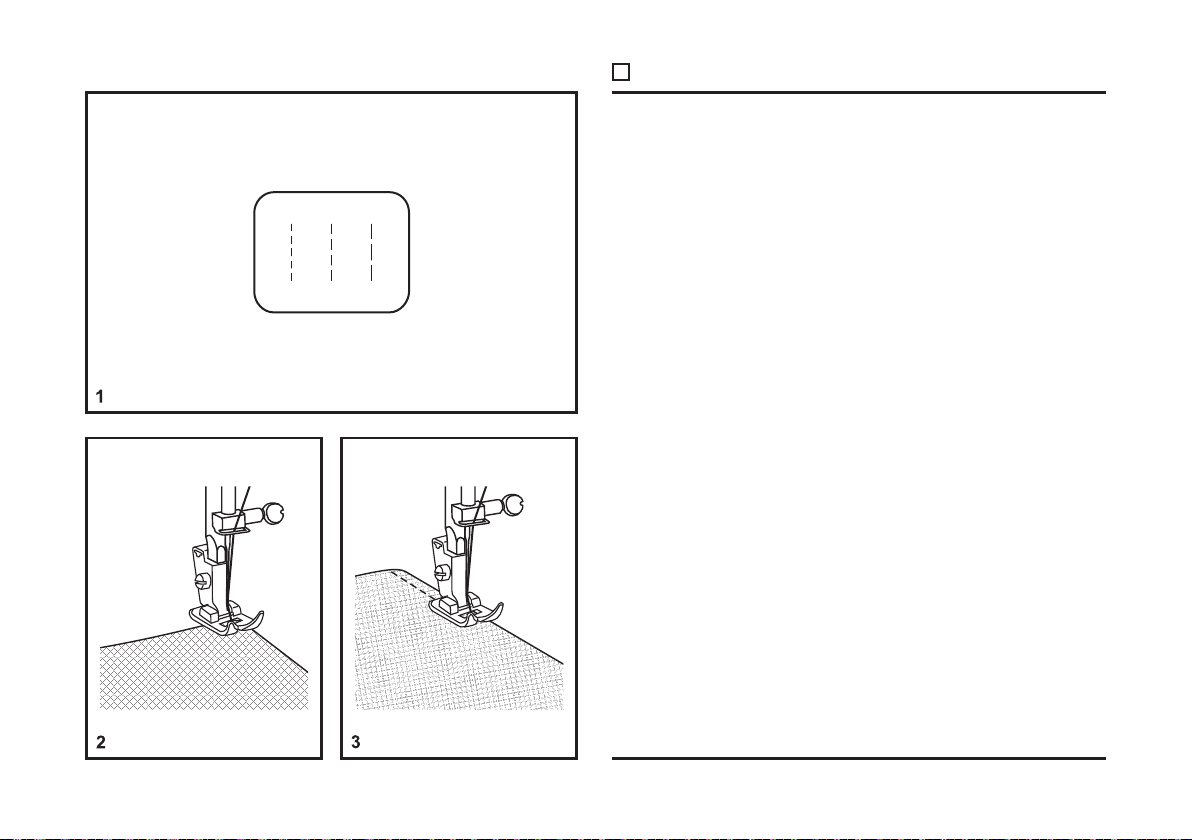

Darning Plate...........................................................................................................................................................................22
Maintenance and Troubleshooting
Inserting the Needle................................................................................................................................................................23
Maintenance............................................................................................................................................................................24
Troubleshooting Guide ............................................................................................................................................................25
Machine Basics

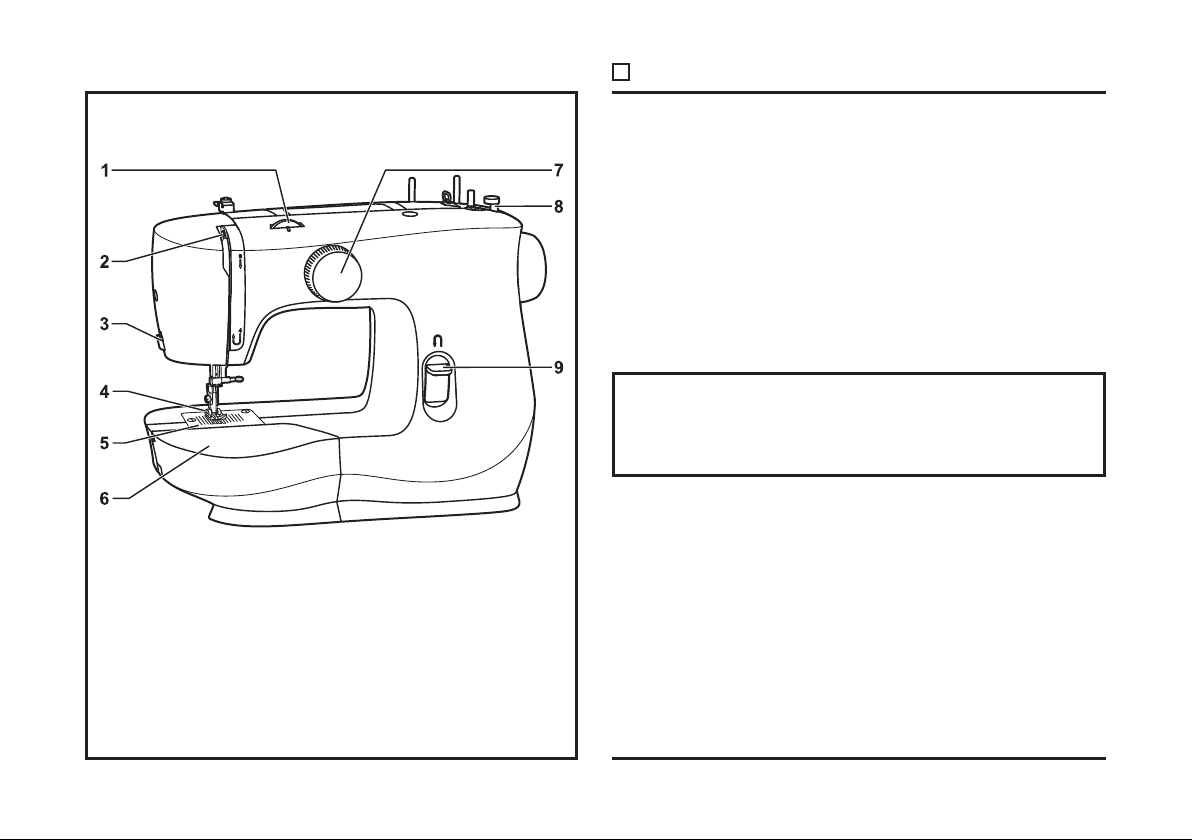

11
1. Thread tension dial
2. Thread take-up lever
3. Thread cutter
4. Presser foot
5. Needle plate
6. Removable extension table/ accessory storage
7. Pattern selector dial
8. Bobbin winding stopper
9. Reverse sewing lever
Unpacking
- Place the box on a steady, at surface. Lift your machine
out of the box and remove the outer packaging.
- Remove all other packing material and the plastic bag.
Principal Parts of the Machine
Machine Basics

2

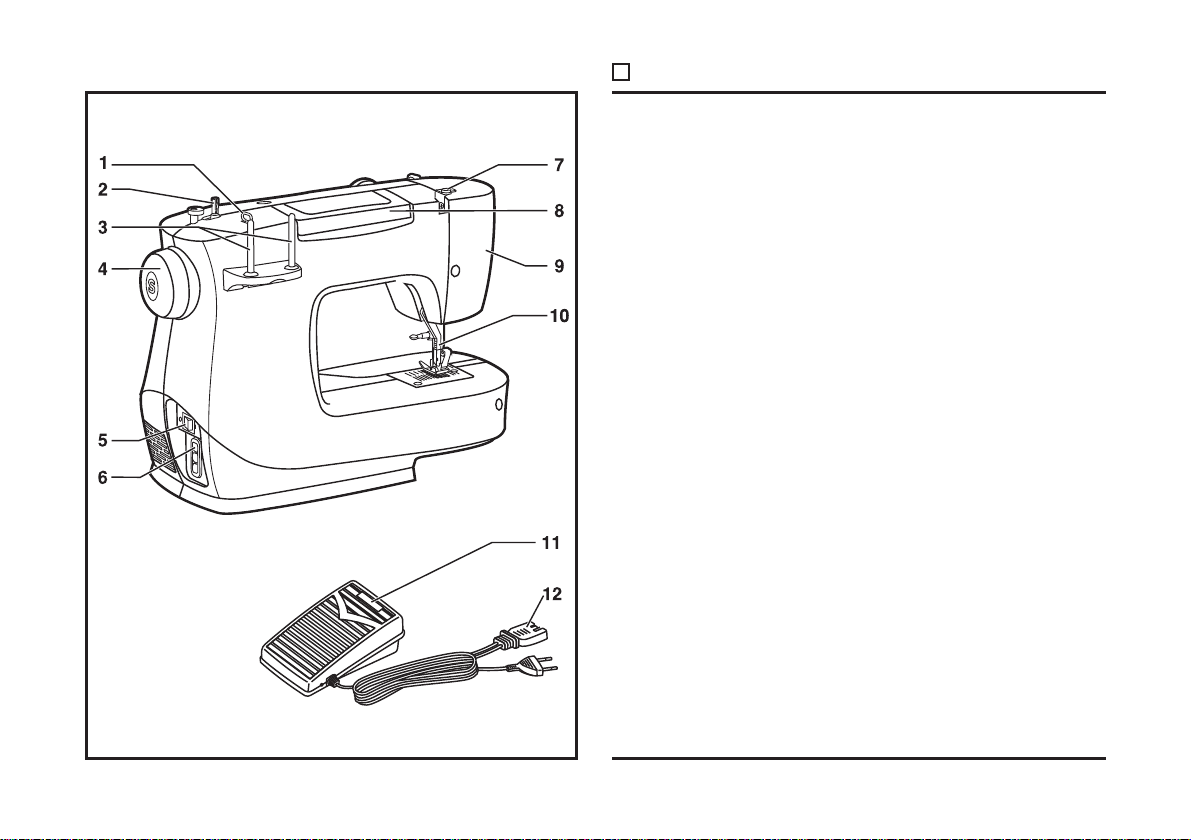

Principal Parts of the Machine
1. Thread guide
2. Bobbin winder spindle
3. Spool pin
4. Handwheel
5. Power and light switch
6. Main plug socket
7. Bobbin thread guide
8. Handle
9. Face plate
10. Presser foot lifter
11. Foot speed control
12. Power cord
