Singer SM024 User manual

INSTRUCTION MANUAL
SM024

This household sewing machine is designed to comply with IEC/EN/CSA C22.2 No.60335-1 & 60335-2-28 and UL1594.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be followed, including the following: Read all instructions before using
this household sewing machine. Keep the instructions at a suitable place close to the machine. Make sure to hand them over if the machine is given to
a third party.
DANGER -TO REDUCE THE RISK OF ELECTRIC SHOCK:
• A sewing machine should never be left unattended when plugged in. Always unplug this sewing machine from the electric outlet immediately after
using and before cleaning, removing covers, lubricating or when making any other user servicing adjustments mentioned in the instruction manual.
WARNING - TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSON:
• Do not allow to be used as a toy. Close attention is necessary when this sewing machine is used by or near children.
• Use this sewing machine only for its intended use as described in this manual. Use only attachments recommended by the manufacturer as
contained in this manual.
• Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into
water. Return the sewing machine to the nearest authorized service center for examination, repair, electrical or mechanical adjustment.
• Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the sewing machine and foot control free from the
accumulation of lint, dust, and loose cloth.
• Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
• Always use the proper needle plate. The wrong plate can cause the needle to break.
• Do not use bent needles.
• Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
• Wear safety glasses.
• Switch the sewing machine off ("0") when making any adjustment in the needle area, such as threading needle, changing needle, threading bobbin,
or changing presser foot, etc.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administrated.
• To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• The foot control is used to operate the machine. Avoid placing other objects on the foot control.
• Do not use the machine if it is wet.
• If the LED lamp is damaged or broken, it must be replaced by the manufacturer or its service agent or a similarly qualified person, in order to avoid
a hazard.
• If the supply cord connected with the foot control is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified
person, in order to avoid a hazard.
SAVE THESE INSTRUCTIONS
FOR EUROPE ONLY:
This appliance can be used by children aged from 13 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
The machine must only be used with foot control of type " HKT72C" manufactured by ZHEJIANG HUAXING ELECTRIC MOTOR CO., LTD.
FOR OUTSIDE EUROPE:
This sewing machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the sewing machine by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the sewing machine.
The machine must only be used with foot control of type HKT7 (110-127V Area), HKT72C (220-240V Area), HKT7-2 (220-240V China)
manufactured by ZHEJIANG HUAXING ELECTRIC MOTOR CO., LTD.
INTENDED USE
Optimal use and maintenance are described in these instructions. This product is not intended for industrial use. Additional assistance, by region, may
be found on the web at www.singer.com.

NOTES
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
_______________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________

NOTES
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
_______________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________
________________________________________________________________________________________________

1
CONTENTS
1. KNOWING YOUR SEWING MACHINE
Main parts ----------------------------------------------------2
Accessories---------------------------------------------------3
Setting up your machine------------------------------------3
Power line cord, foot control ------------------------------3
Power/light switch-------------------------------------------3
Converting to free-arm sewing ----------------------------4
Presser foot lifter --------------------------------------------4
Reverse sewing lever ---------------------------------------4
Lowering the feed teeth-------------------------------------4
Seam guide lines---------------------------------------------5
Setting spool pins--------------------------------------------5
Winding the bobbin -----------------------------------------5
Removing or replacing the bobbin case------------------6
Threading the bobbin case ---------------------------------6
Changing the presser foot ----------------------------------6
Threading the machine -------------------------------------7
Using automatic needle threader -------------------------- 8
Drawing up bobbin thread----------------------------------9
Balancing top thread tension-------------------------------9
Needle, thread and fabric chart -------------------------- 10
Changing the needle -------------------------------------- 10
Pattern selector dial --------------------------------------- 11
Selecting stretch stitch patterns-------------------------- 11
Stitch length dial------------------------------------------- 11
Useful sewing tips----------------------------------------- 12
2. UTILITY STITCHES
Straight stitch ----------------------------------------------- 13
Zigzag stitch ------------------------------------------------ 14
Overedge stitch--------------------------------------------- 14
Multi-step zigzag stitch ---------------------------------- 15
Straight stretch stitch -------------------------------------- 15
Sewing buttons --------------------------------------------- 16
Buttonhole stitch ------------------------------------------- 17
Zipper application------------------------------------------ 18
Blind hem stitch-------------------------------------------- 19
3. DECORATIVE STITCHING
Picot hem stitch -------------------------------------------- 20
Stretch stitches --------------------------------------------- 20
Decorative satin stitch------------------------------------- 21
Honeycomb stitch / smocking---------------------------- 21
Rampart stitch ---------------------------------------------- 22
4. CARING FOR YOUR MACHINE
Dismantling and assembling shuttle race--------------- 23
Cleaning the feed teeth------------------------------------ 24
Oiling the machine----------------------------------------- 25
Oiling the connecting rod--------------------------------- 26
5. TROUBLE SHOOTING--------------------- 27

KNOWING YOUR SEWING MACHINE
2
Main parts
1. Stitch length dial
2. Pattern selector dial
3. Thread tension control dial
4. Face cover
5. Thread take-up lever
6. Thread guide
7. Bobbin winding tension disk
8. Carry handle
9. Spool pins
10. Small top cover
11. Hand wheel
12. Power cord inlet
13. Power switch
14. Reverse stitch lever
15. Front cover
16. Removable storage compartment
17. Bobbin winding stopper
18. Bobbin winding spindle
19. Thread knife
20. Removable storage compartment
21. Rear cover
22. Automatic needle threader
23. Needle threader thread guide
24. Needle bar thread guide
25. Presser foot screw
26. Needle
27. Presser foot
28. Needle plate
29. Feed teeth
30. Presser foot holder
31. Needle clamp screw
32. Press foot lifter

KNOWING YOUR SEWING MACHINE
3
Accessories
1. Bobbins (3pcs) *
2. Needle 3 pcs
3. Multi-function screwdriver
4. Ripper/Brush
5. Buttonhole foot
6. Hem guide for presser foot
7. Zipper foot
8. Button sewing foot
*Your machine uses SINGER® Class 15J transparent
bobbins. Use only this style of bobbin in your machine.
The foot that comes on your sewing machine is called all-
purpose foot and will be used for the majority of your
sewing.
Setting up your machine
Be sure to wipe off any surplus oil from needle plate area
before using your machine the first time.
Power line cord, foot control
Make sure that the sewing machine is turned off (the power switch is set
to “O”), and then connect the plug of the power line and into the power
cord inlet and your wall outlet.
Sewing speed can be varied with the foot control.
The harder you press on the control, the faster machine runs.
This appliance has a polarized plug (one blade wider than the other). To
reduce the risk of electric shock, this plug is intended to fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician to install the
proper outlet. Do not modify the plug in any way.
NOTE: When foot control is disconnected, the machine will
not operate.
CAUTION
Always disconnect the machine from power supply by removing
the plug from the wall-outlet.
Power/light switch
Your machine will not operate until the power/light switch is turned on. The same switch controls both the power and the light.
When servicing the machine or changing needles, etc., machine must be disconnected from the power supply.
Power/light
switch “OFF”
Power/light
switch “ON”

KNOWING YOUR SEWING MACHINE
4
Converting to free-arm sewing
Your machine can be used either as a flat-bed or as a free-arm model.
With the removable storage compartment
in position, it provides a large
working surface as a standard flat-bed model. To take off the
removable storage compartment, hold it firmly with both hands and
pull it off to the left as shown. To replace, slide the removable storage
compartment back into place until it clicks.
With the removable storage compartment off, the machine converts
into a slim free-arm model for sewing children’s clothing, sleeve
cuffs, trouser legs, and other hard-to-reach places.

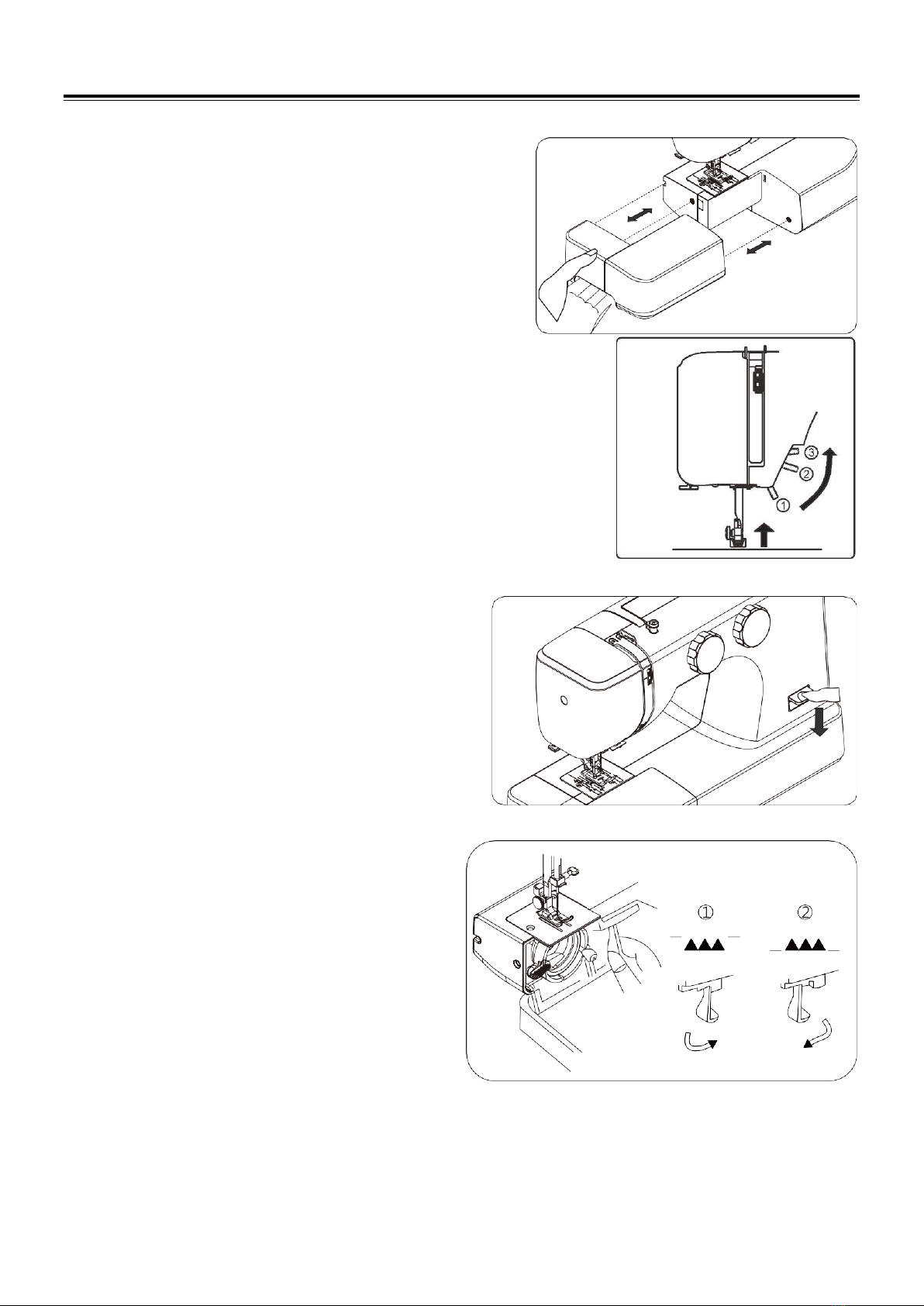

Presser foot lifter
There are three positions for your presser foot.
1. Lower the presser foot to sew.
2. Raise the lifter to the middle position to insert or remove fabric.
3. Lift it to its highest position to change the presser foot or to insert or remove
thick fabrics.
Reverse sewing lever
As long as you are pressing down this lever while
sewing, the machine will feed the fabric backwards.
Lowering the feed teeth
1. For lowering the feed teeth, press down lever and move it
to the direction of arrow as illustrated.
2. To raise the feed teeth, press
down the lever and move it to
the direction or arrow as illustrated. After moving the
lever, turn the hand wheel toward you one full revolution
to completely re-engage the feed teeth.
* Feed teeth must always be up for normal sewing.

KNOWING YOUR SEWING MACHINE
5
Seam guide lines
The numbers on the needle plate indicate the distance
between the center needle position and the various seam
guide lines.
The numbers in the front indicate in millimeters.
The numbers in the back indicate in inches.
Setting spool pins
The spool pins are used for holding the spool of thread in order to feed thread to the
machine.
To use, pull up the spool pin. Push down for storage.
Winding the bobbin
1. Place a spool of thread on the left spool pin. Pull the thread out
from the spool and place it through thread guide as shown in
illustration. Put end of thread through the hole in bobbin as
shown.
2. Push the bobbin winding spindle to far left position, if it is not
already there. Place bobbin onto the bobbin winding spindle with
end of thread coming from top of bobbin. Push bobbin winding
spindle to the right until it clicks. Hold onto end of thread.
3. Start machine. Bobbin will automatically stop turning when
completely filled. Push bobbin winding spindle to the left to
remove bobbin and cut thread.

KNOWING YOUR SEWING MACHINE
6
Removing or replace the bobbin case
1. Refer to page 4 to take off the removable storage compartment. Raise the needle by turning the hand wheel toward you, then
open the shuttle cover.
2. Take out bobbin case holding the latch.
3. When installing the bobbin case, the pin on the case should fit into the gap of the shuttle race.
CAUTION Be sure to disconnect the power supply before operating the machine.
Threading the bobbin case
1. Install the bobbin into bobbin case. Make sure the thread unwinds in the direction of arrow (clockwise).
2. Pull the thread into the groove in the bobbin case slot.
3. Now pull the thread under the tension spring and into the delivery eye.
NOTE: Leave about 10cm (4 inches) of the thread hanging out of the bobbin case. When you pull the thread, the
bobbin should spin clockwise.
Changing the presser foot
1. Turn the hand wheel toward you to raise the needle to its highest position. Raise the presser foot.
2. Press the lever on the back of the presser foot holder. The presser foot will drop off.
3. Place the presser foot so the pin on the foot lies just under the groove of the holder.
Lower the presser foot holder to lock the foot in place.
Gap

KNOWING YOUR SEWING MACHINE
7

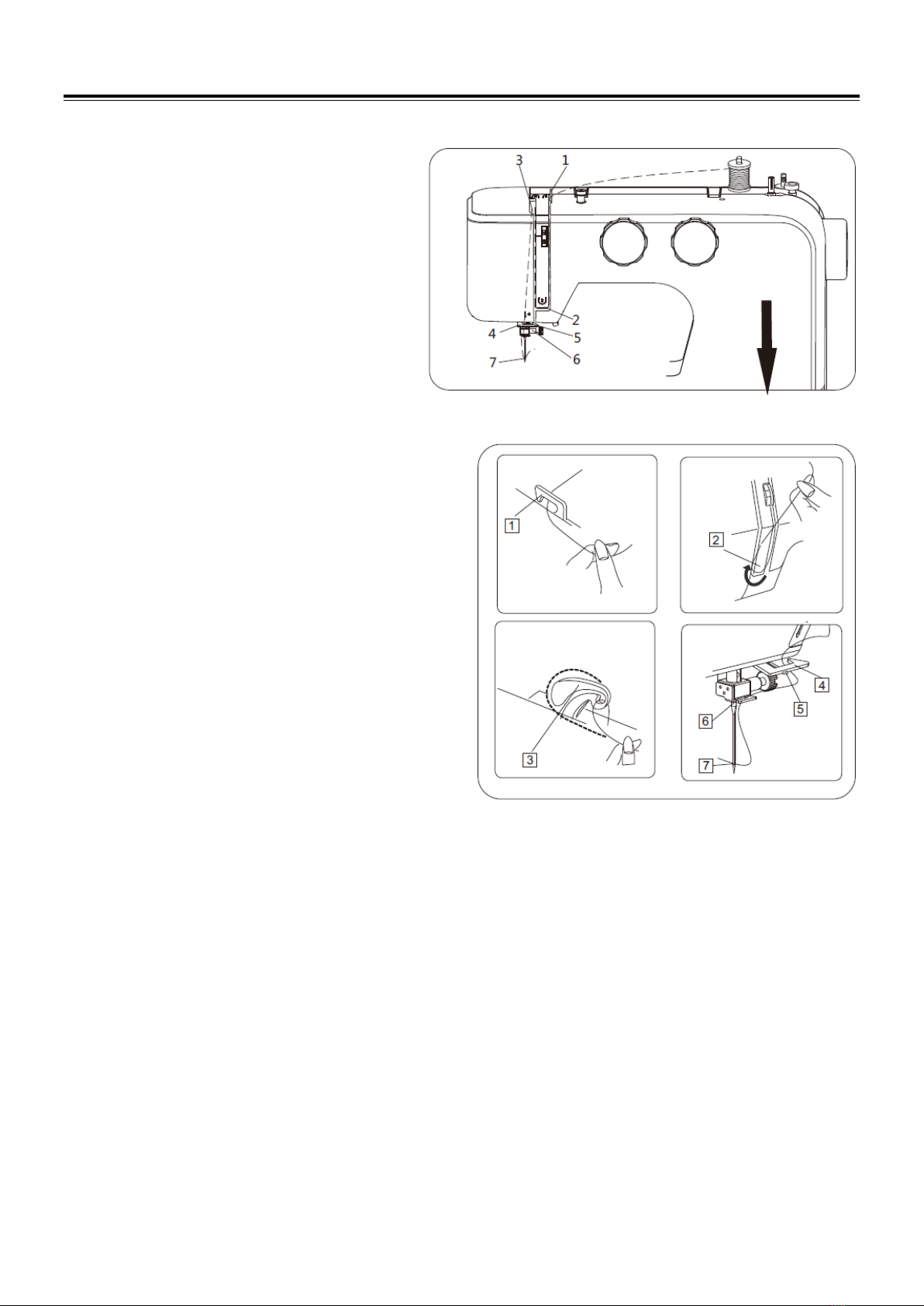

Threading the machine
Raise take-up lever to its highest position by turning
hand wheel toward you.
Raise the presser foot. It is very important to raise
the presser foot before you begin threading, or
correct thread tension cannot be obtained.
Place spool on spool pin as shown, with thread coming
from the back of the spool.
1. Draw thread into thread guide using both hands.
2. Draw the thread down into the tension area and around the
U-turn.
3. Firmly draw thread up and through take-up lever from
right to left.
4. Then draw thread down and slip it into the lower thread
guide.
5. Do not block the thread into double needle spring.
6. Draw thread down and slip it into needle bar thread guide.
7. Thread needle eye from front to back.
Note: Cut the thread end with sharp scissors for easier
needle threading.

KNOWING YOUR SEWING MACHINE
8
Using automatic needle threader
Raise the needle to its highest position by rotating the hand wheel towards you.
1. Hook thread to thread guide, as illustrated.
2. Pull down the lever while holding the end of thread.
3. Rotate the lever to the rear of the machine until the hook pin comes through the eye of the needle.
4. Guide thread into hook pin, in front of the needle, and lightly pull the thread upward.
5. Return the lever and needle will be threaded automatically, forming a small loop.
6. Release the lever and pull thread away from you until the thread tail is completely threaded.
NOTE: For smooth threading it is recommended you select straight stitching
when using the needle threader.
NOTE: Automatic needle threader is only applicable for all-purpose presser foot. Automatic needle
threader cannot be used for twin needles.

KNOWING YOUR SEWING MACHINE
9
Drawing up bobbin thread
Raise the presser foot and hold the needle thread lightly with your left hand.
Turn the hand wheel slowly towards you with your right hand until the
needle goes down and continue turning the hand wheel until the take-up
lever is at its highest position.
Lightly draw up the needle thread, forming a loop of the bobbin thread.
Pull 15cm (6 inches) of both threads back and under the presser foot.
Balancing top thread tension
The top thread and the bobbin thread should interlock in
the center of two layers of fabric in straight seams.
Set the desired number of the thread tension dial at
setting mark.
Tighten the needle thread tension by moving the dial to
a higher number.
Loosen the needle thread tension by moving the dial to
a lower number.
NOTE: In order to obtain better zigzag stitches, the top thread tension should be slightly looser than the bobbin
thread tension. That means the top thread should appear slightly on the reverse side of the fabric, but the
bobbin thread should not appear on the top side of the fabric.

KNOWING YOUR SEWING MACHINE
10
Needle, thread and fabric chart
Your fabric will determine the choice of a needle and thread. The following table is a practical guide to needle and thread
selection.
Always refer to it before a new sewing project. And be sure to use the same size and type of thread in the bobbin as in the top
thread supply.
Kind Fabric Threads Needle size
Light
Weight
Voile, Organza, Organdy,
Chiffon, Tricot
Fine Silk,
Fine Cotton,
Fine Polyester
9 or 12
Medium
Weight
Linen, Cotton,
Rayon, Wool
Double Knit
Cotton, Polyester,
All-Purpose 12 or 14
Heavy
Weight
Denim, Tweed, Gaba
rdine,
Canvas, Upholstery Fabric
Polyester, All-Purpose,
Topstitching
14 or16
CAUTION
Always disconnect the machine from power supply by removing the
plug from the wall-outlet.
Changing the needle
1. Raise the needle by turning hand wheel toward you and
lower the presser foot.
2. Rotate the needle clamp screw toward you (counter-
clockwise) to loosen the needle.
3. Remove the needle from the clamp.
4. Insert the new needle into the needle clamp with the flat
side away from you.
5. When inserting the needle into the clamp, push it up as far
as it will go.
6. Tighten the clamp screw clockwise firmly with the
screwdriver.
* Check your needles frequently for barbed or
blunted points.
Snags and runs in knits, fine silks and silk-like
fabrics are permanent and are almost always caused
by damaged needle.
NOTE: Tighten snugly, but do not over tighten.
Helpful Hint: Placing a scrap of fabric under the presser foot and
lowering the presser foot makes it easier to change the needle and will
preclude dropping the needle into the needle plate slot.
Change the needle often. As a general rule,
needles, should be changed every 6-8 hours of
actual stitching time.

KNOWING YOUR SEWING MACHINE
11
Pattern selector dial
Select the desired pattern at the setting mark by turning the pattern selector dial.
Selecting stretch stitch patterns
When sewing stretch stitches, set the stitch length dial at “SS”.
When forward and reverse feeds become unbalanced depending upon the type of fabric, correct as follows.
When patterns are compressed, correct it by turning the dial toward “+”.
When patterns are drawn out, correct it by turning the dial toward ”-”.
Stitch length dial
The higher the number, the longer the stitch length. Note: when set to “0”, the machine will not feed the fabric.

KNOWING YOUR SEWING MACHINE
12
Useful sewing tips
Various ways to achieve better sewing results are described below. Refer to these tips when sewing.
1. Trial sewing
Use different stitch width and length for trial sewing. When you have finished, select the best looking stitch length for
correct sewing.
For the trial sewing, use a piece of fabric and thread that are the same as those used for your project, and check the thread
tension and stitch length. Since the results differ depending on the type of stitching and the number of fabric layers sewn,
perform the trial sewing under the same conditions that will be used with your project.

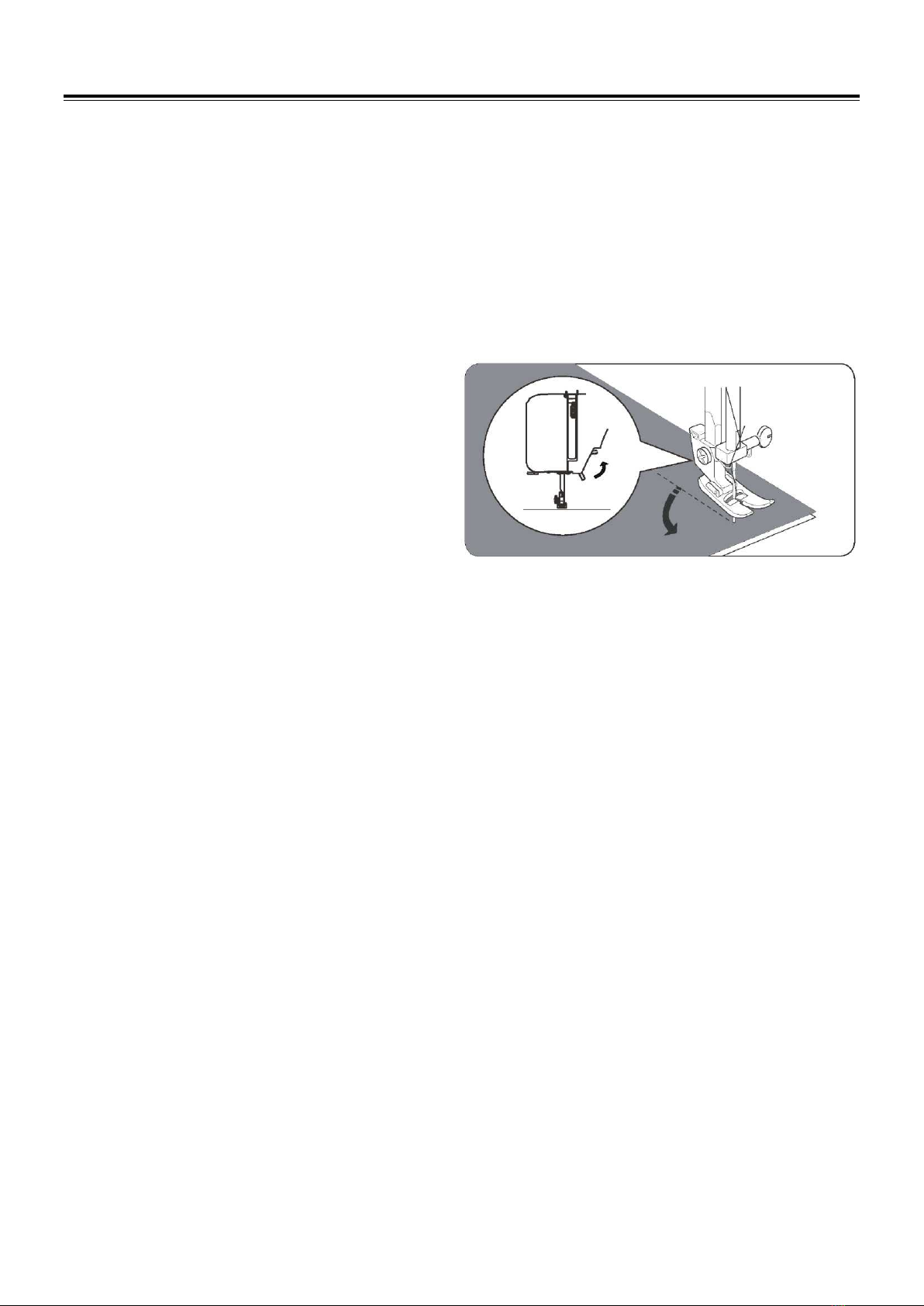

2. Changing the sewing direction
Stop the machine and turn the hand wheel toward you to
bring the needle down into the fabric. Raise the presser
foot.
Pivot the fabric around the needle to change sewing
direction as desired. Lower the presser foot and continue
sewing.
3. Sewing curves
1). Stop sewing, and then slightly change the sewing direction to sew around the curve.
2). When sewing along a curve while using a zigzag stitch, select a shorter length in order to obtain a finer stitch.
4. Sewing thick fabrics
If the fabric does not fit under the presser foot
Raise the presser foot even higher to bring the presser foot to its highest position. Then place the fabric under the presser
foot. (See page 4 to raise the presser foot.)
5. Sewing elastic fabric or the fabric that is easy to cause skipping stitches
Use ball point needle and longer stitch length. If necessary, add a layer of stabilizer under the fabric for better sewing.
6. Sewing thin fabric or silk
Some fine fabrics, such as silk, can be slippery and more difficult to handle. It can be helpful to place a lightweight
stabilizer underneath the fabric for easier sewing.
7. Sewing stretch fabrics
First, baste the fabrics together, and then sew without stretching the fabric.
8. Free arm sewing
When sewing trousers, sleeve cuffs or other hard-to-reach areas, use the free-arm sewing function (for details about setting
the machine for free-arm sewing, refer to page 4).

UTILITY STITCHES
13

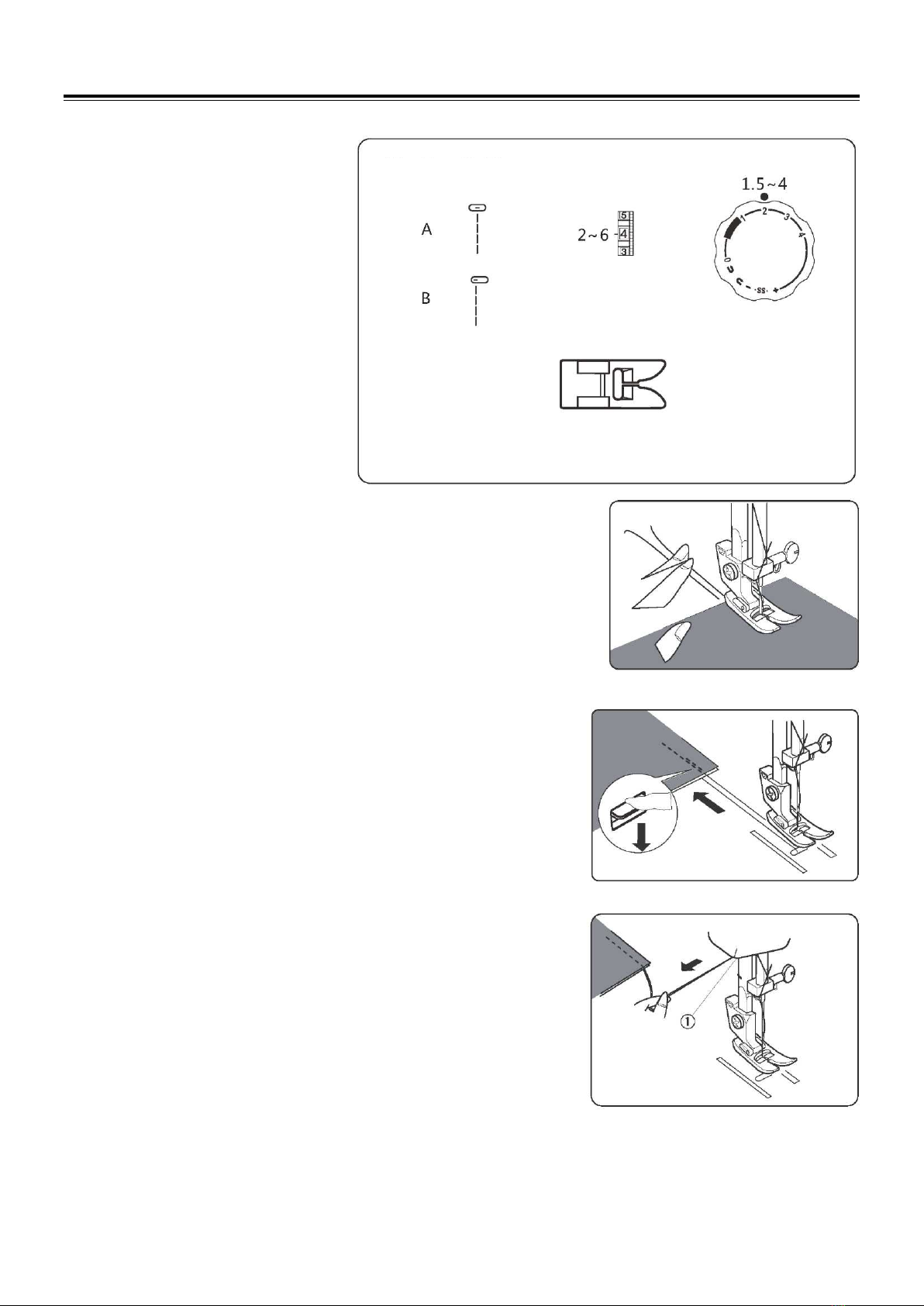

Straight stitch
Raise the presser foot and position the fabric next to a stitching guide line on
the needle plate.
Lower the needle into the fabric.
Lower the presser foot and smooth the thread towards the back. Depress the
foot control.
Gently guide the fabric along the guide line letting the fabric feed by itself.
For securing the ends of seams, press the reverse stitch lever and sew several
reverse stitches.
Raise the presser foot and remove the fabric, drawing the threads to back.
The threads are cut the proper length for starting the next seam.
Machine Setting

UTILITY STITCHES
14
Zigzag stitch
Simple zigzag stitching is widely used for overcasting, sewing on buttons, decorative stitching, etc.
The zigzag stitch can also be used on the seam allowance to prevent fabrics from fraying at raw edges.
Overedge stitch
Overedge stitch will be done most successfully when the right side stitches of zigzag fall slightly off the edge of the fabric.
Machine Setting
Machine Setting
Machine Setting

UTILITY STITCHES
15
Multi-step zigzag stitch
To help prevent fabrics from unraveling, place the fabric
under the presser foot so the right-hand side of the stitches
falls at the edge of the fabric.
This stitch can also be used for elastic insertion, decorative
stitching, and more.
Straight stretch stitch
The stitch is sewn with two stitches forward and one stitch
backward forming a seam that does not rip easily.
Machine Setting
Machine Setting

UTILITY STITCHES
16

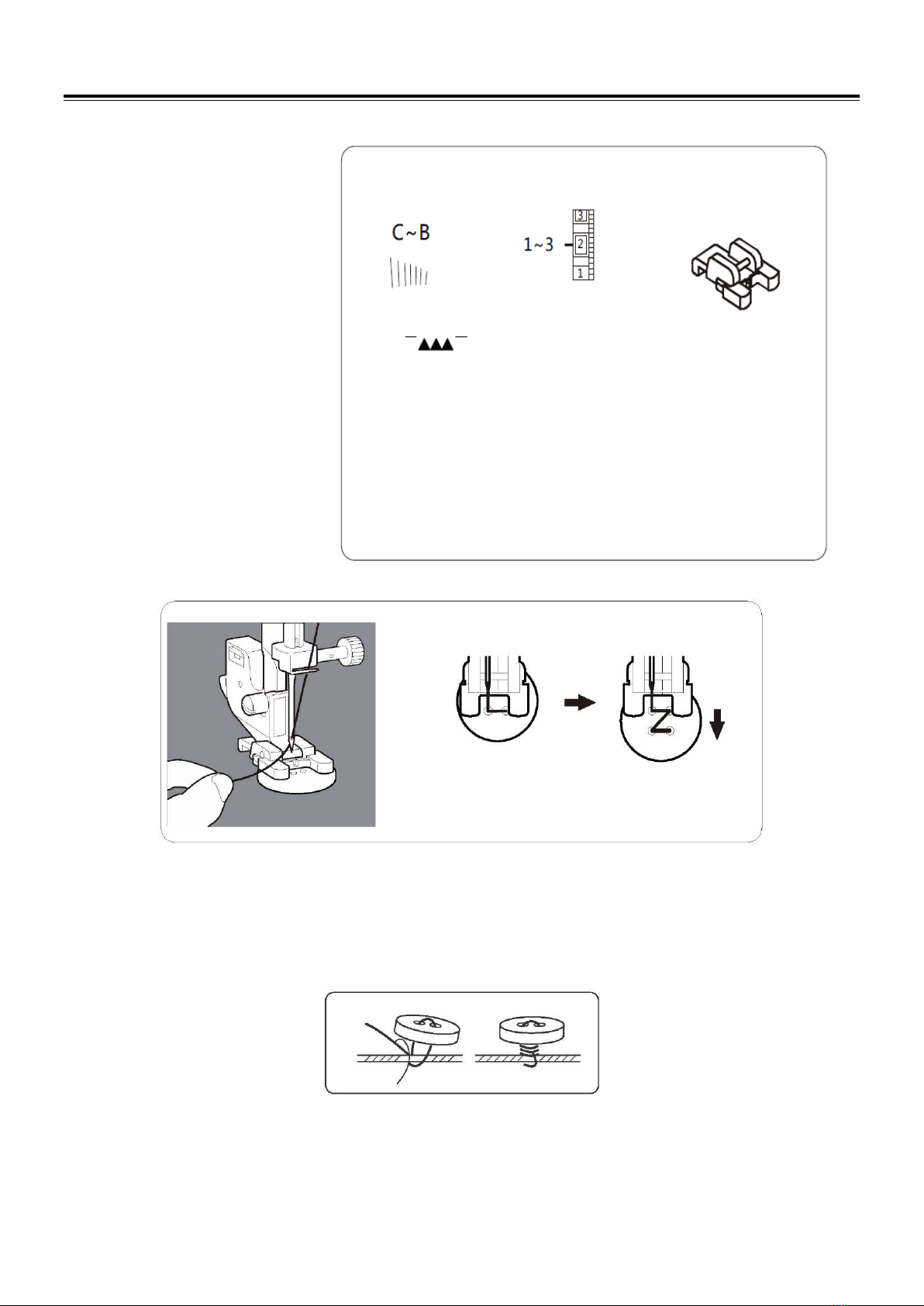

Sewing buttons
Position your fabric and button under the presser foot. Lower presser foot. Turn the handwheel to make sure needle
clears both left and right openings of button. Sew 10 stitches across.
When attaching four-hole buttons, first sew the two holes closest to you. Then, slide the button so that the needle
goes into the two holes toward the rear of the sewing machine, and then sew them in the same way.
To secure thread, cut the upper thread with 25cm of excess, wind it around the thread between
the button and the fabric, and then tie it securely.
Machine Setting
Lower the feed teeth
NOTE: 1. Lower the feed teeth (refer to page 4).
After you finish sewing, set drop feed lever to
original position, and turn the handwheel one full turn
to re-engage feed teeth.
2. You do not have to adjust the stitch length dial.
