Sinilink XY-T100H User manual

1/ 18
Sinilink XY-T100H Bluetooth 5.0 with front
high and low tuning stereo digital power
amplifier module 100W
Of Contents
Sinilink XY-T100H Bluetooth 5.0 with front high and low tuning stereo digital power
amplifier module 100W..........................................................................................................................1
Of Contents .........................................................................................................................................................1
1.Comparison of T100H and T100L.............................................................................................................4
2. Multi-function main knob..........................................................................................................................5
3.Knob cap accessory description................................................................................................................6

2/ 18
4.Feature introduction......................................................................................................................................7
5.Nude plate construction ..............................................................................................................................8
6.Installation schematic diagram..................................................................................................................9
7.Product shipping list .................................................................................................................................. 10
8. Product size ................................................................................................................................................. 11
9.Product parameter table........................................................................................................................... 12
10. Product display......................................................................................................................................... 13
11.Notes for product use............................................................................................................................. 14
11.1 Heat sink installation ....................................................................................................................... 14
11.2 Audio input mode switch............................................................................................................... 14
11.3 Power supply selection................................................................................................................... 14
11.4 Hororn selection ............................................................................................................................... 14
11.5 Signal problem .................................................................................................................................. 15
12.How to connect your mobile phone to Bluetooth ........................................................................ 15
13.How to download a mobile APP ......................................................................................................... 16
14.How to connect to your cell phone APP........................................................................................... 17

3/ 18

4/ 18
1.Comparison of T100H and T100L

5/ 18
2. Multi-function main knob

6/ 18
3.Knob cap accessory description

7/ 18
4.Feature introduction

8/ 18
5.Nude plate construction

9/ 18

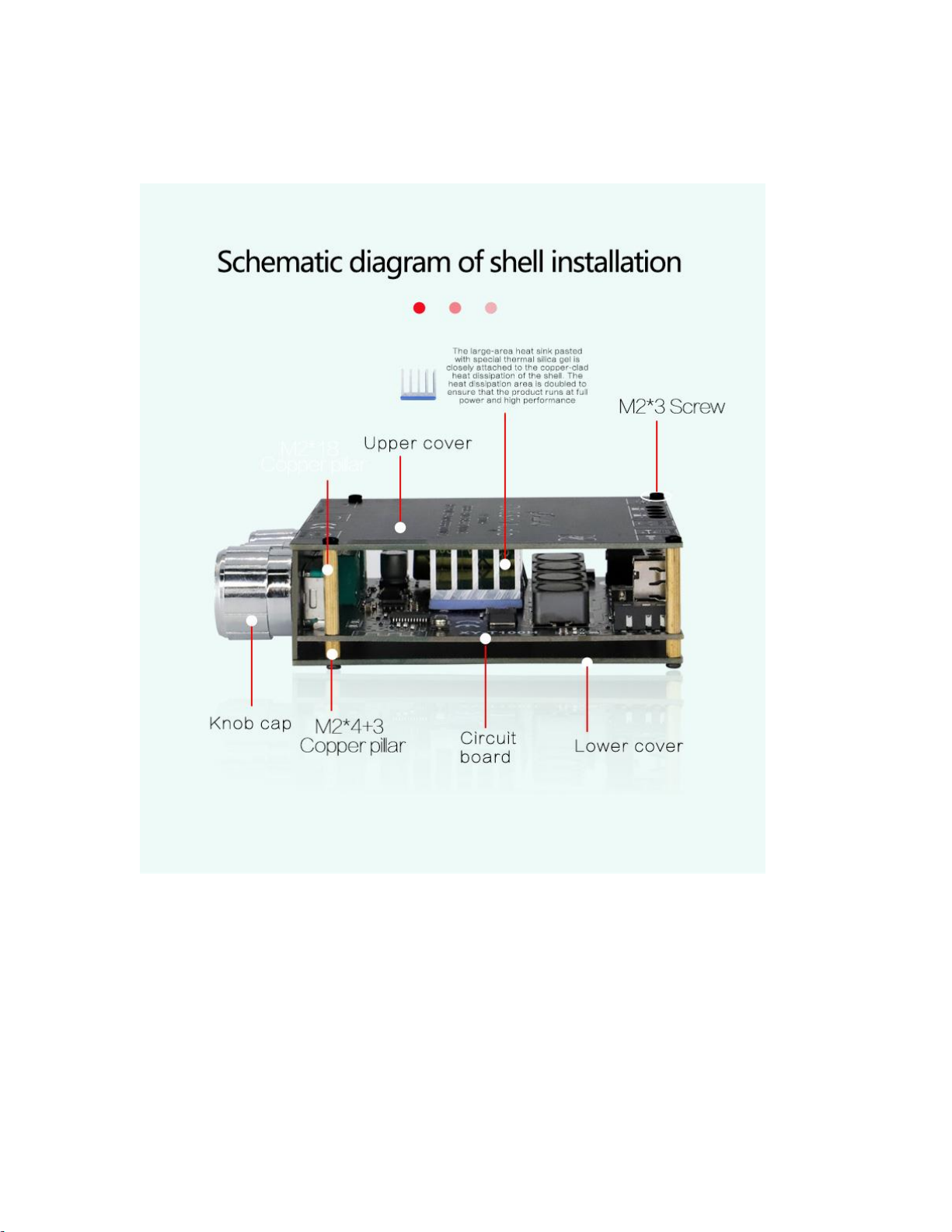

6.Installation schematic diagram

10 / 18

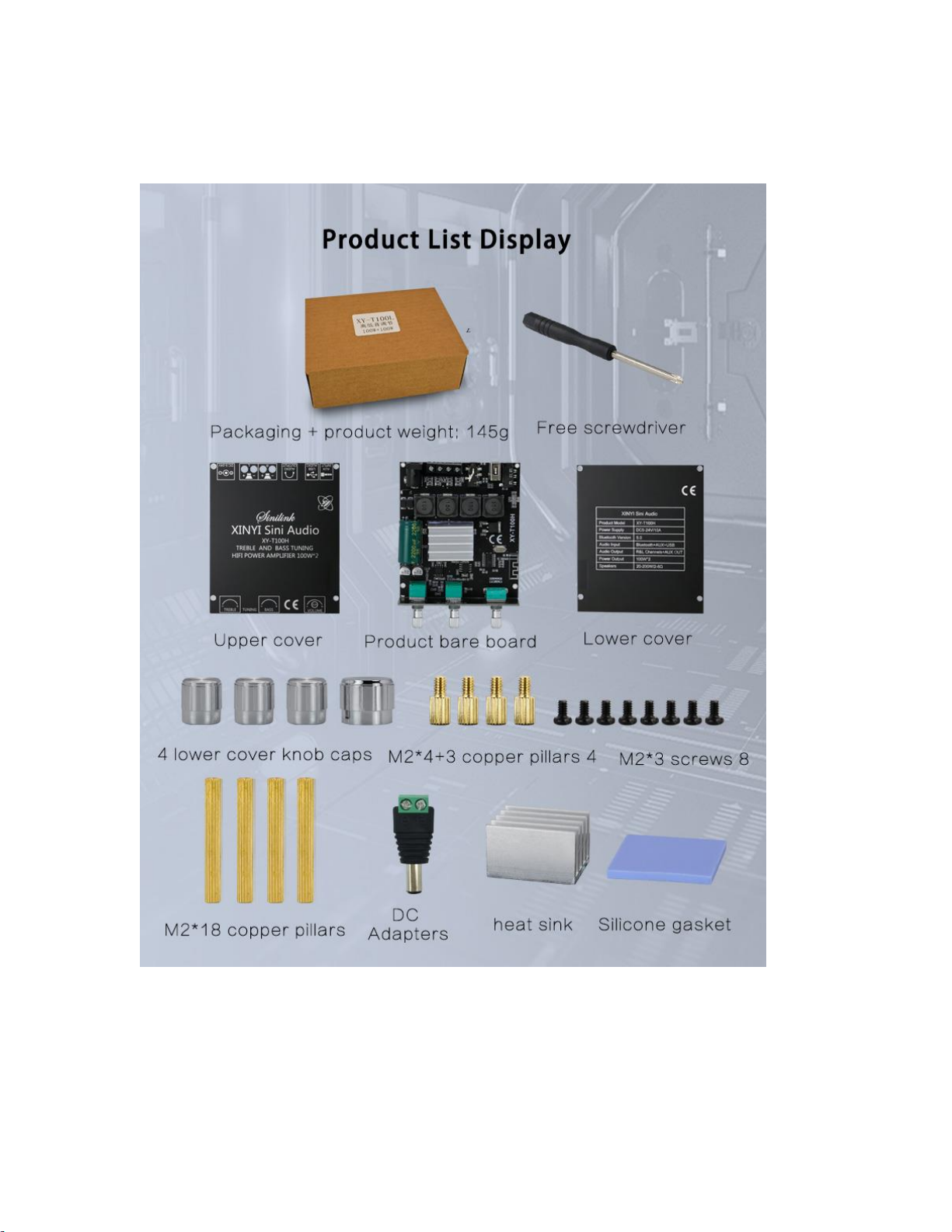

7.Product shipping list

11 / 18

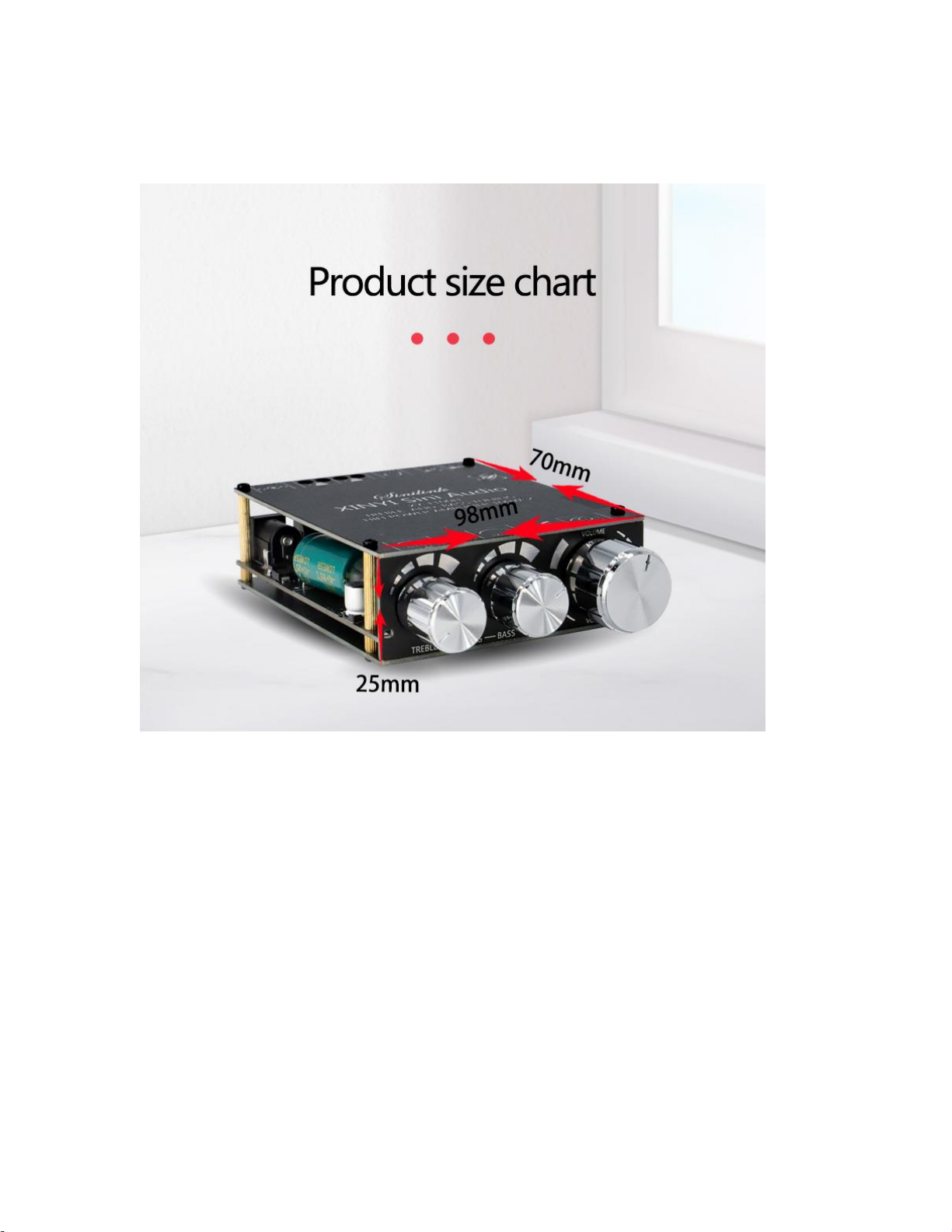

8. Product size

12 / 18

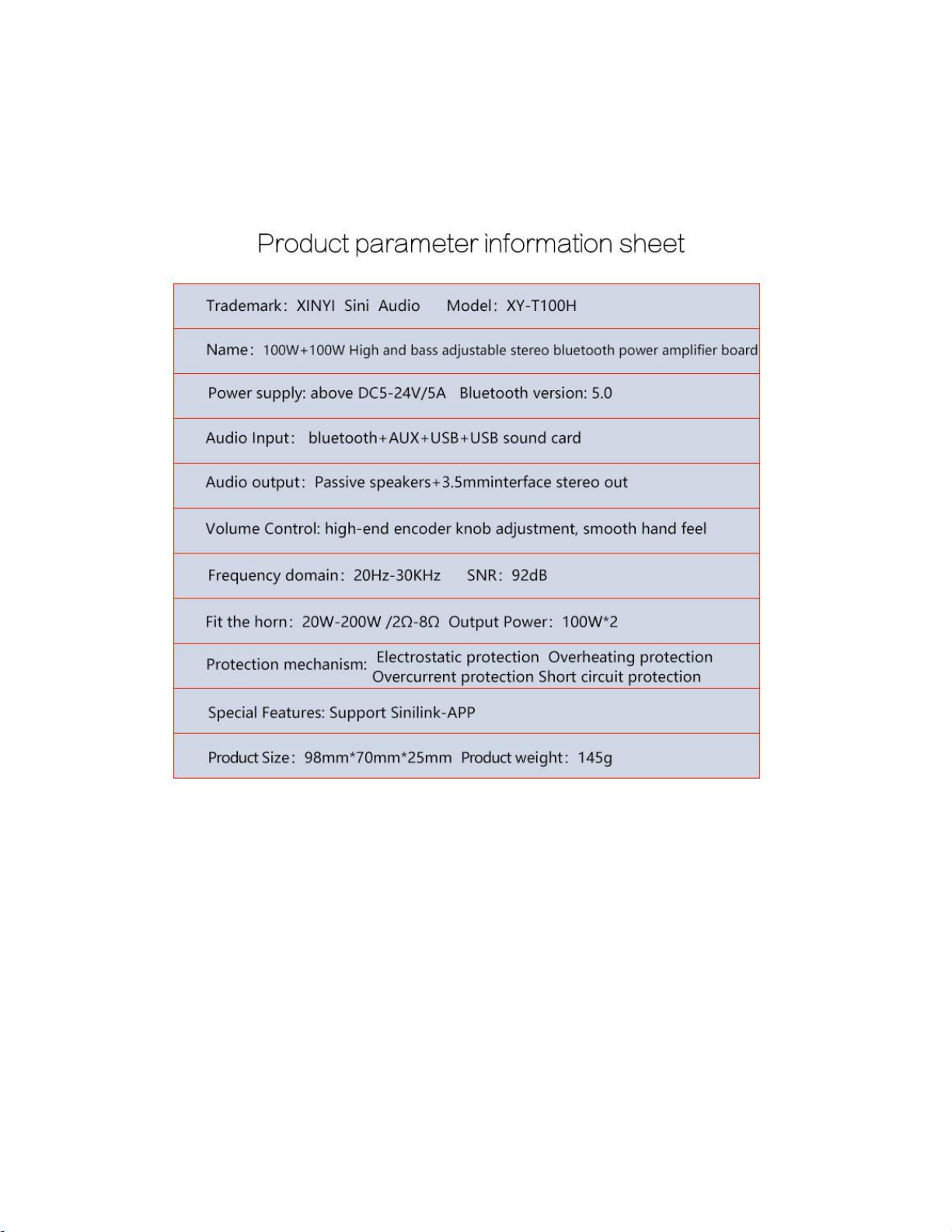

9.Product parameter table

13 / 18

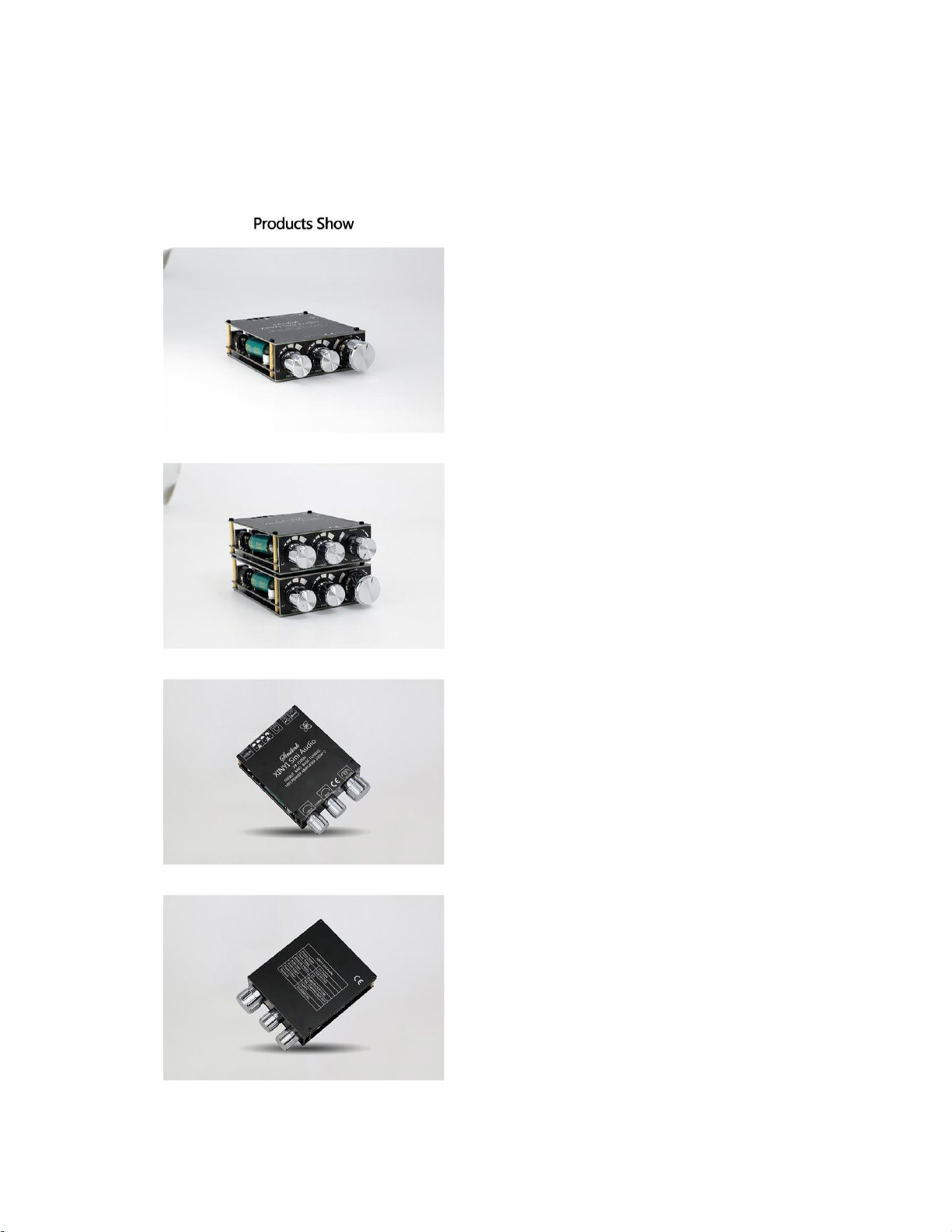

10. Product display

14 / 18
11.Notes for product use
11.1 Heat sink installation
During assembly, we must pay attention to the installation of the heat sink, stick the silicon
gel to the radiator, and then stick the silicone side to the amplifier chip; note that the radiator
metal shell must not contact with the surrounding components to avoid short circuit; finally, the
top plate press the heat sink, through the top plate to achieve better heat dissipation effect.
11.2 Audio input mode switch
This product default Bluetooth mode without any external audio device; if the external
playback device is inserted into AUX or U disk, the default is AUX or U disk play mode;
follow the priority, such as inserting AUX, during Bluetooth playback, immediately switch
to AUX playback; if inserting U disk, immediately switch to U disk play; switching audio
mode can also choose with APP, which is very convenient.
When the AUX plays, try to choose the AUX cable with the shielding layer to reduce the noise. If
used with the desktop computer, try to use the AUX output interface behind the
computer host, and the AUX output in front of the computer may have noise.
U disk playback to use MP3 format as possible, WAV format sampling rate must be within
44100Hz, too high sampling rate may lead to not playback.
When using the USB sound card function, you can connect the computer with the USB data
cable without installing any drive. Most computer systems will switch the USB sound card
by default. If you cannot switch automatically, you can manually choose to switch.
11.3 Power supply selection
1）Power supply range 5-26VDC, compatible with standard 5.5-2.1/2.5 power adapter plug,
recommended 12V/24V standard power adapter, current output above 10A.
2）The selection of power size is related to the horn power used, such as using 2 Ω/ 100W
horn power not exceeding 20V; using 4 Ω/ 50W horn, power not exceeding 21V, using
8 Ω/ 50W horn, and power supply not more than 24V.
3）The supply voltage must not be higher than 26V, and higher than 26V, circuit board is
burned.
4）If the volume is increased during the playback process, the power amplifier board is
restarted, which is caused by insufficient power supply, and you can replace the power
supply with a larger output current.
11.4 Hororn selection
This product power amplifier can continuously output 100W*2 of power, 20W~200W horn can
be promoted, using 8 ohms or 4 ohm horn is recommended. If the power is within 100W,

15 / 18
appropriately reduce the supply voltage (e. g. 12V power) or reduce the playback volume; the
greater the horn supply voltage greater than 100W, the better (within 26V).
If the music horn appears "hiccup" phenomenon, the first consider the lack of power supply, a
larger power supply to use power supply; the second consider the power spare heat protection,
strengthen heat dissipation or reduce the playback volume.
If multiple horns are used in parallel, be sure that the total impedance after the horn in parallel is
controlled above 2 ohms, too small impedance, the power amplifier is easy to enter the
overcurrent protection state.
11.5 Signal problem
1）This product uses a PCB antenna with the visible distance of 15 m without shielding. If
you do not find Bluetooth, or connect to Bluetooth, it is a signal problem.
2）Stay away from the router when used.
3）Avoid use on metal tops, which will affect the PCB antenna signal
4）Modify the speaker, if it is a metal shell, be sure to put the antenna out of the shell, the
metal will shield the signal.
12.How to connect your mobile phone to
Bluetooth

16 / 18
Make sure that Bluetooth enters Bluetooth connection mode-blue LED flash, AUX do not insert,
can not enter Bluetooth connection state after insertion
Search for Bluetooth on the mobile phone, found "complete the connection after XINYI", click,
accompanied with the prompt sound. After the successful connection, the LED enters the long
beam state, open the mobile phone music software to play music, blue LED flash, enter the
playing state;
When the phone searches for Bluetooth, come out. "Sinilink-APP", don't connect this Bluetooth
here, this is connected inside the APP. If connected, please cancel the pairing and search again,
otherwise it will cause you unable to connect inside the phone APP.
13.How to download a mobile APP
Scan the code to download APP, foreign customers please download in Google Market,hunt for
‘sinilink’download.

17 / 18
14.How to connect to your cell phone APP
