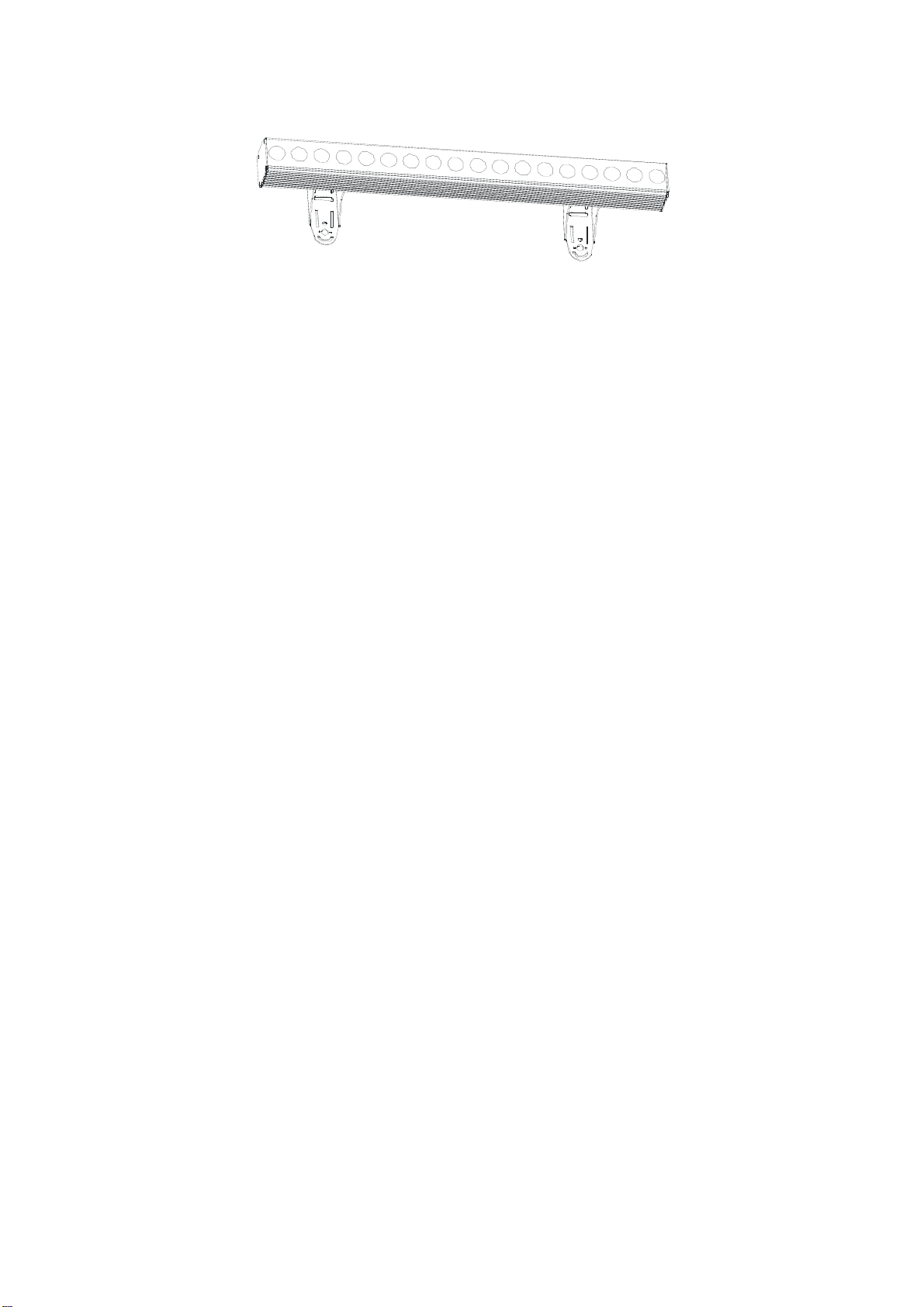

SINUS Powerline 18 Q4W RGBW User manual

Powerline 18 Q4W RGBW
User Instruction
Thank you for purchasing this product. For your own safety, please read this user manual carefully
before you initially start-up
SAFETY INSTRUCTIONS
◆ Every person involved with the installation, operation and maintenance of this device has to :
-be qualified
-follow the instructions of this manual
◆CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous
electric shock when touching the wires!
◆This device has left our premises in absolutely perfect condition. In order to maintain this
condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
◆Important: Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
◆Keep away from heaters and other heating sources!
◆If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch
it on immediately. The arising condensation water might damage your device. Leave the device switched off
until it has reached room temperature.
◆Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the
power-cord from time to time.
◆If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
◆Shields, lenses or ultraviolet screens shall be changed if they have become visibly damaged to such an
extent that their effectiveness is impaired, for example by cracks or deep scratches.
◆Never let the power-cord come into contact with other cables! Handle the power-cord and all connections
with the mains with particular caution!
◆Make sure that the available voltage is not higher than stated in this manual.
◆Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power-cord by the plug. Never pull out the plug by tugging the power-cord
◆During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
◆DANGER OF BURNING! Never touch the device during the operation! The housing heats up to the
housing temperature TSURFACE.
◆Don't switch the device on and off in short intervals as this would reduce the lamp's life
◆HEAL TH HAZARD! Never look directly into the light source, as sensitive persons may suffer an
epileptic shock (especially meant for epileptics)!

◆Always disconnect from the mains, when the device is not in use or before cleaning it
◆Please note that damages caused by manual modifications on the device or unauthorized operation by
unqualified persons are not subject to warranty.
◆Keep away children and amateurs from the device!
◆There are no serviceable parts inside the device. Maintenance and service operations are only to be
carried out by authorized dealers
Function test
(1) This system has DMX Online mode and Stand-alone Mode. Online mode can link other
units and be controlled by the DMX controller. And Stand-alone Mode has the functions of
Sound, Auto Mixcolor and Strobe and so on.
（2）If the slave links up master and also connects DMX contrloller, the master can identify automatically
and turn off the function of sending data from master, the slave receives signals from DMX controller
（3）When there is no DMX signals to connect under DMX mode, the menu will show “HIGHLITE NO DMX
SIGNAL!”，while there is DMX signals to connect,the menu will back to the original state.
(4）The unit has the function of automatically saving present state,and under power off it will run the last
mode when re-turn on.
Function descrition
Display:
LCD
1 MODE ：select LED mode,detail see figure 1
2 UP ：select DMX address,program speed and dimmer value clockwise direction
3 DOWM ：select DMX address,program speed and dimmer value counter-clockwise direction
LCD display and function description
Mode LCD display Operation
Turn on
display
HIGHLITE
SoftWare V 1.0
When turn on it will show HIGHLITE SoftWare V 1.0
On all the
time
1 DispPerm
BackLight on
LCD is on all the time
displa
y
mode Auto turn off 1 DispPerm
BackLight off
LCD will turn off automatically after running 10s,under this
position,any key has no function.it can turn on by pressing any key
for 3s.

4 CH 2 DMX-4Channels
DMX address ***
***--DMX address (1~512)
CH1(R)/CH2(G)/CH3(B)/CH4(W)
6 CH
2 DMX-6Channels
DMX address *** ***--DMX address (1~512) CH1(R)/CH2(G)/CH3(B)/CH4(W)/CH5(MACRO)/CH6(DIMMER)
8 CH 2 DMX-8Channels
DMX address *** ***--DMX address (1~512)
CH1(R1)/CH2(G1)/CH3(B1)/CH4(W1)/CH5(R2)/CH6(G2)/CH7(B2)/CH8(W2)
12 CH 2 DMX12Channels
DMX address ***
***--DMX address (1~512)
CH1(R1)/CH2(G1)/CH3(B1)/CH4(W1)/.../CH9(R3)/CH10(G3)/CH11(B3)/CH12(W
3)
24 CH 2 DMX24Channels
DMX address ***
***--DMX address (1~512)
CH1(R1)/CH2(G1)/CH3(B1)/CH4(W1)/.../CH21(R6)/CH22(G6)/CH23(B6)/CH24(
W6)
36 CH 2 DMX36Channels
DMX address *** ***--DMX address (1~512)
CH1(R1)/CH2(G1)/CH3(B1)/CH4(W1)/.../CH33(R9)/CH34(G9)/CH35(B9)/CH36(
W9)
DMX
mode
72 CH 2 DMX72Channels
DMX address *** ***--DMX address (1~512)
CH1(R1)/CH2(G1)/CH3(B1)/CH4(W1)/.../CH69(R18)/CH70(G18)/CH71(B18)/CH
72(W18)
Fixed color
mode
3 Color Macro
Macro Mode
**
**-44 colors (0~43)
43 kinds of fixed colors +0 Black
Mo
de
4 Color Program
Program **
*-- preset 6kinds of programs(1~6)
You can change preset 6kinds of programs via Up/Down key
Progra
m
regulat
io
n
sp
ee
d
5 Color Speed
Speed **
**--program speed(1~16),so16:fastest,so:sound control program
Change program speed and sound control via Up/Down key.
R 6 Single Color
Red ***
***--static red lux regulation(0~255)
Change lux values via Up/Down key(0:off,255:light)
G 6 Single Color
Green ***
***-- static green lux regulation(0~255)
Change lux values via Up/Down key(0:off,255:light)
B 6 Single Color
Blue ***
***-- static blue lux regulation(0~255)
Change lux values via Up/Down key(0:off,255:light)
Manua
l
Patter
n
Or
Host
Send
out
Patter
n
Single
lux
regulat
io
n
W6 Single Color
White ***
***-- static White lux regulation(0~255)
Change lux values via Up/Down key(0:off,255:light)
Boot time 7 Fixture Hours
***** h Lamp starting time
Unit: HR
s

Technical Specificatiion
Voltage input：AC 100-240V 47-63Hz (230V 50Hz 0.67A)
Consumption：131W
Dimension(L×W×H): L1008×W210 ×H 207mm
Weight: 8.5Kg
Fuse: T3.5 AL 250V
Macro mode
R G B W R G B W
black 0 0 0 0 macro mode22 128 255 192 0
macro mode1 0 0 128 0 macro mode23 128 255 255 0
macro mode2 0 0 192 0 macro mode24 255 0 0 0
macro mode3 0 0 255 0 macro mode25 255 0 128 0
macro mode4 0 128 0 0 macro mode26 255 0 192 0
macro mode5 0 128 128 0 macro mode27 255 0 255 0
macro mode6 0 128 192 0 macro mode28 255 128 0 0
macro mode7 0 128 255 0 macro mode29 255 128 128 0
macro mode8 0 255 0 0 macro mode30 255 128 192 0
macro mode9 0 255 128 0 macro mode31 255 128 255 0
macro mode10 0 255 192 0 macro mode32 255 255 0 0
macro mode11 0 255 255 0 macro mode33 255 255 128 0
macro mode12 128 0 0 0 macro mode34 255 255 192 0
macro mode13 128 0 128 0 macro mode35 255 255 255 0
macro mode14 128 0 192 0 macro mode36 255 0 0 255
macro mode15 128 0 255 0 macro mode37 0 255 0 255
macro mode16 128 128 0 0 macro mode38 0 0 255 255
macro mode17 128 128 128 0 macro mode39 0 0 0 255
macro mode18 128 128 192 0 macro mode40 255 255 0 255
macro mode19 128 128 255 0 macro mode41 255 0 255 255
macro mode20 128 255 0 0 macro mode42 0 255 255 255
macro mode21 128 255 128 0 macro mode43 255 255 255 255
