Siqens Ecoport 800 User manual
Quick Guide
SIQENS Ecoport
1
Quick Guide for First Installation
The quick guide only describes the initial installation of the SIQENS
Ecoport using the operating panel.
A service technician needs to install the Ecoport first.
This quick guide does not replace the operating
manual, which is part of the delivery.
You will find further information and safety
information in the attached operating manual.
For a video on the setup, installation, and initial
operation, please visit the following link:
https://youtu.be/-Hni8jyLYpo
Quick Guide
2
Safety information
Symbols and notices
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could result in
death or serious injury.
Indicates a hazardous situation that, if not avoided, could result in
minor or moderate injury.
Indicates information considered important but not hazard related.
General safety instructions
DANGER DUE TO BLOCKED OR LEAKING EXHAUST PASSAGES
Exhaust air may contain carbon monoxide. Carbon monoxide is a
colorless, odorless, and tasteless toxic gas. Poisoning from carbon
monoxide can cause significant health discomfort, unconsciousness,
and even death.
The Ecoport must never be operated without an exhaust system in a
house or garage, even if doors and windows are open.
The exhaust system must always have a connection to the outside.
.
DANGER
WARNING
CAUTION
NOTICE
DANGER
SIQENS Ecoport
3
FIRE OR EXPLOSION HAZARDS
Failure to comply with safety instructions may result in danger to
persons or even death and property damage
ELECTRIC SHOCKS
The Ecoport generates electrical energy which, if misused, can
lead to electric shocks.
The exhaust air of the unit may contain components that
are harmful to health! Do not inhale exhaust air directly or
permanently, but vent it to the outside.
Do not smoke when handling the SIQENS fuel cell or the
QE Charge methanol cartridges. Keep away from any heat
and ignition sources.
Methanol is highly flammable! Please observe the
methanol safety data sheet.
The SIQENS Ecoport and SIQENS QE Charge methanol
cartridges must be kept away from children - even when
completely or partially empty.
The Ecoport and the SIQENS QE Charge methanol
cartridge must not be opened without prior consultation
with SIQENS. Modifications to the device compromise
safety and will result in the loss of warranty and
guarantee.
DANGER
WARNING
Quick Guide
4
The fuel cell may only be installed by trained specialists or a
SIQENS service technician.
The Ecoport must not be tilted when filled, otherwise damage
to the device may occur.
Improper use or improper connection to other electrical
equipment may cause damage.
When connecting the power cables, make sure that the
polarity is correct.
The Ecoport must be operated, stored, and transported in a
horizontal position.
The SIQENS fuel cell is not waterproof! Make sure that the
device is installed in a water protected surrounding.
Do not operate and store SIQENS fuel cell and SIQENS QE
Charge methanol cartridges at temperatures above 50°C.
Observe the safety instructions in the operating manual.
Follow all instructions in the operating manual. Keep the
operating instructions with the device.
Modifications endanger safety and lead to the loss of the
operating permit, the expiration of the warranty and the
guarantee.
Only use original SIQENS components and accessories.
Protect Ecoport and QE Charge methanol cartridges from
heat and direct sunlight.
CAUTION
NOTICE
SIQENS Ecoport
5
Operate the SIQENS fuel cell in compliance with the
installation instructions and an exhaust system with
connection to the outside.
Safety instructions for handling methanol
Highly flammable liquid and vapor. (H225) Toxic if
swallowed, contact with skin or inhalation. (H301 + H311
+ H331) Causes damage to organs. (H370). Use only
undamaged containers with suitable terminals with
SIQENS fuel cell. Follow operating instructions. IF
SWALLOWED: Immediately call a NATIONAL POISONS
INFORMATION SERVICE. (UK (00 44) (1 71) 6 35 - 91 91 ).
Keep away from heat, hot surfaces, sparks, flames and
other ignition sources. Do not smoke. (P210) Take
precautionary measures against static discharge. Do not
inhale vapor. (P260)) Store in a cool, well-ventilated place.
Keep container tightly closed. (P403 + P233). Do not open
or empty the cartridge by force. Dispose of empty
containers in accordance with current regulations. Protect
from temperatures > 50 ° C or direct sunlight. Do not
leave in a parked car in hot climates. Store and transport
upright. Fuel cell cartridge intended for single use only.
Sale only to authorized persons over 18 years.
NOTICE
DANGER
Quick Guide
6
Methanol is highly flammable! You can obtain methanol in
safe, tested QE Charge methanol cartridges, which protect
against leakage in intended use. Storage and transport may
be subject to changes in legal regulations.
Methanol is toxic by inhalation, in contact with skin, and if
swallowed. In case of direct contact, accidents, or
discomfort, consult a physician immediately and display the
QE Charge methanol label, the Methanol Safety Data Sheet,
or the instruction manual.
CONTAMINED METHANOL
The original QE Charge methanol cartridges contain
methanol that has been approved by SIQENS for usage with
the Ecoport. Contamination or impurities in the methanol
may cause irreversible damage to the unit and void the
warranty or guarantee.
Only use methanol according to the specified purity level in
the data sheet.
When using the Ecoport and the QE Charge methanol
cartridge properly, there is no risk of exposure to methanol
at any time.
WARNING
CAUTION
NOTICE
SIQENS Ecoport
7
Safety instructions for handling batteries
In case of emergencies, work on electrical systems and batteries
should only be conducted if there is another person present.
The following points must be observed in addition to the instructions of the battery
manufacturer.
ACID BURN
Keep soap and water ready in case battery acid comes in direct
contact with skin.
Wear eye protection and protective clothing. Do not touch your
eyes while working on batteries.
Wash off acid splashes on the skin or clothing with plenty of soap
and water.
If acid gets into your eyes, rinse immediately with clean water until
no more burning is felt. Seek medical help immediately.
EXPLOSION
Do not smoke near or around the batteries.
No open fire. Danger of explosion in the vicinity of the battery.
BURNING
Do not wear a bracelet or watch during installation. Short circuit of
the battery can be generated resulting in skin burns
DANGER
NOTICE
Quick Guide
8
Only use cycle-resistant, deep-discharge capable batteries, no
starter batteries.
Never charge frozen batteries.
Avoid short-circuits.
Ensure good ventilation of the battery to dissipate any gases.
Carefully lay the battery connection cable and check for
improper heating under load. Periodically check the battery in
the area of vibrating components for chafing and insulation
problems.
Cover battery poles to prevent damage from tools.
Protect all battery contacts against unintentional contact.
Check battery connection terminals for stability prior to each
operation.
WARNING
NOTICE
SIQENS Ecoport
9
Notes
Quick Guide
10

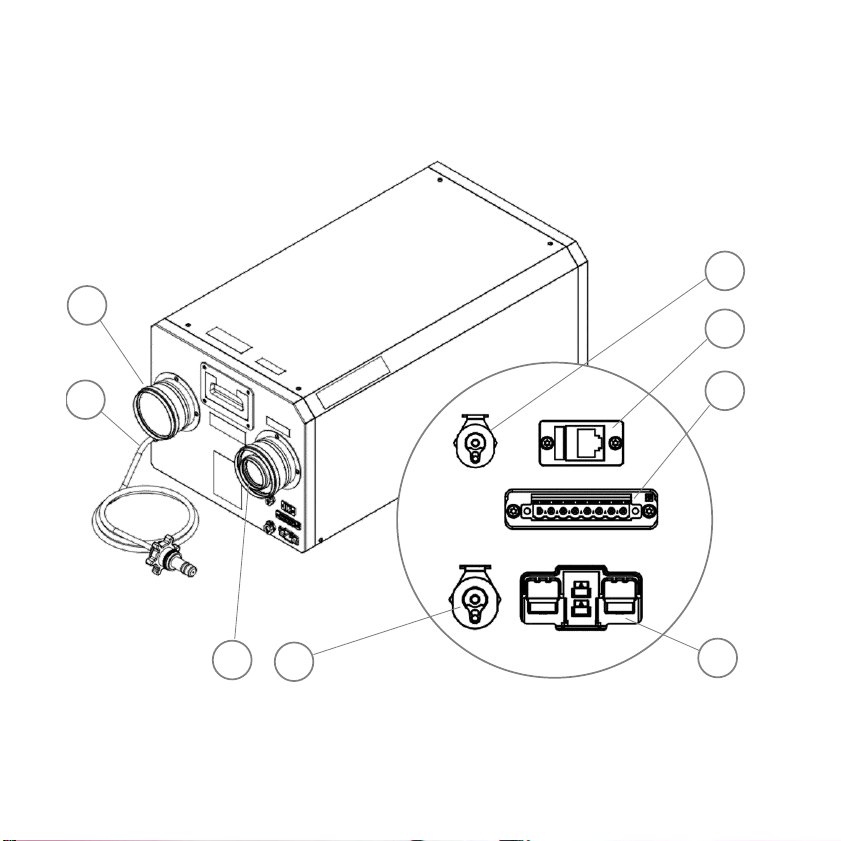

Connections at the Ecoport
2
1
5
6
7
3
4
8
SIQENS Ecoport
11
EMERGENCY OFF
The Ecoport can be disconnected from the 24V/48V mains via
the battery plug.
Connectors at Ecoport
1
Air inlet
2
Methanol supply hose (1.5 m) with dispensing head
3
Air outlet
4
Valve for service fluid
5
Ventilation valve for service fluid
6
Connection to Control Panel (Ethernet RJ-45)
7
Signal plug for control via external switch
8
Battery plug with voltage measurement (Anderson Power SBE 80)
NOTICE
SIQENS Ecoport
13
SIQENS Ecoport 800
SIQENS Ecoport 1500
Quick Guide
14
Delivery
▪Ecoport 800 / Ecoport 1500 with methanol supply line (1.5 m)
▪Control Panel
▪Operating manual, Quickstart-Guide, Safety data sheet & barrel wrench
▪Data cable kit with LTE antennas to connect the control panel
▪Battery cable
▪Mounting kit
▪Exhaust and supply air kit
For a video on the setup, installation, and initial
operation, please visit the following link:
https://youtu.be/-Hni8jyLYpo
15
SIQENS Ecoport
Operation
1. Exhaust and supply air
■
Place the Ecoport at the desired location.
■
Attach the adapters included in the supply and exhaust air kit at the openings
■
Inlet: Mount the corrugated metal pipe (Ø100mm) on the adapters of the Ecoport
and at the opening. By pulling you can adjust the pipe to an ideal length.
■
Outlet: Put the thin corrugated metal pipe (Ø70mm) into the thicker one
(Ø100mm) and mount both pipes on the adapters of the Ecoport and the opening.
By pulling, you can adjust the pipes to an ideal length.
■
Mount the supply and exhaust air grille at the outer end of the corrugated
aluminum pipes.
■
Check that the inlet and outlet is firmly fitted
■
Covers and blockages must be removed. Ensure that the exhaust air outlet and the
supply air inlet are free of clogging.
Please refer to the operating manual for further information or
contact the SIQENS support.
.
NOTICE
Quick Guide
16
2. Connect the methanol cartridge
Connect the QE Charge methanol cartridge or the external tank to the methanol supply
line (1.5 m) of the Ecoport.
Use the enclosed barrel wrench to open and close the cartridge.
For a detailed description, please refer to the operating manual 4.3. Connecting the
methanol supply.
Please observe the safety instructions for handling methanol
.
DANGER
17
SIQENS Ecoport

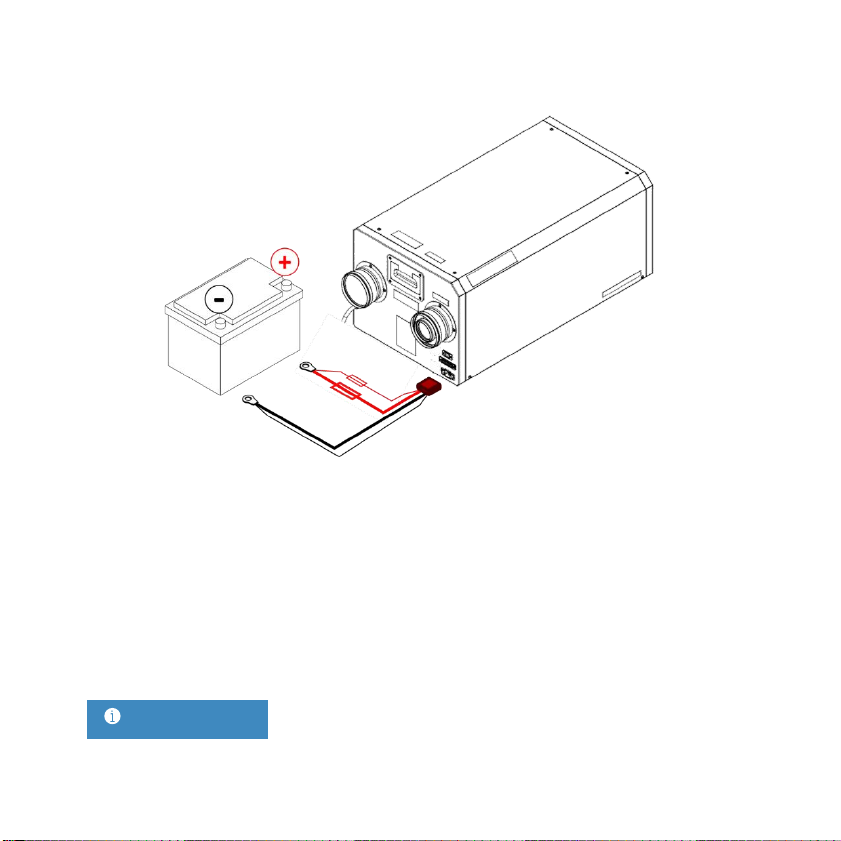

3. Connect the battery
Insert the battery cable into the battery plug of the Ecoport.
The red contact of the battery cable must be connected to the positive pole (+) of the
battery. The black contact of the battery cable must be connected to the negative pole (-)
of the battery.
As soon as a voltage is present, the fans of the Ecoport start a function check.
For a detailed description, please refer to the operating manual.
Pay attention to the polarity when connecting the cables .
NOTICE
Quick Guide
18
4. Connect the control panel
Use the data cable (Ethernet RJ-45) included in the accessories to connect the Ecoport to
the control panel.
As soon as the Ecoport is connected to a battery, the control panel automatically establishes
a connection. This requires no further input
