Sirius Satellite Radio XM Dock & Play PowerConnect User manual

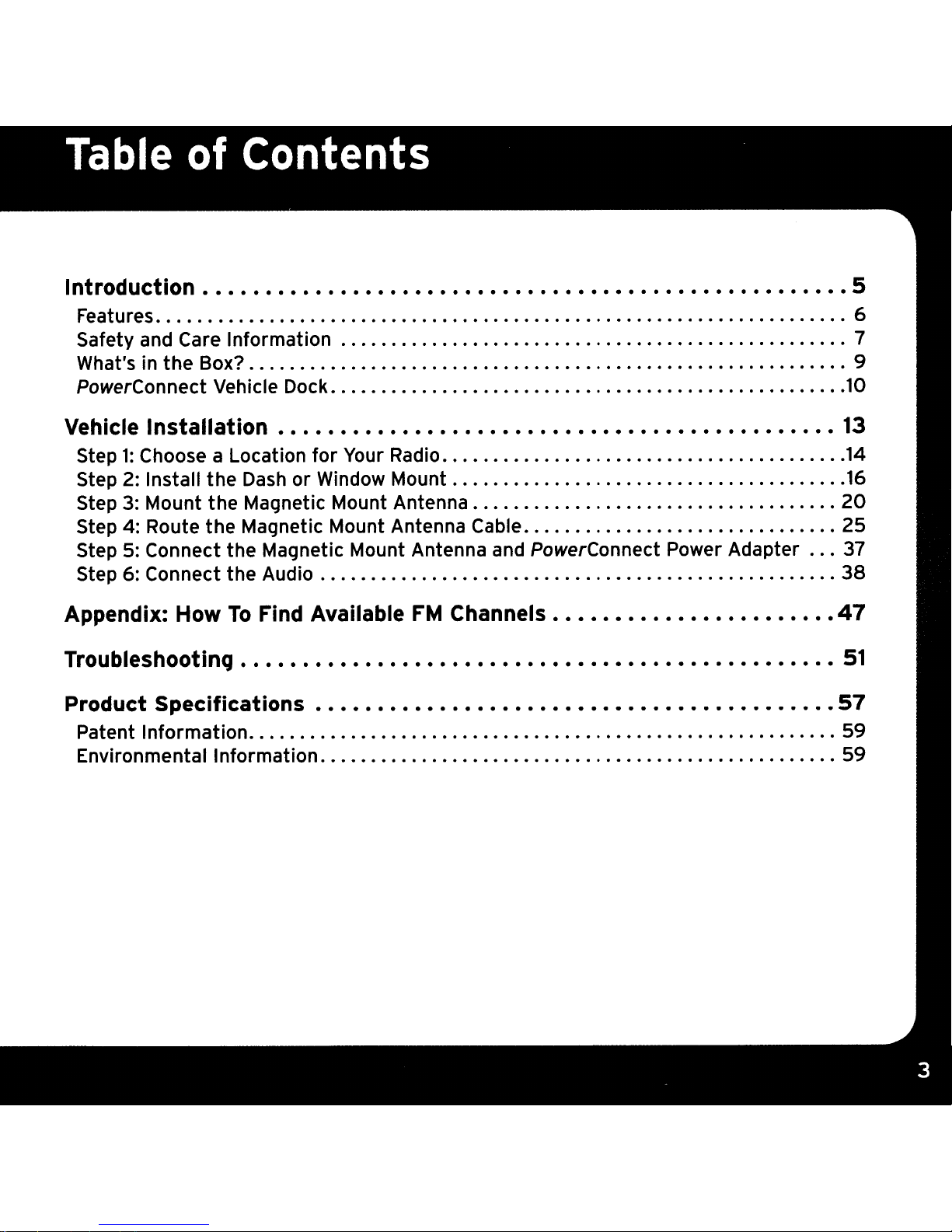

Introduction 5
Features
6
Safety and Care Information 7
What's
in
the
Box?
9
PowerConnect Vehicle Dock
•........................•.........................
10
Vehicle Installation 13
Step
1:
Choose aLocation for Your Radio
.............•.........•................
14
Step 2: Install the
Dash
or Window Mount
16
Step 3: Mount
the
Magnetic Mount Antenna
20
Step 4: Route
the
Magnetic Mount Antenna Cable
25
Step 5: Connect the Magnetic Mount Antenna
and
PowerConnect Power Adapter 37
Step 6: Connect the Audio
.............................•.....................
38
Appendix: How
To
Find Available
FM
Channels
47
Troubleshooting . . . . . . . . . . . . . . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . . . . . .
51
Product Specifications
57
Patent Information
....................................•............•........
59
Environmental Information
.•...........................•...................•.
59
Features
Congratulations on
your
purchase
of
the
XM
Dock &Play PowerConnect
Second Vehicle
Kit!
Your new Second Vehicle
Kit
has everything you need
to
use your Satellite Radio
in
asecond vehicle.
Add Satellite Radio
to
asecond vehicle:
No
need
for
asecond subscription;
just
install this Kit in another vehicle -your spouse's
car,
the family minivan,
an
RV,
or even aboat -and then simply move your radio between the two.
Easy
to
install: Revolutionary SIRIUS I
XM
PowerConnect
FM
Transmitter
works through your vehicle's radio* with easy Do-It-Yourself installation.
The
color-coded PowerConnect Vehicle Dock makes
it
simple
to
connect.
And
for
the latest information about this and other SIRIUS I
XM
products and
accessories, visit www.xmradio.com or your favorite retailer.
Please read
the
entire User Guide before installing
the
Second Vehicle
Kit!
*FM Radio required,
or
use the included Aux
In
Cable.
The
Second Vehicle Kit
will
also work
with aCassette Adapter (sold separately).
•

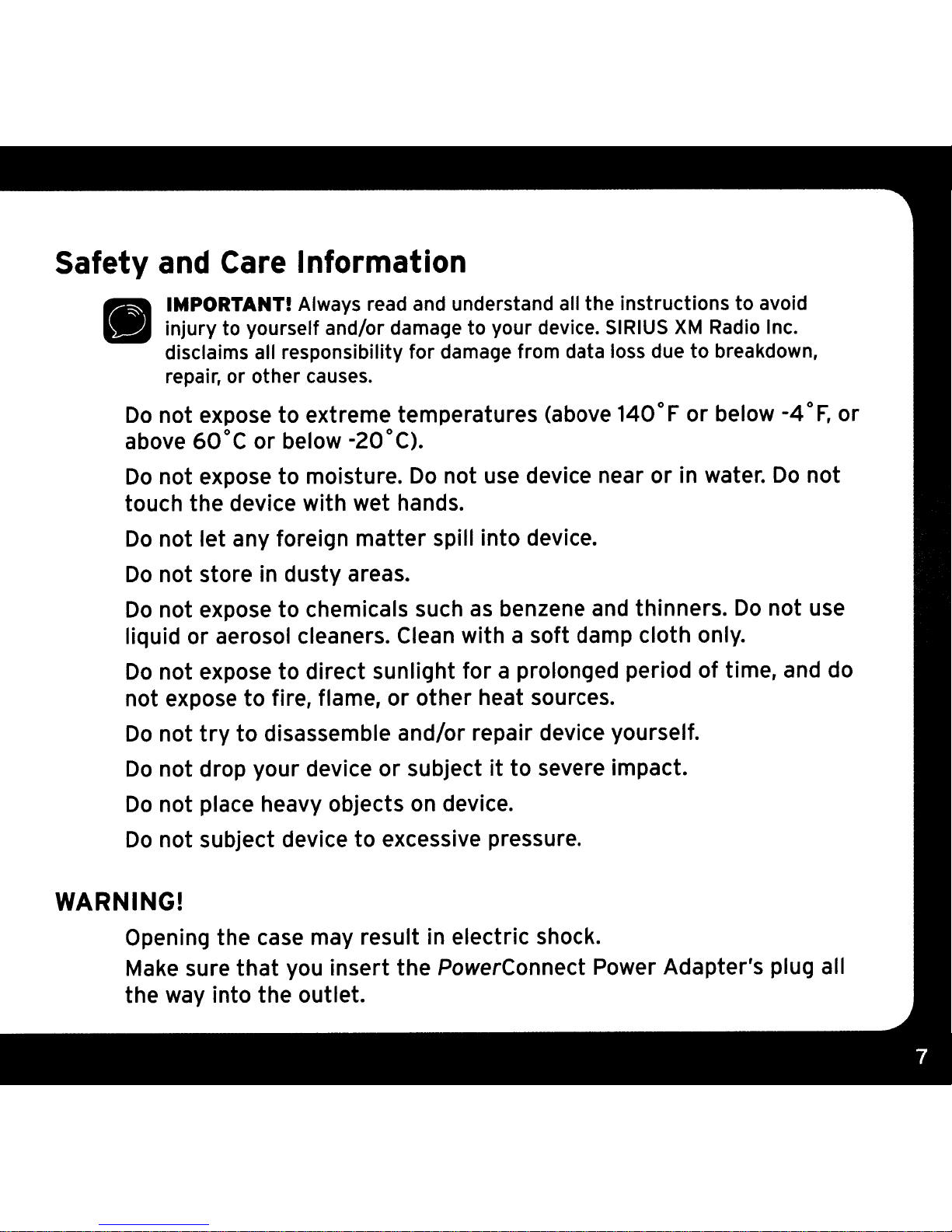

Safety
and
Care Information
IMPORTANT! Always read and understand all the instructions
to
avoid
injury to yourself and/or damage
to
your device. SIRIUS
XM
Radio Inc.
disclaims all responsibility
for
damage from data loss due
to
breakdown,
repair, or
other
causes.
Do
not expose to extreme temperatures (above 140°For below
-4
°
F,
or
above 60°C or below -20°C).
Do
not expose to moisture.
Do
not
use
device near or in water.
Do
not
touch the device with wet hands.
Do
not let any foreign matter spill into device.
Do
not store
in
dusty areas.
Do
not expose to chemicals such
as
benzene
and
thinners.
Do
not
use
liquid or aerosol cleaners. Clean with asoft damp cloth only.
Do
not expose to direct sunlight for aprolonged period of time,
and
do
not expose
to
fire, flame, or other heat sources.
Do
not
try
to
disassemble and/or repair device yourself.
Do
not drop your device
or
subject
it
to severe impact.
Do
not place heavy objects
on
device.
Do
not subject device
to
excessive pressure.
WARNING!
Opening the
case
may result in electric shock.
Make
sure
that
you insert the PowerConnect Power Adapter's plug all
the
way
into the outlet.
For optimal audio performance, insert the PowerConnect Power Adapter
directly
into your vehicle's cigarette lighter/power outlet. Don't use
an
intermediary device, such
as
adual vehicle power adapter
for
multiple
devices.
When
using this product,
it
is
always important to
keep
your
eyes
on
the road
and
hands
on
the wheel. Not doing
so
could result
in
personal injury, death, and/
or damage to your device, accessories, and/or to your vehicle or other property.
Vehicle installation and radio configuration functions should not
be
performed while driving. Park your vehicle in asafe location before
beginning installation.
This product contains chemicals known
to
the
State
of
California to cause
cancer and
birth
defects
or
other
reproductive harm.
Your device should
be
placed in your vehicle where
it
will not interfere with
the
function of safety features,
e.g.,
deployment of airbags. Failure
to
correctly place
device may result in injury
to
you
or
others,
if
the unit becomes detached during
an
accident and/or obstructs the deployment of
an
airbag.

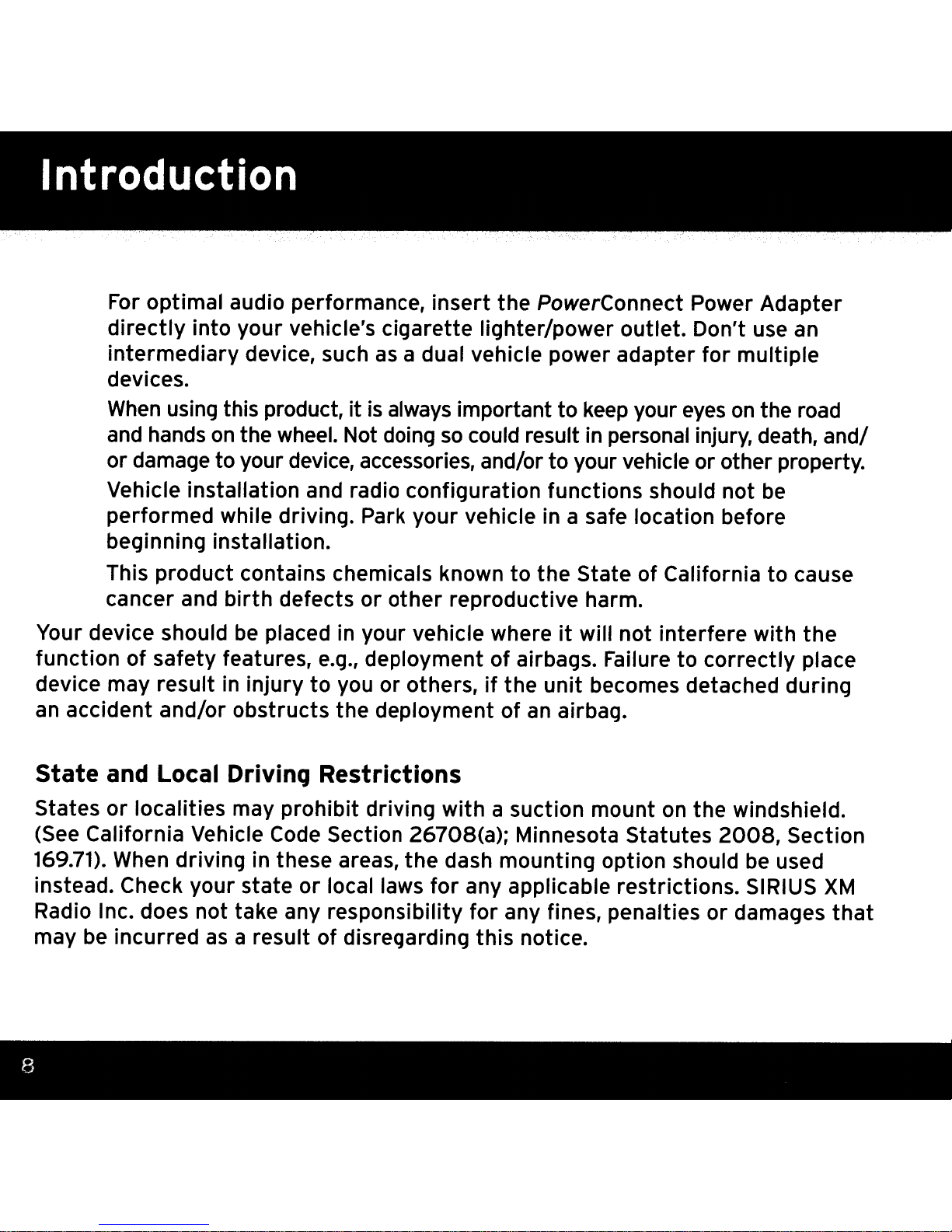

State
and
Local Driving Restrictions
States
or
localities may prohibit driving with asuction mount
on
the windshield.
(See California Vehicle
Code
Section 26708(a); Minnesota Statutes
2008,
Section
169.71).
When
driving in these areas,
the
dash mounting option should
be
used
instead. Check your state
or
local laws
for
any applicable restrictions. SIRIUS
XM
Radio Inc. does not take any responsibility for any fines, penalties or damages
that
may
be
incurred
as
aresult of disregarding this notice.
Dash Mount
Alcohol
Preparation
Pads
Aux
In
Cable
))
Window
Mount
PowerConnect
Power Adapter
TIP!
For
other accessories you
can
add
to
your Vehicle Kit -from aRemote
Control
for
ease
of
use,
to aCassette Adapter for vehicles with acassette
player,
to
professional installation
if
you'd rather leave your in-vehicle setup
to
the experts -
just
visit xmradio.com/accessories
or
your favorite retailer.
PowerConnect Vehicle Dock
•
Magnetic Mount
Antenna

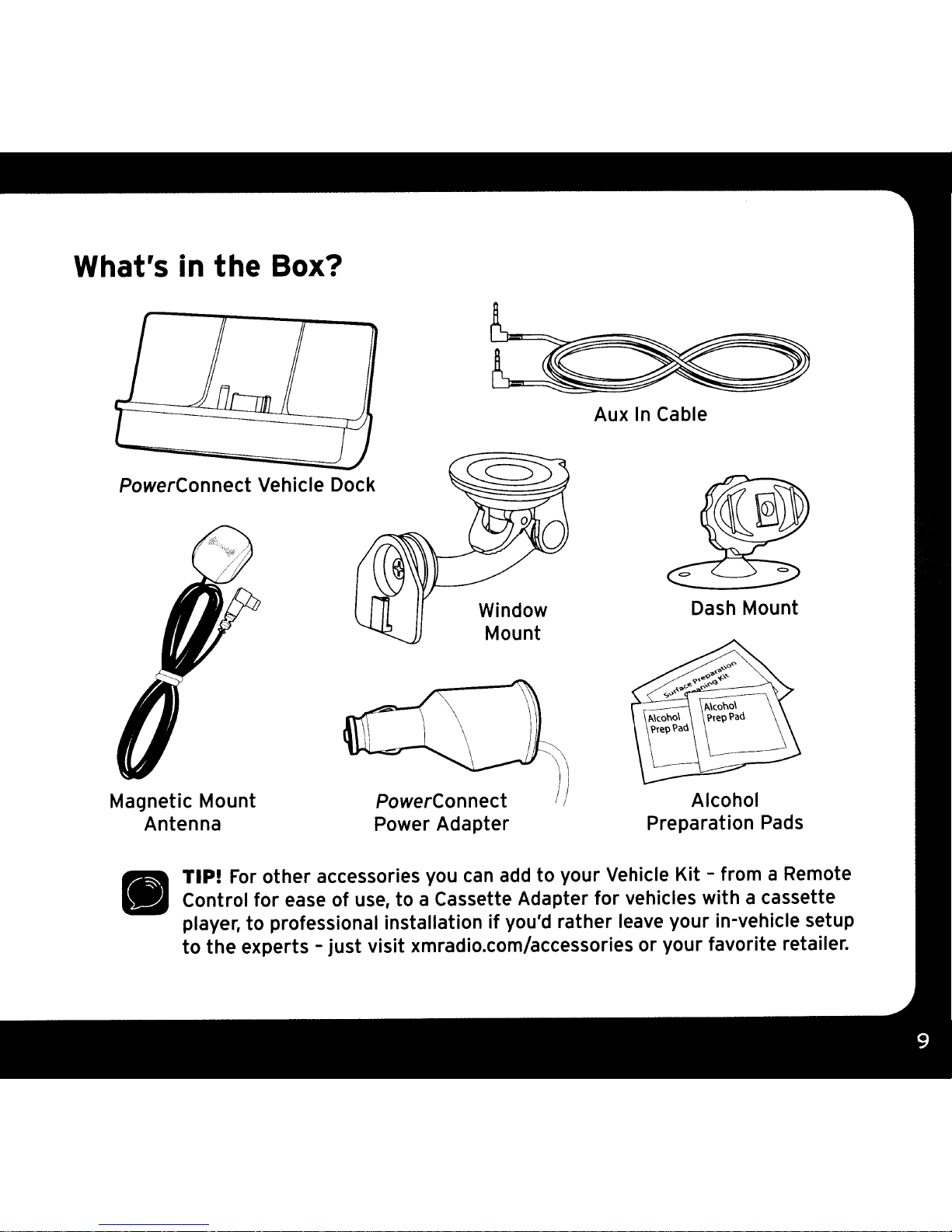

What's
in
the Box?
Introduction

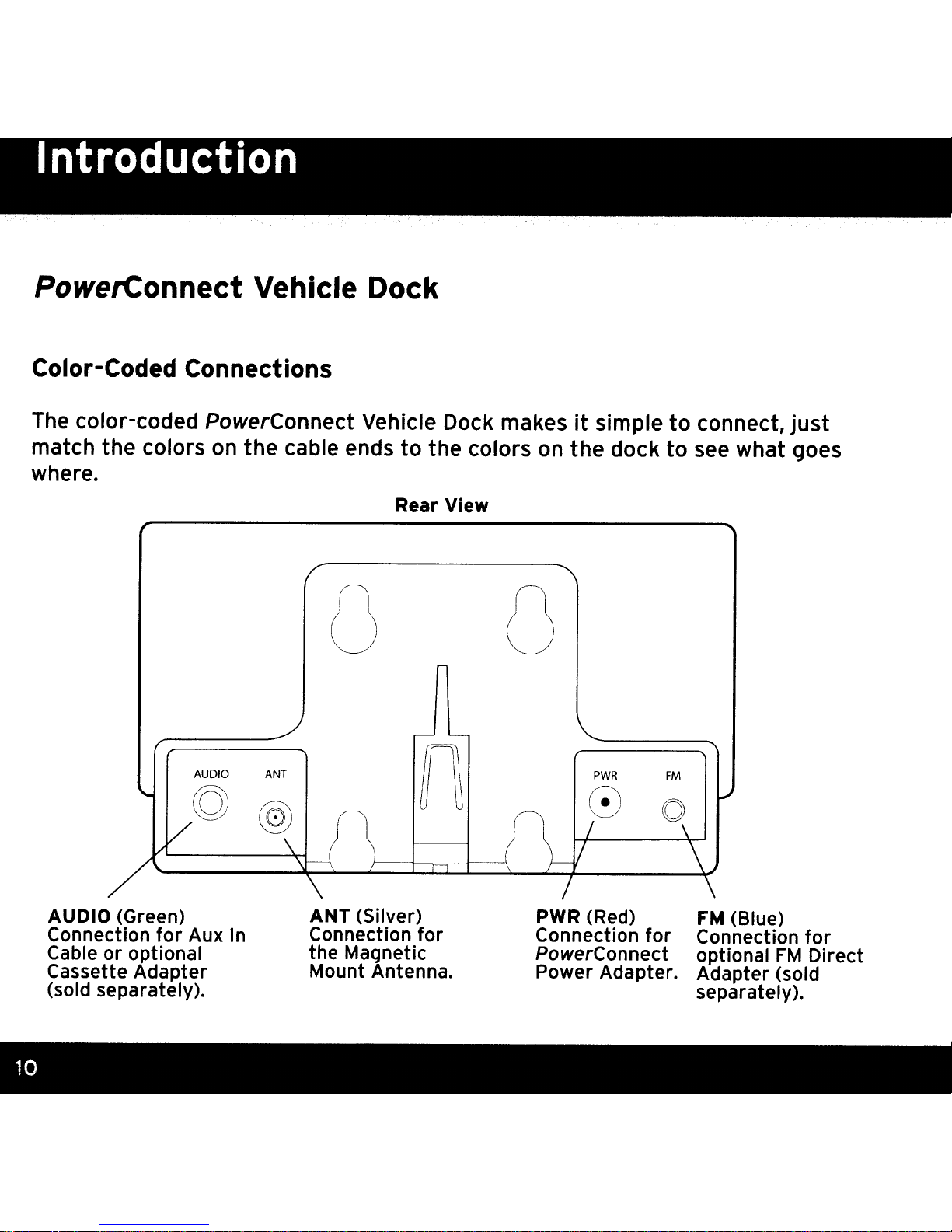

PowerConnect Vehicle Dock
Color-Coded Connections
The
color-coded PowerConnect Vehicle Dock makes
it
simple
to
connect,
just
match the colors on
the
cable ends
to
the colors on
the
dock
to
see what goes
where. Rear View
QQ
~
.--
L..-
r~
AUDIO
ANT
PWR
FM
'-
gc;) 0
~
@-f\
1\
//
/~
\
\
1/
\
\/
AUDIO
(Green)
Connection
for
Aux In
Cable
or
optional
Cassette Adapter
(sold separately).
ANT (Silver)
Connection
for
the Magnetic
Mount Antenna.
PWR (Red)
Connection
for
PowerConnect
Power Adapter.
FM
(Blue)
Connection
for
optional
FM
Direct
Adapter (sold
separately).
Wire
Guide
The
PowerConnect Vehicle Dock
has
awire guide at the top rear to help
organize the cables
and
wires connected
to
the dock. If you need
to
bring a
cable or wire from
one
side of the dock
to
the other, utilize the wire guide by
looping the cable though the wire guide
as
shown.
Wire Guide
__
Vehicle Installation

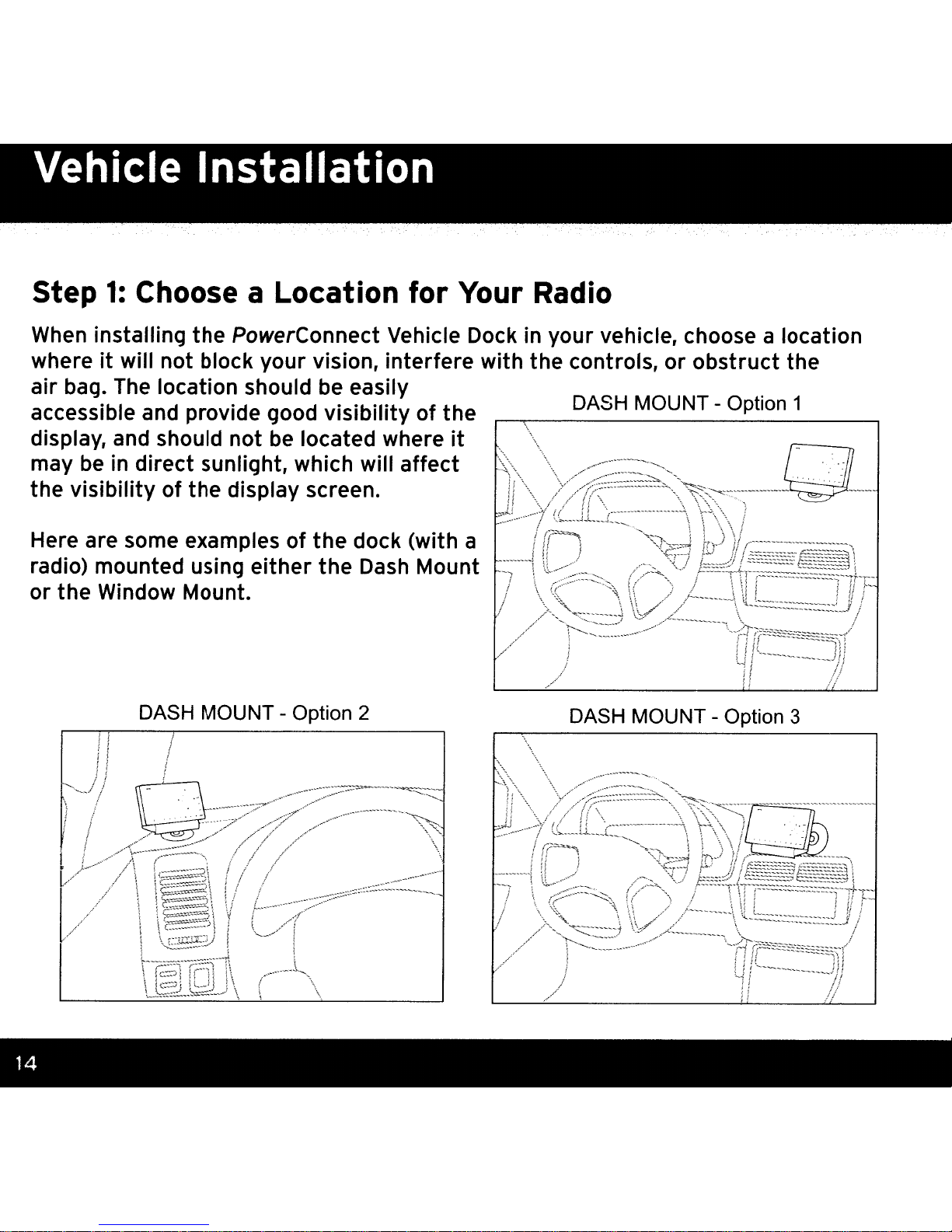

Step
1:
Choose aLocation for Your Radio
DASH MOUNT -Option 1
When
installing
the
PowerConnect Vehicle Dock
in
your vehicle, choose alocation
where
it
will not block your vision, interfere with the controls,
or
obstruct
the
air bag. The location should
be
easily
accessible and provide good visibility of
the
display, and should not
be
located where
it
may
be
in direct sunlight, which will affect
the visibility of the display screen.
Here are some examples of
the
dock (with a
radio) mounted using either the
Dash
Mount
or
the
Window Mount.
.'
t.~
__
~~
..
LJ_
.........
l
__
.......
j
!f
;'
:
/i
DASH MOUNT -Option 2DASH MOUNT -Option 3
_
...
-
..
--_
..
_-
............
\\
.
.-
...
-.....
-........,
........
)~]fiik~~~
l
//;:~;;~:;;;;:;:;:-.=~-=--
l~~:
/\
~j
~/
t~~Ugl1\
WINDOW MOUNT -Option 1,
\.
WINDOW MOUNT -Option 2
Vehicle
Installation

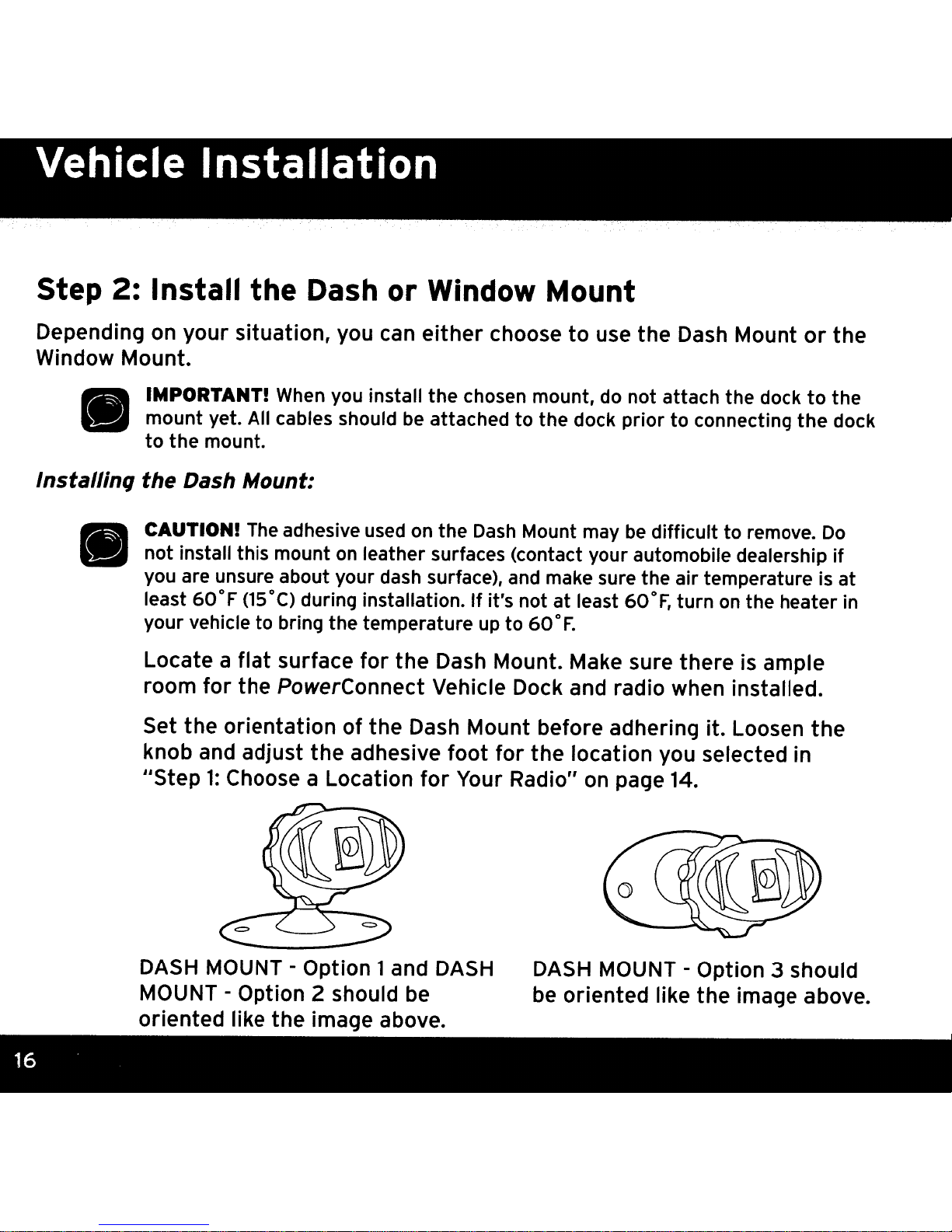

Step
2:
Install
the
Dash
or
Window Mount
Depending
on
your situation, you
can
either
choose
to
use the
Dash
Mount
or
the
Window Mount.
•IMPORTANT!
When
you install
the
chosen mount, do not attach the dock
to
the
mount yet. All cables should be attached
to
the dock prior
to
connecting
the
dock
to
the
mount.
Installinq
the
Dash Mount:
•CAUTION! The adhesive used
on
the
Dash
Mount may
be
difficult
to
remove.
Do
not install this mount
on
leather surfaces (contact your automobile dealership
if
you are unsure about your dash surface),
and
make sure the air temperature
is
at
least
60°f
(1SoC)
during installation. If it's not at least
60°f,
turn
on
the heater in
your vehicle
to
bring the temperature
up
to
60°f.
Locate aflat surface
for
the Dash Mount. Make sure there is ample
room for the PowerConnect Vehicle Dock and radio when installed.
Set the orientation of the Dash Mount before adhering it. Loosen
the
knob and adjust the adhesive foot
for
the location you selected in
"Step
1:
Choose aLocation
for
Your Radio"
on
page
14.
DASH
MOUNT
-Option 1and
DASH
MOUNT
-Option 2should be
oriented like the image above.
DASH
MOUNT
-Option 3should
be
oriented like the image above.
Knob
\
•
•
The
dock mounting plate
can
be
tilted
in

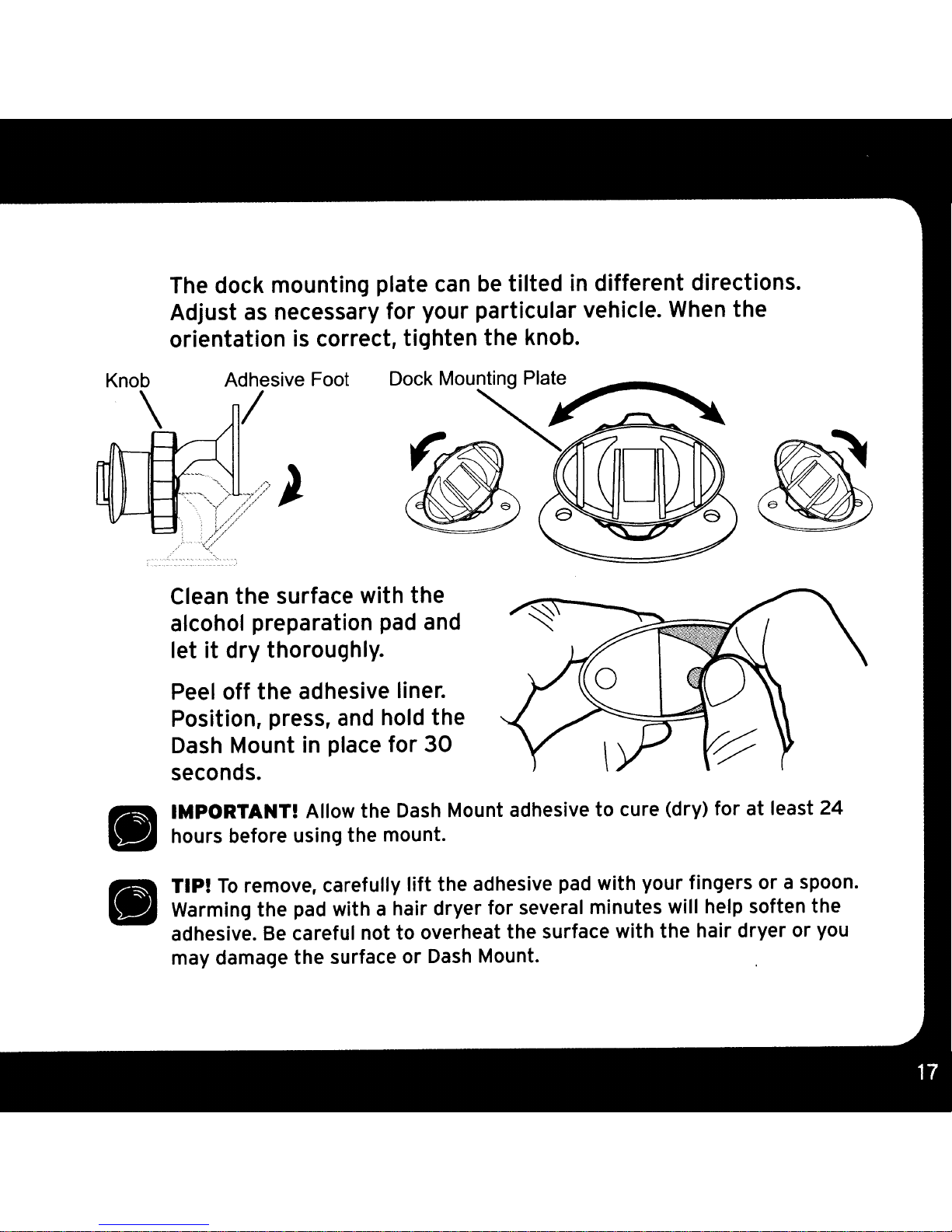

different directions.
Adjust
as
necessary for your particular vehicle.
When
the
orientation
is
correct, tighten the knob.
Adhesive Foot
/
Clean the surface with the
alcohol preparation
pad
and
let
it
dry thoroughly.
Peel off the adhesive liner.
Position, press,
and
hold the
Dash
Mount in place for
30
seconds.
IMPORTANT! Allow the
Dash
Mount adhesive
to
cure (dry) for
at
least 24
hours before using the mount.
TIP!
To
remove, carefully
lift
the adhesive
pad
with your fingers
or
aspoon.
Warming the
pad
with ahair dryer for several minutes will help soften the
adhesive.
Be
careful not
to
overheat the surface with the hair dryer or you
may damage the surface
or
Dash
Mount.
Vehicle Installation

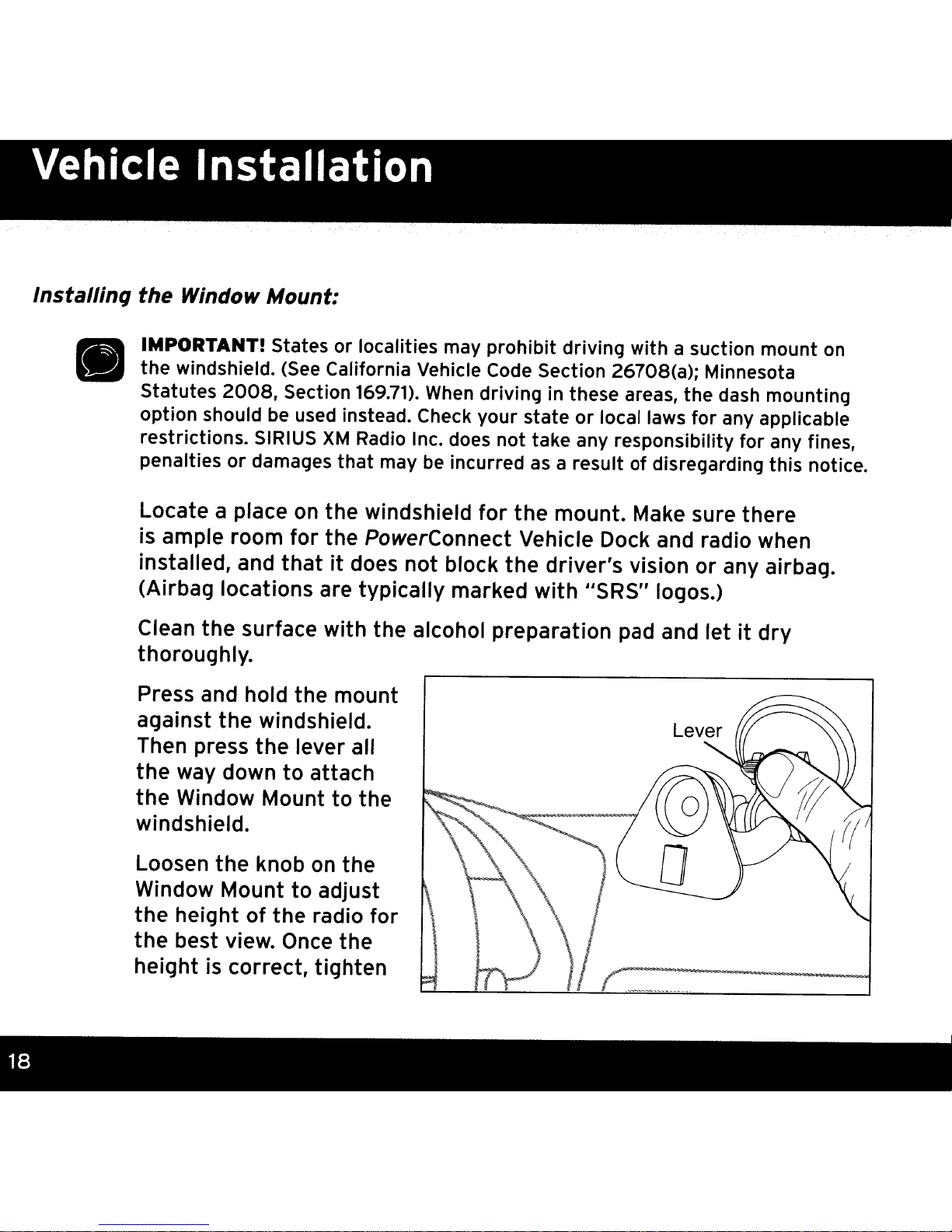

Installinq
the
Window Mount:
•
\l\
I
~
•IMPORTANT! States or localities may prohibit driving with asuction mount
on
the windshield.
(See
California Vehicle Code Section 26708(a); Minnesota
Statutes
2008,
Section
169.71).
When
driving in these areas, the dash mounting
option should
be
used instead. Check your state or local laws
for
any applicable
restrictions. SIRIUS
XM
Radio Inc. does not take any responsibility for any fines,
penalties
or
damages
that
may
be
incurred
as
aresult of disregarding this notice.
Locate aplace
on
the windshield
for
the mount. Make sure there
is ample room for the PowerConnect Vehicle Dock and radio when
installed, and
that
it
does not block
the
driver's vision
or
any airbag.
(Airbag locations are typically marked with "SRS" logos.)
Clean the surface with the alcohol preparation pad and let
it
dry
thoroughly.
Press and hold the mount
against
the
windshield.

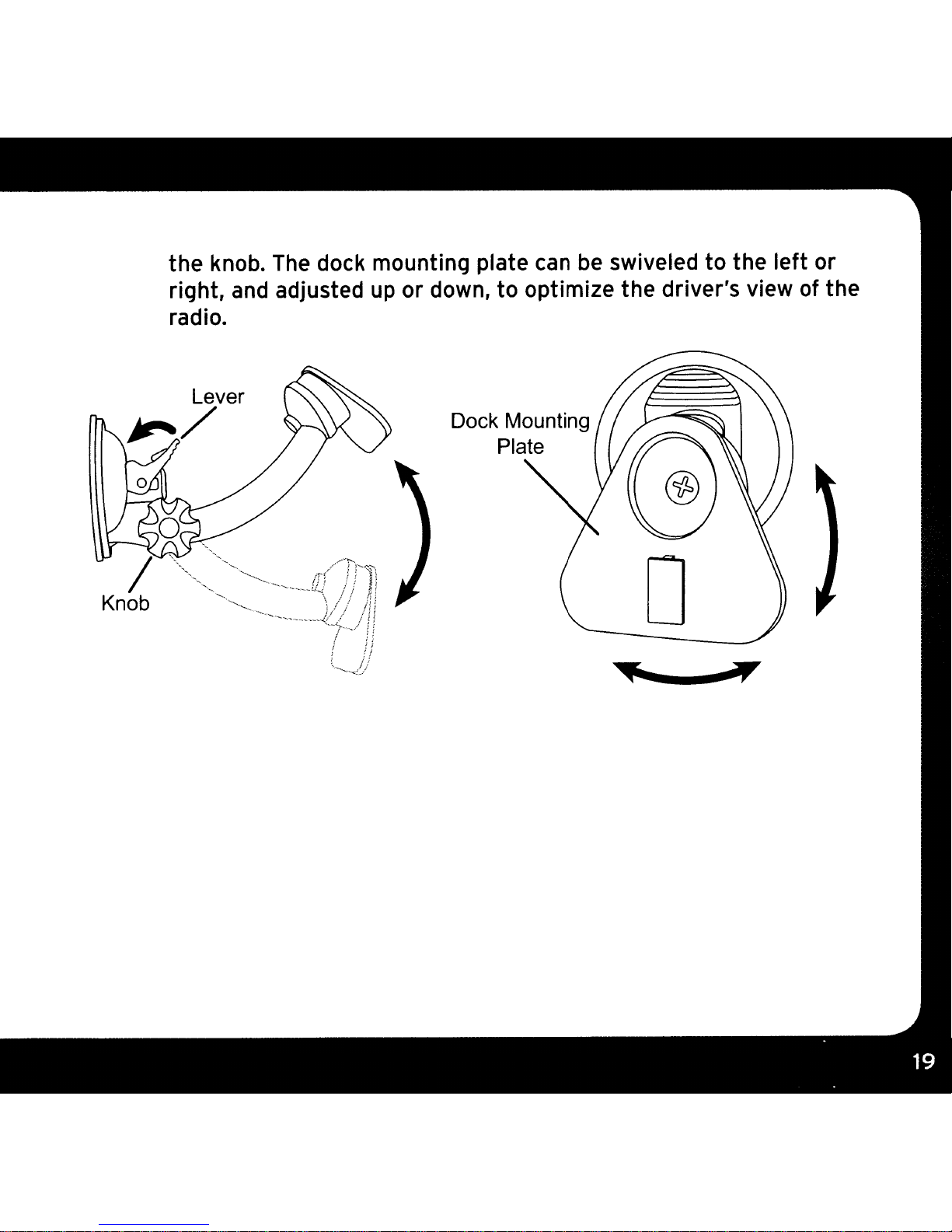

Then press the lever all
the
way down
to
attach
the
Window Mount to the
windshield.
Loosen the knob
on
the
Window Mount
to
adjust
the height of the radio for
the best view.
Once
the
height
is
correct, tighten
the knob.
The
dock mounting plate
can
be
swiveled
to
the left or
right,
and
adjusted
up
or down, to optimize the driver's view of the
radio.
Dock Mounting
Plate
o
Vehicle Installation

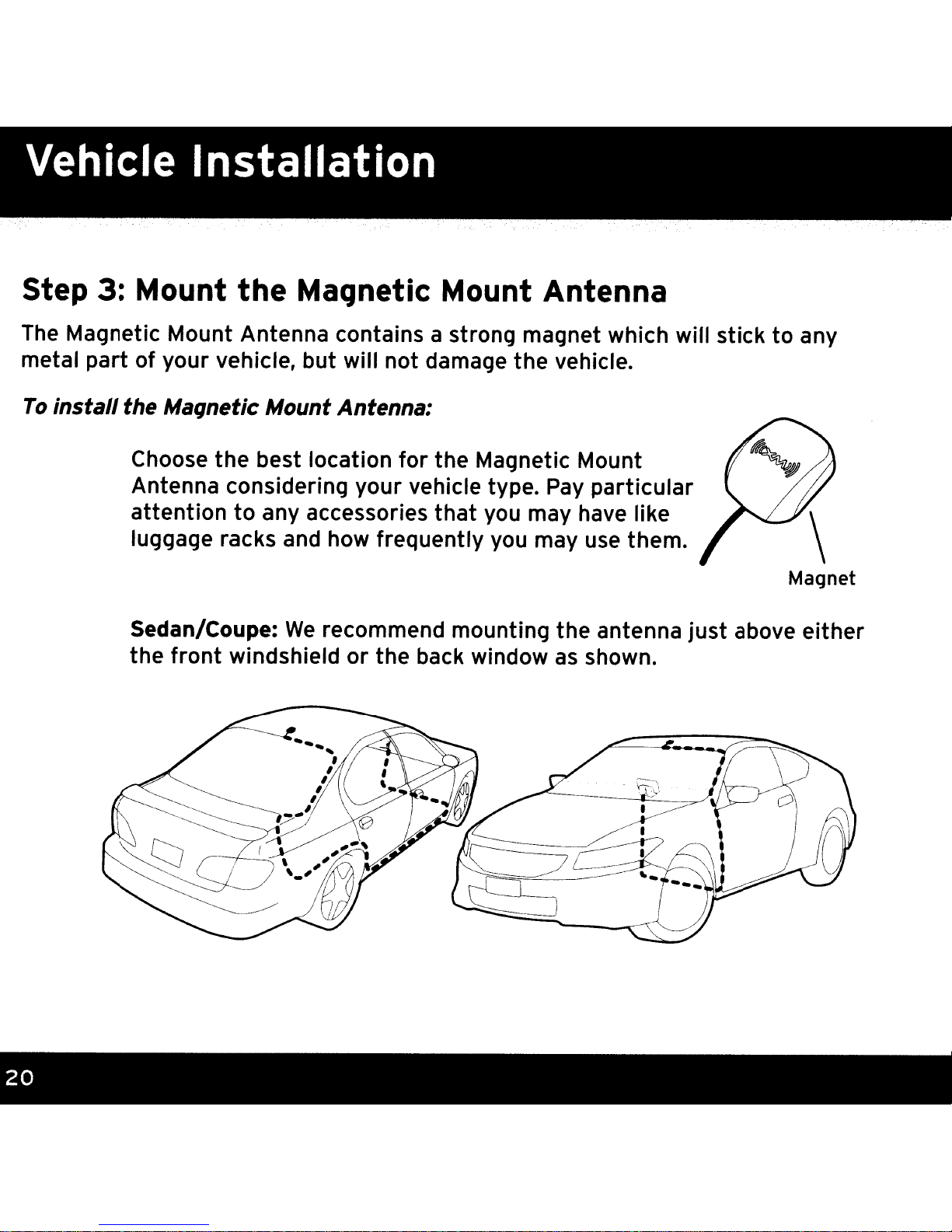

Step 3: Mount the Magnetic Mount Antenna
The
Magnetic Mount Antenna contains astrong magnet which will stick
to
any
metal part of your vehicle, but will not damage the vehicle.
To
install
the Maqnetic Mount Antenna:
Choose the best location for the Magnetic Mount
Antenna considering your vehicle type.
Pay
particular
attention
to
any accessories
that
you may have like
luggage racks and how frequently you may use them.
Magnet
Sedan/Coupe:
We
recommend mounting the antenna
just
above either
the
front
windshield
or
the back window
as
shown.
Table of contents
