User Manual | SIRIUS COB 100W WW 2in1 Triton Blue | Rev.Jan. 2014 | www.triton-blue.com
SIRIUS COB 100W WW 2IN1
USER MANUAL

User Manual | SIRIUS COB 100W WW 2in1 Triton Blue | Rev.Jan. 2014 | www.triton-blue.com
For your own safety, please read this user manual carefully before you initially start-up
Every person involved with the installation, operation and maintenance of this device has to:
-Be qualified.
-Follow the instructions of this manual.
-Consider this manual to be part of the total product.
-Keep this manual for the entire service life of the product
-Pass this manual on to every further owner or use of the product.
-Download the last version of the user manual from the internet in www.triton-blue.com
Installation
1.The light can be fixed indoor ,but the light must keep a distance between person or objects at 1m minimum. And please make sure the
light is fixed well, the light should be earthed.
2.Please make sure the rated voltage and frequency should suit to your local voltage.

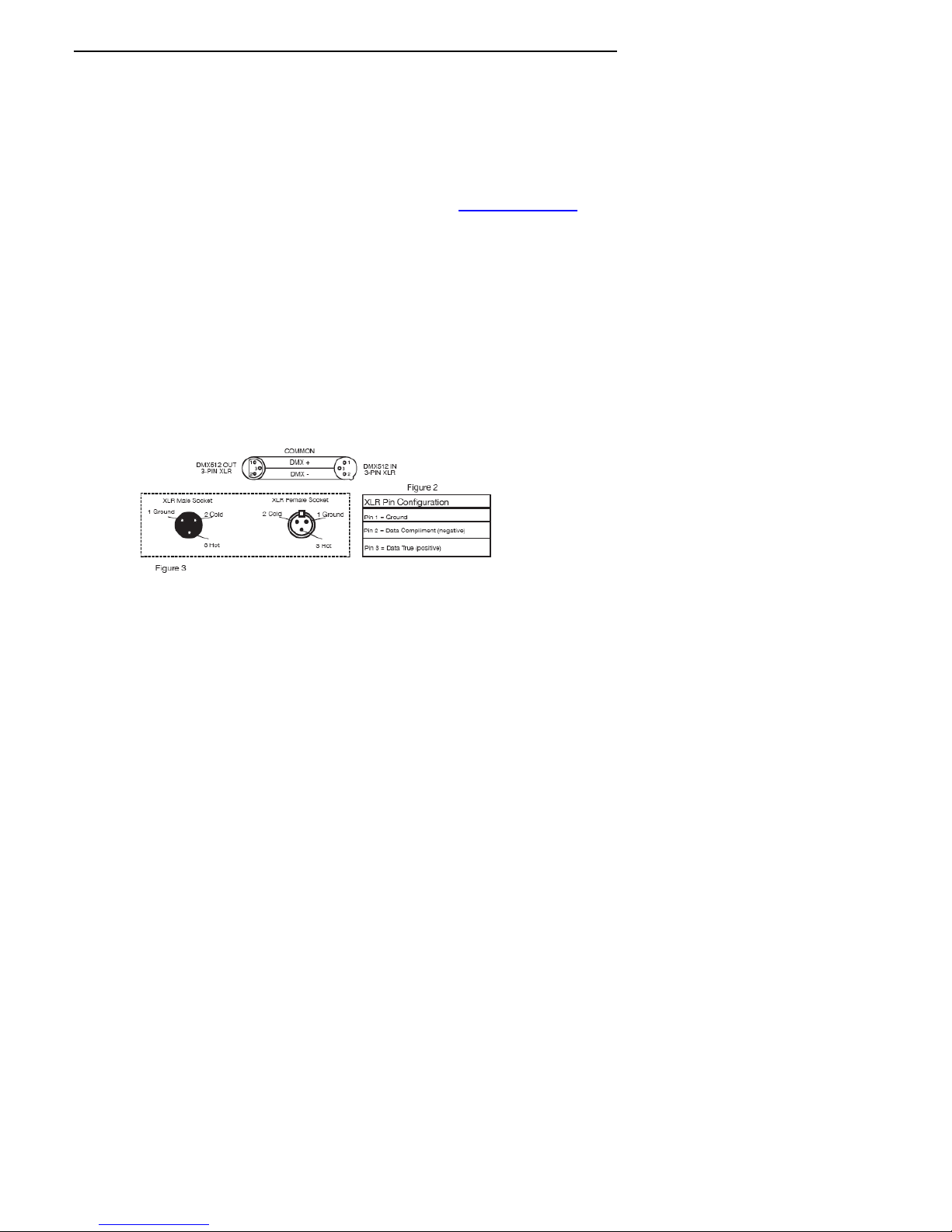

3.Connection of the DMX512：
The DMX512 signal of the controller is serial connected through the Input and (1 Earth，2 Negative, 3 Positive)（Please Note; exchange
to solder the pin2 and pin3 if it’s uncontrolled, it’s unnecessary to change normally. The length of the signal cable should keep within 100
meters in order to avoid the interference. The light will work according to the IP Code which you selected when you are using the DMX512
controller control equipment. Please refer details in following pictures.
Product Specification
Voltage: AC100V～240V 50~60HZ
Power Consumption: 120W
LED Quantity : 100W White and Yellow 2 in 1
LED drive current: 3.2A
Beam Angle : 40°
IP Grade： IP20
DMX channels： 5CHS
Packaging Size ：300*300*380mm
Net weight： 3.2Kg
Gross weight： 4.7Kg
Features
3PIN plug DMX in and out
3 XIN power plug in and out
Die-cast aluminium
LED digital display board operation
Working indoor temperature -20°C～+40°C
DMX channel： 5CHS.
Strobe/Colour temperature selection

User Manual | SIRIUS COB 100W WW 2in1 Triton Blue | Rev.Jan. 2014 | www.triton-blue.com
Install
Install Requirement
It can be used in many place, hang or put on the ground is ok. When install the light pls choice the suitable place and light hook. When
hang the light, must use the PRO hook and screw and make sure the object is strong enough to hold the light
Make sure 0.5M distance without any inflammables and explosives, when install the light.
Pls ask PRO people to install the light, any misconduct will cause people hurt and light damage.
Prevent people to stay below the working place, install the light must choice the suitable and stable stage.
Light must be installed in Ventilation position , the distance between the ground at least 50cm. Make sure the Ducts unblocked.。
Power Connection
This light used power supper can fit wide operating voltage. Before you connect the power make sure the voltage is within wide operating
voltage range. This item can fit 100V-240V AC 50-60HZ. It can hold 30pcs light connect together.
Color
Connect
Stitch
Brown
AC Fire wire
1
Blue
AC zero line
2
Green/Yellow
A AC ground wire
3
DMX Cable Connect
1.When use the DMX512,use the DMX male plug connect the first light’s female plug.
2.The first light’s male plug connect the next light’s female plug, and so on.
Operation
Control panel Function
Button
Function
MODE
Current menu or exit function
ENTER
current or enter the showed menu
UP
UP
DOWN
Down

User Manual | SIRIUS COB 100W WW 2in1 Triton Blue | Rev.Jan. 2014 | www.triton-blue.com
Menu Map
[DMX address set up]
Press MENU then Up or DOWN until Addr then ENTER
By UP and DOWN to change the DMX address

User Manual | SIRIUS COB 100W WW 2in1 Triton Blue | Rev.Jan. 2014 | www.triton-blue.com
[STATIC COLOURSET UP]
Press MENU，and then press UP or DOWN，until it shows the "STAT"menu,，and press ENTER
Use UP or DOWN choose ST00(strobe）、 a000(warm white）、 C000（cool white）， if want to set up these 3 menu’function, Please use
the UP or DOWN to choose StOO,a000,C000, Press ENTER，choose St00,press ENTER, press UP or DOWN to choose Sa00-Sa20 0-
20HZstrobe。Choose a000 and press enter,use UP or DOWN choose a000-a255to adjust the warm white0-255,choose c000,press
ENTER ,use UP or DOWN chose c000-c255.

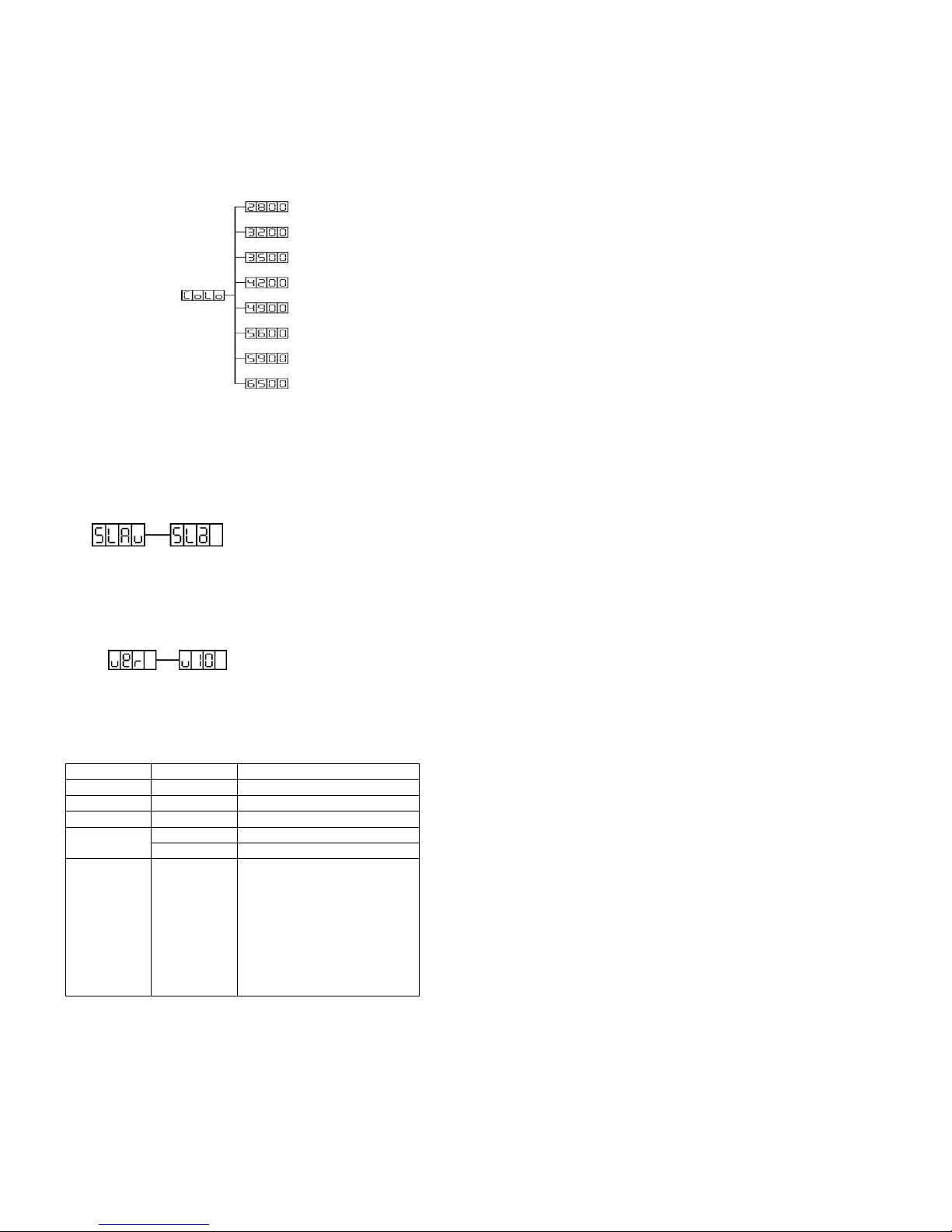

[Color temperature election]
Menu Instruction：
Press MENU，and then press UP or DOWN，until it shows Colo menu,，and press ENTER
Use UP or DOWN choose 2800K、3200K、3500K、4200K、4900K、5600K、5900K、6500K,eight color temperature election.
[slave mode]
Press MENU，and then press UP or DOWN，until it shows SLAv,and then press ENTER,it shows SLa,no need to exit when completely
set up
[software version]
Press MENU，and then press UP or DOWN，until shows ver, then press ENTER, shows the software version vxx
DMX Channels & Value
Channel
Value
Function
ch1
0--255
dimmmer(0%--100%)
ch2
0--255
Warm white (0%--100%)
ch3
0--255
Cool white (0%--100%)
ch4
0-12
No function
13--255
Strobe 0-20HZ(slow -- fast)
Ch5
0--15
16--44
45--74
75-104
105-134
135-164
165-194
195-224
225-255
None
2800K
3200K
3500K
4200K
4900K
5600K
5900K
6500K
Remarks：Channel 5 can use DMX controller to select 8 kinds of color temperature as the above mentioned.
