SiriusXM Universal Boombox
User Guide

3
Table of Contents
Introduction ....................................................4
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warnings ................................................................... 5
What’s in the Box? ........................................................... 7
Controls and Connectors...................................................... 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Radio Dock Adapter for Your Radio.................................10
Docking the Radio ...........................................................11
Connecting the Home Power Adapter...........................................11
Removing the Radio Dock Adapter .............................................12
Installing the Indoor/Outdoor Home Antenna ....................................13
Using Your Universal Boombox Outdoors or On-The-Go ...........................14
Using Your Universal Boombox Indoors .........................................14
Other Indoor/Outdoor Antenna Installation Suggestions ..........................15
Subscribing to the Sirius or XM Service ............................19
Operation .....................................................20
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Troubleshooting ................................................23
Specifications..................................................25
IC Statement ..................................................26
Copyrights & Tradexmp3marks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Indoor/Outdoor Antenna Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Sirius or XM Radio ID ...........................................29

4
Introduction
Congratulations on the purchase of your new SiriusXM Universal
Boombox for SiriusXM Plug and Play Radios!
Your new SiriusXM Universal Boombox lets you enjoy satellite radio
entertainment in your home, office, or other location. Use this guide for the
proper installation.
The Universal Boombox will work with most Sirius and XM Plug and Play Radios.
It is compatible with the Plug and Play Radios listed below as well as with any
newer models sold subsequently:
• Sportster 6, 5
• Starmate 8, 7, 6, 5, 4, 3
• Stratus 7, 6, 5, 4, 3
• XpressRCi, XpressRC, XpressR, ExpressEZ, Xpress
• Onyx, Onyx EZ, Onyx Plus
• Edge
For the latest information about this and other SiriusXM product and accessories,
visit shop.siriusxm.ca.

5
Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety
instructions and warnings may result in a serious accident and/or personal injury.
• Installation must be performed according to this installation guide. Sirius
XM Canada, Inc. is not responsible for issues arising from installations not
performed according to the procedures in this guide.
• Use only the provided Home Power Adapter.
• Do not install the Universal Boombox where it will be exposed to high levels
of humidity, moisture, or dust.
• To avoid short circuits, do not open the unit, and never put or leave any
metallic objects (coins, tools, etc.) inside the unit.
• If the unit emits smoke or unusual odors, turn the power off immediately,
and disconnect the unit from any power source.
• Do not drop the unit or subject it to strong shocks.
• The installation and use suggestions contained in this guide are subject
to any restrictions or limitations that may be imposed by applicable law.
The purchaser/user should check applicable law for any restrictions or
limitations before installing and/or operating this unit.
Warnings
• Opening the case may result in electric shock.
• Make sure that you insert the Home Power Adapter’s plug all the way into
the outlet.
• Insert the Radio into the Universal Boombox only when the Universal
Boombox is off.
• This device should be unplugged from the AC outlet during a thunder and
Introduction

6
lightning storm, and when the device will not be used for an extended
period of time.
• Use the power cord of the Home Power Adapter to disconnect the device
from the power source To begin using the device again, reconnect it to an
AC outlet.
• Connect the device to an easily accessible AC outlet, so that the device can
be quickly disconnected, if necessary.
Cleaning
DANGER! Unplug the Home Power Adapter and/or remove the batteries during
the cleaning to avoid any electrical shock hazard.
Clean the hard surfaces of the Universal Boombox with an optical-grade
microchamois or microfiber cloth. Clean the soft surfaces of the speakers with a
dry lint brush.
• Do not use paper products to clean the Universal Boombox. Paper products
may feel soft to the touch but they are too rough for the Universal
Boombox.
• Do not use any type of abrasive pad or scouring powder to clean the
Universal Boombox. Doing so will scratch the finish and may damage the
controls.
• Do not use solvents such as alcohol or benzene, or any product that has
alcohol in it (such as Windex), to clean the Universal Boombox.
Introduction

7
What’s in the Box?
The following items are included with your purchase of the Universal Boombox.
Unpack the kit carefully and make sure that everything shown is present. If
anything is missing or damaged, or if the Universal Boombox fails to operate
properly, notify your dealer immediately. It is recommended that you retain the
original carton and packing materials in case you need to ship your Universal
Boombox in the future.
Universal Boombox
Adapter 1 (Sirius Radios)
Adapter 2 (XM Radios)
Indoor/Outdoor
Home Antenna
Home Power Adapter Power Cord
Radio Dock Adapters
Introduction

8
Introduction
Controls and Connectors
The following section identifies and describes the controls and connectors of the
Universal Boombox.
sourceaux in
63Front View Rear View
Bottom View
84 5
12
11
10
87
1. Power and Volume Knob: Pressing the knob turns the Universal Boombox’s
power On or Off. Turning the knob increases or decreases the volume level
(+/—).
2. AUX IN Connector: Input connection for audio from an external device,
such as an MP3 player, CD player etc.
3. Source Button: Switches audio output between the Radio and the AUX input.

9
4. Radio Dock Adapter Slot: Holds adapter for the Radio.
5. Headphone Connector: Stereo headphone jack to privately listen to the
Universal Boombox.
6. Power On/Low Battery Light: The light is a constant blue when the
Universal Boombox is powered on. The light will turn red when the
batteries in the Universal Boombox are nearly discharged and need
replacement.
7. DC POWER Connector: Connection for the Home Power Adapter. (DC
Power)
8. ANTENNA Connector: Connection for the Indoor/Outdoor Home Antenna
(Antenna).
9. Antenna Storage: Storage area for the Indoor/Outdoor Home Antenna.
10. Cable Storage: Storage area for the antenna cable.
11. Battery Compartments: Two battery compartments for a total of eight “D”
size cells.
Introduction

10
Installing the Radio Dock Adapter for Your Radio
1. Select the Dock Adapter for your Radio by referring to “What’s in the Box?”
on page 7 to identify the adapter, or turn the adapters over and locate
the name imprinted on the underside of the adapter:
Sirius: Adapter 1 for all Sirius Radios.
XM: Adapter 2 for all XM Radios.
2. Install the Radio Dock Adapter for your Radio into the Universal Boombox
as shown. Align the Radio Dock Adapter in the Universal Boombox and
gently press it until it snaps into place.
Installation
SiriusXM & XM

11
Docking the Radio
Place your Plug and Play Radio into the Universal Boombox as follows:
1. Be sure the Universal Boombox is powered off.
2. Align the Radio with the Radio Dock Adapter and connector.
3. Once aligned, gently press the Radio down so that it slides down the
Radio Dock Adapter and onto the connector until it is fully seated in the
Universal Boombox.
Connecting the Home Power Adapter
The Universal Boombox can operate on either batteries (8 “D” cells) or by
using the Home Power Adapter. Connect the Home Power Adapter to the DC
Power connector at the rear of the Universal Boombox. (Refer to “Controls
and Connectors” on page 8.) Connect the Power Cord to the Home Power
Adapter and plug it into an AC outlet.
Installation

12
Installation
Removing the Radio Dock Adapter
If it becomes necessary to remove the Radio Dock Adapter, remember that the
Radio Dock Adapters are constructed from precision molded plastic. During
removal, extra care must be taken to not bend, force, or otherwise stress the
adapter, or break off the tabs that hold the adapter in the Portable Speaker Dock.
Remove the Radio Dock Adapter from the Portable Speaker Dock by placing a
coin, or your fingernail, into the slot at the back of the adapter, and pulling it up
straight up, as shown.

13
Installing the Indoor/Outdoor Home Antenna
Before installing the Indoor/Outdoor Home Antenna, please read this entire
section.
The Indoor/Outdoor Home Antenna should be placed into the storage area on
the top of the Universal Boombox as shown below. The antenna clamshell should
face the sky. Wrap the excess antenna cable around the storage area at the rear,
and plug the antenna cable into the Antenna connector.
Please visit siriusxm.ca/homeinstall for more information on
home antenna installation. You can also find out information about
various signal distribution accessories for the home, such as the
Echo Home Wireless Signal Repeater System or the 50’ Antenna
Extension Cable, both available for purchase at shop.siriusxm.ca.
These accessories can aid you in receiving the satellite signal at
home. (See “Optional Accessories” on page 22.)
Installation

14

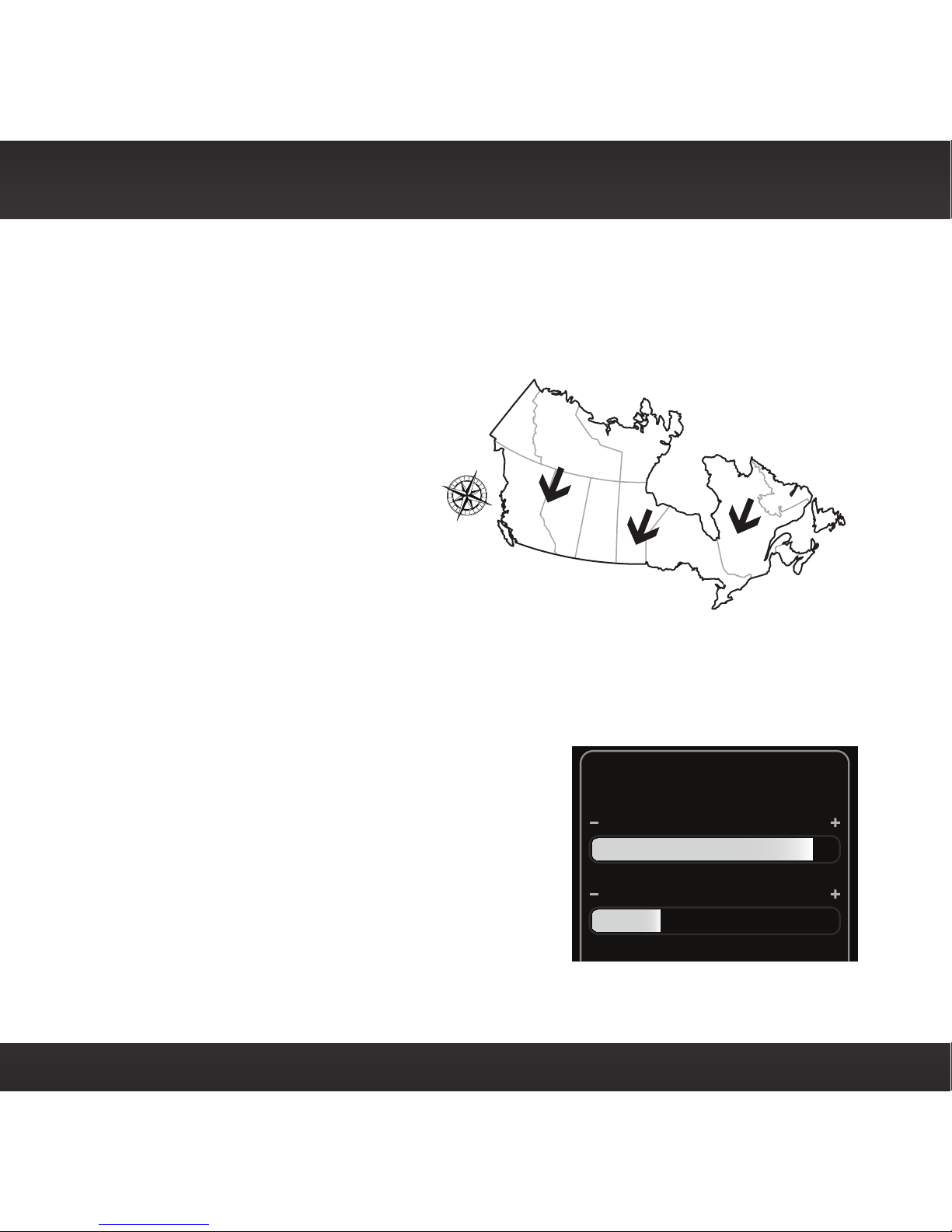

Using Your Universal Boombox Outdoors or On-The-Go
If you are using the Universal Boombox outdoors, try using it with the antenna in
the storage area. Place the Universal Boombox where there are no obstructions
to block the antenna’s view of the sky, such as trees, bridges, buildings, etc.
If the reception is not good, then
remove the antenna and position it
facing south. Not sure which way is
south? Try pointing the antenna in
different directions until the reception
improves. Wait a few seconds each
time you reposition it for the Universal
Boombox to receive the signal.
Using Your Universal Boombox Indoors
If you are using the Universal Boombox indoors try experimenting with the
antenna to get a feel for the reception in your location. Move the antenna
around the room or from room to room. Aim it from different windows. In major
metropolitan areas, you might find that you
get great reception in several locations without
worrying too much about aim and placement.
Refer to your Radio’s User Guide for instructions,
and access the Signal Indicator or Antenna Aiming
screen of your Radio to see a visual indication of
signal strength. If you’re receiving a good Satellite
and Terrestrial signal strength, you’re done. If not,
try some of the suggestions which follow.
S
Installation
Signal Indicator
S
ATELLIT
E
TERRESTRIA
L
*The screen shown above is rep-
r esentative and may differ from the
screen displayed on your Radio.

15
Other Indoor/Outdoor Antenna Installation Suggestions
If you find you are getting a signal, but
it’s inconsistent, try moving the Indoor/
Outdoor Home Antenna closer to a
window, ideally one that is facing due
south.
Not sure which way is south? Think
about where the sun rises (in the east)
and sets (in the west). Then stand so
that east is to your left and you’ll be
facing south. Is there a window in the
direction you’re facing? Move the antenna
closer to the window.
TIP! Still not sure which way is south or
where to place your antenna? Look up
your location on an online mapping Web
site that offers satellite views of street
addresses where you can easily see which
way is south, and what window may offer
an unobstructed view of the sky.
Another easy method is to start at
any window, then work from window to
window in a simple pattern to find the
window gives the best signal strength.
Note that the antenna must also have
an unobstructed view. No trees or
buildings blocking its aim. If the antenna is aimed through a window, be aware
that blinds, screens, or any other non-glass elements such as thermal insulation
can sometimes cause reception issues. If this is the case, you may want to use
S
SOUTH
Installation

16
another window or place the antenna outside of the window.
If you find a window that gives you good
signal strength, you can place the antenna
on the windowsill. The antenna may need
to be placed on something to raise it above
the level of the window frame.
If you don’t have a window where
you receive a consistent signal, or
placing the antenna in a window is not
a practical solution for you, BETTER
reception can be achieved by placing
the antenna outside on a window ledge,
porch, table, or patio. The location you
choose should provide the antenna with
a clear view of the southern sky.
If none of the previous solutions work
for you, then the BEST reception can
be achieved by mounting the antenna
outdoors on a wall or soffit, with a clear
view of the southern sky.
If you decide to do this more
permanent antenna installation,
you’ll probably want to purchase a
second indoor/outdoor antenna, so
that you’ll have one to use with the
Universal Boombox when on-the-go. An
additional antenna can be purchased at shop.siriusxm.ca.
Note that you will want to consider any potential hazards when you choose
OUTDOORS
SOUTH
SOFFIT
SOUTH
Installation

17
the mounting location, and possibly consider
professional installation. Sirius XM Canada, Inc.
is not liable for any damages.
To mount the antenna, you will need four screws
(sold separately) with a 1/4” head (e.g., an M3
screw), and that are suitable for the material
onto which you are affixing the antenna, (e.g.,
wood, metal, etc.). The screws should be
spaced 1-3/8” apart horizontally and 1-1/8”
vertically. Refer to the “Indoor/Outdoor Antenna
Template” on page 28.
Once you have found a suitable location for
the antenna, route the antenna cable to the Universal Boombox. Be sure you
avoid any obstructions that could crimp, kink, or twist the cable. Use protective
grommets wherever rough openings are encountered. If the antenna is installed
outdoors, route the cable from the antenna location to the interior of the home,
working the cable through the basement, under a window sill, etc., and make
adjustments to take up cable slack as necessary.
TIP! If your indoor/outdoor antenna’s cable isn’t long enough, visit shop.siriusxm.ca
and consider a 50 ft. Indoor/Outdoor Home Antenna Extension Cable or a Home
Distribution Kit.
If the signal is good for either Satellite or Terrestrial (or both), and you are
hearing the audio from the Radio, the antenna installation is complete. ( Refer to
your Radio’s User Guide for instructions on how to access the Signal Indicator or
Antenna Aiming screen. )
If the signal reception is low, or intermittent, try another location for the antenna.
Verify that the antenna is pointed south, and that the antenna’s view of the sky
is not blocked by a tree, a building, a bridge, or anything else. Adjust until you are
1-3/8 in
1-1/8 in
Installation

18
receiving a good signal.
The Indoor/Outdoor Home Antenna’s reception can also be tweaked by opening
or closing the antenna clamshell, and turning the antenna. While observing the
signal strength, make small adjustments to the angle of tilt of the clamshell until
the highest possible signal strength is achieved. If you have not wall-mounted
the antenna, turn the antenna slightly to the right or left and observe if the
signal strength increases. For each tweak, allow a few seconds in each position to
determine if the signal strength increases.
SOUTH
Installation

19
Subscribing to the Sirius or XM Service
If you have not yet subscribed to the Sirius or XM satellite radio service, you’ll
need to before you can listen to SiriusXM programming on your Radio. To
subscribe, refer to your Radio’s User Guide, or do the following:
1. Be sure that your Radio is correctly installed as described in this guide, is
in the Universal Boombox, and that the antenna is oriented to receive the
satellite signal.
2. Press the Power/Volume knob to turn on the Universal Boombox. If the
Radio does not turn on at the same time, turn the Radio on.
3. After the start up sequence, the Radio may update the channel line-up. Wait
until the channel updates have completed before pressing any buttons.
4. Once the channels have been updated, the Radio should tune to channel
184 (Sirius) or channel 1 (XM). You will not be able to listen to other
channels until you activate your subscription.
5. Use the Radio’s channel up/down buttons to tune to channel 0 to display
the Radio’s unique Sirius ID (SID) or Radio ID number. You can also tune to
channel 0 by using the Remote Control: Press the Select button, then the 0
(zero) button, and then press the Select button again. The SID or Radio ID
are also available on the Radio’s packaging, and may also be accessed by
pressing the MENU button and selecting Sirius ID or Radio ID. Write the SID
or Radio ID down in the space provided near the end of this guide.
6. Have your credit card handy and visitsiriusxm.ca/activate and follow the
prompts to activate your subscription. You can also call SiriusXM customer
care at 1-888-539-7474.
7. When you have successfully subscribed to the Sirius or XM service, and the
Radio has been updated with your subscription information, an alert will be
displayed. To continue, press any button.
You are now ready to begin enjoying satellite radio, and can tune to other channels.

20
Operation
Power on the Universal Boombox by pressing the Power/Volume knob on the
front panel. The light on the front panel surrounding the knob should light up blue
to indicate power is on. If the Radio does not power on at the same time, press
the Power button on the Radio. You should now hear the Sirius or XM audio. If
you do not, increase the volume of the Universal Boombox by turning the Power/
Volume knob clockwise (+).
Your Radio remembers whether it was on or off when power to the Radio is
turned off at the time the Universal Boombox is turned off. Therefore, if your
Radio was on at the time you turned the Universal Boombox off, when you turn
the Universal Boombox back on, the Radio will turn on also. If the Radio was off
at the time you turned off the Universal Boombox, you’ll need to turn the Radio
on also when you turn on the Universal Boombox.
Batteries
Battery life is dependent upon several factors, including:
• The model of your Radio.
• The strength of the satellite signal.
• The volume level the Universal Boombox is set at.
• The type of audio playing, i.e., talk or music, and music with heavy bass
which requires greater power to drive the woofer.
• Type and freshness of the batteries.
With fresh batteries, battery life is estimated at approximately 8 hours at half
volume. Expect the actual battery life to vary.
When the Universal Boombox is powered on the light on the front panel
surrounding the Power/Volume knob is normally blue. When the light turns red,
that indicates the battery power is low. Replace the batteries.
