SKATEPLATE H20 User manual

NEED PIC

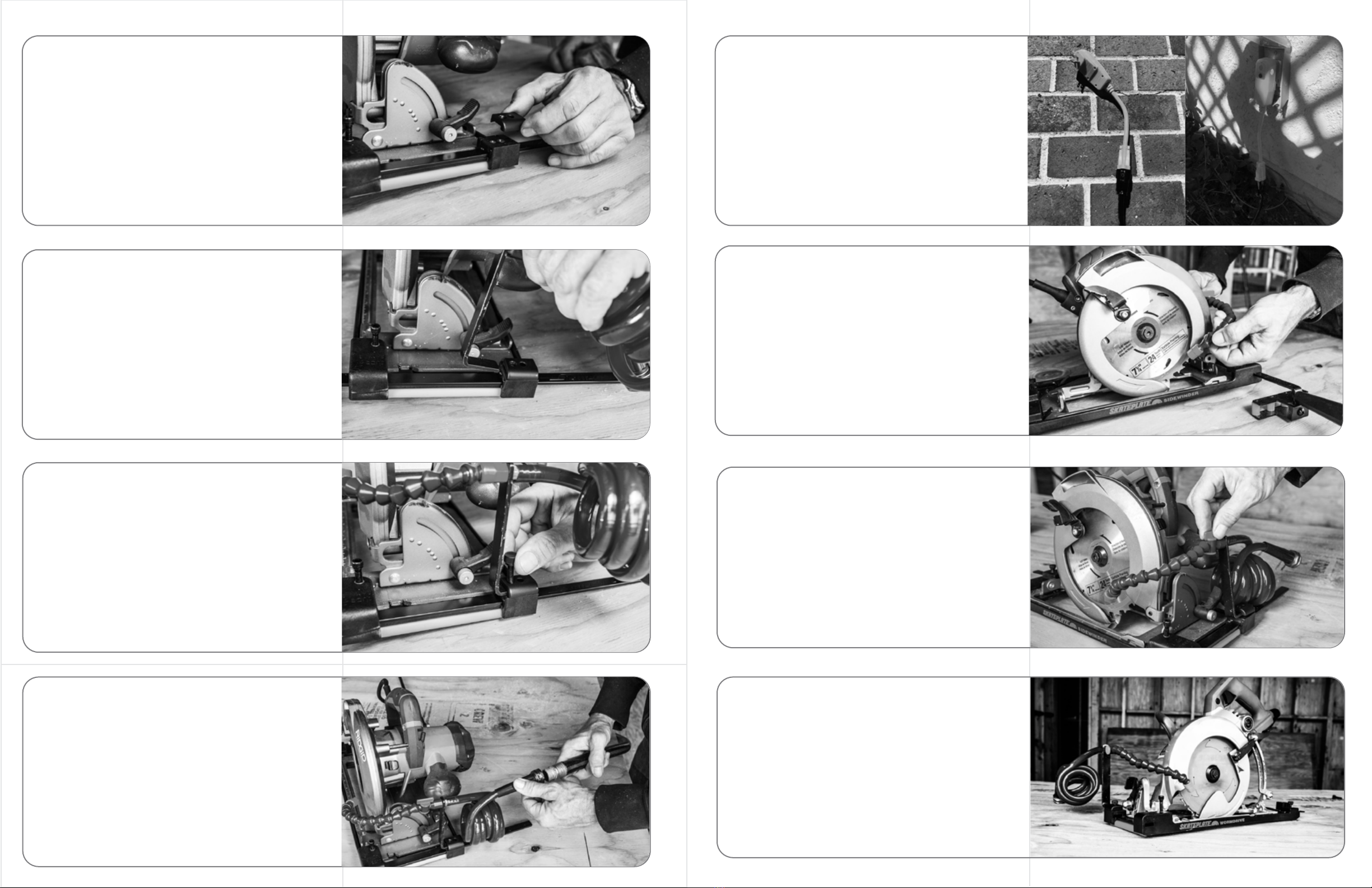

INSERT AND TIGHTEN THE SCREW* TO HOLD THE
L-BRACKET IN PLACE.
*PROVIDED WITH SKATEPLATE
STEP 2
STEP 1
INSERT THE L-BRACKET INTO THE SLOT AT LOCATION
NOTE: ALWAYS USE THE SKATEPLATE SLOT THAT IS OPPOSITE OF THE
SIDE WITH THE SAW BLADE.
EXAMPLE: FOR SIDEWINDER USE THE FRONT LEFT SLOT; FOR
WORMDRIVE, USE THE FRONT RIGHT SLOT.
INSTALLATION
DRAG THE HOSE TO THE BACK OF THE SKATEPLATE®
AND SECURE IT WITH THE LOOP SNAP FOR SAFETY
AS SHOWN
STEP 3
NEED PIC
NEED PIC
NEED PIC
The SKATEPLATE H2O® Water Saw System is a one person job for anyone who cuts granite,
masonry or concrete. The H2O kit only fits the SKATEPLATE® and converts it into an
economical and highly portable water saw. The precision spray hose directs the water jet to the
point of the cut, thereby eliminating caustic dust while cooling the blade. It increases the blade
life while reducing fatigue. In short, it turns a 2 or 3 person operation into a one-person job.
SKATEPLATE H20 ®
WARNING
Read and understand all instructions. Failure to follow all instructions listed below may
result in electric shock or serious personal injury.
SAVE THESE INSTRUCTIONS
Follow Instructions For Your Saw
Be sure to follow all of the safety instructions for your saw. Wear eye protection and use all
recommended protective equipment.
Unplug Your Saw Before Installing or Adjusting the SKATEPLATE®
Disconnect the plug from the power source before installing or making any adjustments to
the SKATEPLATE®. These preventive safety measures reduce the risk of starting the saw
accidentally. Remove all adjusting keys or wrenches before turning the saw on.
Secure the Work Place
Use clamps or other practical ways to secure and support the work piece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to loss
of control. NEVER hold the piece being cut in your hands or across your leg. It is important
to support the work properly to minimize body exposure, blade binding, or loss of control.
Do not force the saw.
SKATEPLATE H20
®Use and Care
Check for misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect operation of the SKATEPLATE® and H20 kit. If damaged, replace
or repair before using. It is important to use the GFCI to prevent the possibility of electrical
shock or fires. Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia,
etc. may damage plastic parts. Never clamp or tie the lower guard into the open position. 
Circular saws are not designed or intended to be used as table saws.
KICKBACK
KICKBACK may occur with the SKATEPLATE®. NEVER place your hand behind the
saw blade since KICKBACK could cause the saw to jump backwards over your hand.
Keep your body positioned to either side of the saw blade, but not in line with the saw
blade. Follow all of the instructions for your saw to prevent KICKBACK.
(1) Spray Tip
(1) Articulating Hose
(1) Supply Hose “18” 100 Psi
(1) Brass Fitting for Water Source
(1) L-Bracket
(1) Assembly Cap
(1) GFCI (Outdoor-Rated)
(1) Cross Head Screw
(1) Loop Snap
SKATEPLATE H20® Hardware
LIMITED WARRANTY OF
CIRCSAW TECHNOLOGIES, LLC PRODUCTS
CircSaw Technologies LLC (“Seller”) warrants to the original purchaser only, that all
SKATEPLATE®, SKATEGUIDE®, SKATEGUIDE-ZILLA® and SKATEPLATE H20®
products will be free from defects in material or workmanship for a period of 90 days from
date of purchase.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited
Warranty and, to the extent permitted by law, any warranty or condition implied by law,
shall be the repair or replacement of parts, without charge, which are defective in material
or workmanship and which have not been misused, carelessly handled, altered or repaired
by persons other than Seller or its Factory Service Center. To make a claim under this
Limited Warranty, you must (a) contact CircSaw Technologies LLC at www.skateplate.com
to obtain a Warranty Return Authorization, and (b) return the complete product, shipping
prepaid, to the CircSaw Technologies LLC Factory Service Center specified.
SELLER DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING
IMPLIED WARRANTIES OF “MERCHANTABILITY” AND “FITNESS” FOR A
PARTICULAR PURPOSE, AFTER THE 90-DAY TERM OF THIS WARRANTY. SOME
STATES IN THE U.S.A. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR
INJURY OR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS
PRODUCT. SOME STATES IN THE U.S.A. AND SOME CANADIAN PROVINCES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE IN THE U.S.A,
PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO PRODUCTS SOLD WITHIN THE
UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF
PUERTO RICO.

NOTE: THE ASSEMBLY CAP WAS DESIGNED FOR THE SKATEPLATE H20®
AND CAN BE USED SIMULTANEOUSLY WITH THE SKATEGUIDE®.
Your SKATEPLATE H20® is now ready for use!
STEP 1
CONNECT THE WATER SOURCE TO THE
BRASS FITTING.
NOTE: INDIVIDUAL PARTS HAVE COME PREASSEMBLED.
USAGE
TURN ON YOUR WATER SOURCE. TYPICALLY, FULL
PRESSURE FROM THE GARDEN HOSE IS NOT
REQUIRED. 1/3 FLOW PRESSURE MAY BE ADEQUATE.
USE THE ADJUSTABLE VALVE LEVER TO REACH THE
OPTIMAL WATER PRESSURE AT THE SPRAY TIP.
STEP 4
PLUG IN AND ATTACH THE SAW POWER CORD TO THE
GFCI AS SHOWN.
STEP 2
DIRECT THE SPRAY TIP SLIGHTLY IN FRONT OF
THE LOCATION WHERE THE BLADE MEETS THE
CUTTING SURFACE.
STEP 3
ONLY WHEN BOTH THE H20® AND SKATEGUIDE®
ARE USED SIMULTANEOUSLY, INSERT THE ASSEMBLY
CAP TO THE FRONT OF THE SKATEPLATE® IN THE
DESIGNATED AREA.
STEP 4
INSERT AND TIGHTEN THE CROSS HEAD SCREW TO
HOLD THE ASSEMBLY CAP AND L-BRACKET IN PLACE.
STEP 6
INSERT THE L-BRACKET AT LOCATION 1.
STEP 5
FOR ANY ADDITIONAL QUESTIONS OR TO VIEW INSTRUCTIONAL VIDEOS, PLEASE REFER TO OUR WEBSITE WWW.SKATEPLATE.COM
