Skil PWRCORE 20 ID6739B-00 User manual

WARNING: To reduce the risk of injury, the user must read and understand the
Owner’s Manual before using this product. Save these instructions for future reference.
AVERTISSEMENT : Afin de réduire les risques de blessure, l’utilisateur doit lire et
comprendre le guide d’utilisation avant d’utiliser cet article. Conservez le présent guide
afin de pouvoir le consulter ultérieurement.
ADVERTENCIA : Para reducir el riesgo de lesiones, el usuario debe leer y comprender
el Manual del operador antes de utilizar este producto. Guarde estas instrucciones para
consultarlas en caso sea necesario.
Owner’s Manual
Guide d’utilisation
Manual del propietario
For Customer Service
Pour le service à la clientèle
Servicio al cliente
20V Brushless Impact Driver
Visseuse à percussion sans balais de 20 V
Atornillador de impacto de 20 V sin escobillas
1-877-SKIL-999 OR www.skil.com
Model/ Modelo/ Modèle: ID6739B-00

2
TABLE OF CONTENTS
General Power Tool Safety Warnings .............................3-4
Safety Rules for Impact Driver .....................................5
Symbols .....................................................6-9
Get to Know Your Impact Driver ..................................10
Specications .................................................10
Operating Instructions .......................................11-16
Maintenance...................................................17
Troubleshooting ...............................................17
LIMITED WARRANTY FOR SKIL CORDLESS TOOL...................18
WARNING
• Some dust created by power sanding, sawing, grinding, drilling and other construction
activities contains chemicals known to the State of California to cause cancer, birth defects
or other reproductive harm. Some examples of these chemicals are:
– Lead from lead-based paints.
– Crystalline silica from bricks, cement, and other masonry products.
– Arsenic and chromium from chemically-treated lumber.
• Your risk from these exposures varies, depending upon how often you do this type of work.
To reduce your exposure to these chemicals:
– Work in a well-ventilated area.
– Work with approved safety equipment, such as dust masks that are specially designed to
lter out microscopic particles.
– Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and
other construction activities. Wear protective clothing and wash exposed areas with soap
and water. Allowing dust to get into your mouth or eyes or to lie on the skin may promote
absorption of harmful chemicals.

3
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings, instructions, illustrations and specifications
provided with this power tool. Failure to follow all instructions listed
below may result in electric shock, re and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE
REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Work area safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed
or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increased the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a ground fault circuit
interrupter (GFCI)” protected supply. Use of a GFCI reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while operating power tools may result in
serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safely shoes, hard hat or hearing protection used for appropriate
conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or energizing power tools that have the
switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.

4
Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away
from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent
and ignore tool safety principles. A careless action can cause severe injury within a fraction
of a second.
Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or remove the battery pack, if
detachable, from the power tool before making any adjustments, changing accessories,
or storing power tools. Such preventive safely measures reduce the risk of starting the
power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools and accessories. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.
Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for safe handling and control of the tool in
unexpected situations.
Battery tool use and care
Recharge only with the charger specified by the manufacturer. A charger that is suitable
for one type of battery pack may create a risk of re when used with another battery pack.
Use power tools only with specifically designated battery packs. Use of any other battery
packs may create a risk of injury and re.
When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals together may cause burns or a
re.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
Do not use a battery pack or tool that is damaged or modified. Damaged or modied
batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

5
Do not expose a battery pack or tool to fire or excessive temperature. Exposure to re or
temperature above 265°F (130°C) may cause explosion.
Follow all charging Instructions and do not charge the battery pack or tool outside the
temperature range specified in the instructions. Charging improperly or at temperatures
outside the specied range may damage the battery and increase the risk of re.
Service
Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Never service damaged battery packs. Service of battery packs should only be performed
by the manufacturer or authorized service providers.
SAFETY RULES FOR IMPACT DRIVER
Hold the power tool by insulated gripping surfaces, when performing an operating
where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may
make exposed metal parts of the power tool “live” and could give the operator an electric
shock.

6
SYMBOLS
Safety Symbols
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols and explanations with them deserve your careful attention and understanding. The
symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings
they give are no substitutes for proper accident prevention measures.
WARNING Be sure to read and understand all safety instructions in this Owner’s
Manual, including all safety alert symbols such as “DANGER”, “WARNING”
and “CAUTION” before using this tool. Failure to follow all instructions listed below may result
in electric shock, re, and/or serious personal injury.
The denitions below describe the level of severity for each signal word. Please read the
manual and pay attention to these symbols.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, will result in minor or moderate
injury.
Damage Prevention and Information Messages
These inform the user of important information and/or instructions that could lead to equipment
or other properly damage if they are not followed. Each message is preceded by the word
“NOTICE”, as in the example below:
NOTICE: Equipment and/or properly damage may result if these instructions are not followed.
WARNING The operation of any power tools can result in foreign
objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation, always
wear safety goggles or safety glasses with side shields and a full face
shield when needed. We recommend a Wide Vision Safety Mask for use
over eyeglasses or standard safety glasses with side shields. Always
use eye protection which is marked to comply with ANSI Z87.1.

7
SYMBOLS (CONTINUED)
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and more safely.
Symbol Name Designation/Explanation
V Volts Voltage (potential)
AAmperes Current
Hz Hertz Frequency (cycles per second)
WWatt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Wh Watt-hours Battery capacity
Ah Ampere-hours Battery capacity
øDiameter Size of drill bits, grinding wheels, etc.
n0No load speed Rotational speed, at no load
nRated speed Maximum attainable speed
…/min Revolutions or reciprocations per
minute (rpm)
Revolutions, strokes, surface speed,
orbits, etc. per minute
OOff position Zero speed, zero torque...
1,2,3,…
Ⅰ,Ⅱ,Ⅲ, Selector settings Speed, torque, or position settings.
Higher number means greater speed
Innitely variable selector with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current (AC) Type or a characteristic of current
Direct current (DC) Type or a characteristic of current
Alternating or direct current
(AC / DC) Type or a characteristic of current
Class II tool Designates Double Insulated Construction
tools.
Protective earth Grounding terminal
Li-ion RBRC seal Designates Li-ion battery recycling
program

8
Symbol Name Designation/Explanation
Read the instructions Alerts user to read manual
Wear eye protection symbol Alerts user to wear eye protection
Always operate with two hands Alerts user to always operate with two
hands
Do not use the guard for cut-off
operations
Alerts user not to use the guard for
cut-off operations

9
SYMBOLS (CERTIFICATION INFORMATION)
IMPORTANT: Some of the following symbols for certication information may be used on your
tool. Please study them and learn their meaning. Proper interpretation of these symbols will
allow you to operate the tool better and more safely.
Symbol Designation/Explanation
This symbol designates that this tool is listed by Underwriters
Laboratories.
This symbol designates that this component is recognized by
Underwriters Laboratories.
This symbol designates that this tool is listed by Underwriters
Laboratories, to United States and Canadian Standards.
This symbol designates that this tool is listed by the Canadian
Standards Association.
This symbol designates that this tool is listed by the Canadian
Standards Association, to United States and Canadian Standards.
This symbol designates that this tool is listed by the Intertek Testing
Services, to United States and Canadian Standards.

10
GET TO KNOW YOUR IMPACT DRIVER
20V Brushless Impact Driver
Fig. 1
LED Light
SPECIFICATIONS
Rated Voltage 20V d.c.
Collet size 1/4 in. (6.35mm) (one hand collet)
No-load Speed (n0) 0-1800 / 0-2500 / 0-3100 /min (RPM)
Impact rate 0-2450 / 0-3400 / 0-3950 /min (IPM)
Recommended Operating Temperature 14 – 104 °F (-10 – 40 ℃)
Recommended Storage Temperature 32 – 104 °F (0 – 40℃)
One Hand
Collet
Variable-Speed
Trigger Switch
LED Light Button
Mode Button
Removable Belt Clip
Direction-of-Rotation (forward/
center-lock/reverse) Selector
Bit
Storage
Area
Strap
Fixing
Area

11
OPERATING INSTRUCTIONS
WARNING To reduce the risk of re, personal injury, and product damage due to a
short circuit, never immerse your tool, battery pack, or charger in uid
or allow a uid to ow inside them. Corrosive or conductive uids, such as seawater, certain
industrial chemicals, and bleach or bleach-containing products, etc. can cause a short circuit.
WARNING If any parts are damaged or missing, do not operate this product until
the parts are replaced. Use of this product with damaged or missing parts
could result in serious personal injury.
WARNING Do not attempt to modify this tool or create accessories not recom-
mended for use with this tool. Any such alteration or modication is
misuse and could result in a hazardous condition leading to possible serious injury.
WARNING To prevent accidental starting that could cause serious personal injury,
always remove the battery pack from the tool when assembling parts,
making adjustments, cleaning, or performing maintenance.
This cordless impact driver must be used only with the battery packs and chargers listed be-
low:
Battery pack Charger
2Ah 2.5Ah 4Ah 5Ah
SKIL BY519701
SKIL BY519702 SKIL BY519703 SKIL BY519601 SKIL BY519603
SKIL SC535801
SKIL QC536001
SKIL QC5359B-02
SKIL SC5358B-02
NOTICE: Please refer to the battery pack and charger manuals for detailed operating
information.
Attaching/Detaching Battery Pack
(Fig. 2)
Lock the variable-speed trigger switch “OFF”
on the tool by placing the direction-of-rotation
(forward/center-lock/reverse) selector in the
center position before attaching or detaching
the battery pack.
To attach the battery pack:
Align the raised rib on the batter pack with the
grooves on the tool, and then slide the battery
pack onto the tool.
NOTICE: When placing the battery pack on the
tool, be sure that the raised rib on the battery
pack aligns with the groove inside the tool and
that the latches snap into place properly. Improper attachment of the battery pack can cause
damage to internal components.
To detach the battery pack:
Depress the battery-release button, located on the front of the battery pack, to release the
battery pack. Pull the battery pack out and remove it from the tool.
WARNING Battery tools are always in operating condition. Therefore, the direction-
of-rotation (forward/center-lock/reverse) selector should always be
locked in the center position when the tool is not in use or carrying it at your side.
Fig. 2
Attach
Battery-Release Button Detach

12
Direction-of-Rotation (Forward/Center-Lock/Reverse) Selector
WARNING After tool use, lock the direction-of-rotation selector in the “OFF”
position (center-lock) to help prevent accidental starts and possible
injury.
Your tool is equipped with a direction-of-rotation selector, located above the variable-speed
trigger switch. This selector is used to change the direction of rotation of the bit and to lock the
variable-speed trigger in the “OFF” (center-lock) position (Fig. 3).
a. Position the direction-of-rotation selector to the far left of the tool for forward rotation to drive
the screws in.
b. Position the direction-of-rotation selector to the far right of the tool for reverse rotation to
remove screws.
c. Position the switch in the “OFF” (center-lock) position to help reduce the possibility of
accidental starting when the tool is not in use.
NOTICE: To prevent gear damage, always allow the impact driver to come to a complete stop
before changing the direction of rotation.
NOTICE: The impact driver will not run unless the direction-of-rotation selector is engaged
fully to the left or to the right.
Forward Center-Lock Reverse
Fig. 3
Variable-Speed Trigger Switch
Your tool is equipped with a variable-speed
trigger switch. The tool can be turned “ON” or
“OFF” by depressing or releasing the variable-
speed trigger switch.
The variable-speed trigger switch delivers
higher speed with increased trigger pressure
and lower speed with decreased trigger
pressure (Fig. 4).
Fig. 4

13
LED Light (Fig. 5)
Your tool is equipped with an LED light, located
on the head of the tool. This provides additional
light without shadows on the surface of the
work piece for operation in lower-light areas.
To turn on the LED light:
• The LED light will automatically turn on with a
slight squeeze on the variable-speed trigger
switch before the tool starts running.
• The LED light could be turned on manually
by pressing either the LED light button or the
mode button.
To adjust the LED light brightness:
• Every time the LED light button is pressed, the brightness will toggle between Low
Brightness and High Brightness:
a. At Low Brightness, the LED light will turn off approximately 10 seconds after the variable-
speed trigger switch is released without pressing the LED light button or the mode button
again;
b. At High Brightness, the LED light will turn off approximately 600 seconds after the
variable-speed trigger switch is released without pressing the LED light button or the mode
button again.
NOTICE: The brightness setting of the LED light will not be stored in memory or reactivated
the next time the tool is turned on. The LED light will always illuminate at default, low
brightness when it is turned on again.
NOTICE: The brightness can be adjusted only when the motor is not running. The LED light
button is disabled when the motor is running.
When the tool and/or battery pack becomes overloaded or too hot, the internal sensors will
turn the tool off. If the tool and/or battery pack are overloaded, the LED light will ash rapidly.
Rest the tool for a while or place the tool and battery pack separately under air ow to cool.
The LED light will ash more slowly to indicate that the battery is at low-battery capacity.
Recharge the battery pack.
Changing Work Modes
When the tool is set in forward rotation, the
work mode – a combination of rotation speed,
impact rate, and torque – can be changed to
allow a tightening force suitable to the work at
hand. Every time the mode button is pressed,
the mode will toggle between 4 work modes:
a. Low-Speed Mode - Indicator light above "1"
shines green.
b. Medium-Speed Mode - Indicator lights above
"1" and "2" shine green.
c. High-Speed Mode - Indicator lights above 1,
2, and 3 shine green.
Fig. 5
LED Light
Variable-Speed
Trigger Switch
LED Light Button
Mode Button
1
LOW 10 SECS
10 MINS
HIGH
2 3 CM
1
LOW 10 SECS
10 MINS
HIGH
2 3 CM
1
LOW 10 SECS
10 MINS
HIGH
2 3 CM
1
LOW 10 SECS
10 MINS
HIGH
2 3 CM
M
M
M
M
Fig. 6
Low-speed mode
Medium-speed
mode
High-speed mode
Control mode

14
d. Control Mode - Indicator light corresponding to "CM" shines green.
In control mode, the tool runs at low-speed at rst to help engage the screw into work piece.
Once the screw is well engaged, the tool will increase speed automatically to nish the work
efciently with steady control over the process. The control mode is available only when the
tool is set in forward rotation (to drive screws in). If the tool is switched to reverse rotation
while in control mode, the impact force and speed are the same as the medium-speed mode "2".
The modes can also be changed when the tool is set in reverse rotation to allow a loosening
force suitable to the work at hand.
NOTICE: The work mode can be changed only when any mode-indicator light is shining and
the trigger switch is not depressed. The mode button is disabled when the motor is running.
The work mode will be stored in memory and reactivated the next time the tool is turned on or
when the direction of rotation has been changed. Reset the modes as desired.
When the trigger is squeezed slightly, the LED light button is pressed, or the mode button is
pressed, any of the four indicator lights will automatically shine green, to indicate the work
mode saved during the last use and will turn off approximately 60 seconds after the variable
speed trigger switch is released. It means that during approximately one minute after releasing
the switch trigger, the work mode can be changed.

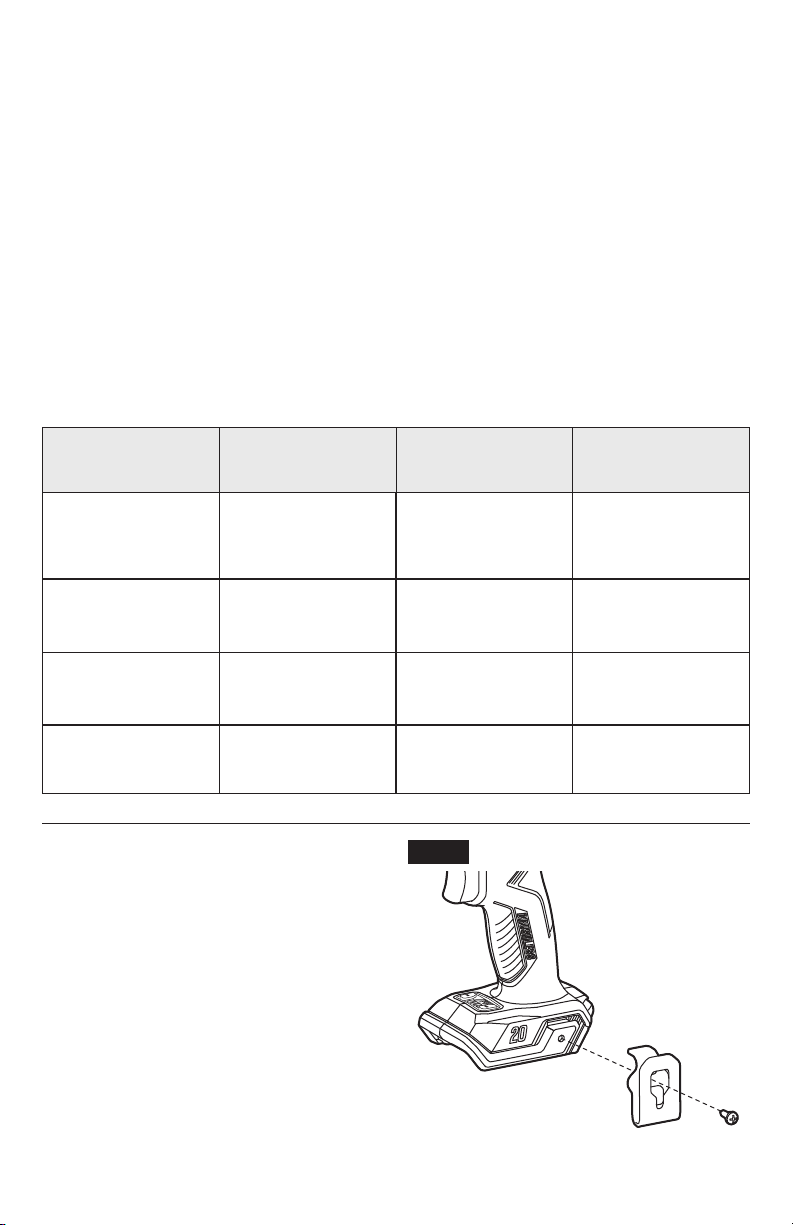

Work mode
displayed Maximum Impact Rate (IPM) Purpose Example of
application
Low-Speed Mode 2450 Applying less torque to avoid screw thread
breakage.
Driving small screws in
light-duty applications;
assembling furniture.
Medium-Speed Mode 3400 Applying medium
torque and speed.
Driving screws
in medium duty
application.
High-Speed Mode 3950 Applying high torque
and speed.
Driving heavy-
duty wood screws,
tightening small bolts.
Control Mode
(forward) 3950 Steady control of
driving screws. Driving long screws.
Removable Belt Clip (Fig. 7)
Your tool is equipped with a removable belt clip
that can be positioned on the left side of the
tool for convenient transport.
To install the belt clip onto the tool:
a. Remove the battery pack from the tool.
b. Align the rib of the belt clip with the threaded
hole on the base of the tool.
c. Insert the screw and securely tighten the
screw with a Phillips head screwdriver
(not included).
Fig. 7

15
To remove the belt clip from the tool:
d. Remove the battery pack from the tool.
e. Use a Phillips head screwdriver (not included) to loosen the screw that attaches the belt clip
to the impact driver.
f. Remove the screw and the belt clip. Store them in a safe place for future use.
Bit Storage and Strap Fixing
(Fig. 8)
Your tool features an integrated bit holder on
the back of the tool base to conveniently store
a hex bit. There's also a strap xing area next
to the bit holder to attach a wrist strap.
Installing and Removing Bits
Your tool is equipped with a one hand collet,
making bit installation and removal and fast.
Lock the variable-speed trigger switch “OFF”
by placing the direction-of-rotation selector in
the center position.
To install the bit:
Insert the bit directly as far as it will go into the
collet. Check to make sure that the bit is rmly
in place. (Fig. 9a)
To remove the bit:
Pull the locking sleeve forward (away from
the tool), pull the bit from the collet, and then
release the sleeve. (Fig. 9b)
Fig. 9a
Fig. 8
Bit Storage Area Strap Fixing Area
Locking Sleeve
Fig. 9b

16
NOTICE: Use only bits with power grooves; other bits can be used with a universal bit holder
that has power groove. Do not use bits that have a damaged shank.
WARNING Wear protective gloves when removing the bit from the tool, or first
allow the bit to cool down. The bit may be hot after prolonged use.
Driving Screws
Variable-speed control must be used
with caution for driving screws using bit
attachments. The best technique is to start
slowly, increase the speed as the screw
runs down, and then set the screw snugly by
slowing the tool to a stop. If this procedure is
not followed, the tool will have a tendency to
torque or twist in your hand when the screw
seats.
a. Install a suitable bit.
b. Apply just enough pressure to keep the bit
engaged on the screw.
c. Apply minimal pressure to the variable-
speed trigger switch intially. Increase the
spped only when full control can be maintained.
NOTICE:
a. Always use the correct type and size of bit for your application.
b. When turning in a screw at/near the cross cut end or an edge of wood, pre-drill a pilot hole
in order to avoid cracking of the wood.
c. When screw driving in hard wood, one should pre-drill a pilot hole.
WARNING Do not over-tighten, as the force of the impact driver can break the
fastener. Keep the impact driver at a right angle to the fastener to
avoid damaging the fastener head.
Fig. 10

17
MAINTENANCE
WARNING To avoid serious personal injury, always remove the battery pack
from the tool when cleaning or performing any maintenance.
Service
WARNING Preventive maintenance performed by unauthorized personal may
result in misplacing of internal wires and components which could
cause a serious hazard. We recommend that all tool service be performed by a SKIL Factory
Service Center or Authorized SKIL Service Station.
General Maintenance
WARNING When servicing, use only identical replacement parts. Use of any
other parts could create a hazard or cause product damage.
Periodically inspect the entire product for damaged, missing, or loose parts such as screws,
nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this
product until all missing or damaged parts are replaced. Please contact customer service an
authorized service center for assistance.
Cleaning
WARNING The tool may be cleaned most effectively with compressed dry air.
Always wear safety goggles when cleaning tools with compressed
air. Ventilation openings and switch levers must be kept clean and free of foreign matter. Do
not attempt to clean by inserting pointed objected through openings.
WARNING Certain cleaning agents and solvents damage plastic parts. Some of
these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents,
ammonia and household detergents that contain ammonia.
Storage
Store the tool indoors in a place that is inaccessible to children. Keep away from corrosive
agents.
TROUBLESHOOTING
Problem Cause Remedy
Tool does not work. 1. Battery pack charge is
depleted. 1. Charge the battery pack.
2. Tool is over-loaded. 2. Turn off the tool and then try again.
3. Battery pack is too hot. 3. Turn off the tool and allow the
battery pack to cool under air ow.
4. Battery pack is not installed
properly. 4. Conrm that the battery pack is locked and secured to the tool.
5. Burned out switch. 5. Have the switch replaced by an
Authorized SKIL Service Center or
Service Station.
LED light rapidly
ashes 1. Tool is over-loaded. 1. Release the trigger switch.
2. Tool is too hot. 2. Cool the tool under air ow.

18
LIMITED WARRANTY OF SKIL CONSUMER TOOLS
5 YEAR LIMITED WARRANTY - LEGAL
