SKKYE LIGHT Dimmable DualStrip 18 User manual

1
Owner’s Manual

2
CONTENTS
TABLE OF CONTENTS
Important Safety Instructions 3-4
Parts—Exploded View & Identification
Dimmable DualStrip 18 5
Dimmable DualStrip 24 6
Dimmable DualStrip 36 7
Dimmable DualStrip 48 8
Introduction 9
Features 10
Specifications 18”, 24” 11
Specifications 36”, 48” 12
Getting Started
Choosing a Location 13
Dimmable DualStrip on Framed Tank 14
Dimmable DualStrip on Rimless Tank 15
Powering Up Dimmable DualStrip 16
PowerCord Organizer 17
Customization with Dials 18
Notes 20-21
Warranty Information 22

3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To guard against injury, basic safety precautions should be observed
including the following:
READ ALL SAFETY INSTRUCTIONS BEFORE USE.
WARNING
To avoid electric shock, special care should be taken since water is
employed in the use of aquarium equipment. For each of the follow-
ing situations, do not attempt to repair yourself. Return the appliance
to an authorized service facility for service or discard the appliance.
 If the appliance falls into water, DO NOT reach for it! First unplug
it an then retrieve it. If the electrical components of the appliance
get wet, unplug the appliance immediately.
 Carefully examine the appliance after installation. It should not
be plugged in if there is water on parts not intended to be wet.
 Do not operate any appliance if it has a damaged cord or plug, or
if it is malfunctioning or if it is dropped or damaged in any man-
ner.

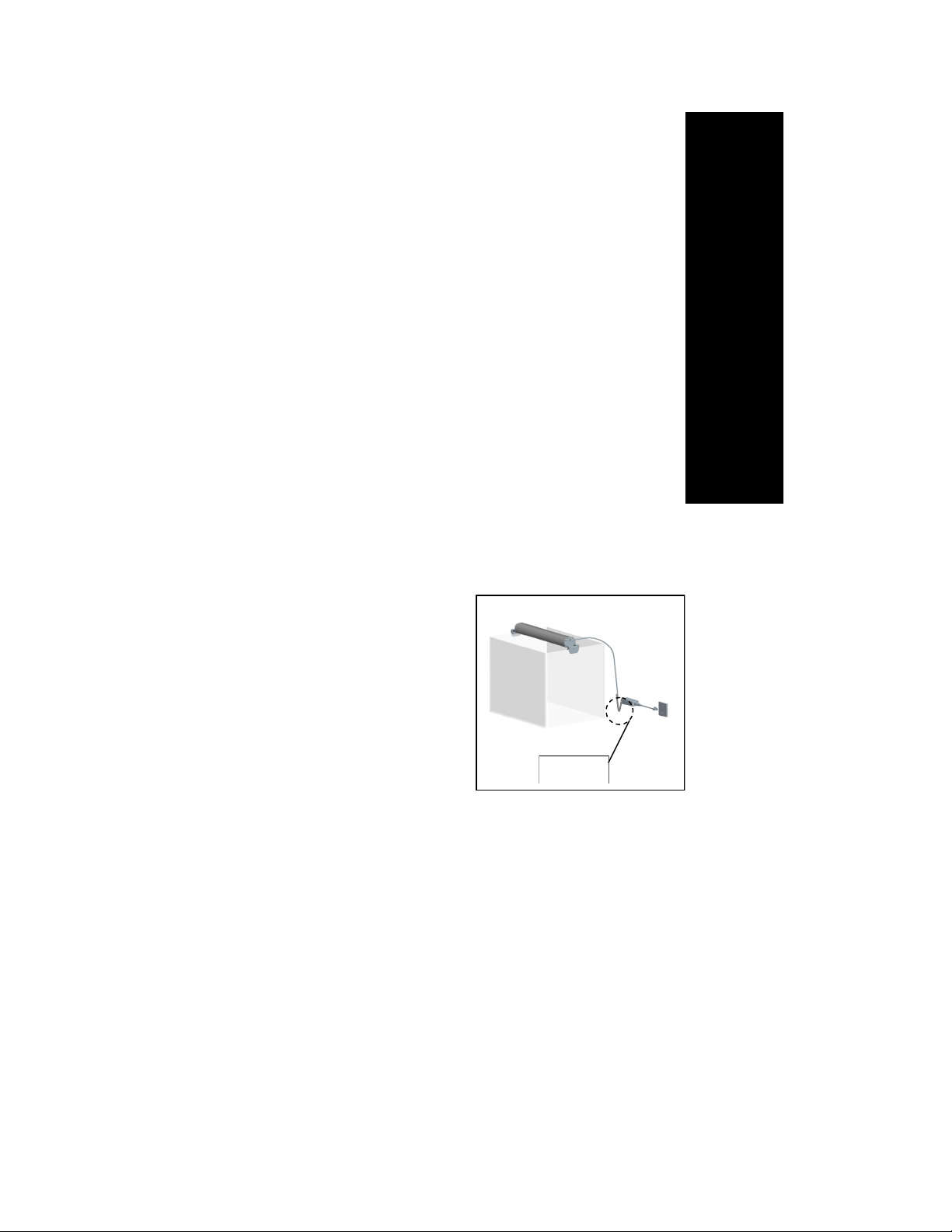

 To avoid the possibility of the appliance plug or receptacle getting
wet, position aquarium to one side
of a wall mounted receptacle to
prevent water from dripping onto
the receptacle plug. A “Drip Loop”
should be arranged by the user for
EACH cord connecting an aquari-
um appliance to a receptacle. The
“Drip Loop” is that part of the cord
below the level of the receptacle or
the connector if an extension cord
is used. This “Drip Loop” prevents
water travelling along the cord and
coming in contact with the receptacle. If the plug or the recepta-
cle do get wet DO NOT unplug the cord. Disconnect the fuse to
the circuit breaker that supplies power to the appliance. Then
unplug and examine for the presence of water in the receptacle.
 Close supervision is necessary when any appliance is used by or
near children.
 To avoid injury, do not contact moving parts or hot parts such as
heaters, reflectors, lamps bulbs and etc.
 Always unplug an appliance from the outlet when not in use, be-
fore putting on or taking off parts, and before cleaning. Never
yank the cord to pull plug from outlet. Grasp the plug and pull to
disconnect.
Drip Loop

4
IMPORTANT SAFETY
INSTRUCTIONS
 Do not use an appliance for other than intended use. The use
of attachments not recommended or sold by the appliance
manufacturer may case an unsafe condition.
 Do not install or store the appliance where it will be exposed to
the weather or to temperatures below freezing.
 Make sure an appliance mounted on a tank is securely installed
before operating it.
 Read and observe all the important notices on the appliance.
 This appliance has a polarized plug (one blade is wider than
the other). As a safety feature, this plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electri-
cian. Never use with an extension cord unless plug can be fully
inserted. Do not attempt to defeat this safety feature.
 This appliance is intended FOR HOUSEHOLD USE ONLY.
 If an extension cord is necessary, a cord with a proper rating
should be used.
CLEANING
 It is important to keep the SkkyeLight Dimmable DualStrip
clean.
 Always unplug the Dimmable DualStrip before performing
maintenance or cleaning.
 Wipe exposed surfaces carefully with a damp cloth to remove
any dust or mineral deposits which may collect over time.
 Make sure hands are dry before re-plugging into an approved
electrical outlet

5

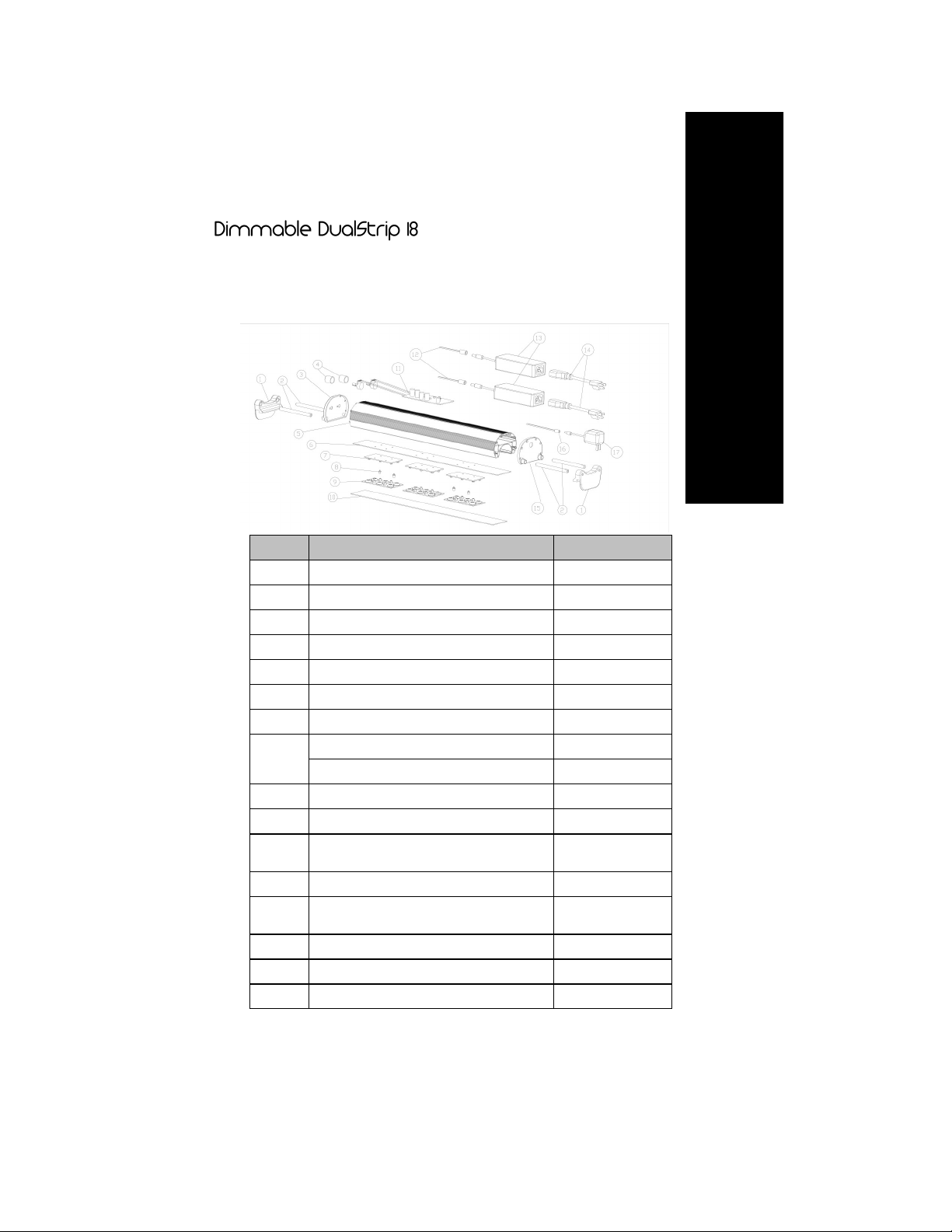

PARTS Exploded View
#Description Item Code
1SingleStrip/DualStrip Bracket 640001
2Sliding Extension Rods 640006
3Side Cap (Rt)-Dial Side 650001
4Dimmable Dials 650002
518” Aluminum Shell 650003
618” Aluminum Heat Sink Plate 650004
76x1Watt LED-DualStrip 650011
8.05Watt Lunar LED 650012
9Independent LED Reflector 650013
10 18” Acrylic Lens 650014
11 Dimmable Circuit Board 650018
12 Female Plug for Daylight/Actinic
Drivers 650019
13 Daylight/Actinic Drivers (9x1W)ea. 650020
14 Power Cord—Daylight/Actinic Driv-
ers 650022
15 Side Cap (Lt) - Cord Side 650024
16 Female Plug for Lunar Driver 650025
17 Lunar Driver (0.5W x 4) 610006

6
PARTS
Exploded View
#Description Item Code
1SingleStrip/DualStrip Bracket 640001
2Sliding Extension Rods 640006
3Side Cap (Rt)-Dial Side 650001
4Dimmable Dials 650002
524” Aluminum Shell 650005
624” Aluminum Heat Sink Plate 650006
76x1Watt LED-DualStrip 650011
8.05Watt Lunar LED 650006
9Independent LED Reflector 650007
10 24” Acrylic Lens 650015
11 Dimmable Circuit Board 650009
12 Female Plug for Daylight/Actinic
Drivers 650010
13 Daylight/Actinic Drivers (12x1W)ea. 650020
14 Power Cord—Daylight/Actinic Driv-
ers 650022
15 Side Cap (Lt) - Cord Side 650024
16 Female Plug for Lunar Driver 650025
17 Lunar Driver (0.5W x 4) 610006

7
PARTS Exploded View
#Description Item Code
1SingleStrip/DualStrip Bracket 640001
2Sliding Extension Rods 640006
3Side Cap (Rt)-Dial Side 650001
4Dimmable Dials 650002
536” Aluminum Shell 650007
636” Aluminum Heat Sink Plate 650008
76x1Watt LED-DualStrip 650011
8.05Watt Lunar LED 650006
9Independent LED Reflector 650007
10 36” Acrylic Lens 650016
11 Dimmable Circuit Board 650009
12 Female Plug for Daylight/Actinic
Drivers 650010
13 Daylight/Actinic Drivers (18x1W)ea. 650021
14 Power Cord—Daylight/Actinic Driv-
ers 650023
15 Side Cap (Lt) - Cord Side 650024
16 Female Plug for Lunar Driver 650025
17 Lunar Driver (0.5W x 4) 610006

8
PARTS
Exploded View
#Description Item Code
1SingleStrip/DualStrip Bracket 640001
2Sliding Extension Rods 640006
3Side Cap (Rt)-Dial Side 650001
4Dimmable Dials 650002
548” Aluminum Shell 650009
648” Aluminum Heat Sink Plate 650010
76x1Watt LED-DualStrip 650011
8.05Watt Lunar LED 650006
9Independent LED Reflector 650007
10 48” Acrylic Lens 650017
11 Dimmable Circuit Board 650009
12 Female Plug for Daylight/Actinic
Drivers 650010
13 Daylight/Actinic Drivers (24x1W)ea 650021
14 Power Cord—Daylight/Actinic Driv-
ers 650012
15 Side Cap (Lt) - Cord Side 650024
16 Female Plug for Lunar Driver 650025
17 Lunar Driver (0.5W x 4) 610006

9
INTRODUCTION
SkkyeLight LED series set the new standard for ultra-modern de-
sign in high brightness LED green technology. Reward your mini
Ecosystem with mesmerizing glitter lines while consuming a frac-
tion of the energy cost and minimal carbon emissions into our en-
vironment.
Experience the evolution of the All-In-One LED fixture with
streamline design and straight forward innovation. Customize the
spectrum & intensity of your aquarium with the simple twist of a
dial. We offer the perfect fusion of high output LEDs for a com-
plete illumination experience including daylight, sunrise/sunset,
and lunar cycles . Onboard solid state rotary dials with on/off
switches allow for fine tuning for color preference and acclimation
within seconds.

10
INTRODUCTION

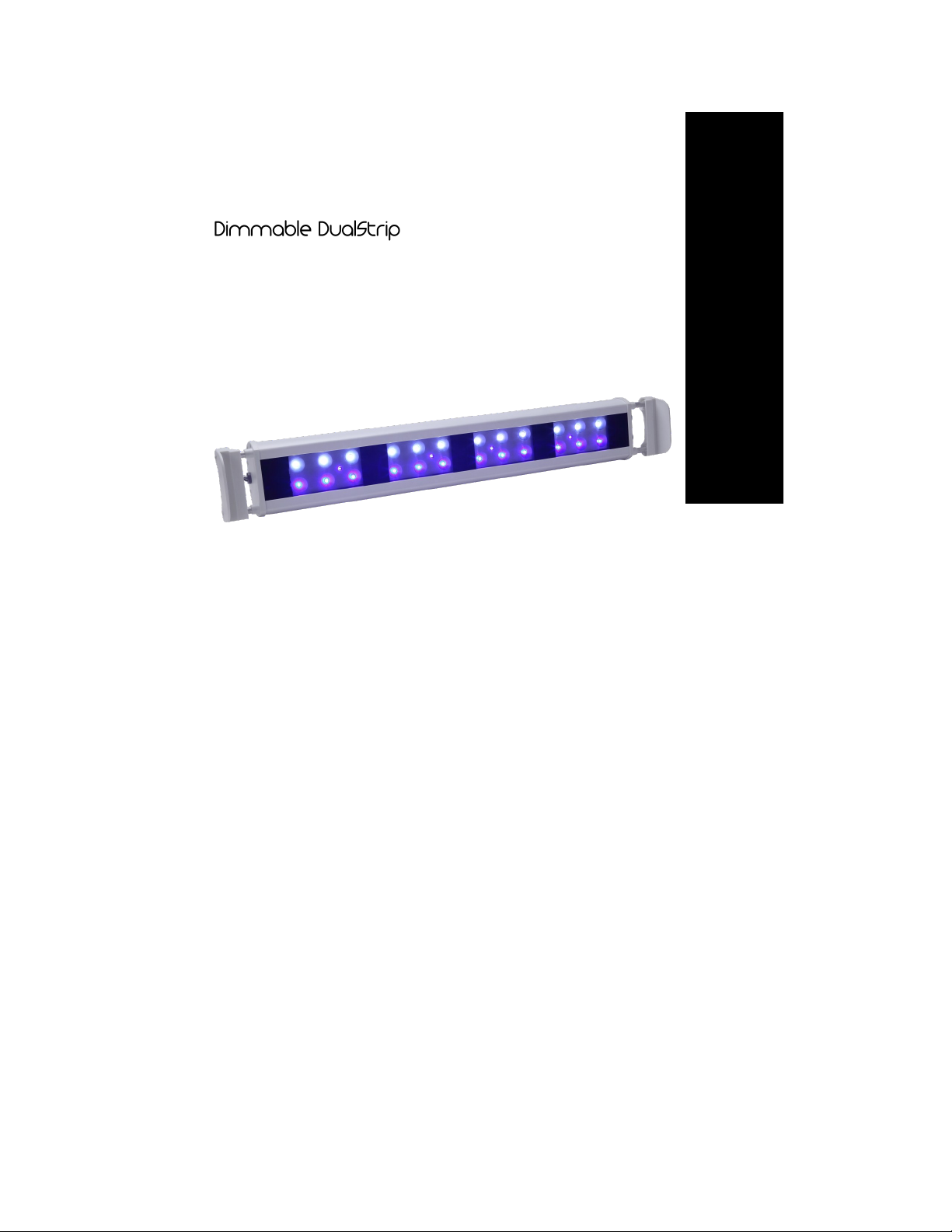

Dimmable DualStrip
Features:
18”
24”
36”
48”
 1 Watt High Brightness LEDs
 120 lumens per watt
 2” Sliding Rods & Aluminum Casing
 Individual Reflectors for uniform coverage
 Passive Cooling – Silent Operation
 Modern slim design
 Pulse Width Modulation – Dimming
 Color Spectrum Range – 14K to 20K
 2 Channel Dimming – Daylight & Actinic
 3 Cycle Illumination
 * 14K Daylight
 * 456nm Sunrise/Sunset
 * 446nm Lunar
 Sizes: 18”, 24”, 36”, 48”
 Independent Power Cords + Cord Organizer

11
INTRODUCTION
MODEL SIZE
6501 18"X3.5"X3"
LIGHT SPECIFICATIONS
DAYLIGHT ACTINIC LUNAR
LED WATTS 9X1W 9X1W 4X0.5W
COLOR 14K 456nm 456nm
CURRENT 0~350mA 0~350mA 60mA
MODEL SIZE
6502 18"X3.5"X3"
LIGHT SPECIFICATIONS
DAYLIGHT ACTINIC LUNAR
LED WATTS 9X1W 9X1W 4X0.5W
COLOR 14K 456nm 456nm
CURRENT 0~350mA 0~350mA 60mA
MODEL SIZE
6503 24"X3.5"X3"
LIGHT SPECIFICATIONS
DAYLIGHT ACTINIC LUNAR
LED WATTS 12X1W 12X1W 4X0.5W
COLOR 14K 456nm 456nm
CURRENT 0~350mA 0~350mA 60mA
MODEL SIZE
6504 24"X3.5"X3"
LIGHT SPECIFICATIONS
DAYLIGHT ACTINIC LUNAR
LED WATTS 12X1W 12X1W 4X0.5W
COLOR 14K 456nm 456nm
CURRENT 0~350mA 0~350mA 60mA

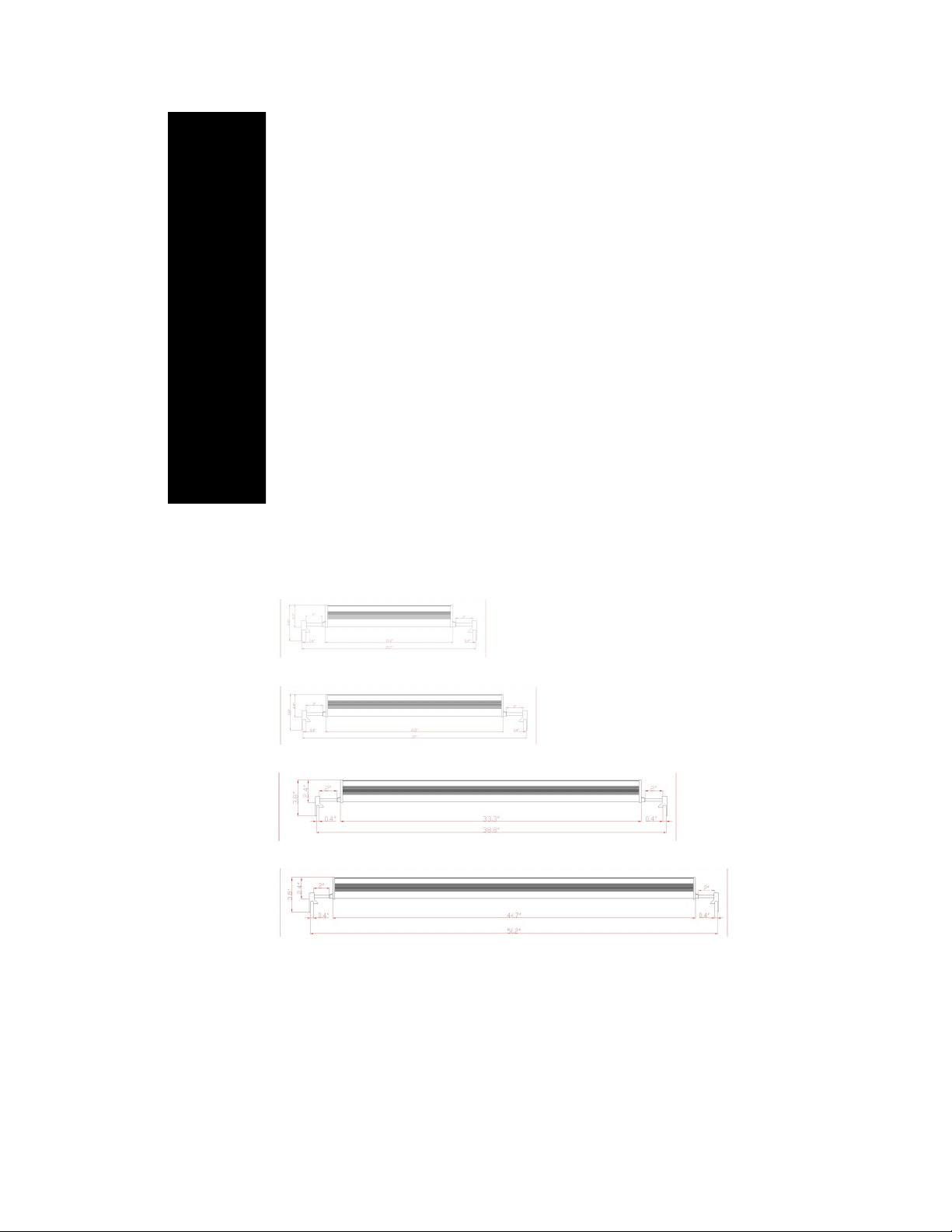

SPECIFICATIONS—
SPECIFICATIONS—

12
INTRODUCTION
MODEL SIZE
6506 36"X3.5"X3"
LIGHT SPECIFICATIONS
DAYLIGHT ACTINIC LUNAR
LED WATTS 18X1W 18X1W 4X0.5W
COLOR 14K 456nm 456nm
CURRENT 0~350mA 0~350mA 60mA
MODEL SIZE
6506 48"X3.5"X3"
LIGHT SPECIFICATIONS
DAYLIGHT ACTINIC LUNAR
LED WATTS 24X1W 24X1W 4X0.5W
COLOR 14K 456nm 456nm
CURRENT 0~350mA 0~350mA 60mA
SPECIFICATIONS—
SPECIFICATIONS—

13
GETTING STARTED
HANDLING PRECAUTION
 Do not use cleaners that contain ammonia to clean the
Dimmable DualStrip surface.
 Always unplug light when performing any maintenance
on Dimmable DualStrip.
CHOOSING A LOCATION
 Place Dimmable DualStrip in a ventilated area.
 Use the integrated Sliding Extension Rods to adjust the
length of DualStrip to place over Framed or Rimless
Aquarium.

14
GETTING STARTED
SKYYELIGHT DIMMABLE DUALSTRIP ON FRAMED TANK

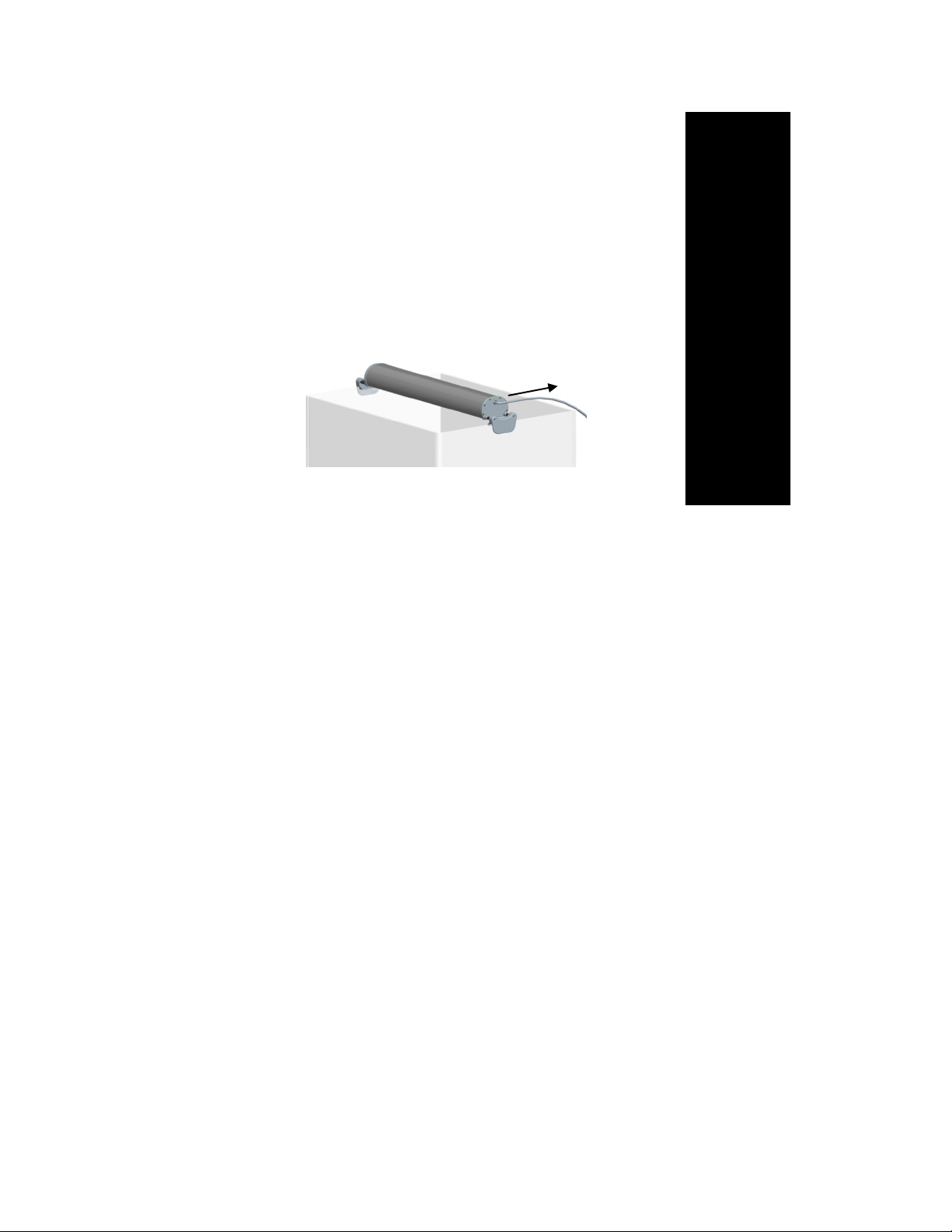

 Slide out Extension
Rods of each end of the
Single Strip to fit
Framed Aquarium.(Fig.1)
 Place the Arm on the
outer edge of the
Frame.(Fig.2)
 Push in the Extension
Rods to securely fit the
Framed Aquarium.
(Fig.3)
Fig 2
Fig 3
Fig 1
Push in the Extension
Rods to securely fit
the Framed Aquari-
um.(Fig.3)
Place the Arm on the
outer edge of the
Frame.(Fig.2)
Slide out Extension
Rods of each end of
the DualStrip to fit
Framed Aquarium.
(Fig.1)

15
GETTING STARTED
 Slide out Extension
Rods of each end of
the Single Strip to fit
Rimless Aquarium.
(Fig.1)
 Place the Arm on the
outer edge of the
Rim.(Fig.2)
 Push in the Exten-
sion Rods to secure-
ly fit the Rimless
Aquarium. (Fig.3)
Fig 2
Fig 3
Fig 1
SKYYELIGHT SINGLESTRIP ON RIMLESS TANK
Slide out Extension
Rods of each end of
the DualStrip to fit
Rimless Aquarium.
(Fig.1)
Place the Arm on the
outer edge of the Rim.
(Fig.2)
Push in the Extension
Rods to securely fit
the Rimless Aquari-
um.(Fig.3)

16
GETTING STARTED

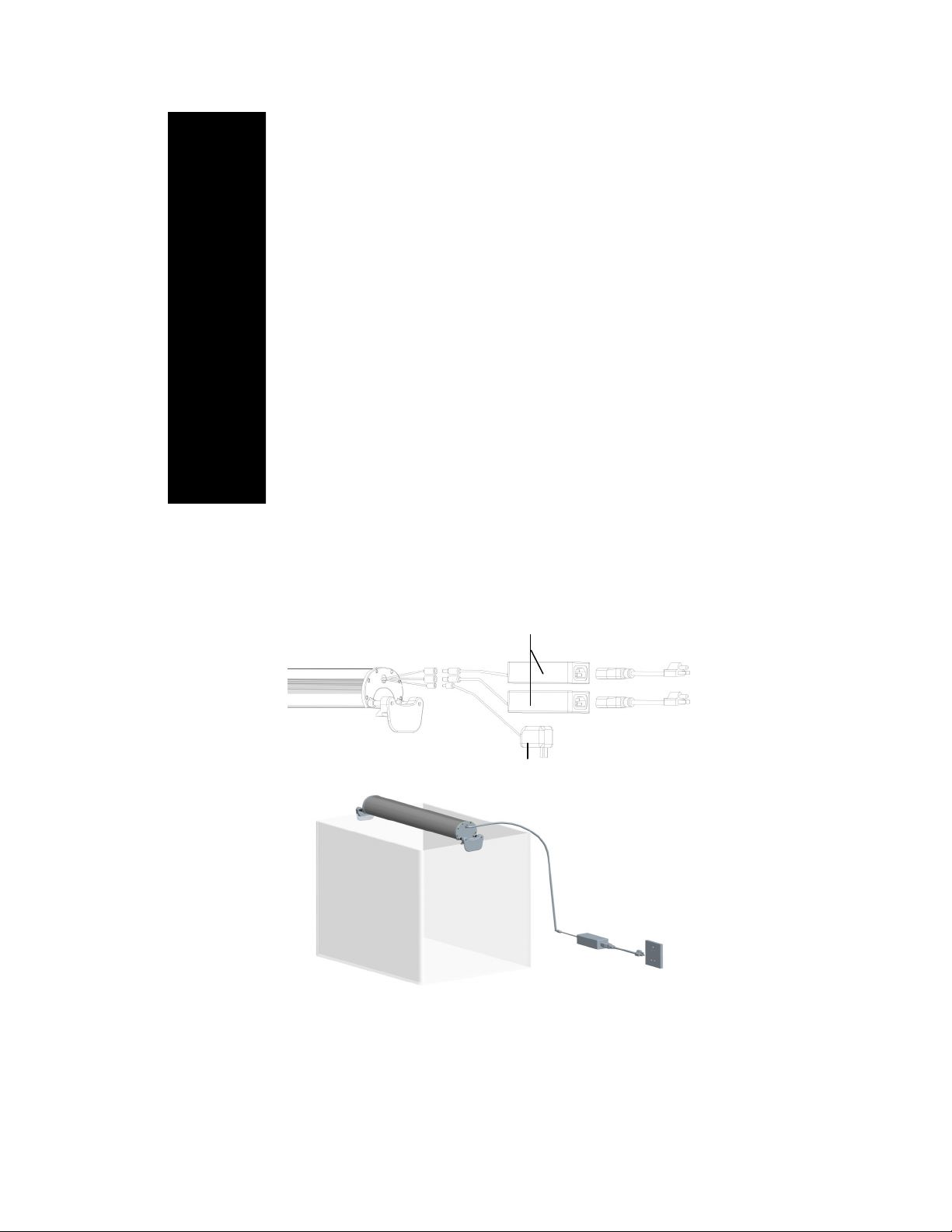

POWERING UP SKKYELIGHT
DIMMABLE DUALSTRIP
NOTE: Daylight/Actinic Drivers are identical. It is not specific to either
Daylight or Actinic.
 Dimmable DualStrip comes with Daylight & Actinic
Drivers
 Connect the female plug from the DualStrip fixture to
the male plug from the Daylight/Actinic Driver.
 Insert power cord wire into the both drivers.
 Plug the power cord into a approved household timer
Daylight & Actinic Drivers
Lunar Driver
 Dimmable DualStrip comes with a Lunar Driver
 Connect the female plug from the DualStrip fixture to
the male plug from the Lunar Driver.
 Plug the Lunar Driver into a approved household
timer Daylight/Actinic Drivers
Lunar Driver

17
GETTING STARTED
POWERCORD ORGANIZER
Dimmable DualStrip comes with a pre-installed powercord or-
ganizer from the DualStrip fixture to the male plugs.
 For a clean appearance run the cords to the back of the
aquarium.

18
GETTING STARTED
 Make sure the width of the aquarium will fit multiple Du-
alStrips.
 Each DualStrip has a width of 3.5”
CUSTOMIZING WITH DIMMEABLE DUALSTRIP
 Dimmable DualStrip has 2 Channel Dimming
Daylight & Actinic
 Each Dial controls the intensity of either the Daylight or
Actinic
 Customize the color spectrum and intensity by adjusting
the Actinic & Daylight Dials
ADDING MORE LIGHTS

19

20
NOTES
