iDance XD300 User manual

0

Thank you for purchasing iDance Audio System
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATION THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFEREN CE.
``1

1


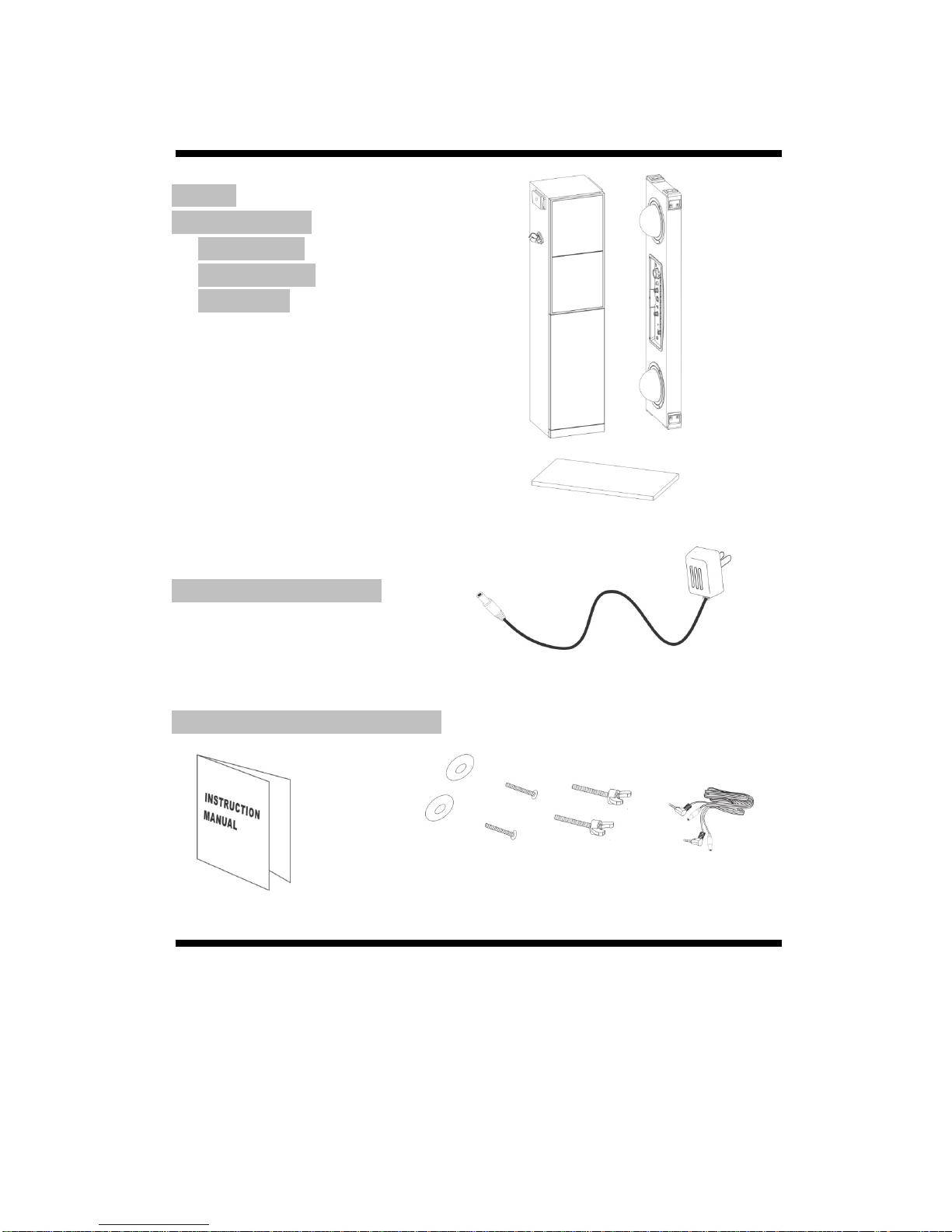

WHAT’S IN THE BOX
Contents
1. iDance XD300
Control Panel
Tower Speaker
Tower Base
2. AC-DC Power Adapter
3. Instruction Manual4. Accessory
OVERVIEW
The iDanceXD300is a Wireless all-in-one DJ Party box System with an integrated
mixer, which accepts microphone, guitar, line-in audio,and stereo Bluetooth wireless
audio up to 10 meters.Only few simple steps to pair your device!!
The XD300is perfect for DJ,house / pool / yard party,or for karaoke applications.Take
your sound with you on the go!!
Thank you, and congratulations on your choice ofiDance’sXD300!

2

FCC and IC WARNING
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
“This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.”
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.”
Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le
brouillageest susceptible d'encompromettre le fonctionnement.

3

WARNING
The exclamation mark inside an equilateral
triangleisintended to alert user of the presence of
theimportantoperatingand
maintenance(servicing)instr
uctions
in the literature accompanying the product.
The lightning flash with arrowhead symbol inside
an equilateral triangle is intended to alert User of
the presence of un-insulated“hazardous voltage”
within the product’s enclosure, which may be of
sufficient magnitude to induce a risk of electric
shock to persons
¾NOTES
Please do not attempt to open the back cover or power adapter as opening or
removing the covers may expose you to dangerous voltage or other hazards,and it
will also cause the restricted servicing to be disabled: There are no user servicing
components inside.
¾NOTES
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the Radio Interference Regulations of Industry
Canada. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
¾NOTES
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
Consult the dealer or an experienced radio/TV technician for assistance.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN ORMOISTURE

CAUTION: TO REDUCE THE RISK OF FIRE OR SHOCK, DO
NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE
PARTS INSIDE.REFER SERVICING TO QUALIFIED
PERSONNEL
ClassIIequipmentsymbol

Thissymbolindicatesthat
theunithasadoubles
y
stem.
CAUTION
RISK OF ELECTRICSHOCK
DO NOT OPEN

4

1. Read theseinstructions.
2. Keep theseinstructions. Heed all warnings.
3. Follow all instructions.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings.
7. Installin accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety of the polarized of the polarized or grounding-type plug.A
polarized plug has two blades with one wider than the other.Agrounding type plug
has two blades and a third grounding prong.The wide blade or the third prong are
provided for your safety.Ifthe provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart,stand, tripod, bracket, or table specified by
the manufacture, or sold with the apparatus. When a cartis
used,use caution when moving the cart/apparatus combination to
avoid injury from tip-over. Portable Cart Warning
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture does not operate normally,or has
been dropped.
15. The apparatus shall not be exposed to dripping or splashing and no objects filled
with liquids, such as vases, shall be placed on the apparatus.
16. The battery shall not be exposed to excessive heat such as sunshine, fire or the
like.
17. The MAINS plugs used as the disconnect device, which shall remain readily
operable.
FEATURES

5

zBluetooth wireless stereo audio streaming
zSupport A2DP Profiles for most smart phones / laptops
zAux Ininput (3.5 mm Stereo Mini Jack)
zAudio Out output (RCA Jack)
zMicrophone Input (1/4" Jack) x 2 pcs
zControl Panel with Disco light effect.
zSpeaker Tower with Disco light effect
z8 Key for Jingle Pitch sound effect
z6.5" Full range speaker X 2pcs + 1.5" Tweeter
zUSB jack for mobile battery charging
zPower Adapter ( Included ) for main power operation
CONTENTS
WHAT’S IN THE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . ..
OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FCC and IC WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . .
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CONTROL LOCATION 1.1 . . . . . . . . . . . . . . . . . . . . . . . . . .
CONTROL LOCATION 1.2 . . . . . . . . . . . . . . . . . . . . . . . . . .
CONTROL LOCATION 1.3 . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PANEL & TOWER INSTALLATION. . . . . . . . . . . . . . . . . . . . .
A / B CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
1
2
3
4
5
5
6
7
8
9
10
11
11
12
CONTROL LOCATION 1.1

6

CONTROL LOCATION 1.2

7

1. DEVICE CRADLE
Place laptops or mobile
2. MIC IN (1/4” Jack) Input Jack
6.3mm unbalanced jack for connect microphone.
3. USB Jack ( Support 5V , 1A)
Connect USB jack for laptops or mobile battery charging
4. AUX IN ( Line In / Audio Input) Input Jack
Connect a music device (MP3 player etc.) to this socket with a 3.5mm
audio cable. The external device will sound from XD300 speaker.
5. ECHO Knob
Turn to adjust the echo sound effect when microphone connected.
6. PAIRING & PLAY Button
Hold to reconnect Bluetooth pairing connection.
7. BLUETOOTH Indicator
The indicator will light when bluetooth pairing successful.
The indicator will flash when bluetooth start pairing now.
8. LED ACTIVATE Button
Press the button to turn on / off panel disco light show.
9. MIC LEVEL Knob
Turn to adjust microphone input sound level.
10. VOICE CHANGER Switch
Change your microphone voice into beast (LOW) or kid (HIGH) by select
this switch. Resume to normal speak by select this switch to OFF.
11. VOLUME Control Knob
Turn to adjust master output volume.
12. STD BY Button
Press to turn ON the XD300 or put the XD300 into standby mode
13. JINGLE PITCH Knob
Rotate the knob to adjust jingle sound effect to high or low speed.
14. LIGHT SHOW Button
Press to select different light show on the disco ball.
CONTROL LOCATION 1.3

8

15. LIGHT SHOW Indicator
Indicator for different light show mode ( on / off / strobe ).
16. Jingle Pads X 8
You may press this 8 buttons to mix the pre stored jingle sound to your
music, and you may also adjust the pitch and tempo in real time by turning
the jingle pitch knob.
17. DISCO BALL
Different color LED light show.
18. MIC Holder x 2 pcs
Place the microphone onto the holder.
19. LED Light Show Panel
Show LED disco light show.
20. MIC 2 (1/4” Jack) Input Jack
6.3mm unbalanced jack for connect microphone.
21. AUDIO OUT RCA Jack
Connect external PA system to this master output for bigger sound. The
sound level is controlled by the external PA system.
22. A&B CONNECTION Jack
Use connect cable(included) to connect panel and tower.
23. HANDLE
For carry the tower to other place.
24. DC IN Jack
Connect the power adapter to power up the XD300 unit.
GENERAL OPERATIONS

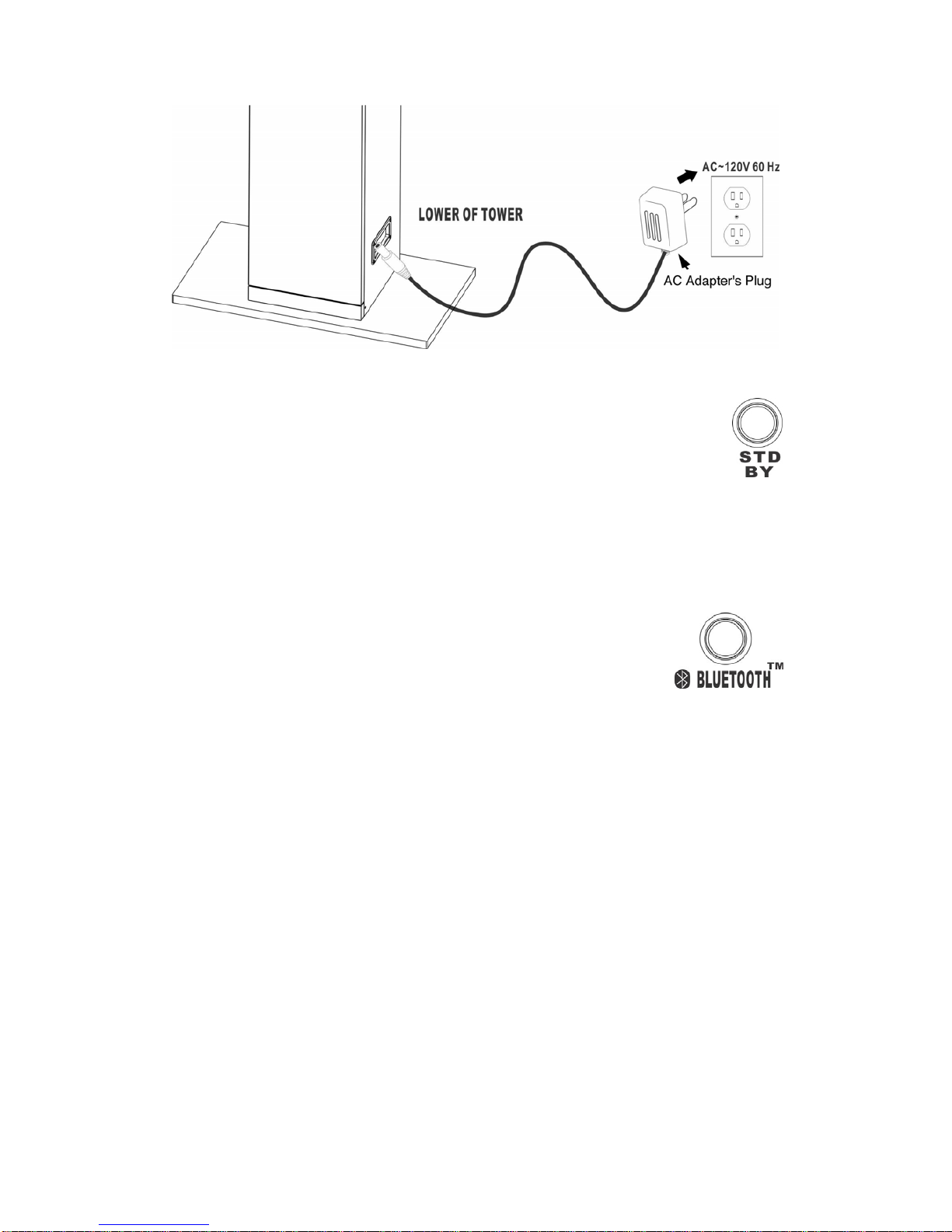

Power Adapter Connection

9

Connect small end of adapter to main unit and plug the supplied adapter into
standardAC wall socket.Press theSTDBYbuttonto turn on power. Press again
turn unit to standby.
Notes:
If the adapter does not fit properly, turn it over and again. Do not forceAC plug.
Remove the power adapter when the unit not operation or unused for long periods
of the time.
Connecting Bluetooth to your Smartphone I Tablet
1. Press the STD BY button to turn on, hold the PAIRINGbutton to
connect your external Bluetooth device.
2. On your smartphone / Tablet,turn on Bluetooth and enable device scanning.
3. When
XD300 shows on the Bluetooth scan, select it to connect it to your
device.
4. When both devices are successfully connected,you are ready to play music
wirelesslyfrom your device.
5. Press the PLAY button of external Bluetooth deviceto start music playback.
6. Press theNEXT/ PREV of external Bluetooth device to switch between music
tracks.
7. Hold the PAIRINGbutton to reconnect other Bluetooth device.
Power Management Function:
Unit will automatically go to standby mode after 15 minutes without sound output or
operation. To resume operation, simply press the STD BY button to turn on unit.

10

PANEL & TOWER INSTALLATION

11

A / B CONNECTION
Use the cable to connect the panel and tower follow below picture.

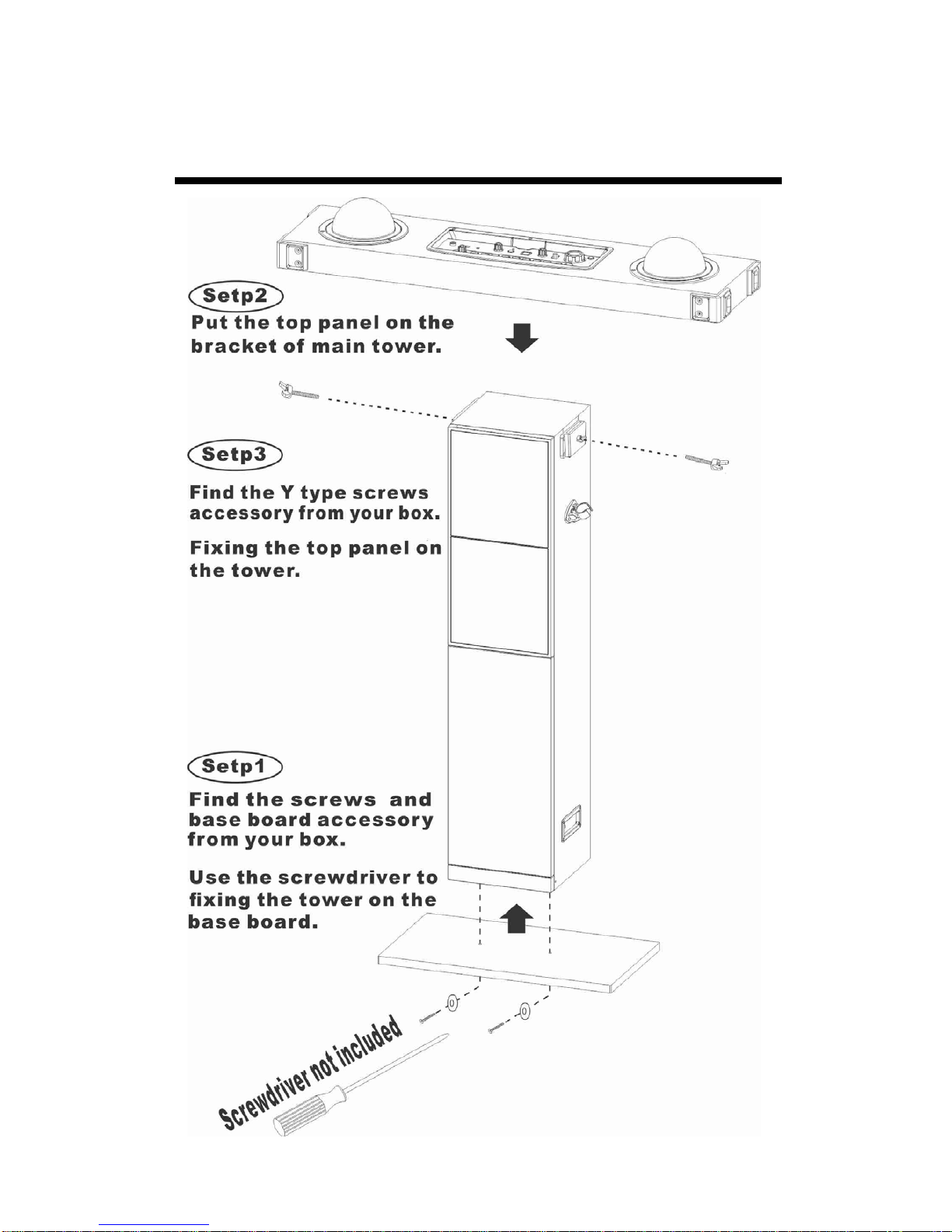

1. Install the panel on the tower ( Following previous page)
2. Find the included cable from your box
3. Panel B position - Connect a 3.5mm jack( included).
4. Panel A position - Connect 5.5mm jack ( included).
5. Tower B position - Connect other 3.5mm jack ( included).
6. Tower A position - Connect other 5.5mm jack ( included).
Notes: Don’t put the adapter DC jack to A or B position.

12

TROUBESHOOTING
If you have followed the instructions and are having difficulty operating the unit, locate
the PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE
AND SOLUTION column to locate and fix the problem.
SPECIFICATIONS
Specifications are typical, individual units might vary. They are subject to continuous
improvement without notice and without incurring any obligation.
PROBLEM POSSIBLE CAUSE AND SOLUTION
Noise on speaker output
whenmicrophone is
connected and turn on
XD300
Make sure your microphone or microphone cable is in
good condition, grounded and shielded. Internal gain of
voice processing could cause vibration from poor
ground noise.
Bluetooth cannot connect
to XD300
Make sure no other device from your friend or family
is connected to XD300. When XD300 Bluetooth is
connected, press BLUETOOTH button would stay
ON. So make sure XD300 indicating Bluetooth is
ready to connect. Also make sure your smartphone /
tablet is located close to XD300less than 2 meters
when pairing.
Hold the BLUETOOTH button to reconnect again.
Intermittent Bluetooth
music streaming
The wireless Bluetooth distance of XD300 is about 7-l0
meter in open area. Below conditions could block you
Bluetooth signal and please ensure you would get rid of
those:
Metal protection on case for your phone/tablet
Metal or wall is blocking in between your
phone/tablet and XD300
Another Bluetooth device is working close toXD300
Nosound on selected
source
Ensure that the XD300 is powered ON
Check the master volume on the XD300
Check the volume level on paired Bluetooth device
Remove the power adapter/ connection cable and
reconnect again.
AC ADAPTER AC Input :AC~ 100-240V 50/60Hz
DC Output = 15V , 3000mA
SOUND SOURCE INPUT Bluetooth, 1/4 ” Microphone, Audio out, Aux in
Total Harmonic Distortion Below 10% at Standard Output
Signal to Noise Ratio Over 41dB
Speaker Size 6.5”Full range driver + 1.5 ”Tweeter
Speaker Power Output 20W X2 RMS Power Output
