DOL 339 Climate and Production Computer
Program Version
The product described in this manual holds software. This manual corresponds to:
•Software version 6.1
It was released in 2010.
Product and Documentation Changes
SKOV A/S reserve the right to change this manual and the product described herein without further
notice. In case of doubt, please contact SKOV A/S.
Date of change appears from the back page.
IMPORTANT
NOTES CONCERNING THE ALARM SYSTEM
Where climatic control is used in livestock buildings, breakdowns, malfunctions or faulty settings
may cause substantial damage and financial losses. It is therefore essential to install a separate,
independent alarm system, which monitors the house concurrently with the climate computer.
According to EU directives 98/58/EU an alarm system must be installed in any house that is
mechanically ventilated.
Please note that the product liability clause of SKOV A/S' general terms and conditions of sale and
delivery specifies that an alarm system must be installed.
In case of misoperation or improper use, ventilation systems can result in production loss
or cause loss of lives among animals.
SKOV A/S recommend that ventilation systems should be mounted, operated and serviced
only by trained staff and that a separate emergency opening unit and an alarm system be
installed as well as maintained and tested at regular intervals, according to SKOV A/S’s
terms and conditions of sale and delivery.
Note
•All rights reserved. No part of this manual may be reproduced in any manner whatsoever
without the express written permission of SKOV A/S in each case.
•SKOV A/S have made reasonable efforts to ensure the accuracy of the information
contained in this manual. Should any mistakes or imprecise information occur in spite of
this, SKOV A/S would appreciate being notified thereof.
•Irrespective of the above, SKOV A/S shall not have any liability with respect to loss or
damage caused or alleged to be caused by reliance on any information contained herein.
•Copyright 2010 by SKOV A/S.

Technical Manual
DOL 339 Climate and Production Computer
PRODUCT DESCRIPTION 7
PROCEDURE 7
MOUNTING GUIDE 8
1Mounting of DOL 339 together with DOL 278.......................................... 10
2Mounting of DOL 339................................................................................. 11
3Mounting of Auxiliary Contactor .............................................................. 12
4Mounting of DOL 278 Emergency Opening ............................................. 12
5Mounting of Climate Sensors ................................................................... 13
INSTALLATION GUIDE 14
6Electric Connection ................................................................................... 14
6.1 Connecting Cables ............................................................................................................... 14
6.2 Setting of Mains Voltage ..................................................................................................... 14
7Technical Menus ........................................................................................ 15
7.1 Selecting Components.......................................................................................................... 16
7.1.1 Menu for Installation.............................................................................................................. 17
7.1.2 One- and Two-Zone Control.................................................................................................. 19
7.1.3 Air Intake ............................................................................................................................... 19
7.1.3.1 Zone controlled Air Inlets...................................................................................................... 19
7.1.4 Active Functions when the Control Fails............................................................................... 20
7.1.5 Slave Relays........................................................................................................................... 20
7.1.6 De-icing Air Inlet................................................................................................................... 21
7.2 Connecting Components ..................................................................................................... 22
7.2.1 Menu for Show Connection ................................................................................................... 22
7.2.2 Manual I/O Allocation ........................................................................................................... 23
7.2.3 Connecting a UPS (Uninterruptable Power Supply) to DOL 339 ........................................ 23
7.2.4 Settings for Winch Motor ...................................................................................................... 24
7.2.5 Setting of CAN Addresses ..................................................................................................... 25
7.2.6 Setting of CAN Termination Jumpers (max. 1 meter)........................................................... 26
7.2.7 Setting of CAN Termination Jumpers (max. 200 meters) ..................................................... 27
7.2.8 Extra Supply to HI-power Relay Modules/Switch Modules ................................................. 28
7.3 Adjustment ........................................................................................................................... 29
7.3.1 Menu for Adjustment............................................................................................................. 29
7.3.1.1 Setting of Temperature Sensor............................................................................................... 30
7.3.1.2 Setting of Brooding Zone....................................................................................................... 30

Technical Manual 5
DOL 339 Climate and Production Computer
7.3.1.3 Drum Scale ............................................................................................................................ 30
7.4 Calibration............................................................................................................................ 31
7.4.1 Menu for Calibration.............................................................................................................. 31
7.4.1.1 Calibrating the Air Inlet and Air Outlet................................................................................. 32
7.4.1.2 Calibrating the Temperature Sensors..................................................................................... 32
7.4.1.3 Calibrating the Humidity Sensors.......................................................................................... 32
7.4.1.4 Calibrating the Electronic Silo Weighing Module................................................................. 33
7.4.1.5 Calibration of Drum Scale ..................................................................................................... 36
7.5 User Setup............................................................................................................................. 37
7.5.1 Menu for User Setup.............................................................................................................. 37
7.5.1.1 Setting of Measuring Units .................................................................................................... 37
7.5.1.2 Setting of Screen.................................................................................................................... 37
7.6 Service Information ............................................................................................................. 38
7.6.1 Menu for Service Information ............................................................................................... 38
7.6.1.1 Operation log ......................................................................................................................... 38
7.7 Testing................................................................................................................................... 39
7.7.1 Testing Basic Components .................................................................................................... 39
7.7.1.1 Testing the Inside Temperature and Air Humidity Sensors................................................... 39
7.7.1.2 Testing the Auxiliary Sensor ................................................................................................. 39
7.7.1.3 Testing the Alarm .................................................................................................................. 39
7.7.1.4 Testing the DOL 278 Emergency Opening Unit ................................................................... 39
7.7.2 Testing Optional Components: Manual Control.................................................................... 40
7.7.3 Menu for Manual/Auto .......................................................................................................... 40
7.7.3.1 Testing Climate Functions ..................................................................................................... 42
7.7.3.2 Testing Emergency Air Inlet.................................................................................................. 45
7.7.3.3 Reading of ventilation status.................................................................................................. 45
7.7.3.4 Testing Production Functions ................................................................................................ 45
7.8 Setting the System................................................................................................................ 48
7.8.1 Menu for Setting .................................................................................................................... 48
7.8.2 Climate................................................................................................................................... 51
7.8.2.1 Setting Exhaustion (MultiStep®)............................................................................................ 51
7.8.2.2 Setting of Ventilation............................................................................................................. 53
7.8.2.3 Setting of Fan......................................................................................................................... 54
7.8.2.4 Setting of Heating .................................................................................................................. 54
7.8.2.5 Setting of Stand Alone Heaters.............................................................................................. 55
7.8.2.6 Setting of Spray Cooling........................................................................................................ 55
7.8.2.7 Setting of Pad Cooling........................................................................................................... 55
7.8.2.8 Setting of Pressure Sensor ..................................................................................................... 55
7.8.2.9 Adjusting the CO2Sensor ...................................................................................................... 55

6 Technical Manual
DOL 339 Climate and Production Computer
7.8.2.10 Adjusting the Auxiliary Sensor.............................................................................................. 56
7.8.2.11 Setting of Night Setback ........................................................................................................ 56
7.8.3 Production.............................................................................................................................. 57
7.8.3.1 Setting of Bird Weighers ....................................................................................................... 57
7.8.3.2 Setting of Silo Change ........................................................................................................... 57
7.8.3.3 Setting calibration values for silo and day silo ...................................................................... 58
7.8.3.4 Setting accept values for silo and day silo ............................................................................. 58
7.8.3.5 Setting of Light Dimmer........................................................................................................ 58
7.8.3.6 Setting the raising of feeding system ..................................................................................... 58
7.8.3.7 Setting of feed........................................................................................................................ 58
7.8.4 Info Matic .............................................................................................................................. 59
7.8.5 Password ................................................................................................................................ 59
7.8.6 View Levels ........................................................................................................................... 59
7.9 Compact Flash Card............................................................................................................ 65
7.9.1 Menu for CF-card .................................................................................................................. 65
7.9.1.1 Updating Software ................................................................................................................. 66
7.10 Control Parameters ............................................................................................................. 68
7.10.1 Menu for Control Parameters................................................................................................. 68
7.10.1.1 Cycle Time............................................................................................................................. 70
7.11 Adjustment of Pressure ....................................................................................................... 71
7.11.1 Menu for Adjust Negative Pressure....................................................................................... 71
7.11.1.1 Setting Change Between Roof and Side Mode ...................................................................... 75
7.11.1.2 Setting of Minimum Air Inlet ................................................................................................ 75
7.11.1.3 Adjusting the Active Pressure................................................................................................ 75
7.12 Adjustment of Stepless Unit................................................................................................ 76
8Troubleshooting Guide ............................................................................. 77
8.1 Table for Temperature Sensor Control ............................................................................. 77
TECHNICAL DATA 78

Technical Manual 7
DOL 339 Climate and Production Computer
PRODUCT DESCRIPTION
This technical manual deals with the installation of the DOL 339 climate and production computer and
is primarily aimed at electricians who are to mount, install and test the computer.
A certified electrician must carry out the installation in accordance with applicable national rules and
in Europe in accordance with applicable EU rules.
DOL 339 is available in three different hardware and four different software variants (Combi-Tunnel,
Tunnel, LPV, Production) and it can regulate and monitor the climate and production in all types of
livestock houses.
PROCEDURE
1. Mounting
□Climate and production computer
□Emergency opening
□Climate sensors
2. Installation
□Connect cables according to the wiring diagram for the emergency opening of the system
□Set voltage in the computer
□Connect mains voltage to the computer
□Select components in the Installation menu of the computer
□Connect the individual components by means of the Show connection menu of the
computer and the wiring diagrams
□Adjust the system (e.g. selection of operation form)
□Test the system
3. Startup
□Setting and calibration

8 Technical Manual
DOL 339 Climate and Production Computer
MOUNTING GUIDE
Figure 1: Outline of connections DOL 339 Combi-Tunnel
Figure 2: Outline of connections DOL 339 Tunnel

Technical Manual 9
DOL 339 Climate and Production Computer
Figure 3: Outline of connections DOL 339 LPV
Figure 4: Outline of connections DOL 339 production

10 Technical Manual
DOL 339 Climate and Production Computer
1 Mounting of DOL 339 together with DOL 278
Figure 5: Mounting of DOL 339 together with DOL 278 and wiring box
DOL 278
DOL 339

Technical Manual 11
DOL 339 Climate and Production Computer
2 Mounting of DOL 339
1) Place the computer with the display (A) at eye level for the daily user.
2) Remember free space around the cabinet:
•43 cm (16.9”) (B) so that the front panel can be placed on top of the cabinet base during
service.
•10 cm (3.9”) (C) below the cabinet base for air cooling.
•10 cm (3.9”) (D) on the right side for operation of the AUT/MAN (Auto/Manual) change-
over switches.
Figure 6: Mounting of DOL 339 climate computer
(16,9”)
(3,9”)
(3,9”)

12 Technical Manual
DOL 339 Climate and Production Computer
3 Mounting of Auxiliary Contactor
Do not place the contactors in the climate computer. The contactors cause electrical disturbance which
can make the computer reset/restart.
Place the contactors in an external box next to the climate computer.

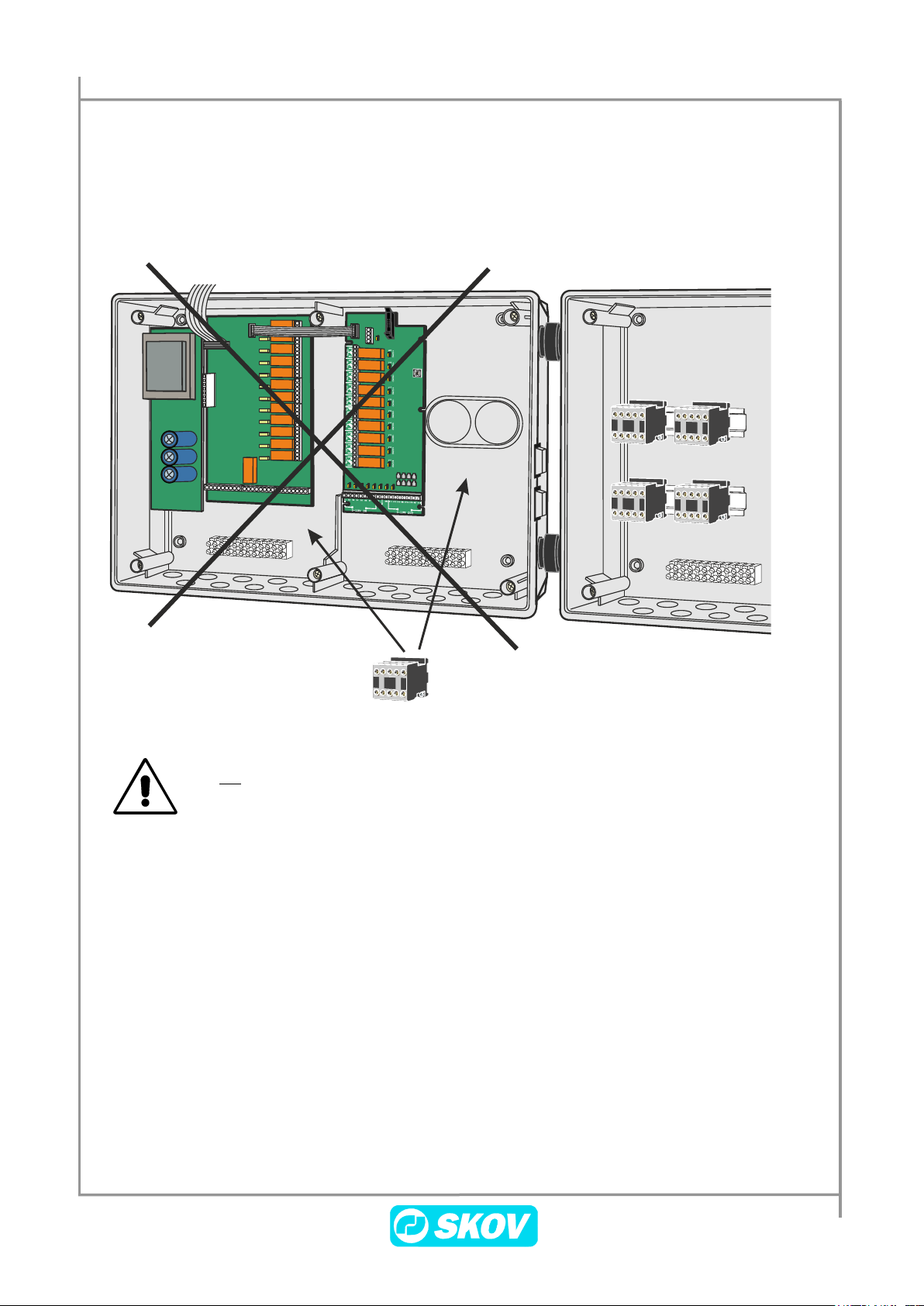

Figure 7: Mounting of auxiliary contactor
Do not place contactors in the climate computer as this causes electrical disturbance
which will make the computer reset/restart.
4 Mounting of DOL 278 Emergency Opening
See Technical Manual regarding the emergency opening.
ON/OFF
J29
J21 J28
J22 J23 J24 J25 J26 J27

Technical Manual 13
DOL 339 Climate and Production Computer
5 Mounting of Climate Sensors
•Never use a plug on the DOL 12 temperature sensor as a bad connection here could have
disastrous results.
•Always use reinforced house wiring cable, minimum 1 mm2, to avoid rodent attack.
•Never use shrink-on sleeves when splicing wires inside the livestock house. Use a contact
box.
•A plug on the DOL 14 humidity sensor is preferable so it can be removed during cleaning.
Placement of sensors inside the house
•Place the sensor in the centre of that particular pen, which is placed in the middle of the
house. Please pay attention to the fact that it is in the middle of the pen, not in the middle of
the house (when poultry: in the middle of the house).
•One metre above the animals (ensuring the animals cannot reach the sensors).
•Remember that temperature, humidity, alarm and emergency sensor should be placed
together.
•Two-climate sections: The sensors should be placed halfway between the covering and the
slats.
The sensor is not to be placed
Reason
Above penning equipment.
The animals may be able to reach them.
At feed dispenser/feed trough/transponder station.
Heat and humidity will rise to the position of the
sensors.
Near covering.
Heat from the covered area will rise to the position
of the sensors.
Near spraying system.
Water and humidity will affect the sensors.
Near cooling system.
Water and humidity will affect the sensors.
In a draughty area. The sensor is not to be directly
affected by the air intake.
Measures the wrong temperature in the house.
Not where sunrays can shine on the sensor through
windows.
Take into account that the altitude of the sun varies
with the season/time of day.
Measures a too high temperature. Too much
ventilation.
Above electric heater in the farrowing section.
The heat rises to the position of the sensors.
Above or in a position where it in some way will
be affected by the heating system/heating pipes.
The heat rises to the position of the sensors.
Placement of sensors outside the house
•On the shady side of the house to avoid the sun. Take into account that the altitude of the
sun varies with the seasons.
•As much in the open as possible, but protected from rain and snow.

14 Technical Manual
DOL 339 Climate and Production Computer
INSTALLATION GUIDE
6 Electric Connection
6.1 Connecting Cables
Connect cables according to the three basic wiring diagrams which correspond to the emergency
opening of the system. See the document DOL 339 Cable Charts and Wiring Diagrams.
6.2 Setting of Mains Voltage
IMPORTANT Before you connect the mains voltage, it is important to set the voltage in
the computer so that it corresponds to the voltage level in the local
house.
You have the following options:
•230/240 V Leave the plug in (factory setting)
•200 V Move the plug to 200 V
•115 V Move the plug to 115 V
NB Fan speed controller modules can only operate at 230/240 V.

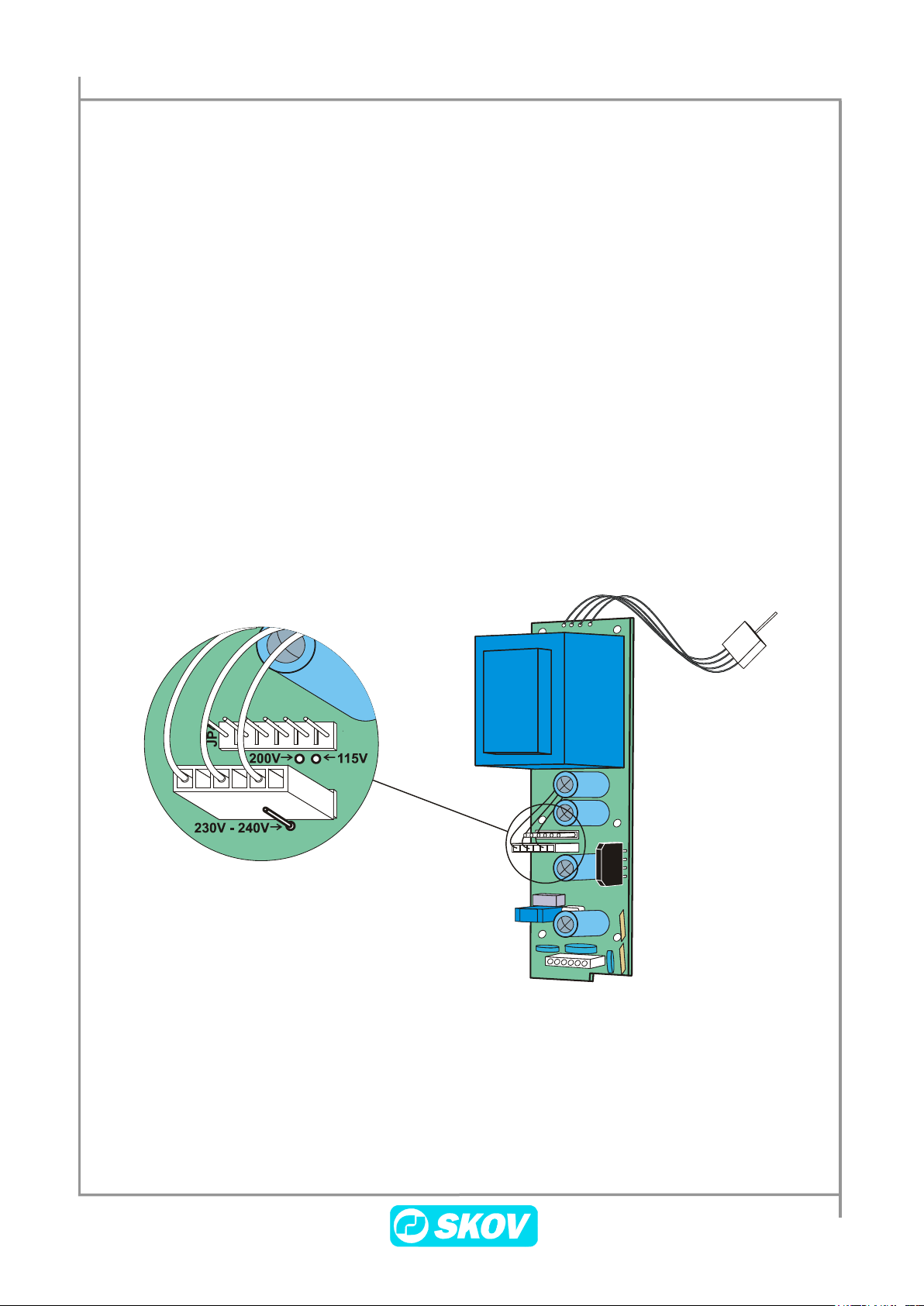

Figure 7: Power supply: Setting of mains voltage
Connect the mains voltage. After approx. 30 seconds, DOL 339 displays the temperature. The
computer is ready to be set.

Technical Manual 15
DOL 339 Climate and Production Computer
7 Technical Menus
Main menu
Sub menu
Technical
Setup
Installation
Adjustment
Show connection
Make I/O allocation?
Installation completed
Calibration
Calibrate inlets
Calibrate outlets
Calibrate temp. sensors
User setup
Language
Screen
Service information
Variant info
CPU module
Main I/O
General I/O
Weighing modules
Operation log
Service
Manual/auto
Setting
CF-card
Control parameters
Adjust negative pressure
Adjust stepless 1
Advanced control parameters
Default system
Diagnostics
Table 1: Outline of technical menus

16 Technical Manual
DOL 339 Climate and Production Computer
7.1 Selecting Components
When setting up the computer, there is a shortcut from the main
survey directly to the menus for CF card and installation.
Insert the enclosed CF card including the required language variant.
See also section 7.9. Press when is selected and choose the
function Program upload in order to gain access to load the
required language variant from the CF card.
Press to return to the main survey.
Press when is selected to gain access to the installation menu.
Select components in the DOL 339 installation menu (Technical /
Setup / Installation).
No more components than practically possible can be selected.
You must note whether the computer accepts your wish to connect a
component.
When the installation has been completed, you can acknowledge the
installation in the menu Technical / Setup.
This removes the installation shortcuts (Installation and CF card) from
the main survey.
When you default the computer, the shortcuts are displayed in the
main survey again.

Technical Manual 17
DOL 339 Climate and Production Computer
7.1.1 Menu for Installation
Installation
I/O modules
General modules
Module 1- 6
None
Type 10 10RL
Type 10 10RL
Type 3 10RL
Type 4 0RL
Type 6 10HP
Type 7 10LP
Weighing modules
Module 1-2
None
Type 5 W
Production
Feed
Feed control
None
Pan feeding
Destination feeding
Feed weigher
None
Time controlled
Tip weigher
Tip weigher log
Electronic silo weigher
Drum scale
Day silo weigher
Drum scale
Drum mode
Stand alone/Shared
Number of silos
One silo
Two silos
Raise feed system
Water meter
Water meter installed
Activate alarm relay
Bird weighers
Bird weigher 1- 2
None
MANUAL
5 kg weight
10 kg weight
30 kg weight
Other weigher
Electronic weigher
24-hour clock
24-hour clock 1-4
Light control
None
Dimmer
Relay
Light active at failure
Yes/No
Light control slave relay
1-2
Yes/No
Climate
Zone mode:
1 zone
2 zones
Sensors
Temperature sensors
Humidity sensor
Pressure sensor
CO2 sensor
Auxiliary sensors
CO2 sensor
Pressure sensor
NH3 sensor
O2 sensor
Temperature sensor
Humidity sensor
Air speed sensor
Wind dir. sensor

18 Technical Manual
DOL 339 Climate and Production Computer
Installation
Air inlet
(2 zones)
Front inlet/Rear inlet
Front inlet 1/Rear inlet 1
Tunnel inlet
Tunnel inlet 1-2
(1 zone)
Roof inlet
Roof inlet
Roof inlet fan
Roof recirculation fan
Side inlet
Side inlet 1-6
Tunnel inlet
Tunnel inlet 1-2
Manual tunnel input
Pressure control
Air outlet
(2 zones)
Front outlet/Rear outlet
Stepless Front/Stepless Rear
No. of MultiStep Front/No. of
MultiStep Rear
Flap control MS Front/Flap
control MS Rear
Fans active at failure
Tunnel outlet
Stepless tunnel 1-2
No. of tunnel MultiStep
Fans active at failure
(1 zone)
Side outlet
Stepless 1
No. of side MultiStep
Flap control side MS
Fans active at failure
Tunnel outlet
Stepless tunnel 1
No. of tunnel MultiStep
Fans active at failure
Emergency opening
278 T
(1 zone)
Emergency inlet
(2 zones)
Emergency inlet Front/Emergency inlet Rear
House heaters
House heaters
0-2 (2 Front/ 2 Rear
Heater 1 type
None/ Relay/ 0-10 V
Heater slave relay 1
Yes/No
Stir fan
House heaters
Stir fan
0 -4 (2 Front/ 2 Rear)
Stand alone heaters
Stand alone heaters
0 –4 (2 Front/ 2Rear )
Heater 1 type
None/ Relay/ 0-10 V
Heater slave relay 1
Yes/No
Spray cooling
Spray cooling
No/ 1/ 2/ 3 Relay(Front/Rear)
Cooling slave relay 1
Yes/No
Active at failure
Yes/No
(not LPV)
Pad cooling
Pad cooling
No/One relay /Two relais
Pad sensor 1-2
Pad slave relay 1-2
Yes/No
Humidification
Humidification
No/ 1 Relay
Soaking
Soaking
No/ 1 Relay
Inlet de-ice
Cycle time
Stop flaps
Only open
Info Matic
Table 2: Outline of installation menu

Technical Manual 19
DOL 339 Climate and Production Computer
7.1.2 One- and Two-Zone Control
The livestock house can be controlled as two separate zones: front og rear. Thus, the following
functions must be set up separately for each zone: Temperature and humidity sensor, air intake, air
outlet, emergency opening, heating, air circulator, stand alone heating and high-pressure cooling.
7.1.3 Air Intake
DOL 339 includes three different types of air intake:
Roof inlet Roof inlets controlled by a flap, a fan and a recirculation fan (Roof is only
available in a one-zone livestock house).
Side inlet Wall inlets are regulated by a winch motor.
Tunnel inlet: Tunnel openings are regulated by a winch motor.
The function Manual tunnel input enables the connection of a change-
over switch so the change to/from side mode to tunnel ventilation can be
carried out manually.
A combination of the three types of air intake makes it possible to accommodate an increasing venti-
lation requirement by automatic change of ventilation mode from Roof to Side and finally to Tunnel.
7.1.3.1 Zone controlled Air Inlets
In a one-zone livestock house, each of up to six air inlets can be regulated as a separate inlet zone. In
each air inlet zone, the shutter position of the wall inlets can thus be regulated separately according to
a given excess or too low temperature in the zone.
Figure 8: Outline of livestock house with zone-regulated air intake.
The menu Technical / Setup / Adjustment / Climate / Zone controlled inlets
The installed temperature sensors are associated with an air inlet zone. If
there are several sensors in a zone, DOL 339 calculates an average
temperature according to which it will control.
The menu Climate / Ventilation / Zone controlled inlet
When the zone temperature deviates from Temperature setpoint (+
or -), DOL 339 adjusts the shutter position.
Zone 1
Zone 2
Zone 3
Zone 5
Zone 6
Zone 4

20 Technical Manual
DOL 339 Climate and Production Computer
Example 1: Zone controlled inlet
Ventilation requirement: 20 %
Temperature setpoint 22 °C
Temp. deviation 1 °C
Inlet correction factor 10 %
Pressure curve
Ventilation
0
1
8
16
20
28
50
60
90
100
Flap position
0
5
10
15
27
33
50
60
90
100
Temp. sensor zone 4 measures 21.5° C.
This equals a deviation of 0.5° C from Temperature setpoint.
0.5° C equals 50% of Deviation temp.
This results in a correction of 50% of Inlet correction factor = 0.5 x 10% = 5%
Since it is a too low temperature, the current flap opening (27%) is reduced by 5% = 22% flap opening.
7.1.4 Active Functions when the Control Fails
When installing MultiStep air outlets and high-pressure cooling, you must decide how these functions
are to react in an emergency situation.
MultiStep air outlet
Yes: When the control fails, the air outlet is active.
No: When the control fails, the air outlet is not active.
Spray cooling
Yes: When the control fails, spray cooling is active and runs until the
emergency situation is over.
No: When the control fails, spray cooling is not active.
NB Note that in an emergency situation DOL 339 cannot regulate according to temperature and
humidity. If you select Yes (Active at failure), spray cooling runs no matter whether the
temperature is too low and humidity is too high in the house.
NB Note also that a combination of a high inside temperature and high air humidity can be life-
threatening to the birds.
Light
Yes: When the control fails, the light is on.
No: When the control fails, the light is off.
7.1.5 Slave Relays
It is possible to choose a slave relay for the functions Heating, Stand-alone heat, Cooling, Pad cooling
and Light control; it will work in the same way as the master relays –however, with a delay of one
second. When the computer is set to Manual, the slave relays will also follow the master relays.
