Sky Wing HRM5072 User manual

- 1 -
HRM5072 User Manual
Bluetooth low energy beacon "HRM5072" has multi patch antenna for directivity. It works with
four size AAbatteries more than three years. It also supports various RF power settings (-20dBm ~
+4dBm, 4dBm step).
Operating manual

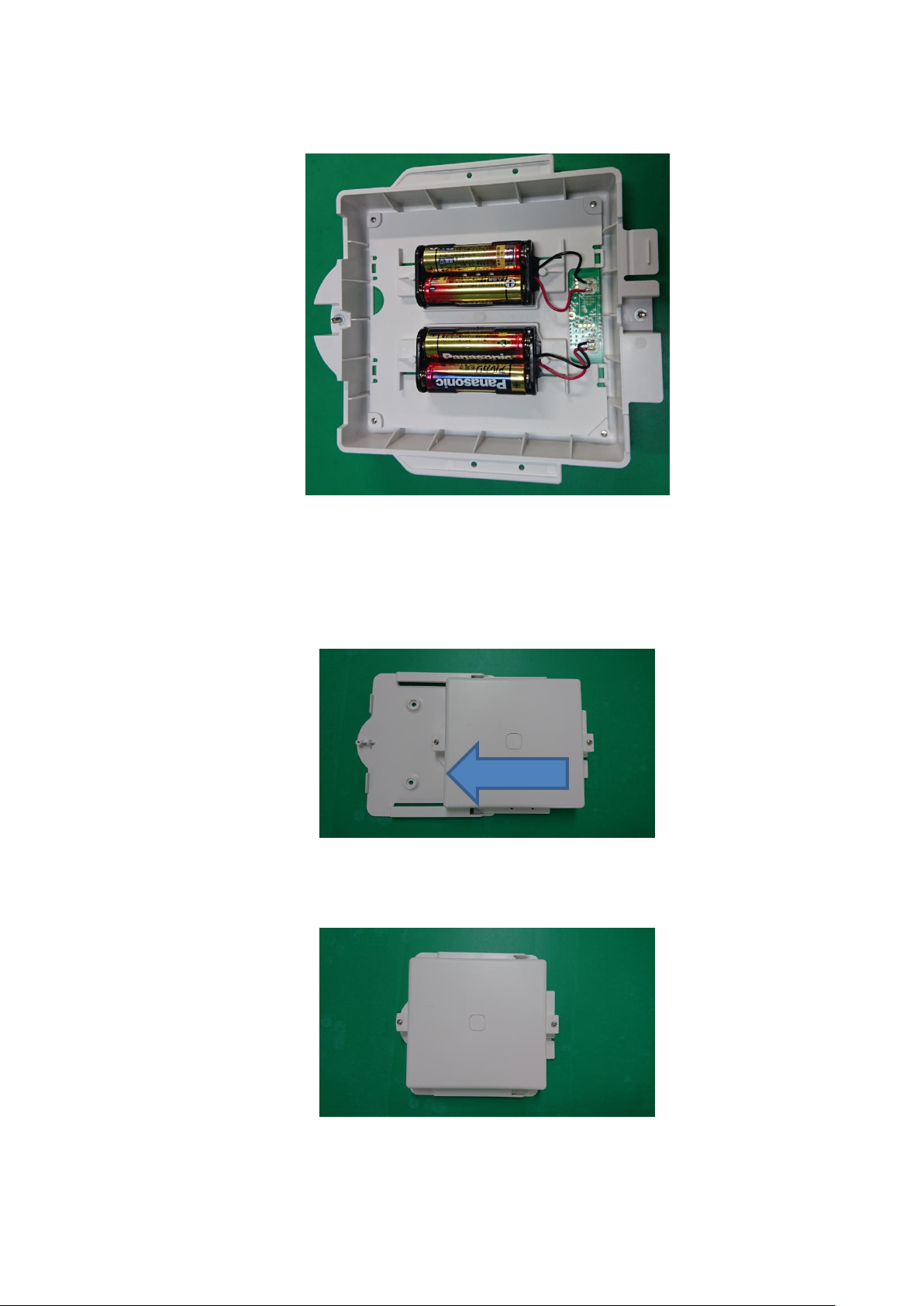

①Reverse HRM5072 (The following photograph is top view.)
②Slide the bottom cover
③Attach bottom cover to the ceiling or the wall with M4 screws.

- 2 -
④Set four size AA batteries.
HRM5072’mode changes to the Connectable Mode for 3 minutes after battery setting.
⑤Connected to HRM5072 by the application of the smart phone and set the RF output power.
(+4dBm, 0dBm, -4dBm, -8dBm, -12dBm, -16dBm, -20dBm)
⑥Attach HRM5072 to the bottom cover.
⑦After 3 minutes from battery setting, HRM5072' mode changes to the Beacon Mode.
A smart phone can get the information from HRM5072 with beacon.

- 3 -
FCC/IC certification number
FCC ID：VIYHRM5072
IC ID：7305A-HRM5072
Certificate number is marked in the following red frame area.
If the bottom cover is taken off, user can easily access certificate number.

- 4 -
