BATTERY REPLACEMENT
Version 1.0 03.03.2021

Battery replacement
© SLOC GmbH 2021 www.sloc.one Seite 2 von 10
Table of content
1. Introduction.............................................................................................................3
1.1. Steps of battery replacement....................................................................................3
2. General....................................................................................................................4
2.1. Devices.....................................................................................................................4
2.2. Tools / Materials .......................................................................................................4
3. The battery replacement ........................................................................................5
4. Support....................................................................................................................8
5. Legal requirements.................................................................................................8
5.1. Declaration of conformity..........................................................................................8
6. Copyright.................................................................................................................9
6.1. Waste disposal.........................................................................................................9

Battery replacement
© SLOC GmbH 2021 www.sloc.one Seite 3 von 10
1. Introduction
Thank you for choosing SLOC.
In this documentation you will learn how to replace the batteries of your product quickly
and easily.
We at SLOC always try to make our products as easy and intuitive as possible. However, if
you encounter any problems, please do not hesitate to contact us.
E-mail adress: [e-mail]
1.1. Steps of battery replacement
You must complete the following steps to ensure successful completion of a battery
replacement.
1. Visot support.sloc.one
2. Download the documentation „battery replacement“
3. Provide all the necessary tools in advance
4. Carry out the instructions of the documentation precisely
5. Check the data transmission
6. Mount the SLOC on the vehicle or on the container

Battery replacement
© SLOC GmbH 2021 www.sloc.one Seite 4 von 10
2. General
In the following, the battery replacement is explained in detailed steps and visualized with pictures. The
procedure is identical for devices of the 100 and 200 series.
ATTENTION: We would like to emphasize that there is a risk of damaging the antenna mounted
on the PCB and on the lid during the opening/closing of the lid. In this context, we ask you to be
particularly careful when carrying out the procedures in chapters 3.4 and 3.7.
2.1. Devices
Description
Images
All products of the
series 100
Description
Images
All products of the
series 200
2.2. Tools / Materials
Description
Images
Torx T10x75mm
(Screwdriver)
batteries (2 pieces)
SILICONE
ACID FREE
(Manufacturer independent)

Battery replacement
© SLOC GmbH 2021 www.sloc.one Seite 5 von 10

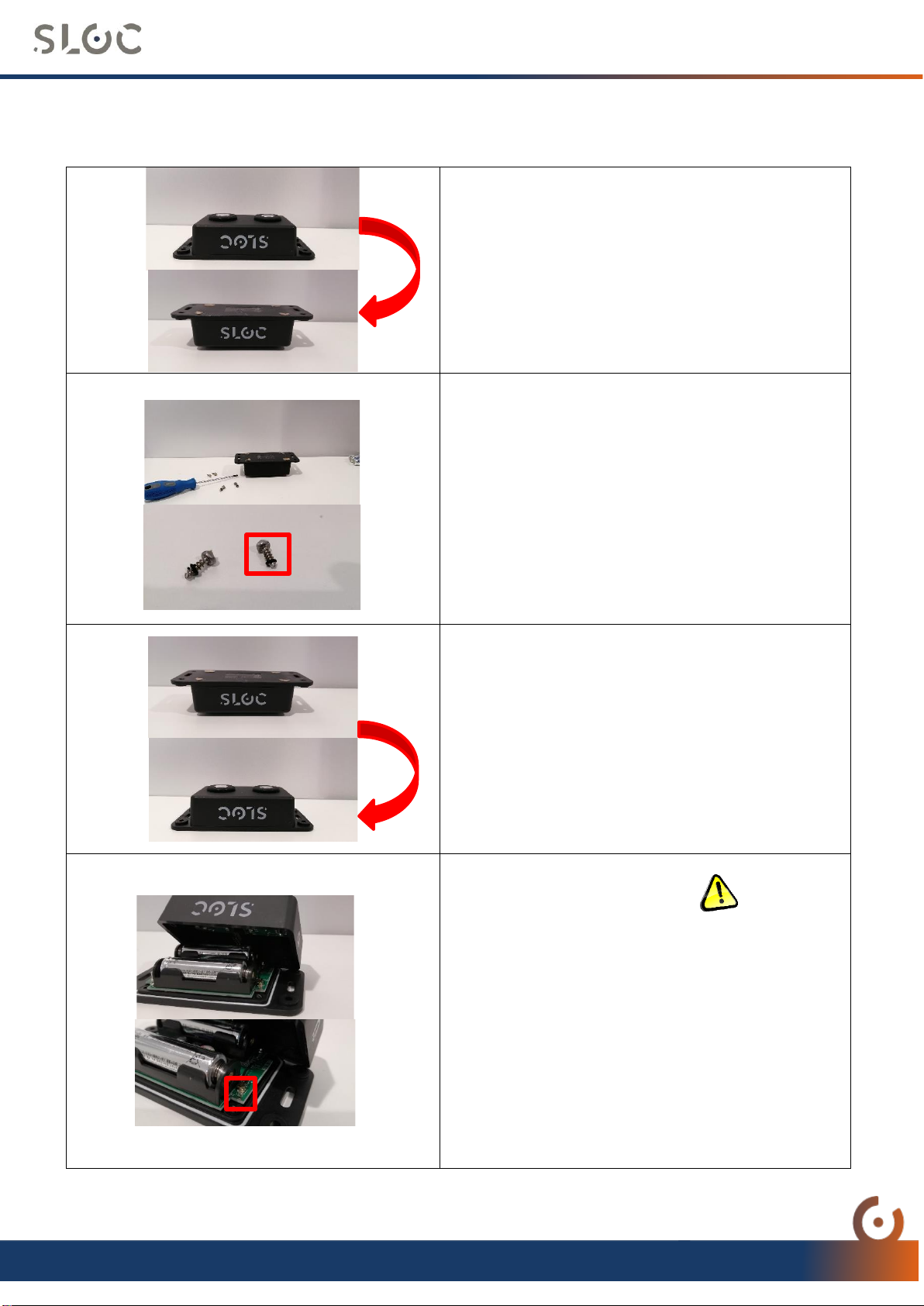

3. The battery replacement
1. Turn the device 180 degrees:
Make sure that the bottom of the SLOC or
the screws are now facing you.
→Take the screwdriver TORX 10x75mm
2. Unscrew the screws:
Now unscrew the fastening screws (4 pcs.)
counterclockwise.
→Position the screws incl. sealing ring in a
tray.
3. Turn the device 180 degrees:
Turn the SLOC back to its original position.
→Now carefully lift the lid
4. Dismount antenna:
On the side you can now see the antenna,
which is connected to the PCB. Now
carefully unplug it. (unless you can open the
cover completely).
→Open the lid completely

Battery replacement
© SLOC GmbH 2021 www.sloc.one Seite 6 von 10
5. Remove the battery from the device:
Try to remove the batteries carefully from
the device provided for this purpose (if
necessary with a suitable tool).
→Now take 2 new batteries
ENERGIZER L91
6. Insert new batteries:
Now insert the batteries into the device
provided for this purpose on the PCB.
→Small LED lamp on the PCB is lighting up
7. Mount the antenna:
Now carefully mount the antenna on the
device again (if this was previously
dismounted).
→Put the lid back over the PCB

Battery replacement
© SLOC GmbH 2021 www.sloc.one Seite 7 von 10

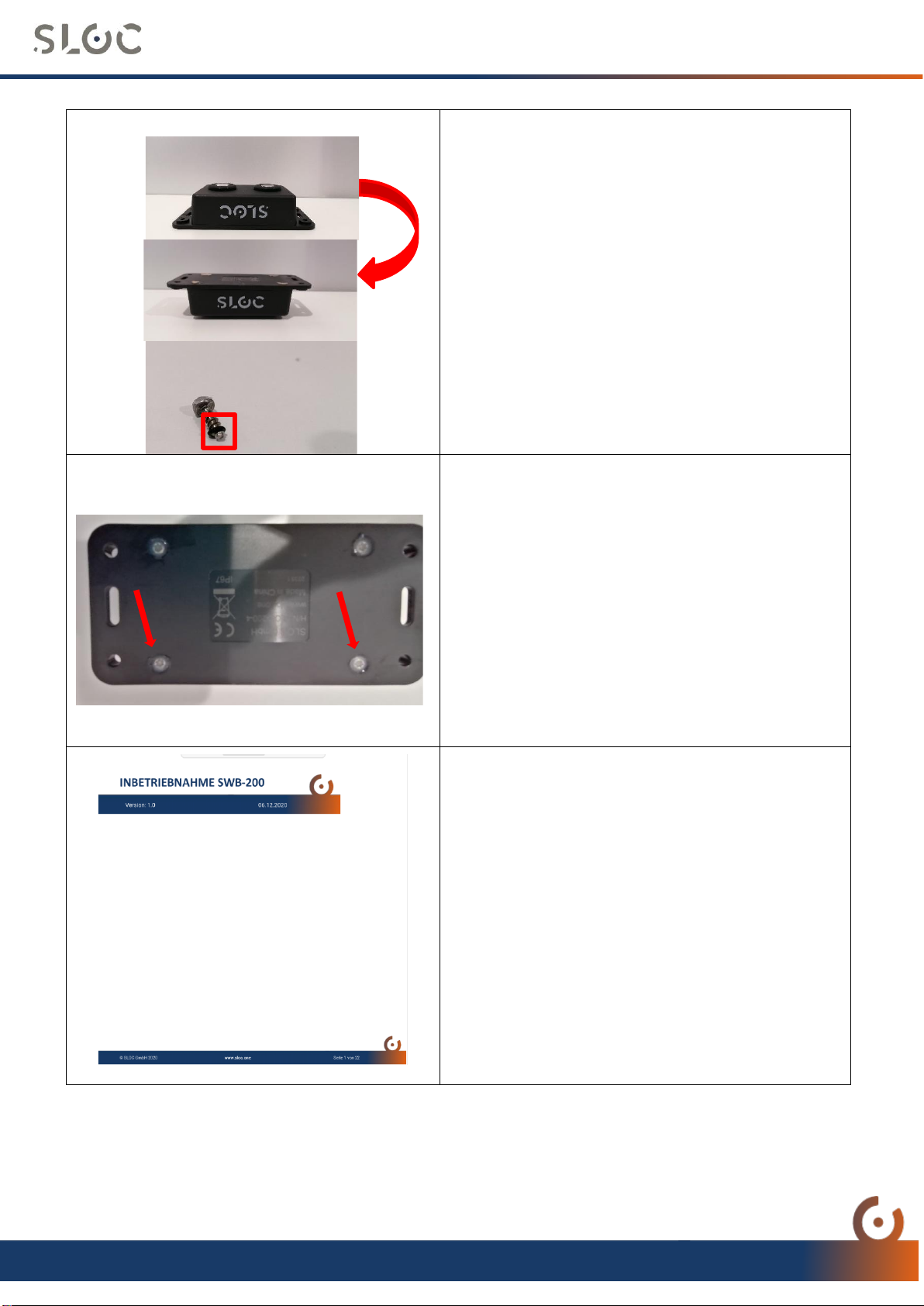

8. Rotate device 180 degrees:
On the bottom of the SLOC, using the
screws you removed earlier, reattach the
PCB with the cover.
→Check whether the rubber seal (screws)
is still in place.
9. Siliconizing:
If the components (PCB/cover) are fixed
with the screws incl. rubber seal, the
criteria for IP 67 protection class are fulfilled
(no siliconization necessary).
→Use small dots of silicone which are then
"smoothed".
10. Check data transmission:
Make sure that a successful data transfer
could take place after a battery
replacement.
