smart home SeriaLinc 2410S User manual

SeriaLinc

INSTEON®to 2-Way RS-232 Serial Converter
Model : 2410S

SeriaLinc Owner’s Manual
TABLE OF CONTENTS
ABOUT SERIALINC.....................................................................................................................................3
Key SeriaLinc Features .............................................................................................................................3
What is Included with SeriaLinc ................................................................................................................3
System Requirements...............................................................................................................................3
WHAT IS INSTEON?....................................................................................................................................4
INSTALLATION............................................................................................................................................4
Preparing to Install SeriaLinc.....................................................................................................................4
Creating a CSV File...................................................................................................................................5
Installing SeriaLinc ....................................................................................................................................6
ADVANCED FEATURES .............................................................................................................................7
Restoring Power to SeriaLinc....................................................................................................................7
Resetting SeriaLinc to its Factory Default Settings...................................................................................7
ABOUT INSTEON ........................................................................................................................................7
Using Dual-Band INSTEON Devices to Upgrade Your Network...............................................................7
Important Note about INSTEON Networks; Split Single-Phase vs. 3-Phase Installation..........................8
Further Enhancing Reliability ....................................................................................................................8
TROUBLESHOOTING..................................................................................................................................8
SeriaLinc Support......................................................................................................................................8
SPECIFICATIONS, CERTIFICATION, AND WARRANTY..........................................................................9
Specifications ............................................................................................................................................9
Certification................................................................................................................................................9
Limited Warranty .......................................................................................................................................9

SeriaLinc Owner’s Manual
Page 3 of 10
ABOUT SERIALINC
With SeriaLinc, now you can connect serial and/or RS-232 compatible devices to your INSTEON network.
From whole-home audio to security systems to automation controllers, you can now keep the equipment
you already own and take advantage of a reliable INSTEON network. SeriaLinc is a 2-way serial, so it can
be used to control RS-232 devices or control INSTEON devices via RS-232 commands.
Key SeriaLinc Features
•Controls most serial (RS-232) controllable devices from any INSTEON Controller by downloading a
user-customized setup file
•Controls INSTEON scenes and devices using a serial command from most serial devices
•Supports a variety of INSTEON commands – ON/OFF, BRIGHT/DIM, FAST ON/FAST OFF
•Two-year warranty
What is Included with SeriaLinc
•SeriaLinc – INSTEON to RS-232 Serial Converter
•RJ-45 (male) to DB-9 (female) serial cable
•Null modem adapter
•Free software download
•Quick-Start Guide
System Requirements
•Windows 2000, XP, or Vista (32-bit)
•15MB free disk space
•Minimum 128MB RAM
Set
button
Status
LED
Serial outlet
Pass-through
outlet

SeriaLinc Owner’s Manual
Page 4 of 10
WHAT IS INSTEON?
Since its inception in 2005, INSTEON has become a best-selling home-control networking technology,
offering more reliability and flexibility than any other home management system on the market. INSTEON
systems are simple, reliable, and affordable. Simple, because each device takes mere minutes to install.
Reliable, because every INSTEON device works as a network repeater, ensuring your commands will not
be lost. Affordable, because INSTEON can be integrated into any number of devices easily and at a very
low cost. An INSTEON home grows in value with each added INSTEON device, making life more
convenient, safe, and fun.
How Does INSTEON Work?
What makes INSTEON the most reliable home automation network is its dual-mesh network. INSTEON
devices use both radio frequency (RF) signals and the home’s existing wiring to talk to each other. In an
INSTEON network, every INSTEON device also acts as a repeater, receiving and sending every message to all
other devices in the network. So by integrating more INSTEON devices you will strengthen the network and
ensure no commands will be lost.
No central controller or networking setup is required with an INSTEON network. Simply install your devices and
then use a series of button presses or taps to Link your devices together. Throughout this Owner’s Manual, you
may see the terms “Controller” or “Responder”. These generic INSTEON terms refer to the components of an
INSTEON scene, and are used on a scene-by-scene basis.
•Controller – sends INSTEON commands to other devices
•Responder – reacts to commands sent out by another INSTEON device
An INSTEON device may act as a Controller, Responder, or sometimes both.
INSTEON networks are also extremely secure. Each INSTEON device is assigned a unique INSTEON ID, so
unless neighbors or would-be hackers have access to your particular device’s INSTEON ID, they won’t be able
to control your home, even if they are using similar products.
INSTALLATION
Preparing to Install SeriaLinc
CAUTION
Read and understand these instructions before installing and retain them for future reference.
SeriaLinc is intended for installation in accordance with the National Electric Code and local regulations in
the United States or the Canadian Electrical Code and local regulations in Canada. Use indoors only.
SeriaLinc is not designed nor approved for use on power lines other than 120V 60Hz, single phase.
Attempting to use SeriaLinc on non-approved power lines may have hazardous consequences.
Prior to installing SeriaLinc, please review the entire installation procedure and take the following
precautions:
•Use indoors or in a properly insulated and weatherproof electrical box only
•Don’t plug SeriaLinc into an outlet controlled by a switch because if the switch is inadvertently
turned off, SeriaLinc won’t have power
•Don’t plug SeriaLinc into a filtered power strip or AC filter
•Don’t stack INSTEON home automation devices together by plugging them into each other.
Stacked devices may overheat and stop functioning. Also avoid using the pass-through outlets on
INSTEON devices for other heat-generating power supplies.

SeriaLinc Owner’s Manual
Page 5 of 10
•Some computers and their accessories can absorb SeriaLinc signals off the power lines. Since
SeriaLinc will be so close to the computer, use a Smarthome FilterLinc (#1626) or filtered power
strip for the computer to keep the SeriaLinc signals from getting absorbed by the computer
equipment.
•If the computer’s serial port is shared with another hardware device (scanner, PDA, etc.), be sure
to turn off the device’s program on the PC. If left running, the home automation software will not
be able to communicate with SeriaLinc.
If you have any questions, please call:
INSTEON Gold Support Line
800-762-7845
Creating a CSV File
The SeriaLinc Downloader takes CSV files with the following formatting as input:
•First line – baud rate of the device. It should contain the baud rate preceded by the ‘#’ symbol.
Allowable baud rates are: #2400, #4800, #9600, #14400, #19200, #28800, #38400, #57600, and
#115200.
Example Line:
#9600
•Some number of lines defining the serial translation in the following format:
[1], [2], [3], [4], [5]
Line entries are defined as:
[1] – either ‘0’ (INSTEON to serial), ‘1’ (serial to INSTEON ON), or ‘2’ (serial to INSTEON OFF)
[2] – INSTEON ID, which is printed on SeriaLinc’s label in the XX.XX.XX format
NOTE: This entry is ignored for serial to INSTEON commands.
[3] – group number (1 – 255, or in hex format 0x00 to 0xFF)
[4] – either ‘ON’ (respond to ON), OFF (respond to OFF), ON BRIGHT (ON as well as Start
Bright), OFF DIM (OFF as well as Dim), FAST ON, FAST OFF, BRIGHT (incremental
bright, sent from ControLincs, RemoteLincs, and SmartLincs)
[5] – Serial data, either as quoted text, such as *Z01ON/r, or spaced hex bytes, such as 01 01 03
0A
INSTEON to serial, id: 01.01.03, group 1, respond to on, ASCII command from device 0,
01.02.03, 1, on, “Z01ON”
NOTE: Lines with blank space and lines where the first character is a semicolon will be ignored.
;comment line ignored by software
Example CSV File
Test_01.csv
#9600
1, , 1, on, “Test group 1 on”
2, , 1, off, “Test group 1 off”/r”
Download the test CSV file at: http://www.insteon.net/software/serialincdownloader/test_01.csv

SeriaLinc Owner’s Manual
Page 6 of 10

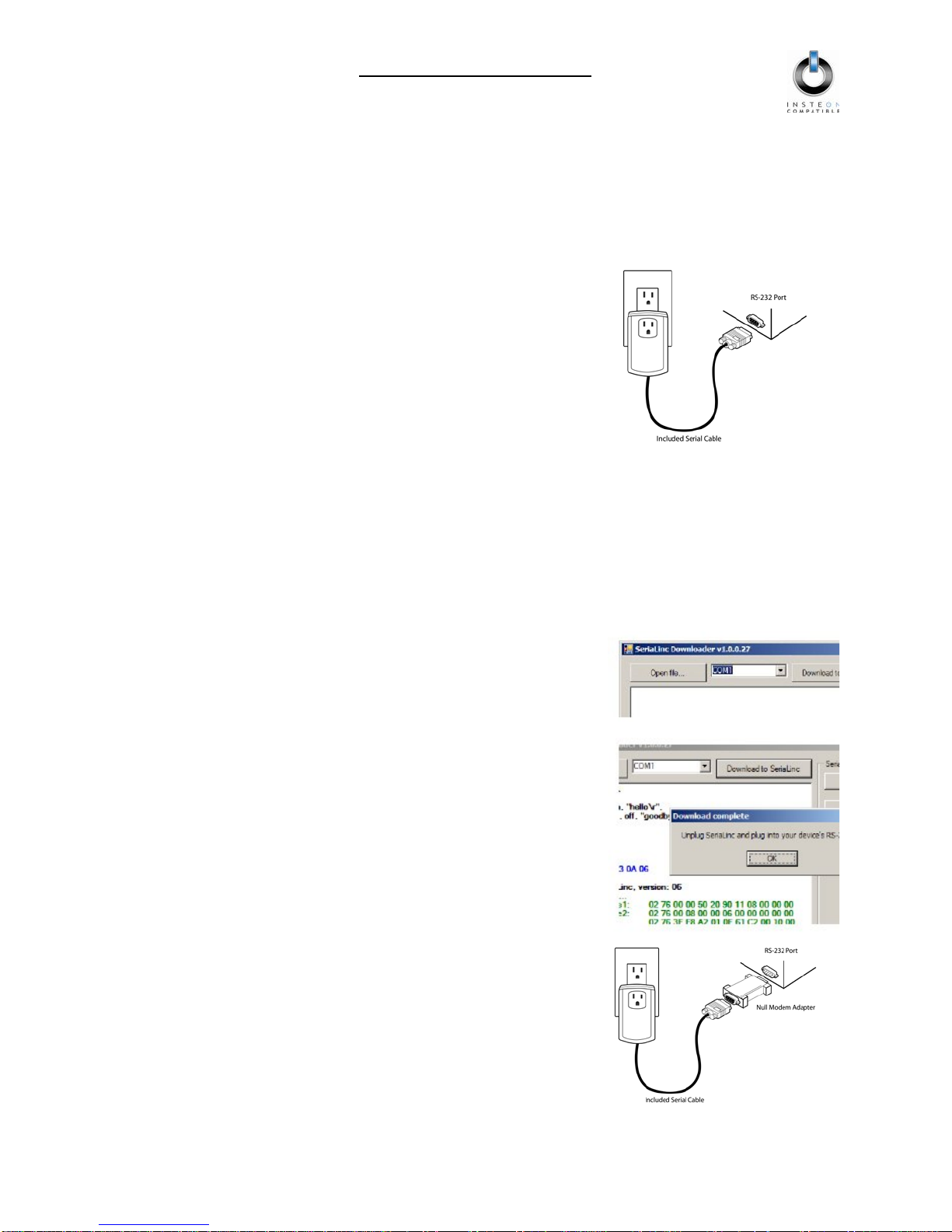

Installing SeriaLinc
1) You will need a CSV file with your serial codes to download the SeriaLinc Downloader Application.
See Creating a CSV File.
2) Download the SeriaLinc Downloader application at:
http://www.insteon.net/software/serialincdownloader/serialinc_1_0_0_32.application
3) Plug SeriaLinc into an electrical outlet (make sure SeriaLinc will be
able to reach your computer with the included serial cable or use an
extension cord)
4) Tap the Set button on SeriaLinc to enter Configuration Mode
The SeriaLinc Status LED will begin blinking
5) Connect SeriaLinc to your computer using the included serial cable
6) In the SeriaLinc Downloader application, open the CSV file
7) Devices that are responding to serial codes (defined as 1 in the CSV file) will need to be Linked to
SeriaLinc according to their defined group number (third parameter on the same line in the CSV file)
A) Click the appropriate button on the right side of the application interface for SeriaLinc to
enter the defined group’s Linking Mode
B) Press & hold the Responder’s Set button for 3 seconds
C) Repeat steps A and B as needed
8) Choose the com port SeriaLinc is connected to
9) Select “Download to SeriaLinc”
10) When prompted, unplug SeriaLinc and plug it back in, making
sure not to tap the Set button
The SeriaLinc Status LED will stop blinking
11) Close the SeriaLinc Downloader application
12) Plug SeriaLinc into your RS-232 device using the included null
modem adapter

SeriaLinc Owner’s Manual
Page 7 of 10
ADVANCED FEATURES
Restoring Power to SeriaLinc
SeriaLinc stores all of its settings, such as Links to other INSTEON devices, etc., with non-volatile
memory. Because settings are saved in this non-volatile memory, they will not be lost in the event of a
power failure.
Resetting SeriaLinc to its Factory Default Settings
The factory reset procedure can be used to clear the SeriaLinc memory and restore its factory default
settings.
1) Unplug SeriaLinc for about 10 seconds
2) While holding down the Set button on SeriaLinc, plug it back in, making sure not to let go of the Set
button
3) Continue to hold down the Set button for 3 seconds and then release
After a few seconds, the SeriaLinc Status LED will turn on
ABOUT INSTEON
Using Dual-Band INSTEON Devices to Upgrade Your Network
What are phases?
The majority of single-family homes in North America have two phases (or “legs”) of 110 Volts coming into
their electricity panels. From the panel, they are distributed throughout the home, providing power to
outlets and wall switches. These phases come together in some parts of the home to provide 220 Volts of
power to large appliances, such as an electric oven or pool pump.
Why do I need to bridge these phases?
Single-band power line devices send commands via the home’s electricity, but only on a single phase. If
the command is intended for a device on the opposite phase, there is a good chance the command will
go unnoticed. Installing dual-band INSTEON devices, such as Access Points (#2443), on each phase will
allow for devices to communicate between the two phases via RF.
Dual-band INSTEON devices embody the full potential of a true INSTEON mesh network. Taking the
power line band signal and working in conjunction with the RF band signal, its dual-band function plays
out in two ways:
•Phase bridger – a receiver of commands, reacting to and translating signals sent from one power
phase to the opposite via RF
•Signal repeater – a participant in an INSTEON network, repeating commands intended for other
devices whether those commands are generated from RF or power line-only devices. To ensure
reliability, every INSTEON device confirms that it has received a command. If a Controller does
not receive this confirmation, it will automatically retransmit the command up to five times.
While using at least one dual-band device is required when using an RF-only device, at least two dual-
band devices are recommended to ensure reliable communication across two-phase home wiring
systems. For larger applications, it is recommended to install at least one dual-band device for every 750
– 1,000 square feet.
Search for dual-band INSTEON devices at: www.smarthome.com/dualband

SeriaLinc Owner’s Manual
Page 8 of 10
Important Note about INSTEON Networks; Split Single-Phase vs. 3-Phase
Installation
For the best INSTEON network performance, be sure you have properly installed at least two dual-band
INSTEON devices. INSTEON has only been officially tested in a split single-phase residential
environment but has been known to work in many 3-phase systems, where three dual-band devices are
used (one on each phase). However, due to the potential complexity of its troubleshooting, the INSTEON
Gold Support Line is unable to support INSTEON in 3-phase environments.
Further Enhancing Reliability
As signals travel via the power line or RF throughout the home, they naturally become weaker the farther
they travel. The best way to overcome weakened signals is to increase the coverage of the mesh network
by introducing more INSTEON devices.
It is possible that some audio-video devices, computers, power strips, or other electrical equipment may
attenuate INSTEON signals on the power line. You can temporarily unplug suspected devices to test
whether the INSTEON signal improves. If it does, then you can plug in filters that will permanently fix the
problem.
TROUBLESHOOTING
SeriaLinc Support
Information
SeriaLinc is a Serial (RS-232) – INSTEON converter. It can translate INSTEON ON and OFF commands into
serial output strings to a connected device. It can also accept serial input strings from the remote device and
activate INSTEON Group ON and OFF commands. These serial commands will control devices such as Nuvo.
A PC and the SeriaLinc Downloader application are required to set up SeriaLinc.
To download to the device the user must connect the serial output of SeriaLinc to the serial port on their PC.
Within 4 seconds of power-up (before the LED turns on), the user should tap the Set button. This allows
SeriaLinc to enter Configuration Mode. After downloading to SeriaLinc, unplugging and then powering up
SeriaLinc and NOT tapping the Set button will activate the Serial Translation Mode. An included null modem
adapter is required to talk to most RS-232 devices. (NOTE: There is s a 50 byte limit from the device.)
Software
SeriaLinc Downloader
Download configuration files to SeriaLinc:
http://www.insteon.net/software/serialincdownloader/serialinc_1_0_0_32.application
Additional Software
Useful for testing RS-232
•Docklight – RS-232 Terminal / RS-232 Monitor: www.fuh-edv.de/docklight
Supported Devices
Known Supported USB →Serial Adapters for Setup
•Belkin F5U409 USB to Serial Adapter
•FTDI US232R-10 (RS-232 cables, US232R-10 USB to RS-232 Converter, 10 com)
Security
•HAI Security Panel (Omni)
•HAI Lighting Panel (Lumina)
•SecureLinc

SeriaLinc Owner’s Manual
Page 9 of 10
Audio
•Nuvo Systems including: Concerto, Grand Concerto, Essentia, Tuners
•HiFi by HAI
Automation
•Stargate
•Ocelot
•X10 (using 1132B)
•Rain8
IR
•Global Cache
A/V
•Blu-ray Player
•A/V Receiver
•Amplifier
•Media Center
SPECIFICATIONS, CERTIFICATION, AND WARRANTY
Specifications
View specifications for SeriaLinc at: www.smarthome.com/2410S.html
Certification
This product has been thoroughly tested by ITS ETL SEMKO, a nationally recognized independent third-
party testing laboratory. The North American ETL Listed mark signifies that the device has been tested to
and has met the requirements of a widely recognized consensus of U.S. and Canadian device safety
standards, that the manufacturing site has been audited, and that the manufacturer has agreed to a
program of quarterly factory follow-up inspections to verify continued conformance.
Limited Warranty
Seller warrants to the original consumer purchaser of this product that, for a period of two years from the
date of purchase, this product will be free from defects in material and workmanship and will perform in
substantial conformity to the description of the product in this Owner’s Manual. This warranty shall not
apply to defects or errors caused by misuse or neglect. If the product is found to be defective in material
or workmanship, or if the product does not perform as warranted above during the warranty period, Seller
will either repair it, replace it, or refund the purchase price, at its option, upon receipt of the product at the
address below, postage prepaid, with proof of the date of purchase and an explanation of the defect or
error. The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s
liability with respect to this product. For repair or replacement during the warranty period, call the
INSTEON Gold Support Line at 800-762-7845 with the Model # and Revision # of the device to receive
an RMA# and send the product, along with all other required materials to:
Smarthome, Inc.
ATTN: Receiving Dept.
16542 Millikan Ave.
Irvine, CA 92606-5027

SeriaLinc Owner’s Manual
Page 10 of 10
Limitations
The above warranty is in lieu of and Seller disclaims all other warranties, whether oral or written, express
or implied, including any warranty or merchantability or fitness for a particular purpose. Any implied
warranty, including any warranty of merchantability or fitness for a particular purpose, which may not be
disclaimed or supplanted as provided above shall be limited to the two-year of the express warranty
above. No other representation or claim of any nature by any person shall be binding upon Seller or
modify the terms of the above warranty and disclaimer.
Home automation devices have the risk of failure to operate, incorrect operation, or electrical or
mechanical tampering. For optimal use, manually verify the device state. Any home automation device
should be viewed as a convenience, but not as a sole method for controlling your home.
In no event shall Seller be liable for special, incidental, consequential, or other damages resulting from
possession or use of this device, including without limitation damage to property and, to the extent
permitted by law, personal injury, even if Seller knew or should have known of the possibility of such
damages. Some states do not allow limitations on how long an implied warranty lasts and/or the exclusion
or limitation of damages, in which case the above limitations and/or exclusions may not apply to you. You
may also have other legal rights that may vary from state to state.
INSTEON Technology Patent
U.S Patent No. 7,345,998, International patents pending
© Copyright 2011
Smarthome, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845, www.smarthome.com
Rev 03-14-2011
