HD-TVI Speed Dome·Quick Start Guide
i
Thank you for purchasing our product. If there are any questions, or requests, please do not
hesitate to contact the dealer.
This manual applies to HD-TVI Speed Domes.
This manual may contain several technical incorrect places or printing errors, and the content is
subject to change without notice. The updates will be added to the new version of this manual. We
will readily improve or update the products or procedures described in the manual. The figures in
this manual are for reference only.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security
or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as
outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance
or reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY
OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

HD-TVI Speed Dome·Quick Start Guide
ii
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the
RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information see:
www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the battery to your supplier or to a designated
collection point. For more information see: www.recyclethis.info.

HD-TVI Speed Dome·Quick Start Guide
iii
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger
or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
Warnings
All the electronic operation should be strictly compliance with the electrical safety regulations,
fire prevention regulations and other related regulations in your local region.
Please use the power adapter, which is provided by normal company. The standard of the power
adapter is 24VAC10% or 12VDC10% (depending on models). The power consumption cannot
be less than the required value.
Do not connect several devices to one power adapter as adapter overload may cause over-heat
or fire hazard.
Please make sure that the power has been disconnected before you wire, install or dismantle the
speed dome.
When the product is installed on wall or ceiling, the device shall be firmly fixed.
If smoke, odors or noise rise from the device, turn off the power at once and unplug the power
cable, and then please contact the service center.
If the product does not work properly, please contact your dealer or the nearest service center.
Never attempt to disassemble the speed dome yourself. (We shall not assume any responsibility
for problems caused by unauthorized repair or maintenance.)
Cautions
Do not drop the dome or subject it to physical shock, and do not expose it to high
electromagnetism radiation. Avoid the equipment installation on vibrations surface or places
subject to shock (ignorance can cause equipment damage).
Do not place the dome in extremely hot, cold, dusty or damp locations, otherwise fire or
electrical shock will occur. The operating temperature should be -30°C ~ 65°C(outdoor speed
dome) and -10°C ~ 50°C (indoor speed dome).
The dome cover for indoor use shall be kept from rain and moisture.
Exposing the equipment to direct sun light, low ventilation or heat source such as heater or
radiator is forbidden (ignorance can cause fire danger).
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.

HD-TVI Speed Dome·Quick Start Guide
iv
Do not aim the speed dome at the sun or extra bright places. A blooming or smear may occur
damaging the camera.
Please use the gloves provided when handling the dome cover, avoid handling the dome cover
with bare hands.
Please use a soft and dry cloth when cleaning the inside and outside surfaces of the dome cover,
do not use alkaline detergents.
Please keep all packing from the speed dome. It may come in useful if the dome fails and
needs to be returned.

HD-TVI Speed Dome·Quick Start Guide
v
Table of Contents
1.1 Connection Diagrams .................................................................................... 1
1.2 DIP Switch Settings ........................................................................................ 2
1.2.1 H20IPSDIR302 IR Speed Dome Settings................................................................................. 4
1.3 Installation ..................................................................................................... 6
1.3.2 Installing the Bracket ............................................................................................................. 6
1.3.1 Setting the DIP Switch ........................................................................................................... 7
1.3.2 Installing the Speed Dome..................................................................................................... 7
2.1 System Application ........................................................................................ 8
2.2 Basic Operations ............................................................................................ 8
2.2.1 Configuring Patrol.................................................................................................................. 9
2.2.2 Configuring Park Actions ..................................................................................................... 12

HD-TVI Speed Dome·Quick Start Guide
1
1Installation
Before you start:
Check the package contents and make sure that the device is in good condition and all parts are
included.
1.1 Connection Diagrams
Please turn the power off before connecting the cables.
The cable connections are shown in the following figure. The cables are distinguished by different
colors. The labels attached on the cables are for identification.
H20TVISDIR302
RED AC24V
YELLOW/GREEN GND
BLACK AC24V
①
YELLOW R485-
ORANGE R485+
②
Video Output
Yellow&Green
Yellow
Orange
Black
Red
①
②

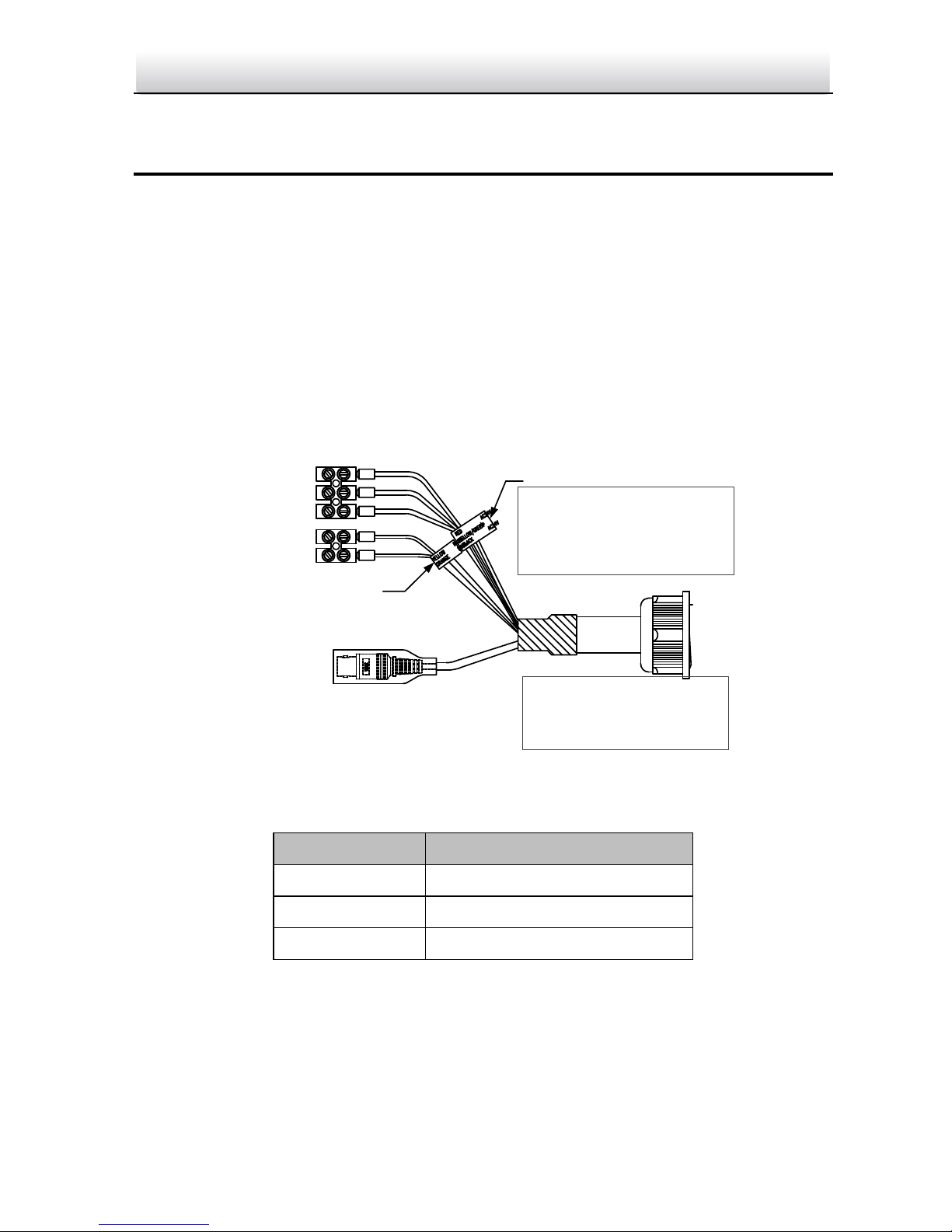

Figure 1-1 Cables of 7-inch IR Speed Dome
Table 1-1 Cables Description
Name
Description
AC24V
Power supply
RS485+/-
485 control
VIDEO
Coaxial and analog video output

HD-TVI Speed Dome·Quick Start Guide
2
H20TVISD302
RED AC24V
YELLOW/GREEN
BLACK AC24V
VIDEO VIDEO
②
①
YELLOW R485-
ORANGE R485+
②
RED AC24V
YELLOW/GREEN GND
BLACK AC24V
①
AC24V
CVBS Video Output
HD-TVI Video Output
RS485
Alarm

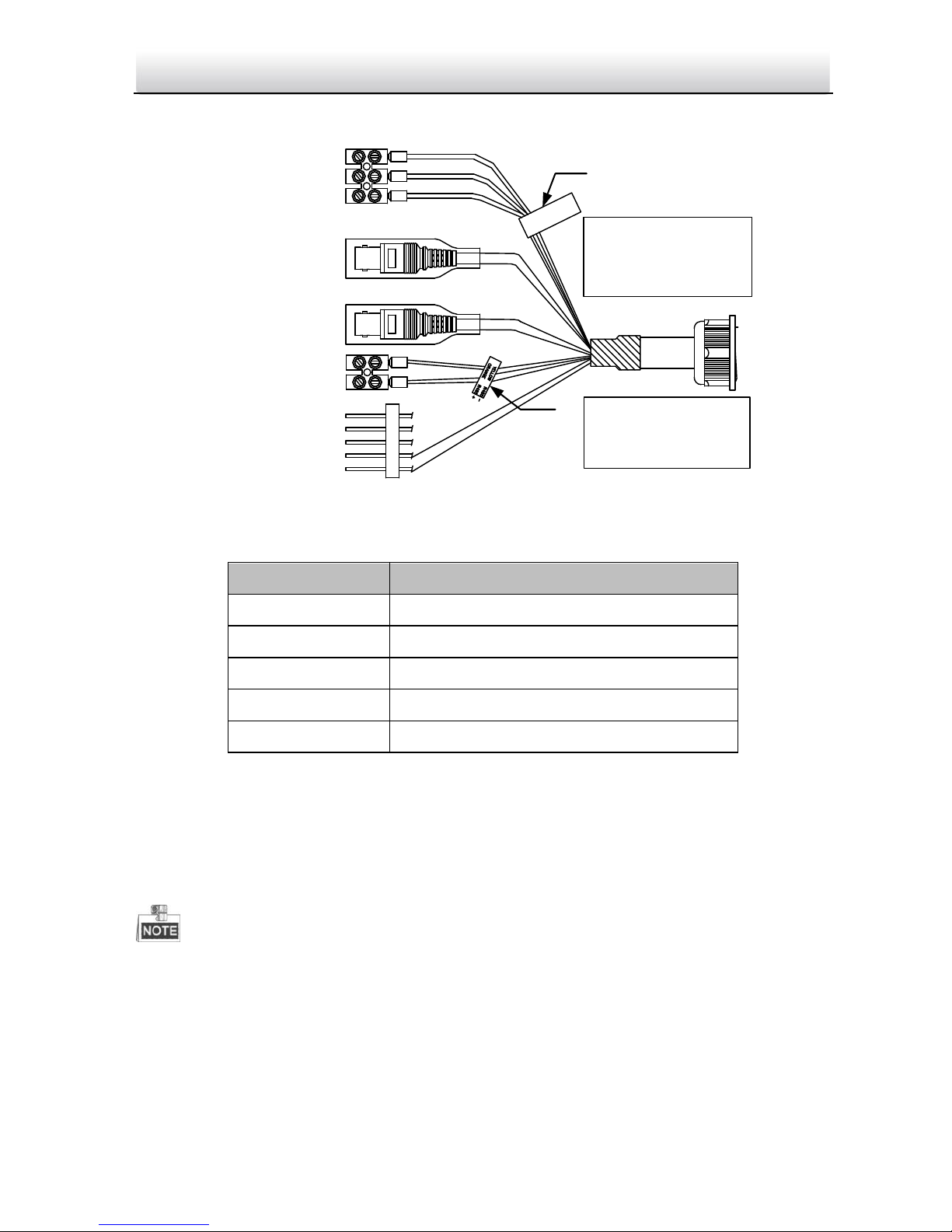

Figure 1-2 Cables of Other Speed Dome
Table 1-2 Cables Description
Name
Description
AC24V
Power supply
RS485+/-
485 control
CVBS VIDEO
SD analog video output
HD-TVI VIDEO
HD-TVI and coaxial video output
ALARM
2-ch alarm inputs and 1-ch alarm output
1.2 DIP Switch Settings
The SW1 is used to set the address. The SW2 is used to set the baudrate.
The default dome address is 0. The default baudrate is 2400.
The speed dome is self-adaptive to the Pelco-P, Pelco-D and Private-Code. You don’t have to set
the RS-485 control protocol by the DIP switch.

HD-TVI Speed Dome·Quick Start Guide
3
123456781
2
DIP Switch

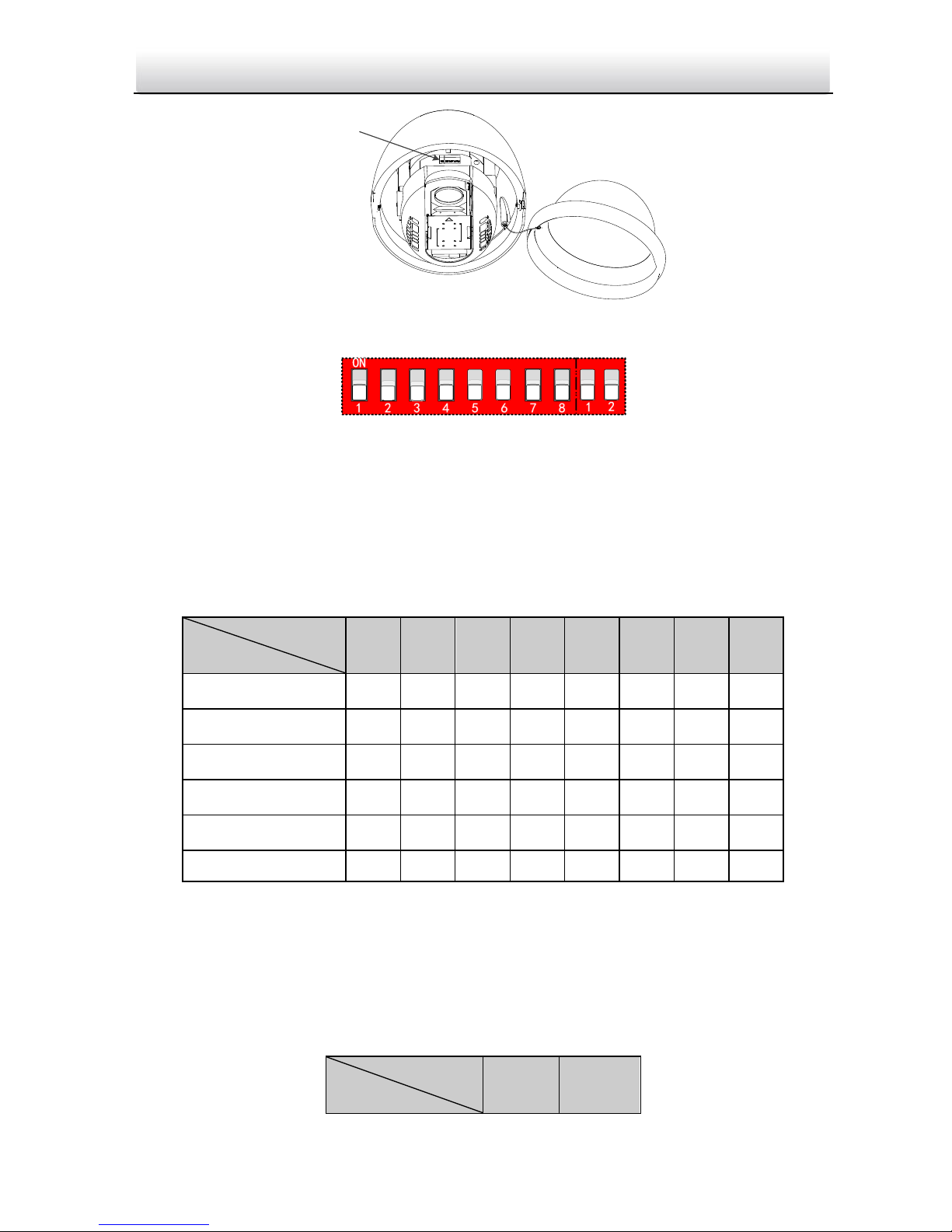

Figure 1-3 DIP Switch Settings for 5-inch Outdoor Speed Dome
Figure 1-4 Enlarged View of DIP Switch
Address Settings
The SW1-switches from 1 to 8 are used for setting the address of speed dome. You can refer to
Table 1-3 for details of setting the speed dome address.
Table 1-3 Set the Dome Address
Switch No.
Dome Address
1
2
3
4
5
6
7
8
0
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
…
…
…
…
…
…
…
…
…
255
ON
ON
ON
ON
ON
ON
ON
ON
Baudrate Settings
The number 1 and 2 SW2-switches are used for setting the baudrate of the speed dome. The
baudrate can be 2400bps, 4800bps, 9600bps and 19200bps. The baudrate is set as 2400bps by
default:
Table 1-4 Set the Baudrate of the Dome
Switch No.
Baudrate
1
2

HD-TVI Speed Dome·Quick Start Guide
4
2400
OFF
OFF
4800
ON
OFF
9600
OFF
ON
19200
ON
ON
1.2.1 H20IPSDIR302 IR Speed Dome Settings
Two DIP switches SW1 and SW2 are for setting the speed dome address, baudrate, protocol, etc.,
with value ON=1 and OFF=0. The switch label is on the back of the SWITCH cover as shown in Figure
1-5.
Each number of the switch represents a DIP value, ranging from 1 to 8 for the lowest to highest.
SW1 SW2

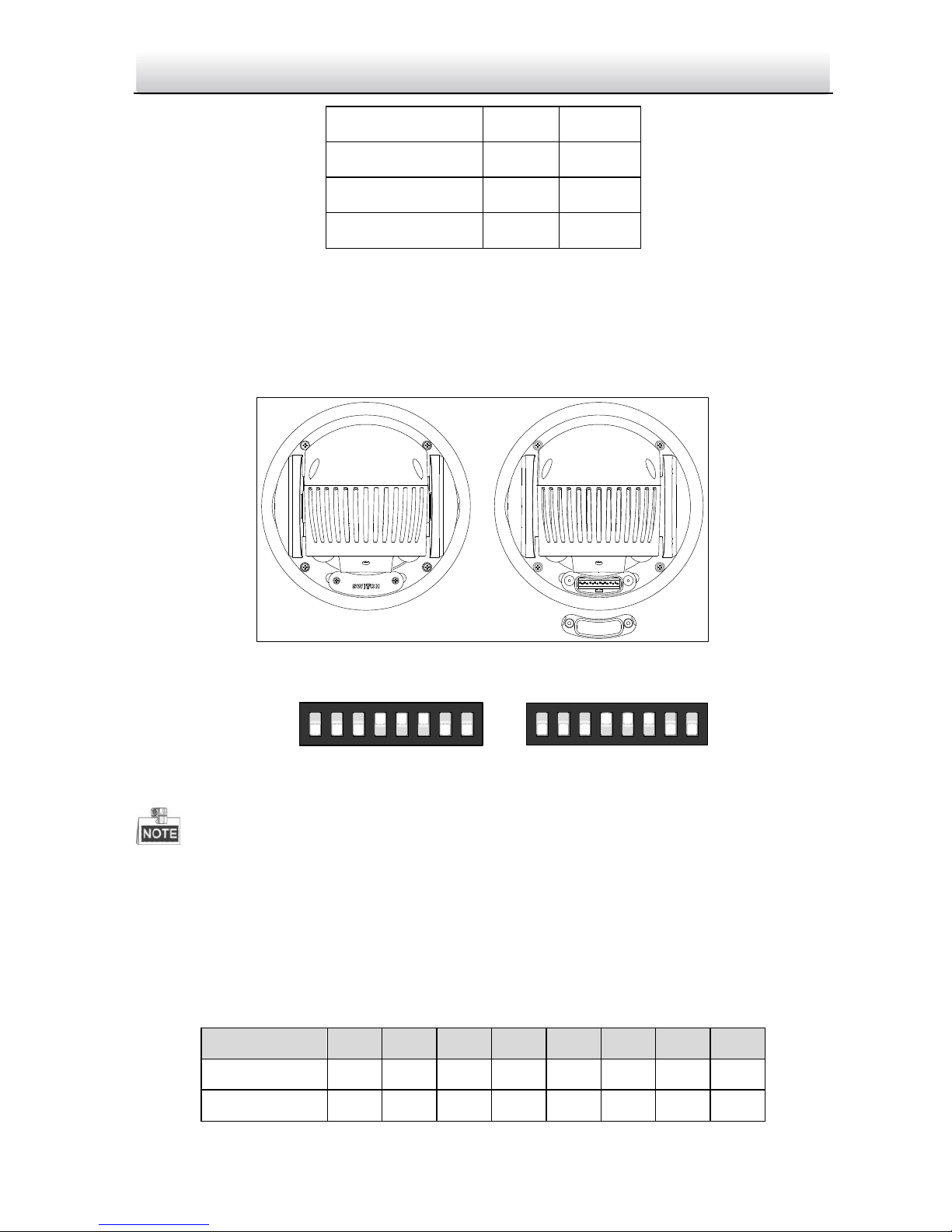

Figure 1-5 Label of DIP Switch for IR Speed Dome
ON
12345678
SW2
ON
12345678
SW1
Figure 1-6 Enlarged View of DIP Switch
The default dome address is 0; the default baudrate is 2400; and the default value of the 120Ω
terminator is OFF.
Address Settings
The SW1 switch is used for setting the address of speed dome. You can refer to Table 1-5 for details
of setting the speed dome address to a specific number.
Table 1-5 Set the Dome Address
Dome Address
1
2
3
4
5
6
7
8
0
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF

HD-TVI Speed Dome·Quick Start Guide
5
Dome Address
1
2
3
4
5
6
7
8
2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
...
...
...
...
...
...
...
...
...
255
ON
ON
ON
ON
ON
ON
ON
ON
Baudrate Settings
The No. 1, 2 and 3 of SW2 switch are for setting the baudrate of the speed dome, standing for
2400bps, 4800bps and 9600bps respectively. The baudrate will be set as 2400bps by default if it is
out of this range. Refer to the following table:
Table 1-6 Set the Baudrate of the Dome
DIP Switch SW2-Baudrate Settings
Baudrate
1
2
3
2400
ON
OFF
OFF
4800
OFF
ON
OFF
9600
ON
ON
OFF
19200
OFF
OFF
ON
Protocol Settings
The speed dome is self-adaptive to PELCO-D, PELCO-P and private protocol which cannot set by the
DIP switches.
Communication Mode Settings
The No. 7 of SW2 switch is for setting the RS485 communication mode of the dome to simplex or
half-duplex.
Table 1-7 Set Communication Mode of the Dome
DIP Switch SW2-Simplex/Half-duplex Settings
Description
7
Simplex
OFF
Half-duplex
ON
Terminal Resistor Settings
The No. 8 of SW2 switch is used for turning on/off the 120Ωterminal resistor.
Table 1-8 Set Terminal Resistor

HD-TVI Speed Dome·Quick Start Guide
6
Switch No.
Description
8
Turn on the resistor
OFF
Turn off the resistor
ON
1.3 Installation
1.3.2 Installing the Bracket
Before you start:
The wall must be thick enough to take the expansion screws.
Please make sure that the wall is strong enough to withstand more than 8 times the weight of
the dome.
Steps:
1. Check that the type of the bracket and the number of accessories are correct, as shown in the
figure below.

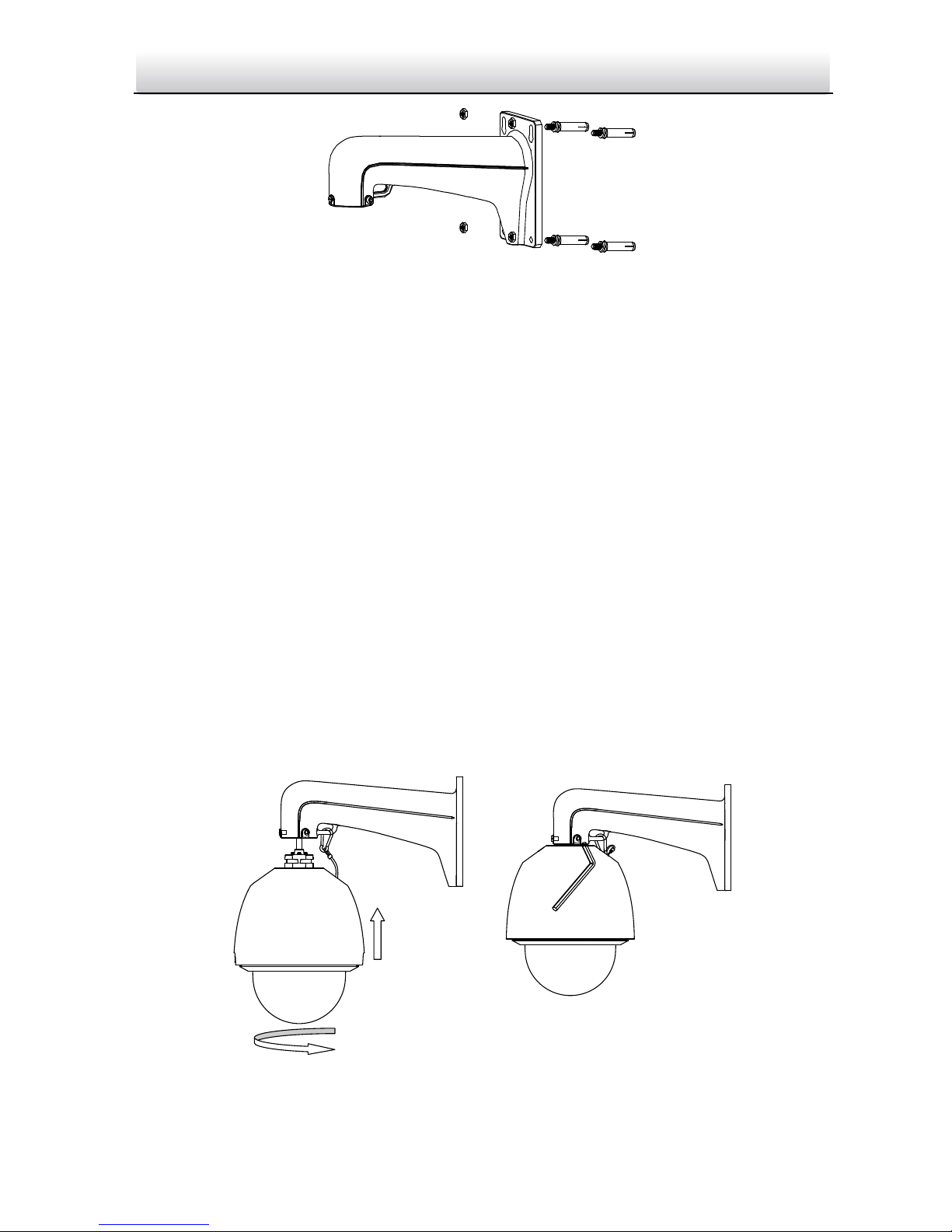

Figure 1-7 Wall Mount Bracket, Nuts and Flat Washers
2. Drill 4 screw holes in the wall to match the holes of the bracket. Insert M8 expansion screws
into the mounting holes.
Figure 1-8 Drill Mounting Holes
3. Attach the wall bracket to the wall by aligning the 4 screw holes.
4. Secure the wall bracket with 4 hex nuts and washers.

HD-TVI Speed Dome·Quick Start Guide
7
Figure 1-9 Secure the Mount
5. Install the speed dome to the wall bracket. Please refer to Section 1.3.2 Installing the Speed
Dome for installation details.
1.3.1 Setting the DIP Switch
Set the address and baudrate for the speed dome. The default value of the DIP switch is shown
below:
Address: 0
Baudrate:2400
Terminal Resistor: OFF
Please refer to the Section 1.2 DIP Switch Settings for DIP switch settings.
1.3.2 Installing the Speed Dome
Steps:
1. Hang the safety clip to the speed dome and then hook to the mount as shown in Figure 1-10(left).
2. Route the cables of the speed dome through the wall mount.
3. Connect the corresponding video/power/RS-485 cables.
4. Install the speed dome to the mount, and secure the speed dome by rotating the speed dome
clockwise.
5. Fasten the two lock screws with the Allen key, as shown in Figure 1-10(right).
③
②
①
Figure 1-10 Install the Speed Dome

HD-TVI Speed Dome·Quick Start Guide
8
2Application and Operations
2.1 System Application
The device can be controlled through the HD-TVI DVR or CCTV PTZ keypoard.
SYV
RS485 Cable
DVR
Speed Dome Monitor
Figure 2-1 System Application
If using a SmartWatch HD-TVI speed dome with a SmartWatch HD-TVI recorder, PTZ/OSD can
be accessed from the HD-TVI DVR without the RS485.
2.2 Basic Operations
Make sure the speed dome is connected correctly, and the following basic operations are working:
Panning and tilting:
Click the direction buttons to control the pan and tilt movement of the speed dome.
Zooming:
Click the ZOOM+ and ZOOM- buttons to control the zooming.
Focusing:
Click the FOCUS+ and FOCUS- buttons to adjust the focus.
Iris:
Click the IRIS+ and IRIS- buttons to adjust the iris.
Preset control:
The speed dome supports preset function. These presets can be configured from the TVI DVR or
the PTZ keyboard. By calling preset 95, the main menu of the HD-TVI dome is displayed.

HD-TVI Speed Dome·Quick Start Guide
9
MAIN MENUS
<SYSTEM INFO>
<DOME SETTINGS>
<RESTORE SETTINGS>
<RESTORE CAMERA>
<REBOOT DOME>
<LANGUAGE> ENGLISH
EXIT
Figure 2-2 Main Menu
Please refer to the user manual for more detailed instructions on the camera OSD.
2.2.1 Configuring Patrol
You can configure the patrol function from the DVR.
Configuring Patrol by DVR
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ
Figure 2-3 PTZ Settings
2. Select patrol No. in the drop-down list of patrol.
3. Click the Set button to add key points for the patrol.

HD-TVI Speed Dome·Quick Start Guide
10
Figure 2-4 Key point Configuration
4. Configure key point parameters, such as the key point No., duration of staying for one key
point and speed of patrol. The key point corresponds to the preset. The Key Point No.
determines the order at which the PTZ will follow while cycling through the patrol. The
Duration refers to the time span to stay at the corresponding key point. The Speed defines the
speed at which the PTZ will move from one key point to the next.
5. Click the Add button to add the next key point to the patrol, or you can click the OK button to
save the key point to the patrol.
You can delete all the key points by clicking the Clear button for the selected patrol, or click
the Clear All button to delete all the key pints for all patrols.
Configuring Patrol by OSD Menu
Steps:
1. Call the preset 95 to enter the main menu and move the cursor to enter patrol configuration
submenu:
MAIN MENU > DOME SETTINGS > PATROLS
PATROLS
PATROL NO. 1
EDIT PATROL
PREVIEW
CLEAR PATROL
PATROL_D 30S
BACK EXIT
Figure 2-5 Patrol Configuration Menu
2. Select the patrol number.
1). Move the cursor to PATROL NO. and click IRIS+ to enter edit mode.
2). Click the up and down direction buttons to select the number of the patrol that is to be
configured.
3). Click IRIS+ again to confirm the settings and enter the edit mode of this column.

HD-TVI Speed Dome·Quick Start Guide
11
Up to 8 patrols can be configured.
3. Edit the patrol.
1). Move the cursor to EDIT PATROL and click IRIS+ to enter edit mode.
NUM PST DWELL SPEED
1 0 6 30
2 0 6 30
3 0 6 30
4 0 6 30
5 0 6 30
6 0 6 30
7 0 6 30
IRIS+ OK IRIS- CANCEL
Figure 2-6 Edit the Patrol
2). Click up/down direction buttons to select the number and locate the preset to be edited.
3). Click left/right direction buttons to position the cursor to the column of PRESET, DWELL and
SPEED. You can click the up/down direction buttons to set the value of preset number, dwell
time and patrol speed.
The dwell time (5-800 seconds selectable) is the time that the speed dome stays on a
certain preset; the patrol speed (level 1-40 selectable) is the scanning speed the speed
dome switching between the presets.
4). Follow the above steps to define the other presets for the selected patrol. You can configure
up to 32 presets in sequence for a patrol. Press IRIS+ to save the new settings or press IRIS-
to cancel and return to the previous menu.
4. Call the defined patrol.
Back to the live view interface after you finish editing the patrol, and call the special presets to
call the defined patrol. The presets 35~38 stand for patrol 1~4 and presets 102~105 stand for
patrol 5~8.
Calling Quick Patrol
The dome starts patrol from the predefined preset 1 to preset 32 in order after the park time. The
undefined preset will be skipped.
Steps:
1. Set the preset 1~32 by the DVR or OSD menu.
2. Call the preset 46 to start the quick patrol.

HD-TVI Speed Dome·Quick Start Guide
12
2.2.2 Configuring Park Actions
Predefined park actions (scan, preset, patrol and etc.) can be configured to start automatically after
a period of inactivity (park time).
Configuring Park Actions by DVR
Steps:
1. Click the button PTZ in the lower-right corner of the PTZ setting interface;
Menu>Camera>PTZ
2. Click the button to show the one-touch function of the PTZ control.
Figure 2-7 PTZ Panel - One-touch
3. There are 3 one-touch park types selectable, click the corresponding button to activate the
park action.
Park (Quick Patrol): The dome starts patrol from the predefined preset 1 to preset 32 in order
after the park time. The undefined preset will be skipped.
Park (Patrol 1): The dome starts move according to the predefined patrol 1 path after the park
time.
Park (Preset 1): The dome moves to the predefined preset 1 location after the park time.
The park time can only be set through the speed dome configuration interface, by default
the value is 5s.
4. Click the button again to inactivate it.
Configuring Park Actions by OSD Menu
Steps:
1. Call the preset 95 to enter the main menu and move the cursor to enter motion parameters
setting submenu:
MAIN MENU > DOME SETTINGS > MOTION SETTINGS

HD-TVI Speed Dome·Quick Start Guide
13
MOTION
AUTO FLIP ON
PROPORTIONAL PAN ON
PARK TIME 5
PARK ACT NONE
SCAN SPEED 28
IMAGE FREEZE OFF
DOME SPEED 6
BACK EXIT
Figure 2-8 PTZ Configuration
2. Move the cursor to the PARK TIME, and set the value in the range from 5 to 720 seconds.
3. Move the cursor to the PARK ACT, and the action can be set as preset 1-8, pattern 1-5, patrol
1-10, pan scan, tilt scan, random scan, frame scan, panoramic scan, day mode, night mode,
patrol-d or none.
