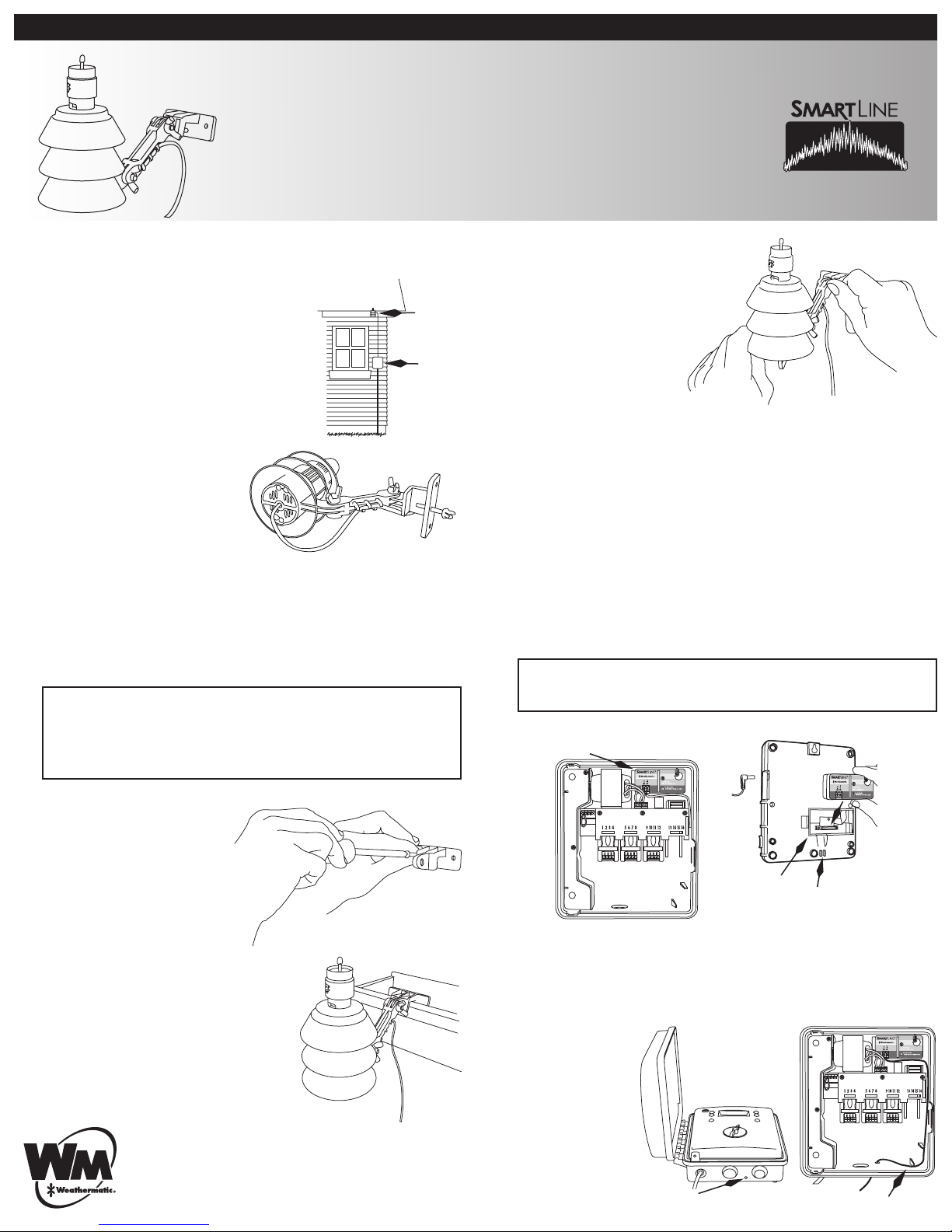

SmartLine SLW1 User manual

SLW1 On-Site Weather Station Installation
1. Decide on a good mounting location
for your SLW1 weather station. The
mounting location should be one that
is not affected by a heat source such
as an air conditioner, hot roof, attic
vent, etc. Mount in an area with
unobstructed airflow. Mounting is
acceptable in both direct sunlight and
shade; however, the location must
have open access to rainfall
(cannot be covered by any
overhead obstructions such
as trees, roofs, etc.). Finally,
the SLW1 weather station
must be installed in a
vertical position. The SLW1 weather station is supplied with
35 feet of 2 conductor, 20 AWG cable with UV stabilized
jacket. The SLW1 cable may be extended using any cable
meeting the above specifications. If the cable is routed
underground, a suitable direct burial cable must be used.
Wire splices must be water-tight.
Note: Maximum controller to weather station distance
is 200 feet. For installations requiring greater
distance, use the SLW15 or SLW10 weather
stations.
2. Option A: Surface Mount
Attach mounting bracket
to any flat siding or wood
surface with the included
screws. For other surfaces
such as brick, use an
appropriate anchor to
secure the bracket.
Option B: Gutter Mount
Place the mounting bracket over
an outside edge of the gutter, and
secure with the included wing
screw. For gutters with debris
screens installed, use Option A to
secure the mounting bracket to the
gutter.
SLW1 Weather Station
Installation and Operating Instructions
Tighten both wing nuts
of the extension arm,
and make sure the
SLW1 weather station
is fixed in a vertical
position.
Route the cable back to
the controller making
sure the cable is
properly secured. Do not allow the cable any movement
due to wind and avoid routing through areas where it
could be snagged or damaged. Take care not to puncture
or pinch the cable with mounting hardware. Cable clamps
are recommended.
Connect the SLW1 Weather Station to the SmartLine
controller
Install the SLHUB1 communication hub inside the
SmartLine controller and secure with the supplied screw.
Be careful not to bend the connecting pins.
Note: The SLHUB1 is the only hub that will work with
the SLW1. Do NOT use other hub models.
Route the communications cable to the SLHUB1 as shown.
Cut the cable to length (at the controller end) and strip
the outer jacket to expose the RED and BLACK wires.
Strip 1/4” of the
wires to expose
the copper
conductors.
3.
4.
1.
2.
Weather
Station
Controller
TEST
AC1
SEN SEN
COM
P/MV
SL1600 Series
Installed Communication Hub
SLHUB
Compartment
SL800 Series
Restraint for SLW
communication cable
Communication cable
TEST
AC1
SEN SEN
COM
P/MV
Communication cable routing guides.
Option A: Surface Mount
Option B: Gutter Mount

Connect the RED and
BLACK wires to the SLHUB1
communication hub as shown:
• RED wire to Left terminal
• BLACK wire to Right terminal
Refer to the SmartLine Owner’s
Manual for complete controller
setup and programming
instructions, prior to activating
the SLW1.
Activate the SLW1 On-Site
Weather Station by pressing the
rain sensor stem on the top of
the SLW1 for 15 seconds.
Return to the SmartLine
controller and verify the
antenna icon appears on
the bottom line of the LCD
display. The flashing
antenna icon indicates
communication has been
established in the past 5
minutes. A non-flashing antenna icon indicates
communication has occurred in the past 5 days. If no
antenna icon is present, repeat the activation process
above.
Note: In the event communication is lost between the
SLW1 weather station and SmartLine controller,
a FAULT message will be displayed. Consult the
SmartLine Owner’s Manual for instructions on
how to read fault messages. After 5 days of no
communication with the SLW1, the SmartLine
controller will automatically revert to Standard
mode operation.
The SLHUB1 will initiate communications with the SLW1
periodically during each day to retrieve weather data.
Every night at midnight, the SmartLine controller will log
daily high and low temperatures. Consult the SmartLine
Owner’s Manual for instructions on how to view the SLW1
5 day temperature history.
On the SmartLine control panel, press the MODE button
to select Auto Adjust mode. If the Auto Adjust LED flashes
RED and reverts to Standard mode, hold down the MODE
button and read the scrolling message indicating actions
needed to enter Auto Adjust mode.
3.
4.
5.
6.
7.
8.
SLW1 Weather Station Installation & Operation Instructions
Rain/Freeze Sensing Functions
The SLW1 weather station
provides rain and freeze sensing
to prevent watering during
periods of rain and freezing
weather.
The rain override will stop
watering after the selected
amount of rain is received
(factory setting is 1/8inch).
Available settings are 1/8inch to
¾ inch (3 to 19 mm) Using the
lock tab, select the desired setting.
Note: During rain shutdown, high/low temperatures of
60/60 are reported to the SmartLine controller
and Auto Adjust deficits and run times will reset to
zero.
The SLW1 weather station freeze sensing function will prevent
watering when the outside temperature drops below 37
degrees Fahrenheit (1.5 degrees Celsius). Watering can
resume when the temperature increases above 37 degrees F
(1.5 degrees Celsius).
The Sensor LED in the Active position will display RED during
rain or freeze periods. Additionally, after a rain event, the
SmartLine controller will continue to pause watering for 48
hours after the rain sensor has disengaged, in order to prevent
over watering. During the 48-hour extended rain delay, the
Active Sensor LED is ORANGE. In the event you choose to
end the 48-hour extended rain delay, press the Sensor button
on the SmartLine control panel twice and the Sensor LED
will return to a GREEN color and permit watering. SmartLine
controllers with firmware 3.05 and higher have a selectable
SLW DELAY feature in Advanced Functions that allows the
factory default dry out period of 48 hours, to be set for 0 to
99, hours if desired for local conditions.
Maintenance
The SLW1 weather station is designed for years of
maintenance-free operation. The SLW1 does not utilize any
onboard power source. Operational power is provided from
the controller.
The rain sensor Assembly, part # SLW1DISKASSY, is
replaceable. To remove the module, turn the rain sensor
housing so the rainfall set tab is disengaged and lift out the
module.
The mounting arm assembly, part # SLW10BSA, is replaceable.
PGM SUN MON TUE WED
A
B
C
D
THU FRI SAT
11:30am
Antenna Icon
ADSLW1
