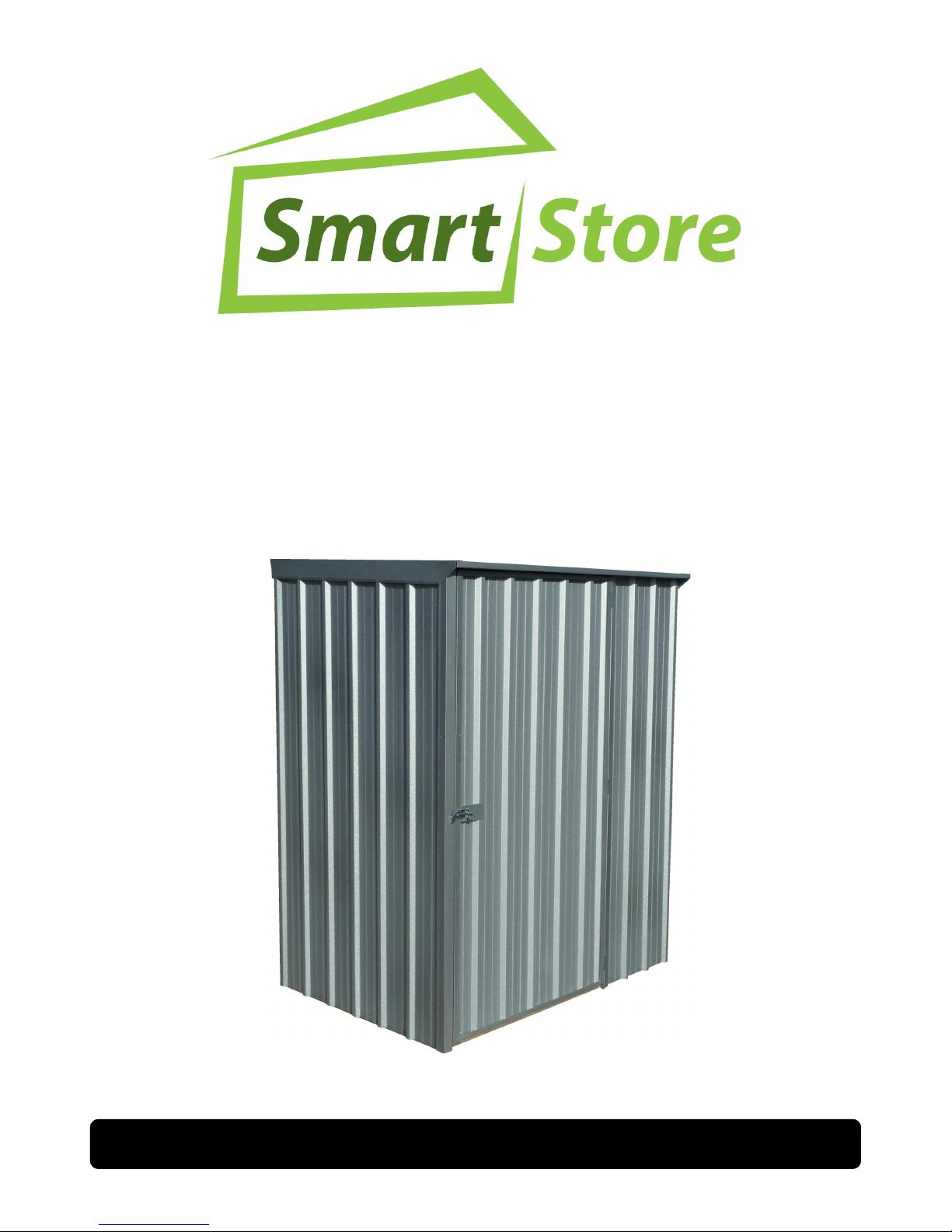

SmartStore SS1510 User manual

ASSEMBLY INSTRUCTIONS
SS1510
BASE SIZE: 1.520m x 1.020m

BEFORE YOU START:
 Read all instructions carefully
 Identify all parts and check quantities against parts list
 Select a level site
 Do not mark cladding with pencil as lead can cause corrosion to cladding
SAFETY:
 Do not attempt to build your shed in high winds
 Beware of sharp edges, recommend use of gloves
 Protect your eyes and ears
 For ease of assembly, use a friend to help
TOOLS REQUIRED:
WARRANTY REQUIREMENTS:
Following are the minimum requirements for cladding used in Smart Store Sheds.
 Wash all surfaces annually using a hose and soft nylon brush.
 Within 2 km of coast – wash every 3 months as above. After a storm, wash the cladding and the gutters as soon
as possible to remove any highly corrosive salt deposits.
 Volcanic Ash Fallout – wash as soon as possible, removing fall out from roof and gutters.
 Do not allow manures, chemicals or other corrosive materials to have direct contact with cladding.
DRILL RIVETER PHILLIPS DRILL BIT 3.5mm DRILL BIT
HAMMER
LADDER
TAPE MEASURE PEN
NAIL PUNCH
CONGRATULATIONS ON PURCHASING A SMART STORE SHED.
BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS :
2

SS1510 PARTS LIST
DESCRIPTION QTY DIAGRAM DESCRIPTION QTY DIAGRAM
CLADDING FLASHINGS
Front Wall
1.850 m 1Door Side 1.810 m 2
Back Wall
1.890 m 3Door Jamb 1.850 m 1
Side Wall
1.850 m 4
Corner Door Jamb
1.850 m 1
Roof
1.110 m 3
Door Brace
1.255 m 2
Door 3/4 Sheet
1.810 m 2
Barge
1.110 m 2
TIMBER
Ridge Flashing
1.550 m 1
Bottom Plates - H4 (Green)
Front/Back
1.520 m
2
Padbolt Support
0.140 m 1
Bottom Plates - H4 (Green)
Sides
1.020 m
2
Spouting
1.550 m 1
Top Plate - H1 (Red)
Back
1.520 m
1
Top Plate - H1 (Red)
Front
1.520 m
1 HARDWARE
Top Plate - H1 (Red)
Sides
1.020 m
2 Hardware Pack 1
CHANNELS Paint & Brush 1
Door Top/Bottom
0.945 m 2
OPTIONAL
Bolt Down Kit 1
DATE:
PACKED BY:
CHECKED
3
CHECKED

PARTS LOCATION
Top Plate Back
Side Wall Sheets
Barge Flashing
Spouting
Roof Sheets
3 Sheets
Top Plate Side
Top Plate Front
Bottom Plate Front
Bottom Plate Side
Back Wall Sheets
3 Sheets
Front Wall Sheet
Door Jambs
Door Sheets
Door Side Chan-
Padbolt Support
Hinge
Door Brace
Door Top/Bottom Channel
QUICK OVERVIEW
1
LAY FOUNDATION
2
ASSEMBLE DOOR
3
ASSEMBLE SIDE
PANELS
5
ASSEMBLE FRONT
PANEL
6
ASSEMBLE WALLS
7
ASSEMBLE ROOF
8
SECURE SHED
4
4
ASSEMBLE BACK
PANEL
Ridge Flashing

FOUNDATION
SMART STORE WOODEN FLOOR
 The optional Smart Store kitset wooden floor is precut and de-
signed to be fitted into the shed after the shed is assembled.
 Assemble shed as per instructions and fit floor last.
(see page 12 for details).
CONCRETE SLAB FOR RAISED BASE PLATE SHED
To build a raised concrete slab for your shed to sit on, we recom-
mend the following:
 The raised slab size should be 15mm smaller than the base
size of the shed and at least 30mm above ground line.
 The slab should be 80mm thick in the middle and 100mm
thick around the edges.
 The slab should be laid on a solid or compacted base.
 Plastic sheeting under slab will prevent moisture coming
through from underneath.
 During construction, you may raise the bottom timber
plate to allow the wall cladding to protrude 20mm below
the bottom plate. This will stop water flowing between
the bottom plate and the concrete floor.
See note on page 7.
80mm
100mm
7.5mm
20mm
Concrete Floor
Base Plate
Wall Cladding
5
RAISED BASE PLATE OPTION
(For sheds placed on a raised concrete floor)
No doubt by now you will have decided what sort of base you are putting down.
Please read the section that applies to your situation.
If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed.
This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
See concrete pad specifications below
By choosing this option you will need to make the pad to the specification below.

ASSEMBLE DOOR
6
SELECT:
2 x 1.810 m Door Sheets
2 x 0.945 m Door Top/Bottom Channels
2 x 1.810 m Door Side Flashings
3 x Hinges
1 x Padbolt Support Flashing
2 x 1.255 m Door Brace Flashings
36 x Rivets
STEP 1:
 Lay out door sheets on a flat surface making sure narrow pans
are on the outside.
 Slide door top and bottom channels on each end as shown in
fig. 1
 Rivet sheets together.
STEP 2:
 Position door side flash-
ings and assemble door
as shown.
 Drill and rivet as per dia-
gram, ensuring rivets
penetrate into door sheet.
STEP 4:
 Rivet door brace flashings onto back
of door as shown. Where possible,
rivet from front of door.
 Ensure the door brace flashings are
at least 50mm from top and bottom of
door, and 10mm from the side to
clear top and bottom timber plate,
when hung.
fig.2
fig.1
STEP 3:
 Attach hinges to door side
channel using rivets provided.
 Using one rivet, attach padbolt
support as shown in fig. 2
NARROW PANS

ASSEMBLE SIDE PANELS
7
TOP PLATE
BOTTOM PLATE
1810mm 1833mm
TOP PLATE
15mm 15mm
TOP PLATE
BOTTOM PLATE
1810mm
1833mm
Second Side
Panel
BOTTOM PLATE
TOP PLATE
SELECT:
4 x 1850 Wall Sheets
2 x 1.020 Top Plates (Red)
2 x 1.020 Bottom Plates (Green)
48 x 30mm Galv Clouts
4 x Rivets
STEP 1:
 Lay out 1 x Top Plate and 1 x Bottom Plate on a flat surface as shown
(corner cutouts to face outwards). Measurements between Top and
Bottom plates are critical to ensure wall panels fit together.
STEP 2:
 Place 2 x 1.850 wall sheets on top of timber plates, with sheets
flush with each other.
 Rivet sheets together on overlaps as shown.
STEP 3:
 Nail wall sheets to the Top Plate at each end making
sure that the top of the sheets are flush with the top of
the Top Plate and the sides of the wall sheet overhang
the Top Plate by approx 15mm as shown.
 Check that the Top Plate is straight then nail along the
wall sheet to the Top Plate, two clouts per pan (see
fig. 1).
STEP 4:
 Nail the wall sheets to the Bottom Plate at each end ensuring each
side of wall sheets overhangs the end of Bottom Plate by 15mm.
Check that the distance between the Top and Bottom Plates is
correct. (As per diagram in step 1)
 Check that the Bottom Plate is straight then nail the wall sheets to
the Bottom Plate, two clouts per pan (see fig. 1).
Repeat with second side panel ensuring Top Plate is positioned in
the OPPOSITE direction to the first side panel, as shown.
fig.1
RIB
PAN
CLOUT
TIMBER PLATE
Std Shed — Bottom Plate will protrude below wall
sheet by approximately 10mm.
Raised base plate shed — Wall sheet will protrude
below the Bottom Plate by 20mm.
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 5), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
TOP PLATE
BOTTOM PLATE
15mm 15mm
1810mm 1833mm
15mm
RIVET
RIVET

BOTTOM PLATE
TOP PLATE
TOP PLATE
1834mm
BOTTOM PLATE
1834mm
TOP PLATE
15mm 15mm
BOTTOM PLATE
15mm 15mm
1834mm 1834mm
TOP PLATE
8
SELECT:
3 x 1.890m Wall Sheets
1 x 1.520 m Top Plate (Red)
1 x 1.520 m Bottom Plate (Green)
36 x 30mm Galv Clouts
4 x Rivets
STEP 1:
 Lay out 1 x Top Plate and 1 x Bottom Plate on a
flat surface as shown (corner cutouts to face in-
wards).
STEP 2:
 Place 3 x 1.890 m wall sheets on top of timber
Plates with bottom of sheets flush with each oth-
er.
 Rivet the sheets together on overlaps as shown.
STEP 3:
 Nail the wall sheets to the Top Plate at each end making sure
that the top of the sheets are flush with the top of the Top
Plate and that the sides of the wall sheets overhang the Top
Plate by 15mm as shown.
 Check that the Top Plate is straight then nail wall sheets to
the Top Plate, using two clouts per pan.
STEP 4:
 Nail the wall sheets to the Bottom Plate at each end,
ensuring that each side of the wall sheets overhangs the
Bottom Plate by 15mm and that the distance between
the Top and Bottom Plates is correct. (As shown)
 Check that the Bottom Plate is straight then nail
wall sheets to the Bottom Plate, using two clouts per pan.
Std Shed — Bottom Plate will protrude below wall sheet by
approximately 10mm.
Raised base plate shed — Wall sheet will protrude below
the Bottom Plate by 20mm.
ASSEMBLE BACK PANEL
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 5), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.

ASSEMBLE FRONT PANEL
9
BOTTOM PLATE
1811mm 1811mm
TOP PLATE
960mm
TOP PLATE
DOOR OPENING
15mm
15mm
Plan View
TOP
PLATE
DOOR
JAMB
NAIL
x3
x3
x3
SELECT:
1 x 1.850 Wall Sheets
1 x 1.520 Top Plate (Red)
1 x 1.520 Bottom Plate (Green)
1 x 1.850 Door Jamb Flashing
1 x 1.850 Corner Door Jamb Flashing
16 x 30mm Galv Clouts
13 x Rivets
STEP 1:
 Lay out 1 x Top Plate and 1 x Bottom Plate on a flat
surface as shown
STEP 2:
 Using 2 x 30mm clouts, nail the Door Jamb Flashing flush with
the top of the Top Plate at the correct measurement as shown
in plan view. Note the difference between left and right hand
flashing. Pre drill holes using a 3.5mm drill bit
 Check the distance between the top and bottom plates then use
a further 2 x 30mm clouts to nail the Door Jamb Flashings to
the bottom Plate. Pre drill holes.
STEP 4:
 Place the door on the panel (In open position, approx 5mm
below top plate). Using two rivets, rivet the top and bottom
hinges to the Door Jamb Flashing.
 Ensure the door closes properly, then fit remaining rivets.
STEP 3:
 Place 1 x Wall Sheet on timber plates.
 Ensure that the top of the sheet is flush with the top of the
Top Plate and that the sides of the wall sheet overhang the
Top Plate by 15mm as shown. Nail wall sheets to Top Plate
(two clouts per pan)
 Nail the wall sheet to the Bottom Plate making sure that the
Plates are the correct distance apart and that the sides of the
wall sheets overhang the Bottom Plate by 15mm.
 Drill & rivet Door Jamb Flashings to wall sheets using four
rivets equally spaced on each side.
NOTE: The Doorway is standard at the left-hand end but can
be put on the right-hand end..
NOTE: Door can be hinged on either side.
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 5), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
15mm
530mm

WALL PANEL ASSEMBLY
75mm X 2
40mm X 2
BACK WALL
SIDE
WALL
SIDE
OVERLAPS
BACK
75mm X 2
BACK WALL
SIDE
WALL
SIDE
OVERLAPS
BACK
40mm X 2
10
TOP PLATE
TOP PLATE
BOTTOM PLATE
BOTTOM PLATE
DOOR JAMB
OVERLAPS
SIDE
X 4
SIDE
WALL
BACK WALL
SIDE
WALL
FRONT WALL
X 4
X 4
X 4
TOP PLATE
BOTTOM PLATE
SELECT:
4 x Pre-made Wall Panels
12 x 40mm Screws
4 x 75mm Screws
16 x Rivets

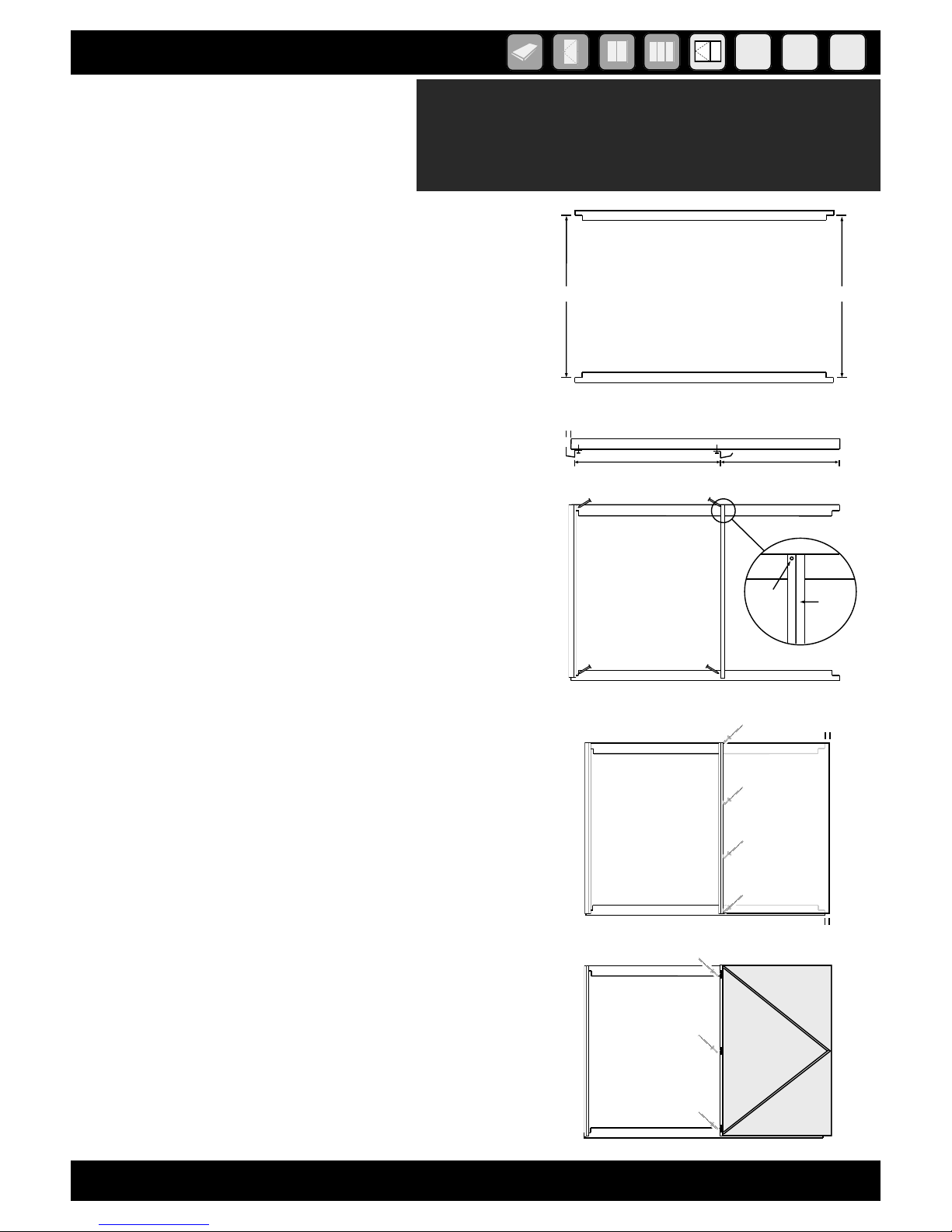

STEP 1:
 Stand the Back Panel and the Side Panel
up using someone to support the panels
while they are screwed together.
 Before fixing, ensure that the Side Panel
overlaps the Back Panel.
 Using 4 x 75mm screws, screw the Top
Plates together.
 Using 4 x 40mm screws, screw the Bot-
tom Plates together.
STEP 2:
 Repeat Step 1 with the second Side Panel,
ensuring that the Side Panel overlaps the
Back Wall Panel.
STEP 3:
 Stand up the Front Wall Panel.
 Ensure that the Front Wall Sheets overlap
the Side Wall Sheets.
 Using 8 x 40mm screws (2 per join) screw
the Top and Bottom Plates together in the
corners.
STEP 4:
 Rivet the wall sheets together at the corners
using 4 equally spaced rivets as shown. At
the front left, rivet side wall sheet to door
jamb.
FRONT
OVERLAPS
SIDES

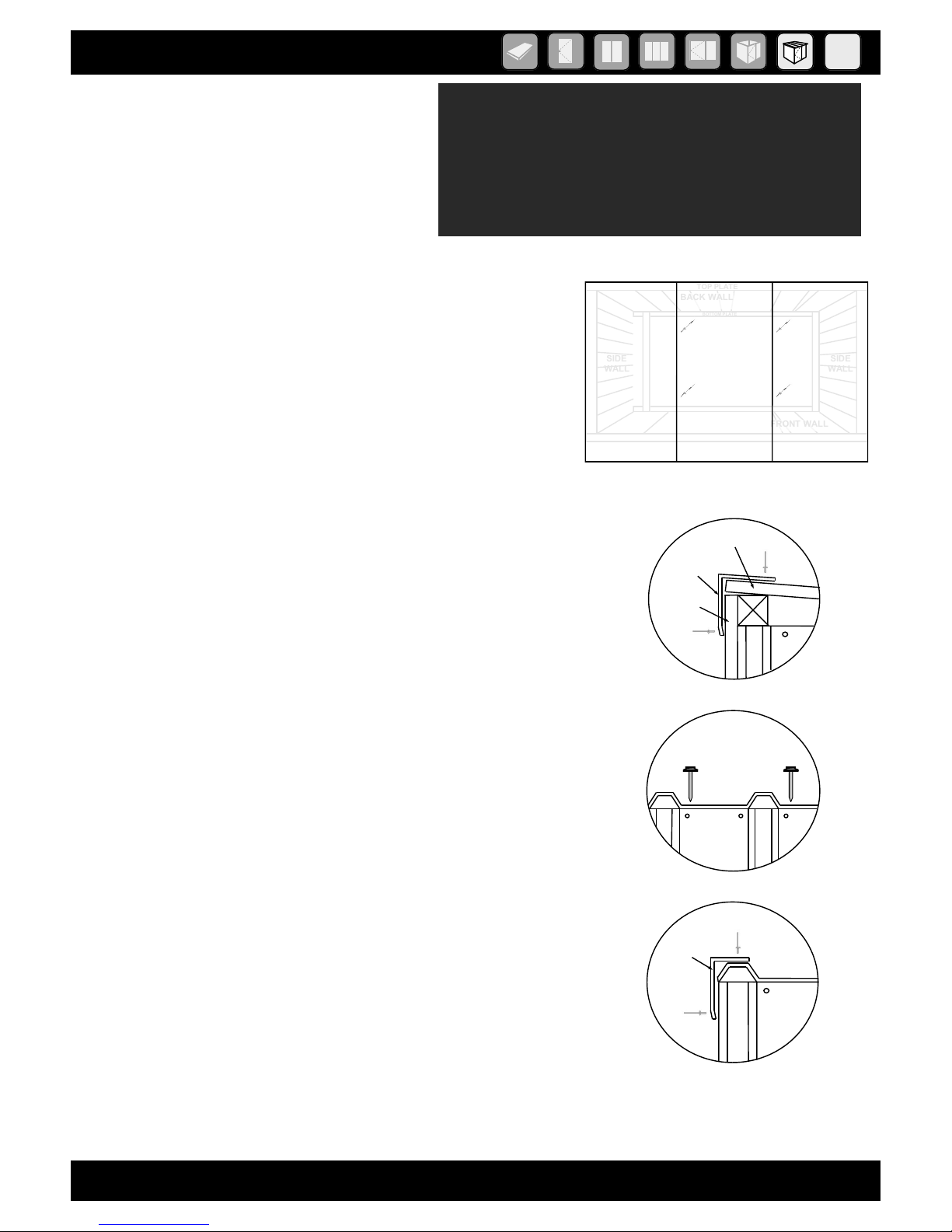

ROOF ASSEMBLY
STEP 2:
 Position the Roof Sheets with the back lining up with the outside edge
of the back wall cladding, as in fig. 2.
 Using 4 x 40mm weatherseals, nail the Roof Sheets to the Top Plates
at each corner, ensuring ribs on the Roof Sheets line up with ribs on
the Wall Sheets (fig.3).
11
fig.3
STEP 4:
 Place the Ridge Flashing in position ensuring flashing does not extend
past side wall cladding.
 Rivet Ridge Flashing to roof and back wall, riveting at the ends and at
each join of the roof sheets (fig. 2).
fig.4
X 4
X 4
Barge
STEP 1:
 Ensure Shed is sitting level and square.
 Lay Roof Sheets on the Top Plates (with slots at front).
 Rivet sheets together at overlaps with 2 x rivets per join (fig. 1).
STEP 3:
 Ensure the Front and Back Top Plates are straight. Nail the roof sheets
to the front & back Top Plates, using 1 x nail per pan (fig.3).
IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR
ROOF PANEL
Assemble as below, making sure that the Clear Roof Sheets
overlap the standard roof sheets on both sides.
The Clear Roof Panel must be secured to the front and back
Top Plates. Pre drill and fasten with the 40mm weatherseal
nails provided..
SELECT:
3 x 1.110 Roof Sheets
1 x 1.550 Spouting
2 x 1.110 Barges
1 x 1.550 Ridge Flashing
20 x 40mm Weatherseal Nails
30 x Rivets
fig. 2
X 4
X 4
RIDGE
FLASHING
ROOF
SHEET
BACK WALL
SHEET
SIDE
WALL
FRONT WALL
BACK WALL
SIDE
WALL
BOTTOM PLATE
TOP PLATE
fig.1
STEP 5:
 Place barge flashings on roof at end of shed ensuring the diagonal
trimmed end is at the front.
 Rivet the Barge Flashings to the roof and the side wall, using four rivets
on top of barge and four into the side (fig.4).
STEP 6:
 Place spouting in position and rivet to Barge Flashings at each end and
rivet to roof sheets (1 rivet per 1 sheet).

SECURING SHED
12
Secure your shed using Treated Timber Pegs or a Bolt Down Kit
TIMBER PEGS—WOODEN FLOOR
 The optional Smart Store Timber Peg Down Kit includes six H5 treated
timber pegs that can be hammered into the ground and then attached to
the Base Plate with stainless steel screws. A Sentry timber floor can then
be fitted on top of the Base Plate.
BOLT DOWN KIT—CONCRETE
 The optional Smart Store Bolt Down Kit includes 6 x galvanised
brackets, screws and dynabolts.
 Space the brackets evenly around the shed and fix to the Bottom
Plate and the concrete slab. A 10mm masonry drill bit is required.
OPTIONAL SENTRY FLOOR
 Position the Floor Joists centrally between the side
Base Plates and skew nail each end with two 75mm
nails.
 Check that the shed is sitting level and square and
that the diagonal Bottom Plate measurements are the
same.
 Place the floor boards in position and nail securely
(6 x 50mm nails per board).
IMPORTANT— CLEAN UP
REMOVE ALL DRILL FILINGS FROM ROOF, WALLS AND CHANNELS THOROUGHLY. FAILURE TO DO THIS
WILL RESULT IN CORROSION AND COULD THEREFORE VOID THE WARRANTY.
FIT PADBOLT
 Rivet Padbolt to door and keeper onto Door Jamb as
shown.
YOUR SMART STORE SHED IS NOW COMPLETE. RELAX…...
FRONT BASE PLATE
BACK BASE PLATE
JOIST

Riverlea Group Ltd warrant that the cladding used in the manufacture of the Smart Store shed will not rust within 15 years from the
date of purchase.
Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for
the benefit of the original purchaser. Riverlea Group Limited will not be liable for any consequential loss or damage, labour, or
transport charges.
This warranty is conditional on:
 Construction, installation and maintenance being carried out as specified in the Assembly Instruction Manual.
 The shed being installed in modest inland corrosion zones or areas where the steel corrosion rate is less than 200g/m2
(as published by Branz).
 Warranty certificate being returned to manufacturer within 21 days of purchase together with proof of purchase.
This warranty does not cover the following:
 Fastenings and fixings.
 Normal wear and tear, damage by impact or acts of God.
 Situations where the shed has been used for storage of chemicals, manure or corrosion causing products.
 Unauthorized modification of the structure, including painting of the cladding.
Please visit http://www.riverleagroup.co.nz/warranty-garden-sheds to validate the Warranty on your shed.
Click on the Warranty Registration Link and complete all details.
If you are unable to access the computer, please phone us on 0800 438 274 and one of the customer services team
will help you to activate the warranty on your garden shed.
Many thanks, from the Team at Riverlea Group.
15 YEAR WARRANTY
WARRANTY REGISTRATION
