Smeg LSPU8643WH User manual

Contents
1
1. IMPORTANT SAFETY INSTRUCTIONS ____________________ 2
2. INSTALLATION AND HOOK-UP _________________________ 10

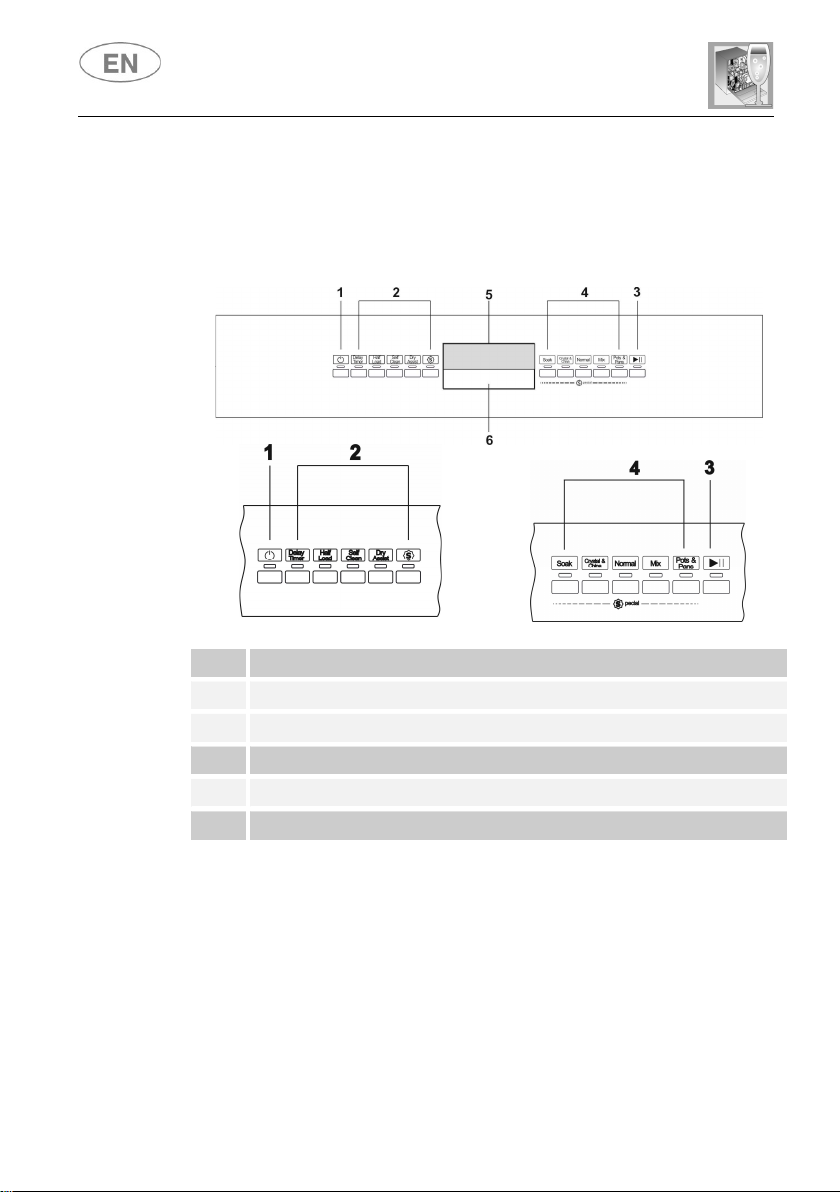

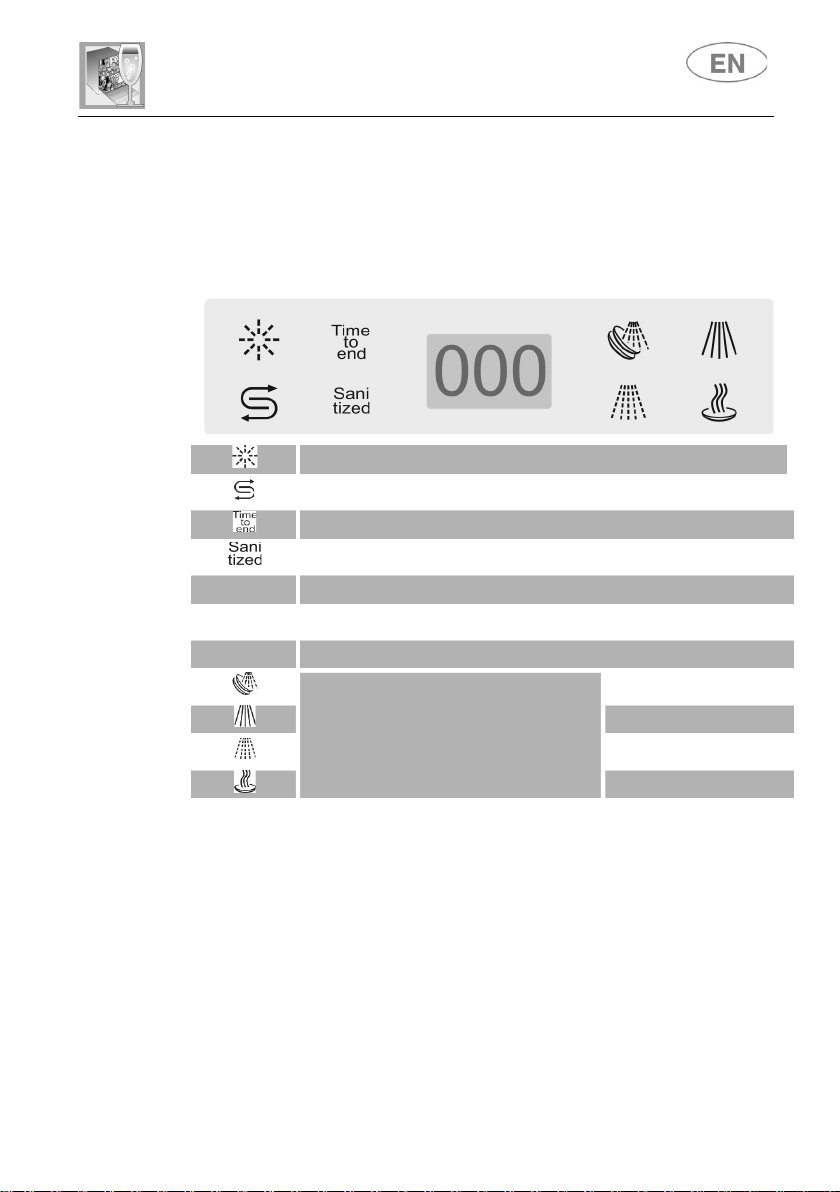

3. DESCRIPTION OF THE CONTROLS _____________________ 18
4. OPERATING INSTRUCTIONS ___________________________ 26
5. CLEANING AND MAINTENANCE ________________________ 27
6. TROUBLESHOOTING _________________________________ 28
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
This manual contains only the basic information required to use the
appliance. The complete manual can be obtained from
www.smeg.com/download-manuals
by entering the product code shown on the plate attached to the inner
right hand edge of the dishwasher door.
The manual can be accessed quickly via the QR code using a device
with a QR reader application.

Installation
2
TRANSLATION OF THE ORIGINAL
INSTRUCTIONS
1. IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
 Before using the appliance, carefully read all the
instructions contained in this manual.
 During installation, take care not to injure yourself on
the sharp edges of the appliance: wear safety
gloves.
 This manual is an integral part of the appliance; it
must always be kept intact together with the
dishwasher for future reference (even if sold).
 Use the dishwasher only for its intended function.
 This appliance is intended for indoor use in a
household environment and similar such as staff
kitchens of shops, offices and other workplaces,
institutions, and for the use by guests at hotels,
hostels, bed and breakfast and other residential
facilities. The appliance is designed and
manufactured to perform the following function:
washing and drying of dishes; any other use shall
be considered improper. The manufacturer
declines all responsibility for uses other than
those described above.
 Do not use appliances which have been damaged
during transit! If in doubt, contact your dealer.

Installation
3
 Do not operate your dishwasher unless all enclosure
panels are properly in place.
 Do not tamper with controls.
 The appliance must be installed and connected in
accordance with the instructions provided by the
manufacturer. Installation must be performed by
qualified technicians in accordance with
applicable regulations.
 The installation and repair or servicing shall be
carried out by qualified and authorised technical
personnel. Interventions by unauthorised personnel
can be dangerous and cause the warranty to lapse.
The installation must comply with all the directives of
the country where the dishwasher is installed, and in
the absence of them, in the United States the
National Electric Code; in Canada the Canadian
Electric Code C22.1 - Latest edition/provincial and
municipal codes and/or local codes
 Under certain conditions, hydrogen gas might be
produced in a hot-water system that has not been
used for two weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot-water system has not been
used for such a period, before using the dishwasher
turn on all hot-water faucets and let the water flow
from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame
during this time.

Installation
4
 Never leave waste packaging unattended. Do not
allow children to play with packaging materials.
Separate waste packaging materials by type and
consign them to the nearest recycling centre.
 The plate with the technical data, serial number and
marking is in a visible position on the inside edge of
the door. It must not be removed.
 The appliance must be earthed in compliance with
electrical safety regulations. The manufacturer
declines all responsibility for damage to persons
or property resulting from failure to earth the
appliance or from a defective earth connection.
 During the installation the appliance must be
disconnected from the network.
 Do not install the appliance in a place subject to
freezing.
 Do not install the appliance near equipment with
high irradiation temperature (e.g. gas burners,
fireplaces, etc.).
 If the appliance is installed in a compartment above
or below another equipment (e.g. gas burners,
ovens, etc.), read carefully the instructions provided
by the manufacturer of the equipment. If the
instructions of the equipment do not contain
information, contact the manufacturer of the
equipment to ensure that the appliance can be
installed above or below it.

Installation
5
 Building-in the appliance underneath a hob is
absolutely forbidden. Installing a hob on top of free-
standing appliance is absolutely forbidden.
 To ensure stability, install the appliance only under
continuous worktop, securely fixed to adjacent
cabinets. If the appliance is installed in a high
cabinet, both the appliance and the cabinet must be
adequately fixed.
 If the appliance is not built-in and is therefore
accessible on one side, the door hinge area must be
covered for safety reason (injury hazard). The
covering fixtures are available as an accessory from
specialist dealers or the after-sales.
 Check that the voltage and the frequency of the
mains match the ratings on the name plate of the
appliance.
 The plug on the supply cord and the corresponding
socket outlet must be of the same type and meet the
regulations in force. Do not use adaptors or shunt
connections in order to avoid the possibility of
overheating or burning.
 The plug of the appliance must be accessible after
installation. Never disconnect the plug by pulling on
the power supply lead.
 If the appliance is provided with a plugless supply
cord, an omnipolar circuit breaker providing a full
disconnection in overvoltage protection class III
must be installed in an easily accessible position on
the supply lineile.

Installation
6
 The appliance must be connected to the water
supply by means of new hoses.
 Briefly test the appliance after installation. Run a
wash cycle with a temperature of between 113°F
and 158°F (45°C-70°C) with the dishwasher empty
and using a specific dishwasher detergent. (It is not
sufficient to run a soak cycle). If the dishwasher fails
to operate correctly, disconnect it from the electrical
power supply and call the nearest technical service
centre. Never attempt to repair the appliance
yourself.
 The dishwasher should only be used by adults. Use
by children aged from eight years and persons with
reduced physical, sensor or mental capabilities or
lack of experience and knowledge is only permitted
under the supervision of a person responsible for
their safety.
 To reduce the risk of injury, do not allow children to
play in or on a dishwasher.
 Use only detergents or wetting agents
recommended for use in a dishwasher and keep
them out of the reach of children
 Keep children away from the dishwasher when the
door is open. Always check that the detergent
distributor is empty after completion of the wash
cycle.
 Cleaning and regular maintenance of the appliance
by children is only permitted under the supervision
of a person responsible for their safety.

Installation
7
 Some detergents are strongly alkaline. Avoid
contact with the skin and eyes. Detergents can be
extremely dangerous if swallowed. They contain
substances capable of causing permanent damage
to the mouth and throat, and even leading to
suffocation. Observe all the safety instructions on
the packaging of these products.
 Do not drink the water residues which may be
present on the dishes or appliance at the end of the
washing program.
 Never place solvents such as alcohol or turpentine,
which are potentially explosive, inside the appliance.
Never load dishes soiled with ash, wax or paint.
 Never leave the dishwasher door open; people
might trip over it.
 Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
 Switch off the dishwasher after use to avoid wasting
electricity.
 Locate sharp items so that they are not likely to
damage the door seal.
 Load sharp knives with the handles up to reduce the
risk of cut-type injuries.
 The appliance satisfies all applicable safety
regulations governing electrical equipment. Any
technical checks should be conducted exclusively by
trained and authorised technicians: repairs
performed by unauthorised persons not only

Installation
8
void the warranty but may also put the user’s
safety at risk.
 In the event of a fault, disconnect the dishwasher
from the electrical power supply and shut off the
water tap. In the event of damage to the supply cord,
have it replaced by the manufacturer or an
authorised technical service centre.
 Some components are live even with the on/off
button in the off position. Before performing any
maintenance work on the appliance, disconnect it
from the electrical power supply.
 Do not clean the machine with a water jet machine,
high-pressure or steam cleaners.
 Do not introduce animals into the dishwasher.
 Models with “acquastop” device
This device prevents flooding in case of water leak.
When the “acquastop” device is tripped, contact a
qualified technician to identify and repair the fault.
In these models the water intake hose contains a
solenoid valve. Do not cut the hose and do not
allow the solenoid valve to drop into water. In
case of damage to the water intake hose,
disconnect the appliance from the electrical and
water supply.
Warning: The device only works if the
dishwasher is connected to the mains.

Installation
9
1.1 Disposal
The appliance does not contain substances in
quantities sufficient to be considered hazardous to
health and the environment, in accordance with current
European directives:
To dispose of the appliance:
 Remove the washing compartment door.
 Cut the power cable,
 Make the lock unusable.
The manufacturer declines any liability for damage
or injury caused by failure to comply with the
instructions indicated above or as a result of
tampering with even just one part of the applia
nce
and the use of non
-
original spare parts.

Installation
10
2. INSTALLATION AND HOOK-UP

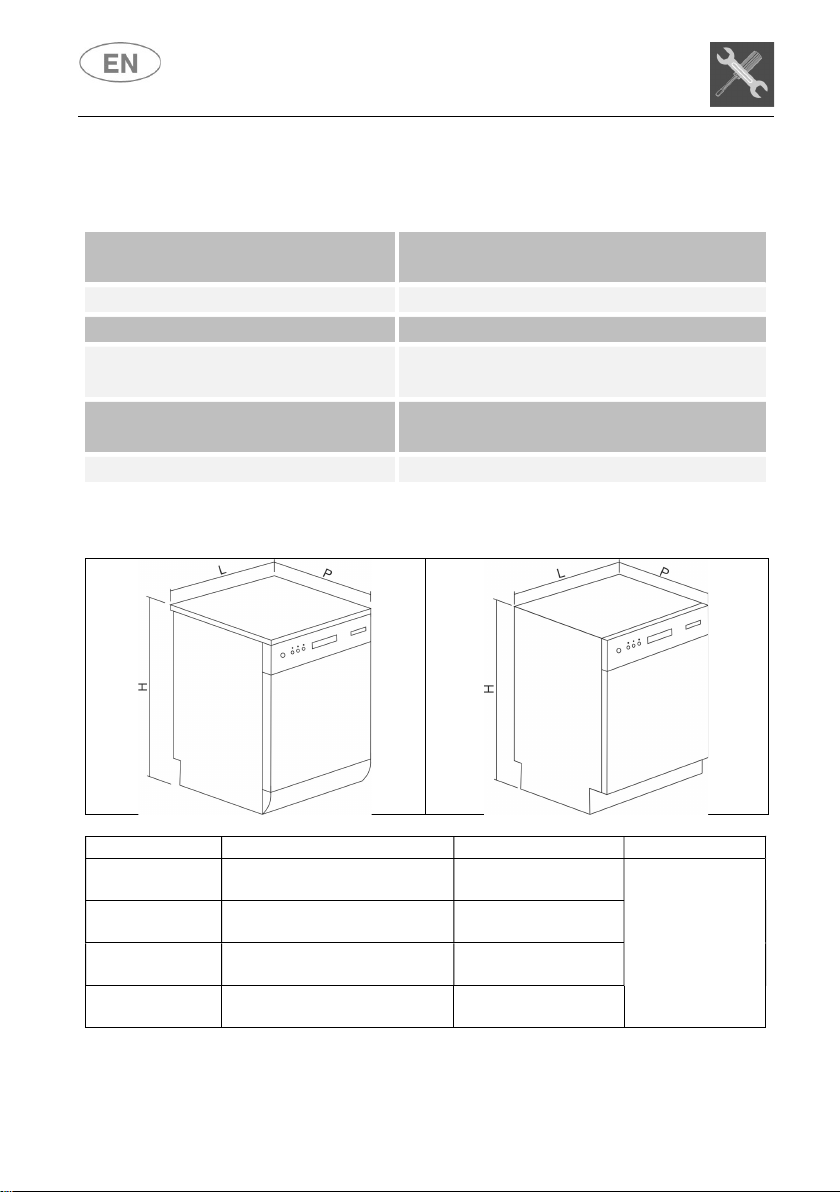

2.1 Technical characteristics
Water supply pressure min. 0,05 - max. 0,9 MPa (min. 0.5
– max. 9 bar)
Water supply temperature
max. 140°F
–
60°C
Capacity
12
-
13 standard place settings
Class of protection against
moisture
IPX0
Protection against electric
shock
class I
Electrical data
see the data
plate
Appliance dimensions
Dimensions
H
P
L
Free standing 850 mm;
33”-15/32
627 mm
24”-11/16
600 mm
23”-5/8
Free standing
maxi
890 mm;
35”-3/64
627 mm
24”-11/16
Integrated 818-888 mm;
32”-13/64-34”-61/64
584 mm
22”-63/64
Integrated
maxi
858-928 mm;
34”-31/32-36”-35/64
584 mm
22”-63/64

Installation
11
2.2 General Information

This appliance may be placed up against walls or
other furniture units.

If the appliance is installed near a heat source, fit a
special
insulating panel to prevent overheating and
malfunction of the appliance.

To facilitate the installation procedure, the intake and
drain hoses can be positioned in any direction; make
sure that the hoses are not kinked, crushed or pulled
too tightly.
 A hol
e at least 8 cm (3" 5/32) in diameter is required
to allow the power supply cable and hoses to pass.

At the end of the installation, perform a short test of
the appliance: open the water tap and check that
there are no leaks.
 To install the dishwasher agai
nst the back wall, the
hoses should be passed through the lower area
where there is a dedicated space for them.

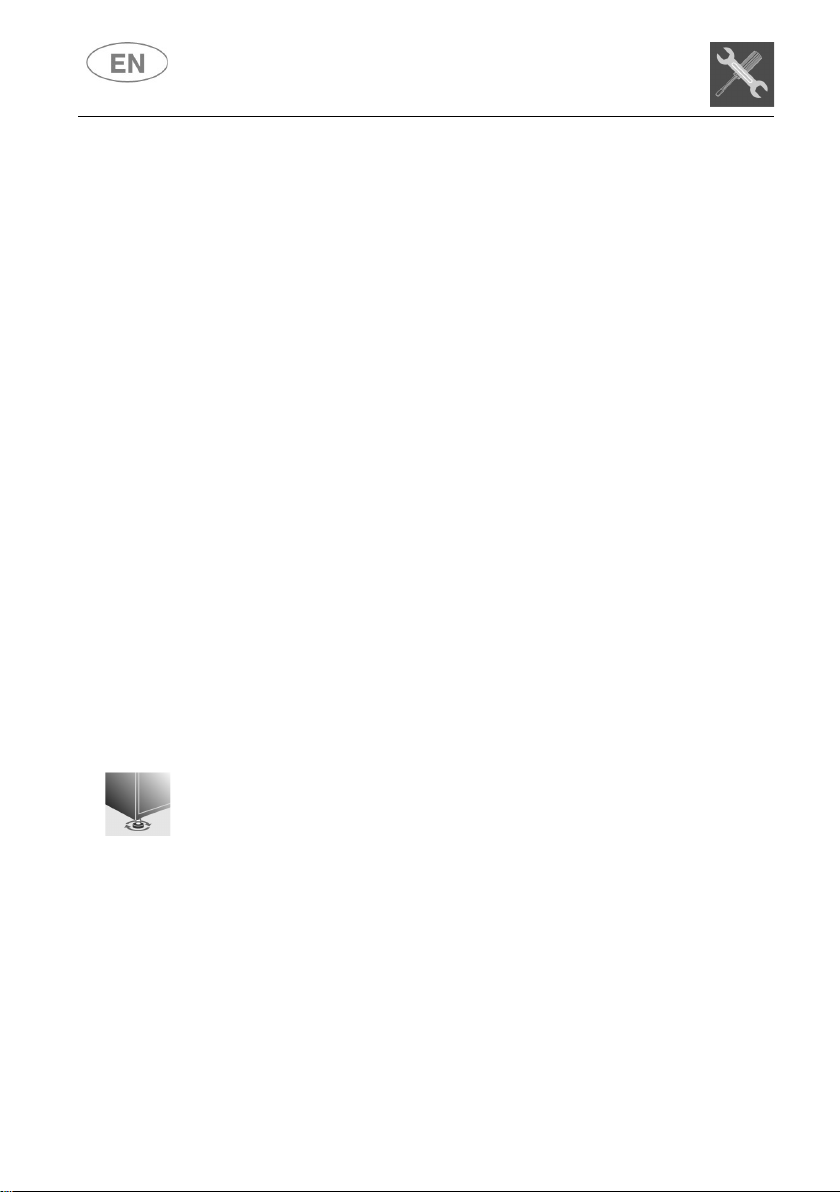

Level the appliance on the floor using the
appropriate Allen key to regulate the adjustable
feet. This operation is essential for
ensuring
correct operation of the dishwasher.

Installation
12
Some models are equipped with only one
adjustable foot at the rear, which can be adjusted
by turning the screw on the lower front part of the
appliance.
Building-in a dishwasher underneath a hob is
absolutely forbidden.
Moreover, dishwashers may not be installed
directly touching appliances which are not
conventional built-in kitchen appliances (e.g.
fireplaces, stoves, etc.).
When installing the
dishwasher in a compartment
next to one or more other appliances, it is essential
to comply with all the recommendations provided
by the appliance’s manufacturer (minimum
distances, installation procedures, etc.).

Installation
13
For free-standing models only
- Installing a hob on top of a free-
standing
dishwasher is absolutely forbidden.
-
If the appliance is accessible from one side, the
door hinge area has to be covered for safety
reasons (risk of injury). The covers are available
a
s an accessory and can be ordered through the
Technical Assistance Service.
-
The top surface of the dishwashers can be
removed to allow installation under a worktop. The
appropriate kit
should be purchased from
authorised dealers or via the Technical Ass
istance
Service. This must be carried out by authorised
personnel.

Installation
14
2.3 Water supply connection
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water
supply
with ¾” gas thread, inserting the filter A
supplied with the dishwasher.
Take care to
screw the hose firmly into place with your
hands and then complete by tightening
about ¼ of a turn with pliers.
In dishwashers equipped with the
AQUASTOP device,
the filters is already
fitted inside the threaded ring.




The dishwasher can also be connected to a hot
water supply not exceeding 60°C (140°F)
.
Supplying the appliance with hot water cuts down
the washing time be approximately 20 minutes,
but slightly reduces its effectiveness. Make the
connection to the domestic hot water supply
using the same procedure described for
connecting to the cold wate
r supply.

Installation
15
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm (1"37/64)
, or
alternatively, place it inside the
kitchen sink using the plastic support
provided, taking care not to
crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at
a height of between 30 and 100
cm
(11" 13/16 and 3' 3" 3/8),
and
should never be submerged in
water.
If a horizontal drain extension hose is used (for a
maximum 3 m -
9' 10" 7/64 ), the drain hose can be
placed at a maximum height of.85 cm
(2' 9" 15/32) from
the ground.

Installation
16
2.4 Electrical connection

Check that the
voltage and the frequency of
the mains match the ratings on the name plate
of the appliance positioned on the inner edge
of the door.

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electric
shock by providing a path of least
resistance for electric current. This appliance is
equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is
installed and grounded in
accordance with all local
codes and ordinances.
 WARNING –
Improper connection of the
equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified electrician
or service representative if you are in doubt whether
the
appliance is properly grounded. Do not modify
the plug provided with the appliance, if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
 The plug must be accessible after installation.
 Never disconnect the plug by pull
ing on the
power supply lead.

After changing the supply cord, make sure that the
bracket which secures the cord is fixed securely in
place.

Installation
17

Do not use adaptors or shunt connections
in
order to avoid the possibility of overheating or
burning.
The
power cable must be replaced by the
manufacturer or by an Authorized Service
Centre.

User instructions
18
3. DESCRIPTION OF THE CONTROLS
3.1 Upper panel
All the dishwasher controls are grouped on the front panel. Programming
and option selection are only possible with the door closed.
1 ON/OFF BUTTON AND WARNING LIGHT
2 OPTION SELECTION BUTTONS AND WARNING LIGHTS
3 START/PAUSE BUTTON
4 PROGRAM SELECTION BUTTONS
5 INFORMATION DISPLAY
6 HANDLE TO OPEN THE DOOR
N.B.: symbols and styling are guideline and may vary depending on
the model or version of the dishwasher purchased.

User instructions
19
3.2 Information display
The dishwasher is equipped with a practical DISPLAY which provides
information on the programmed dishwasher functions.
Rinse aid lack warning indicator
Salt lack warning indicator
End of cycle signal
Shows that sanitation has been completed.
000
Delayed start indicator, wash cycle duration and alarms
H0….H5
Water softener setting indicator
b0….b5
Rinse aid setting indicator
Program phases warning lights
With program in progress, it indicates
the status of the program
Prewash
Wash
Rinse
Drying

User instructions
20
LIGHTING
Pressing the ON/OFF button will start the dishwasher and will lit up the
dishwasher pilot light. After approximately 3 second from this operation
the DISPLAY will be turned on with a visualization that will depend upon
the state of the dishwasher.
PROGRAMMING
All the programming operations are possible only with closed door. With
open door, on the
DISPLAY
will appear
-
-
:
-
-
.
SELECTION PROGRAM
The program selection is possible
through the relative buttons.
By pressing the relative button of the desired program (see table) it will
light up the relative pilot light to confirm that the operation occurred and
on the
DISPLAY
a program duration forecast will appear (“
h.mm
”).
START PROGRAM
At this point, in order to start the machine, it is only enough to press the
START/PAUSE for some seconds until the symbol START/PAUSE
start to flash and confirmation “beep” is heard. From this moment the cycle
duration on the
DISPLAY
starts to decrease.
Program progress is indicated by the program phases that show the status
of the current cycle.
The current phase flashes, while the next washing phases lights stay on.
At the end of each phase, the signal will turn off.
N.B.: when a program which does not need the prewash phase is
selected, the prewash signal stays off.
Prewash Wash
Rinse Drying
