1. Description of the controls
1.1 Upper panel

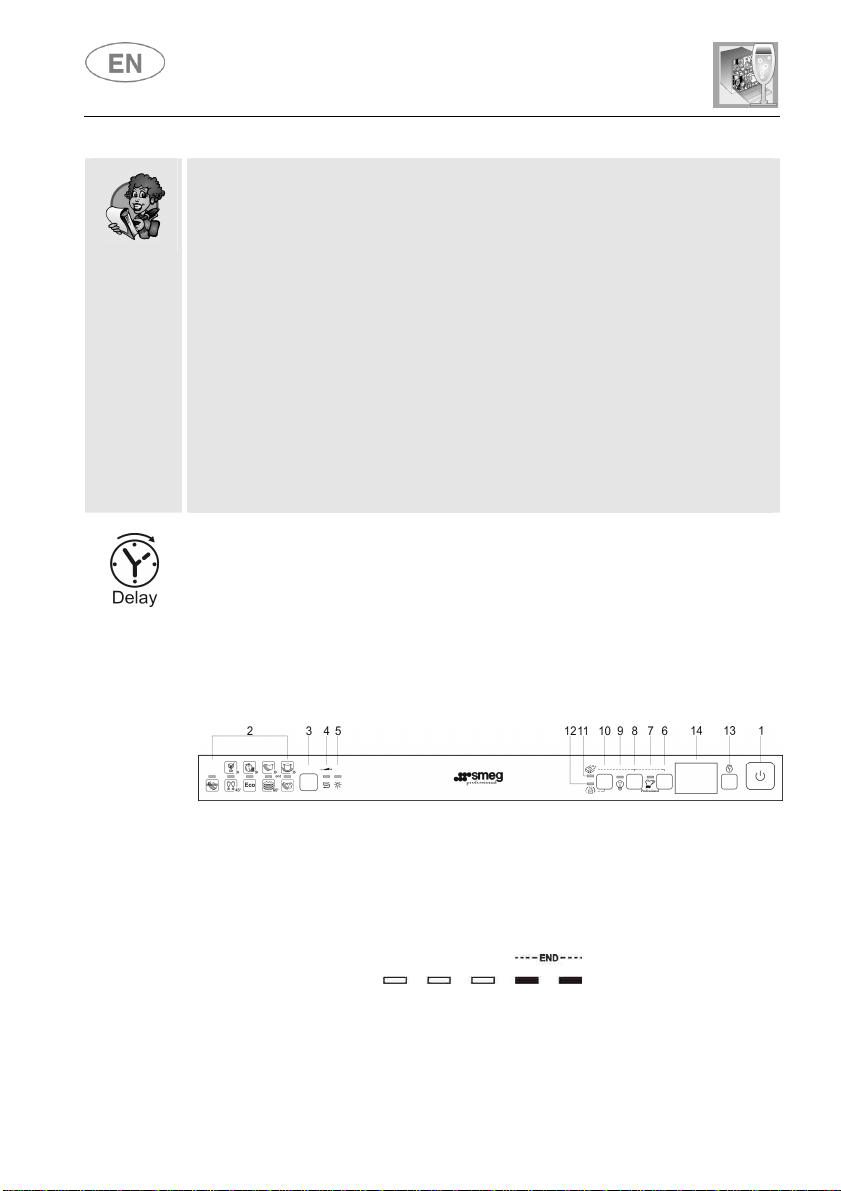

All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the
door is open.

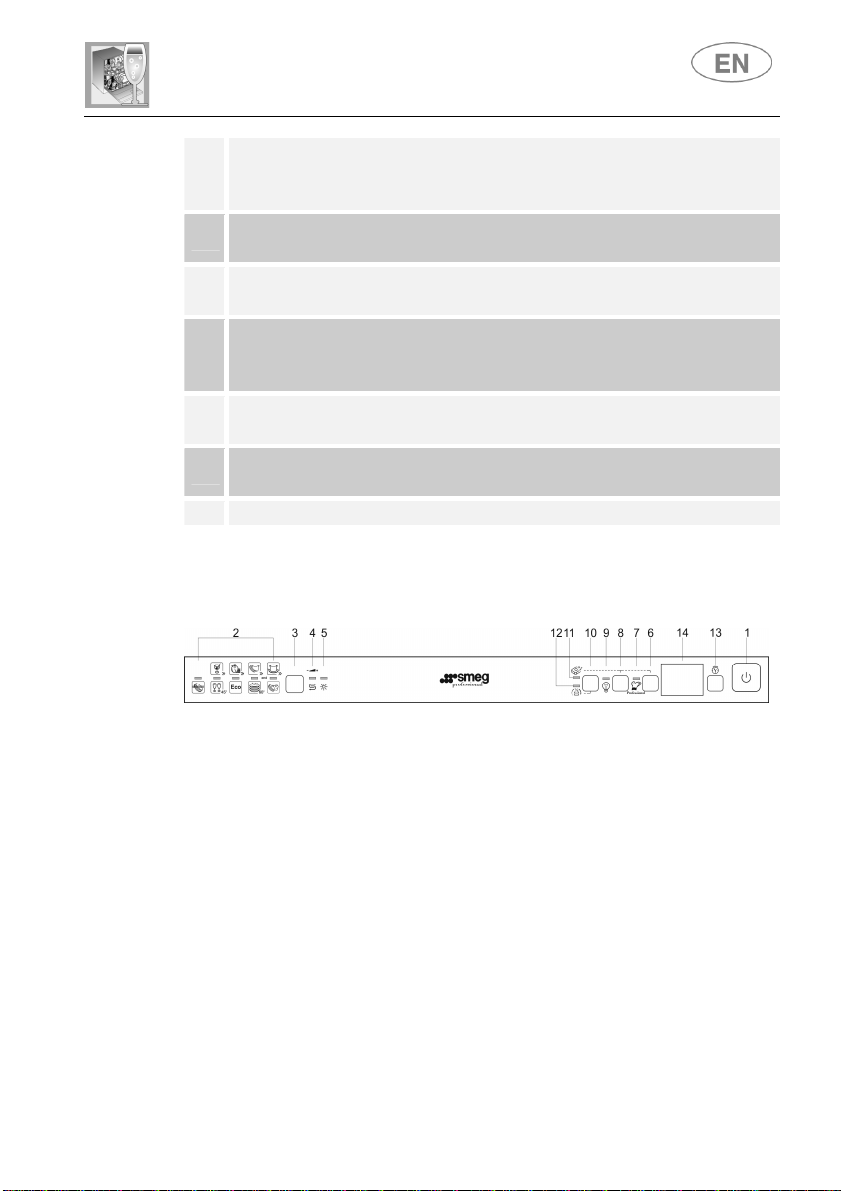

1 ON/OFF BUTTON
Pressing this button energises the appliance.
2 SELECTED PROGRAM INDICATOR LIGHTS Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).
3 PROGRAM SELECTION BUTTON By pressing this button in sequence it is possible to select the
desired program.
4
WATER HARDNESS ADJUSTMENT ON INDICATOR LIGHT
The light flashes to indicate that the appliance is in “water hardness
adjustment” mode.
SALT WARNIN LIGHT (on some models only)
If the symbol is present, illumination of this light denotes a
regenerating salt warning level.
5 RINSE AID WARNING LIGHT (on some models only)
Illumination of this light signals that rinse aid dispenser is empty.
6
PROFESSIONAL OPTION + EXTRA OPTION ( see “EXTRA
OPTIONS” section )
The button controls selection of the professional programs. (See
table).
7 PROFESSIONAL OPTION LIGHT Illuminates to indicate one of the
professional programs (see table) is going to be executed.

User instructions
3
8 ENERSAVE OPTION + EXTRA OPTION BUTTON (see “EXTRA OPTIONS” section)
Press the button to enable/disable the option.
9 ENERSAVE OPTION LIGHT
Illuminates to indicate that the function is activated.
10
HALF LOAD BUTTON
Press this button to activate the half load wash option.
11
HALF LOAD LIGHT
One of the two buttons illuminates to indicate that the half load
wash option in the top or bottom basket has been selected.
12
PROGRAM DELAY BUTTON
Press this button to delay the start of the program.
13
“Flexi Tabs” OPTION LIGHT (EXTRA OPTION)
Illuminates to indicate that the function is activated.
14 INFORMATION DISPLAY
N.B.: symbols and styling are guideline and may vary depending on
the model or version of the dishwasher purchased.
SETTING THE WASHING PROGRAM AND SWITCHING ON
After identifying the most suitable program with the aid of the programs
table:
•Press the ON/OFF button (1) and wait for the PROGRAM
INDICATOR LIGHT (2) to illuminate;
•Keep pressing the PROGRAM SELECTION button (3) until the
indicator light corresponding to the desired program illuminates;
•select the option required (if any and if the model provides options);
•close the door; after about 2" the program will start LIGHT will
flashing (indicating that the program is being executed).

User instructions
4

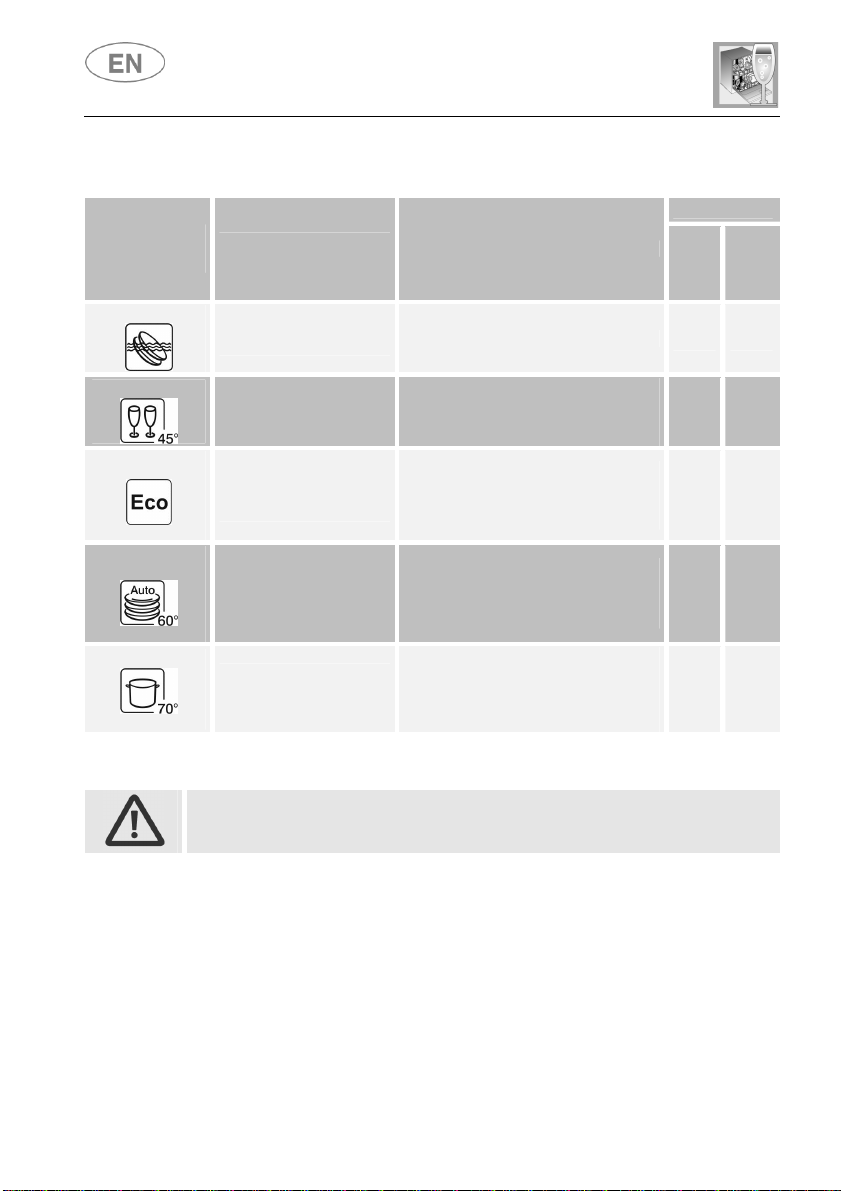

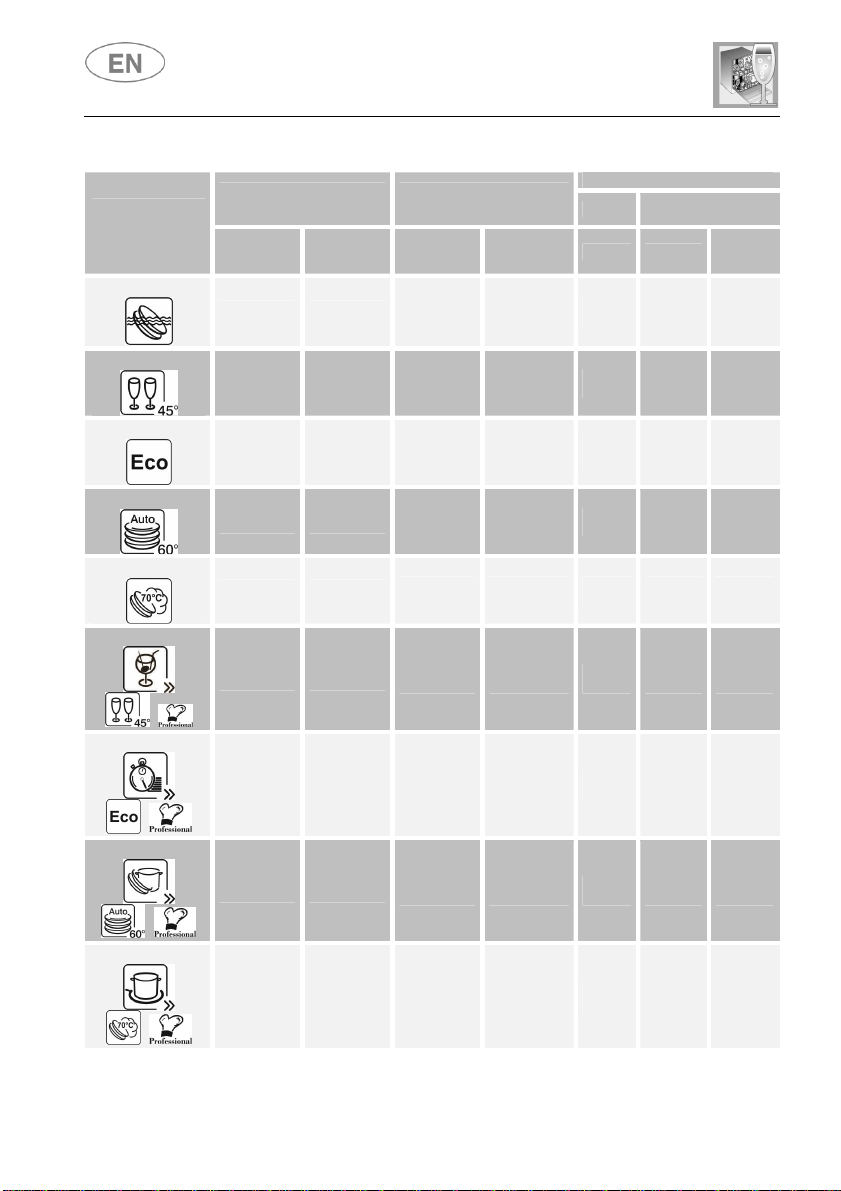

PROGRAMS TABLE
PROGRAMME,
NUMBER &
SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM PROGRESS
DETERGENT
COM
PART
MEN T
G/H
COM
PART
MEN T
K
1 SOAK
Pans and dishes awaiting
completion of the load. Cold prewash
--- 20g
2 GLASS
Glass, china and mixed
dishes with light dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
---
30g
3 ECO (*)
EN 50242
Dishes with normal dirt,
even with dried-on
residues.
Wash at 50°C
Cold rinse
Rinse at 55°C
Dry
10g
25g
4 AUTO
60-70
IEC/DIN***
Pans and dishes with
normal dirt, even with
dried-on residues.
When the " AUTO " program is selected, the
dishwasher recognises the type of dirt and
automatically adjusts the washing
parameters as appropriate. 10g 25g
5 ULTRA CLEAN
****
Very dirty pans and
dishes, even with dried-on
residues.
Hot prewash
Wash at 70°C
Cold rinse (1)
Rinse at 70°C
Dry
10g 25g
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
5

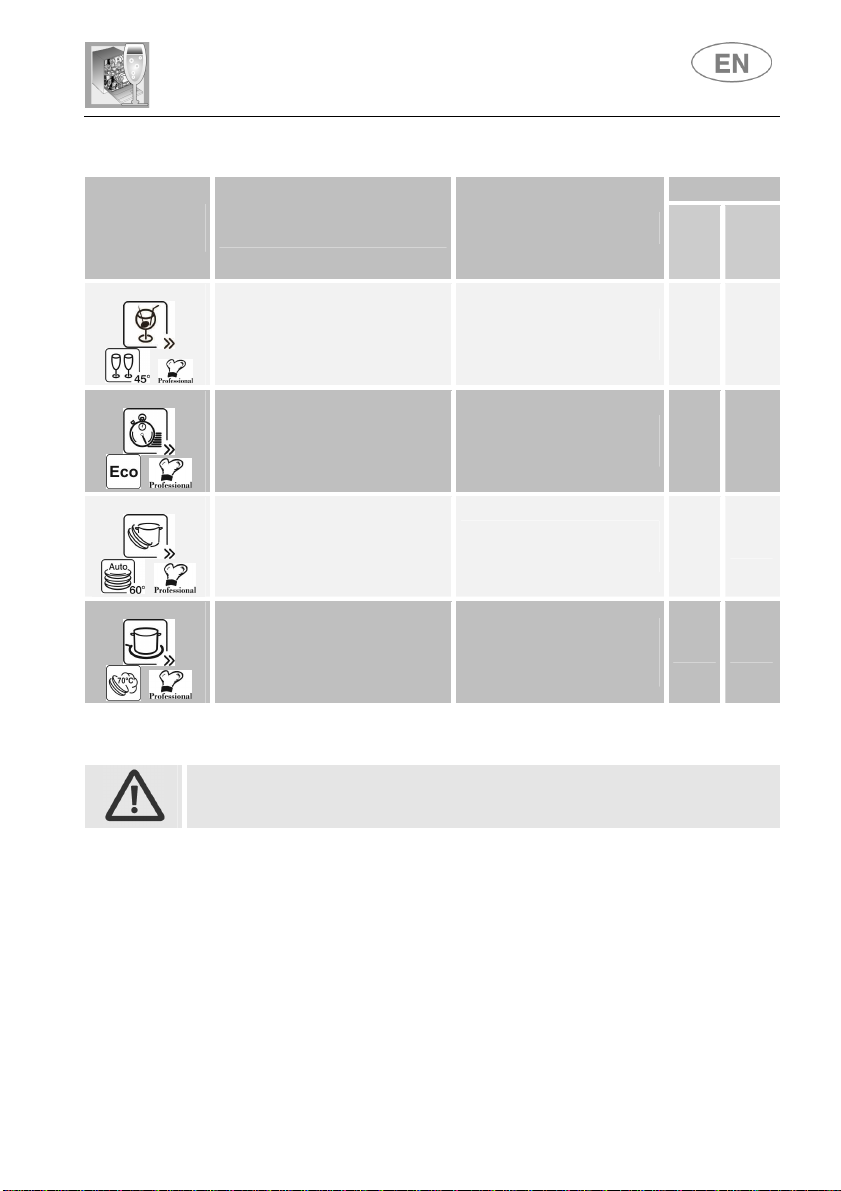

PROFESSIONAL PROGRAMS (see “professional programs option”)
PROGRAMME
NUMBER E
SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM
PROGRESS
DETERGENT
COM
PART
MEN T
G/H
COM
PART
MEN T
G/H
6
PRO GLASSES
+
Special program for washing
glasses.
Wash at 50°C
Cold rinse
Rinse at 70°C
--- 30g
7
ULTRA RAPID
+
Very dirty pans and dishes, even
with dried-on residues, for fast
washing.
Wash at 65°C
Cold rinse
Rinse at 65°C
---
30g
8
UNIVERSAL
+
Dishes with normal dirt, with some
fairly moist residues.
Wash at 65°C
Cold rinse
Rinse at 70°C
---
30g
9
INTENSIVE
+
Very dirty pans and dishes, even
with dried-on residues, for fast
washing.
Hot prewash
Wash at 72°C
2 cold rinses
Rinse at 70°C
10g 25g
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
6
DURATION AND CONSUMPTION
(2)
PROGRAMME
NUMBER E
SYMBOL
Duration for power
5.45 kW – P3 Duration for power 3.8 kW – P2
CONSUMPTION
Water (3) Electricity
(KWh)
Hot H
2
O
60°C Cold H
2
O
15°C Hot H
2
O
60°C Cold H
2
O
15°C Litres Hot H
2
O
Cold
H
2
O
1 SOAK
15’ 15’ 15’ 15’ 4,0 0,02 0,02
2 GLASS
40’ 45’ 42’ 50’ 10,7
0,62 1,04
3 ECO
114’ 119’ 116’ 124’ 10,5
0,72 1,17
4 AUTO 60
78’ 82’ 82’ 88’ 10,5
0,87 1,31
5 ULTRA CLEAN
115’ 120’ 119’ 128’ 17,3
0,93 1,69
6
PRO GLASSES
+
19’ 24’ 24’ 31’ 12 0,59 1,22
7
ULTRA RAPID
+
16’ 20’ 19’ 25’ 12 0,68 1,46
8
UNIVERSAL
+
23’ 27’ 27’ 33’ 12 0,82 1,53
9
INTENSIVE
+
41’ 45’ 45’ 52’ 15,7
0,77 1,59

User instructions
7
NOTES AND REFERENCES
Only run the soak program with half loads.
Options cannot be used with the soak program.
The HALF LOAD option cannot be used with the soak program or the professional
programs.
The ENERSAVE option (if featured) cannot be used with soak, ultra clean, or any
programs which do not include the final drying stage.
* Standard programme under
EN 50242
. If present, the
ENERSAVE
option must
be enabled.
** See information sheet provided
***
IEC/DIN
reference programme. If present, the
ENERSAVE
option must
be
enabled.
****
Reference program for laboratories: Detergent: 20g in the dispenser + 10g in the
door or tablet. Configuration: see photo in “Using the baskets”.
(1)
1 or 2 cold rinses depending on the model.
(2) Program consumption and duration figures have been measured in
accordance with the EN 50242 standard. Values may vary depending on
intake water and room temperatures and the type and quantity of dishes
loaded.
(3) Values are with the appliance power set on
P3
.
REFERENCES for the ENERGY LABEL supplied with the dishwasher:
- Annual energy consumption is based on 280 standard wash cycles with
cold water and consumption of low-energy operating modes. Actual
consumption depends on the way in which the appliance is used.
- Water consumption is based on 280 standard wash cycles. Actual
consumption depends on the way in which the appliance is used.
- Information refers to the EN 50242 STANDARD programme (identified in the
programmes table), which is the most effective in terms of combined energy
and water consumption. The programme is recommended for dishes with a
normal level of dirt.
- Energy consumption in “sleep” mode = 0.2 W.
- Energy consumption in “on” mode = 0.8 W.
- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”
(maximum efficiency).

User instructions
8
1.2 Washing programs
Before starting a washing program make sure that:
•The water supply tap is open.
•The correct amount of detergent has been added to the
dispenser.
•The baskets have been correctly loaded.
•The spray arms are able to rotate freely and without
obstruction.
•The dishwasher door is securely closed.

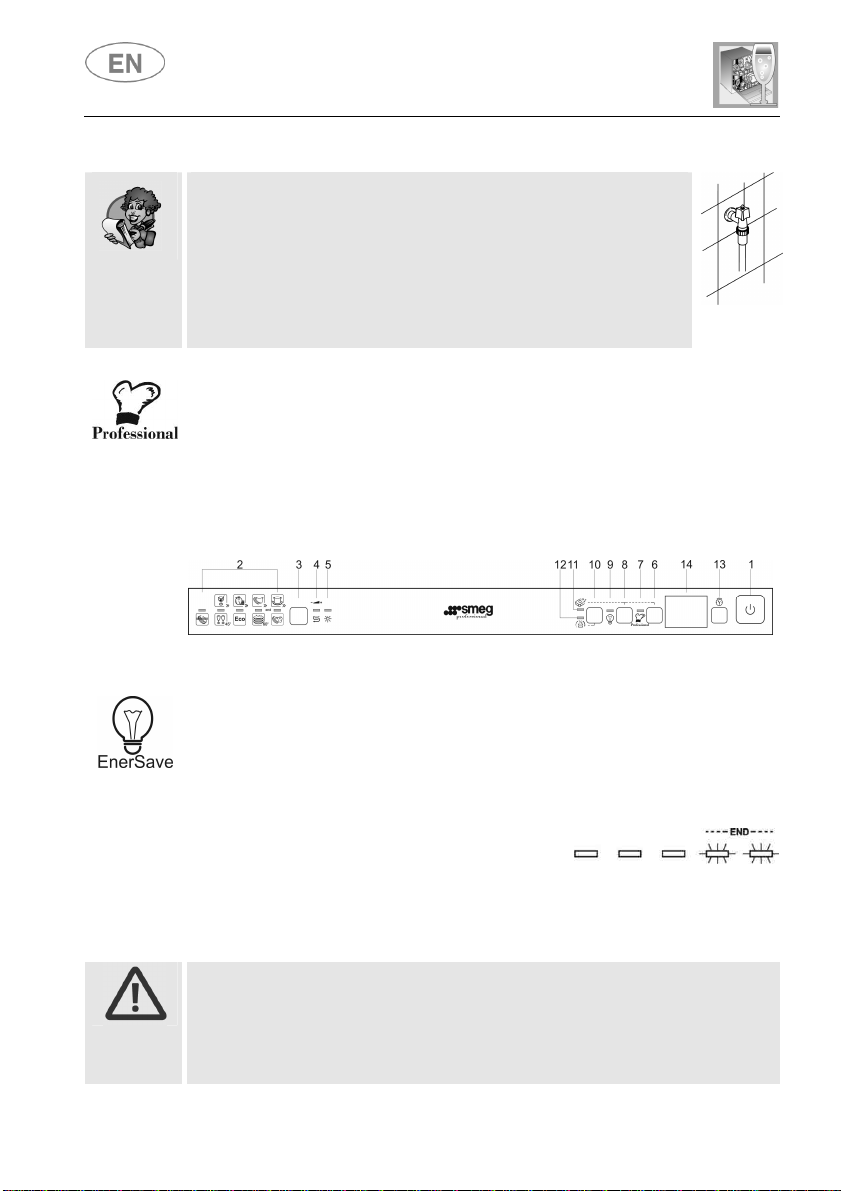

PROFESSIONAL PROGRAMS OPTION
Enables operation in Professional mode, giving access to 4 extra
programs, with the times and performances usually associated with
professional dishwashers.
To activate the option, first select the “basic” program corresponding to the
professional cycle required.
N.B.: the highest power and shortest times will be obtained with
dishwashers connected to the highest power supply and hot water (see
electrical and water supply hook-up instructions).
ENERSAVE
OPTION
This option can be selected with the wash programme of choice to
further reduce energy consumption. Drying is aided by a special device
that automatically releases the door, which opens slowly and smoothly
by a few centimetres. This ensures perfect drying and greater control of
rinsing temperatures, which can be kept at lower levels for significant
energy saving.

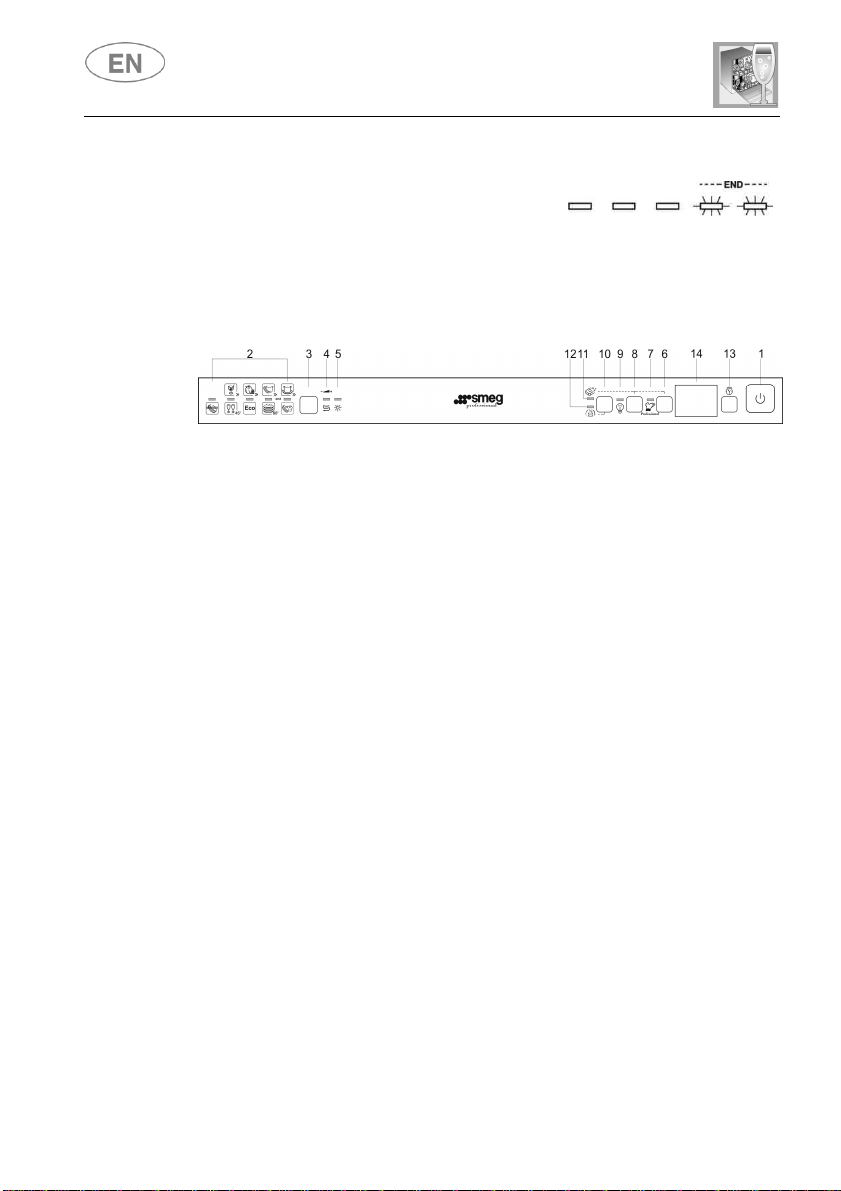

Once the door has opened, the dishwasher
emits a short beep and programme lights
nos. 4 and 5 (marked “end”) flash to indicate
the end of the washing cycle.
Enersave is activated
automatically every time
a wash cycle is
selected (except for programs that do not include the final drying phase;
see programs table) and can be disabled before the program is started.
When the function is activated, opening of the door must not be
impeded in any way; do not leave anything in the space in front of the
door necessary to allow it to open.
Do not re-close the door during automatic opening as this would
damage the mechanism.

User instructions
9
SPREAD HALF LOAD
OPTION
Suitable when there are not many dishes to be washed, it saves energy
and reduces the program duration. Place dishes in both baskets then
load the detergent dispenser than less than the normal amount for a full
load.
EXTRA OPTIONS
-

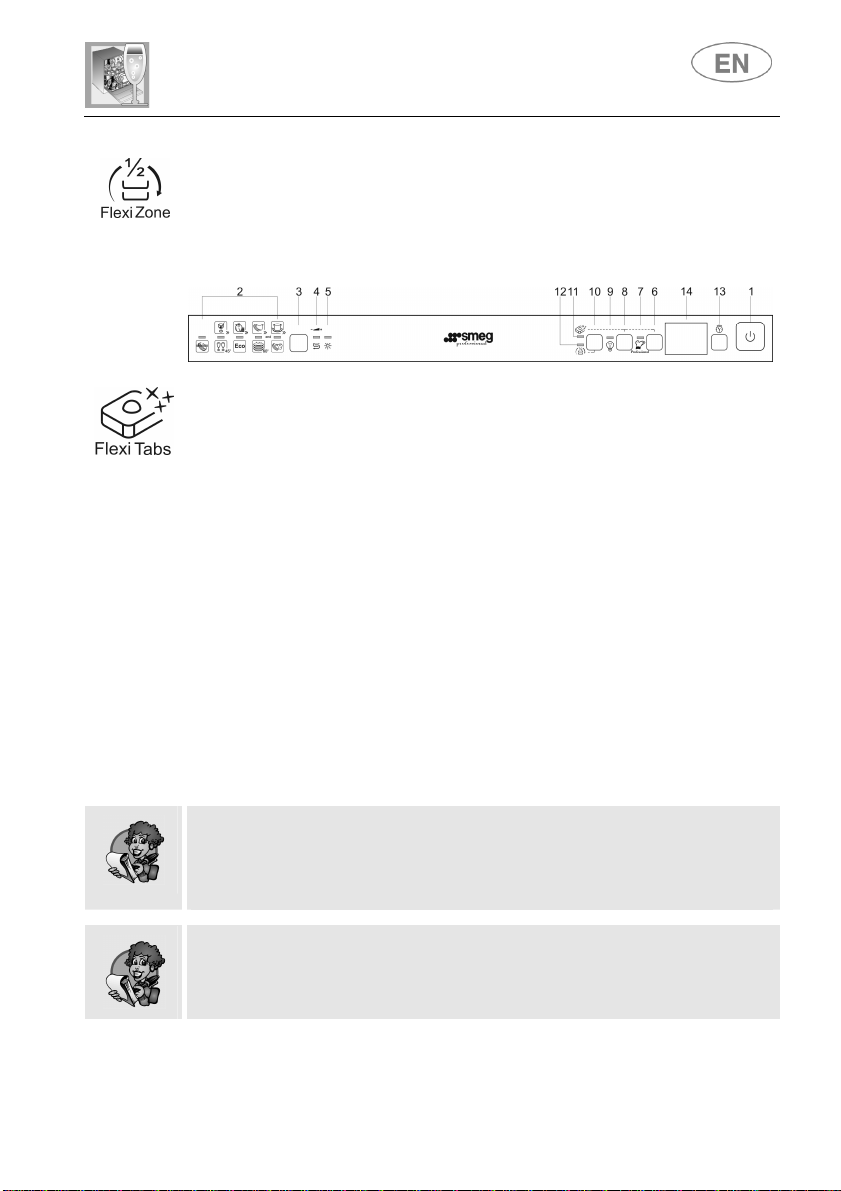

“Flexi Tabs
” BUTTON
Press buttons 6 + 8 (QUICK TIME option button + ENERSAVE option
button) simultaneously to activate the "Flexi Tabs" option; the
respective light comes on to confirm the selection.
Ideal for multi-function detergents, this option allows washing to be
optimised, with full benefits from the combined-action tablets. When this
option is activated, any salt and rinse aid in the relative containers will
not be used.
If the option is not provided, we recommend the use of conventional
products (separate detergent, salt and rinse aid), because with
conventional washing cycles, combined products might create problems
such as a white deposit, poor drying results and residues left on dishes.
N.B.:
When the salt and rinse aid containers are empty, the relative lights will
remain on even if the “Flexi Tabs” option is selected.
IMPORTANT: the option continues to be active until it is deactivated by
pressing buttons 6 + 8 simultaneously; the light will then go out.
If the water hardness has been set on a value above H3, and the “Flexi
Tabs” option is activated, the relative light flashes, warning of a setting
error. Integrated products are not suitable for use with very "hard" water;
this does not prevent the use of the option, but the washing results
might not be of the best.
Do not use tablet detergents with the professional programs. Since these
programs are so short, the detergent tablet could fail to dissolve
completely.

User instructions
10
Multifunction detergents
As well as conventional detergents (which only wash), there are also a
large number of products with additional functions, which contain not
only detergents but also rinse aid and salt substitutes (3in1 detergents),
glassware protector, stainless steel polish, etc. (4in1, 5in1, etc.
products). Multifunction detergents are only effective up a certain level of
water hardness (usually 21°dH), above which salt and rinse aid must be
added. If the dishwasher features the specific option (read the
description of the controls) it should be activated when products of this
kind are used.
Attention:
- Excellent washing and drying results are achieved with plain detergents
with salt and rinse aid added separately.
- With short programs, because there is less time for them to dissolve,
tablets may fail to wash effectively and undissolved residues may be left.
Powder detergents are more suitable for these programs.
DELAYED START
OPTION
The start of the washing program can be delayed to program the
dishwasher to operate at the preferred time of day (e.g. overnight). Press
the PROGRAM DELAY button to activate the option and display a 1 hour
delay. Keep pressing to select the delay required, which may be up to 9,
12 or 24 hours depending on the model.
When the door is closed, the appliance will prewash the dishes, after
which the "program delay" set will come into effect.
CANCELLING THE CURRENT PROGRAM
•To cancel the currently selected program, open the door and hold
down the PROGRAM SELECTION (3) button for a few seconds
until the indicator lights for programs 4and 5illuminate
simultaneously (the word "end" is displayed on the window).
•Close the door.
•After approximately 1 minute the dishwasher will advance to the end
of cycle.

User instructions
11
CHANGING THE PROGRAM
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
•Always try to run the dishwasher fully loaded.
•Do not wash the dishes in running water.
•Use the washing program that is most appropriate for each type of
load.
•Do not carry out any preliminary rinsing.
•If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
•separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
•do not pour the detergent directly on the dishes.
If the door has to be opened while washing is in progress, the program
will be interrupted. The relative light will keep flashing and a beeper will
signal that the cycle has not been completed. You must wait about 1
minute before closing the door to restart the program. When the door is
closed the program will continue from where it was interrupted. This
operation should only be carried out if strictly necessary, because it
might cause problems in execution of the program.

User instructions
12
END OF CYCLE
At theend of the washing cycle the dishwasher
gives a short acustic signal and the program
indicators nr 4and 5start blinking (the word
"end" is displayed on the window).
To switch off the dishwasher, open the door and press the
ON/OFF
button (1).
ENERGY MANAGEMENT
After 5 minutes of waiting (washing cycle completed, stopped or set but
not started) the dishwasher switches to a standby state to reduce
energy consumption.
In this state, the dishwasher indicator panel (lights or display depending
on model) functions more slowly (switch-on once every 5 seconds).
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is advisable to unload the lower basket first, and then the
upper basket.

User instructions
13
2. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as
follows:
•Adjust the water softening system;
•Add the regenerating salt;
•Add the rinse aid and detergent.
2.1 Using the water softening system
The amount of scale contained in the
water (water hardness index) can cause
whitish staining on the dry dishes, which
tend to become dull over time. The
dishwasher is equipped with an automatic
softening system which uses a special
regenerating salt to reduce the hardness
of the water.
The dishwasher is factory set for water
hardness level 3
(average hardness
41-60°dF – 24-31°dH ).

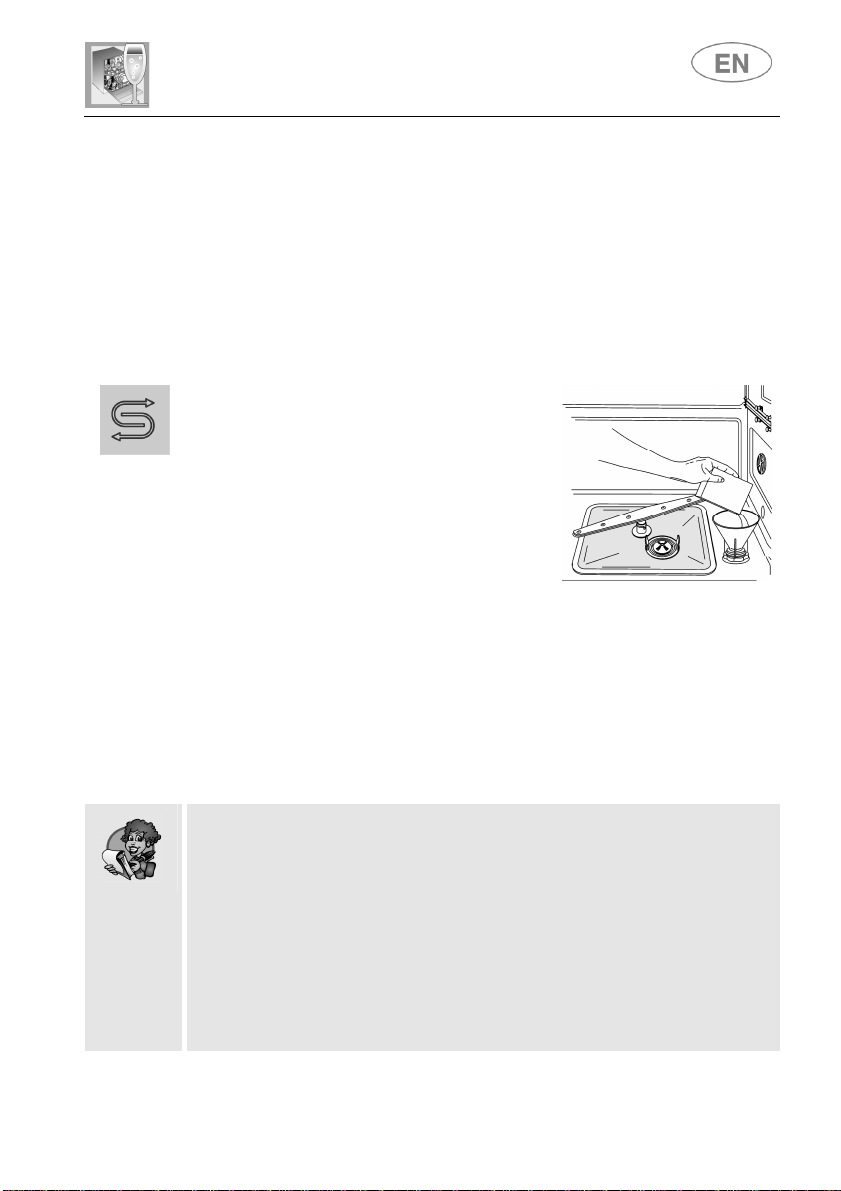

When using water of medium hardness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1.7 Kg of salt in grains. The container
is situated at the bottom of the dishwasher. After removing the lower
basket, unscrew the salt container cap by turning it anticlockwise and
pour in the salt using the funnel supplied with the dishwasher. Before
replacing the cap, remove any salt residues from around the opening.
•When using the dishwasher for the first time, in addition to the salt it
is also necessary to add one litre of water to the container.
•Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of the regeneration system. In the event of this occurring, the
warranty will be invalidated.
•Only use regenerating salt specially formulated for domestic
dishwashers. If using salt tablets, do not fill the container
completely.
SALT

User instructions
14
•Do not use table salt as it contains insoluble substances which,
over time, may damage the water softening system.
•When necessary, refill the regenerating salt container before
starting the washing program. In this way, the excess saline
solution will be immediately removed by the water; the prolonged
presence of salt water inside the tank may lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
ADJUSTING THE WATER
SOFTENING SYSTEM
The dishwasher is equipped with a device which allows the softener
setting to be varied to suit the hardness of the mains water. The
hardness is set using the PROGRAM SELECTION BUTTON (3).

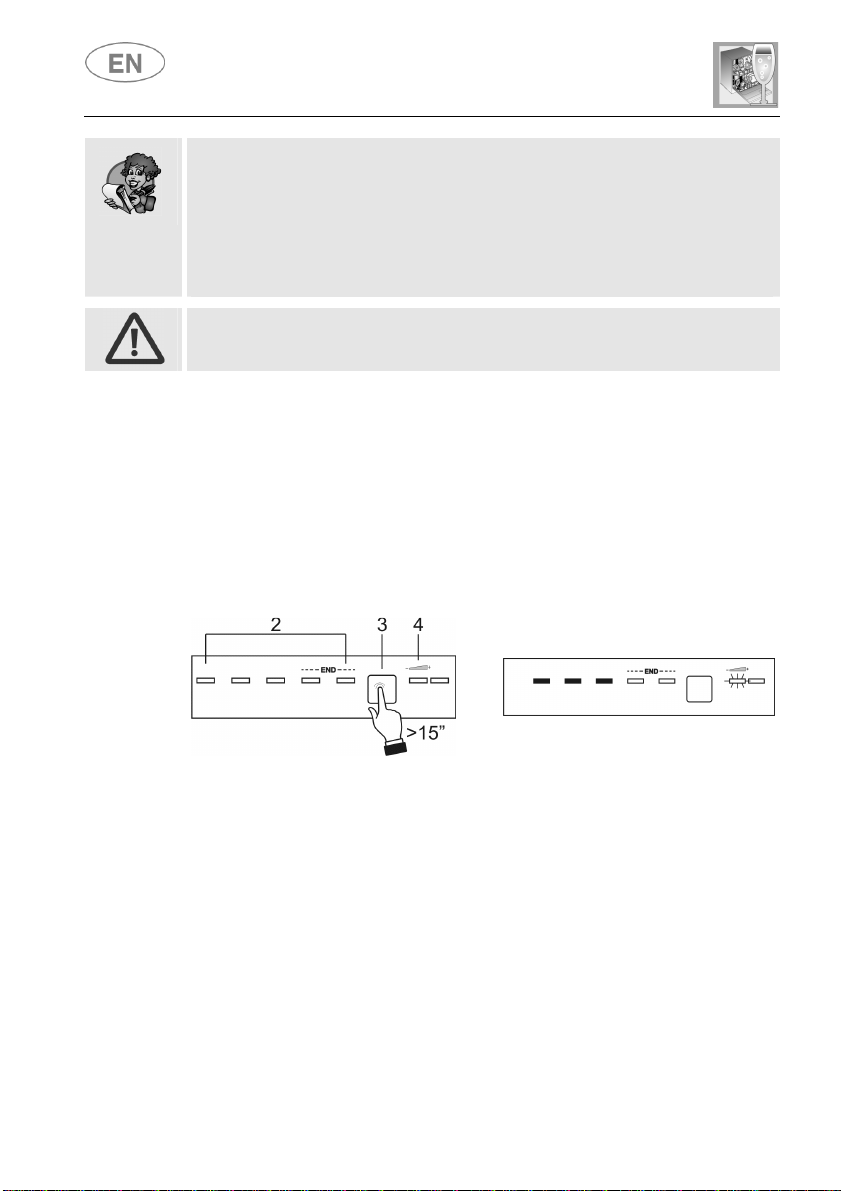

To access the setting function, hold the button down for more than 15
seconds. The WATER HARDNESS ADJUSTMENT INDICATOR LIGHT
(4) flashes, while the SELECTED PROGRAM INDICATOR LIGHTS (2)
show the current setting. Each pressure on the button changes the
setting following the sequence in the table below:
>

User instructions
15

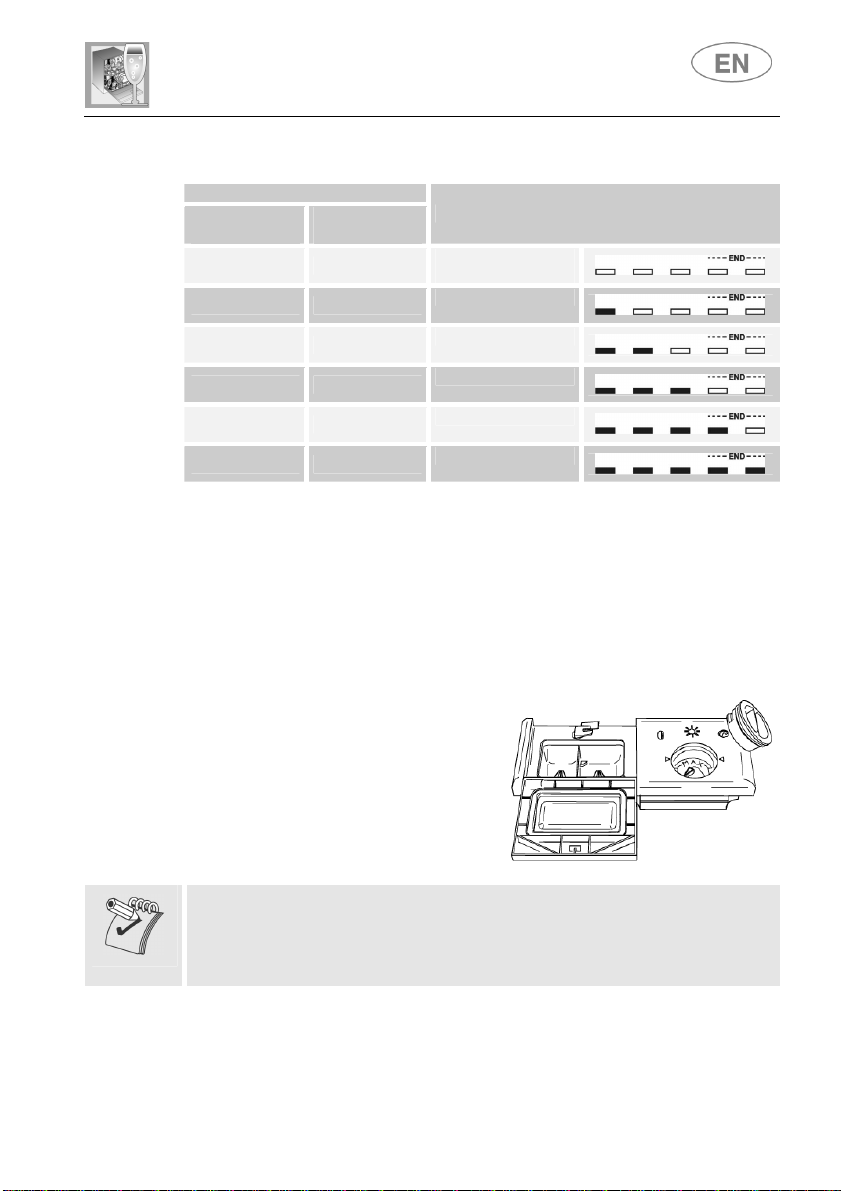

WATER HARDNESS TABLE
WATER HARDNESS
SETTING
German
degrees (°dH) French Degrees (°dF)
0 - 4 0 - 7 All lights off
(no salt)
5 - 15 8 - 25 One light on
16 - 23 26 - 40 Two lights on
24 - 31 41 - 60 Three lights on
32 - 47 61 - 80 Four lights on
48 - 58 81 - 100 Five lights on
Contact your local water board for information on the hardness of your
water supply.
After adjustment or display of the current setting, simply do not touch the
button for a few seconds; the dishwasher will automatically return to
standard mode, quitting the adjustment mode.
2.2 Using the rinse aid and detergent dispensers
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the
rinse aid dispenser is on the right.
With the exception of the SOAK program, before every washing cycle it
is necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.

User instructions
16

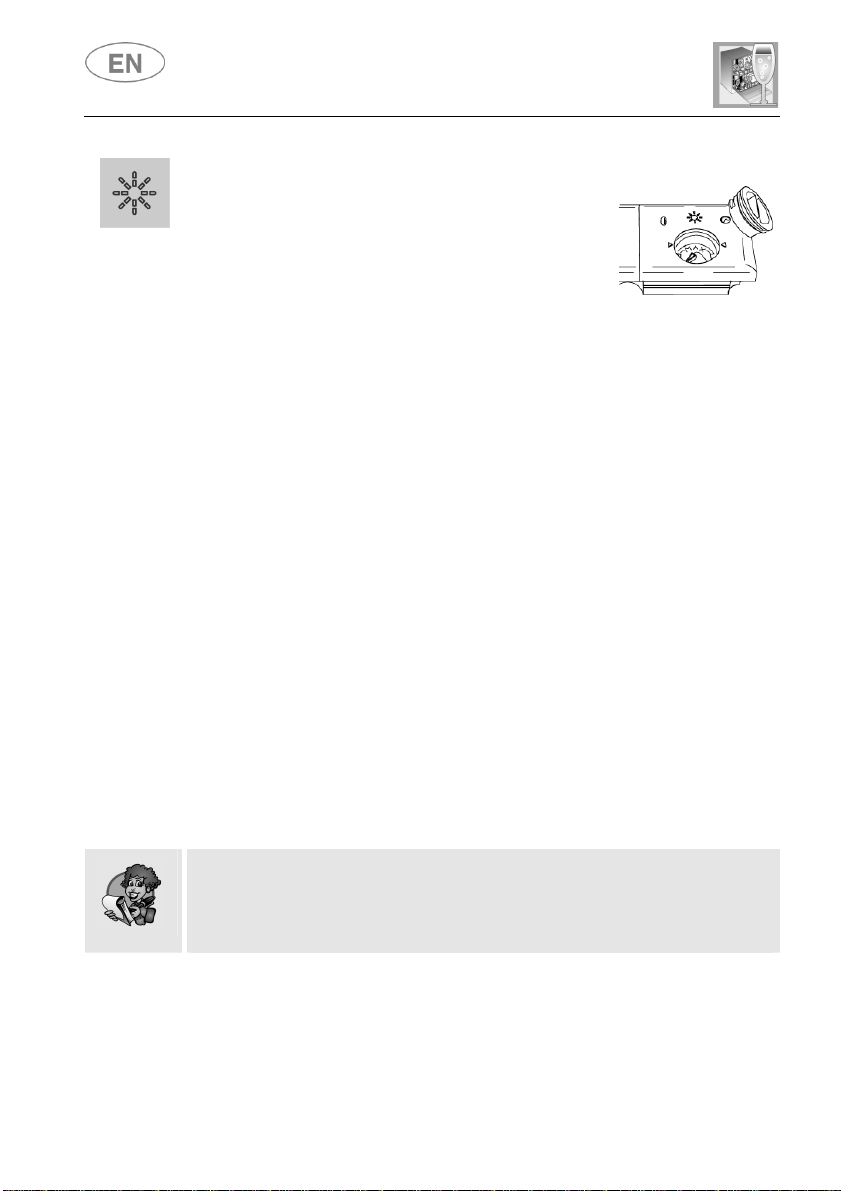

ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and
prevents the formation of scale deposits and
staining; it is automatically added to the water
during the final rinse cycle, from the container
situated on the inner side of the door.
To add rinse aid:
•Open the door.
•Rotate the container cap anticlockwise by ¼ of a turn and remove it.
•Add the rinse aid until the container is full (approximately 140 cc).
The optical level indicator on the side of the cap should be
completely obscured. Refill the rinse aid when the optical level
indicator becomes clear again, or when the rinse aid warning light
illuminates.
•Replace the cover and turn it in a clockwise direction.
•Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
ADJUSTING THE RINSE AID DISPENSER SETTING
The dishwasher is factory set for medium water hardness. However it
possible to change the setting by turning the dispenser’s selector to the
desired position: the amount of rinse aid dispensed is proportional to the
selector position.
•To adjust the rinse aid setting, rotate the dispenser cap through a
quarter turn in an anticlockwise direction and remove it.
•Then use a screwdriver to rotate the rinse aid selector to the desired
position.
•Replace the cap, turning it clockwise.
•The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
•If, on the other hand, the dishes are sticky or have white streaks, it
is necessary to reduce the rinse aid setting.

User instructions
17

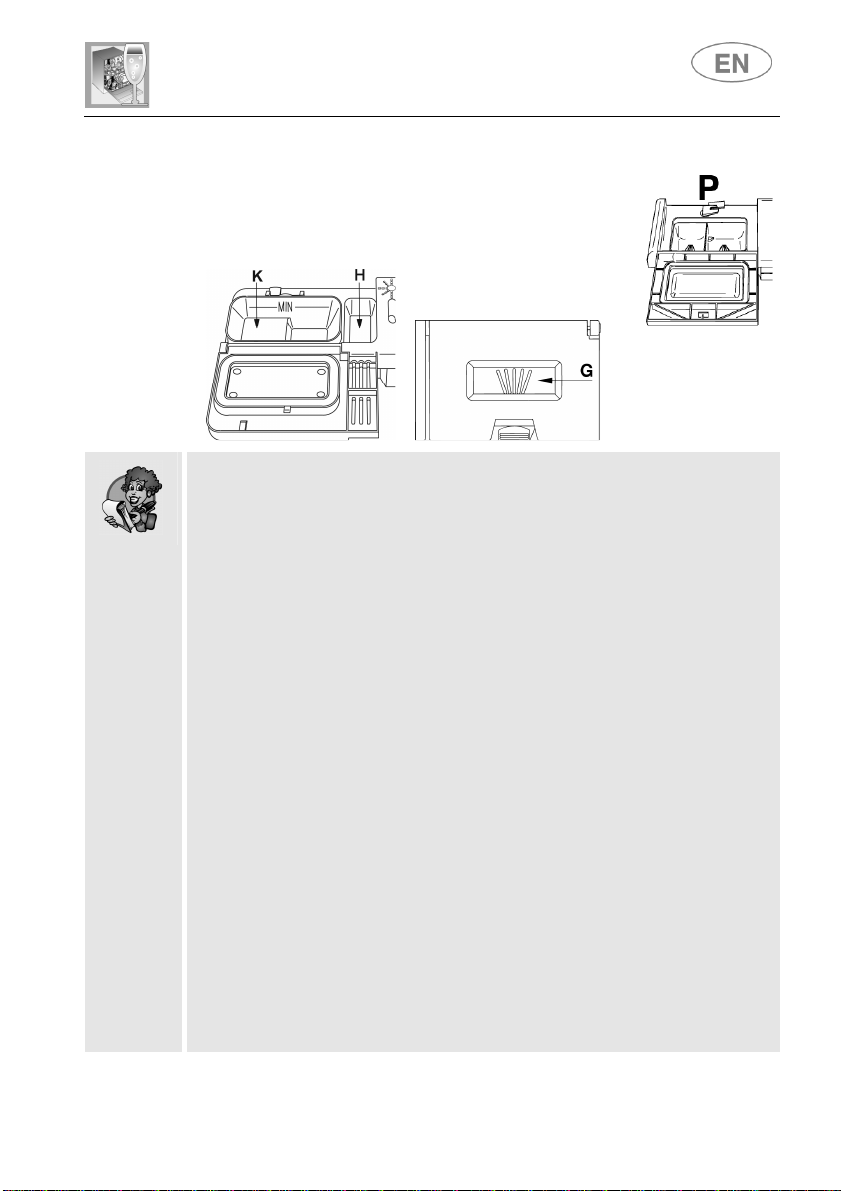

ADDING THE DETERGENT
To open the detergent dispenser cap, lightly press
the button P. Add the detergent and close the cap
carefully.
During the washing cycle, the dispenser will be
opened automatically.
•When a program with hot prewash is selected (see program table),
extra detergent must be placed in the cavity G/H (depending on
models).
•Use only detergents specially formulated for dishwashers. For optimal
washing results it is important to use a good quality detergent.
•The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
•Do not use detergents formulated for washing dishes by hand,
because they produce a great deal of foam and may negatively affect
the operation of the dishwasher.
•Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
•The market offers liquid and powder detergents with differing chemical
compositions, which may contain phosphates, or be phosphate-free
but contain natural enzymes.
- Detergents containing phosphates are more effective against
grease and starch at temperatures above 60°C.
- Enzyme detergents, on the other hand, are also effective at lower
temperatures (from 40 to 55°C) and are more easily
biodegradable. With enzyme detergents it is possible to obtain at
low temperatures comparable results to those which can only be
achieved at 65°C using traditional detergents.
For the safeguarding of the environment we recommend the use of
phosphate- and chlorine free detergents.

User instructions
18
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
2.3 General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and
their loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
•remove coarse food remains: e.g. bones, fish-bones, etc. which
may clog the filter or damage the wash pump.
•soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the LOWER BASKET.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.
Correct loading of the dishes helps ensure optimal washing
results.
WARNING!
•Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the
washing cycle.
•Do not place very small objects in the baskets as these could fall
and obstruct the spray arms or the wash pump.
•Containers such as cups, bowls, glasses and pots should always
be loaded with the opening facing downwards and with any cavities
at an angle, to allow the water to drain out.
•Do not stack dishes or place them in such a way that they cover
one other.
•Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the
point where they touch.
