Smeg CO103 User manual

CO103
EN Instruction for use
FR Instructions d’utilisation
D Gebrauchsanweisung
IT Manuale utente
PT Instruções para utilização
ES Instrucciones de uso
SV Användarinstruktioner

WARNING!
In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly
refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:
Do not hinder the free circulation of the air around the appliance.
Do not use mechanical devices in order to accelerate the defrosting, others than the ones recommended by the
manufacturer.
Do not destroy the refrigerating circuit.
Do not use electric appliances inside the food keeping compartment, other than those that might have been
recommended by the manufacturer.
ATTENTION!
Pour assûrer un fonctionnement normal de votre appareil qui utilise un agent frigorifique complètement écologique, R600a
(infammable seulement dans certaines conditions) vous devez respecter les règles suivantes:
N’empêchez pas la libre circulation de l’air autour de l’appareil.
N’ utilisez pas des dispositifs mécaniques pour accélérer le dégivrage, autres que ceux récommendés par le fabriquant.
Ne détruissez pas le circuit frigorifique.
N’utilisez pas des appareils électiques à l’intérieur du compartiment pourconserver les denrées, apart celles qui sont
éventuellement récommendés par le fabriquant.
WARNUNG!
Ihr Gerät verwendet ein umweltverträgliches Kältemittel, R 600a (nur unter bestimmten Umständen brennbar). Um einen
einwandfreien Betrieb Ihres Gerätes sicherzustellen, beachten Sie bitte folgende Vorschriften:
Die Luftzirkulation für das Gerät (Kompressor)darf nicht beeinträchtigt sein.
Verwenden Sie außer der vom Hersteller empfohlenen, keine mechanischen Hilfsmittel, um den Abtauprozess zu
beschleunigen.
Der Kältemittelkreislauf darf nicht beschädigt werden.
Verwenden Sie im Lebensmittelaufbewahrungsbereich Ihres Gerätes keine elektrischen Geräte, es sei denn, sie sind
vom Hersteller empfohlen.
ATTENZIONE!
Per garantire un normale funzionamento del frigorifero, che utilizza un refrigerante completamente rispettoso dell’ambiente
R600a (infiammabile solo in particolari condizioni) è necessario osservare le seguenti istruzioni:
Non ostacolate la circolazione dell’aria attorno al frigorifero.
Non utilizzate attrezzi meccanici per accelerare il processo di sbrinamento che non siano quelli raccomandati dal
costruttore.
Non danneggiate il circuito refrigerante.
Non utilizzate apparecchi elettrici all’interno dello scomparto di conservazione dei cibi diversi da quelli raccomandati dal
costruttore.
AVISO!
Afim de assegurar um funcionamento normal do seu aparelho de refrigeração que utiliza um refrigerador, o R600a,
completamente amigo do ambiente (inflamável apenas sob certas condições), deve observar as seguintes normas:
Não obstrua a livre circulação do ar ao redor do aparelho.
Não utilize dispositivos mecânicos que não os recomendados pelo fabricante para acelerar o descongelamento.
Não destrua o circuito de refrigeração.
Não utilize aparelhos eléctricos que não aqueles que devem ter sido recomendados pelo fabricante dentro do
compartimento para guardar comida.
ADVERTENCIA
Con el fin de garantizar un funcionamiento normal de su frigorífico, que utiliza un refrigerante totalmente respetuoso con el
medio ambiente, el R 600a (inflamable sólo en ciertas condiciones), se deben observar las pautas siguientes:
No impedir la libre circulación del aire alrededor del electrodoméstico.
Para acelerar el deshielo no se deben utilizar dispositivos mecánicos que no sean aquellos recomendados por el
fabricante.
No destruir el circuito de refrigeración.
No utilizar aparatos eléctricos dentro del compartimento de aviso de alimentos que no sean los que pudiera haber
recomendado el fabricante.
VARNING!
För att försäkra dig om en normal drift av din kylningsenhet, som använder ett miljövänligt kylmedel R600a (endast
flambart under vissa förhållanden) måste du beakta följande regler:
Förhindra inte att luften cirkulerar fritt runt enheten.
Använd inte mekaniska enheter för att snabba på avfrostningsprocessen, förutom det som rekommenderas av
tillverkaren.
Skada inte kylningskretsen.
Använd inte elektriska apparater inuti förvarningsfacket, förutom de som rekommenderas av tillverkaren.

Advice for recycling of the old appliance /1
Packing Recycling /2
Transport instructions /2
Warnings and special advice /2
Setting up /3
Electric connection /3
Switching off /4
Appliance description /4
Freezer operation /4
Advice for food conservation /5
Defrosting of the appliance /5
Cleaning of the appliance /6
Defects finding guide /6
Appliance data sheet /7
Sécurité d’abord! /8
Avertissements et conseils importants /9
Installation /9
Mise en fonctionnement /10
Presentation de l’appareil /10
Functionnement du congélateur /10
Conseils pour la conservation des denrées /11
Dégivrage de l’appareil /11
Nettoyage /12
Dysfonctionnements /12
Bruits pendant le fonctionnement /13
Caractéristique techniques /13
Empfehlungen zum Recycling Ihres alten Gerätes /14
Recycling der Verpackung /15
Transportvorschriften /15
Sicherheitshinweise - allgemeine Empfehlungen /15
Die Umgebungstemperatur /16
Anschließen an das Spannungsnetz /16
Inbetriebnahme /17
Beschreibung des Gerätes /17
Einstellen der Temperatur /17
Tiefgefrieren von Lebensmitteln /18
Empfehlungen für das Enteisen des Gerätes /18
Innere Reinigung /19
Äußere Reinigung /19
Fehlersuchplan /19
Technische Daten /20
Consigli per il riciclaggio del vecchio elettrodomestico /21
Riciclaggio dell'imballo /22
Istruzioni per il trasporto /22
Avvisi e consigli specifici /22
Installazione /23
Collegamento elettronico /23
Spegnimento /23
Descrizione elettrodomestico /24
Funzionamento freezer /24
Consigli per la conservazione del cibo /24
Sbrinamento dell'elettrodomestico /25
Pulizia dell'elettrodomestico /25
Guida per l'individuazione di difetti /26
Dati dell'elettrodomestico /26
Conselhos para a reciclagem do equipamento velho /27
Reciclagem da Embalagem /28
Instruções para transporte /28
Avisos e conselhos especiais /28
Instalação /29
Ligação eléctrica /29
Desligar /30
Descrição do equipamento /30
Funcionamento do congelador /30
Conselhos para a conservação dos alimentos /31
Descongelação do equipamento /31
Limpeza do equipamento /32
Guia para localização dos defeitos /32
Folha de dados do equipamento /33
Consejos para reciclar el antiguo aparato /34
Reciclado del embalaje /35
Instrucciones de transporte /35
Advertencias y consejos especiales /35
Instalación /36
Conexiones eléctricas /36
Desconexión /36
Descripción del electrodoméstico /37
Funcionamiento del congelador /37
Consejos para la conservación de alimentos /37
Deshielo del aparato /38
Limpieza del aparato /39
Guía de localización de averías /39
Hoja de datos del electrodoméstico /40
Råd vid återvinning av din gamla enhet /41
Återvinning av paketering /42
Transportinstruktioner /42
Varningar och speciella råd /42
Installera /43
Elektrisk anslutning /43
Stänga av /44
Drift /44
Enhetsbeskrivning /44
Frysens funktioner /44
Råd vid förvarning av mat /45
Avfrostning av enheten /46
Rengöring av enheten /46
Felsökningsguide /47
Enhetens informationsblad /47
EN Content
FR Sommaire
D Inhalt
IT Indice
PT Índice
ES Índice
SV Innehåll

1

2
4
5
3

Congratulations for your choice!
The chest freezer you have purchased is one in the SMEG
products range and represents a harmonious joinng between
the refrigeration technique with the aestetical outlook. It has a
new and attractive design and is built according to the
European and national standards which guarantee its operation
and safety features. At the same time, the used refrigerant,
R600a, is environment-friendly and it does not affect the ozone
layer.
In order to use the best your freezer, we advise you to read
carefully the information in these user instructions.
Advice for recycling your old appliance
If your newly purchased appliance replaces an older appliance,
you must consider a few aspects.
The old appliances are not valueless scrap. Their disposal,
while preserving the environment, allows the recovery of
important raw materials.
Make your old appliance useless:
- disconnect the appliance from the supply;
- remove the supply cord (cut it);
- remove the eventual locks on the door to avoid the blocking of
children inside, while playing, and the endangering of their lives.
The refrigerating apliances contain insulating materials and
refrigerants which require a proper recycling.
EN Instruction for use
This appliance is not intended for use by person with reduced physical, sensory or mental
capabilities or lack of experience and knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
1

EN Instruction for use
Packing Recycling
WARNING!
Do not allow children to play with the
packing or with parts of it. There is the risk
of suffocation with parts of corrugated
cardboard and with plastic film.
In order to get to you in good condition, the
appliance was protected with a suitable
packing. All the materials of the packing are
compatible with the environment and
recyclable. Please help us recycle the packing
while protecting the environment !
IMPORTANT!
Before putting the appliance in operation, read
carefully and entirely these instructions. They
contain important information concerning the
setting up, use and maintenance of the
apliance.
The manufacturer is free of any responsibility if
the information in this document are not
observed. Keep the instructions in a safe place
in order to reach them easily in case of need.
They can also be useful subsequently by
another user.
ATTENTION!
This appliance must be used only for its
intended purpose, (household use), in
suitable areas, far from rain, moisture or
other weather conditions.
Transport instructions
The appliance must be transported, as much
as possible, only in vertical position. The
packing must be in perfect condition during
transport.
If during transport the appliance was put in
horisontal position (only according to the
markings on the packing), it is advised that,
before putting it into operation, the appliance
is left to rest for 12 hours in order to allow the
settling of the refrigerating circuit.
The failure to to observe these instructions
can cause the breakdown of the
motorcompressor and the cancellation of its
warranty.
Warnings and general advice
Do not plug in the appliance if you noticed a
failure.
The repairs must be done only by qualified
personel.
In the following situations please unplug the
appliance from the mains:
- when you defrost completely the appliance;
- when you clean the appliance.
To unplug the appliance, pull by the plug,
not by the cable!
Ensure the minimum space between the
appliance and the wall against which it is
placed.
Do not climb on the appliance.
Do not allow the children to play or hide
inside the appliance.
Never use electric appliances inside the
freezer, for defrosting.
Do not use the appliance near heating
appliances, cookers or other sources of heat
and fire.
Do not leave the freezer door open more
than it is necessary to put in or take out the
food.
Do not leave the food in the appliance if it is
not working.
Do not keep inside products containing
flammable or explosive gases.
Do not keep inside fizzy drinks (juice,
mineral water, champagne, etc.) in the
freezer: the bottle can explode! Do not freeze
drinks in plastic bottles.
Do not eat ice cubes or icecream
immediately after having taken them out of the
freezer because they may cause „freezer
burns”.
Never touch cold metal parts or frozen food
with wet hands because your hands can
quickly freeze on the very cold surfaces.
For the protection of the appliance during
warehousing and transport, it is provided with
spacers between the door and the cabinet (in
the front and rear side). These spacers will be
removed before putting the appliance into
operation.
2

EN Instruction for use
Excess deposit of ice on the frame and the
baskets should be removed regularly with the
plastic scraper provided. Do not use any
metal parts to remove the ice.
The presence of this ice build-up makes
impossible to close the door correctly.
If you do not use your appliance for a few
days, it is not advisable to switch it off. If you
do not use it for a longer period, please
proceed as follows :
- unplug the appliance;
- empty the freezer;
- defrost it and clean it;
- leave the door open to avoid the formation of
unpleasant smells.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
If your appliance has a lock, keep it locked
and store the key in a safe place, out of the
reach of children. If you are discarding an
appliance with lock, make sure that, is made
ineffective. This is very important so as to
avoid children being trapped inside, which
may cause their loss of life.
Setting up
This appliance was designed to operate at an
ambient temperature between +100C and
+430C (SN-T class). If the ambient
temperature is above +430C, inside the
appliance the temperature can increase.
Set up the appliance far from any source of
heat and fire. Placing it in a warm room, the
direct exposure to sunbeams or near a heat
source (heaters, cookers, ovens), will
increase the energy consumption and shorten
the product life.
Please observe the following minimun
distances:
100 cm from the cookers working with coal
or oil;
150 cm from the electric and gas cookers.
Ensure the free circulation of the air around
the appliance, by observing the distances
shown in Item 2.
Assemble on the condenser (in the rear side)
the supplied spacers (Item 3).
Place the appliance in a perfectly even, dry
and well ventilated place.
Assemble the supplied accessories.
Electric connection
Your appliance is intended to operate at a
single-phase voltage of 220-240V/50 Hz.
Before pluggingin the appliance, please make
sure that the parameters of the mains in your
house (voltage, currect type, frequency) comply
to the operation parameters of the appliance.
Theinformation concerning the supplyvoltage
and the absorbed power isgiven on the marking
label placedinthe back side of the freezer.
The electric installation must comply with
the law requirements.
The earthing of the appliance is
compulsory. The manufacturer has no
responsibility for any damage to persons,
animals or goods which may arise from
the failure to observe the specified
conditions.
The appliance is endowed with a supply
cord and a plug (European type, marked
10/16A) with double earthing contact for
safety. If the socket is not the same type with
the plug, please ask a specialised electrician
to change it.
Do not use extension pieces or multiple
adapters.
3

EN Instruction for use
Switching off
The switching off must be possible by taking
the plug out of the socket or by means of a
mains two-poles switch placed before the
socket.
Operation
Before putting into operation, clean the inside
of the appliance (see chapter „Cleaning").
After finishing this operation please plug
in the appliance, adjust the thermostat
knob to an average position. The green and
red LEDs in the signalling block must light.
Leave the appliance work for about 2
hours without putting food inside it.
The freezing of the fresh food is possible
after min. 20 hours of operation.

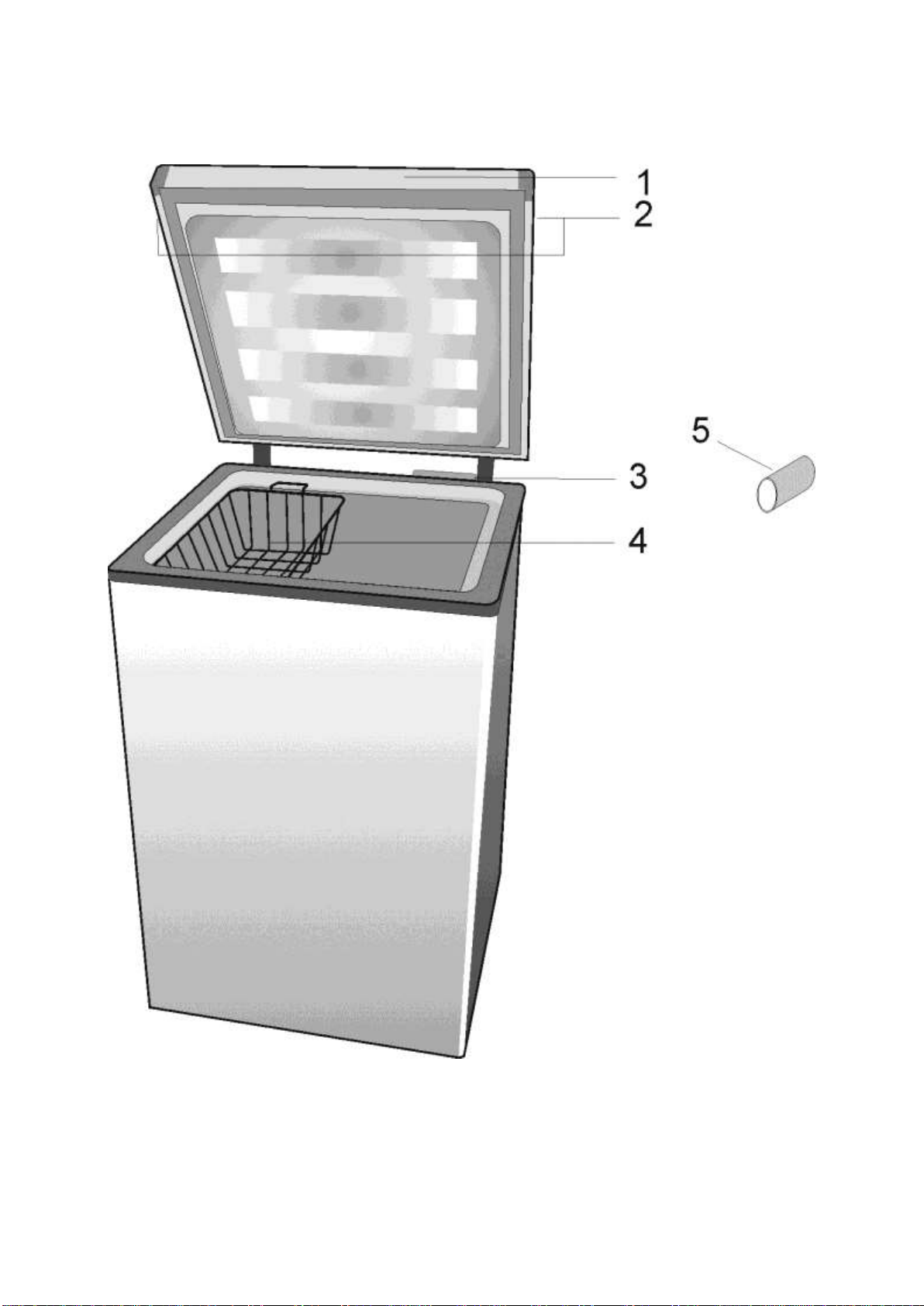

Appliance description
(Item. 1)
1. Door
2. Door handle
3. Thermostat box
4. Basket
5. Spacer for transport
Freezer operation
Temperature adjustment
The temperature of the freezer is adjusted by
means of the knob assembled on the
thermostat (item. 4), position „MAX” being the
lowest temperature.
The achieved temperatures can vary
according to the conditions of use of the
appliance, such as: place of the appliance,
ambient temperature, frequency of door
opening, extent of filling with food of the
freezer. The position of the thermostat knob
will change according to these factors.
Normally, for an ambient temperature of
approx. 320C, the thermostat will be adjusted
on an average position.
The signalling system is placed on the back
side of the freezer (Item 5).
It includes:
1. Thermostat adjustment knob –the inside
temperature is adjusted.
2. green LED –shows that the appliance is
supplied with electric energy.
3. red LED –damage –lights if the
temperature in the freezer is too high. The
LED will operate 15-45 minutes after the
putting into operation of the freezer, then it
must go off. If the LED goes on during the
operation, this means that defects have
occurred.
4. LED Orange–fast freeze function activated
–by setting the knob to Superfreeze
position the orange led goes on, showing
that the appliance entered into the "fast
freeze" mode. The exit of this mode is
done automatically after 50 hours then the
appliance runs in economic mode, and the
orange led goes off.
The three LEDs give information about the
mode of operation of the freezer.
4

EN Instruction for use
Advice for food conservation
The freezer is intended to keep the frozen
food for a long time, as well as to freeze fresh
food.
One of the main elements for a successful
food freezing is the packing.
The main conditions that the packing must
fulfill are the following: to be airtight, to be
inert towards the packed food, to resist to low
temperatures, to be proof to liquids, grease,
water vapours, smells, to be able to be
washed.
These conditions are fulfilled by the following
types of packings: plastic or aluminium film,
plastic and aliminium vessels, waxed
cardboard glasses or plastic glasses.
IMPORTANT!
- For freezing the fresh food please use the
supplied baskets of the appliance.
- Do not place into the freezer a too large
quantity of food at a time. The quality of the
food is best kept if they are deeply frozen as
quickly as possible. This is why it is advisable
not to exceed the freezing capacity of the
appliance specified in the "Appliance data
sheet" (page 7).
- The fresh food must not come into contact
with the food already frozen.
- The frozen food you have bought can be
placed into the freezer without having to
adjust the thermostat.
- If the freezing date is not mentioned on the
packing, please take into consideration a
period of max. 3 months, as a general guide.
- The food, even partially defrosted, cannot be
frozen again, it must be consumed
immediately or cooked and then refrozen.
- The fizzy drinks will not be kept in the
freezer.
- In case of a power failure, do not open the
door of the appliance. The frozen food will not
be affected if the failure lasts less than 30
hours.
Freezing with Superfrost
• Place the knob to super frost position. The
Superfrost lamp comes on.
• Wait 24 hours.
• Place the fresh food in the freezer. In order
to achieve fast freezing, food should be in
contact with the interior walls when it is placed
in the freezer.
• The Superfrost facility automatically switches
the fast freezing procedure off after 50 hours.
Important
When you place the knob to Superfrost
position, the compressor might not switch
on for a few minutes. This is due to the
integrated rise-delay switch which is
designed to increase the life span of the
refrigeration unit.
You should not switch on the Superfrost
function:
- when placing frozen food in the freezer;
- when freezing up to approx. 2 kg fresh food
daily.
Defrosting of the appliance
We advise you to defrost the freezer at
least twice a year or when the ice layer has an
excessive thickness.
The ice build-up is a normal phenomenon.
The quantity and the rapidity of ice build-
up depends on the ambient conditions and on
the frequency of the door opening.
We advise you to defrost the appliance
when the quantity of frozen food is the least.
Before defrosting, adjust the thermostat
knob to a higher position so that the food
stores more cold.
- Unplug the appliance.
- Take out the frozen food, wrap it in several
sheets of paper and put them in refrigerator or
a cool place.
For a fast thaw please leave the door open.
Do not use sharp metal objects to remove
the ice.
Do not use hairdriers or other electric
heating appliances for defrosting.
5

EN Instruction for use
Inside cleaning
Before starting the cleaning, unplug the
appliance from the mains.
It is advisable to clean the appliance when
you defrost it.
Wash the inside with lukewarm water
where you add some neutral detergent. Do
not use soap, detergent, gasoline or acetone
which can leave a strong odour.
Wipe with a wet sponge and dry with a soft
cloth.
During this operation, avoid the excess of
water, in order to prevent its entrance into the
thermal insulation of the appliance, which
would cause unpleasant odours.
Do not forget to clean also the door gasket
especially the bellow ribs, by means of a
clean cloth.
Outside cleaning
Clean the outside of the freezer by means
of a sponge soaked in soapy warm water,
wipe with a soft cloth and dry.
The cleaning of the outside part of the
refrigerating circuit (motorcompressor,
condenser, connection tubes) will be done
with a soft brush or with the vacuum-cleaner.
During this operation, please take care not to
distort the tubes or detach the cables.
Do not use scouring or abrasive materials !
After having finished the cleaning, replace
the accessories at their places and plug in the
appliance.
Defects finding guide
The appliance does not work.
There is a power failure.
The plug of the supply cord is not inserted
well into the socket.
The fuse is blown.
The thermostat is in „OFF” position.
The temperatures are not low
enough(red LED on).
The food prevents the door closing.
The appliance was not placed correctly.
The appliance is placed too close to a heat
source.
The thermostat knob is not in the correct
position.
Excessive ice build-up
The door was not closed properly.
The following are not defects
Possible noddings and cracks coming
from the product: circulation of the
refrigerant in the system.
6

Appliance data sheet
BRAND
SMEG
MODEL
CO103
APPLIANCE TYPE
CHEST FREEZER
Total gross volume (l)
107
Total useful volume (l)
104
Freezing capacity (kg/24 h)
8
Energy efficiency class (1)
A+
Energy consumption (kWh/an) (2)
181
Autonomy (hours)
30
Noise (dB (A) re 1 pW)
41
Ecological refrigerating agent R600a
(1) Energy classes: A+++ . . . D(A+++ = economical . . . D = less economical)
(2) The real power consumption depends on the using conditions and on the appliance
location.
EN Instruction for use
Noises during operation
In order to keep the temperature at the value
you have adjusted, the compressor of the
appliance starts periodically.
The noises which can be heard in such
situation are normal.
They are redced as soon as the appliance
reaches the operation temperature.
The humming noise is made by the
compressor. It can become a little stronger
when the compressor starts.
The bubbling and gurgling noises coming from
the refrigerant circulating in the pipes of the
appliance, are normal operating noises.
Warning !
Never try to repair yourself the appliance
or its electric components. Any repair
made by an unauthorised person is
dangerous for the user and can result in
the warranty cancellation.
The symbol on the product or on packaging indicates that this product may not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling
of this product, please contact your local city office, you household waste disposal service
or the shop where you purchased the product.
7
