Smeg CTP3015 User manual

Instructions
11
EN
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
• Never touch the heating elements
during use.
• Keep children under eight years
of age at a safe distance if they
are not constantly supervised.
• Children must never play with the
appliance.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical, sensory
or mental capacity, or lacking in
experience in the use of electrical
appliances, as long they are
supervised or instructed by adults who
are responsible for their safety.
• Never rest metallic objects such
as knives, forks, spoons and lids
on the appliance during use.
• Switch off the appliance
immediately after use.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• The appliance must never be
cleaned by unsupervised children.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not modify this appliance.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not place plastic containers or
inflammable objects in the
drawer.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers or
metallic scourers).
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Do not use the appliance to heat
rooms for any reason.
For this appliance
• Do not rest any weight or sit on the open
drawer.
• Take care that no objects are stuck in the
drawer.

Instructions
12
1.2 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• Use of the appliance other than as
envisaged;
• Non-observance of the user manual
provisions;
• Tampering with any part of the
appliance;
• Use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for heating
food and crockery in the home
environment. Every other use is
considered improper.
• This appliance may be used by children
aged at least 8 and by people of
reduced physical and mental capacity,
or lacking in experience in the use of
electrical appliances, provided that they
are supervised or instructed by adults
who are responsible for their safety.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Power voltage
Danger of electrocution
• Disconnect the main power supply.
• Unplug the appliance.

Instructions
13
EN
Our appliances are packed in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 This user manual
We advise you to read this manual
carefully, which contains all the instructions
for maintaining the appliance’s aesthetic
and functional qualities.
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
For further information on the product:
www.smeg.com
Read this user manual carefully before using
the appliance.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Standalone use instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
14
2 Description
2.1 General Description
1 Control panel
2 Drawer
3 Non-slip base
4 Heating fan
2.2 Control panel
1 ON/OFF switch
Turns the appliance on and off.
2 Temperature knob
Regulates the appliance's temperature.
2.3 Operating principles
The appliance is equipped with a hot-air
ventilation system. A fan distributes the heat
from the heating element inside the drawer
in an optimal manner.
The temperature knob allows you to set and
control the correct temperature for the
crockery and food placed inside the
appliance. The circulating hot air warms the
crockery and food quickly and evenly.
A protective grille prevents accidental
contact with the heating element and fan.
The base of the drawer is covered with non-
slip material to stop dishes from moving
when the drawer is opened or closed.
Capacity
The overall capacity depends on the
dimensions of the crockery used.
As an example, appliances with a 127.5 cm
drawer allow the following combinations for 6
place settings:
• 6 x 24 cm diameter dinner plates
• 6 x 10 cm diameter soup bowls
• 1 x 32 cm diameter bowl
• 1 x 19 cm diameter bowl
• 1 x 17 cm diameter bowl
Improper use
Risk of damages to the appliance
• Load the drawer with a maximum of 15 kg.

Use
15
EN
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the outside
or inside of the appliance.
2. Remove any labels (apart from the
identification label).
3. Clean the appliance using a damp cloth.
4. Dry the appliance thoroughly.
5. Heat the appliance for at least 2 hours,
unloaded and at maximum temperature,
to remove any manufacturing residue.
3.3 Using the drawer
Turning the drawer on and off
1. Press the ON/OFF switch.
2. Turn the temperature knob to any setting
between minimum and maximum.
List of functions
* Preheat the drawer at maximum temperature for 5-
10 minutes
High temperature inside the
drawer during use
Danger of burns
• Keep the drawer closed during
operation.
• Protect your hands with oven gloves
when handling crockery and food in the
drawer.
• Do not touch the heating elements inside
the drawer.
• Do not allow children to approach the
drawer when it is in use.
High temperature inside the
drawer during use
Danger of fire or explosion
• Do not spray any spray products near
the drawer.
• Do not use or leave flammable materials
near the drawer.
• Do not use plastic kitchenware or
containers for heating food.
• Do not put sealed tins or containers in
the drawer.
Function Position of the
temperature knob
Defrosting food
Heating crockery
Keeping food hot*
Improper use
Risk of damage to the appliance
• Before placing hot food in the drawer,
wait for its temperature to fall below
80°C.
The heating time will vary
depending on many different
factors, for example the type and
quantity of crockery inserted.

Cleaning and maintenance
16
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
Recommendations for cleaning the
drawer
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Avoid letting food residue dry inside the
drawer, as this could damage the enamel.
Cleaning the drawer
1. Remove the non-slip base.
2. Place some non-abrasive detergent on a
damp cloth and wipe down the surfaces.
3. Rinse thoroughly.
4. Dry with a soft cloth or a microfibre cloth.
Cleaning the non-slip base
1. Remove the non-slip base.
2. Clean it with warm water and non-
abrasive detergent.
3. Dry thoroughly with a soft cloth or a
microfibre cloth.
4. Replace the non-slip base in the drawer
when perfectly dry.
4.3 What to do if...
Below we provide a list of possible
solutions to some operating problems.
Crockery does not heat up:
• Check that the appliance is connected to
the mains electricity supply.
• Check that the house's main circuit
breaker is on.
• Check that the ventilation openings are
not blocked.
• Check that it is possible to hear the noise
of the fan, and contact Technical
Support.
• Leave the crockery in the drawer for
longer.
The drawer does not open:
• Grasp the lower part of the drawer and
pull until it releases.
The main switch or main circuit breaker in
the house's consumer unit are repeatedly
triggered (or corresponding fuses blow):
• Call Technical Support or an electrician.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use detergents which are
abrasive, corrosive or which contain
chlorine, ammonia or bleach (e.g.
scouring powders, stain removers etc.).
• Do not use rough or abrasive materials
or sharp metal scrapers.
If the problem has not been
resolved or in the event of other
types of problem, contact
Technical Support.

Installation
17
EN
5 Installation
5.1 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance works at 230 V~.
Use the power-supply cable provided with
the appliance.
Fixed connection
Fit the power line with an omnipolar circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters and shunts as these
could cause overheating and a risk of
burns.

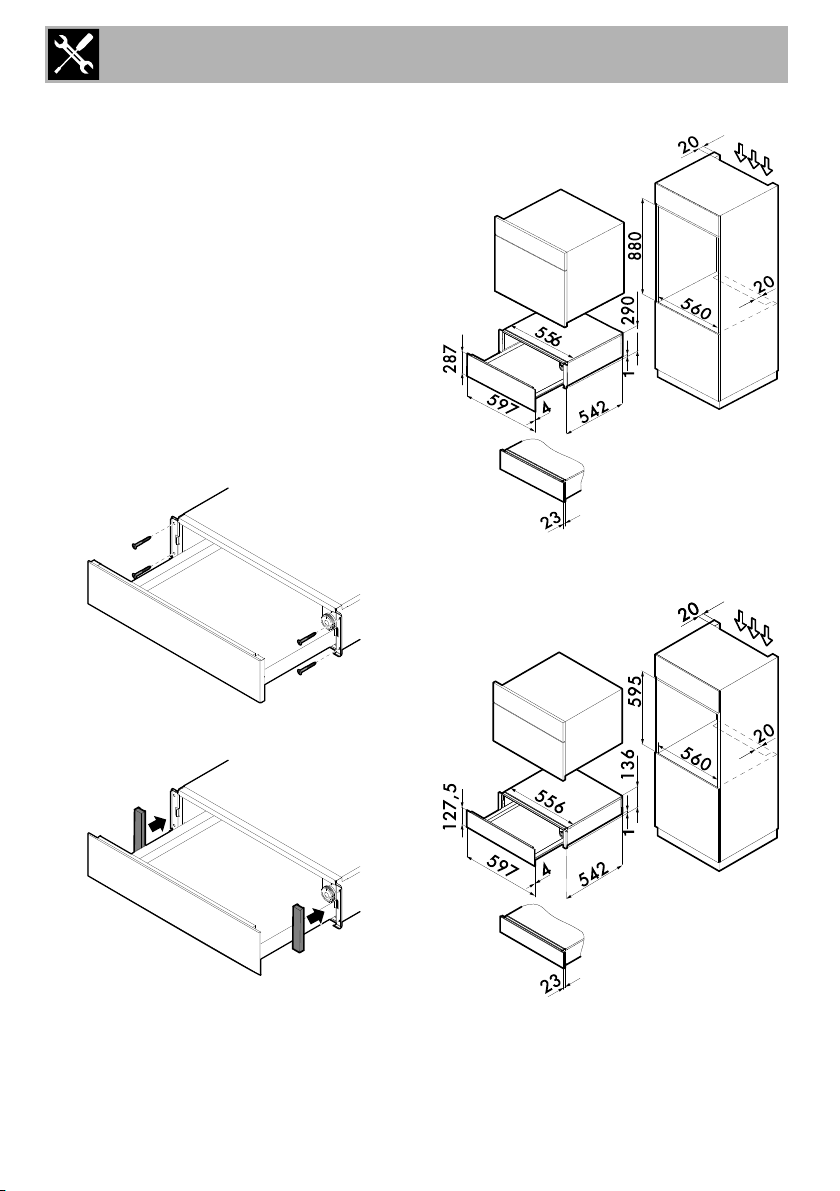

5.2 Positioning
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected to
ground in compliance with electrical
system safety standards.
• Disconnect the main power supply.
Heavy appliance
Danger of crushing injuries
• Position the appliance into the cabinet
cutout with the help of a second person.
Pressure on the open drawer
Risk of damage to the appliance
• Never use the open drawer to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
drawer when open.
Heat production during appliance
operation
Risk of fire
• Check that the piece of furniture material
is heat resistant.
• Check that the piece of furniture has the
required slots.

Installation
18
General instructions
• Position the drawer on a stable shelf.
• The supporting shelf must have a rear
opening of 20 mm.
• The unit in which the drawer is installed
must not have a back panel.
Installing the appliance
1. Centre and line up the drawer in the
opening. Ensure that the frame is
perfectly flush with the furniture unit.
2. Open the drawer.
3. Secure the appliance to the piece of
furniture using screws.
4. Position the side covers.
Appliance overall dimensions (mm)
