Built-in Hotplate, Ovens, Stoves,
Minigrills,
Hotplate-Sink Combos for
Recreational Vehicles
and Marine.
Models: CU311 -CU311 M • CU333 -CU333M -CU335 •
CU335M· CU401 - CU40IPE· CU402· CU402PE
-CU403 •CU403PE •F031 I -
M081 03 - M08123
• P18002 -PI8022 - P18003 • PI8023 •VN555
Installation,
use and service manual

CONTENTS
S!\\I~"
by Dometic GROUP
N!"I~"
by Dometic GROUP
I. GENERAL INFORMATION
CONTENTS
GENERAL INFORMATION
1
1.1
1.2
GENERAL INFORMATION 3
Symbols used in this manual 3
Using and keeping the manual 3
1.1 Symbols used in this manual
Below are shown the various symbols used in the manual to highlight particularly important information.
The safety symbols draw attention to potential hazards for personal safety.
2.
WARNINGS i4
Absolutely respect all safety messages by following these symbols.
CAUTION
WARNING
WARNING
CAUTION
WARNING
Risk of injury or death.
To avoid possible injuries and/or malfunctions.
The aim of this manual is to supply all the information necessary to ensure that, as well as being used correctly,
the appliance can be managed in the safest and most autonomous way possible.
Keep this manual and
all the attached documentation in good condition, legible and complete in all its parts; it
is forbidden to remove, rewrite or modify the pages of the manual and their content in any way.
Keep the documentation near the appliance, in an accessible place known to all users.
The manual must always accompany the appliance even in the event of sale and must therefore be handed
over
to the new user.
1.2 Using and keeping the manual
6
WARNING
, Always read the instructions provided in full before installing and using this appliance.
..
INSTALLATION 12
Dimensions of the appliance 12
Fitting cavity ,12
Gas connection 12
Electric connection 14
Fixture 15
Testing (before leaving) 15
Test point 15
Duplicate data plate 16
USE 5
Precautions 5
Control panel 5
Hotplate 6
Selecting
the burner 6
Electronic ignition hotplate (depending on model) 7
Manual ignition hotplate 7
Hotplate flame regulation 7
Oven 7
Electronic ignition oven 8
Manual ignition oven 8
Oven flame regulation with
thermostat 8
Grill 8
Electronic ignition grill 9
Manual ignition grill 9
Flame regulation grill 9
Electric hotplate (depending on model) : 10
Spit (depending on model) 10
Turntable (depending on model) 10
Cleaning 10
Abnormal Operation , I I
4.
4.\
4.2
4.3
4.4
4.5
4.6
4.6.1
4.7
3.
3.1
3.2
3.3
3.3.1
3.3.2
3.3.3
3.3.4
3.4
3.4.1
3.4.2
3.4.3
3.5
3.5.1
3.5.2
3.5.3
3.6
3.7
3.8
3.9
3.10
5 SERViCiNG 17
FIGURESANDTECHNICAL DRAWINGS 19-30
WHOTO CONTACT 32
23

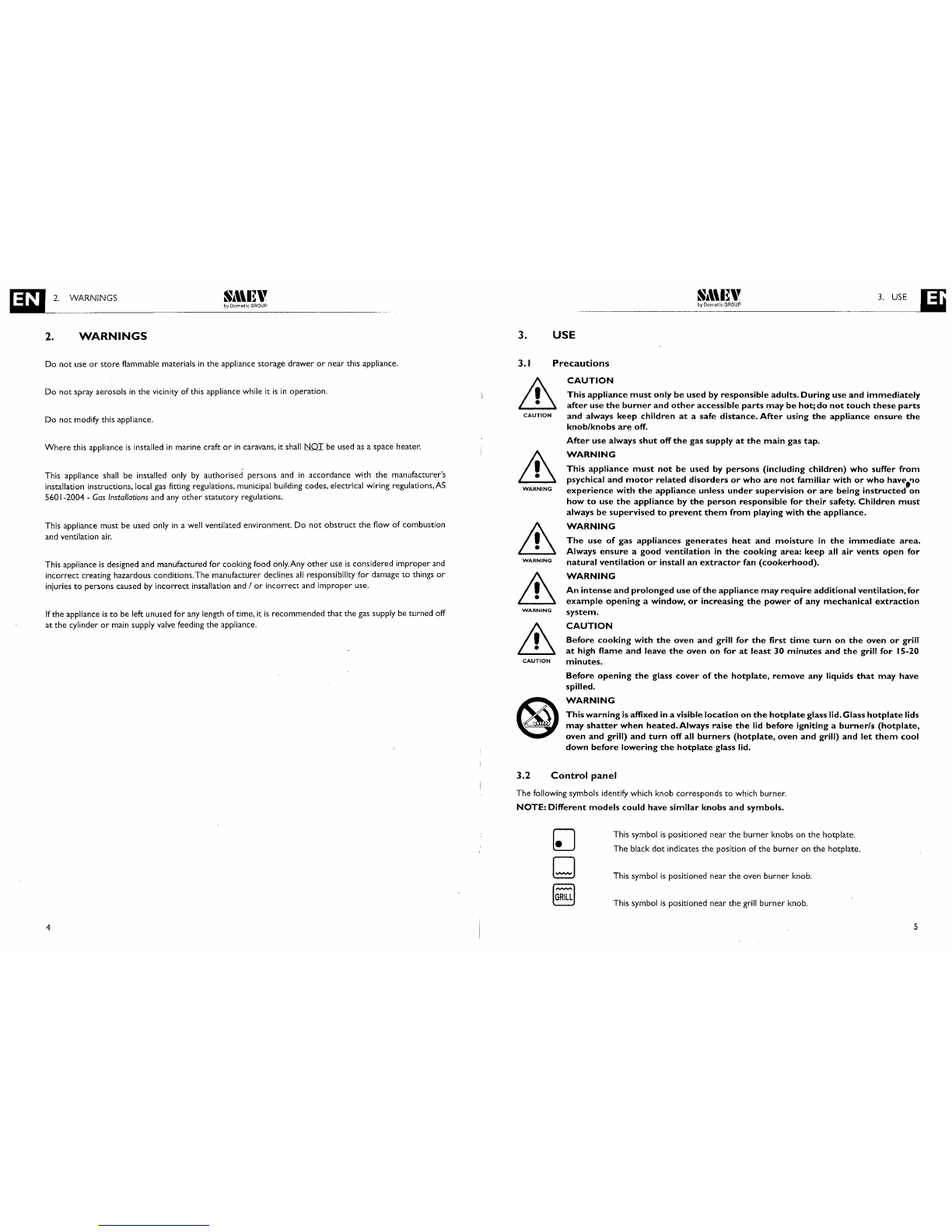

2. WARNINGS
S,\\I~"
by Dometic GROUP
2.
WARNINGS
3.
USE
Do not use or store flammable materials in the appliance storage drawer or near this appliance. 3.1 Precautions
Do not spray aerosols in the vicinity of this appliance while it is in operation.
Do not modify this appliance.
Where this appliance is installed in marine craft or in caravans, it shall NOT be used as aspace heater.
This appliance shall be installed only by authorised persons and in accordance with the manufacturer's
installation instructions,local gas fitting regulations, municipal building codes, electrical wiring regulations,AS
5601-2004 - Gas Installations and any other statutory regulations.
This appliance must be used only in awell ventilated environment. Do not obstruct the flow of combustion
and ventilation air.
This appliance is designed and manufactured for cooking food only.Any other use is considered improper and
incorrect creating hazardous conditions.The manufacturer declines all responsibility for damage to things or
injuries to persons caused by incorrect installation and / or incorrect and improper use.
If the appliance is to be left unused for any length of time, it is recommended that the gas supply be turned off
at the cylinder or main supply valve feeding the appliance.
CAUTION
WARNING
WARNING
WARNING
CAUTION
CAUTION
This appliance must only be used by responsible adults. During use and immediately
after use the burner and other accessible parts may be hot; do not touch these parts
and always keep children at a safe distance. After using the appliance ensure the
knob/knobs are off.
After use always shut off the gas supply at the main gas tap.
WARNING
This appliance must not be used by persons (including children) who suffer from
psychical and motor related disorders or who are not familiar with or who have.'lo
experience with the appliance unless under supervision or are being instructed on
how to use the appliance by the person responsible for their safety. Children must
always be supervised to prevent them from playing with the appliance.
WARNING
The use of gas appliances generates heat and moisture in the immediate area.
Always ensure a good ventilation in the cooking area: keep all air vents open for
natural ventilation or install an extractor fan (cookerhood).
WARNING
An intense and prolonged use ofthe appliance may require additional ventilation, for
example opening a window, or increasing the power of any mechanical extraction
system.
CAUTION
Before cooking with the oven and grill for the first time turn on the oven or grill
at high flame and leave the oven on for at least 30 minutes and the grill for 15·20
minutes.
Before opening the glass cover of the hotplate, remove any liquids that may have
spilled.
WARNING
This warning is affixed in avisible location on the hotplate glass lid. Glass hotplate lids
may shatter when heated. Always raise the lid before igniting a burner/s (hotplate,
oven and grill) and turn off all burners (hotplate, oven and grill) and let them cool
down before lowering the hotplate glass lid.
3.2 Control panel
The following symbols identify which knob corresponds to which burner.
NOTE: Different models could have similar knobs and symbols.
This symbol is positioned near the burner knobs on the hotplate.
The black dot indicates the position of the burner on the hotplate.
This symbol is positioned near the oven burner knob.
This symbol is positioned near the grill burner knob.
45

ma 3. USE
S,\\I~"
by Dometic GROUP
_________ ~_:~_!_~_i~_?R_!_: 3._U_S_E_____.JU

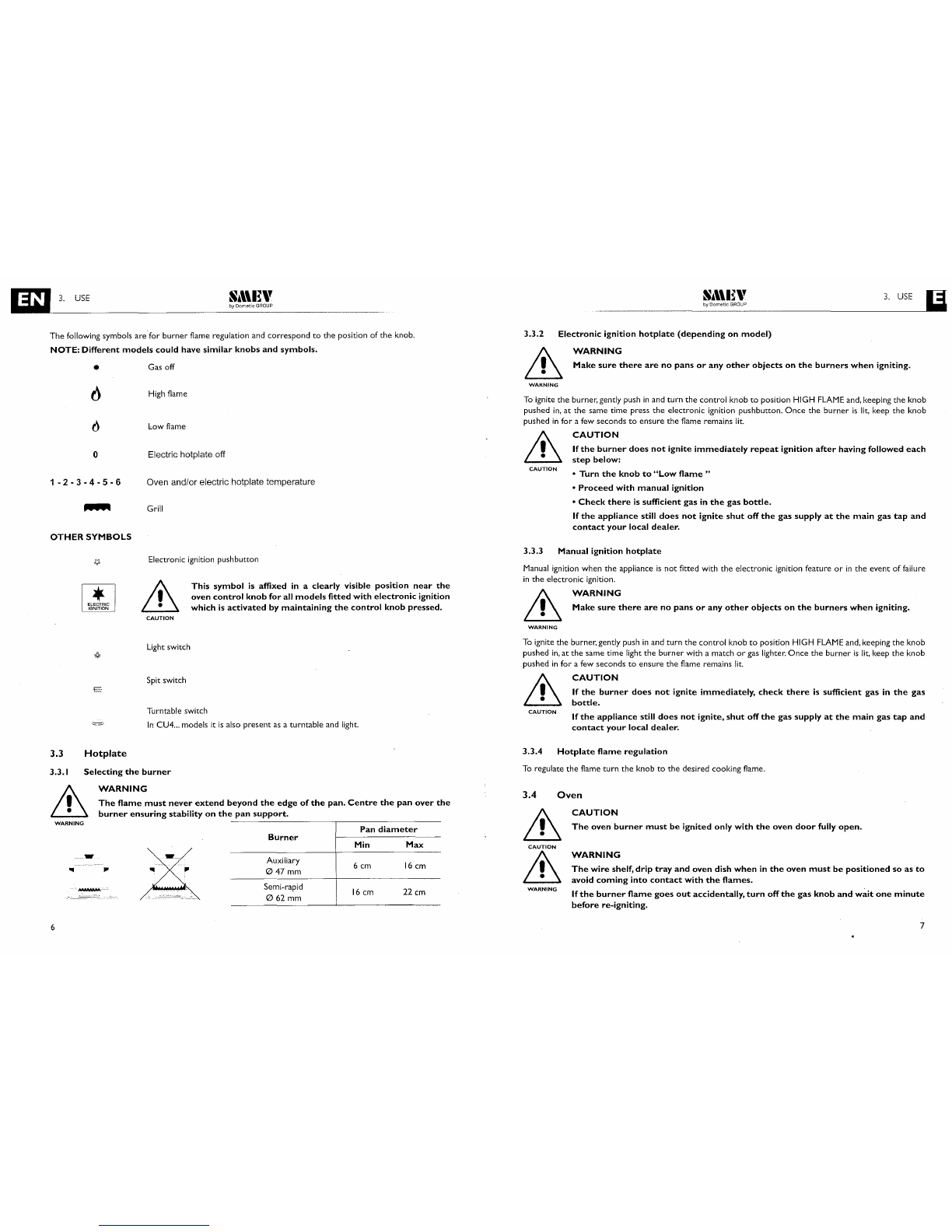

The following symbols are-for burner flame regulation and correspond to the position of the knob.
NOTE: Different models could have similar knobs and symbols.
•Gas off
3.3.2
Electronic ignition hotplate (depending on model)
WARNING
Make sure there are no pans or any other objects on the burners when igniting.
WARNING
To ignite the burner. gently push in and turn the control knob to position HIGH FLAME and. keeping the knob
pushed in. at the same time press the electronic ignition pushbutton. Once the burner is lit. keep the knob
pushed
in for a few seconds to ensure the flame remains lit.
o
1-2-3-4-5-6
OTHER SYMBOLS
High flame
low flame
Electric hotplate off
Oven and/or electric hotplate temperature
Grill
CAUTION
CAUTION
If the burner does not ignite immediately repeat ignition after having followed each
step below:
• Turn the knob to "Low flame"
• Proceed with manual ignition
• Check there is sufficient gas in the gas bottle.
If the appliance still does not ignite shut off the gas supply at the main gas tap and
contact your local dealer.
CAUTION
Electronic ignition pushbutton
Make sure there are no pans or any other objects on the burners when igniting.
WARNING
3.3.3 Manual ignition hotplate
Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure
in the electronic ignition.
This symbol is affixed in a clearly visible position near the
oven control knob for all models fitted with electronic ignition
which is activated by maintaining the control knob pressed.
WARNING
Light switch
To ignite the burner. gently push in and turn the control knob to position HIGH FLAME and. keeping the knob
pushed
in. at the same time light the burner with amatch or gas lighter. Once the burner is lit. keep the knob
pushed
in for a few seconds to ensure the flame remains lit.
ESpit switch
Turntable switch
In CU4 ... models it is also present as aturntable and light.
CAUTION
CAUTION
If the burner does not ignite immediately, check there is sufficient gas in the gas
bottle.
If the appliance still does not ignite, shut off the gas supply at the main gas tap and
contact your local dealer.
3.3
Hotplate
3.3.4 Hotplate flame regulation
3.3.1
Selecting the burner
To regulate the flame turn the knob to the desired cooking flame.
WARNING
..
WARNING
The wire shelf, drip tray and oven dish when in the oven must be positioned so as to
avoid coming into contact with the flames.
If the burner flame goes out accidentally, turn off the gas knob and wait one minute
before re-igniting.
CAUTION
The oven burner must be ignited only with the oven door fully open.
WARNING
3.4 Oven
&
CAUTION
&
Pan diameter
Burner
Min
Max
Auxiiiary
6cm 16 cm
047 mm
Semi-rapid
16 cm 22 cm
062 mm
JIl'
WARNING
The flame must never extend beyond the edge of the pan. Centre the pan over the
burner ensuring stability on the pan support.
----------,.-----------
_ .. -
67

IaDL-
3
_. ~U_S_E~~~~~~~~~~~~~_D~~_~\_'ti_~?_R~_~~_· ~~~~~~~~_
_ ~_y:_~~_~_i~_!_!_~ ~~~~~ __ 3_._U_SE_g

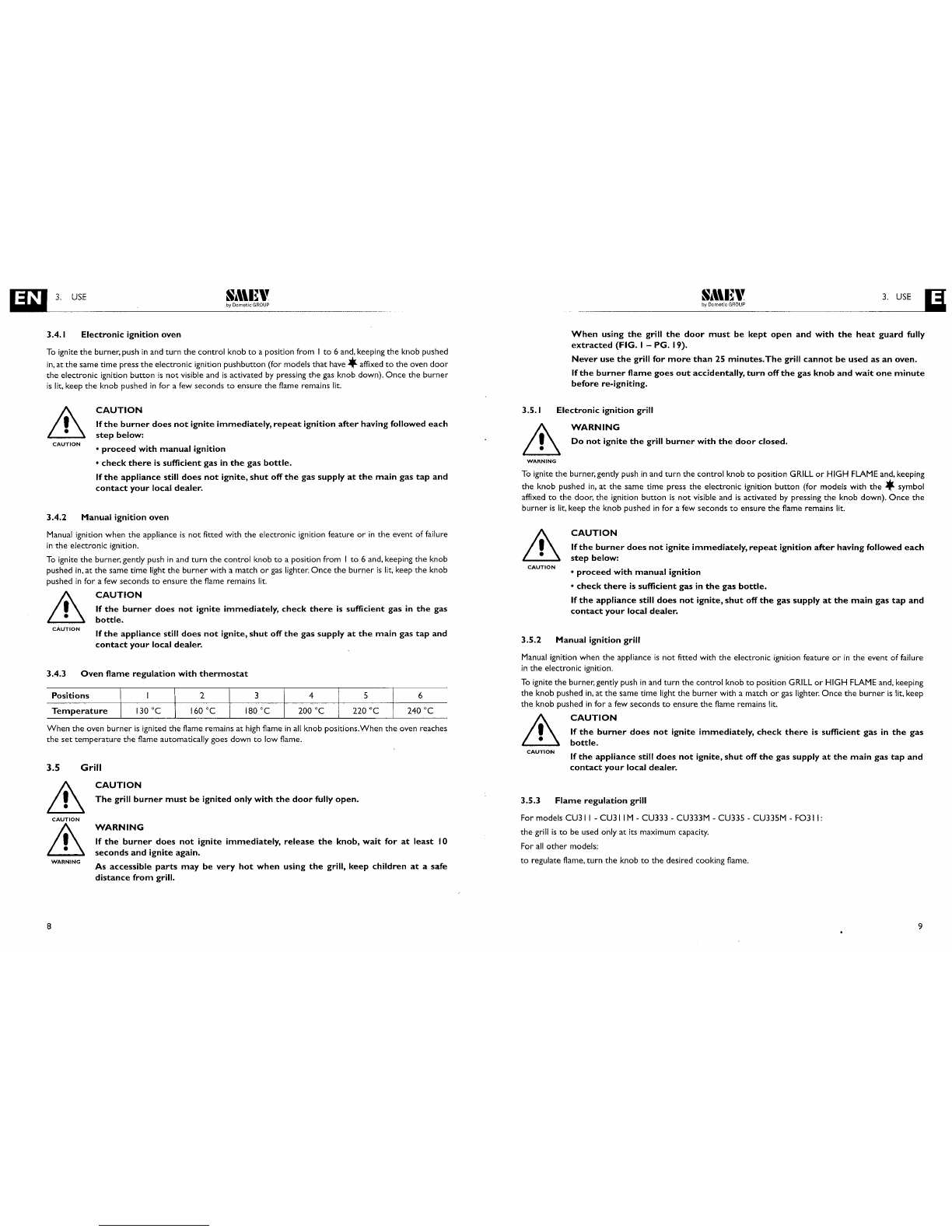

3.4.1 Electronic ignition oven
To ignite the burner, push in and turn the control knob to aposition from I to 6and, keeping the knob pushed
in, at the same time press the electronic ignition pushbutton (for models that have *affixed to the oven door
the electronic ignition button is not visible and is activated by pressing the gas knob down). Once the burner
is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.
When using the grill the door must be kept open and with the heat guard fully
extracted (FIG. I - PG. 19).
Never use the grill for more than 25 minutes. The grill cannot be used as an oven.
If the burner flame goes out accidentally, turn off the gas knob and wait one minute
before re.igniting.
3.4.2 Manual ignition oven
Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure
in the electronic ignition.
To ignite the burner, gently push in and turn the control knob to aposition from I to 6and, keeping the knob
pushed
in, at the same time light the burner with amatch or gas lighter. Once the burner is lit, keep the knob
pushed
in for a few seconds to ensure the flame remains lit.
WARNING
WARNING
Do not ignite the grill burner with the door closed.
CAUTION
If the burner does not ignite immediately, repeat ignition after having followed each
step below:
• proceed with manual ignition
• check there is sufficient gas in the gas bottle.
If the appliance still does not ignite, shut off the gas supply at the main gas tap and
contact your local dealer.
Manual ignition grill
CAUTION
3.5.1 Electronic ignition grill
To ignite the burner,gently push in and turn the control knob to position GRILL or HIGH FLAME and, keeping
the knob pushed in, at the same time press the electronic ignition button (for models with the *symbol
affixed
to the door, the ignition button is not visible and is activated by pressing the knob down). Once the
burner is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.
3.5.2
CAUTION
If the burner does not ignite immediately, repeat ignition after having followed each
step below:
• proceed with manual ignition
• check there is sufficient gas in the gas bottle.
If the appliance still does not ignite, shut off the gas supply at the main gas tap and
contact your local dealer.
CAUTION
If the burner does not ignite immediately, check there is sufficient gas in the gas
bottle.
If the appliance still does not ignite, shut off the gas supply at the main gas tap and
contact your local dealer.
CAUTION
CAUTION
When the oven burner is ignited the flame remains at high flame in all knob positions.When the oven reaches
the set temperature the flame automatically goes down to low flame.
Temperature
CAUTION
If the burner does not ignite immediately, check there is sufficient gas in the gas
bottle.
If the appliance still does not ignite, shut off the gas supply at the main gas tap and
contact your local dealer.
CAUTION
Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure
in the electronic ignition.
To ignite the burner, gently push in and turn the control knob to position GRILL or HIGH FLAME and, keeping
the knob pushed
in, at the same time light the burner with amatch or gas lighter. Once the burner is lit, keep
the knob pushed
in for a few seconds to ensure the flame remains lit.
3.5.3 Flame regulation grill
For models
CU31 I - CU311 M - CU333 -CU333M -CU33S -CU33SM -F0311:
the grill is to be used only at its maximum capacity.
For all other models:
to regulate flame, turn the knob to the desired cooking flame.
6
240°C
WARNING
If the burner does not ignite immediately, release the knob, wait for at least 10
seconds and ignite again.
As accessible parts may be very hot when using the grill, keep children at a safe
distance from grill.
CAUTION
The grill burner must be ignited only with the door fully open.
Grill
Oven flame regulation with thermostat
Positions
WARNING
3.4.3
3.5
it
CAUTION
it
89

lm,--_3_. _u_sE ~_~_~~_~_ti~_!_!_~ .
__________ ~_:~_~\_et;_~G_~R_!'_p 3_._U_S_E-----.J~
Never use steam cleaners to clean the appliance.
CAUTION
Hot surfaces may be damaged on contact with cold water or with a wet cloth. Do not
use abrasive, corrosive or chlorine-based products, pot scourers or steel wool. Do
not leave acid or alkaline substances (vinegar, salt,lemon juice, etc.) on the surfaces
of the appliance. Stainless steel surfaces and enamelled parts must be washed with
water and neutral soap or detergent, rinsed and dried. Use clean sponges and cloths.
WARNING
Never use abrasive and I or coarse cleaning materials or metal brushes to clean
the glass oven door as these materials scratch the glass surface with the risk of
shattering the glass.
WARNING
CAUTION
WARNING

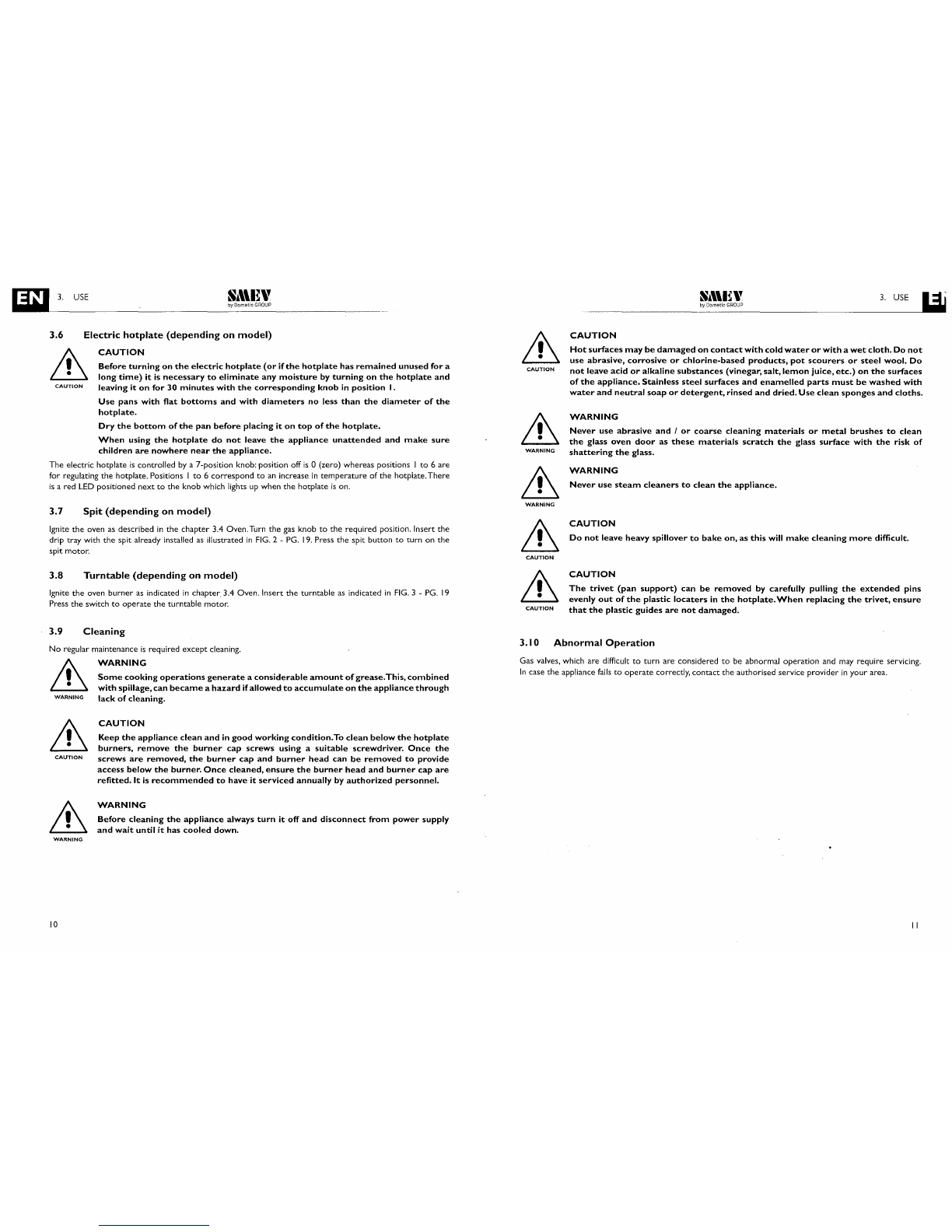

Electric hotplate (depending on model)
CAUTION
CAUTION
Beforeturning on the electric hotplate (or if the hotplate has remained unused for a
long time) it is necessary to eliminate any moisture by turning on the hotplate and
leaving it on for 30 minutes with the corresponding knob in position I.
Use pans with flat bottoms and with diameters no less than the diameter of the
hotplate.
Dry the bottom of the pan before placing it on top of the hotplate.
When using the hotplate do not leave the appliance unattended and make sure
children are nowhere near the appliance.
The electric hotplate is controlled by a 7-position knob: position off is 0(zero) whereas positions I to 6are
for regulating
the hotplate. Positions I to 6 correspond to an increase in temperature of the hotplate. There
is ared LED positioned next to the knob which lights up when the hotplate is on.
3.6
3.7 Spit (depending on model)
WARNING
Ignite the oven as described in the chapter 3.4 Oven.Turn the gas knob to the required position. Insert the
drip tray with the spit already installed as illustrated in FIG.2 - PG. 19. Press the spit button to turn on the
spit motor.
CAUTION
CAUTION
Do not leave heavy spillover to bake on, as this will make cleaning more difficult.
3.8 Turntable (depending on model)
Ignite the oven burner as indicated in chapter, 3.4 Oven. Insert the turntable as indicated in FIG. 3 - PG. 19
Press the switch to operate the turntable motor.
CAUTION
CAUTION
The trivet (pan support) can be removed by carefully pulling the extended pins
evenly out of the plastic locaters in the hotplate. When replacing the trivet, ensure
that the plastic guides are not damaged.
3.9 Cleaning
No regular maintenance is required except cleaning.
3.10
Abnormal Operation
WARNING
WARNING
Some cooking operations generate a considerable amount of grease.This, combined
with spillage, can became a hazard if allowed to accumulate on the appliance through
lack of cleaning.
Gas valves, which are difficult to turn are considered to be abnormal operation and may require servicing.
In case the appliance fails to operate correctly, contact the authorised service provider in your area.
CAUTION
CAUTION
Keep the appliance clean and in good working condition.To clean below the hotplate
burners, remove the burner cap screws using a suitable screwdriver. Once the
screws are removed, the burner cap and burner head can be removed to provide
access below the burner. Once cleaned, ensure the burner head and burner cap are
refitted. It is recommended to have it serviced annually by authorized personnel.
WARNING
Before cleaning the appliance always turn it off and disconnect from power supply
and wait until it has cooled down.
WARNING
10
II

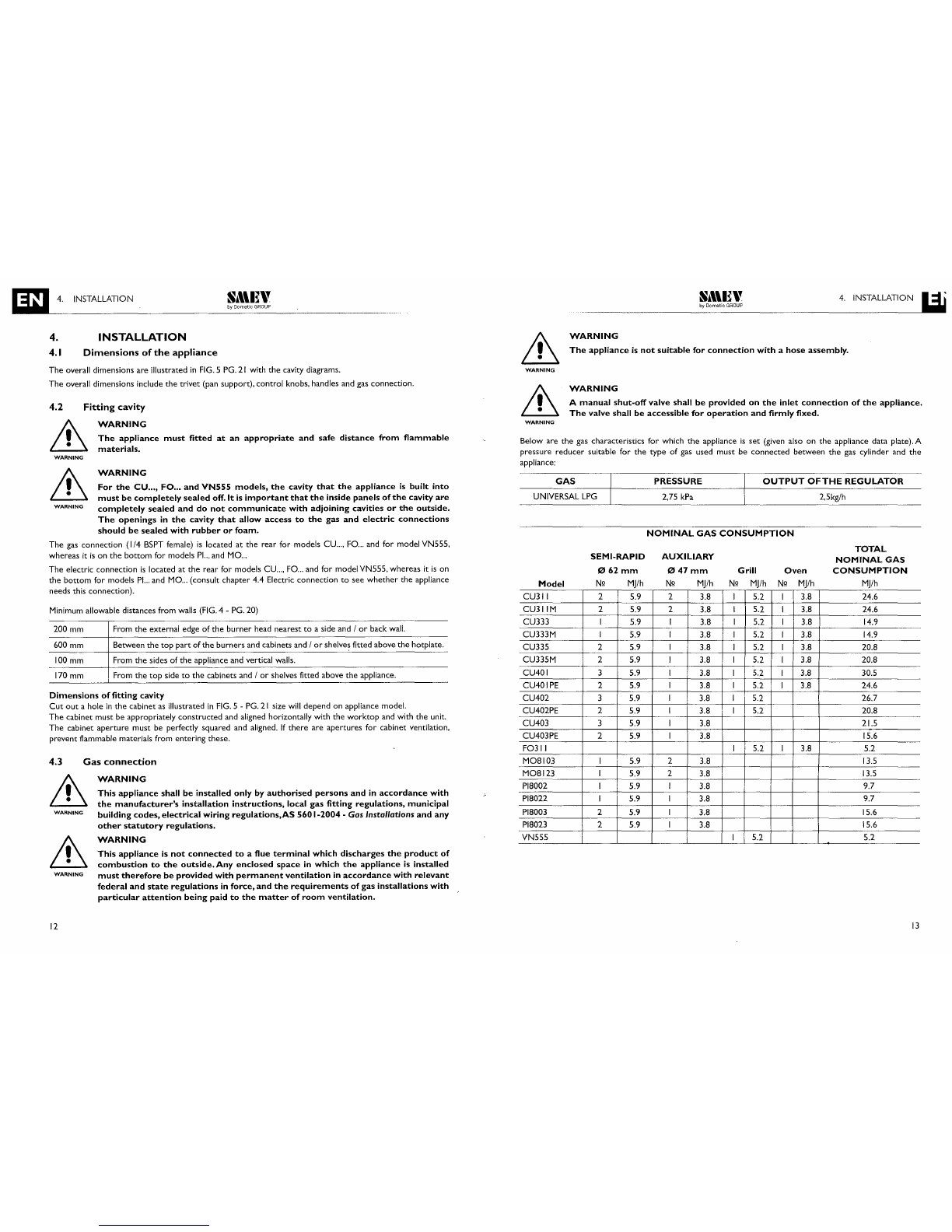

4. INSTALLATION
S.\\I~"
by Dometic GROUP
S."I~"
by Dometic GROUP 4. INSTALLATION
~
TOTAL
NOMINAL GAS
CONSUMPTION
MJ/h
2,5kg/h
OUTPUT OFTHE REGULATOR
Grill Oven
NQ MJ/h NQ MJ/h
2,75 kPa
AUXILIARY
047mm
NQ MJ/h
PRESSURE
NOMINAL GAS CONSUMPTION
SEMI-RAPID
062mm
NQ MJ/h
WARNING
The appliance is not suitable for connection with a hose assembly.
WARNING
A manual shut-off valve shall be provided on the inlet connection of the appliance.
The valve shall be accessible for operation and firmly fixed.
GAS
Model
UNIVERSAL LPG
WARNING
WARNING
CU311 25.9 23.8 I5.2 I3.8 24.6
CU311M 25.9 23.8 I5.2 13.8 24.6
CU333 I5.9 13.8 I5.2 I3.8 14.9
CU333M I5.9 13.8 I5.2 I3.8 14.9
CU335 25.9 I3.8 I5.2 I3.8 20.8
CU335M 25.9 I3.8 I5.2 I3.8 20.8
CU401 35.9 I3.8 I5.2 13.8 30.5
CU40lPE 25.9 I3.8 I5.2 I3.8 24.6
CU402
35.9 I3.8 I5.2 26.7
CU402PE 25.9 I3.8 I5.2 20.8
CU403 35.9 I3.8 21.5
CU403PE 25.9 I3.8 15.6
F0311 I5.2 I3.8 5.2
M08103 I5.9 23.8 13.5
M08123 I5.9 23.8 13.5
PI8002 I5.9 13.8 9.7
PI8022 I5.9 I3.8 9.7
PI8003 25.9 I3.8 15.6
PI8023 25.9 I3.8 15.6
VN555 I5.2 5.2
Below are the gas characteristics for which the appliance is set (given also on the appliance data plate). A
pressure reducer suitable for the type of gas used must be connected between the gas cylinder and the
appliance:
Between the top part of the burners and cabinets and 1 or shelves fitted above the hotplate.
From the sides of the appliance and vertical walls.
From the top side to the cabinets and 1 or shelves fitted above the appliance.
From the external edge of the burner head nearest to aside and 1 or back wall.
INSTALLATION
WARNING
WARNING
The appliance must fitted at an appropriate and safe distance from flammable
materials.
This appliance is not connected to aflue terminal which discharges the product of
combustion to the outside. Any enclosed space in which the appliance is installed
must therefore be provided with permanent ventilation in accordance with relevant
federal and state regulations in force, and the requirements of gas installations with
particular attention being paid to the matter of room ventilation.
WARNING
This appliance shall be installed only by authorised persons and in accordance with
the manufacturer's installation instructions, local gas fitting regulations, municipal
building codes, electrical wiring regulations,AS 5601·2004 -Gas Installations and any
other statutory regulations.
WARNING

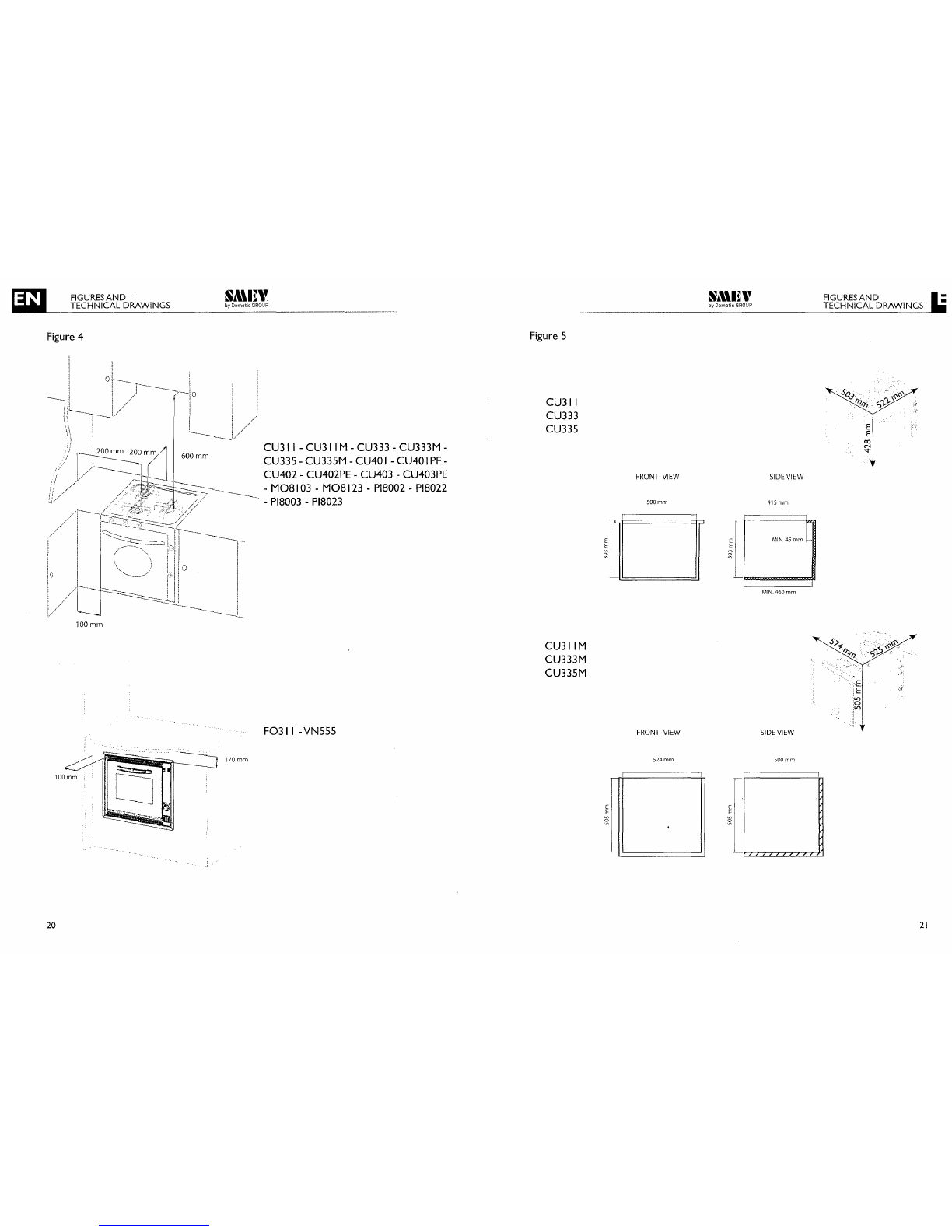

Dimensions of the appliance
170mm
100mm
WARNING
600 mm
200 mm
WARNING
WARNING
Dimensions of fitting cavity
Cut out ahole in the cabinet as illustrated in FIG. 5 - PG. 21 size will depend on appliance model.
The cabinet must be appropriately constructed and aligned horizontally with the worktop and with the unit.
The cabinet aperture must be perfectly squared and aligned. If there are apertures for cabinet ventilation,
prevent flammable materials from entering these.
4.3 Gas connection
4.2 Fitting cavity
Minimum allowable distances from walls (FIG.4 -PG. 20)
For the CU ..., FO ... and VN555 models, the cavity that the appliance is built into
must be completely sealed off. It is important that the inside panels of the cavity are
WARNING completely sealed and do not communicate with adjoining cavities or the outside.
The openings in the cavity that allow access to the gas and electric connections
should be sealed with rubber or foam.
The gas connection (114 BSPT female) is located at the rear for models CU ... ,FO ... and for model VN555,
whereas it is on the bottom for models Pl. .. and MO ...
The electric connection is located at the rear for models CU ... ,FO ... and for model VN555, whereas it is on
the bottom for models PI... and MO ... (consult chapter 4.4 Electric connection to see whether the appliance
needs this connection).
The overall dimensions are illustrated in FIG.5 PG. 21 with the cavity diagrams.
The overall dimensions include the trivet (pan support), control knobs, handles and gas connection.
4.
4.1
12
13

4. INSTALLATION
Si\\n\'
by Dometic GROUP
Ni\\U\'
by Dometic GROUP
4. INSTALLATION U
BURNER
INJECTOR ORIFICE (mm)
STAMPED N!l
AUXILIARY (0 47mm) 0.57 57
SEMI-RAPID (0 62mm) 0.72 72
OVEN
0.57 57
GRILL
0.67 67
The connection of the
gas pipe to the appliance (1/4 BSPT female) must be made with a rigid metal pipe.The
pipe
work and fittings shall be free from defects and of an approved type.
Once installed. the installation must be checked for leaks by means of an approved testing method.
Do not use asolution of soap and water.
WARNING
Never use a naked flame to check for gas leaks.
The supply cord must be positioned in such a way that it never reaches a temperature
of 75°C above ambient in any point.
The plug must be easy to access after installation.
Always disconnect electrical power before working on or servicing the) appliance.
For connecting to the mains power supply use asocket.
If the supply cord (H05RR-F 3x0,75mm2) is damaged. it must be replaced by the manufacturer or its service
agent or asimilarly qualified person in order to avoid ahazard.
4.5 Fixture
CAUTION
This appliance is to be fixed and secured to the cabinet as described in FIG. 6 - PG.
25.
CAUTION
WARNING
4.6
Testing (before leaving)
4.4 Electric connection
Low voltage I2 V "-='"
This chapter concerns only models marked 12 V"-='" on the appliance data plate.
CAUTION
Ignite all burners both individually and concurrently to ensure correct operation of gas valves. burners and
ignition.Turn gas taps
to low flame position and observe stability of the flame for each burner individually and
concurrently. Ensure
correct operation of the flame failure protection.
Depending on the type of gas used. the appearance of the flame is as follows:
Propane: flame with blue centre and well-defined contour.
Butane: flame with light yellow tips when igniting the burner. gradually intensifying as the burner heats.
In
case the appliance fails to operate correctly after all checks have been carried
out, shut off the gas supply at the main gas tap and refer to the authorized service
CAUTION provider in your area.
When satisfied with the appliance. please instruct the user on the correct method of operation.
WARNING
Absolutely do not connect the appliance to the mains voltage (230 V-), this would
destroy the components and cause a hazard for the user.
CAUTION
This appliance must be connected to a 12V "-='" source.The circuit must be protected
by a fuse of no more than 3 Ampere.
Ensure that the polarity of the connection is correct!
CAUTION
WARNING
To connect the appliance use a 1.5 mm
2double red and black wire and wire
to the terminal junction box
located at
the rear of the appliance with the wording "+ 12 V"-="'- ".The red terminal is the positive pole and
the black terminal is the negative pole.
High voltage 230-240 V-
This chapter refers only to the models listed in the table below.
Model
CU40 I PE -CU402PE -CU403PE
Nominal voltage
230-240V-
Nominal power
800W
4.6.1 Test point
For models PI... MO ... CU ...

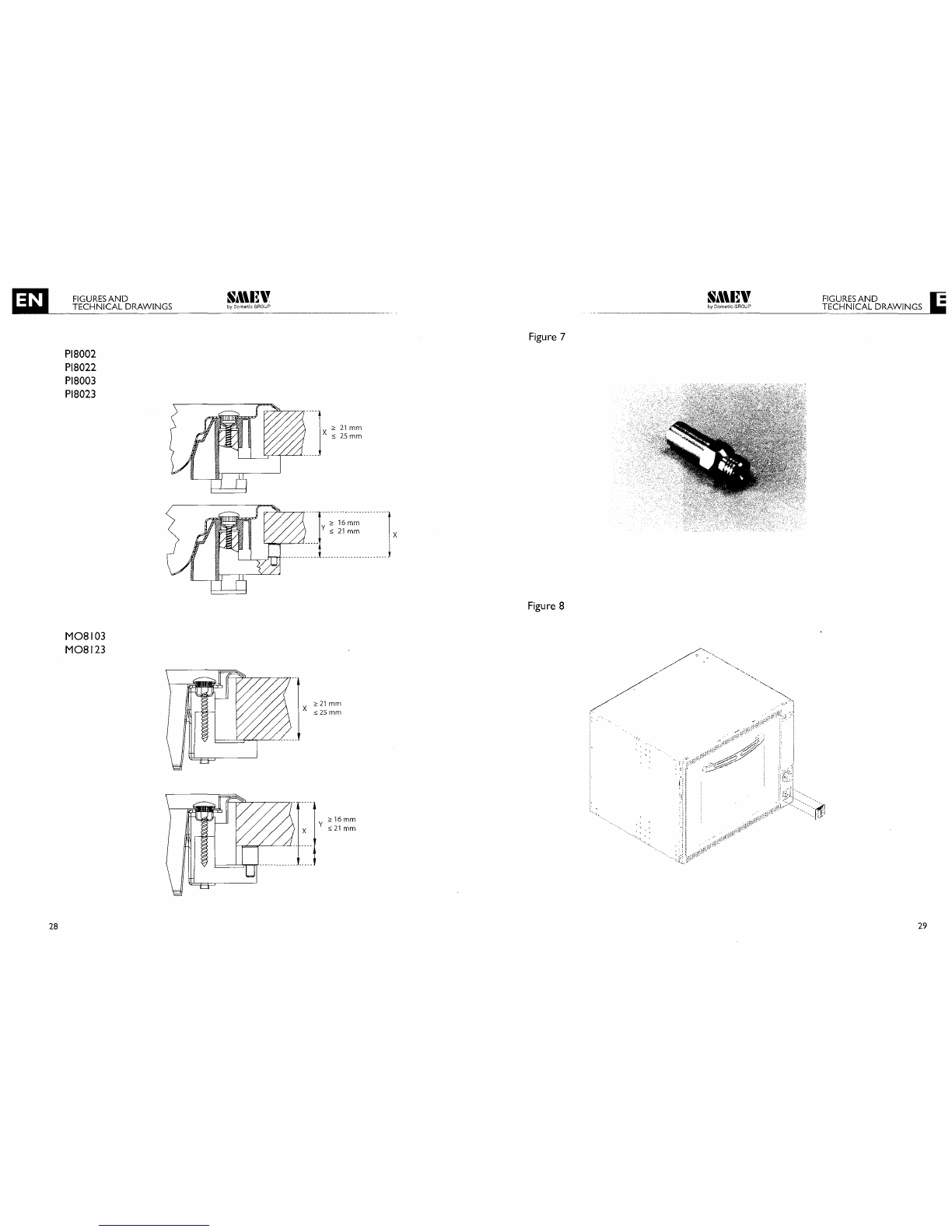

The test point is supplied loose with the appliance (see picture in FIG. 7 PG. 29). Remove one burner head. the
injector and screw
in test point fitting. The pressure is measured with the relevant burner gas valve on high
flame and with an inlet pressure of 2.75 kPa.
For models FO ...
The
test point is fitted on the main gas pipe. Remove the front plastic plaque (see picture in FIG.8 PG. 29) and
remove the screw.The pressure is measured with an inlet pressure of 2.75 kPa.
In these models there is an electric plate in the hotplate.
WARNING
WARNING
. When connecting direct to the mains supply, it is necessary to install a circuit
breaker which allows for disconnecting and isolating the appliance from the mains
in the event of overvoltage III conforming to installation regulations.
For modelsVN555
The test point is fitted on the main gas pipe. Remove the screw. The pressure is measured with an inlet
pressure of 2.75
kPa .
14 15

4. INSTALLATION S,\\U\'
by Dometic GROUP
N,"I~"
by Dometic GROUP
5. SERVICING iii

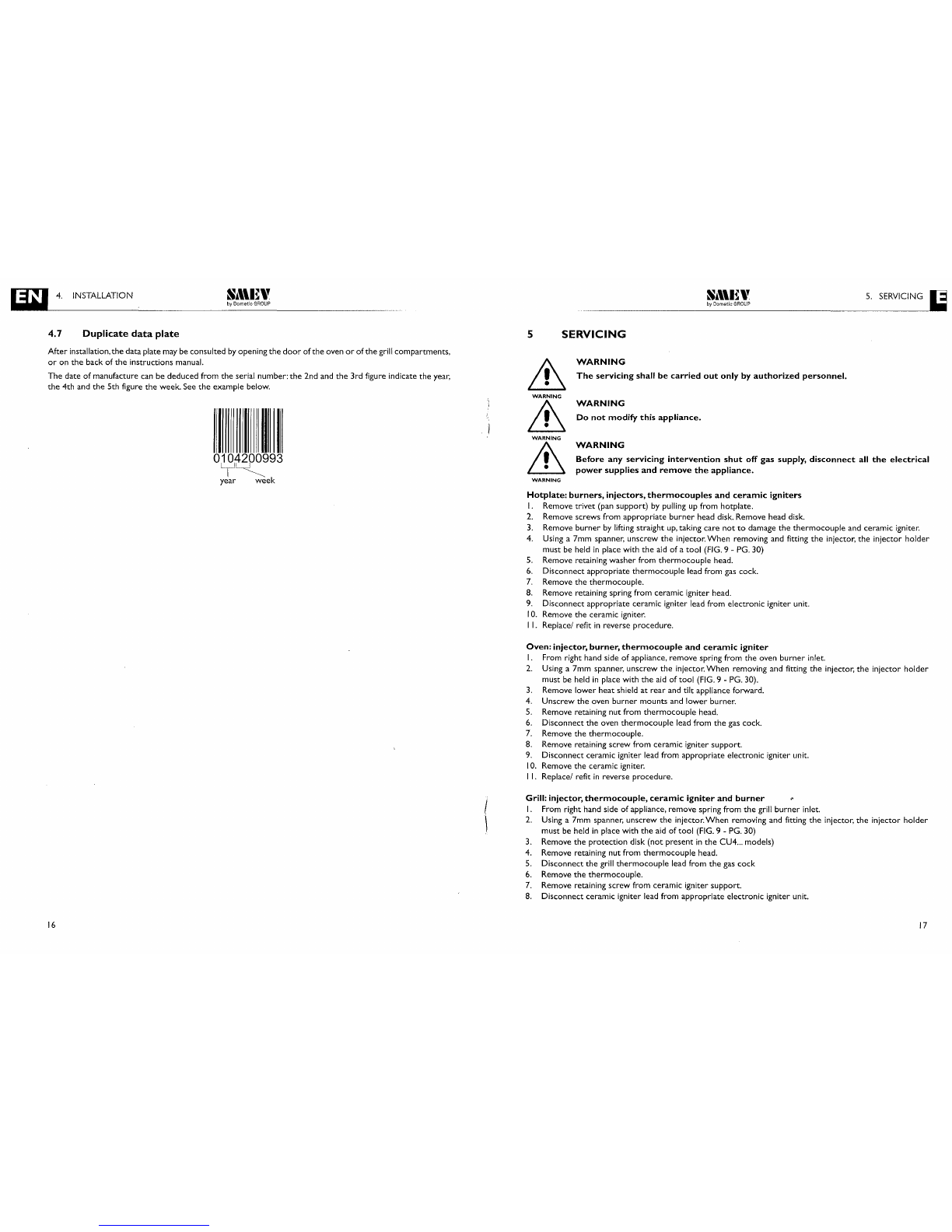

4.7 Duplicate data plate
5
SERVICING
After installation, the data plate may be consulted by opening the door of the oven or of the grill compartments,
or on the back of the instructions manual.
The date of manufacture can be deduced from the serial number: the 2nd and the 3rd figure indicate the year,
the 4th and the 5th figure the week. See the example below.
O~~993
year week
&
WARNING
&
WARNING
&
WARNING
WARNING
The servicing shall be carried out only by authorized personnel.
WARNING
Do not modify this appliance.
WARNING
Before any servicing intervention shut off gas supply, disconnect all the electrical
power supplies and remove the appliance.
16
Hotplate: burners, injectors, thermocouples and ceramic igniters
I. Remove trivet (pan support) by pulling up from hotplate.
2. Remove screws from appropriate burner head disk. Remove head disk.
3. Remove burner by lifting straight up, taking care not to damage the thermocouple and ceramic igniter.

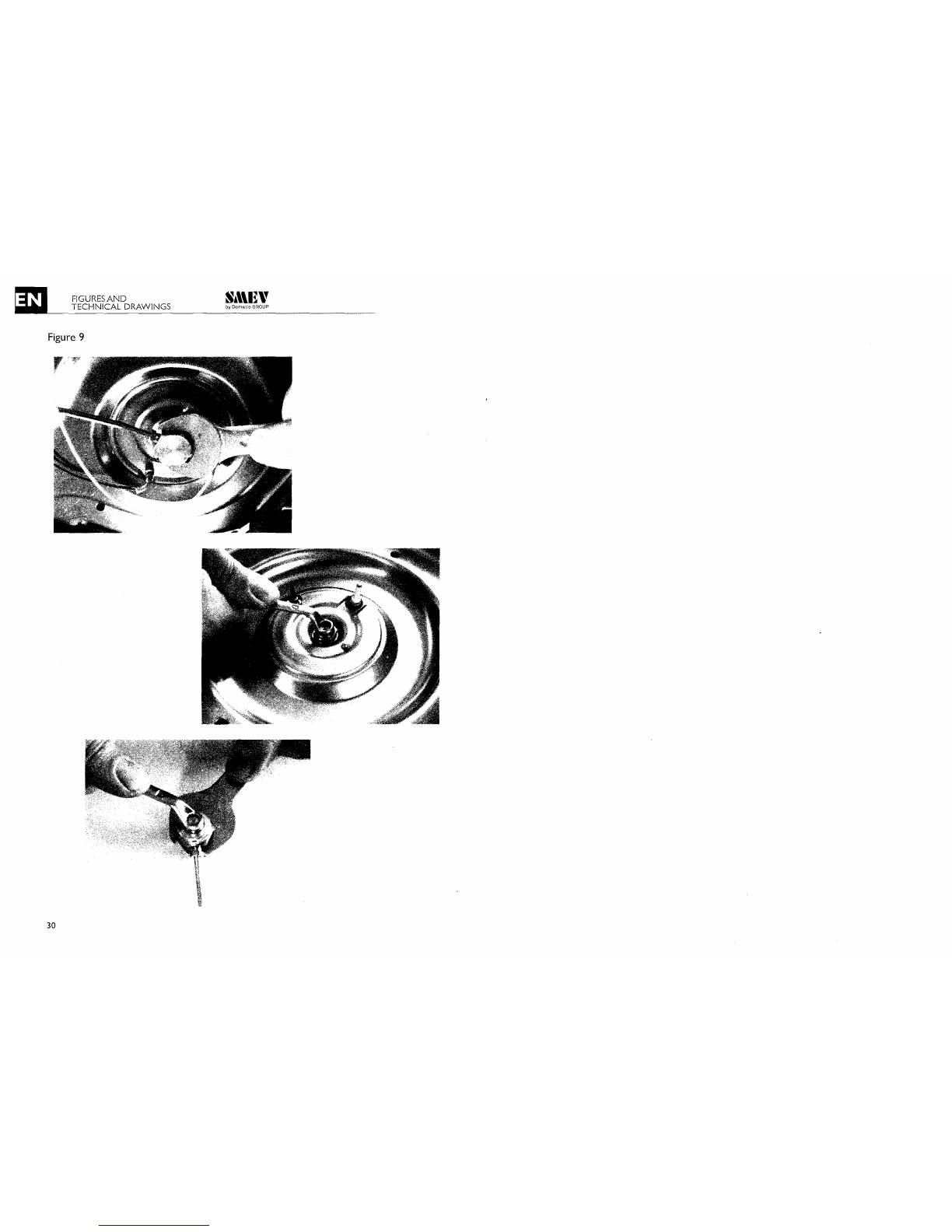

4. Using a7mm spanner, unscrew the injector. When removing and fitting the injector, the injector holder
must be held in place with the aid of a tool (FIG. 9 - PG. 30)
5. Remove retaining washer from thermocouple head.
6. Disconnect appropriate thermocouple lead from gas cock.
7. Remove the thermocouple.
8. Remove retaining spring from ceramic igniter head.
9. Disconnect appropriate ceramic igniter lead from electronic igniter unit.
10. Remove the ceramic igniter.
I I. Replace/ refit in reverse procedure.
Oven: injector, burner, thermocouple and ceramic igniter
I. From right hand side of appliance, remove spring from the oven burner inlet.
2. Using a7mm spanner, unscrew the injector. When removing and fitting the injector, the injector holder
must be held in place with the aid of tool (FIG. 9 - PG. 30).
3. Remove lower heat shield at rear and tilt appliance forward.
4. Unscrew the oven burner mounts and lower burner.
5. Remove retaining nut from thermocouple head.
6. Disconnect the oven thermocouple lead from the gas cock.
7. Remove the thermocouple.
8. Remove retaining screw from ceramic igniter support.
9. Disconnect ceramic igniter lead from appropriate electronic igniter unit.
10. Remove the ceramic igniter.
I I. Replace/ refit in reverse procedure.
Grill: injector, thermocouple, ceramic igniter and burner
I. From right hand side of appliance, remove spring from the grill burner inlet.
2. Using a7mm spanner, unscrew the injector. When removing and fitting the injector, the injector holder
must be held in place with the aid of tool (FIG. 9 - PG. 30)
3. Remove the protection disk (not present in the CU4 ... models)
4. Remove retaining nut from thermocouple head.
5. Disconnect the grill thermocouple lead from the gas cock
6. Remove the thermocouple.
7. Remove retaining screw from ceramic igniter support.
8. Disconnect ceramic igniter lead from appropriate electronic igniter unit.
17

5. SERVICING
Si\\n\'
by Dometic GROUP
Si"I~\'
by Dometic GROUP
FIGURES AND
TECHNICAL DRAWINGS
9. Remove the ceramic igniter.
10. Remove the grill burner mounting screws (2) from top.
II. Remove the grill burner mounting spacers (only for CU4 ... models) and lower burner.
Gas cocks
I. Remove the control knob by pulling.
2. Unscrew gas cock retaining nut.
3. From the underside of the appliance, remove the thermocouple lead and the gas pipe from the gas cock.
4. Remove the appropriate gas cock clamp by unscrewing the screws.
5. Remove the gas cock from the manifold.
6. Replace/ refit in reverse procedure.
Oven thermostat
I. Remove the appropriate control knob by pulling.
2. Unscrew gas cock retaining nut.
3. From the underside of the appliance, remove the thermocouple lead and the gas pipe from the thermostat.
4. Remove the thermostat clamp by unscrewing the screws.
5. Remove the thermostat from the manifold.
6. Open oven door and remove the capillary bulb/ phial from its mount.
7. Remove capillary bulb/ phial though access hole.
S. Replace/ refit in reverse procedure.
Igniter unit/s
I. From the rear right-hand side of appliance, remove electrical connectors from igniter unitls (noting
connection locations).
2. Remove the retaining rivets from appropriate igniter unit.
3. Remove the igniter unit.
4. Replace /refit in reverse procedure.
Oven door
I. Open oven door fully.
2. Remove the door hinge screws (2 each) at either side of the bottom of oven compartment.
3. Remove door from appliance.
4. Replace/ refit in reverse procedure.
230-240V-WIRING DIAGRAM
Shown below is the wiring diagram for the 230-240 V- connection for astove with electric element on the
hotplate.
WIRE COLORS:
BR: Brown
'BL: Blue
IG/Y :Green with
!Yellow stripes
,R: Red
i~'NYJte_.
18
FIGURES AND TECHNICAL DRAWINGS
Figure I
Figure 2
Figure 3
19

FIGURES AND
TECHNICAL DRAWINGS
s!\\n\'
by Dometic GROUP
N!\\U\'
by Dometic GROUP
FIGURES AND
TECHNICAL DRAWINGS .
•
Figure 4
lOOmm
F031 I -VN555
Figure 5
CU311
CU333
CU335
CU311M
CU333M
CU335M
E
E
M
'"
FRONT VIEW
SOOmm
FRONT VIEW
M
'"
M
SIDE VIEW
41Smm
MIN.45mm [
M1N.460mm
SIDE VIEW
20
170mm
524mm
500 mm
21

FIGURES AND
TECHNICAL DRAWINGS
CU401
CU40lPE
TOP VIEW
MIN. 494 mm
S,\\I~\'
by Dometic GROUP
FRONT VIEW
488mm
SIDE VIEW
479mm
MIN.21 mm l
E
E
§ ~
E
E
N
a-
u-,
F0311
FRONT VIEW
500mm
N,\\I~\'
by Dometic GROUP
FIGURES AND
TECHNICAL DRAWINGS
E
E
<Xl
'"
-q-
SIDE VIEW
MIN 480 mm
1
20 mm 488mm
CU402
CU402PE
TOP VIEW
MIN. 494 mm
20mm
FRONT VIEW
25 mm 1_
11 --'
MIN. SOD mm
SIDE VIEW
E
E
N
a-.
N
E
E
~
E
E
o
-0
.,.
CU403
CU403PE
L
20mm
L
1 1
20mm
488mm
TOP VIEW
MIN. 494 mm
488mm
J1
20mm
1
1 1
20mm
488mm
ID
FRONT VIEW
488mm
479mm
1[G
1 I
MIN.SOO mm
.. $/0
... 00
E
E
SIDE VIEW
479mm
_,:,EE. ~' ;::::=========1
:' _MIN.21 mm'
~~~l
MIN.500mm
VN555
FRONT VIEW
486mm
I
-~+-------------j
I
I
I
SIDE VIEW
MIN.460mm
I 360mm
. I-
I
~Iv J~~
! ~L JI
22 23

FIGURES AND
TECHNICAL DRAWINGS
s,\\n\'
by Dometic GROUP
S,\\I~"
by Dometic GROUP
FIGURES AND
TECHNICAL DRAWINGS -
•
210mm
CU311
CU333
CU33S
CU311M
CU33SM
CU333M
Figure 6
~I
jI
~ 0
; ~
iI
;_I~I
I
SEZ. A-A
358mm
tI
233mm cpO;,
,~
~~
--- ---_._-_._-_.- -428 mm
466mm
~
'\~ 233 mm
956mm
478mm
i-
478mm
448mm
-!-
448mm
421.7mm I
i
E
E
!'
E
E
~
~~I-------------I'
546mm
PI8002
PI8022
M08103
M08123
PI8003
PI8023
24
25

FIGURES AND
TECHNICAL DRAWINGS
CU401
CU401
PE
CU402
CU402PE
S.\\I~\'
by Dometic GROUP
.. , .. ::)
Q'
(» .'
F0311
VN555
s.\\n\'
by Dornetic GROUP
FIGURES AND
TECHNICAL DRAWINGS .
•
26
CU403
CU403PE
... ·4··
27

FIGURES AND
TECHNICAL DRAWINGS
PI8002
PI8022
PI8003
PI8023
M08103
M08123
s,\\n\'
by Dometic GROUP
.... jx ;" 21 mm
" 25mm
"T-L+-.L..L..d
'--Jo'-f-.--L..-LJ ........• · .• ·.·1:;: ~~ •••••••••• 1'
'---J~,.JI
Figure 7
Figure 8
s,\\n\'
by Dometic GROUP
FIGURES AND
TECHNICAL DRAWINGS -
-
28
;,,21 mm
X ,,25 mm
29

FIGURES AND
TECHNICAL DRAWINGS
Figure 9
s,\\n\'
by Dometic GROUP
30
