Parts Manual fo
r
21" STEEL DECK WALK BEHIND
SERIES 20
COMMERCIAL MOWERS
Revision: - 3/11/2011
Briggs & Stratton Yard Power Products Group
Manual No. 7104803
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
Descri
p
tionModel No.
7800772 CP218520
7800764 CRP218520

Not for
Reproduction

Not for
Reproduction
Table Of Content
s
TP 400-5485---WB-N
21" STEEL DECK WALK BEHIND
SERIES 20 3
Manual No. 7104803
PAGE GROUP
4Handles & Controls Group
8Engine, Deck & Blade Group
10 Wheel & Height-of-Cut Assembly Group
12 Drive System, Self-Propelled
16 Transmission - Differential Group
18 Side Chute, Adapter
20 Grass Bag & Accessories Group
22 Decals Group

Not for
Reproduction
Manual No. 7104803 21" STEEL DECK WALK BEHIND
SERIES 20
4
Handles & Controls Group

Not for
Reproduction
Footnotes:
Manual No. 710480321" STEEL DECK WALK BEHIND
SERIES 20 5
Handles & Controls Group
Part No Descri
p
tionItem Qty
1 7074411A 1 HANDLE, Upper
2 7023810 1 FOAM GRIP, 18.75” long
3 7074418A 1 BAIL, OPC Control
4 7034872 1 CLIP, Zone Control
5 7074156A 1 HANDLE, Middle
6 7033985A 1 HANDLE, Lower, Adjustable, LH
7 7033986A 1 HANDLE, Lower, Adjustable, RH
8 7074140 1 CONTROL PANEL, No Electric Switch
9 7900067 4 SCREW, 1/4-20 x .550” Pan Head Self-Tap (Torx)
10 7074473A 1 HANDLE, Clutch
11 7028407 1 GRIP, International Symbol
12 7023792 1 PIN, 1/4 x 1-1/2”
13 7014343 2 BUSHING, .27 x .35 x .4 Flange
14 7091020 1 PUSH-NUT, 1/4”
15 7079577 2 SCREW, 1/4-20 x 1-1/2” Hex Head Cap GR 5
16 7102593 1 CABLE, Zone Control, W14
17 7090053 5 WASHER, 1/4” Internal Tooth Lock, YZ
18 7091576 3 NUT, 1/4-20 Hex, GR 5
19 7023813 1 CLIP, Wiring Harness
20 7102594 1 THROTTLE CONTROL, (63.12” Long)
21 7075308 1 KNOB, Throttle
22 7090505 2 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5
23 7028488 1 GUIDE, Rope (1/4-20 thread)
24 7076978 1 NUT, 1/4-28 Hex GR 5 or B
25 7034604 1 CONTROL, Clutch, 21”
26 7012121 1 COVER, Vinyl
27 7012122 1 SPRING, Clutch
28 7026219 1 CLAMP, 7/8” Double Cable
29 7091190 6 BOLT, 5/16-18 X1-1/2” Curved Head Square Neck, GR 2 BZ
30 7012080 1 CABLE-TIE, 7”
31 7090391 6 WASHER, 5/16” Internal Tooth Lock
32 7091511 6 NUT, 5/16-18 Hex, GR 5 or B, BZ (Was 7091069)
33 7074003 1 BRACKET, Shift
34 7091305 1 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5
35 7031961 2 WASHER, 7/16” Flat
36 7028465 2 WASHER, Nylon
37 7074113 1 LEVER, Shift
38 7075182 1 KNOB, Shift
39 7091167 1 SCREW, #8-32 x 1/2” Cross Recess Filister Head Machine
40 7091018 1 NUT, #8-32 Hex
41 7028568 1 WASHER, Belleville
42 7091585 2 NUT, 3/8-16 Hex Center Lock
43 7074133 1 ROD, Speed Control
44 7090188 2 WASHER, .34 x .69 x .08 Flat, YZ

Not for
Reproduction
Manual No. 7104803 21" STEEL DECK WALK BEHIND
SERIES 20
6
Handles & Controls Group

Not for
Reproduction
Footnotes:
Manual No. 710480321" STEEL DECK WALK BEHIND
SERIES 20 7
Handles & Controls Group
Part No Descri
p
tionItem Qty
45 7034162 1 COTTER PIN, 5/16” Self Lock
46 7090799 2 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck, GR 5 BZ (Was7091026)
47 7091601 3 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
48 7046707A 2 BRACE, Handle
49 7090238 1 SCREW, 5/16-24 x 1” Hex Head Cap, GR 5, BZ
50 7090595 4 BOLT, 5/16-18 x 3/4” Hex Flange Lock
51 7091130 2 WASHER, .327 x .875 x .09 Flat, BZ
52 7090895 1 T-NUT, 5/16-18
53 7012114 1 BUSHING, Differential
54 7034179A 1 LINK, Differential, Commercial (also part of Drive System Group)
55 7091606 1 NUT, 5/16-24 Hex Center Lock, GR B, BZ (Was 7091074)
56 7073913 1 BELL CRANK, Black Zinc
57 7015753 2 BALL JOINT
58 7090095 3 NUT, 1/4-28 Hex GR 5 or B, YZ
59 7091904 1 SCREW, 5/16-18 x 7/8” Hex Head Cap, GR 5 YZ
60 7073822A 1 BRACKET, Bell Crank
61 7090585 4 NUT, 5/16-18 Hex Flange Lock, GR 5
62 7013849 1 SPACER, .623 OD x .328 ID x .151 L
63 7091575 1 NUT, 5/16-18 Hex Center Lock

Not for
Reproduction
Manual No. 7104803 21" STEEL DECK WALK BEHIND
SERIES 20
8

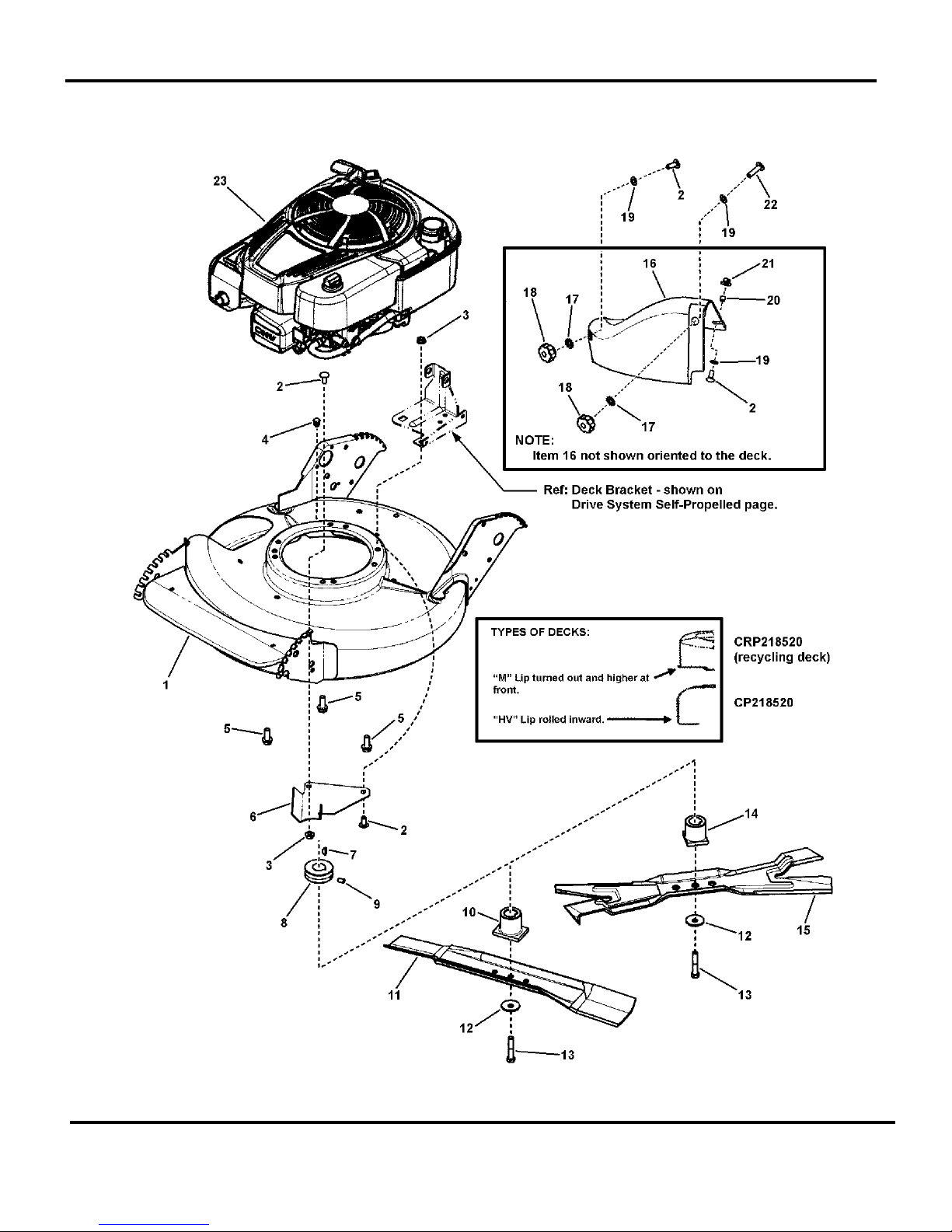

Engine, Deck & Blade Group

Not for
Reproduction
Footnotes:
Manual No. 710480321" STEEL DECK WALK BEHIND
SERIES 20 9
Engine, Deck & Blade Group
Part No Descri
p
tionItem Qty
1 7600034D 1 WELDMENT, Deck, 21” Non-Adjust. Air
1 7500549D 1 WELDMENT, Deck, 21”, Self-Propelled, HV
2 7091508 3 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 (Was 7090001)
3 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ (Was 7091070)
4 7046780 2 PLUG, Hole, Polyethylene
5 7090324 3 SCREW, 3/8-16 x 1” Self-Tapping
6 7074568 1 COVER, Belt
7 7091214 1 KEY, Woodruff #HP-506 Hi-Pro
8 7015780 1 PULLEY, Engine (25mm I. D. x 2-1/8” O.D.)
9 7092086 1 SCREW, 5/16-18 x 1/2” Hex Socket Head
10 7101414 1 HUB, Blade Drive, 25mm I.D. RD 2 Position (used on 7800764 model)
11 7026691 1 BLADE, 21” Standard Lift (used on 7800772 model)
12 7012063 1 WASHER, Cone
13 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5
14 7015626 1 HUB, Blade Drive, .25MM ID (used on 7800772 model)
15 7026407 1 BLADE, 21” Ninja (used on 7800764 model)
16 7029149 1 COVER, 21” Deck
17 7090189 2 WASHER, 5/16” Internal/External Lock
18 7101022 2 KNOB, Fluted, 5/16-18 x 1/2”
19 7011791 3 RETAINER, 5/16” Bolt
20 7024340 1 SPACER, .316 I.D. x .375 O.D. x .310 thick
21 7090951 1 NUT, 5/16-18 Hex Large Flange Center Lock
22 7091169 1 BOLT, 5/16-18 x 1-1/8 Round Head Short Square Neck, GR 5 ZP
23 121Q72-0119-F1 1 * ENGINE, 850 Series, W14
NOTE: * Purchase engine parts from engine manufacturer dealer.

Not for
Reproduction
Manual No. 7104803 21" STEEL DECK WALK BEHIND
SERIES 20
10

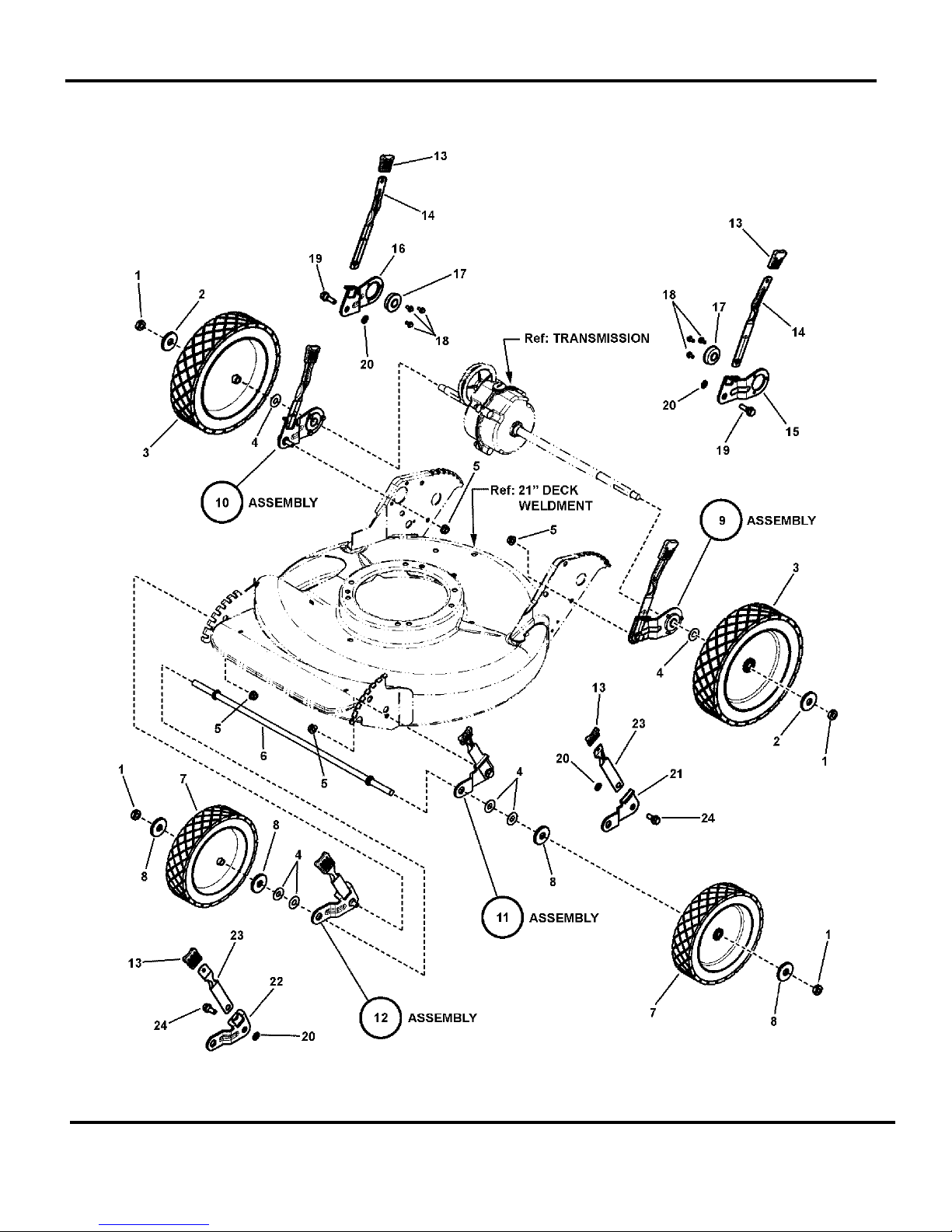

Wheel & Height-of-Cut Assembly Group

Not for
Reproduction
Footnotes:
Manual No. 710480321" STEEL DECK WALK BEHIND
SERIES 20 11
Wheel & Height-of-Cut Assembly Group
Part No Descri
p
tionItem Qty
1 7090377 4 NUT, 7/16-20 Hex Center lock Jam, GR 5, YZ
2 7031960 2 HUBCAP
3 7035726 2 WHEEL, 10 x 1.75- Steel-D- (Self Propelled)- Gray
4 7031961 6 WASHER, 7/16” Flat
5 7091601 4 NUT, 5/16-18 Hex Flange Lock, GR 5 (Was 7091070)
6 7021119 1 AXLE, V21
7 7035727 2 WHEEL, 8 x 1.75- Steel - D- Gray
8 7031121 4 HUBCAP, V21
9 7054247 1 ASSEMBLY, Wheel Arm, Left Rear, Long (Was 7054231)
10 7054246 1 ASSEMBLY, Wheel Arm, Right Rear, Long (Was 7054230)
11 7051885 1 ASSEMBLY, Front Wheel Arm, LH
12 7051886 1 ASSEMBLY, Front Wheel Arm, RH
13 7100633 4 GRIP, Height Latch
14 7035717 2 LATCH, Height Adjusting, (long)
15 7032723 1 ARM, Wheel, Left Rear
16 7032722 1 ARM, Wheel, Right Rear
17 7012312 2 BEARING, 9/16” ID
18 7091012 6 SCREW, #10-32 x 3/8” Hex Washer Self-Tap, BZ
19 7011078 2 BOLT, 5/16-18 x 1” Hex Washer Face Shoulder
20 7011791 4 RETAINER, 5/16” Bolt
21 7031016 1 WHEEL ARM, L.H. Front (Square Hole)
22 7031017 1 WHEEL ARM, R.H. Front (Round Hole)
23 7012325 2 LATCH, Height
24 7015761 2 BOLT, 5/16-18 x 3/4” Hex Washer Face Shoulder

Not for
Reproduction
Manual No. 7104803 21" STEEL DECK WALK BEHIND
SERIES 20
12

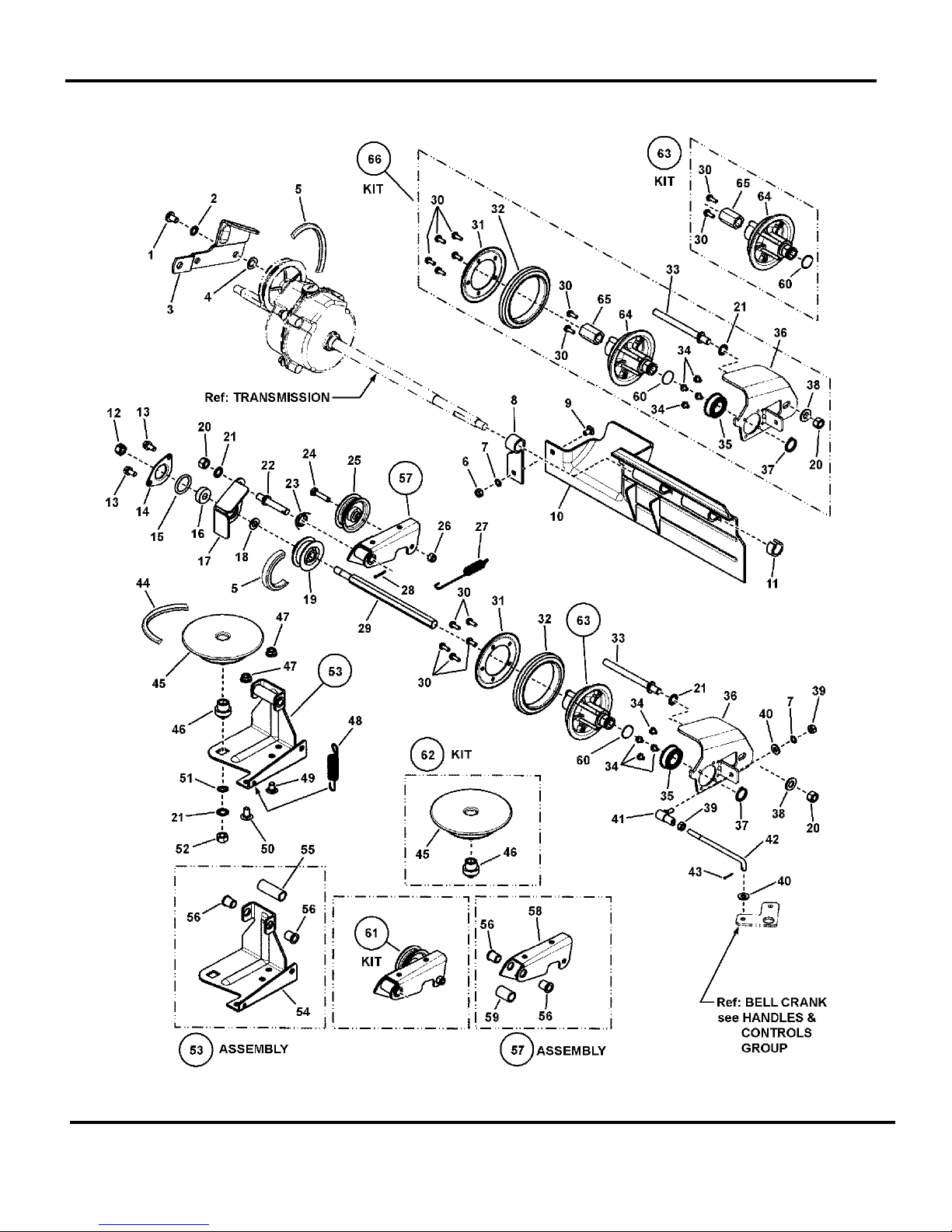

Drive System, Self-Propelled

Not for
Reproduction
Footnotes:
Manual No. 710480321" STEEL DECK WALK BEHIND
SERIES 20 13
Drive System, Self-Propelle
d
Part No Descri
p
tionItem Qty
1 7091542 1 SCREW, 5/16-18 x 1/2” Pan Head Self-Tap (Torx)
2 7090391 1 WASHER, 5/16” Internal Tooth Lock
3 7034179A 1 LINK, Differential, Commercial
4 7011724 1 WASHER, Curved, .44 x .78 x .025 BZ
5 7012354 1 BELT, Poly-V, V21
6 7091576 1 NUT, 1/4-20 Hex, GR 5 or B, ZP (Was 7090063)
7 7090053 2 WASHER, 1/4” Internal Tooth Lock, YZ (Was 7091023)
8 7012616 1 SUPPORT, Guard
9 7091604 1 BOLT, 1/4-20 x 1/2” Short Square Neck Carriage, GR 5 (Was 7090005)
10 7029008 1 FOOT GUARD, 21”
11 7023791 1 RING, Split, .68 x .93 x .44 (Black)
12 7090289 1 NUT, 3/8-24 Hex Center lock, GR 5, YZ
13 7091122 2 SCREW, 1/-20 x 1/2” Hex Flange Self-Tap (Was 7090539)
14 7031809 1 HOLDER, Bearing (Outer Half)
15 7011025 1 O-RING, V21
16 7028014 1 BALL BEARING, Spherical O.D., .38 I.D.
17 7031873 1 HOLDER, Bearing (Inner Half)
18 7012316 1 WASHER, .390 I. D. Flat
19 7019383 1 PULLEY, Poly-V, 2.00 O.D.
20 7091630 2 NUT, 3/8-24 Hex, GR 5, YZ
21 7090390 3 WASHER, 3/8” Internal Tooth Lock, BZ
22 7012111 1 STUD, Idler, (3/8-24 thread) YZ
23 7012126 1 SPRING, V21
24 7091025 1 SCREW, 1/4-28 x 1-3/8” Hex Head Cap, GR 5
25 7012124 1 PULLEY, Idler, V21
26 7090303 1 NUT, 1/4-28 Hex Top Lock, GR 5, BZ
27 7012122 1 SPRING, Clutch (also shown on Handles & Controls Group page)
28 7091597 1 COTTER PIN, 3/32 x 1/2” (Was 7090555)
29 7072284 1 HEX SHAFT (Heat Treated)
30 7090913 7 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx)
31 7031013 1 SIDE PLATE, Drive Tire
32 7023364 1 DRIVEN RING (Was 7010927)
33 7012125 1 GUIDE, Thrust Plate (3/8-24 thread)
34 7090981 4 SCREW, #10-32 x 1/4” Hex Washer self-Tap
35 7029027 1 BALL BEARING, 3/4” Bore, Commercial
36 7300977A 1 THRUST PLATE, Short
37 7010746 1 RETAINING RING, .625 External
38 7090122 1 WASHER, 3/8” Flat
39 7090095 2 NUT, 1/4-28 Hex GR 5 or B, YZ (also shown on Handles & Controls Group page)
40 7091294 2 WASHER, .28 x .63 x .065, Flat, YZ
41 7015753 1 BALL JOINT (also shown on Handles & Controls Group page)
42 7074145 1 LINK, Transfer (1/4-28 thread)
43 7090673 1 COTTER PIN, .06 x .50, YZ (Was 7091629)
44 7046784 1 BELT, Engine Drive (Stretch)

Not for
Reproduction
Manual No. 7104803 21" STEEL DECK WALK BEHIND
SERIES 20
14
Drive System, Self-Propelled

Not for
Reproduction
Footnotes:
Manual No. 710480321" STEEL DECK WALK BEHIND
SERIES 20 15
Drive System, Self-Propelle
d
Part No Descri
p
tionItem Qty
45 7073528 1 DRIVE DISC, Steel
46 7017696 1 BUSHING
47 7090585 2 NUT, 5/16-18 Hex Flange Lock, GR 5
48 7029025 1 SPRING, Extension, .58 x 3.2
49 7090731 1 BOLT, 5/16-18 x 1/2” Short Square neck Carriage, GR 5
50 7090799 1 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck, GR 5 BZ (Was 7091026)
51 7011791 1 RETAINER, 5/16” Bolt
52 7091302 1 NUT, 3/8-16 Hex, GR 5, YZ
53 7052987A 1 ASSEMBLY, Deck Bracket, P21S
54 7033774 1 BRACKET, Deck, P21S
55 7021758 1 SPACER, .65 OD x .500 ID x 1.75 L
56 7012306 2 BUSHING, Flange
57 7500154 1 ASSEMBLY, Idler Arm (Bushing & Spacer)
58 7032832A 1 ARM, Clutch Idler
59 7100447 1 SPACER, Idler Arm
60 7010121 1 WASHER, Shim, .75X1.0X.021
61 7051913 1 ASSEMBLY, Clutch Idler (incl. items 24, 25, 26, 56 (2), 58 & 59)
62 7061275 1 ASSEMBLY, Drive Disc, Square, P21S (incl. items 45, 46, 52, & 7013893)
63 7061276 1 KIT, Hub & Bushing (Was 7053217)
64 7017073 1 HUB, Driven Disc
65 7011108 1 BUSHING, Drive, Hex
66 7600109 1 ASSEMBLY, Driven Disc, Short, Commercial, MY08 (incl. items 20, 21, 30, 31, 32, 33, 34, 35,
36, 37, 38, 60 & 63)

Not for
Reproduction
Manual No. 7104803 21" STEEL DECK WALK BEHIND
SERIES 20
16
Transmission - Differential Group

Not for
Reproduction
Footnotes:
Manual No. 710480321" STEEL DECK WALK BEHIND
SERIES 20 17
Transmission - Differential Group
Part No Descri
p
tionItem Qty
-- 7053943 1 ASSEMBLY, Transmission
1 7051908 1 ASSEMBLY, Right Hand Housing (Includes enclosed items)
2 7029034 1 HOUSING, Right Hand
3 7012314 1 SEAL, 5/8” ID
4 7073963 1 BALL BEARING, 1-1/8” O.D.
5 7029035 1 BEARING, Tapered, Differential Housing
6 7024442 3 GASKET, 5/8” O.D.
7 7014155 3 SCREW, 5/16-24 x 1-1/8” Rib Neck, GR 5
8 7053939 1 ASSEMBLY, Left Hand Housing
9 7029033 1 HOUSING, Left Hand
10 7090189 3 WASHER, 5/16” Internal/External Lock
11 7051903A 1 WELDMENT, Differential Bracket
12 7092062 4 NUT, 5/16-24 Lock, GR C, YZ (Gripco part no. TLA-5624-S-GRC)
13 7019213 1 PULLEY, Poly-V
14 7092063 1 WASHER, .32 x 1.40 x .1 Cone, YZ
15 7091825 4 SCREW, 1/4-20 x 1” Hex Washer Self-Tap, YZ (Was 7092064)
16 7016544 1 PLUG, Transmission
17 7091720 1 WASHER, .453 x .75 x .073 Flat, YZ
18 7090557 4 SCREW, #10-32 x 1-1/2” Hex Head Cap, GR 5
19 7031970 2 PLATE, V21
20 7050767 1 ASSEMBLY, Input Gear
21 7031965 2 WASHER, Thrust, V21
22 7012500 4 SPACER, .700 OD x .480 ID x .380 L
23 7021115 4 GEAR, Differential Pinion, V21
24 7011110 4 SHAFT, V21
25 7012495 1 * GEAR, Differential (46 Tooth), V21
26 7050831 1 ASSEMBLY, Long Axle (Was 7051933)
27 7090376 4 NUT, #10-32 Hex Nyloc
28 7011774 1 GASKET, V21
29 7050830 1 ASSEMBLY, Short Axle (Was 7051932)
30 7012543 1 SPACER, .820 OD x .720 ID x .330 L
-- 7061017 32oz. ** “00” Grease (Not shown)
NOTE: * 7060337 KIT, Transmission Gear (Incl. items 18, 19, 21, 22, 23, 24, 25, 27 & 30).
NOTE: ** Maximum capacity of transmission before causing leakage behind pulley is 4 oz. DO NOT OVERFILL!

Not for
Reproduction
Manual No. 7104803 21" STEEL DECK WALK BEHIND
SERIES 20
18
Side Chute, Adapter

Not for
Reproduction
Footnotes:
Manual No. 710480321" STEEL DECK WALK BEHIND
SERIES 20 19
Side Chute, Adapte
r
Part No Descri
p
tionItem Qty
1 7047081 1 BAG ADAPTER, 21
2 7042965 1 CHUTE, 21” Side (accessory part)
3 7029149 1 COVER, 21” Deck
4 7091508 3 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 (Was 7090001)
5 7011791 1 RETAINER, 5/16” Bolt
6 7024340 1 SPACER, .316 I.D. x .375 O.D. x .310 thick
7 7090951 1 NUT, 5/16-18 Hex Large Flange Center Lock
8 7090189 2 WASHER, 5/16” Internal/External Lock
9 7101022 2 KNOB, Fluted, 5/16-18 x 1/2”

Not for
Reproduction
Manual No. 7104803 21" STEEL DECK WALK BEHIND
SERIES 20
20
Grass Bag & Accessories Group
