Sollae systems Cse-m32 User manual

Sollae Systems Co., Ltd.

http://www.sollae.co.kr

Serial Device Server

CSE-M32 Users’Manual

Version 2.2

2011-08-03

CSE-M32 Users’Manual Ver. 2.2

Sollae Systems Co., Ltd. - 1 - http://www.sollae.co.kr

To all residents of the European Union

Important environmental information about this product

This symbol on this unit or the package indicates that disposal of this unit after its

lifecycle could harm the environment. Do not dispose of the unit as unsorted

municipal waste; it should be brought to a specialized company for recycling. It is your

responsibility to return this unit to your local recycling service. Respect your local

environmental regulation. If in doubt, contact your local waste disposal authorities.

CSE-M32 Users’Manual Ver. 2.2

Sollae Systems Co., Ltd. - 2 - http://www.sollae.co.kr

Contents

CONTENTS ...........................................................................................................................................- 2 -

1OVERVIEW................................................................................................................................- 6 -

1.1 Overview ................................................................................................................................................................- 6 -

2SPECIFICATIONS .....................................................................................................................- 7 -

2.1 Components.........................................................................................................................................................- 7 -

2.2 Specifications .......................................................................................................................................................- 7 -

2.3 Interface..................................................................................................................................................................- 8 -

2.3.1

Dimension .................................................................................................................................................- 8 -

2.3.2

JP1.................................................................................................................................................................- 8 -

2.3.3

JP2.................................................................................................................................................................- 9 -

2.3.4

DC Electric Characteristics .............................................................................................................. - 10 -

2.4 Serial Interface.................................................................................................................................................. - 10 -

2.4.1

Serial Type.............................................................................................................................................. - 10 -

2.4.2

Serial Baud rate ................................................................................................................................... - 10 -

2.4.3

Data bits, Parity, and Stop bit ...................................................................................................... - 11 -

2.4.4

Flow Control.......................................................................................................................................... - 11 -

2.4.5

Telnet COM Port Control Option (RFC2217) ......................................................................... - 11 -

2.4.6

Disable TCP Transmission Delay.................................................................................................. - 11 -

2.4.7

FIFO ........................................................................................................................................................... - 11 -

2.4.8

Data Frame Interval ........................................................................................................................... - 12 -

2.4.9

TX interval .............................................................................................................................................. - 12 -

2.4.10

TCP Server / Client mode............................................................................................................. - 12 -

2.4.11

SPI Interface ........................................................................................................................................ - 12 -

2.5 Ethernet Interface ........................................................................................................................................... - 12 -

2.6 Application Circuits ........................................................................................................................................ - 12 -

2.6.1

RJ45........................................................................................................................................................... - 12 -

2.6.2

Application circuit............................................................................................................................... - 14 -

3TEST RUN.............................................................................................................................. - 15 -

3.1 Test Run .............................................................................................................................................................. - 15 -

3.1.1

Changing PC IP Address ................................................................................................................. - 15 -

3.1.2

Installing CSE-M32 ............................................................................................................................. - 15 -

3.1.3

Configuring CSE-M32 ....................................................................................................................... - 15 -

3.1.4

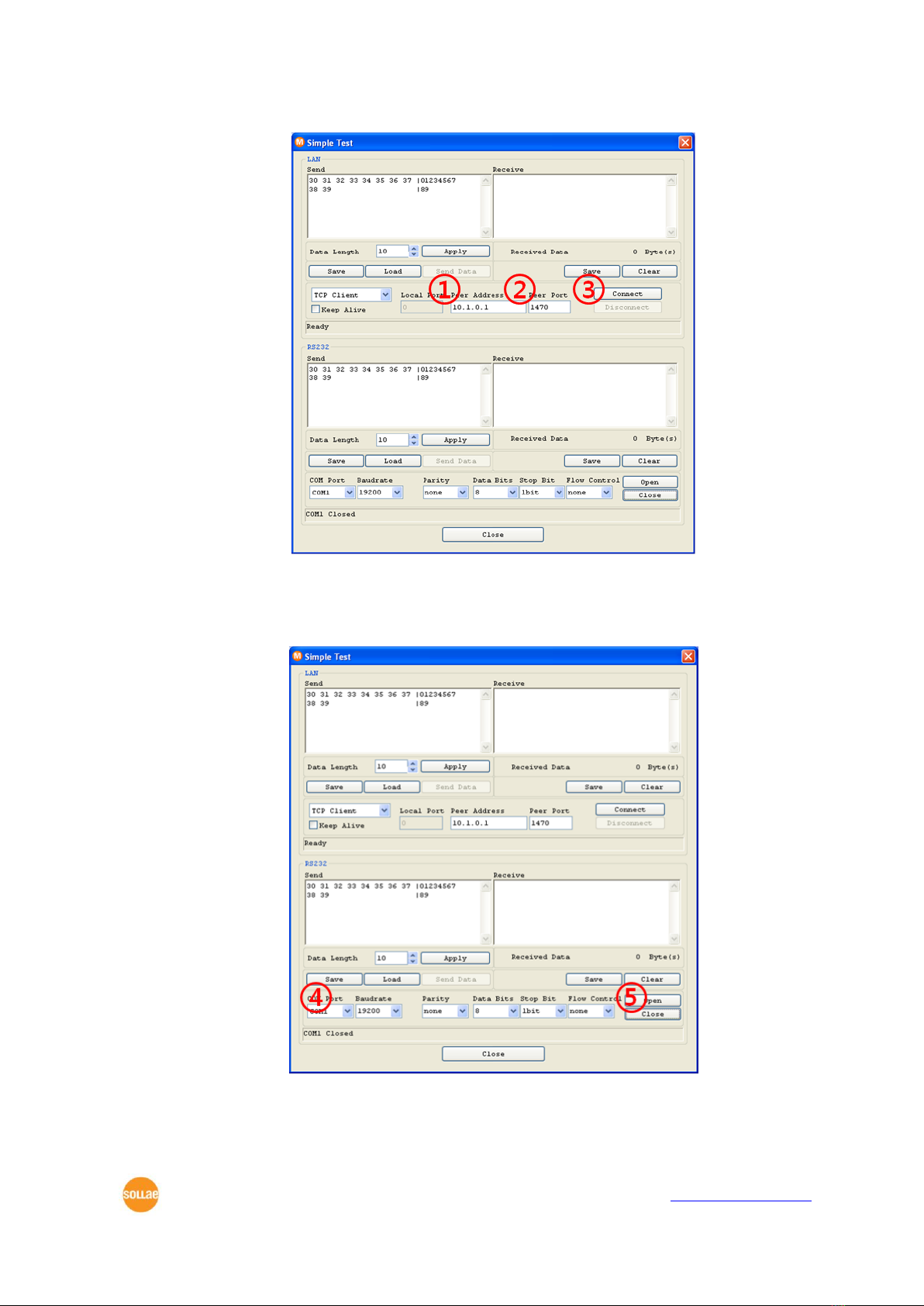

Communication Test ......................................................................................................................... - 16 -

4CONFIGURING IP ADDRESS AND VARIABLES ............................................................... - 19 -

CSE-M32 Users’Manual Ver. 2.2

Sollae Systems Co., Ltd. - 3 - http://www.sollae.co.kr

4.1 IP Address and Environmental Variables............................................................................................. - 19 -

4.2 Configuration with ezManager................................................................................................................. - 19 -

4.2.1

ezManager ............................................................................................................................................. - 19 -

4.2.2

Buttons of ezManager...................................................................................................................... - 20 -

4.2.3

Parameters of ezManager............................................................................................................... - 20 -

4.2.4

Matters to be attended to ............................................................................................................. - 21 -

4.3 AT command..................................................................................................................................................... - 21 -

4.4 IP Address Related Categories Settings via DHCP ......................................................................... - 21 -

4.5 IP Address settings via PPPoE .................................................................................................................. - 22 -

4.6 Notify IP Change............................................................................................................................................. - 22 -

4.6.1

DDNS (Dynamic Domain Name System)................................................................................. - 22 -

4.6.2

TCP/UDP.................................................................................................................................................. - 22 -

5OPERATION MODE.............................................................................................................. - 24 -

5.1 Operation Mode Overview......................................................................................................................... - 24 -

5.1.1

Overview ................................................................................................................................................. - 24 -

5.2 How to Initiate Each Operation Mode ................................................................................................. - 24 -

5.2.1

Normal Mode ....................................................................................................................................... - 24 -

5.2.2

How to Initiate the Serial Configuration Mode.................................................................... - 24 -

5.2.3

How to Initiate the ISP Mode....................................................................................................... - 24 -

5.2.4

Comparison of Operation Modes............................................................................................... - 24 -

5.3 Normal Communication Mode ................................................................................................................ - 25 -

5.4 Serial Configuration Mode ......................................................................................................................... - 25 -

5.5 ISP Mode ............................................................................................................................................................ - 26 -

5.5.1

Upgrading Firmware.......................................................................................................................... - 26 -

6NORMAL COMMUNICATION MODE ............................................................................... - 27 -

6.1 T2S –TCP Server............................................................................................................................................. - 27 -

6.1.1

TCP Connection ................................................................................................................................... - 27 -

6.1.2

Serial Data before the TCP Connection ................................................................................... - 27 -

6.1.3

Data Transmission .............................................................................................................................. - 27 -

6.1.4

Disconnection ....................................................................................................................................... - 28 -

6.2 COD –TCP Client............................................................................................................................................ - 29 -

6.2.1

Serial Data before the TCP Connection ................................................................................... - 29 -

6.2.2

Data Transmission .............................................................................................................................. - 29 -

6.2.3

Disconnection ....................................................................................................................................... - 30 -

6.2.4

DNS ........................................................................................................................................................... - 30 -

6.3 ATC ........................................................................................................................................................................ - 31 -

6.4 U2S ........................................................................................................................................................................ - 32 -

CSE-M32 Users’Manual Ver. 2.2

Sollae Systems Co., Ltd. - 4 - http://www.sollae.co.kr

7ATC MODE ............................................................................................................................ - 33 -

7.1 Overview ............................................................................................................................................................. - 33 -

7.1.1

AT command format......................................................................................................................... - 33 -

7.2 Basic AT Command Set (Example: ATA, ATD etc.) .......................................................................... - 33 -

7.3 Extended AT Commands (Example: AT+PLIP etc.).......................................................................... - 34 -

7.4 Online State and AT Command State................................................................................................... - 34 -

7.4.1

Changing Online State to AT Command State .................................................................... - 35 -

7.4.2

Changing AT Command State to Online State .................................................................... - 35 -

7.5 Example of Configuration with AT Command .................................................................................. - 35 -

7.6 Example of TCP Connection ...................................................................................................................... - 36 -

7.6.1

Example of Active Connection ..................................................................................................... - 36 -

7.6.2

Example of Active Connection with host name ................................................................... - 36 -

7.6.3

Example of passive Connection ................................................................................................... - 37 -

7.7 Example of TCP Disconnection ................................................................................................................ - 37 -

7.7.1

Example of active disconnection................................................................................................. - 37 -

7.7.2

Example of passive disconnection.............................................................................................. - 37 -

8SECURITY PROTOCOLS & OPTION .................................................................................. - 38 -

8.1 SSL ......................................................................................................................................................................... - 38 -

8.1.1

SSL (Secure Socket Layer)............................................................................................................... - 38 -

8.1.2

How to set the SSL on CSE-M32 ................................................................................................ - 38 -

8.1.3

Restriction............................................................................................................................................... - 39 -

8.2 SSH ........................................................................................................................................................................ - 39 -

8.2.1

SSH (Secure Shell) .............................................................................................................................. - 39 -

8.2.2

How to set the SSH on CSE-M32 ............................................................................................... - 39 -

8.2.3

Restriction............................................................................................................................................... - 40 -

8.3 ezTCP Firewall................................................................................................................................................... - 40 -

9CHECKING & DEBUGGING................................................................................................. - 42 -

9.1 Telnet.................................................................................................................................................................... - 42 -

9.1.1

Telnet Login........................................................................................................................................... - 42 -

9.1.2

Commands............................................................................................................................................. - 42 -

9.2 Status on ezManager.................................................................................................................................... - 44 -

9.2.1

Status of the CSE-M32..................................................................................................................... - 44 -

9.2.2

Closing TCP connection by the ezManager........................................................................... - 44 -

9.3 Remote Debugging ....................................................................................................................................... - 45 -

10 THE EVALUATION BOARD ................................................................................................. - 46 -

10.1 Introduction ....................................................................................................................................................... - 46 -

CSE-M32 Users’Manual Ver. 2.2

Sollae Systems Co., Ltd. - 5 - http://www.sollae.co.kr

10.2 Connectors ......................................................................................................................................................... - 46 -

10.3 Jumpers and Switches .................................................................................................................................. - 46 -

10.3.1

JP5............................................................................................................................................................ - 47 -

10.3.2

JP9, JP10 ............................................................................................................................................... - 47 -

10.3.3

Reset Switch (S1) .............................................................................................................................. - 47 -

10.4 System LEDs classified each mode......................................................................................................... - 48 -

10.5 Schematic of the evaluation board ........................................................................................................ - 49 -

11 TECHNICAL SUPPORT, WARRANTY, AND NOTES ON OPERATION.......................... - 51 -

11.1 Technical Support ........................................................................................................................................... - 51 -

11.2 Warranty.............................................................................................................................................................. - 51 -

11.2.1

Refund ................................................................................................................................................... - 51 -

11.2.2

Free Repair Services ........................................................................................................................ - 51 -

11.2.3

Charged Repair Services ............................................................................................................... - 51 -

11.2.4

Notes on Operation ........................................................................................................................ - 51 -

12 REVISION HISTORY ............................................................................................................. - 53 -

CSE-M32 Users’Manual Ver. 2.2

Sollae Systems Co., Ltd. - 6 - http://www.sollae.co.kr

1 Overview

1.1 Overview

Along with the development of the Internet, the demand for data communication

functions has increased recently. Data communication over the Internet requires using

TCP/IP, the Internet communication protocol. That is to say, in order to connect a system

to the Internet, TCP/IP protocol must be implemented. It is possible to implement TCP/IP

by directly implementing the protocol, porting open TCP/IP in public or using Operating

System (OS). However, all these methods impose burdens on the developer in time, cost,

and technology.

ezTCP series, a Serial ↔ TCP/IP protocol converter product group of Sollae Systems,

enables you to use TCP/IP communication (the Internet communication) function simply by

“connecting the cable to a serial port”. ezTCP sends data from the serial port to the

Internet network after TCP/IP processing, and vice versa.

CSE-M32 in ezTCP product group is a product that provides TCP/IP communication

through Ethernet. In other words, like other ezTCP products, CSE-M32 sends data from the

serial ports to the LAN after TCP/IP processing and vice versa.

As CSE-M32 has 2 UART ports so that it supplies TCP/IP functions to two UART devices.

And because one UART port support the TCP speed of about 1.8Mbps, CSE-M32 is very

useful for the high speed communication device.

It provides DHCP and PPPoE functions, so that it can be applied to the cable network

and the xDSL network. And it has DDNS (Dynamic DNS) function, so it can be used more

easily in the internet.

It also provides debugging function, so user can solve the problem with ours.

CSE-M32 Users’Manual Ver. 2.2

Sollae Systems Co., Ltd. - 7 - http://www.sollae.co.kr

2 Specifications

2.1 Components

CSE-M32 Body

Evaluation Board(Option)

5V SMPS adapter(Option)

RS232C cable for PC connection –DB9F-DB9M-2M (Option)

2.2 Specifications

Power

Input Voltage

3.3V (±10%)

Current

173mA typical

Dimension

50mm x 32mm x 9mm

Weight

About 9g

Serial Port

2 x UART 600bps ~ 1843200bps

(COM2 port is disabled when COM1 is 1843200bps)

RTS/CTS flow control

Network

Ethernet 10/100 M bit auto-sense

Auto MDI/MDIX

Protocols

TCP, UDP, IP, ICMP, ARP, DHCP, PPPoE, Telnet, DNS Lookup,

DDNS, Telnet COM Port Control Option(RFC2217), SSL, SSH

Diagnostic

Online Debugging Function

Temperature

Operating: 0 ~ 55℃, Storage: -40 ~ 85℃

RoHS

RoHS Compliant

Communicat

ion Mode

T2S

TCP Server Mode

COD

TCP Client Mode

ATC

TCP Server/Client

(AT command emulation)

U2S

UDP

Utilities

ezManager

Configuration utility via LAN

ezterm

Socket test utility

hotflash

Firmware download utility via TFTP

ezVSP

Serial-TCP/IP virtual driver for Windows

CSE-M32 Users’Manual Ver. 2.2

Sollae Systems Co., Ltd. - 8 - http://www.sollae.co.kr

2.3 Interface

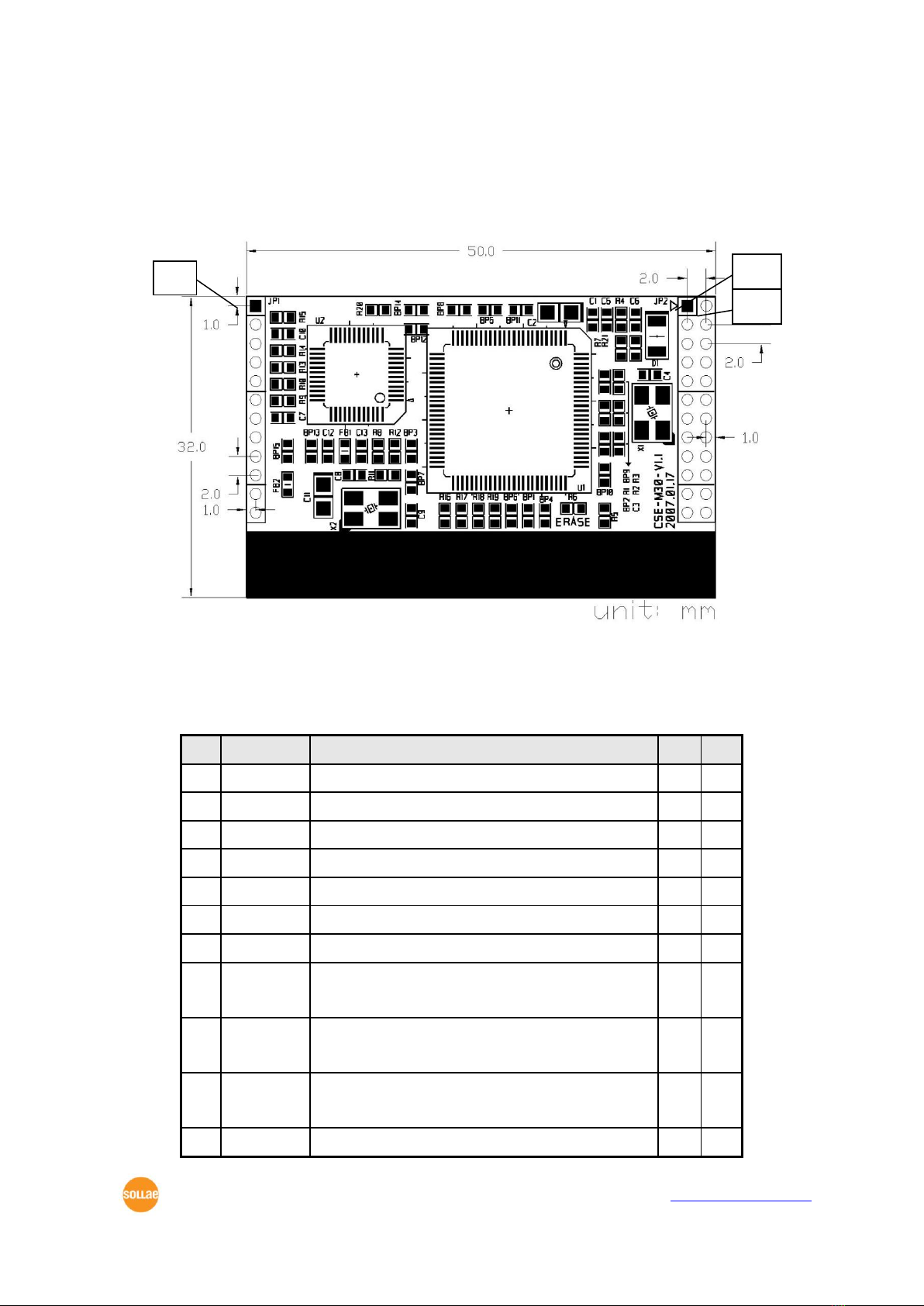

2.3.1 Dimension

2.3.2 JP1

M: Mandatory

O: Optional

JP1

name

description

Dir.

Etc.

GND

Ground

TP_IN-

Ethernet In-

TP_IN+

Ethernet In+

PWFBOUT

TP_OUT-

Ethernet Out-

Out

TP_OUT+

Ethernet Out+

Out

GND

Ground

LAN_RXD-

LAN RXD LED-

Blink: There are data on Ethernet line

Out

LAN_TXD-

LAN TXD LED-

Blink: CSE-M32 transmits data to Ethernet port

Out

LINK-

Link LED-

CSE-M32 is being connected to a LAN

Out

STS-

Status LED-

Out

CSE-M32 Users’Manual Ver. 2.2

Sollae Systems Co., Ltd. - 9 - http://www.sollae.co.kr

VCC_33

VCC 3.3V

2.3.3 JP2

M: Mandatory

O: Optional

X: Don‟t Connect

JP2

name

description

Dir.

Etc.

GND

Ground

VCC_33

VCC 3.3V

SPI_NSS

SPI NSS

SPI Chip Select

N/A

SYS_RST-

Reset-

In/Out

SPI_MISO

SPI MISO

(Master In Slave Out)

Out

N/A

CN0-

TCP Connection 0 Status-

Low–UART0‟s TCP connection is established

Out

SPI_MOSI

SPI MOSI

(Master Out Slave In)

N/A

CN1-

TCP Connection 1 Status-

Low–UART1‟s TCP connection is established

Out

SPI_SCK

SPI SCK

SPI Serial clock

N/A

ISP-

If this pin is low when it boots up, it

operates as ISP Mode (internally pulled-up).

If this pin is low for 20ms~1000ms, CSE-M32

enters to the serial configure mode.

GND

Ground

GND

Ground

UART_TXD1

UART1 (COM2)Transmitting Port

Out

UART_TXD0

UART0 (COM1) Transmitting Port

Out

UART_RTS1

UART1 (COM2) RTS

UART1 (COM2) TXDE (RS485 Mode)

Out

UART_RTS0

UART0 (COM1) RTS

UART0 (COM1) TXDE (RS485 Mode)

Out

DTXD

Port for factory

Out

Other manuals for CSE-M32

Table of contents

Other Sollae Systems Motherboard manuals

Sollae Systems

Sollae Systems EZL-410 User manual

Popular Motherboard manuals by other brands

Gigabyte

Gigabyte MNJ190I-FH user manual

Biostar

Biostar HI-FI-Z87X-3D Setup manual

Atmel

Atmel SAM9753PIA-DK user guide

Coapt

Coapt GEN2 Handbook

Supero

Supero SUPER P4DL6 user manual

Cypress

Cypress CY3210-PSoCEVAL1 quick start guide

ASROCK

ASROCK B660M-HDV manual

Fujitsu

Fujitsu D2831 Short description

Industrial Computers

Industrial Computers ADE-6050 user manual

Asus

Asus TUF Z270 MARK 2 manual

DFI

DFI NB71-BC user manual

ASROCK

ASROCK H61 Pro BTC user manual

Norco

Norco POS-7893 user manual

Intel

Intel DG965MS specification

Asus

Asus B85M-VIEW PAKER user manual

Asus

Asus P5G41T-M LX V2 user manual

Gigabyte

Gigabyte GA-K8VT800-RH user manual

Gigabyte

Gigabyte Z790M AORUS ELITE user manual

Sollae Systems CSE-M32 User manual

Popular Motherboard manuals by other brands
