Sonifex AVN-CU2-DANTE User manual

Manufacturers of Audio Products for AV,
Installed Sound, Broadcast Radio & Broadcast TV
AVN-Commentator Unit
AVN-CU2-DANTE and AVN-CU4-DANTE
Portable commentator units with Dante®AoIP interfacing.
HANDBOOK

AVN-CU2-DANTE & AVN-CU4-DANTE Handbook
Contents & Figures
This handbook is for use with the following product:
AVN-CU2-DANTE and AVN-CU4-DANTE portable commentator units with Dante® AoIP
interfacing.AW10960,
Stock Code: 30-374
Revision 1.08, November 2021
©Sonifex Ltd, 2021
All Rights Reserved
Sonifex Ltd, 61, Station Road, Irthlingborough,
Northants, NN9 5QE, England.
Tel: [phone]
Fax: [phone]
Email: sal[email protected]
Website: https://www.sonifex.co.uk
Information in this document is subject to change without notice and does not represent a
commitment on the part of the vendor. Sonifex Ltd shall not be liable for any loss or damage
whatsoever arising from the use of information or any error contained in this manual.
No part of this manual may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying, recording, information storage and retrieval systems, for any
purpose other than the purchaser’s personal use, without the express written permission of Sonifex
Ltd. Unless otherwise noted, all names of companies, products and persons contained herein are
part of a completely fictitious adaptation and are designed solely to document the use of Sonifex
product.
Made in the UK by
For the latest Sonifex handbook information please
visit the Sonifex website at www.sonifex.co.uk Product Warranty - 2 Year Extended i
Sonifex Warranty & Liability Terms & Conditions i
1. Definitions i
2. Warranty i
Unpacking Your Product ii
Repairs & Returns iii
Conformity iii
Safety & Installation of Mains Operated Equipment iii
Voltage Setting Checks (AVN-CU4 Only) iii
Fuse Rating (AVN-CU4 Only) iii
Power Cable & Connection (AVN-CU4 Only) iii
WEEE Directive 4
Atmosphere/Environment 4
1. AVN-Commentator Unit 5
Introduction 5
2. Getting Started 7
3. Quick Start 8
Connecting to the AVN-CU2/AVN-CU4 8
Adding a Main Program Output 13
Assigning an Encoder 16
Configuring Talkback 18
4. Dante Controller 21
Download and Install Dante Controller 21
Configuring a Device 21
Device Name 21
Channel Labels 22
Filtering Devices 24
Routing Audio 25
AES67 Compatibility 26
Clock Synchronisation 28
5. Controls, Indicators and Connections 29
Top Panel 29
AVN-CU2-DANTE 30
AVN-CU4-DANTE 30
Contents

AVN-CU2-DANTE & AVN-CU4-DANTE Handbook
Contents & Figures
Status LEDs (A) 31
Clock 31
AoIP 31
PoE 31
AC PSU 31
DC PSU 31
TFT Display (B) 31
Encoders (C) 31
Illuminated Buttons (D) 31
Front Panel 32
AVN-CU2-DANTE 32
AVN-CU4-DANTE 32
Mic/Line Input 32
Phantom Power Status LED 32
Headphone Output 32
Back Panel 33
AVN-CU2-DANTE 33
AVN-CU4-DANTE 33
Ethernet Ports 34
SFP Ports 34
Audio Inputs 34
Stereo Analogue/Digital Input 34
Inputs A, B, C and D (AVN-CU4-DANTE only) 34
+12V DC Input 34
Audio Outputs 35
Stereo Analogue/Digital Output 35
Outputs A, B, C, D, E and F (AVN-CU4-DANTE only) 35
GPIO Connector 35
AC Power Connection (AVN-CU4-DANTE only) 35
Mains Fuse (AVN-CU4-DANTE only) 35
Reset Button 35
6. Embedded Web Server 36
Information 37
Configuration 38
Network 38
Friendly Name 38
Password 38
Retype Password 38
Removing Password Protection 38
HTTP Port 38
Address Mode 39
Static IP Address 39
Static Subnet Mask 39
Static Gateway 39
Note 39
Network Defaults (AVN-CU2) 40
Network Defaults (AVN-CU4) 40
Front Panel 41
Configure LEDs 42
Configure Pages 43
Page Names 43
Page LED Colours 43
Lock Pages 44
Lock Button Row 44
Control and Configure Buttons 44
Configure Button Window 44
Function 45
Remote Control 48
Audio Routing 49
Mix-Points 50
Virtual Inputs and Outputs 50
Adding Dante Input and Output Groups 51
Adding an Input Group 54
Adding an Output Group 55
Encoder Assignments 56
Adding an Encoder 57
Collapsing and Expanding Views 58
Configuring Inputs, Outputs, and Connections 58
Locking User Buttons and Encoders 62
GPIO Settings 65
Add Input 66
Add Output 68
Routing Grid 69
SNMP Settings 70
Download Sonifex MIB Files 70
SNMP Settings 70
Disabling SNMP Trap Messages 70
System 71
Update Firmware 71

Contents & Figures
Save Configuration to A File 71
Load Configuration from A File 72
Save System Log to A File 72
Reboot or Factory Reset 72
7. System Menu 73
Network 73
Control 73
Mode 73
IP Address 74
Netmask 74
Gateway 74
Primary 74
Secondary 74
Brightness 74
Status 74
Config 74
Audio 75
Input 75
Signal 75
Gain 75
Phantom 75
Line up 75
HPF 75
Headphone 75
Attenuate 75
Set Limit 75
8. Ember+ 76
9. Remote Control 77
Embedded Web Server Control 77
Front Panel Control 77
On Air Control 77
Talkback Control 77
Level Control 77
Mute Control 77
Pan Control 77
GPI Control 77
Ember+ Control 77
10. Technical Specifications for AVN-CU2-DANTE & AVN-CU4-
DANTE 78
AVN-CU2-DANTE 78
AVN-CU4-DANTE 81
Fig 4-1: Dante Controller application window 21
Fig 4-2: Device Config tab 21
Fig 4-3: Renamed device in routing grid 22
Fig 4-4: Device with default channel labels 22
Fig 4-5: Changing receive channel labels 23
Fig 4-6: Changing transmit channel labels 23
Fig 4-7: Channels with updated labels 24
Fig 4-8: Showing the filter pane 24
Fig 4-9: Filtering transmitters 25
Fig 4-10: Routing between a transmit and receive channel 25
Fig 4-11: Quick routing 25
Fig 4-12: AES67 Config tab with AES67 mode disabled 26
Fig 4-13: Receiving audio from an AES67 device 26
Fig 4-14: Multicast Transmit Flows side pane 27
Fig 4-15: Creating a multicast flow 27
Fig 4-16: Clock status tab 28
Fig 4-17: Clock status using an AES67 master clock 28
Fig 5-1: AVN-CU2 top panel 30
Fig 5-2: AVN-CU4 top panel 30
Fig 5-3: AVN-CU2 front panel 32
Fig 5-4: AVN-CU4 front panel 32
Fig 5-5: AVN-CU2 back panel 33
Fig 5-6: AVN-CU4 back panel 33
Fig 6-1: Device information page. 36
Fig 6-2: Device information 37
Fig 6-3: Port information 37
Figures

Contents & Figures
Fig 6-4: Device Name & Security 38
Fig 6-5: Control Port Settings 39
Fig 6-6: Primary Dante Network Port Settings 39
Fig 6-7: Secondary Dante Network Port Settings 39
Fig 6-8: Front Panel Settings and Control 41
Fig 6-9: Configure status LEDs and brightness 42
Fig 6-10: Configure LEDs window 42
Fig 6-11: Page name 43
Fig 6-12: Configure panel page window 43
Fig 6-13: Encoder assignment overview with page names 43
Fig 6-14: Lock page 44
Fig 6-15: Locked page 44
Fig 6-16: Lock button row 44
Fig 6-17: The ‘Configure Button’ window 44
Fig 6-18: Remote control 48
Fig 6-19: Limting 48
Fig 6-20: Pan control 48
Fig 6-21: Muted 48
Fig 6-22: Audio Routing Grid 49
Fig 6-23: Dante Controller routings 51
Fig 6-24: Adding a Dante input group 51
Fig 6-25: Routing Dante input group 52
Fig 6-26: Adding a Dante output group 52
Fig 6-27: Routing talkback bus to a Dante output group 53
Fig 6-28: Routing transmit channels in Dante Controller. 53
Fig 6-29: Adding an input group 54
Fig 6-30: Adding an output group 55
Fig 6-31: Encoder assignments overview 56
Fig 6-32: Adding an encoder 57
Fig 6-33: Added encoder shown in audio routing grid 57
Fig 6-34: Added encoder on the top panel of the device 57
Fig 6-35: General tab of an input configuration window 58
Fig 6-36: EQ tab of an input configuration window 60
Fig 6-37: Encoder tab of an output configuration window 60
Fig 6-38: Locking a user button 62
Fig 6-39: Locking a row of buttons 63
Fig 6-40: Locked user button warning 63
Fig 6-41: Locking an encoder 63
Fig 6-42: Locking a page of encoders 64
Fig 6-43: Encoder assignment overview with locked encoders 64
Fig 6-44: Locked encoder 64
Fig 6-45: Example GPIO routing grid 65
Fig 6-46: Adding an input to the GPIO routing grid 66
Fig 6-47: Adding an output to the GPIO routing grid 68
Fig 6-48: Invert connection 69
Fig 6-49: SNMP web page 70
Fig 6-50: System web page 71
Fig 9-1: EmberPlus Viewer 76

Warranty Registration
Sonifex Limited ●61 Station Road ●Irthlingborough ●Northamptonshire ●NN9 5QE ●United Kingdom
Tel: [phone] ●Fax: [phone] ●Email: [e-mail] ●Internet: www.sonifex.co.uk
f
Warranty
Register Online for an
Extended 2 Year Warranty
As standard, Sonifex products are
supplied with a 1 year back to base
warranty.
If you register the product online, you
can increase your product warranty to
2 years and we can also keep you
informed of any product design
improvements or modifications.
Product:
Serial No:
To register your product, please go online to www.sonifex.co.uk/register

Warranty Registration
Sonifex Limited ●61 Station Road ●Irthlingborough ●Northamptonshire ●NN9 5QE ●United Kingdom
Tel: [phone] ●Fax: [phone] ●Email: [e-mail] ●Internet: www.sonifex.co.uk
i
Warranty
Product Warranty - 2 Year Extended
As standard, Sonifex products are supplied with a 1 year back to base
warranty. In order to register the date of purchase and so that we can keep
you informed of any product design improvements or modifications, it is
important to complete the warranty registration online. Additionally, if you
register the product on the Sonifex website, you can increase your product
warranty to 2 years. Go to the Sonifex website at: www.sonifex.co.uk/
register to apply for your 2 year warranty.
Sonifex Warranty & Liability Terms &
Conditions
1. Definitions
‘the Company’ means Sonifex Ltd and where relevant includes companies
within the same group of companies as Sonifex Limited.
‘the Goods’ means the goods or any part thereof supplied by the Company
and where relevant includes: work carried out by the Company on items
supplied by the Purchaser; services supplied by the Company; and software
supplied by the Company.
‘the Purchaser’ means the person or organisation who buys or has agreed
to buy the Goods.
‘the Price’ means the Price of the Goods and any other charges incurred by
the Company in the supply of the Goods.
‘the Warranty Term’ is the length of the product warranty which is usually
12 months from the date of despatch; except when the product has been
registered at the Sonifex website when the Warranty Term is 24 months
from the date of despatch.
‘the Contract’ means the quotation, these Conditions of Sale and any other
document incorporated in a contract between the Company and the
Purchaser.
This is the entire Contract between the parties relating to the subject
matter hereof and may not be changed or terminated except in writing in
accordance with the provisions of this Contract. A reference to the consent,
acknowledgement, authority or agreement of the Company means in
writing and only by a director of the Company.
2. Warranty
a. The Company agrees to repair or (at its discretion) replace Goods
which are found to be defective (fair wear and tear excepted) and
which are returned to the Company within the Warranty Term
provided that each of the following are satisfied:
i. notification of any defect is given to the Company immediately
upon its becoming apparent to the Purchaser;
ii. the Goods have only been operated under normal operating
conditions and have only been subject to normal use (and in
particular the Goods must have been correctly connected and
must not have been subject to high voltage or to ionising
radiation and must not have been used contrary to the
Company’s technical recommendations);
iii. the Goods are returned to the Company’s premises at the
Purchaser’s expense;
iv. any Goods or parts of Goods replaced shall become the
property of the Company;
v. no work whatsoever (other than normal and proper
maintenance) has been carried out to the Goods or any part of
the Goods without the Company’s prior written consent;
vi. the defect has not arisen from a design made, furnished or
specified by the Purchaser;
vii. the Goods have been assembled or incorporated into other
goods only in accordance with any instructions issued by the
Company;

ii
Warranty
ii
CE Conformity
viii. the defect has not arisen from a design modified by the
Purchaser;
ix. the defect has not arisen from an item manufactured by a
person other than the Company. In respect of any item
manufactured by a person other than the Company, the
Purchaser shall only be entitled to the benefit of any warranty
or guarantee provided by such manufacturer to the Company.
b. In respect of computer software supplied by the Company the
Company does not warrant that the use of the software will be
uninterrupted or error free.
c. The Company accepts liability:
(i) for death or personal injury to the extent that it results from
the negligence of the Company, its employees (whilst in the
course of their employment) or its agents (in the course of the
agency);
(ii) for any breach by the Company of any statutory undertaking as
to title, quiet possession and freedom from encumbrance.
d. Subject to conditions (a) and (c) from the time of despatch of the
Goods from the Company’s premises the Purchaser shall be
responsible for any defect in the Goods or loss, damage, nuisance or
interference whatsoever consequential economic or otherwise or
wastage of material resulting from or caused by or to the Goods. In
particular the Company shall not be liable for any loss of profits or
other economic losses. The Company accordingly excludes all liability
for the same.
e. At the request and expense of the Purchaser the Company will test
the Goods to ascertain performance levels and provide a report of
the results of that test. The report will be accurate at the time of the
test, to the best of the belief and knowledge of the Company, and the
Company accepts no liability in respect of its accuracy beyond that
set out in Condition (a).
f. Subject to Condition (e) no representation, condition, warranty or
other term, express or implied (by statute or otherwise) is given by
the Company that the Goods are of any particular quality or standard
or will enable the Purchaser to attain any particular performance or
result, or will be suitable for any particular purpose or use under
specific conditions or will provide any particular capacity,
notwithstanding that the requirement for such performance, result or
capacity or that such particular purpose or conditions may have been
known (or ought to have been known) to the Company, its employees
or agents.
g. (i) To the extent that the Company is held legally liable to the
Purchaser for any single breach of contract, tort, representation
or other act or default, the Company’s liability for the same
shall not exceed the price of the Goods.
(ii) The restriction of liability in Condition (g)(i) shall not apply to
any liability accepted by the Seller in Condition (c).
h. Where the Goods are sold under a consumer transaction (as defined
by the Consumer Transactions (Restrictions on Statements) Order
1976) the statutory rights of the Purchaser are not affected by these
Conditions of Sale.
Unpacking Your Product
Each product is shipped in protective packaging and should be inspected for
damage before use. If there is any transit damage take pictures of the
product packaging and notify the carrier immediately with all the relevant
details of the shipment. Packing materials should be kept for inspection and
also for if the product needs to be returned.

iii
Warranty
iii
CE Conformity
The product is shipped with the following equipment so please check to
ensure that you have all of the items below. If anything is missing, please
contact the supplier of your equipment immediately.
If you require a different power lead, please let us know when ordering the
product.
Repairs & Returns
Please contact Sonifex or your supplier if you have any problems with your
Sonifex product. Email [e-mail] for the repair/
upgrade/returns procedure, or for support & questions regarding the
product operation.
Conformity
The products in this manual comply with the essential requirements of the
relevant European health, safety and environmental protection legislation.
The technical justification file for this product is available at Sonifex Ltd.
The declaration of conformity can be found at:
https://www.sonifex.co.uk/declarations
Item Quantity
Product unit 1
IEC mains lead fitted with moulded mains plug (AVN-CU4-
DANTE only). Please note that the AVN-CU2-DANTE does not
come with the IEC lead.
1
Handbook 1
Safety & Installation of Mains Operated
Equipment
There are no user serviceable parts inside the equipment. If you should
ever need to look inside the unit, always disconnect the mains supply
before removing the equipment covers. The cover is connected to earth by
means of the fixing screws. It is essential to maintain this earth/ground
connection to ensure a safe operating environment and provide
electromagnetic shielding.
Voltage Setting Checks (AVN-CU4 Only)
Ensure that the machine operating voltage is correct for your mains power
supply by checking the box in which your product was supplied. The voltage
is shown on the box label. The available voltage settings are 115V, or 230V.
Please note that all products are either switchable between 115V and 230V,
or have a universal power supply.
Fuse Rating (AVN-CU4 Only)
The product is supplied with a single fuse in the live conducting path of the
mains power input. For reasons of safety it is important that the correct
rating and type of fuse is used. Incorrectly rated fuses could present a
possible fire hazard, under equipment fault conditions. The active fuse is
fitted on the outside rear panel of the unit.
Power Cable & Connection (AVN-CU4
Only)
An IEC power connector is supplied with the product which has a moulded
plug attached.
The mains plug or IEC power connector is used as the disconnect device.
The mains plug and IEC power connector shall remain readily operable to
disconnect the apparatus in case of a fault or emergency.
The mains lead is automatically configured for the country that the product
is being sent to, from one of:

4
Safety & Installation
4
1 Introduction
Connect the equipment in accordance with the connection details and
before applying power to the unit, check that the machine has the correct
operating voltage for your mains power supply.
This apparatus is of a class I construction. It must be connected to a mains
socket outlet with a protective earthing connection.
Important note: If there is an earth/ground terminal on the rear panel of
the product then it must be connected to Earth.
Territory Voltage IEC Lead Type Image
UK & Middle East 230V UK 3 pin to IEC lead
Europe 230V European Schuko round 2 pin to
IEC lead
USA, Canada and
South America 115V 3 flat pin to IEC lead
Australia & New
Zealand 230V Australasian 3 flat pin to IEC lead
WEEE Directive
The Waste Electrical and Electronic Equipment (WEEE) Directive
was agreed on 13 February 2003, along with the related
Directive 2002/95/EC on Restrictions of the use of certain
Hazardous Substances in electrical and electronic equipment
(RoHS). The Waste Electrical and Electronic Equipment Directive (WEEE)
aims to minimise the impacts of electrical and electronic equipment on the
environment during their life times and when they become waste. All
products manufactured by Sonifex Ltd have the WEEE directive label placed
on the case. Sonifex Ltd will be happy to give you information about local
organisations that can reprocess the product when it reaches its “end of
use”, or alternatively all products that have reached “end of use” can be
returned to Sonifex and will be reprocessed correctly free of charge.
Atmosphere/Environment
This apparatus should be installed in an area that is not subject to excessive
temperature variation (<0°C, >50°C), moisture, dust or vibration.
This apparatus shall not be exposed to dripping or splashing, and no objects
filled with water, such as vases shall be placed on the apparatus.

5
Safety & Installation
5
Introduction 1
1. AVN-Commentator Unit
Introduction
The AVN-CU2-DANTE and AVN-CU4-DANTE are portable commentator
units. Using Dante® AoIP together with 4 wire connections both the AVN-
CU2-DANTE and AVN-CU4-DANTE bridge the gap between old and new
technology, allowing the ease of connectivity & functionality of AoIP
together with the legacy connections needed to operate with existing
infrastructure in some stadia and sports grounds.
The units have an easy to use physical interface with metal shafted
encoders, illuminated buttons, status indicators, and a TFT display showing

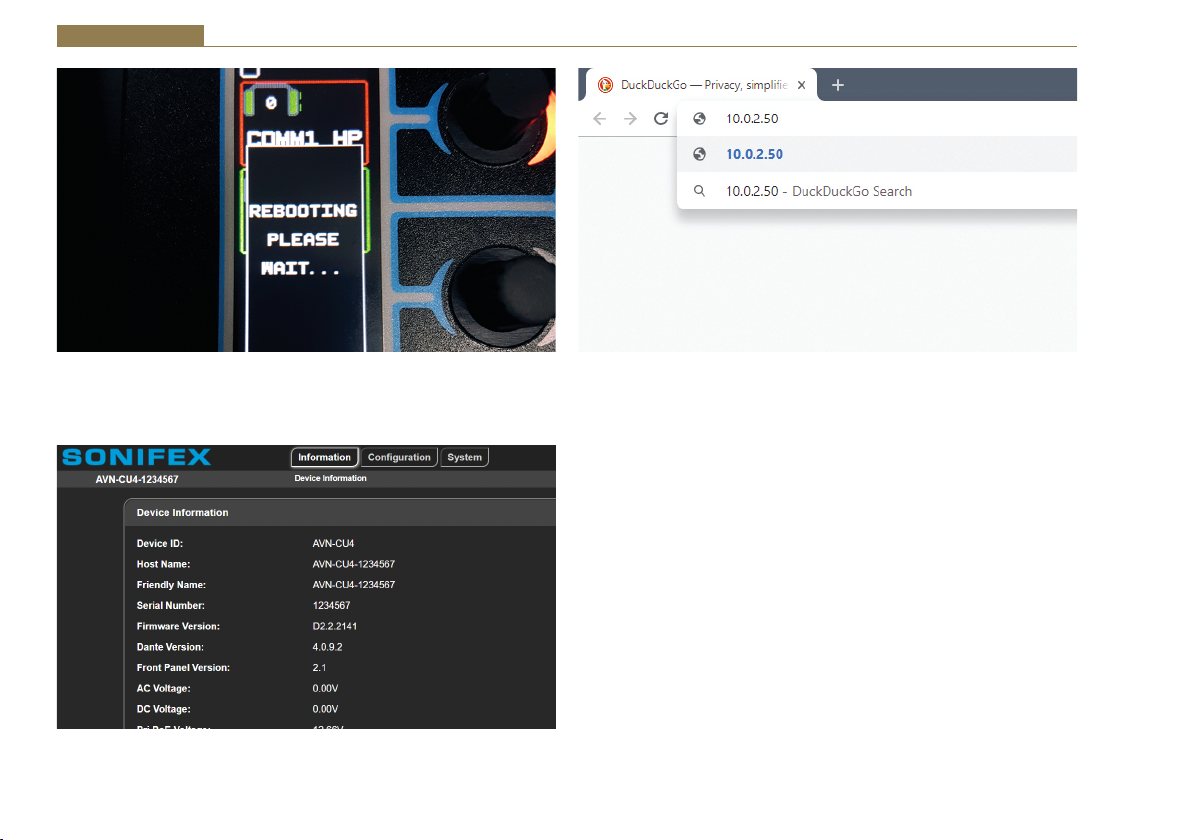

useful information. An embedded web server is also implemented and is

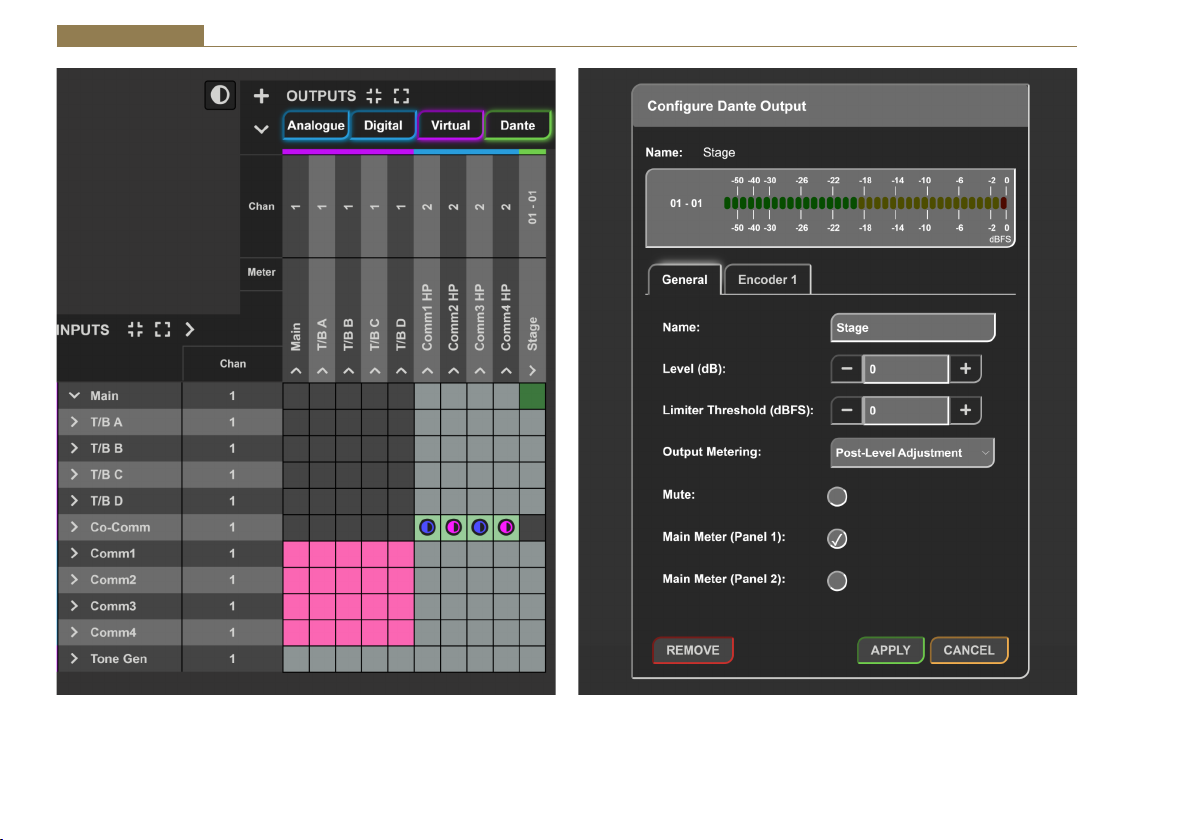

used to access audio routing and more advanced options.
The unit supports up to 16 input and output AoIP channels and up to 16
simultaneous input and output AoIP streams. AoIP streams are setup via
Dante® Controller with more detailed configuration performed using the
built-in web GUI. Once Dante® flows have been made, the mix engine
allows inputs and outputs to be mixed freely to AoIP or physical inputs and
outputs, controlled using the programmable buttons and rotary encoders
on the unit.
The AVN-CU2-DANTE provides two locking mic/line inputs each with +48V
phantom power indication and a wide, adjustable gain range. It has two
stereo headphone outputs with locking 6.35 mm (¼ inch) jack sockets,
suitable for operation by two commentators. The AVN-CU4-DANTE
provides four commentator positions with four mic/line inputs and four
stereo headphone outputs.
The AVN-CU2-DANTE can be powered using Power over Ethernet (PoE), and
the AVN-CU4-DANTE using Power over Ethernet + (PoE+). Both units use
Neutrik EtherCON connectors, with primary and secondary ports for power
and data redundancy. There is an additional 4 pin XLR 12V DC input for use
when PoE is not available or extra power redundancy is required.
The AVN-CU4-DANTE also provides a fused AC mains electricity input on an
IEC inlet, with universal supply allowing for the varying voltage and
frequency requirements of different countries.
The AVN-CU2 provides 6 push-button rotary encoders and 12 key-cap
buttons, whilst the AVN-CU4 provides 12 push-button rotary encoders and
24 key-cap buttons. Push-button rotary encoders can be used to control,
input levels, output levels and panning of assigned audio sources whilst
key-cap buttons can be configured to perform various functions such as
taking commentators on-air and activating GPIO.
Each rotary encoder has a separate colour-coded meter section showing the
channel name, detailed level metering, left/right panning and a limiter
indication, the brightness of the display is adjustable allowing it to remain
readable in bright daylight. The colour of each encoder can be
programmed allowing a commentator to quickly identify source and
destination groups, and so perform adjustment to audio groups intuitively.
Metering is available on each input/output, with output metering
configurable as pre or post level adjustment. The top of the display shows
output metering, a limiter indication and the name of the output. A limiter
with a configurable threshold is also available on every output.
On the AVN-CU2, 2 four-wire RJ45 connections are available on the back
panel of the device. One is used as an input and the other is used as an
output, both connections can be individually configured as either digital
(AES3) or analogue. The input can be routed to the main (program) bus,
talkback buses, commentator headphones, the output four-wire
connection, and any AoIP outputs. The output can receive audio from the
main (program) bus, talkback buses, commentator microphones, the input
four-wire connection, and any AoIP inputs.
The AVN-CU4 provides further connectivity with four analogue line inputs
on XLR sockets with latching locks, six analogue line outputs on XLR plugs,
one RJ45 digital (AES3) stereo input and one RJ45 digital (AES3) stereo
output.
Each unit has dual redundant network ports on both RJ45s (PoE using 2
Neutrik EtherCON® connectors) and SFP cages.

6
1 Introduction
6
2 Getting Started
There are 10 configurable GPIO on a 15-way D-type connector with 1
switched changeover output.
All of the buttons have key-cap text and can be configured to allow for any
button function at any position. There are some standard operations
available:
• On-Air control for each commentator position, used to connect mic audio
to the main output, either over AoIP or via the physical audio
connections.
• A menu button can be used to access limited setup options on the TFT
display.
• Page buttons change the display and encoders to monitor an additional
set of sources, mix points or outputs. Up to 4 pages per display can be
pre-programmed. So, for the AVN-CU2 4 pages labelled 1-4 can be
configured on its display and for the AVN-CU4, 4 pages labelled 1-4 can
be configured on the left-hand display and another 4 pages labelled 1-4
can be configured on the right-hand display. For example; one page
might be used for commentator mics and headphones, one might be
used for talkback inputs, one might be used for physical, Dante, or tone
inputs, and another may be used for outputs such as the main output.
• User buttons can be programmed to perform various functions using the
web server, such as activating a physical GPO, a virtual GPO, a relay, or an
event.
• A cough control is available for each commentator position which
temporarily takes the commentator off-air while pressed.
• 4 T/B (talkback) controls are available for each commentator position,
which can be configured to initiate talkback over AoIP or the physical
audio connections using the 4 talkback buses. The talkback buttons can
be configured to operate with lazy-gang talkback. By default, activating a
talkback will also take the commentator off air until the talkback state is
cleared, it is also possible to configure talkback so that the commentator
remains on-air when talkback is invoked.

7
Introduction 1
7
Getting Started 2
2. Getting Started
We recommend you read the manual in this order.
1. View the Quick Start section to get your device up and running.
2. Setup device names and channel labels in Dante Controller, view the
Configuring a Device section for instructions.
3. Routing audio in Dante Controller, view the Routing Audio section for
instructions.
4. Adding Dante inputs and Dante outputs to the commentator unit, view
the Adding Dante Input and Output Groups section for instructions.
5. Configuring user buttons on the top panel of the commentator unit, view
the Front Panel Settings and Control section for instructions.
6. Controlling inputs, outputs, and mix-points with encoders, view the
Adding an Encoder section for instructions.
7. Locking user buttons and encoders, view the Locking User Buttons and
Encoders section.
8. Saving and loading profiles, view the Save Configuration to A File section
and the Load Configuration from A File section.
9. Controlling the commentator unit remotely, view the Remote Control
section.

8
3 Quick Start
1. Plug an Ethernet cable into the primary port of the AVN-CU2/AVN-CU4. 2. Connect the other side of the Ethernet cable into your network switch.
3. If your network switch supports PoE, the unit can be powered using this
method and is indicated by the ‘Pri’ and ‘Sec’ PoE status LEDs.
4. If your switch does not support PoE, the DC adaptor can be used instead
and has the following pinout:
Pin 1: Ground, Pin 2: N/C, Pin 3: N/C, Pin 4: +12V
3. Quick Start
Connecting to the AVN-CU2/AVN-CU4

9
Quick Start 3
5. When powered using a DC supply, the DC PSU LED will turn green. It is
possible to power the unit with PoE and DC at the same time for
redundancy.
6. On the AVN-CU4 the option to power the unit via an AC supply is also
available.
7. When AC power is available the AC PSU LED will illuminate green. 8. Connect an Ethernet cable into the Ethernet port of your PC .

10
3 Quick Start

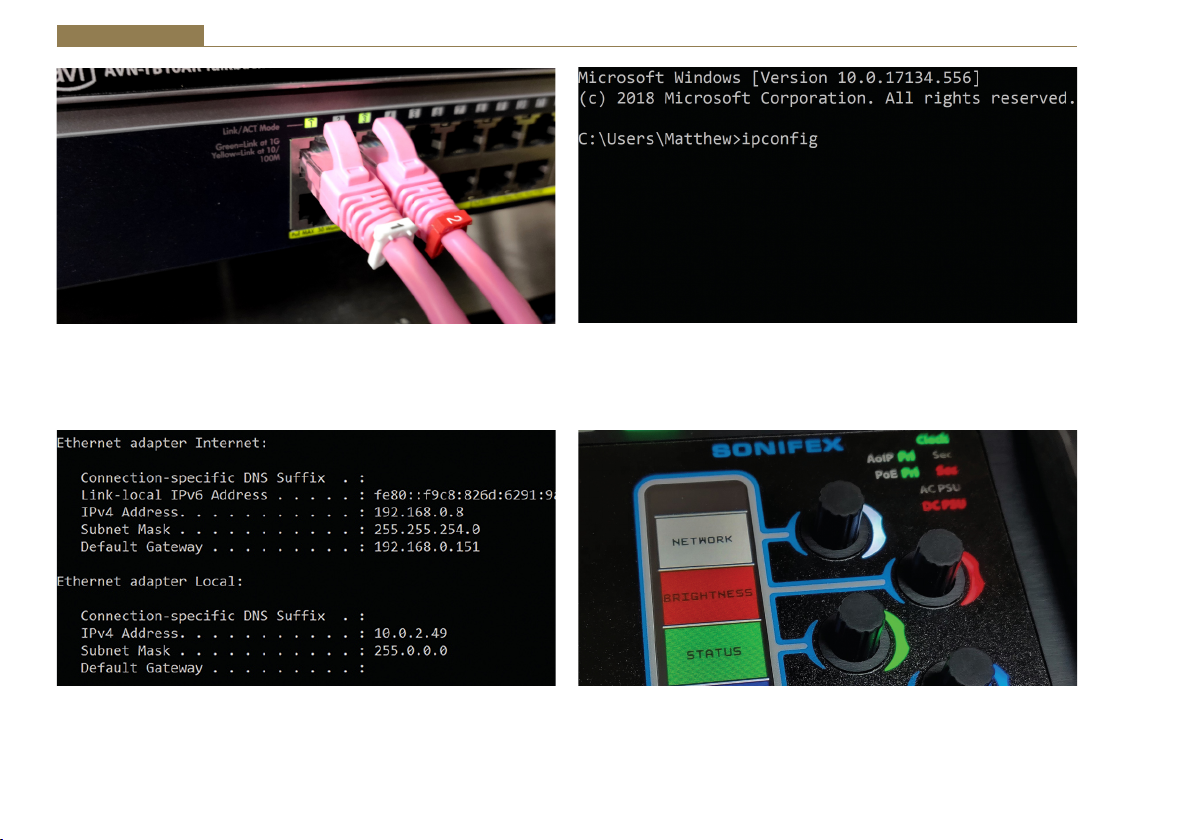

9. Connect the other side of this Ethernet cable into your network switch. 10. In order to find the IP address of your Windows computer open the
start menu and type ‘Command Prompt’, open Command Prompt and type
‘ipconfig’.
11. Press enter on the keyboard and note the IP address of your network
adaptor connected to the same network switch. In this case it is ‘10.0.2.49’
with a subnet mask of ‘255.0.0.0’.
12. Press the ‘Menu’ button on the front panel of the commentator unit,
and select the ‘Network’ sub-menu by pressing down on the white encoder.

11
Quick Start 3

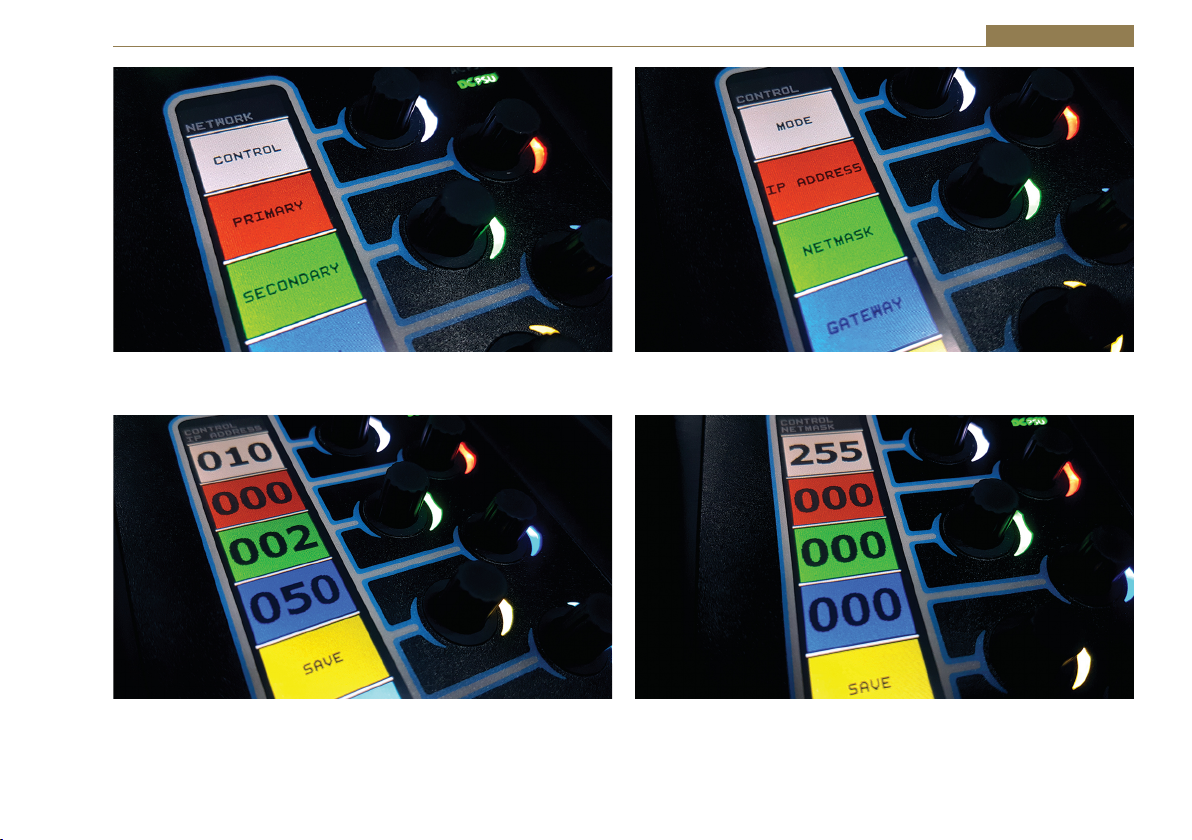

13. This sub-menu shows the available network ports on the commentator
unit, select the ‘Control’ port by pressing the white encoder.
14. This sub-menu shows the IP address settings of the control port, select
‘IP Address’ by pressing the red encoder.
15. Modify the IP address so that it is within the same subnet as your PC,
then select ‘Save’ using the yellow encoder.
16. This takes you back to the control port sub-menu. Select ‘Netmask’
using the green encoder, and then change the subnet to match the subnet
of your PC, again selecting ‘Save’ once complete.

12
3 Quick Start
17. Select ‘Close’ using the cyan encoder, this closes the menu. The unit will
then restart to apply the changes.
18. Open your web browser, type the IP address into the address bar and
press enter.
19. The device information web page will open.

13
Quick Start 3
1. Navigate to ‘Audio Routing’ this can be found under the ‘Configuration’
tab. Click on the ‘Add Output Group’ icon (+).
2. The ‘Add Output Group’ window opens. Enter a name and then change
the type, which in this case is a Dante output called ‘Stage’ on channel 1.
Click ‘Add’.
Adding a Main Program Output

14
3 Quick Start
3. Click on the box between the ‘MAIN’ input and ‘Stage’ to route audio.
The new routing is now shown on the routing grid, this is symbolised by the
green box between the input and output channel. Click on the ‘Stage’
output to configure it
4. Selecting ‘Main Meter’ will cause any audio on the output to be
displayed in the main meter section on the top panel display of the device.
There won’t be any audio yet. Click apply.
