SONIQ S49VT15A User manual

Important Safety Instructions
The appliance should not be exposed to water and no object filled with liquid such
as a vase should be placed on the unit.
The lightning flash with
arrowhead symbol in a
triangle indicates the
presence of uninsulated
dangerous voltage within
the product enclosure that
may be of sufficient
magnitude to constitute a
risk of electric shock.
The exclamation mark within
the triangle alerts users to
the presence of important
operating and maintenance
(servicing) instructions for
the appliance.
WARNING: To reduce the
risk of electric shock, do
not remove cover (or back).
No user serviceable parts
inside. Refer servicing to
qualified service personnel.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE AN EXTENSION CORD.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE PLUG TO WIDE
SLOT FULLY INSERTED.
Important Information
If a television is not positioned in a sufficiently stable location, it can be potentially hazardous if it
falls. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
· Using cabinets or stands recommended by the manufacturer of the television.
· Only using furniture that can safely support the television.
· Ensuring the television is not overhanging the edge of the supporting furniture.
· No placing the television on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the television to a suitable support.
· Not standing the televisions on cloth or other materials places between the television and
supporting furniture.
· Educating children about the dangers of climbing on furniture to reach the television or its
controls.
· Figures and illustrations in this user manual are provided for reference only and may differ from
actual product appearance. Product design & specification may be changed without notice.
1. Read Instructions - All the safety and operating instructions should be read before
operating.
2. Retain Instructions - The safety and operating instructions should be retained for
future reference.
3. Warnings - All warnings on the appliance and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating instructions should be
followed.
5. Earthing Connection - The TV shall be connected to a
MAINS socket outlet with a protective earthing connection.
6. Water and Moisture - The appliance should not be used near water.
7. Cart and Stands - The appliance should only be used with a cart or
stand that is recommended by the manufacturer.
8. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only
as recommended by the manufacturer.
9. Ventilation - The appliance should be well situated so that its location or position does
not interfere with its proper ventilation.
10. Heat - This appliance should be placed away from heat sources such as radiators,
heat registers and stoves.
11. Power Sources - The appliance should only be connected to a power supply as
described in the operating instructions as marked on the appliance.
12. Power Cord Protection - Power supply cord should be routed so that it is not likely
to be walked on, pinched by item placed upon it against the cord and its end.
13. Cleaning - The appliance should be cleaned only as recommended by the
manufacturer.
14. Power Lines - An outdoor antenna should be located away from power lines.
15. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver,
the antenna system must be grounded so as to provide against voltages and built-up
static charges.
16. Non-use Periods - The power cord of the appliance should be unplugged from the
outlet when left unused for a long period of time.
17. Conditions Requiring Service - The appliance should be serviced by qualified
service personnel when:
· The power-supply cord or the plug has been damaged.
· Objects have fallen on or liquid has been spilled into the appliance.
· The appliance has been exposed to rain.
· The appliance does not appear to operate normally or exhibits a
marked change in performance.
18. This appliance should not be exposed to water and no objects filled with liquids such
as a vase should be placed on the unit.
Safety Instruction Safety Instruction
1 2

3 4
Safety Instruction
WARNING
High voltages are used in the operation of
this product. Do not remove the back cover
of the cabinet. Refer servicing to qualified
service personnel.
WARNING
To prevent fire or electrical shock hazard,
do not expose the main unit to rain or
moisture.
WARNING
Do not drop or push objects into the
television cabinet slots or openings. Never
spill any kind of liquid on the television
receiver.
CAUTION
If the television is to be built into a
compartment or similarly enclosed space the
minimum distance must be maintained.
Heat build up can reduce the service life
of your television, and can also be
dangerous.
CAUTION
Never stand or lean on product or its stand
or push suddenly. Always pay special attention
when children are near product to avoid harm.
Minimun Distances
10cm
20cm
10cm 5cm
CAUTION
Do not place the main unit on an unstable
cart stand, shelf or table.
CAUTION
When the product is not used for an
extended period of time, it is advisable to
disconnect the AC power cord from the
AC outlet.
CAUTION
Avoid exposing the main unit to direct sunlight
and other sources of heat. Do not position
television receiver directly on other products
which give off heat.E.g. video cassette players,
audio amplifiers. Do not block the ventilation
holes in the back cover.Ventilation is essential
to prevent electrical failure.Do not squash power
supply cord under the main unit.
CAUTION
The panel used in this product is made of
glass.
It can break when the product is dropped
or applied with force.
Safety Instruction

5
Remote Control
Remote Control Key Functions
Power Button
Turns the TV On/Off or to
the standby mode.
MUTE Button
Turn on or off the sound.
INDICATOR LIGHT 3
Code sending indicator
light.
AUDIO Button
Press to select sound
output mode.
MENU Button
Press to enter the main
menu.
EXIT Button
Return back to the previous
menu under Smart function.
Exit all OSD menu.
3D Button
Press to open 3D setting
menu.
NAVIGATION/OK Button
Scrolls through menus or
options.
OK : Selects menus or
options and confirms
your input.
SOURCE Button
Press to display all
possible input sources.
INFO Button
Displays the information of
the current program.
COLOUR FUNCTION Button
To obtain the special functions
from certain menus.
OK
HOME Button
To access the HOME page.
Displays your preferred
subtitle in DTV mode.
REC Button
Use to record a program in
DTV mode.
Press and hold this button
for three seconds to display
PVR Setting list.
Button
To adjust the volume.
+
Button
Scrolls through the saved
program.
ON/OFF Switch
The power of the Remote Control
MICRO USB PORT
Indicator 1：
Charging port of remote control.
Charging light for Remote
Control.
Indicator 2 : Pairing light/
Low Power
Indicator
1
SUBTITLE Button
EPG Button
Open or close EPG menu
in DTV mode.
6
Remote Control
Remote Control for Smart TV
ESC Button
Return to the previous menu
under the Smart menu. Press
to exit all OSD menu.
HOME Button
To access the HOME page.
COLOR Button
to obtain the special functions
certain menus.
of
F5 F6 F7 F8
CAPS Button
Caps Lock button, switch
between capital and lower
case when inputting English
character.
ANDROID MENU Button
Press to display the menu.
SHIFT Button
Switch between capital, lower
case or shift key.
RF Button
Pairing key used for pairing
the remote control and
QT166 RF Dongle.
LEFT MOUSE Button
Return previous step.
SPACE Button
Has the space function.
RIGHT MOUSE Button
Return previous step.
FN Button
Compound function key
F1 to F8 Buttons
Function Key
SEARCH Button
Press to search the web
page.
APPLICATION ICON Button
Press to enter all Apps
interface.
DEL Button
Delete Key
GO/ENTER Button
Selection confirmed key
GO
ENTER
* Remark : Others are Digits, Character, Symbolic Buttons.
Remote Control for Smart TV
ESC
OFN
Has the mouse
function.
F2
F1
F3
F4
Fn
Shift
SPACE
RF

7
Remote Control Function
Remote Control Function
1. Turn the Power Switch ON at the left side of the Remote Control, the indicator light 3 will flash
3 times, meaning you can operate the Remote Control.
2. Press and hold any key to light up indicator light 3, the light will go out when releasing the button.
3. RF Remote Control is supplied with lithium battery. Indicator light 2 flashing means low power,
please charge immediately.
4. Plug in USB cable (supplied with the TV) for charging, then connect to the remote
control/PC/adaptor with the current of 5V/1A. Indicator light 1 lights up when charging is required.
Indicator light 1 will go out when fully charged.
Front Panel of
Remote Control
Right Side of
Remote Control
Left Side of
Remote Control
USB Cable
Indicator 3
Indicator 2
Power
Switch
8
RF Remote Control pairing
Power
Switch
Side View
Remote Control Function
The Remote Control has already been paired for the first time you use it therefore users
do not need to perform this step again under normal conditions, but if it does not work
with battery fully charged or if you have replaced the Remote Control or 2.4G QT166 RF
DONGLE before operating then follow the steps below.
1. Turn on the power at the left side of Remote Control
(pairing will take effect in one minute), and hold the
Remote Control within 1 meter of the unit.
2. Press and hold RF Button for 2 seconds, indicator light 3
will flash and light up together with indicator light 2.
3. Plug 2.4G QT166 RF DONGLE into the USB port on
TV/USB port on the computer.
4. Pairing will complete within 3 minutes, if indicator light 3
and 2 flashes 3 times, that means the device has been
paired successfully. If indicator light lights up all the time
or goes out, that means the pairing failed in which case
please unplug the 2.4G QT166 RF DONGLE, and repeat
the above steps for pairing.
When using the Remote Control, please note:
· Do not strike or drop the Remote.
· Do not expose the Remote Control to liquids and do not
place it in humid environments.
· Do not install or place the Remote Control in direct sunlight,
· the heat may damage the Remote Control.

9
Front Panel
Main Unit Control
10
Main Unit Control
Rear Panel
12345 6 78
910 11 12 13
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
ANT IN
USB
AV IN
USB 3.0
ETHERNET
HDMI1/HDMI2
VGA
VGA AUDIO IN
Connect it to the home network.
Connect the HDMI cable.
Connect the PC VGA cable of your personal computer.
DVI or PC VGA audio input.
Connect to external antenna.
Connect USB device, such as USB disk, HID and so on.
Connect the audio and video output of your AV equipment to the unit.
Connect for media files playback and program recording.
Not compatible with USB1.1.
Name Description
DIGITAL AUDIO OUT
OPTICAL Connect the OPTICAL to the Audio Amplifier using an optical cable.
COMPONENT IN Connect the component video signal.
HDMI3/HDMI4 Connect the HDMI signal.
R-L-VIDEO VIDEO 1 IN Connect the audio and video output of your AV equipment to the unit
using the AV cable included in the spare part.
SD/MMC SD/MMC card reader slot.
STANDBY
MENU
SOURCE
CH+
CH-
VOL+
VOL-
VOL+ VOL- CH-CH+
SOURCE
MENU
STANDBY
12 Front View
No.
1
2
5
Name
Remote Control
Sensor Window
Power Indicator
Description
Receives the signal from the Remote Control. Do not
put any objects in front of the window in order not to
hinder the reception of signal.
Flashes red when the unit is powered on:
Lights up red when the unit is in standby mode.
Press to display all possible input signal sources.
Press to cycle through various sources.
SOURCE
4
Press this button to display the OSD menu.
When the OSD menu is on, press this button to exit the
menu.
MENU
3
Press this button to turn the unit on when it is in standby
mode.
Press this button once more to put it to standby mode.
STANDBY
7
Press VOL + to increase volume, or VOL - to decrease.
At the OSD menu, press these buttons to move the
selection focus left and right to change settings.
VOL
6
Press these buttons to sequentially select channels.
When the OSD menu is on, press these buttons to
move the selection focus up or down to change settings.
CH

11
The product must be operated only from the type of power sources indicated on the
marking label (100-240V AC, 50Hz/60Hz.)
If the unit will not be used for a long period of time, it should be unplugged from the
wall outlet.
Connect the power cord directly to the wall outlet.

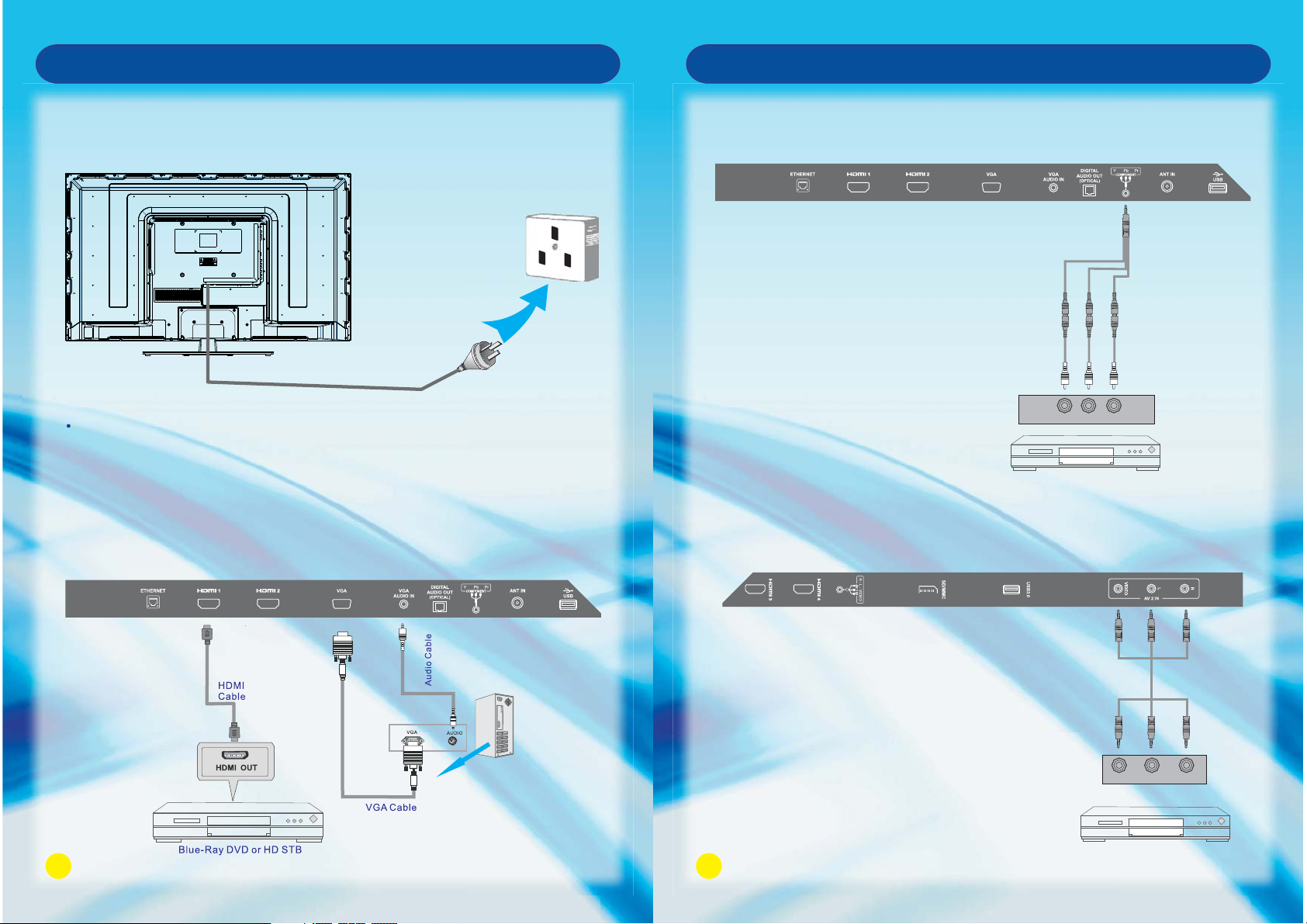

HDMl VGA/PC Connection
Connecting the Power Cord
Connection and Setup
12
Connection and Setup
Component Connection
AV IN Connection
Component (YPbPr)
Connection
Component Video Cable
Back side of DVD player
DVD player
(included)
Green
Blue
Red
R L VIDEO
Video/Audio Output
Wall Outlet
Power Cord

13
Connection and Setup

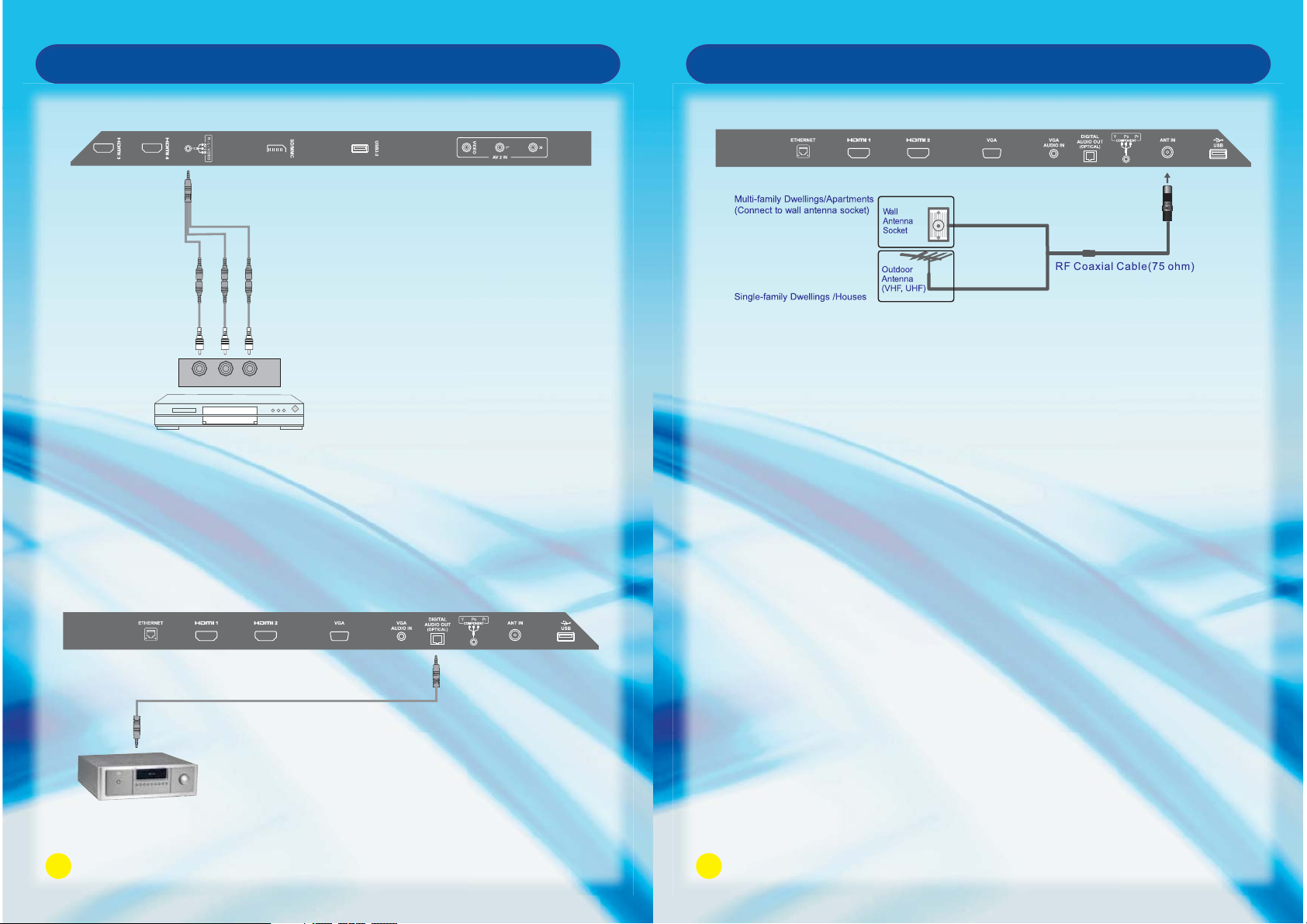

Optical Connection
Cables are not included in package
Optical input
14
ANT IN Connection
Connecting the USB Device
Insert the USB directly to the unit.
1. Please do not turn off the TV or unplug the USB device when the connected
USB storage device is working. When such device is suddenly separated or
unplugged, the stored files or the USB storage device may be damaged.
Connection and Setup
(included)
Yellow
White
Red
Audio (AV) Cable
Back side of DVD player
DVD player
Precautions when using the USB device
1. Please do not turn off the TV or unplug the USB device when the USB is connected.
When such device is suddenly separated or unplugged, the stored files or the USB storage device
may be damaged.
2. Please use only USB storage devices that are formatted as a FAT32 file system, otherwise it may
not be recognized.
3. Every USB port only supply 500mA electric current, if the user’s device requirement is over the
specification, users need to choose to connect to the external power supply, otherwise the device
may not be recognized.
4. If the USB HDD does not have an external power supply, the USB device may not be detected.
So be sure to connect the external power supply.
5. The recommended capacity is 2TB or less for a USB external hard disk and 32GB or less for USB
flash memory.
6. The recognition speed of a USB storage device may depend on each device.
7. Please connect a USB storage device with the cable offered by the device maker.
8. Be sure to back up important files since data stored in a USB memory device may be damaged.
We will not be responsible for any data loss.
9. If your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can
use up to 4 partitions or USB memory devices.
10. If the USB memory device does not work properly, disconnect and reconnect it. How fast a USB
memory device is detected differs from device to device.
11. If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the
TV is turned on.
12. Any device with more than the recommended capacity may not work properly.

15
Ethernet/SD/MMC Connection
Connection and Setup
16
No.
1
2
3
4
5
6
7
8
9
Member registration and log in
Current time and network status
Switchover input sources
The current playing video or programme
Application program section
Online shop information release 1
Online shop information release 2
Favourites
Weather
Description
HOME Button
Operation for adding application: Select your favourite application from the ALL APPS interface.
Press and Hold the Left Return Button on the needed short cut icon for a second to add it to the
column.
Operation for deleting this application: Press and Hold the Left Return Button on the icon required
to be deleted for a second, the selected one can be deleted.
Accessing HOME menu
Turning on the TV will automatically enter HOME menu, or you can either press
HOME Button to access the HOME menu.
Every time when you enter or return to the HOME page, you will see a “run” key
at the bottom right corner of the current functional area which will disappear
after flashing for 5 seconds.
Smart TV Function
Favourites section operation
HOME Button
12
6
8
9
7
4
3
5

17
12
4
35
F1
F8
F7
F6
F5
No.
1
2
3
4
5
Press HOME Button on the Remote Control to play the current
program in full screen/return to the HOME page.
Cursor positioning key, which will position at bottom on the first
Cinavision.
Press Green key to quick select the recent visited application.
TV default preferences, can not be covered.
Press Yellow Key to view the range of SONIQ Products.
Press Blue Key to visit the website of .SONIQ
Description
Smart TV Function
Hot Key operation at HOME page
18
Smart TV Function
CAUTION
Do not connect a modular phone cable to the LAN port.
Since there are various connection methods, please follow the specifications of your
telecommunication carrier or internet service provider.
Network Connection
Connect the TV to a local area network (LAN) via the LAN port as shown in the following
illustration and set up the network settings.
If wired and wireless networks are both available, wired is the preferred method.
After making a physical connection, a small number of home networks may require the
TV network settings to be adjusted.
For most home networks, the TV will connect automatically without any adjustments.
For detailed information, contact your internet provider or refer to router manual.
Remark: Network speed requirement is very important to this TV. Please keep network
open, if there are any problems with your network connection please contact
your internet provider or refer to router manual.
Connecting to wired network

19
Smart TV Function
The methods of setting up network settings:
HOME - > Settings - > Network and location settings - > Ethernet settings
1. Automatically connect the Ethernet: Ethernet has been confirmed, mark on Obtain IP
address automatically, the TV will automatically
acquire an IP address to connect to the network.
2. IP Manual Settings: Set the IP address manually, input IP address, Subnet mask,
Default Gateway. Primary DNS and Secondary DNS, then
Save to connect
the network.
press
Connect to wireless network
The methods of setting up wireless connection:
HOME - > Settings - > Network and location settings - > Wi-Fi direct
1. Select Wi-Fi, then the system will automatically scan all the AP and wireless
routers within the scope and then display the device list.
2. Select an AP and wireless router and input the password for saving, then the
network can be available.
3. This TV includes wireless mode and has wi-fi function.
Setting up the AP (Access Point) or the wireless
router is required before connecting the TV to
the network.
The network configuration and connection method
may vary depending on the equipment in use and
the network environment. Refer to the setup
instructions supplied with your access point or
wireless router for detailed connection steps and
network settings.
20
Smart TV Function
Tips for Network Settings
Use a standard LAN cable with a connector.
Many network connection problems during set up can often be fixed by re-setting the
router or modem. After connection to the home network, quickly power off
and / or disconnect the power cable of the home network router or cable modem. Then
power on and / or connect the power cable again.
Depending on the internet service provider (ISP), the number of devices that can
receive internet service may be limited by the applicable terms of service. For details,
contact your ISP.
We are not responsible for any malfunction of the TV and / or the internet connection
feature due to communication errors / malfunctions associated with your broadband
internet connection, or other connected equipment.
We are not responsible for problems within your internet connection.
Some content available through the network connection may not be compatible with
the TV.
You may experience undesired results if the network connection speed does not meet
the requirements of the content being accessed.
Some internet connection operations may not be possible due to certain restrictions
set by the internet service provider (ISP) supplying your broadband internet connection.
A 10 Base-T or 100 Base-TX LAN port is required when using a wired connection to
this TV. If your internet service does not allow for such a connection, you will not be
able to connect the TV.
ADSL modem is required to use DSL service and a cable modem is required to use
cable modem service. Depending on the access method of and subscriber agreement
with your ISP, you may not be able to use the internet connection feature contained in
the TV or you may be limited to the number of devices you can connect at the same time.
(If your ISP limits sub-scription to one device, this TV may not be allowed to connect
when a PC is already connected.)
The wireless network operates at 2.4GHz radio frequencies that are also used by other
household devices such as cordless telephone, Bluetooth devices, microwave oven,
and can be affected by interference from them.
Turn off all unused network equipment in your local home network. Some devices may
generate network traffic.
In some instances, placing the wireless router or access point higher up away from the
floor may improve the reception.
The reception quality over wireless depends on many factors such as type of the
access point, distance between the TV and access point, and the location of the TV.
To connect wireless AP, and AP that supports the wireless connection is necessary,
and the wireless connection.

21
Smart TV Function
Wi-Fi Direct
HOME - > Settings - > Network and location settings - > Wi-Fi direct
The connected device must acquire the Wi-Fi Direct certificate.
Wi-Fi Direct can at any time realize interconnection without the help of Wi-Fi router and
AP.
1. Make sure the Wi-Fi Direct is enabled both on TV and the connected device.
2. Enable the Wi-Fi Direct at the connected device.
3. The devices which are available for TV connection display in the window list.
4. Select the device you are willing to connect to the TV then choose YES if connecting
request appears.
5. If the connected device accepts the request, then the connecting setup has been done.
Function of the AP needs to be activated. Please enquire to the AP supplier for the
possibility of AP wireless connections.
Please verify the security settings of AP SSID for wireless AP connection, and
enquire to the AP supplier for the AP SSID security settings.
The TV can become slower or malfunction with wrong settings of network
equipments (wired / wireless router, hub, etc).
Please install correctly by referring to the manual of the equipment, and set the
network.
When AP is set it include 802. 11n, and if Encryption is designated as WEP or
WPA(TKIP / AES) and WPA2 hardware encryption schemes, the connection may not be
possible. There may be different connection methods according to the AP manufactures.
22
Smart TV Function
Wi-Fi Hotspot
ALL Apps
HOME - > Settings - > Network and location settings - > Wi-Fi hotspot
First, assure TV is connected to wired network. Then to get mobile phone or notebook
connected to TV. Specific operations are as follows:
1. Make sure the Wi-Fi hotspot on TV is enabled.
2. Select settings to input the SSID and password. Choose Save to complete the
settings.
3. Use mobile phone and notebook to search TV Wi-Fi hotspot, and then input the
password.
Connection has been completed.
Press the NAVIGATION Buttons to scroll to the ALL Apps and press OK, from the
displayed window you can operate any of the downloaded apps.
Application Management
Please insert the SD card before applying this function.
Apps Installation:
Install the apps that you want from the on-line shop.
1. The procedure for registration on cinavision are as follows:
1.1 Click on the login at the top of the HOME page.
1.2 Select register and obey the clause.
1.3 Input the user name, e-mail and password, then confirm the password.
1.4 Registration completed after being confirmed.
Note: Should you change the password, the
modified password should contain at
least 8 characters.

23
Smart TV Function
2. Click on the Login at the top of the HOME page, input e-mail and password to log in
to visit the on-line shop.
On-line apps can be downloaded through
HOME - > Market - > Apps
2.1 Choose the application that you need from the list.
2.2 Check the related information about the application, select install.
2.3 The installed application will display at interface of ALL Apps, click one of them
for running.
2.4 If there is not enough space on the
TV you can download the application
into the SD card for running.
24
Smart TV Function
To enter File Explorer interface by HOME - > All Apps - > File Explorer
1. Click on the Menu Icon at the top right of the screen or
MENU Button on the Remote Control to display the
edit menu; then continue with the related operation.
File Explorer
2. Select a file, then press and hold the LEFT MOUSE Button or “OK” Button for
seconds to have related operation on the selected file.
2
Menu Icon
MENU
Button
Left Mouse Button
Application Uninstall / Move
Environment Selection
1. Find the application that you want to uninstall or move through the method of
HOME - > Settings - > Application management - >All applications
System provided application
can not be uninstalled.
2. Open the application, then
select Uninstall / Move.
To use this TV for in-
store demonstration,
select (Demo).
Initial setup window will appear when you first start to use , choose the setting mode
you want.
You can either choose to select HOME USE or DEMO.
HOME USE: To use this TV at home without demonstrating any advertisements.
DEMO: To use this TV for in-stone demonstration with digital adverts. (Please do not
select this mode when using at home.)
Users can switch between these two modes by
following the below method. Press HOME
Button to enter the HOME menu, click on Settings
will pop up to System settings, go to
Environment selection from the displayed window,
you can cycle through the two different
mode by pressing Up and Down Button, then press
OK Button to confirm.
Up or Down Buttons
Note: When DEMO Mode is executed, please first press EXIT Button to
exit then follow the above operation by going to Settings then
enter Environment selection for closing.
HOME
Button

25
Smart TV Function
Browser
Add the Bookmark
Click on the (Star Icon) at the top right of the page to display a page, from which you
can add bookmarks, view visited history.
To open Browser click on HOME - > Browser
Website can be entered by(keyboard on the Remote Control / keyboard on the TV
screen / external keyboard), you can view the website on the TV.
Label
Address
Account
Add to
Cancel OK
Google
http://www.google.co.in/
Local
Bookmarks
Bookmark this page
26
Smart TV Function
Press OK Button to play or Exit to exit
13579
246810
No.
1
2
3
4
5
6
7
8
9
10
Skip to the previous picture.
Click it to play or pause playback.
Skip to the next picture.
Zoom in the picture.
Zoom out the picture.
Right rotation.
Left rotation.
Display the information of the picture.
Set the picture as a wallpaper.
Set the animation effect and interval time of playing the picture.
Description
OK Button
Media:
This function can allow you to view the shared media from the memory storage.
Note: Before operating Media function, plug in USB device.
HOME - > Media
Press Navigation Button to view the shared media in the category.
Navigation
Button

27
Smart TV Function
Music Playback
Enter this function by HOME - > Media, then select your favourite song for playing.
Press OK to play the music and Exit to exit playback.
OK Button
268
379
1
4
5
No. Description
1
2
3
4
5
6
Stop video playback.
Play the previous video.
Fast rewind playback.
Playback or pause.
Fast forward playback.
Play the next one.
7
8
9
Press to switch among single playback/random playback/cycle playback.
Display all the songs added to the play list.
Display the information of the current playing song.
28
Smart TV Function
Video Playback
Enter this function by HOME - > Media, then select your favourite video for playing.
Press OK to play the video or Exit to exit.
1357911
2468
10 12
No.
1
2
3
4
5
6
7
8
9
10
11
12
Stop video playback.
Skip to the previous video.
Fast rewind playback.
Playback or pause.
Fast forward playback.
Skip to the next video.
Time setting : Display the time progress of the current video playback, or set
the video cut-in time.
Display all the videos.
Display the information of the current video playback.
Playback setting including subtitle, breakpoint and audio track setting.
A-B cycle playback.
Zoom in or zoom out of the video picture.
Description
OK Button

29
Smart TV Function
System Update
In order to enhance the network quality of the TV, regularly update the software from
official website.
Auto network updating
1. Click on Download to download the software, it
may take some time for file downloading. Please
follow the instructions as the TV indicates.
2. After you have finished software downloading,
click on update now, a reminder will pop up
and if you are to save the downloaded
APK applications or user info, please select NO.
3. It may need some time for program installation,
please follow the instructions indicated on the TV.
4. When the update is completed, the TV will
automatically restart in 5 seconds.
Turning on the TV will automatically detect the software package, you can click on
Download to download the new software, or click the RIGHT MOUSE Button or EXIT
Button on the Remote to exit the network update.
EXIT
Button OR
RIGHT MOUSE
Button
30
Smart TV Function
OSD Menu Operation (Before operating OSD menu, Please switch to full screen
Auto Tuning
1. Auto Tuning will be highlighted upon displaying this menu. Press OK Button to enter.
2. Press / to select country, press OK Button to enter the next step.
3. Use / button to select your location, then press OK button to enter the next step.
4. Press Up and Down to select tuning type. Press OK to start auto search.
playback by pressing HOME Button on the remote).
OSD menu can only be operated by using remote control.
Press MENU Button to enter the main menu, use Left and Right Button to select
CHANNEL.
FN Button and Left, Right, Up or Down Buttons
as the same time.
MENU
Button
HOME
Button
OK Button
OK Button
Australia
Return Return
Confirm Confirm
Manual Network update
Local Update
1. Users need to download the related new
software from our official website.
2. Copy the software update to the USB device,
and named after update signed. zip
3. HOME - > Settings - > System update or restore Factory - > System Update - >
Local Update to enter the interface of local update, click on Update immediately
to start local update.
HOME - > Settings - > System update or restore Factory - > System local update - >
Network Update to enter the interface of network update, then follow the steps of
auto network updating as above.

31
Smart TV Function
ATV Manual Tuning
Program Edit
Press Up and Down to select Channel Edit, then press OK Button to enter sub-menu.
1. Press Green Button to rename the current channel. (only available in ATV)
2. Press Yellow Button to change the program order.
Selected channel can be moved by using Up and Down, then press OK for confirm.
3. Press Blue Button to skip the selected channel.
4. Press Red Button to delete the selected channel.
FN Button and Left, Right, Up or Down Buttons
as be at the same time.
Blue ButtonGreen Button
Red Button
Yellow Button
Program Edit
901
Delete Rename Move Skip
C-00 ATV
Select Confirm Return Exit
OK
Press Up and Down Button to highlight ATV Manual Tuning, then press OK to enter
sub-menu.
1. Analog Scan : Press “OK” and then adjust Analog Scan by pressing Left and Right
Button.
2. Sound System : Press Left and Right Button to change (left/right/up/down) it into DK
or BG mode.
3. Search : Press Left and Right Button to set the Frequency and stop it by pressing OK,
Left and Right Button.
4. Frequency : Display the adjusted frequency channel.
5. Fine Tune : Press Left or Right Button to make minor modulation and stop it by pr
essing OK, Left and Right Button.
32
Smart TV Function
Picture Menu
Press MENU Button to bring up the main menu, then press Left and Right to select the
PICTURE MENU.
1. Picture Mode:
Press Left and Right to adjust the mode colour by Standard. Dynamic, User, Mild
and 3D Mode. Contrast, Brightness, Color, Sharpness can be adjusted only
under User mode, press MENU to return to the main menu.
2. 3D Settings:
Once the TV receives 3D signal, the system will automatically turn this function On.
To watch in 3D, you are required to wear 3D glasses. Use Up and Down Button to
select On or Off, press OK to confirm, EXIT to quit.
3. Noise Reduction:
Press OK Button to adjust among Strong, Weak, Middle and Off.
4. Colour Temp:
Press Left and Right Button to select Cool, Standard, Warm and User. You can adjust
R Gain, G Gain, and B Gain in User mode.
5. Energy Saving
Press OK Button to adjust among Middle, High, Low, Standard in this section.
6. Aspect Ratio:
This function will be available under VGA or HDMI, and you can choose Full, 4:3 and
Auto by pressing Left and Right Button.
7. Screen Mode (available under VGA or HDMI)
Press Up and Down to choose Screen Mode, press OK to confirm. Press Left and
Right to select PC/Video.
8. PC Settings (available under VGA or HDMI)
Press Up and Down to select PC Settings, press OK to enter the sub-menu, you can
also choose auto adjust to adjust the picture to full screen, or you can select clock,
phase, horizontal position, vertical position for adjusting.
FN Button and Left, Right, Up or Down Buttons
at the same time.
MENU
Button
OK Button

33
Smart TV Function
Sound Menu
Press MENU Button to display the main menu.
Press Left and Right to enter the SOUND page, it will highlight the first option, then
press OK Button to enter the sub-menu.
1. Sound Mode:
Press OK and then press Left and Right to adjust Sound Mode.
You can change the value of Treble and Bass under user mode.
2. Balance:
Press Up and Down to select Balance, then press OK Button to enter sub-menu,
press Left and Right adjust.
3. Auto Volume (A C):V
Press Up and Down to select Auto Volume, then press OK and Left and Right to
select On or Off.
4. SPDIF Mode:
Press Up and Down to select SPDIF Mode, then press OK and Left and Right
Button to select PCM, Off or Bitstream.
5. Power On Music:
Press Left and Right Button to set On or Off.
FN Button and Left, Right, Up or Down Buttons
at the same time.
MENU
Button
OK Button
34
Smart TV Function
Option Menu
Press MENU Button to display the main menu.
Press Left and Right to enter OPTION page, it will highlight the first option.
1. OSD Time Out:
Press OK and then press Left and Right Button to set the OSD Time Out.
3. Restore Default:
Operate this item to resume all the initial settings.
Time Menu
Press MENU Button to display the main menu.
Use Up and Down to enter TIME page, it will highlight the first option.
1. Current Time:
Can not be selected, but it can automatically obtain the network time.
2. Off Time:
Press Up and Down to select Off time, the press OK Button to enter the sub-menu,
press OK and adjust it into On or Off.
3. On Time:
Press Up and Down to select On Time, then press OK Button to enter the sub-menu,
press OK to proceed with the On and Off time settings.
4. Sleep Timer:
Press Up and Down Button to select Sleep Timer, then press OK to confirm, press
Left and Right to adjust.
5. Time Zone:
you can choose different location by operating this item.
2. PVR Settings:
Press OK button to display the related functions included in this item.
FN Button and Left, Right, Up or Down Buttons
at the same time.
MENU
Button
OK Button
FN Button and Left, Right, Up or Down Buttons
at the same time.
MENU
Button
OK Button

35
Smart TV Function
Press MENU Button to bring up the OSD menu.
Use Left and Right to turn to LOCK page (this function is only available under TV mode),
it will highlight the first option, then you are required to input the password (default as
0000).
1. System Lock:
Press OK to select On or Off.
2. Channel Lock:
Press Up and Down to select Channel Lock, then press OK to enter the sub-menu,
press Up and Down to select the program that you want to lock, then press OK to
confirm.
3. Parental Guidance:
Parent can set age limit level by this function.
Lock Menu
4. Set Password
Press Up and Down to select Set Password, press OK Button to enter the sub-menu
to set the new password.
PVR Function
PVR Settings
(This feature is only available under DTV mode.)
Please plug in the USB device before executing recording function and as well do the following
settings to save the file recording.
1. MENU->OPTION MENU->PVR SETTINGS->DEVICE LIST
2. Select a USB storage device formatted as FAT, press OK to confirm.
3. If a USB storage device formatted as a different format, press the red button on the remote to format as FAT,
recording can be carried out by this time. EXFAT is not supported by the system, format of NTFS is just
available for reading, and can not be applied for recording.
FN Button and Left, Right, Up or Down Buttons
at the same time.
MENU
Button
OK Button
Device Available Space
Confirm
36
OSD Menu Operation
Precautions when using the USB device
1. Please do not turn off the TV or unplug the USB device when the connected USB storage device
is working.
When such device is suddenly separated or unplugged, the stored files or the USB storage
device may be damaged.
2. Please use only USB storage devices that are formatted as a FAT32 file system , otherwise it
may not be recognized.
3. Every USB only supplys 500mA electric current, if the user’s device requirement is over the
specification, users need to choose to connect to the external power supply, otherwise the
device may not be recognized.
4. If the USB HDD does not have an external power supply, the USB device may not be detected.
So be sure to connect the external power supply.
5. The recommended capacity is 2TB or less for a USB external hard disk and 32GB or less for
USB flash memory.
6. The recognition speed of a USB storage device may depend on each device.
7. Please connect a USB storage device with the cable offered by the device maker.
8. Be sure to back up important files since data stored in a USB memory device may be damaged
We will not be responsible for any data loss.
9. If your USB memory device has multiple partitions, of if you use a USB multi-card reader, you
can use up to 4 partitions or USB memory devices.
10. If the USB memory device does not work properly, disconnect and reconnect it. How fast a
USB memory device is detected differs from device to device.
11. If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when
the TV is turned on.
12. Any device with more than the recommended capacity may not work properly.
In-Time Record
You can record the program you are watching. Press REC on the remote to start the recording.
Recording icon and recording time will be displayed at the right bottom of the Screen.
Recording
00:00:19

37
OSD Menu Operation
Stop Record
1. Press STOP button to stop the recording.
2. Press Navigation buttons to scroll to Yes,and press OK button.
Pre-record
1. Press EPG on the remote to open the program guide, select the program that you want to
record, then long press REC for three seconds to add the program to Pre-record list.
2. Press the green button on the remote to delete the selected recording group, yellow button to
delete all the recording group.
3. You can also enter PVR settings by the method of :MENU->OPTION MENU->PVR SETTING-
>SCHEDULED RECORD SETTING LIST. Select a blank recording group, then press OK to
enter the setting list to set the recording task.
Are you sure to stop the
recording?
2
Confirm
Confirm
38
OSD Menu Operation
Play the recorded program
1. MENU->OPTION MENU->PVR SETTINGS->FILE MANAGER
2. Select the recorded program that you want to play, press OK button or red button to play the
program at the left window.
Press the blue button to play in full screen, press it again to exit the full screen playback.
Press green button to delete the selected recorded program.
Press yellow button to delete all the recorded programs.
3. The current program and device information will be displayed underneath the played program.
EPG
Press EPG to show the EPG list.
Channel list ,program information and progress list can be carried out by operating this function.
The EPG displays the program details for next 7 days, you can choose the program that you want
to have pre-record, press REC to have program pre-record.
r
R
1
10
11
12
21
22
23
24
2
Confirm
Confirm

39
3D Image
3D Image
Safety Information for Watching 3D Images
-
- As the TV turns on, it may take seconds until the picture quality is optimized.
- The 3D passive glasses may not work properly if there is any other objects standing between the
TV set and 3D glasses.
- Note that when your eyes are away and then back to the 3D images, a short time will be needed
for your eyes to get adapted.
- When watching 2D images, we recommend removing 3D glasses. If you wear 3D glasses to
watch 2D images, the picture will be distorted.
When watching 3D images, Please wear 3D glasses.
You may not feel the 3D effect if your viewing angel and distance between the TV and glasses are
out of range.
* 3D effect may not be available if the receiving area is out of range.
* Do not watch 3D pictures for a long period of time for your health.
* Note that watching TV with 3D glasses for an extended period of time may cause drowsiness and
eye strain.
• If you experience any of the symptoms of headache, fatigue, dizziness, sickness, convulsions,
loss of awareness, confusion, immediately stop watching 3D TV and consult a medical
specialist.
* The pregnant, elderly, epileptic and those suffering from serious physical conditions are advised
to avoid watching 3D images.
• 3D pictures may startle viewers.
* Please take care to be aware of the world around you. This product is designed to be immersive.
Do not use this product near open stairwells, cables, balconies, or other objects that can be
tripped over, run into, knocked down or fallen over. Being startled or deluding yourself into
thinking that the 3D images are real may cause you to crush
a nearby object or get injured when trying to move your body.
* Children under the age of five are prohibited to watch 3D images or it will influence the children's
vision.
* If any of your relatives has a history of epileptic or strokes, please consult a medical specialist
before using the 3D function.
* You may not notice the 3D effect at all if you have a prescription for one eye that is very different
from the other eye.
* We recommend sitting with viewer's eyes on a level with the screen.
* If your eyes show signs of fatigue or dryness or if you have any of the above symptoms,
immediately discontinue use of this device and do not resume using it for at least thirty minutes
after the symptoms have subsided.
40
Smart TV Function
3D Image
Safety information for watching 3D Images
Attention for using 3D function
WARNING
Wearing 3D glasses for any other purposes (as general spectacles, sunglasses,
protective goggles, etc.) may physically harm you or weaken your eyesight.
Do not put 3D glasses in extremely cold or overheated places.
Do not use broken 3D glasses.
Do not squeeze and strike the 3D glasses.
Wipe the 3D glasses with clean and soft cloth.
Do not use sharp objects or chemical products to wipe the surface of 3D glasses.
You may not feel the 3D effect if your viewing angle and distance between the TV and
glasses are out of range.
3D effect may not be available if the receiving area is out of range.
Do not watch 3D pictures for a long period of time for your health.
Note that watching TV with 3D glasses for an extended period of time may cause
drowsiness and eye strain.
If you experience any of the symptoms of headache, fatigue, dizziness, sickness,
convulsions, loss of awareness, confusion, immediately stop watching 3D TV and
consult a medical specialist.
The pregnant, elderly, epileptic and those suffering from serious physical conditions
are advised to avoid watching 3D Images.
3D pictures may startle viewers.
Please take care to be aware of the world around you. This product is designed to be
immersive. Do not use this product near open stairwells, cables, balconies, or other
objects that can be tripped over, run into, knocked down or fallen over. Being startled
or deluding yourself into thinking that the 3D Images are real may cause you to crush
a nearby object or get injured when trying to move your body.
Children under the age of five are prohibited to watch 3D Images or it will influence
the children’s vision.
If any of your relatives has a history of epileptic or stroked, please consult a medical
spedcialist before using the 3D function.
You may not notice the 3D effect at all if you have prescription for one eye that is
very different from the other eye.
We recommend sitting with the viewer’s eyes at the same level as the screen.
If your eyes show signs of fatigue or dryness or if you have any of the above
symptoms, immediately discontinue use of this device and do not resume using it for
at least thirty minutes after the symptoms have subsided.
When watching 3D Images, please wear 3D glasses.
As the TV turns on, it may take seconds until the picture quality is optimized.
The 3D passive glasses may not work properly if there is any other objects standing
between the TV set and 3D glasses.
Note that when your eyes are away and then back to the 3D Images, a short time will
be needed for your eyes to get your eyes to re-adjust.
When watching 2D Images, we recommend removing 3D glasses. If you wear 3D
glasses to watch 2D Images, the picture will be distorted.
