Blu-ray Disc /DVD Player
Operating Instructions~
BDP-CX7000ES
©2009 Sony Corporation
Mode d'emploi, __

WARNING
To reduce the risk of fire orelectric
shock,do notexposethis apparatus
to rain or moisture.
To reduce the risk of fire orelectric
shock, do not exposethis apparatus
to drippingorsplashing, and do not
place objects filled with liquids,
such
as vases, on the apparatus.
To reduce the risk of fire, do not
cover the ventilation opening
of
the apparatus with newspapers,
tablecloths, curtains, etc. Do not
place the naked flame sources such
as lighted candles on the apparatus.
As the main plug is used to
disconnect the unit from the mains,
connect the unit to an easily
accessible AC outlet. Should you
notice an abnormality in the unit,
disconnect the main plug from the
AC outlet immediately.
Do not install the appliance in a
confined space, such as abookcase
or build-in cabinet.
Do not expose batteries or
apparatus with battery installed to
excessive heat such as sunshine,
fire or the like.
it
This symbol is
lintended to alert the
~ Iuser to the presence
of uninsulated
"dangerous voltage"
within the product's enclosure that
may be
of sufficient magnitude to
constitute arisk
of electric shockto
persons.
LL
This symbol is
'
intended to alert the
user to the presence
of important
operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
The unit is not disconnected from
the mains as long as
it is connected
to the AC outlet, even
if the unit
itself has been turned off.

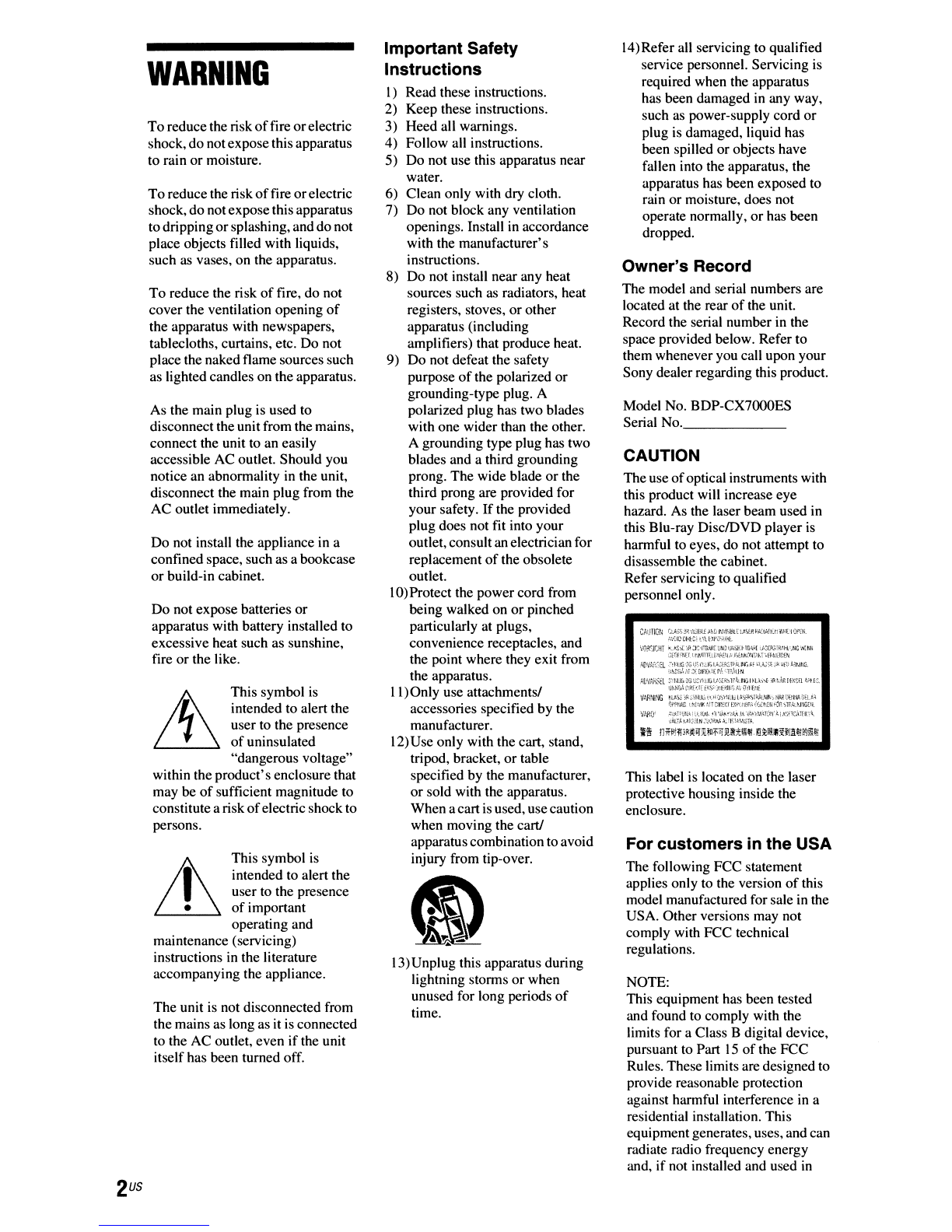

Important Safety
Instructions
I) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings. Install in accordance
with the manufacturer's
instructions.
8) Do not install near any heat
sources such
as radiators, heat
registers, stoves, or other
apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety
purpose
of the polarized or
grounding-type plug. A
polarized plug has two blades
with one wider than the other.
Agrounding type plug has two
blades and athird grounding
prong. The wide blade or the
third prong are provided for
your safety.
If the provided
plug does not fit into your
outlet,consultan electrician for
replacement
of the obsolete
outlet.
10)Protect the power cord from
being walked on or pinched
particularly at plugs,
convenience receptacles, and
the point where they exit from
the apparatus.
II)Only use attachments!
accessories specified by the
manufacturer.
12)Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When acart
is used, use caution
when moving the cartl
apparatuscombination to avoid
injury from tip-over.
13)Unplug this apparatus during
lightning storms or when
unused for long periods
of
time.
14)Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus
has been damaged in any way,
such
as power-supply cord or
plug is damaged, liquid has
been spilled or objects have
fallen into the apparatus, the
apparatus has been exposed to
rain or moisture, does not
operate normally, or has been
dropped.
Owner's Record
The model and serial numbers are
located at the rear
of the unit.
Record the serial number in the
space provided below. Refer to
them whenever you call upon your
Sony dealer regarding this product.
Model No. BDP-CX7000ES
Serial No. _
CAUTION
Theuse of optical instruments with
this product will increase eye
hazard. As the laser beam used in
this Blu-ray DisclDVD player
is
harmful to eyes, do not attempt to
disassemble the cabinet.
Refer servicing to qualified
personnel only.
C,UTIDN '!ili~~:
Vf)f!:;I~HT
.:..DVAf·;:ja
,1.1:YA85tl ~i'lJS
V'~!ijNG
V;\fHi'
This label is located on the laser
protective housing inside the
enclosure.
For customers in the USA
The following FCC statement
applies only to the version
of this
model manufactured for sale
in the
USA. Other versions may not
comply with FCC technical
regulations.
NOTE:
This equipment has been tested
and found to comply with the
limits for aClass Bdigital device,
pursuant to Part
15 of the FCC
Rules. These limits are designed to
provide reasonable protection
against harmful interference
in a
residential installation. This
equipment generates, uses, and can
radiate radio frequency energy
and, if not installed and used
in

• Do not install the player in an
inclined position. It is
designed to
be operated in a
horizontal position only.
On power sources
• If you are not going to use the
player for along time, be sure
to disconnect the player from
the wall outlet.
To disconnect
the
AC power cord, grasp the
plug itself; never pull the cord.
On transporting the player
Before transporting the player,
follow the procedure below to
return the internal mechanisms
to their original positions.
I) Remove all the discs from the
disc slots.
2) Press OPEN/CLOSE to close
the front cover.
Make sure that "NO DISC"
appears on the front panel
display.
3) Wait for 10 seconds, then press
1/<9 to tum off the player.
The player enters standby
mode.
4) Disconnect the
AC power cord.
x
o
• Do not place any objects other
than discs on the disc tray.
Doing so may causedamage to
the
player or the object.
•
When you move the player,
take out any discs.
If you
don't, the disc may be
damaged.
•
When you move the player,
disconnect the
AC power cord
and all
other cables from the
player.
On placement
•Place the player in alocation
with adequate ventilation
to
prevent heat build-up in the
player.
•
Do not place the player on a
soft surface such as arug that
might block the ventilation
holes.
•
Do not place the player in a
location near heat sources,
or
in aplace subject to direct
sunlight, excessive dust,
or
mechanical shock.
• If the playeris broughtdirectly
from acold to awarm location,
or is placed in avery damp
room, moisture may condense
on the lenses inside the player.
Should this occur, the player
may not operate properly. In
this case, remove the disc and
leave the player turned
on for
about half an
hour until the
moisture evaporates.
•Keep the player and the discs
away from equipment with
strong magnets, such as
microwave ovens,
or large
loudspeakers.
•
Do not place heavy or unstable
objects on the player.
On safety
• To prevent fire or shock
hazard,
do not place objects
filled with liquids, such as
vases, on the player,
or place
the player near water, such as
nearabathtub
or showerroom.
Should any solid object
or
liquid fall into the cabinet,
unplug the player
and have it
checked by qualified
personnel before operating it
any further.
•
Do not touch the AC power
cord with wet hands.
Doing so
may cause an electric shock.
Precautions
Ifyou have any questions about
this product, you may call; Sony
Customer Information Service
Center 1-800-222-7669 or
http://www.sony.com/
If this product is not working
properly, please call 1-877-602-
2008 for Peace of Mind
Warranty Replacement
service.
Forother product related questions
please contact our Customer
Information Service Center at
1-877-899-7669 or write to
us at:
Customer Information Service 115
Gordon Baker Road, Toronto,
Ontario, M2H 3R6
For Customers in Canada
This Class Bdigital apparatus
complies with Canadian ICES-
003.
CAUTION
You are cautioned that any
changes or modifications not
expressly approved
in this manual
could void your authority
to
operate this equipment.
Precautions
•To avoid electrical shock, do not
open the cabinet. Refer servicing
to qualified personnel only.
•Keep the external memory away
from children.
If swallowed,
promptly see adoctor.
accordance with the instructions,
may cause harmful interference to
radio communications. However,
there
is no guarantee that
interference will not occur in a
particular installation. If this
equipment does cause harmful
interference
to radio or television
reception, which can be
determined by turning the
equipment offand on, the user
is
encouraged to try to correct the
interference
by one or more of the
following measures:
-Reorient or relocate the
receiving antenna.
-Increase the separation between
the equipment and receiver.
-Connect the equipment into
an
outlet on acircuit different from
that
to which the receiver is
connected.
-Consult the dealer or
an
experienced radiorrV technician
for help.
"continued 3us

•Clean the disc with acleaning
cloth. Wipe the disc from the
center out.
•Do not resurface the playing
side
of adisc to remove
surface scratches.
•Do not use solvents such as
benzine, thinner,
commercially available disc/
lens cleaners,
or anti-static
spray intended for vinyl LPs.
•Do not expose the disc to
direct sunlight or heat sources
such as hot airducts, orleave it
in acar parked
in direct
sunlight as the temperature
may rise considerably inside
the car.
•After removing adisc from the
disc slot, store the disc
in its
case.
To ensure stable operation
•To keep the disc clean, handle
the disc
by its edge. Do not
touch the surface.
Be careful not to leave
fingerprints especially on Blu-
ray Discs.
Dust, fingerprints,
or scratches
on the disc may cause it
to
malfunction.
•Do not insert discs other than
those described
in "Playable
Discs" (page 86). Inserting a
disc in aformat not compatible
may cause amalfunction.
- 8 cm (3-inch) disc adaptor.
The player cannot play an 8
cm disc. Do not insert an 8
cm (3-inch) disc or an 8cm
(3-inch) disc adaptor. It may
damage the player and disc.
Adhesive
material
- A disc that has anon-
standard shape (e.g., card,
heart).
- A disc that has cellophane
tape
or stickeradhesive on it.
Tape or sticker
Adaptor 8cm disc
- A lens cleaning disc.
• If you have printed the disc's
label, dry the label before
playing.
• If burrs or adhesive material
attach on the disc, the player
may work unstably. In order to
ensure stable operation, insert
adisc after removing burrs or
foreign objects. Burrs may be
removed by rubbing the edge
of the disc with the side of a
pen orpencil. Ifadisc does not
play, check for burrs on the
disc and its two adjacent discs.
Extra
adhesive Burrs
material
/\
~t\1-' Pen or
\- pencil
On adjusting volume
Do not tum up the volume while
listening to asection with very
low level inputs or no audio
signals.
If you do, the speakers
may be damaged when apeak
level section
is played.
•Do
not use the following
discs.
- A disc with alabel or sticker
on it.
On cleaning
Clean the cabinet, panel, and
controls with asoftcloth slightly
moistened with amild detergent
solution. Do not use any type
of
abrasive pad, scouring powder
or solvent such as alcohol or
benzine.
On cleaning discs, discI
lens cleaners
Do not use cleaning discs or
disc/lenscleaners(including wet
orspray types). These may cause
the apparatus to malfunction.
On replacement of parts
In the events that this player is
repaired, repaired parts may be
collected for reuse or recycling
purposes.
•Observe following points to
prevent the AC power cord
being damaged. Do not use the
AC power cord if it
is
damaged, as doing so may
result in an electric shock or
fire.
-Do not pinch the AC power
cord between the player and
wall, shelf, etc.
-Do not put anything heavy
on the AC powercord orpull
on the AC power cord itself.

•This product incorporates
copyright protection
technology that is protected by
U.S. patents and other
intellectual property rights.
Use
of this copyright
protection technology must be
authorized by Macrovision,
and is intended for home and
other limited viewing uses
only unless otherwise
authorized by Macrovision.
Reverse engineering
or
disassembly is prohibited.
•Manufactured under license
from Dolby Laboratories.
"Dolby",
"Pro Logic", and the
double-D symbol are
trademarks
of Dolby
Laboratories.
•Manufactured under license
under U.S. Patent
#'s:
5,451,942; 5,956,674;
5,974,380; 5,978,762;
6,226,616; 6,487,535;
7,392,195; 7,272,567;
7,333,929; 7,212,872 &other
U.S. and worldwide patents
issued &pending.
DTS is a
registered trademark and the
DTS logos, Symbol, DTS-HD
and
DTS-HD Master Audio I
Essential are trademarks of
DTS, Inc. ©1996-2008 DTS,
Inc. All Rights Reserved.
•Java and all Java-based
trademarks and logos are
trademarks
or registered
trademarks
of Sun
Microsystems, Inc.
· +', "XMB," and"xross media
bar" are trademarks
of Sony
Corporation and Sony
Computer Entertainment Inc.
•This product incorporates
High-Definition Multimedia
Interface (HDMITM)
technology. HDMI, the
HDMI
logo and High-Definition
Multimedia Interface are
trademarks
or registered
trademarks
of HDMI
Licensing LLC.
•"Blu-ray Disc" is atrademark.
•"Blu-ray Disc," "DVD+RW,"
"DVD-RW," "DVD+R,"
"DVD-R,"
"DVD VIDEO,"
and
"CD" logos are
trademarks.
•"BD-Live" and "BonusView"
are trademarks
ofBlu-ray Disc
Association.
•"x.v.Color" and "x.v.Color"
logo are trademarks
of Sony
Corporation.
•
"BRA VIA" is atrademark of
Sony Corporation.
•"PhotoTV HD" and the
"PhotoTV HD" logo are
trademarks
of Sony
Corporation.
•MPEG Layer-3 audio coding
technology and patents
licensed from Fraunhofer lIS
and Thomson.
•
This product meets ENERGY
STAR guidelines for energy
efficiency.
ENERGY STAR and the
ENERGY STAR mark are
registered U.S. marks.
ENERGY STAR is a
registered mark owned by the
U.S. government.
•Music and video recognition
technology and related data
are provided by Gracenote®.
Gracenote is the industry
standard in music recognition
technology and related content
delivery. For more
information, please visit
www.gracenote.com.
CD,
DVD, Blu-ray Disc, and
music and video-related data
from Gracenote, Inc.,
copyright ©2000-present
Gracenote. Gracenote
Software, copyright ©2000-
present Gracenote. One
or
more patents owned by
Gracenote apply to this
product and service. See the
Gracenote website for anon-
exhaustive list
of applicable
Gracenote patents. Gracenote,
CDDB, MusicID,
MediaVOCS, the Gracenote
logo and logotype, and the
"Powered by Gracenote" logo
are either registered
trademarks
or trademarks of
Gracenote in the United States
and/or other countries.
• gracenote.
..
•Other system and product
names are generally
trademarks
or registered
trademarks
of the
manufacturers. ™and ®
marks are not indicated in this
document.
IMPORTANT NOTICE
Caution: This player is
capable of holding astill
video image or on-screen
display image on your
television screen
indefinitely. If you leave the
still video image or on-
screen display image
displayed on your TV for an
extended period of time you
risk permanent damage to
your television screen.
Plasma display panel
televisions and projection
televisions are susceptible to
this.
If you have any questions or
problems concerning your
player, please consult your
nearest Sony dealer.

About This
Manual
• In this manual, "disc" is used
as ageneral reference for BDs,
DVDs, or CDs unless
otherwise specified
by the text
or illustrations.
•Icons, such as
·.~:I~.~.·, listed
at the top
of each explanation
indicate what kind
of media
can be used with the function
being explained.
For details, see "Playable
Discs" (page 86).
•Instructions in this manual
describe the controls on the
remote. You can also use the
controls on the player if they
have the similar symbols
as
those on the remote.
•The on-screen display
illustrations used in this
manual may not match the
graphics displayedon your
TV
screen.
•NEED-to-know information
(to prevent incorrect
operation)
is listed under the
"icon. NICE-to-know
information (tips and other
useful information)
is listed
under the
.~. icon.

Table of Contents
WARNING 2
Precautions 3
About This Manual 6
Guide to Parts and Controls 9
Guide to On-screen Menu Display 15
Getting Started
Hooking Up the Player 17
Step
1: Connecting to Your TV 18
Connecting to an HDMI jack 19
Connecting to component video jacks (Y, Ps,
PR) 21
Connecting to an audio/video or SVIDEO jack 22
Step
2: Connecting to Your AV Amplifier (Receiver) 23
Connecting to an HDMI jack 24
Connecting to digital jacks (OPTICAUCOAXIAL) 25
Connecting to
7.1 channel jacks 26
Connecting to audio
UR jacks 27
Step
3: Inserting an External Memory 28
Step
4: Connecting to the Network 29
When connecting to abroadband router directly 29
When connecting via awireless LAN router 30
Step
5: Connecting the AC Power Cord 30
Step
6: Preparing the Remote 31
Step 7: Easy Setup 31
Step 8: Inserting Discs 34
Inserting arental disc 35
Step
9: Loading Disc Information 36
Playback
Playing BDs/DVDs 37
Using the BD's
or DVD's menu 39
Enjoying BonusView/BD-Live 39
Searching for ascene quickly (Scene Search) 40
Searching for aTitle/Chapter
41
Adjusting picture and sound for videos 41
Playing Music CDs 44
Playing Music repeatedly 46
Playing Discs
in random order (Shuffle Play) 46
Creating Playlists 47
Playing Photo Files 48
Playing aSlideshow 50
"continued 7uS

8
us
Organizing Discs
Loading the Disc Information 51
Loading the information of all discs 51
Loading adisc information 52
Editing aDiscfTitle/File Information 53
Editing the video disc information 53
Editing the music disc information 53
Editing the photo disc name 54
Entering characters 54
BRAVIA Sync Features
About the BRAVIA Sync Features (HDMI connections only) 56
Remote Control Features
Operating the Player and Other Components 58
Changing the Remote Code to Operate Other Components 60
Changing the Command Mode
62
Settings and Adjustments
Using the Settings Display 63
Network Update 64
Video Settings 65
Audio Settings 69
BD/DVD Viewing Settings 73
Photo Settings 76
System Settings 76
Network Settings 78
Easy Setup 79
Resetting 80
Additional Information
Troubleshooting 81
Self-Diagnosis Function 85
Playable Discs 86
Video Output Resolution 88
Audio Output Signals 89
Specifications 90
Language Code List
91
Parental Control/Area Code 91
Terms and Conditions of Use and End User License Agreement 92
Software License Information 94
Glossary 103
Index 106
Before operating the player, please read "Terms and Conditions of Use and End User License
Agreement" (page 92).

Guide to Parts and Controls
For more information, see the pages in parentheses.
23
[I] 1/(9 (on/standby) (page 31)
Turns on the player, or sets to standby
mode.
[1] Remote sensor (page 31)
~ Front panel display (page 10)
@] ~ (play) (page 37)
Starts playback.
II (pause) (page 37)
Pauses playback.
•(stop) (page 37)
Stops playback.
lID DISC/AMS dial (page 34)
Selects adisc in DISC CHANGE mode.
Searches for achapter/track/scene in
DIRECT SEARCH mode.
The selected mode indicator is lit in the
front panel display.
[§] +100 (page 34)
Skips 100 disc slots ahead when
selecting discs.
DISC CHANGE
Switches to the dial function for selecting
the disc.
DIRECT SEARCH
Switches to the dial function for
searching for achapter/track.
[Z] OPEN/CLOSE (page 34)
Opens or closes the front cover.
DISC EJECT (page 34)
Opens the front cover and ejects the disc.
DISC LOAD (page 36)
Reads the disc information of all
unknown discs, and loads it into the
memory.
RENTAL SLOT (page 35)
Opens or closes the front cover to playa
disc in slot number I.
[ID Front cover
Opens or closes when you insert or eject
discs.
-'continued gus

To lock the front cover (Child Lock)
You can lock the front cover to prevent it being opened by mistake.
When the player is turned on, hold
down" on the player for more than 10 seconds until
"LOCKED" appears in the front panel display. The front cover is locked.
To unlock the front cover, hold down" on the player until "UNLOCK" appears in the front
panel display.
10
us
[I) File format
Displays the format of the currently
playing file.
[2J Disc type
Displays the currently playing disc type.
~ EXT (page 28)
Lights up when the external memory is
recognized.
HOMI (page 19)
Lights up when an HDMI device is
connected.
@] HO (page 66)
Lights up when outputting 720p/l 080il
I080p video signals from the HDMI
OUT jack or nOp/l 080i video signals
from the
COMPONENT VIDEO OUT
jacks.
24P (page 67)
Lights up when outputting 1080p124 Hz
video signals
of BD-ROMs.
lID Play mode
Displays acurrently playing play mode.
l]] DISC CHANGE/DIRECT SEARCH
Displays either selected function mode
for the dial.
[l] Disc slot number
Displays the number of the disc slot
currently selected
or playing back.
[ID Playback information (page 13)
Displays the disc/title/chapter/track
number.
lID ~, II
Lights up during playback or pause.
[1Q] Network connection indicator
Lights up whendownloading the player's
software.
For details on downloading the
player's
software, see page 64.

eo ~
COMPONENT VIDEO OUT HOMI OUT
~ A IN
12 11 10
9
ITJ AUDIO OUT (UR) jacks (page 22,
27)
[2J MULTI CHANNEL OUTPUT
(FRONT
UR, SURROUND UR,
SUR BACK UR, CENTER, SUB
WOOFER) jacks (page 26)
~ DIGITAL OUT (OPTICAU
COAXIAL) jacks (page 25)
@] LAN (100) terminal (page 29)
[§] VIDEO OUT (VIDEO/S VIDEO)
jacks (page 22)
[ill EXT slot (page 28)
[l] COMPONENT VIDEO OUT
(Y, PB, PR) jacks (page 21)
lID HDMI OUT jack (page 19, 24)
rnJ CONTROL SIN/IR IN jack
If you have a CONTROL S-compatible
Sony
TV or AV amplifier (receiver), use
aControl Scable (not supplied) to
connect to the Control S(output) jack.
Refer to the operating instructions
supplied with your TV or AV amplifier
(receiver).
[Q] Ventilation holes
The ventilation fan is inside the player.
[1] AC IN terminal (page 30)
[12J RS232C port
Used for maintenance and service, or
communication with external equipment.
-'continued 11 us

THEATER (page 56)
c:m Automatically switches to the
optimum video mode for watching
movies.
"
The THEATER button functions only when a
Theater Mode-compatible
TV is connected.
@] Numberbuttons(page 39,41,60,
73, 74, 75)
~c:mIAMPI
Enters the title/chapter numbers, etc.
ENTER (page 39, 41, 60, 62)
~ c:m Enters a selected item.
[I] AV 1/6 (on/standby) (page 59)
c:m I AMP I Turns on the connected
TV or AV amplifier, or sets to standby
mode.
( GROUP ))1H1---110
1/6 (on/standby) (page 31)
~ Turns on the player, or sets to
standby mode.
[g] OPERATION CHANGE (page 58)
1--11---14 Changes the operation mode to control
the component by the remote.
~ Operates the player.
c:m Operates a connected TV.
I AMP I Operates a connected AV
amplifier.
~ ~ OPEN/CLOSE (page 34)
~ Opens or closes the front cover.
INPUT (input select)
c:m I AMP I Switches between TV and
other input sources.
DIM MEA RENTAL SLOT LOAD
CD} CD} CD}I!-+--i
PREV REPLAY ADVANCE NEXT
8ce .. ·II··))8
PLAY
e ce ~o)) 8!HI---111
The number 5, AUDIO, TV CH +, and ~ PLAY
buttons have atactile dot. Use the tactile
dot as a
reference when operating the player.
Button functions differ depending
on the mode
selected
by the OPERA nON CHANGE buttons.
~, c:m, and I AMP Iindicate the
functions available for each operation mode.
"
The available functions of the remote differ
depending
on the disc or the situation.
CLEAR/· (dot)
~ Clears the entry field.
c:m Inputs "." (dot) when inputting
numerics.
[ID AUDIO (page 73)/FAVORITES
~ I AMP I Selects the language
when multi-lingual tracks are recorded
on a BD-ROM/DVD VIDEO.
Selects the sound track on CDs.
c:m Displays the favorite TV channel
list.
SUBTITLE (page 73)/CC
~ Selects the subtitle language
when multi-lingual subtitles are recorded
on a BD-ROM/DVD VIDEO.
c:m Changes the subtitle of the TV.
12
us

ANGLElWIDE
[]Q] Switches to other viewing angles
when multi-angles are recorded on aBD-
ROMIDVD VIDEO.
c::IYJ Changes the aspect ratio of the
connected TV.
[ID REPEAT
[]Q] Plays music tracks repeatedly.
Pressing repeatedly cycles through all
track repeat, one track repeat, and off.
SHUFFLE
[]Q] Plays all the music discs in
random order. Pressing the button
toggles between random playbackon and
off.
ALL DISCS
[]Q] Plays all the music or photo discs
in the player.
Plays all the music discs repeatedly or
randomly during Repeat Play or Shuffle
Play.
The ALL DISCS indicator lights up in
the front panel display.
To cancel, press the button again.
[Z] TIME
[]Q] Displays the elapsed/remaining
playback time in the front panel display.
Each time you press the button, the
display changes as follows.
When playing a BD-ROM/DVD VIDEO
Elapsed time of the current title
t
Remaining time of the current title
When playing a CD
Elapsed time of the current track
t
Remaining time of the current track
t
Elapsed time of the current disc
t
Remaining time of the current disc
DISPLAY (page 15)
[]Q] c::IYJ I AMP I
When playing a video or photo
Displays the disc or file information on
the screen.
When playing music
Displays the playback information on the
front panel display.
Each press changes the display as
follows:
Playing time
-+ Track name -+ Album
name
When displaying the home menu
Displays the currently selected category
icon/group name/sorting order and
operation guide.
[ID Color buttons (RED/GREEN/
BLUEIVELLOW)
[]Q] Short cut keys for selecting items
on some
BD's menus (can also be used
for
BD's Java interactive operations).
lID TOP MENU (page 39)/GUIDE
[]Q] OpensorclosesaBD'sorDVD's
Top Menu.
c::IYJ Displays the Digital Electronic
Program Guide (EPG).
POP UP/MENU (page 39)/GUI
MODE
[]Q] Opens or closes aBD-ROM's
Pop-up Menu or the
DVD's menu.
I AMP ISwitches the menu display mode
between GUI MODE and DISPLAY
MODE.
OPTIONS (page 38, 44, 48)1
TOOLS
[]Q] c::IYJ I AMP I
The options menu that can be selected
appears on the screen.
HOME (page 15, 37, 63)
[]Q] c::IYJ I AMP I
Enters or exits the home menu.
RETURN
[]Q] c::IYJ I AMP I
Returns to the previous display.
././+/.
[]Q] c::IYJ I AMP I
Moves the highlight to select adisplayed
item.
o(enter)
[]Q] c::IYJ I AMP I
Enters the selected item.
[1m SORT
[]Q] Changes the title order. Each time
you press the button, the list is sorted by
the selected item.
~continued 13us

14
US
GROUP
C§Q] Displays titles by category. Each
time you press the button, the list is
switched by the selected category.
Ill] ..... PREV/NEXT ~ (previous/
next)
C§Q] em Skips to the previous/next
chapter, track,
or file.
To go to the beginning of the previous
track, press
..... PREV twice.
... REPLAY/ADVANCE ••
(instant replay/instant advance)
C§Q] em Replays the scene/briefly
fast forwards the scene.
... /~
(fast reverselfast forward)
C§Q] em Fast reverses/fast
forwards the disc when pressed during
playback.
Each time you press the button, search
speed changes as follows*:
Playback direction
~ 1 (x 10) --+ ~2 (x30) --+ ~3
(xI20)
Reverse direction
...... (xl) --+ .... 1 (x 10) --+ .... 2(x30)
--+ .... 3 (x 120)
When you press and hold the button, fast
forward/fast reverse continues at the
selected speed until you release the
button.
*Search speed does not change when playing
CDs.
Speed multiple values are approximate.
-To resume normal playback, press
~PLAY.
To play in slow, freeze frame (playback
direction only)
Plays BDs/DVDs in slow motion when
~ is pressed for more than one second
in pause mode.
Plays one frame at atime when
~ is
pressed briefly in pause mode.
-To resume normal playback, press
~PLAY.
~ PLAY (page 37)
C§Q] em Starts or re-starts
playback.
Plays aslideshow when adisc containing
JPEG image files is inserted.
SCENE SEARCH (page 40)
C§Q] Switches to Scene Search mode,
which lets you move quickly between
scenes within the title currently being
played back.
II PAUSE (page 38)
c:m2J em Pauses or re-starts
playback.
•STOP
c:m2J em Stops playback and
remembers the stop point (resume point)
(page 38, 45).
I1g] MUTING (page 59)
em I AMP ITurns off the sound
temporarily.
VOLUMElTV VOL +/- (page 59)
C§Q] em I AMP I
Adjusts the volume.
DISC SKIP (page 38, 45, 49)nv
CH (channel) +/-
C§Q] Selects the disc you want to play.
Press DISC
SKIP+/- repeatedly until you
find the disc you want to play. When you
release the button, playback
of the
selected disc starts.
em Selects the TV channels up and
down.
~ DIMMER
C§Q] Adjusts the lighting of the front
panel display.
RENTAL SLOT (page 35)
C§Q] Opens or closes the front cover to
playa disc in slot number 1.
LOAD (page 51)
C§Q] Reads the disc information of all
unknown discs, and loads it into the
memory.

Guide to On-screen Menu
Display
To display information at the top and
bottom of the screen
Press DISPLAY. Press the button again to
turn off the display.
nMusic· All Albums by Alb'.ll11 Nt!lnl:
[1] Header infonnation
Displays the currently selected category!
folder name and list type (group name!
sorting order)
~ Footer information
Displays available buttons and their
functions
ii,l4Tht fll't.l;;fCinflii!T1(1I, n':JII(<!;)O,'i
~;'{\Mmr;" Ho!I • ~f)Ck
.ll5A IrellYoif":<j(l!'l't!i)
Aooert i:fflrI~ • ~"';E"
The "home menu" appears when you press
HOME, and provides entries to select adisc
or setting item.
For video and photo playback, the display
turns on/offby pressing DISPLAY.
The displayed information differs depending
on the disc type and player status.
6
r'~'~::;;~;;'~'-'W;:'--~"';~~~;:::""'" .. . - ····························~::;2:S~·!
[1] The currently selected angle
~ Title number or name
@] The currently selectedaudio or subtitle
setting
@] Available functions <B angle!O))
audio/O subtitle)
When playing a BD-ROM/DVD VIDEO
[1] Category icons
o::u "Video" :Lists the discs containing
video.
n"Music" :Lists the discs containing
music.
I!J "Photo" :Lists the discs containing
photo.
G; "Settings" :Lists the setting items.
Ig] Discs, Playlists
The disc icons indicate
as follows.
0)) "Other Discs": Group of invalid
discs or an update disc
0)) "Unknown Discs": Group of
unidentified discs
iii "Playlists": Group of music playlists
o(disc icon): Discs whose jacket
picture cannot be acquired from
Gracenote Database.
@] Disc infonnation icons
11 :Music genre
~ :Movie genre
I. :Music artistlMovie cast
Ii :Movie director
~continued 15us

[ID Playback infonnation
Displays Disc type/Play
modeNideo
codeclBit rate/Playing status bart
Playing time (Remaining time*)
[§] Output resolutionNideo frequency
*Displayed when you press TIME repeatedly.
. ~.
•You can also check the playback information in
the front panel display (page 10).
•Press SUBTITLE, AUDIO, or ANGLE, and you
can check each type
of information.
When playing a photo file
~ Playing information
Displays Disc type/Playing status bart
Track number/Playing time
@] Track information
Displays Artist namelAlbum namel
Genre name/Play mode
4
16
us
[1] File name
[2J Album name
~ Shooting date
@] Rotating status
[ID Disc type/Playing status
[§] Current file number/total number of
files
When playing a music CD/MP3 audio track
.&. ~·.:r.Ii,ml:::r.f<r,~
o '·Il"lle~'·'!G.r.r.;;;;'i"':b~
'l,r.:t
............................................................................. ~~ ... ~:.:~ i
3
[1] Track/file name
[2J Audio mode

Getting Started
Hooking Up the Player
Check that you have the following items.
•Audio/video cord (phono plug
x3) (1)
•AC power cord (I)
•Remote commander (remote) (1)
•Size AA (R6) batteries (2)
Follow steps 1through 9to hook up and
adjust the settings
of the player. Do not
connect the AC power cord until you reach
"Step
5: Connecting the AC Power Cord"
(page 30).
•
17
uS

Step 1: Connecting to Your TV
The player has the following video jacks. Connect the player to your TV according to the input
jack on your TV.
If you connect the player to your TV using an HOMI cable, you can enjoy high quality digital
pictures
and sound through the HOMI OUT jack.
See "Connecting to an
audio/video
or SVIDEO
jack" (page 22).
See "Connecting to an
audio/video
or SVIDEO
jack" (page 22).
See "Connecting
to
component video jacks
(Y,
PB, PR)" (page 21).
See "Connecting to an
HDMI jack" (page 19).
To connect to a TV with DVI input
Use an HDMI-OVI converter cable (not
supplied). A
OVI jack will not accept audio
signals,
so you need to use another audio
connection in addition to this connection
(page 23).
Furthermore,
you cannot connect the HOM I
OUT jack to OVI jacks that are not HOCP
compliant (e.g., OVI jacks on PC displays).
COMPONENT VIDEO au T
...
~@
VIDH) S VIDEO
···_··ViDEO·OU'f··········
Y Ps Pi!
._ _._--_. __ ._--_. __ _._ _ .. __ .. __ ._.-_ _._. __ .
Analog
Standard
quality
Jack type
High Digital
quality
"
•Plug in cables securely to prevent unwanted
noise.
•Refer
to the instructions supplied with the
components
to be connected.
•
You cannot connect this player to a TV that does
not have avideo input jack.
•Do
not apply too much pressure on the connecting
cables. Pushing against the cabinet wall, etc.,
may
damage the cable.
18
uS

Connect the player and your TV using an HDMI cable to enjoy high quality digital pictures and
sound through the HDMI OUT jack.
If you connect aSony TV that is compatible with the "Control for HDMI" (BRAVIA Sync)
function (page 56), refer to the operating instructions supplied with the TV.
If you connect aI080/24p- or 1080p-compatible TV, use aHigh Speed HDMI cable.
HDMI cable (not supplied)
•
Notes on connecting to the HOMI OUT jack
Observe the following as improper handling
may damage the HDMI OUTjack and the
connector.
•Carefully align the HDMI OUTjack on the
rear
of the player and the HDMI connector
by checking their shapes. Make sure the
connector is not upside down
or tilted.
•Be sure to disconnect an HDMI cable when
moving the player.
• If you place the player on acabinet with an
HDMI cable connected, do not apply too
much pressure to the cabinet wall. It may
damage the HDMI OUT jack or the HDMI
cable.
•When connecting or disconnecting, do not
screw in or rotate the HDMI connector.
"continued 19us

20
us
u
•Not all high definition television sets are fully
compatible with this product and may cause
artifacts to be displayed in the picture. In the case
of 480iJ48Op1720p/1080i/1080p scan picture
problems,
it is recommended that the user switch
the connection to the VIDEO OUT (VIDEO
or S
VIDEO)jack.
If there are questions regarding our
TV set compatibility with this model 480i/480pl
nOp/1080iJI080p Blu-ray OisclDVO player,
please contact our customer service center.
• If the picture is not clear, unnatural or not to your
satisfaction, change the video output resolution in
step 3
of "Output Video Format" under the
"Video Settings" setup (page 66).
•Be sure to use only an HOMI cable that bears the
HOMI logo.
