Sony HDC-900 Series Manual

HD COLOR CAMERA
HDC-900
HDC-900/L
HDC-910
HDC-910/L
HDC-930
HDC-950
HD CCD BLOCK ADAPTOR
HKC-T950
INSTALLATION AND MAINTENANCE MANUAL
1st Edition (Revised 7)

HDC-900/950 IMM
!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
For HDC-900/910/930/950
Laser Diode Properties
Material : In GaAsp
Wave length : 1310 nm
Emission duration : Pulse code modulation
Laser output power : _8 dBm
CLASS 1
LASER PRODUCT
LASER KLASSE 1
PRODUKT
This HD color camera is classified as a CLASS 1
LASER PRODUCT.
The CLASS 1 LASER PRODUCT label is located on the
cabinet near the CCU connector.
CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein
may result in hazardous radiation exposure.
HDC-900 (SY) Serial No. 10001 and Higher
HDC-900/L (J) Serial No. 30001 and Higher
HDC-910 (UCJ) Serial No. 10001 and Higher
HDC-910/L (J) Serial No. 30001 and Higher
HDC-910 (CE) Serial No. 40001 and Higher
HDC-930 (SY) Serial No. 10001 and Higher
HDC-950 (JN, SY) Serial No. 10001 and Higher
HKC-T950 (SY) Serial No. 10001 and Higher
For HDC-900/910/930/950 For HDC-900/910/930/950

HDC-900/950 IMM 1 (P)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to the
manufacturer’s instructions.
Vorsicht!
Explosionsgefahr bei unsachgemäßem Austausch
der Batterie.
Ersatz nur durch denselben oder einen vom
Hersteller empfohlenen ähnlichen Typ. Entsorgung
gebrauchter Batterien nach Angaben des
Herstellers.
ATTENTION
Il y a danger d’explosion s’il y a remplacement
incorrect de la batterie.
Remplacer uniquement avec une batterie du même
type ou d’un type équivalent recommandépar le
constructeur.
Mettre au rebut les batteries usagées conformément
aux instructions du fabricant.
ADVARSEL!
Lithiumbatteri-Eksplosionsfare ved fejlagtig
håndtering.
Udskiftning måkun ske med batteri
af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandøren.
ADVARSEL
Lithiumbatteri - Eksplosjonsfare.
Ved utskifting benyttes kun batteri som
anbefalt av apparatfabrikanten.
Brukt batteri returneres
apparatleverandøren.
VARNING
Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en likvärdig typ
som rekommenderas av apparattillverkaren.
Kassera använt batteri enligt gällande
föreskrifter.
VAROITUS
Paristo voi räjähtää jos se on virheellisesti
asennettu.
Vaihda paristo ainoastaan laitevalmistajan
suosittelemaan tyyppiin.
Hävitäkäytetty paristo valmistajan ohjeiden
mukaisesti.
For HDC-900/910/930/950

HDC-900/950 IMM
For the customers in Japan
For the customers in the Netherlands
Voor de klanten in Nederland
Hoe u de batterijen moet verwijderen, leest u in de
Onderhoudshandleiding.
Gooi de batterij niet weg maar lever deze in als klein
chemisch afval (KCA).
Für Kunden in Deutschland
Entsorgungshinweis:Bitte werfen Sie nur entladene
Batterien in die Sammelboxen beim Handel oder den
Kommunen.Entladen sind Batterien in der Regel dann,
wenn das Gerät abschaltet und signalisiert “Batterie
leer”oder nach längerer Gebrauchsdauer der Batterien
“nicht mehr einwandfrei funktioniert”. Um
sicherzugehen, kleben Sie die Batteriepole z.B.mit
einem Klebestreifen ab oder geben Sie die Batterien
einzeln in einen Plastikbeutel.
For the customers in the U.S.A. and Canada
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are recyclable.
You can help preserve our environment
by returning your used rechargeable
batteries to the collection and recycling
location nearest you.
For more information regarding recycling of re-
chargeable batteries, call toll free
1-800-822-8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking Lithium-Ion
batteries.
2 (P)

1 (E)
HDC-900/950 IMM
Table of Contents
Manual Structure
Purpose of this manual ........................................................................................ 3 (E)
Related manuals................................................................................................... 3 (E)
Contents ............................................................................................................... 4 (E)
1. Installation Overview
1-1. Checking before Installation .................................................................1-1 (E)
1-1-1. Checking the ROM and Software Version...........................1-1 (E)
1-1-2. Setting the Format of HDCU (HDC-910/930) .....................1-1 (E)
1-2. Connectors and Cables ..........................................................................1-2 (E)

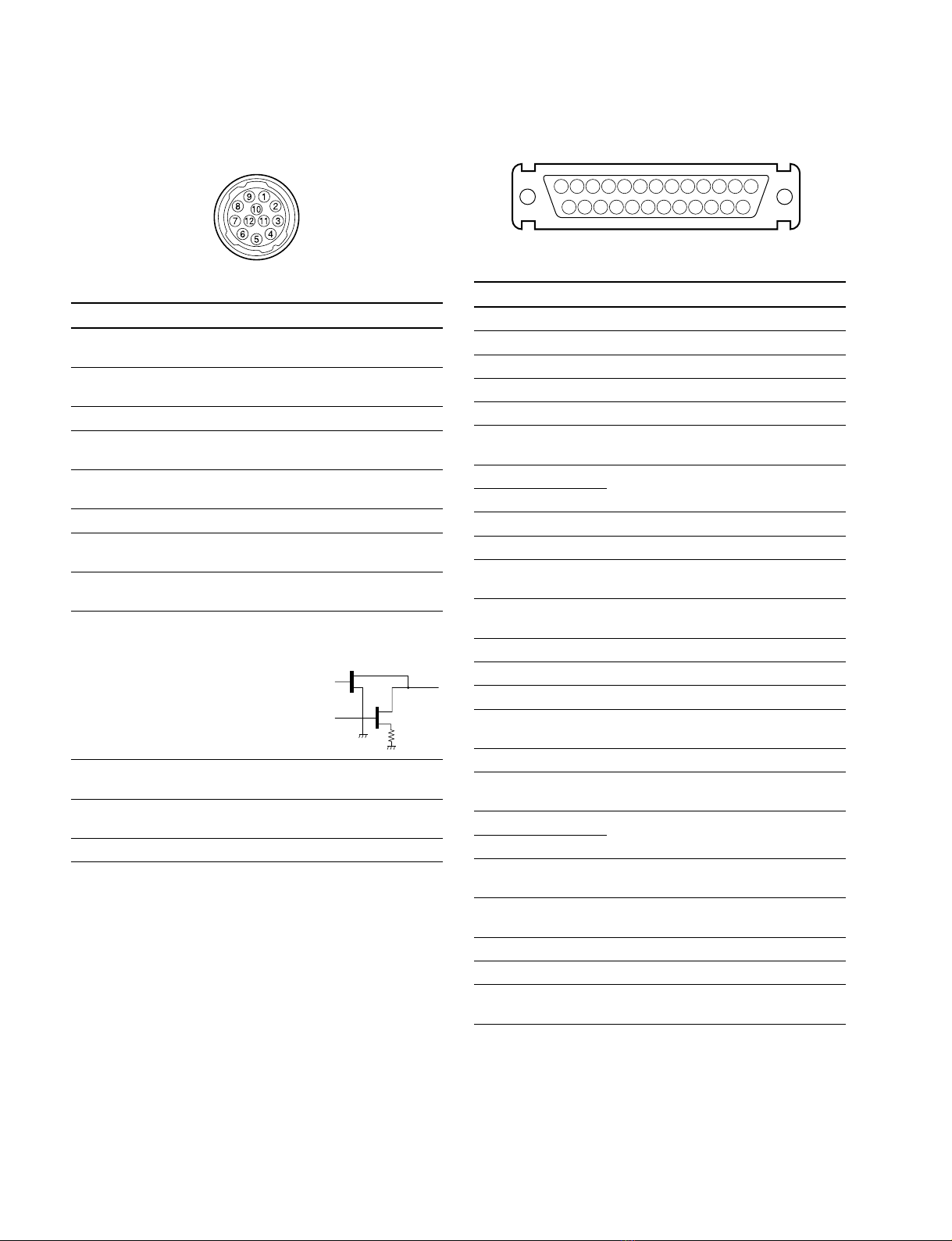

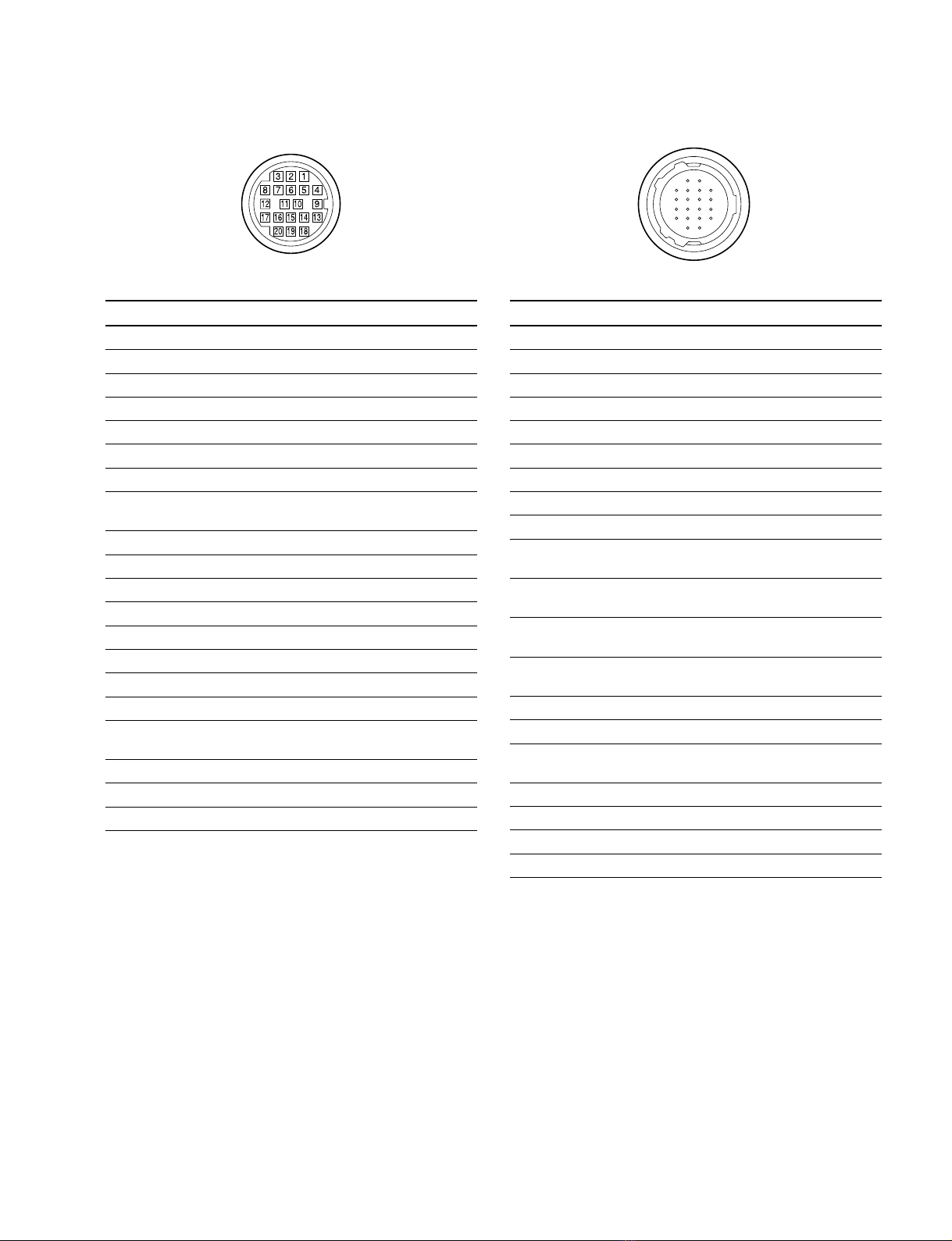

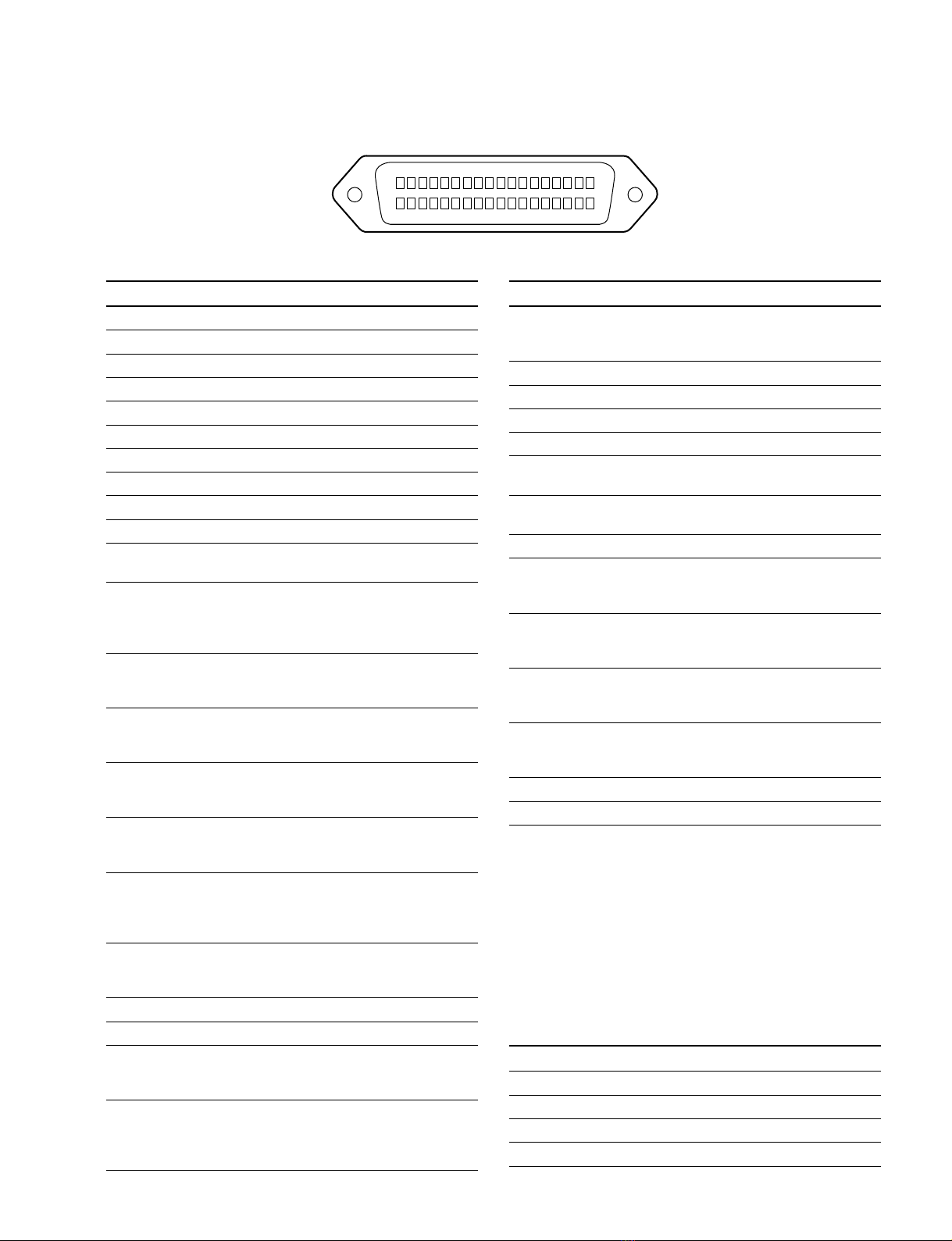

1-2-1. Connector Input/Output Signals...........................................1-2 (E)
1-2-2. Wiring Diagrams for Cables ..............................................1-13 (E)
1-2-3. Connection Connectors/Cables ..........................................1-14 (E)
1-2-4. Note in connecting CCU connector ...................................1-14 (E)
1-3. Location of Printed Circuit Boards .....................................................1-15 (E)
1-4. Opening/Closing the Side Panel..........................................................1-18 (E)
1-5. Switch Setting on the Boards ..............................................................1-19 (E)
1-6. Setting the Utility Out Voltage (HDC-900/910) .................................1-24 (E)
1-7. Adjusting the Position of the Shoulder Pad (HDC-950/930)..............1-25 (E)
1-8. Installing the Incom Panel Assembly
to the Camera Backside (HDC-950/930) ............................................1-26 (E)
1-9. Installing the Battery Adaptor BKP-L551 (HDC-950/930)................1-26 (E)
1-10. Disconnecting/Reconnecting Flexible Card Wire...............................1-27 (E)
1-11. Notes on Use of the RTS Kit...............................................................1-28 (E)
2. Service Overview
2-1. Cleaning of Connector/Cable ................................................................2-1 (E)
2-2. Cleaning the Vent Portion of the Fan (HDC-950/930 only) .................2-3 (E)
2-3. Replacing the Fuse ................................................................................2-4 (E)
2-3-1. HDC-900/910 .......................................................................2-4 (E)
2-3-2. HDC-950/930 .......................................................................2-4 (E)
2-4. Recommended Replacing Parts.............................................................2-5 (E)
2-4-1. HDC-900/910 .......................................................................2-5 (E)
2-4-2. HDC-950/930 .......................................................................2-6 (E)
2-4-3. HKC-T950............................................................................2-7 (E)

2 (E) HDC-900/950 IMM
3. Setup Menu
3-1. Setup Menu ...........................................................................................3-1 (E)
3-2. TOP Menu .............................................................................................3-4 (E)
3-3. OPERATION Menu..............................................................................3-5 (E)
3-4. PAINT Menu.........................................................................................3-7 (E)
3-5. MAINTENANCE Menu .....................................................................3-19 (E)
3-6. FILE Menu ..........................................................................................3-27 (E)
3-7. DIAGNOSIS Menu .............................................................................3-32 (E)
4. File System
4-1. File Structure .........................................................................................4-1 (E)
4-2. Operator File .........................................................................................4-2 (E)
4-3. Preset Operator File...............................................................................4-3 (E)
4-4. Registering the Scene File.....................................................................4-4 (E)
4-5. Registering Reference Files ..................................................................4-6 (E)
4-6. Registering the Lens File ......................................................................4-9 (E)
4-7. Registering the OHB File....................................................................4-10 (E)
4-7-1. Storing the Black Shading and White Shading ..................4-10 (E)
4-7-2. Adjusting the ND Offset ....................................................4-11 (E)
4-8. File items .............................................................................................4-12 (E)

3 (E)
HDC-900/950 IMM
Manual Structure
Purpose of this manual This manual is the installation and maintenance manual of HD Color Camera HDC-
900/910/950/930 and HD CCD Block Adaptor HKC-T950 for HDC-950/930.
This manual is intended for use by trained system and service engineers, and is
provided information required for the installation and maintenance information .
Related manuals Besides this installation and maintenance manual, the following manuals are avail-
able.
..
..
.HDC-900/910 Operation Manual (Supplied with HDC-900/910)
This manual is necessary for the use and the operation of the HDC-900/910.
Part No. : 3-204-021-XX
..
..
.HDC-950/930 Operation Manual (Supplied with HDC-950/930)
This manual is necessary for the use and the operation of the HDC-950/930.
Part No. : 3-204-027-XX
..
..
.HKC-T950 Operation Manual (Supplied with HKC-T950)
This manual is necessary for the installation and operation of the HKC-T950.
Part No. : 3-206-420-XX
..
..
.Maintenance Manual (Available on request)
This manual is intended for use by trained system and service engineers, and
describes the information regarding the circuit description, replacement of main
parts, SERVICE menu and electrical alignment.
For obtaining, contact your local Sony Sales Office/Service Center.
Part No. : 9-968-560-XX
..
..
.e-manual (Tentative name) (Available on request)
This electronic manual intended for use by trained system and service engineers
describes (detailed parts list, block diagrams, schematic diagrams, and board
layouts.) required for parts-level service.
For obtaining, contact your local Sony Sales Office/Service Center.
..
..
.System Manual (Available on request)
This manual is necessary for connection and operation of this unit and other
peripheral equipment.
If this manual is required, please contact to your local Sony Sales Office/Service
Center.

4 (E) HDC-900/950 IMM
..
..
.“Semiconductor Pin Assignments”CD-ROM (Available on request)
This “Semiconductor Pin Assignments” CD-ROM allows you to search for
semiconductors used in B&P Company equipment.
Semiconductors that cannot be searched for on this CD-ROM are listed in the
maintenance manual for the corresponding unit. The maintenance manual contains
a complete list of all semiconductors and their ID Nos., and thus should be used
together with the CD-ROM.
Part number: 9-968-546-XX
Contents The installation and maintenance manual is organized by following sections.
Section 1 Installation Overview
This section is described about the information that is required to install (switch
setting on the board, connection information, and the like.) and when installing this
unit.
Section 2 Service Overview
This section is described about the recommended replacing parts, replacing the fuse
and the cleaning procedures.
Section 3 Setup Menu
This section is described about the setup menu (TOP menu, OPERATION menu,
PAINT menu, MAINTENANCE menu, FILE menu and DIAGNOSIS menu).
Section 4 File System
This section is described about the file system to control data.

1-1 (E)
HDC-900/950 IMM
Section 1
Installation Overview
1-1. Checking before Installation
1-1-1. Checking the ROM and Software Version
When connecting the peripheral equipment in the list below to HDC-900/910/950/
930, be sure to check that the ROM and software version on each peripheral device
is corresponding to the camera to be connected.
When the HKC-T950 is used by connecting into the HDC-950/930, be sure to check
the version of ROM of HDC-950/930.
If the ROM and software version is lower than the specified below, be sure to
perform ROM replacement and updating the software.
If ROM replacement and updating the software are required, contact your local Sony
Sales Office/Service Center.
ROM
Peripheral equipment Board name Ref No. Rom version
MSU-700A/750 CPU-293/CPU-286 IC5, IC6/IC5, IC6 Ver. 1.10 or higher
CNU-700 AT-89 or AT-89A IC4, IC5 Ver. 3.20 or higher
CNU-500 AT-100 IC4, IC5 Ver. 2.80 or higher
RCP-720/721 MPU-79 IC10 Ver. 2.73 or higher
RCP-730/731 MPU-79 IC10 Ver. 2.73 or higher
RCP-740/741 MPU-79 IC10 Ver. 2.73 or higher
RCP-700/701 MPU-92 IC6 Ver. 2.73 or higher
RM-B150 CPU-266 IC4 Ver. 1.00 or higher
HDC-950 AT-130 IC1 Ver. 1.20 or higher
HDC-930 AT-130 IC1 Ver. 1.21 or higher
HDCU-900 AT-141 IC105, IC106 Ver. 1.21 or higher
HDCU-950 AT-149 IC206 Ver. 1.00 or higher
Software
Peripheral equipment Board name Software version
RCP-750/751 MPU-123 Ver. 1.01 or higher
RM-B750 MPU-124 Ver. 1.00 or higher
1-1-2. Setting the Format of HDCU (HDC-910/930)
When setting the format of HDCU-900/950 in the system using the HDC-910/930,
be sure to select the format corresponding to the HDC-910/930.

1-2 (E) HDC-900/950 IMM
1
1
1
1
!\ !/ 6 4 3 9 !, 7 8
5!] ![
!= 1
!;
!- !-
1-2. Connectors and Cables
1-2-1. Connector Input/Output Signals

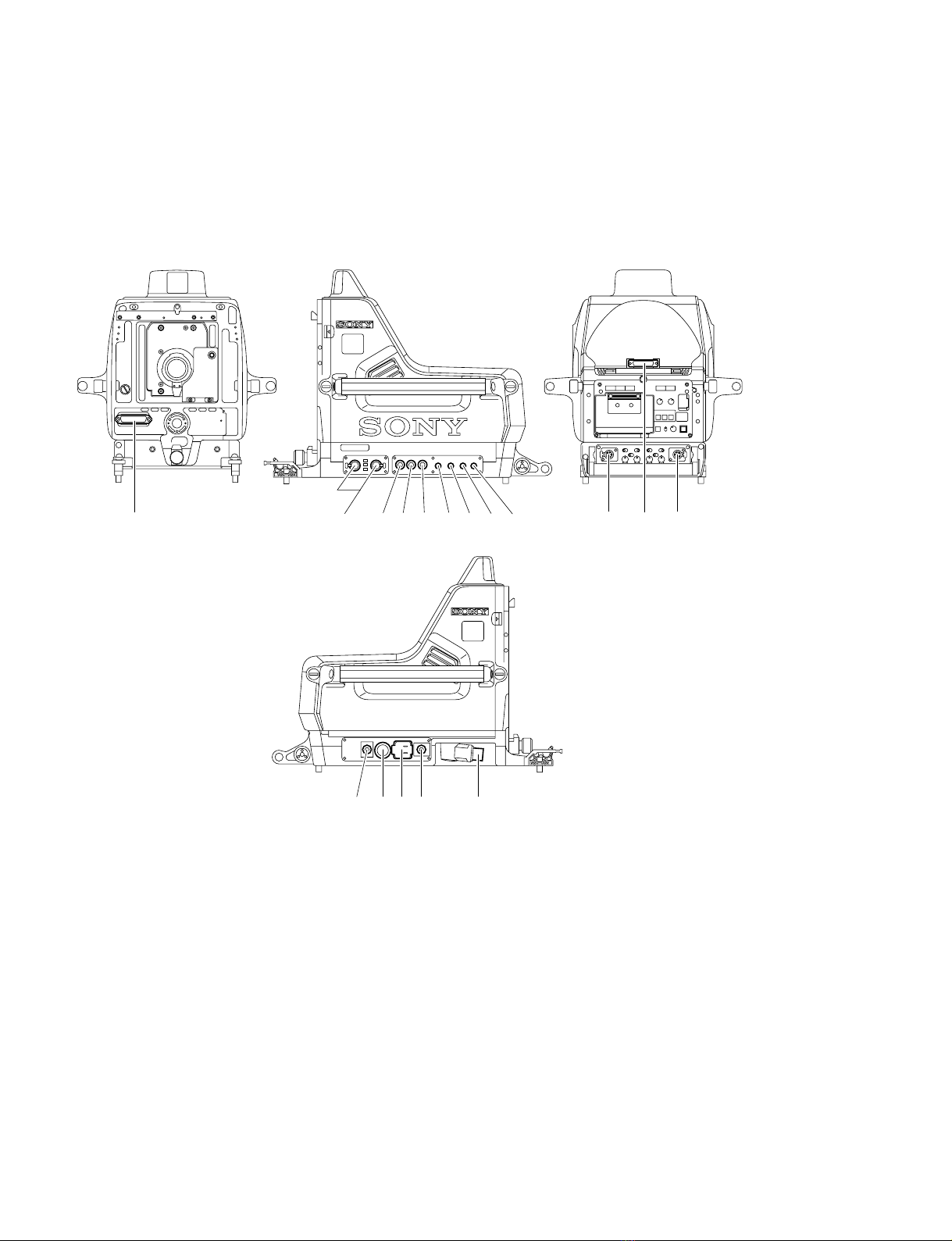

HDC-900/910 Connector Layout
1-2. Connectors and Cables

1-3 (E)
HDC-900/950 IMM
!.
!;
8
!,
2
4
!/
!-
!] 5
36!\
9
7
1
!'
![
*
@[
@- @= @/
!\
@\
@-
@[
@=
@]

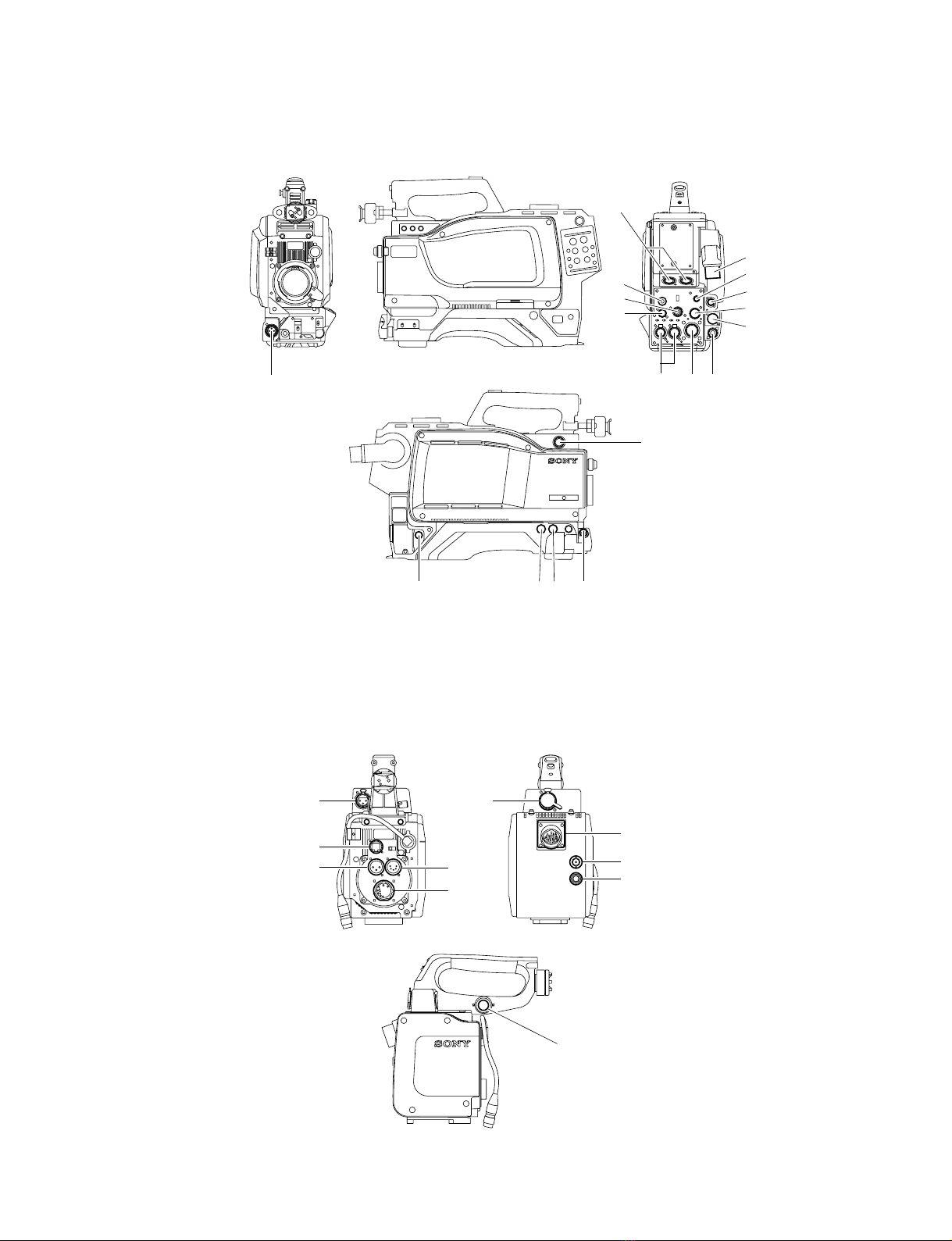

HDC-950/930 Connector Layout
*: Use 4connector by selecting PROMPTER OUT, GENLOCK IN and RET IN signals with the switch.
PROMPTER OUT signal become effective when the camera is connected to CCU.
GENLOCK IN and RET IN signals become effective when the camera is used alone.
HKC-T950 Connector Layout
1-2. Connectors and Cables

1-4 (E) HDC-900/950 IMM
1
23
4
77
77
7RET CONTROL (6P FEMALE)
(External view)
No. Signal I/O Specifications
1 INCOM 1 IN Zi >10 kZ
MIC ON/OFF ON : GND
OFF : OPEN
2 INCOM 2 IN Zi >10 kZ
MIC ON/OFF ON : GND
OFF : OPEN
3 GND ——
4 NC No connection
5 RET 1 ON/OFF IN Zi >10 kZ
ON : GND
OFF : OPEN
6 RET 2 ON/OFF IN Zi >10 kZ
ON : GND
OFF : OPEN
88
88
8DC OUT (4P FEMALE)
(External view)
No. Signal I/O Specifications
1 GND —— GND for POWER
2 NC No connection
3 NC No connection
4 UNREG OUT +12 V dc 500 mA (max)
Input/Output Signals
11
11
1CCU connector
Based upon BTA S-004A/005A/006A 1.485 Gbps
serial
Output Signals
22
22
2EARPHONE OUT (HDC-950/930)
EARPHONE mini jack
33
33
3TEST OUT
BNC type 75 Z, 1.0 V p-p
44
44
4PROMPTER OUT**
**
*
BNC type 75 Z, 1.0 V p-p
55
55
5HD SERIAL DIGITAL OUT
Based upon BTA-S004A
BNC type 75 Z, 0.8 V p-p 1.485 Gbps
@/@/
@/@/
@/ VIDEO OUT (HKC-T950)
BNC type 75 Z, 1.0 V p-p
Input Signals
44
44
4GENLOCK IN**
**
*(HDC-950/930)
BNC type 75 Z, 1.0 V p-p
44
44
4RET IN**
**
*(HDC-950/930)
BNC type 75 Z, 1.0 V p-p
66
66
6Not used
*: Use this connector by selecting PROMPTER OUT, GENLOCK IN and
RET IN signals with the switch on the rear panel of HDC-950/930.
PROMPTER OUT signal become effective when the camera is
connected to CCU.
GENLOCK IN and RET IN signals become effective when the camera is
used alone.
1-2. Connectors and Cables

1-5 (E)
HDC-900/950 IMM
HDC-900/910 (CE) only
E
E
L
L
N
N
21
3
99
99
9REMOTE (8P FEMALE)
(External view)
No. Signal I/O Specifications
1 TX (+) HDC SERIAL DATA
2 TX (_)
3 RX (+) HDCU/MSU/RCP/CNU/VCS
4 RX (_) SERIAL DATA
5 TX GND —— GND for TX
6 POWER (+) OUT +26 V, 200 mA (max)
7 POWER GND —— GND for POWER (+)
8 VIDEO (X) 75 Z, 1.0 V p-p
CHASSIS GND —— CHASSIS GND
!/!/
!/!/
!/ AUDIO IN CH1/CH2 (3P FEMALE)
(External view)
No. Signal I/O Specifications
1 AUDIO (G) —— _60 dBu, _50 dBu, _40 dBu,
2 AUDIO (X) IN _30 dBu, _20 dBu, selectable
3 AUDIO (Y) IN High impedance, Balanced
(0 dBu = 0.775 Vrms)
!-!-
!-!-
!- INTERCOM CH1/CH2 (5P FEMALE)
(External view)
No. Signal I/O Specifications
1 INCOM MIC (Y) IN _20 dBu (CARBON MIC)
2 INCOM MIC (X) IN _60 dBu (DYNAMIC MIC)
3 GND (INCOM/PGM) ——
4 INCOM OUT 0 dBu
RECEIVE
5 PGM OUT 0 dBu(0 dBu = 0.775 Vrms)
!=!=
!=!=
!= AC OUT (HDC-900/910)
(External view)
No. Signal I/O Specifications
E GND —— CHASSIS GND
N UTL (C) OUT AC 100 V, 200 V or below
L UTL (H) OUT
![![
![![
![ DC IN (4P MALE)
(External view)
No. Signal I/O Specifications
1 GND —— GND for DC (+)
2 NC No connection
3 NC No connection
4 DC (+)IN+10.5 to 17 V dc
1-2. Connectors and Cables

1-6 (E) HDC-900/950 IMM
B
A56
34
1210 11
89
715 16
13 14
12 20 21
18 19
22
23 24
17
B
A56
34
1210 11
89
715 16
13 14
12 20 21
18 19
22
23 24
17
!]!]
!]!]
!] VTR (26P MALE) (HDC-900/910)
(External view)
No. Signal I/O Specifications
A NC No connection
B VTR CMD GND —— GND for VTR CMD
1 GENLOCK IN Sync 0.6 V p-p, 0 V dc,
Zi = 75 Z
2 GENLOCK GND —— GND for GENLOCK
3 G/Y GND —— GND for G/Y
4 G/Y OUT 1 Vp-p, 0 V dc, Zo = 75 Z
5 R/PROUT 1 Vp-p/±0.35 V p-p, 0 V dc,
Zo = 75 Z
6 R/PRGND —— GND for R/PR
7 B/PBOUT 1 Vp-p/±0.35 V p-p, 0 V dc,
Zo = 75 Z
8 B/PBGND —— GND for B/PB
9 CH1 MIC (X) OUT _20 dBu, Low impedance,
10 CH1 MIC (Y) OUT Balanced
11 CH1/CH2 MIC GND —— GND for CH1/CH2 MIC
12 NC No connection
13 NC No connection
14 INCOM LINE IN/OUT 0.5 V p-p
15 CH2 MIC (X) OUT _20 dBu, Low impedance,
16 CH2 MIC (Y) OUT Balanced
17 NC No connection
18 RET VIDEO IN 1.0 V p-p, 0 V dc,
Zi = 75 Z
19 RET VIDEO GND —— GND for RET VIDEO
20 AUDIO IN _6 dBu, 750 Z/1 kHz
21 RX COMMAND (X) IN RS-422
22 RX COMMAND (Y) IN
23 TX COMMAND (X) OUT RS-422
24 TX COMMAND (Y) OUT (0 dBu = 0.775 Vrms)
!]!]
!]!]
!] VTR (26P MALE) (HDC-950/930)
(External view)
No. Signal I/O Specifications
A VTR UNREG IN +10.5 to 17 V dc
B UNREG GND —— GND for UNREG
1 GENLOCK IN Sync 0.6 V p-p, 0 V dc,
Zi = 75 Z
2 GENLOCK GND —— GND for GENLOCK
3 G/Y GND —— GND for G/Y
4 G/Y OUT 1 V p-p, 0 Vdc, Zo = 75 Z
5 R/PROUT 1 V p-p/±0.35 V p-p, 0 V dc,
Zo = 75 Z
6 R/PRGND —— GND for R/PR
7B/PBOUT 1 V p-p/±0.35 V p-p, 0 V dc,
Zo = 75 Z
8 B/PBGND —— GND for B/PB
9 CH1 MIC (X) OUT _20 dBu, Low impedance
10 CH1 MIC (Y) OUT Balanced
11 CH1/CH2 MIC GND —— GND for CH1/CH2 MIC
12 UNREG (+) SENSE IN
13 UNREG (_) SENSE IN
14 INCOM LINE IN/OUT 0.5 V p-p
15 CH2 MIC (X) OUT _20 dBu, Low impedance,
16 CH2 MIC (Y) OUT Balanced
17 NC No connection
18 RET VIDEO IN 1.0 V p-p, 0 V dc,
Zi = 75 Z
19 RET VIDEO GND —— GND for RET VIDEO
20 AUDIO IN _6 dBu, 750 Z/1 kHz
21 RX COMMAND (X) IN RS-422
22 RX COMMAND (Y) IN
23 TX COMMAND (X) OUT RS-422
24 TX COMMAND (Y) OUT (0 dBu = 0.775 Vrms)
1-2. Connectors and Cables

1-7 (E)
HDC-900/950 IMM
18
36
1
19
!\!\
!\!\
!\ LENS (36P FEMALE) (HDC-900/910)
(External view)
No. Signal I/O Specifications
23 RET 3 ON IN Zi >10 kZ
ON : GND
OFF : High impedance
24 LENS ADRS 0 IN *1
25 LENS ADRS 1 IN *1
26 LENS ADRS 2 IN *1
27 LENS ADRS 3 IN *1
28 EXTENDER 1 OUT ON : GND
ON OFF : High impedance
29 EXTENDER 2 OUT ON : GND
ON OFF : High impedance
30 F DEM (FAR) IN No connection
31 INCOM 1 IN Zi >10 kZ
ENG/PRD ENG : GND
PRD : High impedance
32 INCOM 2 IN Zi >10 kZ
ENG/PROD ENG : GND
PRD : High impedance
33 INCOM MIC 1 IN Zi >10 kZ
ON ON : GND
OFF : High impedance
34 INCOM MIC 2 IN Zi >10 kZ
ON ON : GND
OFF : High impedance
35 F CONT SIG OUT No connection
36 F DEM (NEAR) IN No connection
*1 Zi >10 kZ
1 : High impedance
0 : 0 +0.5 V
_0
LENS ADRS 0 (low-order bit)
LENS ADRS 3 (high-order bit )
*2Zi > 10 kZ
1 : High impedance
0 : 0 ±0.5 V
EX1 EX2 EX3 MODE
1 1 1 EXTENDER OFF
1 0 1 EXT-1 (x1.5) ON
0 1 1 EXT-2 (x2) ON
0 0 1 EXT-3 (x2.5) ON
No. Signal I/O Specifications
1 NC No connection
2 COMMON 5 V IN No connection
3 NC No connection
4+12 V (LENS) OUT +12 V (at 2 A)
5 LENS DC GND —— GND for +12 V (LENS)
6 GND (SIG) —— GND
7 NC No connection
8 LENS EXT-1 IN *2
9 LENS EXT-2 IN *2
10 LENS EXT-3 IN *2
11 NC LENS AUX OUT ON : GND
OFF : High impedance
12 IRIS POSI IN Zi >10 kZ
2 to 7 V
“3.4 ±0.1 V (F16)”
“6.2 ±0.1 V (F2.8)”
13 ZOOM POSI IN Zi >10 kZ
2 to 7 V
“2 V (WIDE), 7 V (TELE)”
14 RET 1 ON IN Zi >10 kZ
ON : GND
OFF : High impedance
15 RET 2 ON IN Zi >10 kZ
ON : GND
OFF : High impedance
16 FOCUS POSI IN Zi >10 kZ
2 to 7 V
“2 V (MIN), 7 V (∞)”
17 IRIS CONT SIG OUT 2 to 7 V
“3.4 ±0.1 V (F16)”
“6.2 ±0.1 V (F2.8)”
Zo <1 kZ
18 IRIS AUTO OUT AUTO : GND
/MANU MANU : High impedance
Zo <1 kZ
19 NC No connection
20 NC No connection
21 LENS R TALLY OUT ON : GND
OFF : High impedance
Zo <1 kZ
22 EXP POSITION IN Zi >10 kZ
1 to 4 V
1 V : _7.5d
4 V : +7.5d
1-2. Connectors and Cables

1-8 (E) HDC-900/950 IMM
!\!\
!\!\
!\ LENS (12P FEMALE)
(HDC-950/930, HKC-T950)
(External view)
No. Signal I/O Specifications
1 RET VIDEO IN ENABLE : 0 V
ENABLE DISABLE : +5 V or OPEN
2 VTR START IN ENABLE : 0 V
/STOP DISABLE : +5 V or OPEN
3 GND —— GND for UNREG
4 AUTO SERVO OUT AUTO : +5 V
MANU : 0 V or OPEN
5 IRIS CONT OUT +3.4 V (F16) to
+6.2 V (F2.8)
6 UNREG OUT +10.5 V to +17 V
7 IRIS POSITION IN +3.4 V (F16) to
+6.2 V (F2.8)
8 AUTO/MANU OUT AUTO IRIS : 0 V
MANUAL IRIS : +5 V
9 EXTENDER IN EX 2 ON : GND
ON/OFF EX 0.8 ON : 30 kZto GND
OFF : OPEN
10 ZOOM IN WIDE : 2 V
POSITION TELE : 7 V
11 FOCUS POSI IN ∞ : 7 V
(/LENS RX) min. : 2 V
12 (LENS TX) OUT
EX 2 ON
30 kΩ
EX 0.8 ON
13 123456789101112
25 1415161718192021222324
!;!;
!;!;
!; VF (25P FEMALE) (HDC-900/910)
(External view)
No. Signal I/O Specifications
1 Y VIDEO (X) OUT 1.0 V p-p, Zo = 75 Z
2P
RVIDEO GND —— GND for PRVIDEO
3P
RVIDEO (X) OUT 0.7 V p-p, Zo = 75 Z
4P
BVIDEO GND —— GND for PBVIDEO
5P
BVIDEO (X) OUT 0.7 V p-p, Zo = 75 Z
6 PEAKING IN 0 to 5 V dc
LEVEL
7+12 V OUT +10.5 to +20 V
8+12 V
9 NC No connection
10 S-DATA IN/OUT TTL level
11 R TALLY OUT ON : +5 V
OFF : 0 V
12 EFFECT OUT ON : +5 V
OFF : 0 V
13 NC No connection
14 Y VIDEO GND —— GND for Y VIDEO
15 S-CK OUT TTL level
16 BATT IND OUT ON : +5 V
OFF : 0 V
17 CHASSIS GND ——
18 G TALLY OUT ON : +5 V
OFF : 0 V
19 GND (+12 V) —— GND for +12 V
20 GND (+12 V)
21 VF-SEL IN BW : 0 V
COLOR : +5 V
22 H EXPAND OUT ON : GND
OFF : +5 V
23 NC No connection
24 NC No connection
25 V EXPAND OUT ON : GND
OFF : +5 V
1-2. Connectors and Cables

1-9 (E)
HDC-900/950 IMM
1
5
10
11
16
17
18
19
20
2
3
4
!;!;
!;!;
!; VF (20P FEMALE) (HDC-950/930)
(External view)
No. Signal I/O Specifications
1 S-DA TA IN/OUT TTL level
2 NC No connection
3 NC No connection
4 SCK OUT TTL level
5 NC No connection
6 NC No connection
7 NC No connection
8 G TALLY OUT ON : 5 V
OFF : GND
9 NC No connection
10 NC No connection
11 NC No connection
12 Y VIDEO OUT 1.0 V p-p, Zo = 75 Z
13 VIDEO GND —— GND for VIDEO
14 Pb VIDEO OUT ±0.35 V p-p, Zo = 75 Z
15 Pr VIDEO OUT ±0.35 V p-p, Zo = 75 Z
16 NC No connection
17 R TALLY OUT ON : 5 V
OFF : GND
18 NC No connection
19 UNREG GND —— GND for UNREG
20 UNREG OUT +10.5 V to +17 V
!'!'
!'!'
!' EXT I/O (20P) (HDC-950/930)
(External view)
No. Signal I/O Specifications
1 Y VIDEO (X) OUT 1.0 V p-p, Zo = 75 Z
2 Y VIDEO (G) —— GND for Y VIDEO
3 PROMPTER (X) OUT 1.0 V p-p, Zo = 75 Z
4 PROMPTER (G) —— GND for PROMPTER
5 Pr VIDEO (X) OUT ±0.35 V p-p, Zo = 75 Z
6 Pr VIDEO (G) —— GND for Pr VIDEO
7 Pb VIDEO (X) OUT ±0.35 V p-p, Zo = 75 Z
8 Pb VIDEO (G) —— GND for Pb VIDEO
9 SDA VF IN/OUT TTL level
10 VD OUT Negative Pulse,
3.0 V p-p, Low impedance
11 CALL ON IN ON : L (0 v)
OFF : H (+3 V)
12 VF POWER OFF OUT ON : H (+5 V)
OFF : L (0 V)
13 MAIN POWER OUT ON : +8 V
ON/OFF OFF : GND
14 SCL VF OUT TTL level
15 TALLY GND —— GND for TALLY
16 BACK TALLY OUT ON : 5 V
OFF : GND
17 PANEL DATA IN RX SERIAL DATA
18 PANEL DATA OUT TX SERIAL DATA
19 VF UNREG +OUT +12 V (+10.5 V to +17.0 V)
20 GND —— GND for UNREG
1-2. Connectors and Cables

1-10 (E) HDC-900/950 IMM
5
1
2
6
11
16
3
7
12
17
4
8
13
9
14
18
20 19
15
10
!,!,
!,!,
!, TRACKER (FEMALE)
(External view)
No. Signal I/O Specifications
1 TRK R (X) OUT TRACKER RECEIVE
0 dBu unbalanced
2 TRK R (G) —— GND for TRACKER R
3 GND —— GND for UNREG/TALLY
(UNREG/TALLY)
4 R TALLY OUT ON : 5 V (Open Collector)
OFF : 0 V (Open Collector)
5 TRK PGM (G) —— GND for PGM
6 UNREG OUT +12 V (+10.5 to +17.0 V)
7 TRK T (X) IN TRACKER TALK
8 TRK T (Y) IN 0 dBu /_20 dBu
High impedance balanced
9 TRK T (G) —— GND for TRACKER T
10 TRK PGM (X) OUT _20 dBu unbalanced
11 NC No connection
12 G TALLY OUT ON : 5 V (Open Collector)
OFF : 0 V (Open Collector)
13 NC No connection
14 RX_DATA (0) IN TRUNK DATA IN, RS232-C
15 RX_DATA (1) IN
16 NC No connection
17 NC No connection
18 TX_DATA (0) OUT TRUNK DATA OUT, RS232-C
19 TX_DATA (1) OUT
20 GND —— (0 dBu = 0.775 Vrms)
!.!.
!.!.
!. FRONT MIC (3P FEMALE) (HDC-950/930)
(External view)
No. Signal I/O Specifications
1 CHU MIC (G) —— _60 dBu, _50 dBu, _40 dBu,
2 CHU MIC (X) IN _30 dBu, _20 dBu, selectable
3 CHU MIC (Y) IN High impedance, Balanced
(0 dBu = 0.755 Vrms)
@-@-
@-@-
@- MIC (HKC-T950)
(3P FEMALE) (3P MALE)
(External view) (External view)
No. Signal I/O Specifications
1 AUDIO (G) —— _60 dBu, _50 dBu, _40 dBu,
2 AUDIO (X) IN _30 dBu, _20 dBu, selectable
3 AUDIO (Y) IN High impedance, Balanced
(0 dBu = 0.755 Vrms)
@=@=
@=@=
@= INCOM (HKC-T950)
(5P FEMALE) (5P MALE)
(External view) (External view)
No. Signal I/O Specifications
1 INCOM MIC (Y) IN _20 dBu (CARBON MIC)
2 INCOM MIC (X) IN _60 dBu (DYNAMIC MIC)
3 GND (INCOMPGM) ——
4 INCOM RECEIVE OUT 0 dBu
5 PGM OUT 0 dBu(0 dBu = 0.755 Vrms)
1-2. Connectors and Cables
21
3
1
3
2
21
3
5
32
411
34
25

1-11 (E)
HDC-900/950 IMM
12345
678910
11 12 13 14 15
16 17 18 19 20
1-2. Connectors and Cables
@[@[
@[@[
@[ VF (HKC-T950)(20P FEMALE)
(External view)
No. Signal I/O Specifications
1 S DATA IN/OUT TTL level
2 NC No connection
3 NC No connection
4 SCK OUT TTL level
MANU : 0 V or OPEN
5 NC No connection
6 NC No connection
7 NC No connection
8 G TALLY OUT ON : 5 V
OFF : GND
9 NC No connection
10 NC No connection
11 NC No connection
12 Y VIDEO OUT 1.0 V p-p, Zo = 75 Z
13 VIDEO GND —— GND for VIDEO
14 NC No connection
15 NC No connection
16 NC No connection
17 R TALLY OUT ON : 5 V
OFF : GND
18 NC No connection
19 UNREG GND —— GND for UNREG
20 UNREG OUT +10.5 V to +1.7 V
(20P FEMALE)
(External view)
No. Signal I/O Specifications
1 S DATA IN/OUT TTL level
2 NC No connection
3 NC No connection
4 SCK IN TTL level
MANU : 0 V or OPEN
5 NC No connection
6 NC No connection
7 NC No connection
8 G TALLY IN ON : 5 V
OFF : GND
9 NC No connection
10 NC No connection
11 NC No connection
12 Y VIDEO IN 1.0 V p-p, Zi = 75 Z
13 VIDEO GND —— GND for VIDEO
14 NC No connection
15 NC No connection
16 NC No connection
17 R TALLY IN ON : 5 V
OFF : GND
18 NC No connection
19 NC No connection
20 NC No connection
45678
12 11 10 9
17 16 15
19
20 14
18 13
123

1-12 (E) HDC-900/950 IMM
1-2. Connectors and Cables
@]@]
@]@]
@] CAM BODY (HKC-T950)
(26P MALE)
(External view)
No. Signal I/O Specifications
A UNREG IN 13 V to 17 V
B UNREG GND —— GND for UNREG
1 OHB H OUT 0.3 V p-p Positive pulse
2 OHB H (G) —— GND for OHB H
3 G VIDEO (G) —— GND for G VIDEO
4 G VIDEO (X) OUT 300 mV p-p, Zo = 75 Z(100 %)
5 R VIDEO (X) OUT 300 mV p-p, Zo = 75 Z(100 %)
6 R VIDEO (G) —— GND for R VIDEO
7 B VIDEO (X) OUT 95 mV p-p, Zo = 75 Z (100 %)
8 B VIDEO (G) —— GND for B VIDEO
9 MIC (X) OUT _60 dBu, _50 dBu, _40 dBu,
10 MIC (Y) OUT _30 dBu, _20 dBu, selectable
11 INCOM/MIC GND —— GND for INCOM/MIC,
CHU F, IRIS CONT
12 IRIS CONT IN +3.4 V (F16) to +6.2 V (F2.8)
13 CHU F IN 0.3 V p-p Positive pulse
14 INCOM RECEIVE IN 0 dBu
15 INCOM MIC (X) OUT _20 dBu (CARBON MIC)
16 INCOM MIC (Y) OUT _60 dBu (DYNAMIC MIC)
17 CHU H IN 150 mV p-p Positive pulse
18 VF VIDEO (X) IN 180 mV p-p, Zi = 75 Z
19 VF VIDEO (G) —— GND for VF VIDEO,CHU H
20 PGM IN 0 dBu
21 RX COMMAND (X) IN
22 RX COMMAND (Y) IN 340 mV p-p
23 TX COMMAND (X) OUT
24 TX COMMAND (Y) OUT
@\@\
@\@\
@\ OPT HEAD (HKC-T950)
(26P FEMALE)
(External view)
No. Signal I/O Specifications
A UNREG OUT 13 V to 17 V
B UNREG GND —— GND for UNREG
1 OHB H IN 0.3 V p-p Positive pulse
2 OHB H (G) —— GND for OHB H
3 G VIDEO (G) —— GND for G VIDEO
4 G VIDEO (X) IN 300 mV p-p, Zi = 75 Z(100 %)
5 R VIDEO (X) IN 300 mV p-p, Zi = 75 Z (100 %)
6 R VIDEO (G) —— GND for R VIDEO
7 B VIDEO (X) IN 95 mV p-p, Zi = 75 Z(100 %)
8 B VIDEO (G) —— GND for B VIDEO
9 MIC (X) IN _60 dBu, _50 dBu, _40 dBu,
10 MIC (Y) IN _30 dBu, _20 dBu, selectable
11 INCOM/MIC GND —— GND for INCOM/MIC,
CHU F, IRIS CONT
12 IRIS CONT OUT +3.4 V (F16) to +6.2 V (F2.8)
13 CHU F OUT 0.3 V p-p Positive pulse
14 INCOM RECEIVE OUT 0 dBu
15 INCOM MIC (X) IN _20 dBu (CARBON MIC)
16 INCOM MIC (Y) IN _60 dBu (DYNAMIC MIC)
17 CHU H OUT 150 mV p-p Positive pulse
18 VF VIDEO (X) OUT 180 mV p-p, Zo = 75 Z
19 VF VIDEO (G) —— GND for VF VIDEO, CHU H
20 PGM OUT 0 dBu
21 RX COMMAND (X) OUT
22 RX COMMAND (Y) OUT 340 mV p-p
23 TX COMMAND (X) IN
24 TX COMMAND (Y) IN
A
B
123456
78910 11
12 13 14 15 16 22
17
18 19 20 21
23 24
1
2
3
4A
B
5
6
7
8
9
10
11
12
13
14
15
16
22
17
18
19
20
21
23
24
