CFD-V15/V24
SERVICE MANUAL
CD RADIO CASSETTE-CORDER
SPECIFICATIONS
US Model
Canadian Model
CFD-V15
AEP Model
UK Model
CFD-V24
E Model
CFD-V15/V24
Model Name Using CD Section NEW
Similar Mechanism Tape Section CFD-V10
Optical Pick-up Type KSM-213CDM
Tape Transport Mechanism Type MF-V10-117
AUDIO POWER SPECIFICATIONS
POWER OUTPUTAND TOTAL HARMONIC DISTORTION
With 3.2-ohm, loads, both channels driven from 150 – 10,000 Hz ; rated
2W per channel-minimum RMS power, with no more
than 10% total harmonic distortion in AC operation. (US model)
Other Specification
CD player Section
System Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration : Continuous
Laser output : Less than 44.6 µW
(This output is the value measured at a distance of about 200
mm from the objective lens surface on the optical pick-up
block with 7 mm aperture.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20 – 20,000 Hz +1 /–2 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM : 87.6 – 108 MHz (US, Canadian,
Central & South America, E, Singapore model)
87.6 – 107 MHz (AEP, UK, Saudi Arabia,
Russian model)
87.5 – 108 MHz (Italian model)
65 – 108 MHz (East European model)
AM :530 – 1,710 kHz (US, Canadian, Central & South
America model)
531 – 1,602 kHz (Singapore, E, Saudi Arabia, AEP,
UK, East European, Russian model)
526.5 – 1,606.5 kHz (Italian model)
Aerials FM: Telescopic aerial
AM : Built-in ferrite bar aerial
Cassette-corder section
Recording system
4-track 2 channel stereo
Fast winding time
Approx. 120 s (sec.) with Sony cassette C-60
Frequency response
TYPE I (normal): 70 – l0,000 Hz
General
Speaker Full range: 10 cm dia., 3.2 ohms, cone type (2)
Outputs Headphones jack (stereo minijack)
For 16 – 68 ohms impedance headphones
Power output (excluding US model)
2.3 W + 2.3 W (at 3.2 ohms, 10% harmonic distortion)
Photo : CFD-V15
– Continued on page 2 –
Ver 1.1 1998. 08
With SUPPLEMENT 1 (9-923-320-81)
With SUPPLEMENT 2 (9-923-320-82)

– 2 –
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE !SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINEWITH
MARK !ON THE SCHEMATIC DIAGRAMS AND INTHE PARTS
LIST ARE CRITICALTO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
TABLE OF CONTENTS
Power requirements
For CD radio cassette-corder
120VAC, 60Hz (US, Canadian, Central & SouthAmerica
model)
230VAC, 50Hz (AEP, UK, Italian, East European, Russian,
Singapore model)
110 – 120V, 220 – 240V AC selectable 50/60Hz (E, Saudi
Arabia model)
9V DC, 6 size D (R20) batteries
Power consumption
AC 20 W
Battery lifeFor CD radio cassette-corder :
FM recording
Sony R20P : approx. 13.5 h
Sony alkaline LR20 : approx. 20 h
Tape playback
Sony R20P : approx. 7.5 h
Sony alkaline LR20 : approx. 15 h
CD playback
Sony R20P : approx. 2.5 h
Sony alkaline LR20 : approx. 7 h
DimensionsApprox. 425 x 160 x 246 mm (w/h/d)
(16 3/4x 6 3/8x 9 3/4inches) (incl. projecting parts)
Mass Approx. 4.0 kg (8 lb. 13 oz) (incl. batteries)
Supplied accessories
AC power cord (1 )
Design and specifications are subject to change without notice.
Specifications ........................................................................... 1
1. SERVICING NOTES.................................................... 3
2. GENERAL
Location and Function of Controls .................................... 4
3. DISASSEMBLY
3-1. Front Cabinet, Contorl Board Removal...................... 5
3-2. Power Board, AC Inlet Board,
BATT Board, VOL SEL Board Removal................... 5
3-3. Upper Cabinet Removal ............................................. 6
3-4. Optical pick-up Section, Mechanism Deck,
Main Board, REC SW Board, CD Motor Board,
MONO/ST SW Board Removal ................................ 6
4. DIAL POINTER INSTALLATION ............................ 7
5. ADJUSTMENTS
5-1. Mechanical Adjustments ............................................ 8
5-2. Electrical Adjustments ................................................ 8
6. DIAGRAMS
6-1. Explanation of IC Terminals......................................11
6-2. Block Diagrams ........................................................ 13
6-3. Printed Wiring Boards .............................................. 17
6-4. Schematic Diagram (Main Section) ......................... 21
6-5. Schematic Diagram (CD Section) ............................ 25

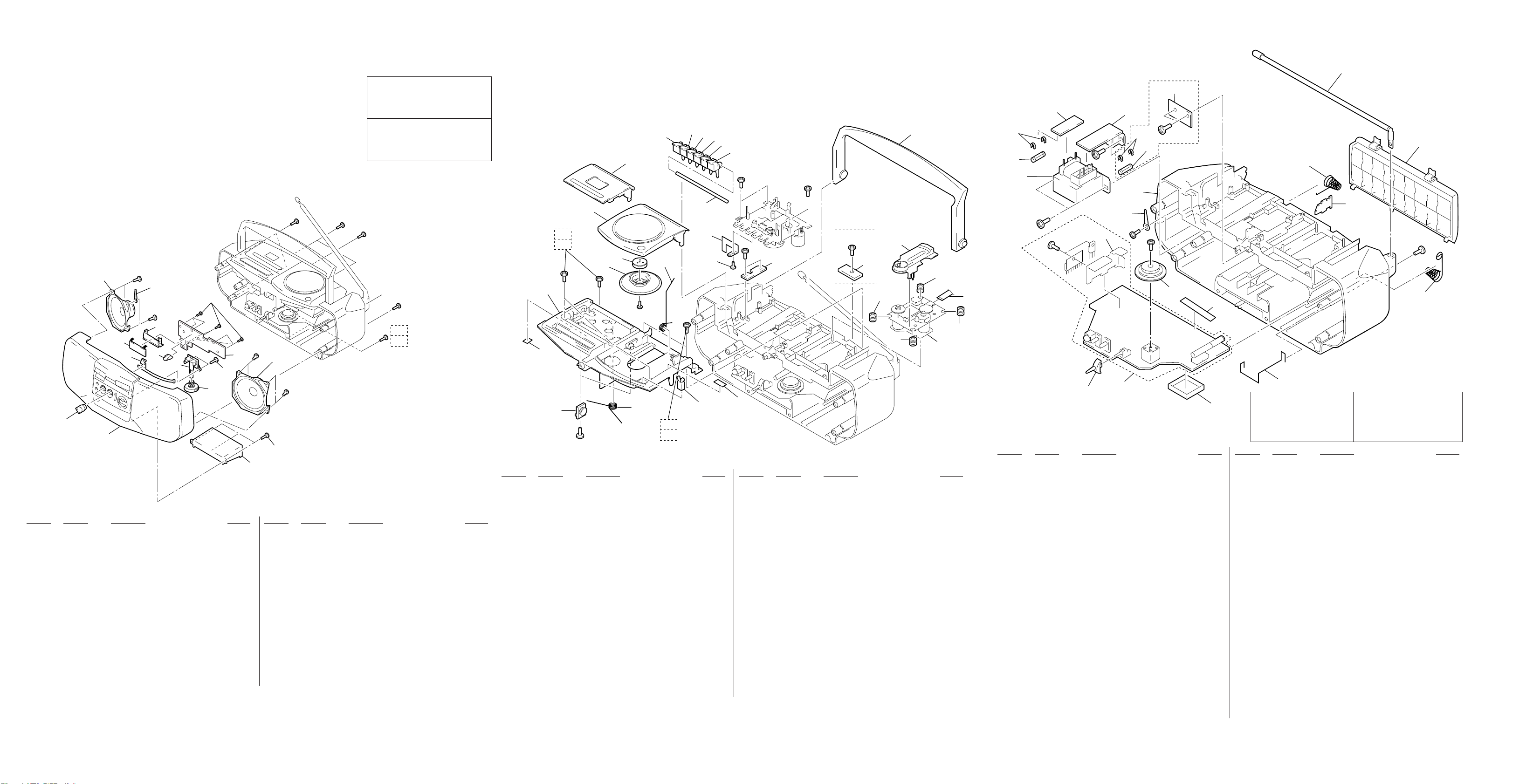

7. EXPLODED VIEWS
7-1. Front Cabinet Section ............................................... 32
7-2. Upper Cabinet Section.............................................. 33
7-3. Rear Cabinet Section ................................................ 34
7-4. Mechanism Deck Section (1) ................................... 35
7-5. Mechanism Deck Section (2) ................................... 36
7-6. Optical pick-up Section ............................................ 37
8. ELECTRICAL PARTS LIST ................................38
This Compact Disc player is
classified as a CLASS 1 LASER
product.
The CLASS 1 LASER
PRODUCT label is located on
the rear exterior.
CAUTION
Use of controls or adjustments or performance
of procedures other than those specified herein
may result in hazardous radiation exposure.
Laser component in this product is capable of emitting
radiation exceeding the limit for Class 1.
MODEL NO.
MODEL IDENTIFICATION
– Model Number Label –
CD RADIO CASSETTE-CORDER
CFD-V15
CFD-V24
US, Canadian,
Central & South America model : AC120V ⁄60Hz
AEP, UK, Italian, East European, Russian,
Singapore model : AC230V ⁄50Hz
E, Saudi Arabia model : AC110 – 120V , 220 – 240V
selectable. ⁄50/60Hz

– 3 –
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electro-
static breakdown because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic breakdown and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled
with care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode
emission, observe more than 30 cm away from the objective
lens.
CHUCK PLATE JIG ON REPAIRING
On repairing CD section, playing a disc without the CD lid, use
Chuck Plate Jig.
• Code number of Chuck Plate Jig : X-4918-255-1
SECTION 1
SERVICING NOTES
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
1. Press CD open knob.
2. Open the lid for CD.
3. Push on SWITCH (S801) as following figure.
4. Confirm the laser diode emission while observing the
objecting lens. When there is no emission, Auto Power
Control circuit or Optical Pick-up is broken.
Objective lens moves up and down once for the focus
search.
SAFETY CHECK-OUT
After correcting the original service problem, perform the
following safety check before releasing the set to the customer :
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage. Check
leakage as described below.
LEAKAGETEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5mA (500 microampers).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM
orbattery-operatedACvoltmeter.The“limit” indicationis 0.75V,
so analog meters must have an accurate low-voltage scale. The
Simpson 250 and Sanwa SH-63Trd are examples of a passive
VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2VAC range are suitable. (See Fig. A)
AC
voltmeter
(0.75V)
To Exposed Metal
Parts on Set
Earth Ground
0.15
µ F 1.5k
Ω
Fig. A. Using an AC voltmeter to check AC leakage.
Insert a precision
screw driver and push
SWITCH (S801)

– 4 –
SECTION 2
GENERAL
LOCATION AND FUNCTION OF CONTROLS
MAIN UNIT
1Tape operation buttons
2CD operation buttons
≠button
±button
PLAY MODE button
DISPLAY/ENTER button
flbutton
pbutton
3OPEN / CLOSE button
4Information display
5MEGA BASS switch
62Phones jack
7VOL knob
8TONE knob
9OPR / BATT indicator
!º FUNCTION switch
!¡ TUNE knob
!™ FM MODE switch
(AEP, UK, Italian, East European, Russian model)
12
4
56
7980
!¡
!™ 3

– 5 –
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
3-1. FRONT CABINET, CONTROL BOARD REMOVAL
3-2. POWER BOARD, AC INLET BOARD, BATT BOARD,VOL SEL BOARD REMOVAL
rThe equipment can be removed using the following procedure.
Upper cabinet Optical pick-up section
Front cabinet
Mechanism deck
Set
Rear cabinet
Control board
MONO/ST SW board
REC SW board
Power board, AC inlet board, BATT board, VOL SEL board
Main board, CD motor board
E, Saudi Arabia model
AEP, UK, Italian, East European, Russian model
4 Knob, VOL
6 Screws +BVTP (2.6X8)
Control board
Front cabinet
5
12
3 Screws +BVTP (3X14)
3 Screws +BVTP (3X14
)
Rear cabinet
7
1 Screws +BVTP (3X10)
5 Screws +BVTP (3X10)
3
4
Power board
VOL SEL board
E, Saudi Arabia model
AC inlet board
Rear cabinet
BATT board
2

– 6 –
3-3. UPPER CABINET REMOVAL
3-4. OPTICAL PICK-UP SECTION, MECHANISM DECK,
MAIN BOARD, REC SW BOARD, CD MOTOR BOARD, MONO/ST SW BOARD REMOVAL
4 Screws +BVTP (3X10)
1 STOP/EJECT
Handle
Rear cabinet
Upper cabinet
7
5
2
6
2 PUSH OPEN/CLOSE
3 Screws
+BVTP (3X10)
2 CNP707 (6pin)
Rear cabinet
Main board
REC SW board
3 Wire (Flat type) (16 core)
to MAIN board (CNP702)
5 Screws +BVTP (3X10)
7 Screws +BVTP (3X10)
6
1
4
Optical pick-up
section
MONO/ST SW board
Mechanism deck
!º Screw +BVTP (3X8)
9
CD motor boar
d
8 Remove solder
AEP, UK, Italian,
East European, Russian model

– 7 –
SECTION 4
DIAL POINTER INSTALLATION
Note : Follow the installation procedure in the numerical order given.
1Align the pointer with the groove of front cabinet and insert it as shown in the illustration.
2Align knob (TU) with front cabinet and fasten the screw.
3Turn the knob (TU) fully in the direction of the allow as shown in the illustration.
4Turn the tuning capacitor gear fully in the direction of the allow as shown in the illustration.
5Fasten the front cabinet and rear cabinet with the screws.
1 Pointer
Knob (TU)
Front cabinet
2 Screw +BVTP (2.6x8)
5
3
Knob (TU)
Front cabinet
4 Tuning capacitor gear
Rear cabine
t

– 8 –
TUNER SECTION
AM Section
Function switch : AM
Volume : MIN
FM Section
Function switch : FM
Volume : MIN
AM RF signal
generator
30% amplitude modulation by 400Hz
signal.
Output level : as low as possible
Put the lead-wire
antenna close to
the set.
FM RF signal
generator
22.5kHz frequency deviation by
400Hz signal.
Output level : as low as possible
telescopi
c
antenna
terminal
0.01
µ F
set
32 Ω
J301 (phones)
level mete
r
SECTION 5
ADJUSTMENTS
5-2. ELECTRICAL ADJUSTMENTS
TAPE RECORDER SECTION
Standard Output Level
Output terminal HP OUT
load impedance 32 Ω
output signal level 0.25V (–10dB)
TestTape
Type Signal Used for
WS-48A 3kHz, 0dB Tape Speed Adjustment
0dB = 0.775V
Tape Speed Adjustment
Procedure :
Mode : Playback
set
test tape
WS-48A
(3kHz, 0dB) 32
Ω
speed checker
LFM-30 or
digital frequenc
y
counter
J301 (phones)
Tape speed adjustment
control inside motor
5-1. MECHANICAL ADJUSTMENTS
PRECAUTION
1. Clean the following parts with a denatured-alcohol-moistened
swab :record/playback head pinch roller
erase head rubber belts
capstan
2. Demagnetize the record/playback head with a head demagne-
tizer. (Do not bring the head demagnetizer close to the erase
head.)
3. Do not use a magnetized screwdriver for the adjustments.
4. After the adjustments, apply suitable locking compound to the
parts adjusted.
5. The adjustments should be performed with the rated power sup-
ply voltage unless otherwise noted.
Torque Measurement
Torque Torque Meter Meter Reading
Forward CQ-102C 30 – 70 g•cm
(0.42 – 0.97 oz•inch)
Forward CQ-102C 1.5 – 5.5 g•cm
Back Tension (0.020 – 0.076 oz•inch)
Fast Forward CQ-201B more than 60 g•cm
(more than 0.84 oz•inch)
Rewind CQ-201B more than 60 g•cm
(more than 0.84 oz•inch)
TapeTension Measurement
Torque Meter Meter Reading
CQ-403A more than 100g
(more than 3.53 oz)
Adjustment Value :
Speed checker Digital frequency counter
–1 to +1% 2,970 – 3,030Hz
Frequency difference between the beginning and the end of the tape
should be within 1.5% (45Hz).
Adjustment Location :

– 9 –
• Repeat the procedures in each adjustment several times, and the
frequency coverage and tracking adjustments should be finally
done by the trimmer capacitors.
< >: AEP, UK, Singapore, Russian model only
<< >>: East European model only
[ ]: Italian model only
(( )) : Saudi Arabia model only
AM IF ADJUSTMENT
Adjust for a maximum reading on level meter.
T2 455kHz
AM FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L4 520kHz [516kHz] ((516kHz))
CT4 1,780kHz <1,680kHz> <<1,680kHz>>
[1,630kHz] ((1,630kHz))
AM TRACKINGADJUSTMENT
Adjust for a maximum reading on level meter.
L3 620kHz
CT3 1,400kHz
FM IF ALIGNMENT
Adjust for a maximum reading on level meter.
T1 10.7MHz
FM FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L2 86.5MHz <87.0MHz> <<64.0MHz>>
[87.35MHz] ((87.35MHz))
CT2 109.5MHz <108.3MHz> [108.25MHz]
((107.8MHz))
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L1 86.5MHz <87.0MHz> <<68.0MHz>>
[87.35MHz] ((87.35MHz))
CT1 109.5MHz <102MHz> [108.25MHz]
((107.8MHz))
Adjustment Location : Main board (See page 10)
VCO Adjustment
Procedure :
1. Connect the frequency counter to 4and 7pin of IC 1 as
shown the figure below.
2. Turn the set to 98MHz.
3. Adjust RV1 for 76kHz±500Hz reading frequency counter.
[ MAIN BOARD] (Conductor side)
Adjustment Location : Main board (See page 10)
How to put the set into CDTest Mode
1. Set the function switch to power off.
2. Set the function switch to CD while
≠key and pkey pressing.
The set is into CD test mode (88 is displayed).
3. Turn the power off to release test mode.
FM RF signal
generator
Carrier frequency : 98MHz
Modulation : No modulation
Output level : 1.38mV (–55dB)
set
telescopi
c
antenna
terminal
0.01
µ F
30
16
1
4
15
7
IC 1
R6
C15
C14
frequency counter
33k
Ω
1 µ F

– 10 –
Adjustment Location
L4 : AM Frequency Coverage Adjustmen
t
L2 : FM Frequency Coverage Adjustment
L1 : FM Tracking Adjustment
T2 : AM IF Alignment
T1 : FM IF Alignment
RV1 : VCO Adjustment
[MAIN BOARD]
(Component side)
L3 : AM Tracking Adjustment
[MAIN BOARD]
(Conductor side)
CT1 : FM Tracking Adjustment
CT3 : AM Tracking Adjustment
CT4 : AM Frequency Coverage Adjustment
CT2 : FM Frequency Coverage Adjustment

– 11 –
Pin No. Pin name I/O Description
1 SEIN I CD SENS input.
2 CNIN I CD SENS input.
3 DATO O CD DSP command data output.
4 XLTO O Latch output.
5 CLKO O Clock output for CD DSP command.
6DVSS – Digital ground.
7DVDD – Digital power supply (+5V).
8 MON – Not used (Open).
9 MDP O Spindle motor drive control.
10 MDS – Not used (Open).
11 LOCK O Lock signal output.
12 VPCO2 – Not used (Open).
13 VPCO1 – Not used (Open).
14 VCKI – Not used (Connect to !∞ pin).
15 V16M – Not used (Connect to !¢ pin).
16 VCTL – Not used (“H” level).
17 PCO O Decoder PLL phase comparator output.
18 FILI I Decoder PLL filter input.
19 FILO O Decoder PLL filter output.
20 AVSS – Analog ground.
21 CLTV I Decoder PLL VCO control voltage input.
22 AVDD – Analog power supply (+5V).
23 RF I CD RF signal input.
24 BIAS I Playback EFM asymmetry current constant input.
25 ASYI I Playback EFM asymmerty comparater voltage input.
26 ASYO O Playback EFM full swing output.
27 TEST1 I Test terminal (Fixed at “L”).
28 TEST2 I Test terminal (Fixed at “L”).
29 XRST I CD reset input.
30 XRSTO O CD reset output. “L” : Reset
31 FOK I FOK signal input.
32 LRCK O L/R clock signal output.
33 LRCKI I L/R clock signal input.
34 PCMD O PCM data output.
35 PCMDI I PCM data input.
36 BCK O Bit clock signal output.
37 BCKI I Bit clock signal input.
38 GTOP – Not used (Open).
39 XPCK – Not used (Open).
40 GFS – Not used (Open).
41 RFCK – Not used (Open).
42 C2PO – Not used (Open).
43 DVSS – Digital ground.
44 DVDD – Digital power supply (+5V).
45 XROF – Not used (Open).
SECTION 6
DIAGRAMS
6-1. EXPLANATION OF ICTERMINALS
IC702 CD DIGITAL SIGNAL PROCESSOR, LED DRIVE, SYSTEM CONTROL (CXP401-601R)

– 12 –
Pin No. Pin name I/O Description
46 MNT3 – Not used (Open).
47 MNT1 – Not used (Open).
48 MNT0 – Not used (Open).
49 C4M – Not used (Open).
50 DOUT – Not used (Open).
51 EMPHI – Not used (Open).
52 WFCK – Not used (Open).
53 SCOR – Not used (Open).
54 SBSO – Not used (Open).
55 EXCK – Not used (Open).
56 DTEST I Test terminal (Fixed at “L”).
57 CTEST I Test terminal (Fixed at “L”).
58 FR I ≠key input.
59 PLAY/PAUSE I flkey input.
60 FF I ±key input.
61 STOP I pkey input.
62 MODE I PLAY MODE key input.
63 DISP/ENTER I DISPLAY/ENTER key input.
64 AU MUTE O Audio mute signal output.
65 BTL MUTE O BTL mute signal output.
66 SENCE2 I CD SENCE input.
67 REC I Function REC input.
68 LIMIT SW I LIMIT switch input.
69 OPEN/CLOSE I CD door open/close switch input.
70 RMC – Not used (Fixed at “H”).
71 DVSS – Digital ground.
72 DVDD – Digital power supply (+5V).
73 SEG 15 – Not used (Open).
74 SEG 14 – Not used (Open).
75 – 88 SEG 1 – 13 O LCD segment output.
89 – 92 COM 0 – 3 O LCD common output.
93 – 95 VCL 1 – 3 I LCD drive device voltage input.
96 AVSS1 – Analog ground.
97 AVDD1 – Analog power supply (+5V).
98 AOUT1 O Audio output.
99 AIN1 I Audio input.
100 LOUT1 O L-CH audio output.
101 AVSS1 – Analog ground.
102 XVDD – Oscillator power supply (+5V).
103 XTAI I Oscillator connect terminal (16.9344MHz).
104 XTAO O Oscillator connect terminal (16.9344MHz).
105 XVSS – Oscillator ground.
106 AVSS2 – Analog ground.
107 LOUT2 O R-CH audio output.
108 AIN2 I Audio input.
109 AOUT2 O Audio output.
110 AVDD2 – Digital power supply (+5V).
111 AVSS2 – Ground terminal.
112 NC – Not used (Open).

– 13 – – 14 – – 16 –– 15 –
CFD-V15/V24
6-2. BLOCK DIAGRAM
• Signal path.
F: FM
E: PB
a: REC
J: CD
rCIRCUIT BOARDS LOCATION
AC INLET board
REC SW board
BATT board
MONO/ST SW board
(AEP, UK, Italian,
East European, Russian model
)
VOL SEL board
(E, Saudi Arabia model)
CD MOTOR board
POWER board
CONTROL board
MAIN board

– 21 – – 22 – – 24 –– 23 –
rRefer to page 29 for IC Block Diagrams.
6-4. SCHEMATIC DIAGRAM (MAIN SECTION)
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•2: nonflammable resistor.
•¢: internal component.
Note:Note:
The components identi- Les composants identifiés
fied by mark !or dotted par une marque !sont cri-
line with mark !are cri- tiques pour la sécurité.
tical for safety. Ne les remplacer que par
Replace only with part une piéce portant le
number specified. numéro spécifié.
•U: B+ Line.
• Power voltage is dc 9V and fed with regulated dc power
supply from battery terminal.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM (RADIO SECTION)
CD STOP (CD SECTION)
PLAY (TAPE SECTION)
( ) : AM (RADIO SECTION)
REC (TAPE SECTION)
• Voltages are takenwith aVOM (Inputimpedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
F: FM
E: PB
a: REC
J: CD
• Abbreviation
CND : Canadian SP :Singapore
EA : Saudi Arabia IT :Italian
EE : East European
C&SA : Central and South America
CIS : Russian
CFD-V15/V24

– 27 – – 28 –– 25 – – 26 –
CFD-V15/V24
1
IC701 #£
(RFO)
rWAVEFORMS
VOLT/DIV : 200mVAC
TIME/DIV : 0.5µsec
4
IC702 $§
(MNT3) VOLT/DIV : 1V AC
TIME/DIV : 50µsec
2
IC702 #ª
(XPCK) VOLT/DIV : 1V AC
TIME/DIV : 0.1µsec
5
IC702 $¶
(MNT1) VOLT/DIV : 1V AC
TIME/DIV : 50µsec
3
IC702 $¡
(RFCK) VOLT/DIV : 1V AC
TIME/DIV : 50nsec
6
IC702 `⁄‚›
(XTAO) VOLT/DIV : 0.5V AC
TIME/DIV : 20nsec
1.2 ± 0.2
Vp-p
5Vp-
p
484nsec
5Vp-p
237nsec
4.8Vp-p
140.5
µ sec
4.9Vp-p
140.5
µ sec
2.5Vp-
p
16.9344 MHz
PLAY MODE
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
Note: Note:
The components identi- Les composants identifiés
fied by mark !or dotted par une marque !sont cri-
line with mark !are cri- tiques pour la sécurité.
tical for safety. Ne les remplacer que par
Replace only with part une piéce portant le
number specified. numéro spécifié.
•U: B+ Line.
• Power voltage is dc 9V and fed with regulated dc power
supply from battery terminal.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD STOP
( ) : REC
• Voltages aretaken witha VOM(Input impedance10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
J: CD
• Abbreviation
CND : Canadian SP :Singapore
EA : Saudi Arabia IT :Italian
EE : East European
C&SA : Central and SouthAmerica
CIS : Russian
6-5. SCHEMATIC DIAGRAM (CD SECTION) rRefer to page 30 for IC Block Diagrams.

– 29 – – 31 –– 30 –
IC301 TA2068N
rIC BLOCK DIAGRAMS (MAIN SECTION)
IC1 CAX1538S
REG
FM FRONT-END
AM FRONT-END
VCO
REG
MPX REG.
PD 1
PD 2
MONO/ST
SELECT
1/2
COUNTER
1/2
COUNTER
MUTING
DECORD AMP
AUTOBLEND
RIPPLE
FILTER
BAND PASS
MUTE
TUNING
INDICATOR
AM
IF / DET
GND
PLL LPF 1
PILOT DET
LPF 1
PILOT DET
LPF 2
ST IND/
VCO CHECK
RCH OUT
LCH OUT
VCC
RIPPLE
FILTER
AFC/AGC 1 AFC/AGC 2
GND
TUND IND
FM IF IN
AM IF IN
BAND SELECT
PLL LPF2 MPX REG VCO FM DISCRI MUTE AM OSC AFC FM OSC REG OUT FM RF AM RF IN FM RF IN
FM/AM FE OUT
FE GND
235
4678910
111 12 13 14 15
16
17
18
19
2030 29 28 27 26 25 24 23 22 21
FM IF /
DISCRI
21
22
2324
235
4678910
111 12
13
14
15
16
17
181920
LOGIC
7dB
26dB 26dB
7dB
ALC1 ALC2
DET
MIC
AMP1
1k
10k
NAB
AMP2
NAB
AMP1
ON
MUTE
MUTE
MUTE
BUF AMP
A2
BUF AMP
A1
BUF AMP
B1
BUF AMP
B2
TAPE
TAPE
–––––
TAPE
–––––
LINE
RADIO
10k
10k
10k
1k
1k
10k
10k
10k
10k 10k 10k
10k
10k
10k
10k
15k 6k
1k
6k
LINE
RADOI
TAPE
REC
AMP1
REC
AMP2
REF AMP
2.1
ON
ON
MONITOR
AMP
MONITOR
AMP
LIN
MIC I/EX L. RAD
L. LO REC
TAPE R. LIN MIC IN
R. LO LINE R. RAD
VCC
MIC
NF
R. PO
R. NF
R. RO
R. IN
GND
REF
L. IN
L. RO
L. NF
L. PO
AGC
rIC BLOCK DIAGRAMS (CD SECTION)
IC703 BA6898FP
LEVEL SHIFT
VCC
DRIVER MUTE
VCC
LEVEL SHIFT
LEVEL SHIFT
LEVEL SHIFT
THERMAL
SHUT DOWN
REG VOLTAGE DOWN,
BIAS VOLTAGE DOWN,
THERMAL SHUT DOWN
MONITOR
DRIVE DRIVE DRIVE
DRIVE DRIVE
DRIVE
SL – SL +
SL IN
RESET
REGB
REGO
MUTE
GND
(SP IN)
SP IN
SP – SP +
GND
SPO
GND F – F + FIN (FIN) VRE
F
VCC VCC (TIN) TIN T – T + VRE
F
SP I
DRIVE
DRIVE
28 27 26 25 24 23 22 21 20 19 18 17 16 15
1234567891011121314
IC304 LA4597
T.S.D
BIAS
CIRCUIT
STANDBY
SWITCH
GND
GND
CH-2
CH-2
234 5 6 7 8 9 10 11 12 13
1
IC701 CXA1992BR
Charge
up
FEO
FEI
FDFCT
FGD
FLB
FE_O
FE_M
SRCH
TGU
TG2
FSET
TA_M
TA_O
SL_P
SL_M
SL_O
ISET
VCC
VCC
LOCK
CLK
XLT
DATA
XRST
C. OUT
SENS1
SENS2
FOK CC2 CC1 CB CP RF_I RF_O RF_M RFTC LD PDO PD1 PD2
FE_
BIAS
F
E
EI
VEE
TEO
LPF1
TEI
ATSC
TZC
VC
FZC
TM2
VEEVEE
TM3 TM5
TM4 TM6
VCC VCC
TM7
ISET
TTL
↓
IIL
IIL
↓
TTL
IIL
↓
TTL
IIL DATA REGISTER,
INPUT SHIFT REGISTER,
ADDRESS DECODER,
SENS SELECTOR,
OUTPUT DECODER
DFCTO IFB1-6
BAL1-4
TOG1-4
FS1-4 TG1-2 TM1-7 PS1-4
FOH
FOL
TGH
TGL
BALH
BALL
ATSC
TZC
FZC
FSET
TG2
VEE
VCC
FS1
FS2
FOCUS
PHASE COMPENSATION
DFCT
FS4
TRACKING
PHASE COMPENSATION
TG1
TM1
DFCT
FZC COMP.
VEE
VCC
VCC
TDFCT
TZC COMP.
ATSC
WINDOW
COMP.
E-F BALANCE
WINDOW COMP.
TRK. GAIN
WINDOW COMP.
FO. BIAS
WINDOW
COMP.
VEE
TGFL
TOG1
TOG2
TOG3
TOG4
BAL1
BAL2
BAL3
BAL4
IFB1
IFB2 IFB3
IFB4 IFB5
IFB6
FE AMP
VEE
E IV AMP
F IV AMP
VCC
APC
VCC
VEE
LASER POWER CONTROL
VEE
PD1 IV
AMP
PD2 IV
AMP
RF
SUMMING
AMP
VCC
VEE
VEE
LEVEL S VEE
MIRR
VCC
DFCT
FOK
VCC
LDON LPCL LPC TGFL MIRR DFCT1 CC1
1 2 3 4 5 6 7 8 9 10 11 12 13
26
39
40
41
42
43
44
45
46
47
48
49
50
51
52
38 37 36 35 34 33 32 31 30 29 28 27
24
24
23
22
21
20
19
18
17
16
15
14

– 32 – – 34 –– 33 –
SECTION 7
EXPLODEDVIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-1. FRONT CABINET SECTION
• Abbreviation
CND : Canadian SP : Singapore
EA : Saudi Arabia IT : Italian
EE : East European CIS : Russian
C&SA : Central & SouthAmerica
Les composants identifiés par une
marque!sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark !
or dotted line with mark !are critical
for safety.
Replaceonly with part number specified.
1 X-3375-386-1 CABINET (FRONT) SUB ASSY (SP)
1 X-3375-390-1 CABINET (FRONT) SUB ASSY (EA)
1 X-3375-392-1 CABINET (FRONT) SUB ASSY (EE)
1 X-3375-394-1 CABINET (FRONT) SUB ASSY (C&SA)
1 X-3375-395-1 CABINET (FRONT) SUB ASSY (IT)
1 X-3375-396-1 CABINET (FRONT) SUB ASSY (E)
1 X-3375-397-1 CABINET (FRONT) SUB ASSY (DARK GRAY)
(US)
1 X-3375-400-1 CABINET (FRONT) SUB ASSY (AEP,UK,CIS)
1 X-3375-903-1 CABINET (FRONT) SUB ASSY (WHITE) (US)
1 X-4949-821-1 CABINET (FRONT) SUB ASSY (CND)
2 3-018-837-01 KNOB (VOL) (DARK GRAY) (EXCEPT SP,EA)
2 3-018-837-11 KNOB (VOL) (SP,EA)
2 3-018-837-21 KNOB (VOL) (WHITE) (US)
4 3-018-839-01 POINTER
5 3-018-840-01 KNOB (TU) (DARK GRAY) (EXCEPT SP,EA)
5 3-018-840-11 KNOB (TU) (SP,EA)
5 3-018-840-21 KNOB (TU) (WHITE) (US)
*6 3-018-842-01 CHASSIS (TU)
*7 1-668-281-11 CONTROL BOARD
8 4-951-620-01 SCREW (2.6X8), +BVTP
9 3-703-397-01 STOPPER, WIRING
10 3-018-845-01 HOLDER (LCD)
11 3-018-838-01 BUTTON (MEGA BASS)
*12 3-022-854-01 CHASSIS (DUCT)
LCD800 1-801-913-11 DISPLAY PANEL, LIQUID CRYSTAL
SP301 1-505-889-11 SPEAKER (10cm) (L-CH)
SP302 1-505-889-11 SPEAKER (10cm) (R-CH)
#6 #6 #6
#6
#6
#11
#1
#1
#1
#1
LCD800
SP301
1
2
4
5
67
8
8
8
9
10
11
12
SP302
EXCEPT WHITE mode
l
WHITE model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-009-208-01 SPRING, CASSETTE UP
52 3-922-112-11 DAMPER
53 3-009-186-42 CABINET (UPPER)
53 3-009-186-61 CABINET (UPPER) (WHITE) (US)
54 3-009-209-01 SPRING, CD UP
55 3-019-395-01 PLATE, CHUCKING
56 1-452-899-11 MAGNET
57 3-009-187-42 LID, CD
57 3-009-187-61 LID, CD (WHITE) (US)
58 X-3375-399-1 HOLDER SUB ASSY, CASSETTE
58 X-3375-904-1 HOLDER SUB ASSY, CASSETTE (WHITE) (US)
59 3-009-196-31 BUTTON (REC)
59 3-009-196-41 BUTTON (REC) (WHITE) (US)
60 3-009-199-31 BUTTON (PLAY)
60 3-009-199-41 BUTTON (PLAY) (WHITE) (US)
61 3-009-198-31 BUTTON (REW)
61 3-009-198-41 BUTTON (REW) (WHITE) (US)
62 3-009-197-31 BUTTON (FF)
62 3-009-197-41 BUTTON (FF) (WHITE) (US)
63 3-009-200-31 BUTTON (STOP)
63 3-009-200-41 BUTTON (STOP) (WHITE) (US)
64 3-009-195-31 BUTTON (PAUSE)
64 3-009-195-41 BUTTON (PAUSE) (WHITE) (US)
*65 3-009-206-01 SHAFT (MD)
66 3-009-214-01 SPRING, REC
67 4-951-620-01 SCREW (2.6X8), +BVTP
*68 1-668-287-11 REC SW BOARD (US,CND, C&SA)
*68 1-668-287-21 REC SW BOARD (EXCEPT US,CND, C&SA)
69 3-009-201-31 HANDLE
69 3-009-201-41 HANDLE (WHITE) (US)
70 3-923-736-01 COVER, CD
71 3-910-095-11 RUBBER, VIBRATION PROOF (RED)
72 3-910-095-01 RUBBER, VIBRATION PROOF (GREEN)
73 1-777-955-11 WIRE (FLAT TYPE) (16 CORE)
74 1-639-678-12 CD MOTOR BOARD
75 3-015-646-01 CUSHION (CD)
76 3-923-151-01 CUSHION, RUBBER
*77 1-668-288-21 MONO/ST SW BOARD (AEP,EE,IT,CIS,UK)
S801 1-692-960-11 SWITCH, PUSH (1 KEY) (DOOR OPEN/CLOSE)
7-2. UPPER CABINET SECTION
#1
#1
#8
#1
#2
S801
51
52
53
54
55 56
57
58
59 60 61626364
65
66
67 68
69
70
71
71
72
72
73
74
75
76
77
AEP, UK, IT,
EE, CIS model
#10
#12
#10
#12
EXCEPT
WHITE model
WHITE model
EXCEPT WHITE model
WHITE model
*101 3-009-215-01 TERMINAL (ANALOG), ANTENNA
*102 A-3321-040-A MAIN BOARD, COMPLETE (US)
*102 A-3321-152-A MAIN BOARD, COMPLETE (EA)
*102 A-3321-156-A MAIN BOARD, COMPLETE (IT)
*102 A-3321-157-A MAIN BOARD, COMPLETE (CND)
*102 A-3321-159-A MAIN BOARD, COMPLETE (E)
*102 A-3321-160-A MAIN BOARD, COMPLETE (AEP,CIS,UK)
*102 A-3321-172-A MAIN BOARD, COMPLETE (EE)
*102 A-3321-303-A MAIN BOARD, COMPLETE (C&SA)
*102 A-3321-304-A MAIN BOARD, COMPLETE (SP)
103 3-009-194-31 KNOB (FUN) (DARK GRAY)(EXCEPT SP,EA)
103 3-009-194-41 KNOB (FUN) (SP,EA)
103 3-009-194-51 KNOB (FUN) (WHITE) (US)
*104 1-668-282-11 VOL SEL BOARD (E,EA)
105 3-009-192-01 GEAR, TUNING CAPACITOR
106 X-3375-384-1 CABINET (REAR) (CND,C&SA)
106 X-3375-387-1 CABINET (REAR) (SP)
106 X-3375-391-1 CABINET (REAR) (EA,E)
106 X-3375-393-1 CABINET (REAR) (EE)
106 X-3375-398-1 CABINET (REAR) (DARK GRAY) (US)
106 X-3375-902-1 CABINET (REAR) (WHITE) (US)
106 X-3375-401-1 CABINET (REAR) (AEP,IT,UK,CIS)
107 1-533-233-31 HOLDER, FUSE
*108 1-668-284-11 POWER BOARD (US,CND, C&SA)
*108 1-668-284-21 POWER BOARD (EXCEPT US,CND, C&SA)
*109 1-668-285-11 AC INLET BOARD (US,CND, C&SA)
*109 1-668-285-21 AC INLET BOARD (EXCEPT US,CND,
C&SA,E,EA)
*109 1-668-833-11 AC INLET BOARD (E,EA)
110 3-009-210-01 SPRING, BATTERY TERMINAL COIL
111 3-009-211-01 SPRING, BATTERY TERMINAL COIL
*112 1-668-286-11 BATT BOARD(US,CND, C&SA)
*112 1-668-286-21 BATT BOARD(EXCEPT US,CND, C&SA)
113 3-009-202-31 LID, BATTERY CASE(DARK GRAY)
113 3-009-202-41 LID, BATTERY CASE (WHITE) (US)
*114 3-023-888-01 PLATE (CD), SHIELD
115 3-989-888-03 CUSHION (AIR)
116 3-703-397-01 STOPPER, WIRING
ANT1 1-501-883-11 ANTENNA, TELESCOPIC
!F901 1-532-467-31 FUSE, TIME LAG (T0.315AL/250V) (E,EA)
!F902 1-532-464-31 FUSE, TIME LAG (T2.5AL/250V) (EXCEPT
US,CND,C&SA)
!F902 1-533-618-11 FUSE, GLASS CYLINDERICAL (3.15A/250V)
(US,CND,C&SA)
!T901 1-431-231-11 TRANSFORMER, POWER
(AEP,EE,IT,CIS,UK,SP,AR)
!T901 1-431-230-11 TRANSFORMER, POWER (US)
!T901 1-431-230-21 TRANSFORMER, POWER (CND,C&SA)
!T901 1-431-233-11 TRANSFORMER, POWER (E,EA)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-3. REAR CABINET SECTION
#3
#4
#1
#1
#1
#1
#1
F902
T901
F901
ANT1
101
102
103
104
105 115
106
116
107
107
108 109
110
111
112
113
114
not supplied
E, EA model
The components identified by
mark !or dotted line with mark
!are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque !sont critiques pour
la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ver 1.1 1998.08

– 35 –
151 3-933-010-01 SPRING (S/P), TORSION
152 3-933-025-01 SPRING (P), TORSION
153 3-933-026-01 LEVER (P)
154 3-933-024-01 ROLLER, PINCH
155 3-933-019-01 SPRING (F/R), TORSION
156 3-933-028-01 SPRING (FWD), TORSION
157 3-933-016-01 GEAR (S REEL)
158 3-008-590-01 SLIDER (REC)
159 3-008-592-13 BASE (H), HEAD
*160 3-008-588-01 SLIDER (REW)
*161 3-008-589-01 SLIDER (FF)
*162 3-008-587-01 SLIDER (STOP)
*163 3-008-591-01 SLIDER (PAUSE)
164 3-933-004-01 CLAW, REEL
*165 3-933-021-01 SLIDER (FRP)
*166 3-933-006-01 SLIDER (EJECT)
167 3-934-833-01 SPRING (FRP)
168 3-934-834-01 SPRING (BT)
169 3-933-007-01 PLATE, LOCK
*170 3-012-114-01 LEVER (FR)
HE301 1-543-876-11 HEAD (ERASE)
HRP301 1-500-364-11 HEAD,MAGNETIC(RECORD/PLAYBACK)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-4. MECHANISM DECK SECTION (1)
(MF-V10-117)
HE301
HRP301
151
152
153
154
155 156
157
158
159
160
170
161
162
163 164
165
166
167
168
169

– 36 –
201 3-933-029-01 LEVER, ERASING PREVENTION
202 3-933-182-01 SPRING, CASSETTE
203 3-932-995-01 GEAR (MID)
204 X-3371-667-1 CLUTCH ASSY
205 3-932-997-01 GEAR (CAM)
*206 3-932-999-01 SLIDER (SW)
207 3-932-998-01 SPRING (GROUND), TORSION
208 3-009-648-01 LEVER (S.OFF)
209 3-936-438-01 LEVER (K)
210 X-3373-572-1 REEL ASSY (N), T
211 3-933-020-01 BELT
212 X-3372-924-1 FLYWHEEL ASSY
213 3-932-993-01 CHASSIS, OUTSERT
214 3-343-358-01 RING, RETAINING
215 3-933-005-01 SPRING (CAM), COMPRESSION
216 3-939-383-02 SPRING, COMPRESSION
217 3-937-760-01 SPRING (GROUND), COMPRESSION
218 3-934-336-01 BEARING
219 3-009-650-02 SPRING (K), COMPRESSION
220 3-016-349-01 WASHER
M601 A-3304-619-A MOTOR ASSY
S601 1-762-679-11 SWITCH, LEAF (MD POWER)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-5. MECHANISM DECK SECTION (2)
(MF-V10-117)
M601
S601
201
202
203
219
204 205
206
207
208 209
210
211
212
213
214
215
217
218
216
#7
220
