SERVICE MANUAL
SPECIFICATIONS
KZ-32TS1U
FLAT PANEL COLOR TELEVISION
US Model
Canadian Model
Television system:
American TV standard
Channel coverage:
VHF: 2–13/UHF: 14–69/CATV: 1–125
Antenna:
75 ohm external terminal for VHF/UHF
Screen size (measured diagonally):
32 inches
Panel System:
Plasma Display panel
Display resolution:
852 dots (horizontal) x1024 lines (vertical)
VIDEO IN 1/2:
S VIDEO IN (4-pin mini DIN):
Y:1 Vp-p, 75-ohms unbalanced,
sync negative
C:0.286 Vp-p (Burst signal),
75 ohms
VIDEO (RCA Pin jack):
1 Vp-p, 75-ohms unbalanced, sync
negative
AUDIO (RCA Pin jacks):
500 mVrms (100% modulation),
Impedance: 47 kilohms
COMPONENT VIDEO IN 1:
Y:1 Vp-p, 75 ohms, 0.3 V negative sync
P
B :±350m Vp-p, 75 ohms
P
R :±350m Vp-p, 75 ohms
AUDIO (RCA Pin jacks):
500 mVrms (100% modulation),
Impedance: 47 kilohms
COMPONENT VIDEO IN 2/RGB IN:
Y:1 Vp-p, 75 ohms, 0.3 V negative sync
P
B :0.7 Vp-p, 75 ohms
P
R :0.7 Vp-p, 75 ohms
or
G:0.7 Vp-p, 75 ohms, Sync on Green
B:0.7 Vp-p, 75 ohms, Sync on Green
R:0.7 Vp-p, 75 ohms, Sync on Green
or
G:0.7 Vp-p, 75 ohms, non Sync on Green
B:0.7 Vp-p, 75 ohms, non Sync on Green
R:0.7 Vp-p, 75 ohms, non Sync on Green
HD:1–5 Vp-p
VD:1–5 Vp-p
AUDIO (RCA Pin jacks):
500 mVrms (100% modulation),
Impedance: 47 kilohms
SUB WOOFER: RCA Pin jack
AUDIO OUT (RCA Pin jacks):
500 mVrms (100% modulation)
Headphones: Stereo minijack
CONTROL S IN/OUT:
minijacks
Speaker: 50 x130 mm (2 x5
1
/ 8 inches)
x2
Speaker output: 7W x2
Power requirement:
120 V AC, 60 Hz
Power consumption:
In use (Max.): 270W
In standby: 1.7W
Dimensions (W/H/D):
856 x627 x132 mm
(33
3
/ 4 x24
3
/ 4 x5
1
/ 4 inch)
Mass: 25.5 kg (56 lbs 3 oz.)
Supplied accessories
Remote control (1)
Batteries size AA (2)
75-ohm coaxial cable (1)
AC power cord (1)
Brackets (2)
Cleaning cloth (1)
Operating instructions (1)
Important Safeguards (1)
Warranty (1)
Optional accessories
Note that some optional accessories may be out of
stock.
Headphones plug adapter
Connecting cables VMC-810S/820S, YC-15V/30V,
RK-74A, VMC-10HG, SMF-403
Design and specifications are subject to change
without notice.

KZ-32TS1U(U/C) 2
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and from all
exposed metal parts to any exposed metal part having a return to chassis,
must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT-
540A. Follow the manufacturers’ instructions to use these instruments.
2. A battery-operated AC milliammeter. The Data Precision 245 digital
multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or
battery-operated AC voltmeter. The “limit” indication is 0.75 V, so
analog meters must have an accurate low-voltage scale. The Simpson 250
and Sanwa SH-63Trd are examples of a passive VOMs that are suitable.
Nearly all battery operated digital multimeters that have a 2 V AC range
are suitable. (See Fig. A)
After correcting the original service problem, perform the following safety
checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes and
bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or
contact high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps, and
mounting hardware have been replaced. Be absolutely certain that you
have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors, that
were installed during a previous repair. Point them out to the customer
and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs of
deterioration. Point them out to the customer and recommend their
replacement.
6. Check the line cords for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.
7. Check the B+ and HV to see if they are specified values. Make sure your
instruments are accurate; be suspicious of your HV meter if sets always
have low HV.
8. Check the antenna terminals, metal trim, “metallized” knobs, screws, and
all other exposed metal parts for AC Leakage. Check leakage as
described right.
Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k Ω 0.15 µFAC Voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
SAFETY CHECK-OUT

KZ-32TS1U(U/C) 3
WARNING!!
NEVER TURN ON THE POWER IN A CONDITION IN WHICH THE
DEGAUSS COIL HAS BEEN REMOVED.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK !ON THE
SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE
PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY. CIRCUIT ADJUST-
MENTS THAT ARE CRITICAL FOR SAFE OPERATION ARE
IDENTIFIED IN THIS MANUAL. FOLLOW THESE PROCEDURES
WHENEVER CRITICAL COMPONENTS ARE REPLACED OR IM-
PROPER OPERATION IS SUSPECTED.
AVERTISSEMENT!!
NE JAMAIS METTRE SOUS TENSION QUAND LA BOBINE DE
DEMAGNETISATION EST ENLEVÉE.
ATTENTION AUX COMPOSANTS RELATIFS À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE TRAME ET UNE
MARQUE !SONT CRITIQUES POUR LA SÉCURITÉ. NE LES
REMPLACER QUE PAR UNE PIÈCE PORTANT LE NUMÉRO
SPECIFIÉ.LESRÉGLAGESDE CIRCUITDONT L’IMPORTANCEEST
CRITIQUE POUR LA SÉCURITÉ DU FONCTIONNEMENT SONT
IDENTIFIÉS DANS LE PRÉSENT MANUEL. SUIVRE CES
PROCÉDURES LORS DE CHAQUE REMPLACEMENT DE
COMPOSANTS CRITIQUES, OU LORSQU’UN MAUVAIS
FONCTIONNEMENT EST SUSPECTÉ.

KZ-32TS1U(U/C) 4
1. DISASSEMBLY
1-1. Rear Cover Removal ............................................ 1-1
1-2. Main Shield Removal .......................................... 1-2
1-3. Stand Assembly Removal .................................... 1-3
1-4. Q Board Removal ................................................ 1-4
1-5. B Board Removal.................................................. 1-5
1-6. TU Board Removal............................................... 1-6
1-7. H1 Board Removal ............................................... 1-7
1-8. H2 Board Removal ............................................... 1-8
1-9. Supports Removal................................................. 1-9
1-10.Switching Regulator Removal ............................. 1-10
1-11.Plasma Display Panel Removal ............................ 1-11
2. ADJUSTMENTS
2-1. White Balance Adjustment ................................... 2-1
2-2. Calibration Adjustment of A/D Converter
and Video Coder ................................................... 2-2
2-3. Adjustment of Sub-color and Sub-hue.................. 2-4
TABLE OF CONTENTS
Section Title Page Section Title Page
3. DIAGRAMS
3-1. Block Diagrams .................................................... 3-1
3-2. Circuit Boards Location........................................ 3-5
3-3. Schematic Diagrams and Printed Wiring
Boards ................................................................... 3-6
(1) Schematic Diagrams of B (a, b, c,d, e, f, g)
Board .................................................................... 3-7
(2) Schematic Diagram of H1 Board ......................... 3-15
(3) Schematic Diagram of H2 Board ......................... 3-17
(4) Schematic Diagrams of Q (a, b) Board ........... 3-19
(5) Schematic Diagram of TU Board ......................... 3-22
3-4. Semiconductors .................................................... 3-24
4. EXPLODED VIEWS .............................................. 4-1
4-1. Cover .................................................................... 4-2
4-2. Chassis ................................................................. 4-3
4-3. Packing Materials ................................................. 4-4
5. ELECTRICAL PARTS LIST ............................... 5-1

KZ-32TS1U(U/C) 1-1
SECTION 1
DISASSEMBLY

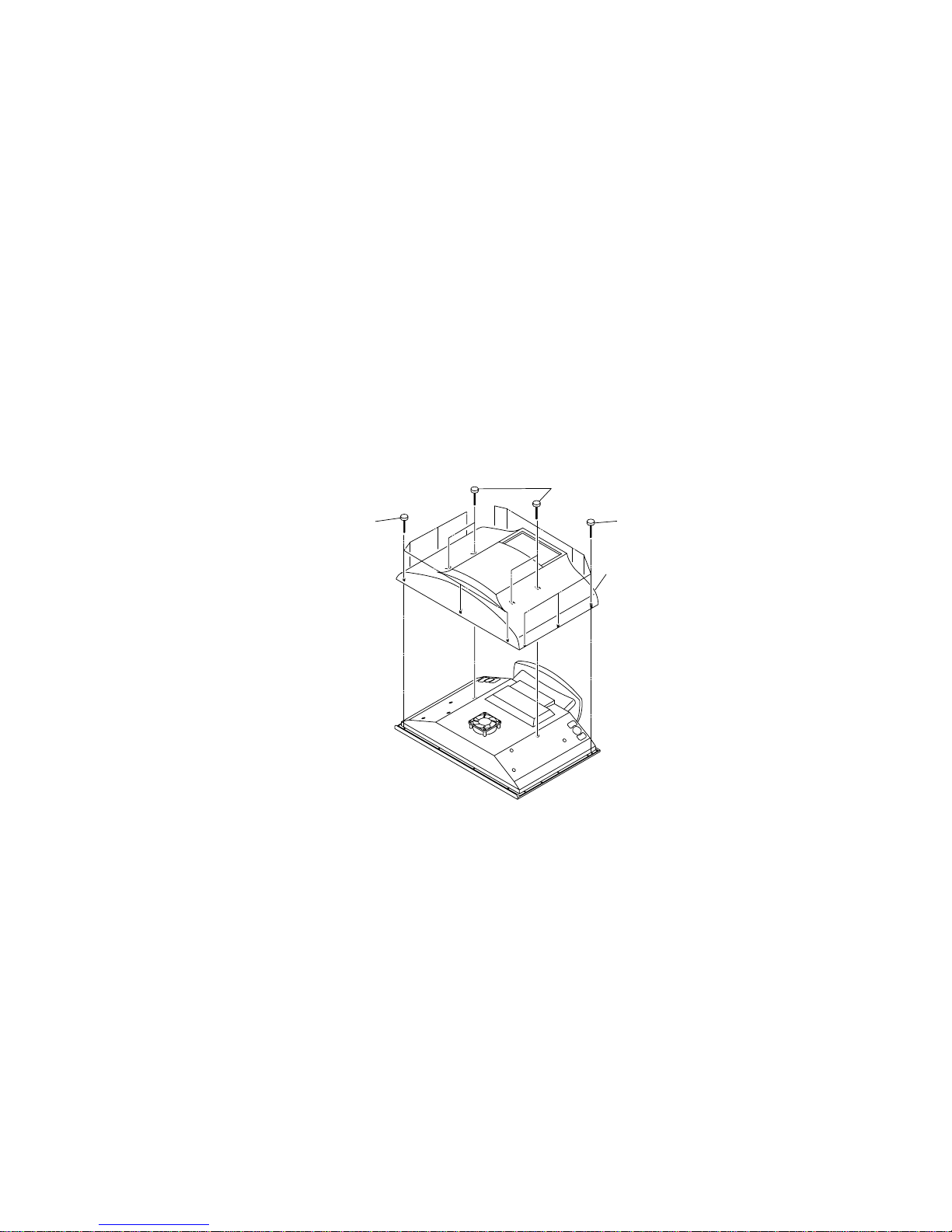

1-1. REAR COVER REMOVAL
2Rear cover
1Four screws
(+PSW 5x25)
1Seven screws
(+BVTP 4x16)
1Six screws
(+BVTP 4x16)

KZ-32TS1U(U/C) 1-2

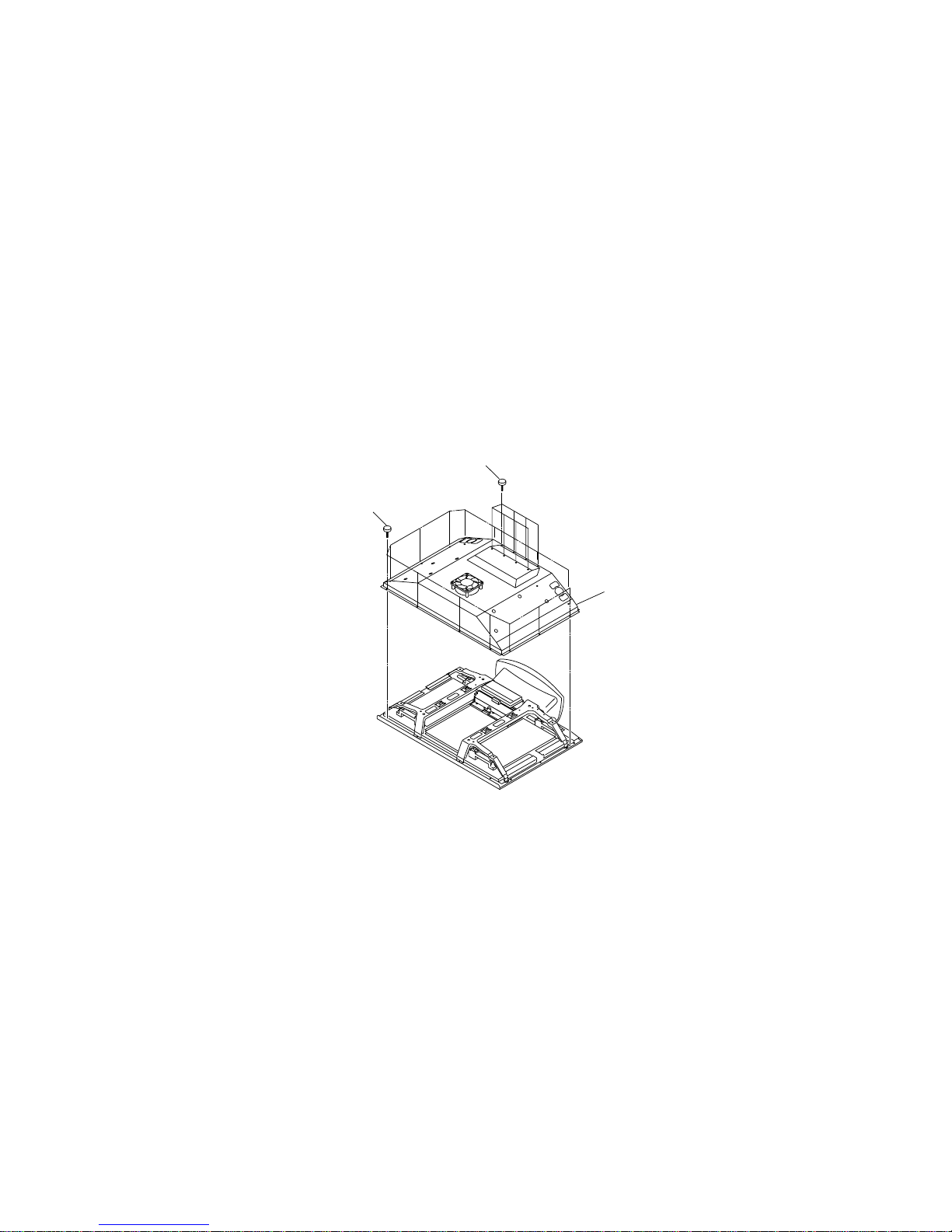

1-2. MAIN SHIELD REMOVAL
3Main shield
2Fourteen screws
(+BVTP 4x12)
1Eight screws
(+PSW 3x8)

KZ-32TS1U(U/C) 1-3

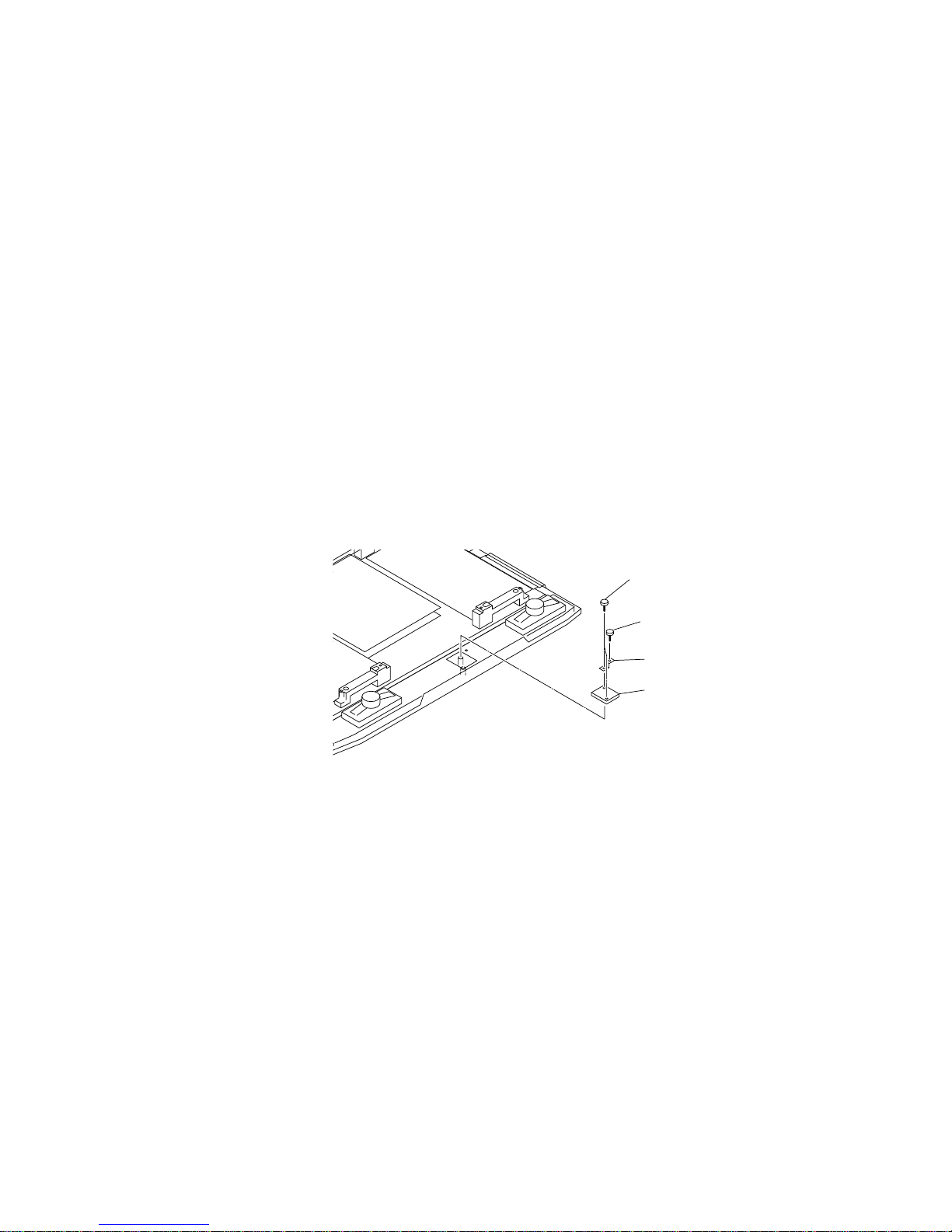

1-3. STAND ASSEMBLYREMOVAL
2Stand base assembly
Stand base assembly
1Four screws
(+PSW 5x12)

KZ-32TS1U(U/C) 1-4
1-4. Q BOARD REMOVAL
4Q top shield
3Connector panel
6Q board
2Four screws
(+KTP 3x12)
1Nut
5Two screws
(+PSW 3x6)

KZ-32TS1U(U/C) 1-5

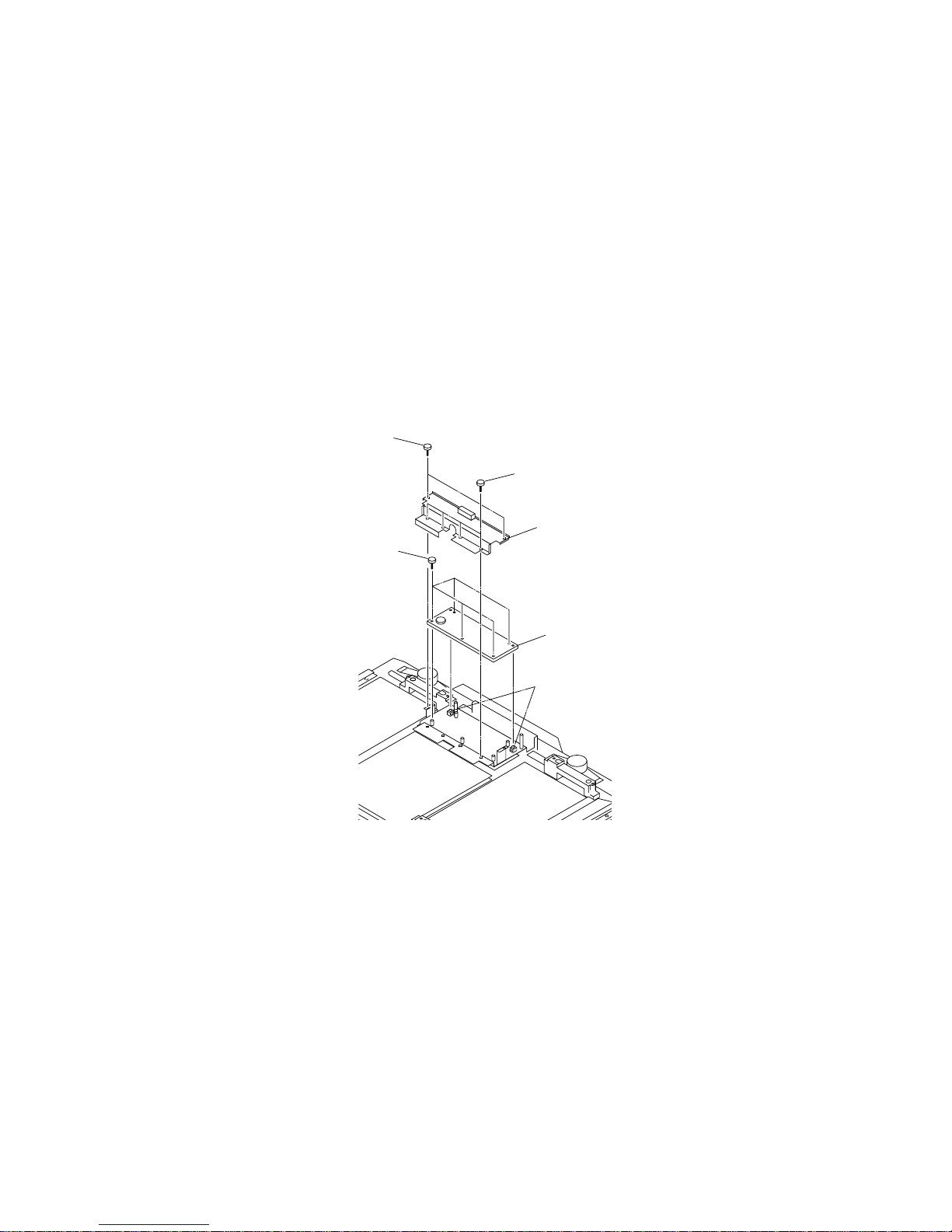

1-5. B BOARD REMOVAL
4B board
2B top shield
Board holders
3Five screws
(+PSW 3x6)
1Two screws
(+PSW 3x6)
1Four screws
(+PSW 3x6)

KZ-32TS1U(U/C) 1-6

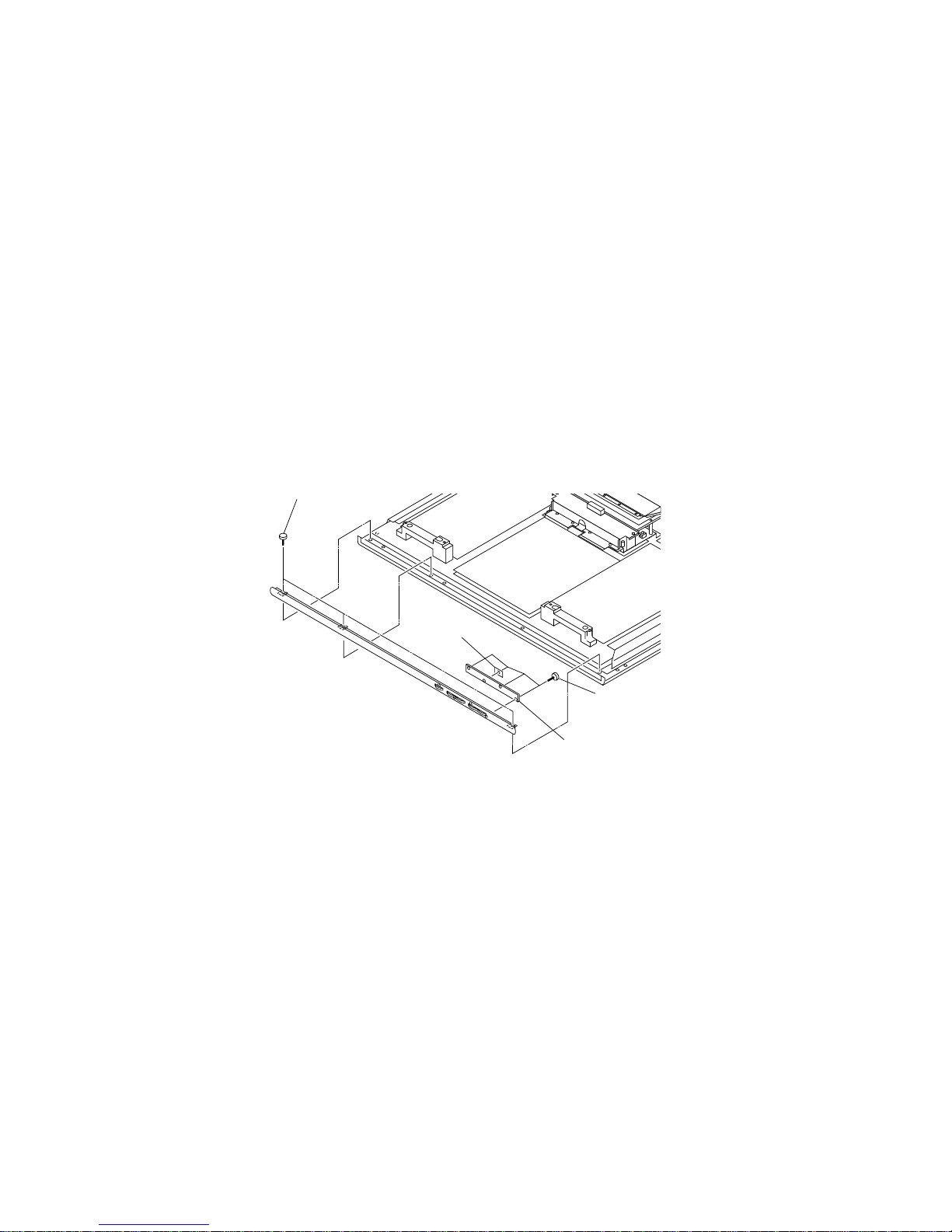

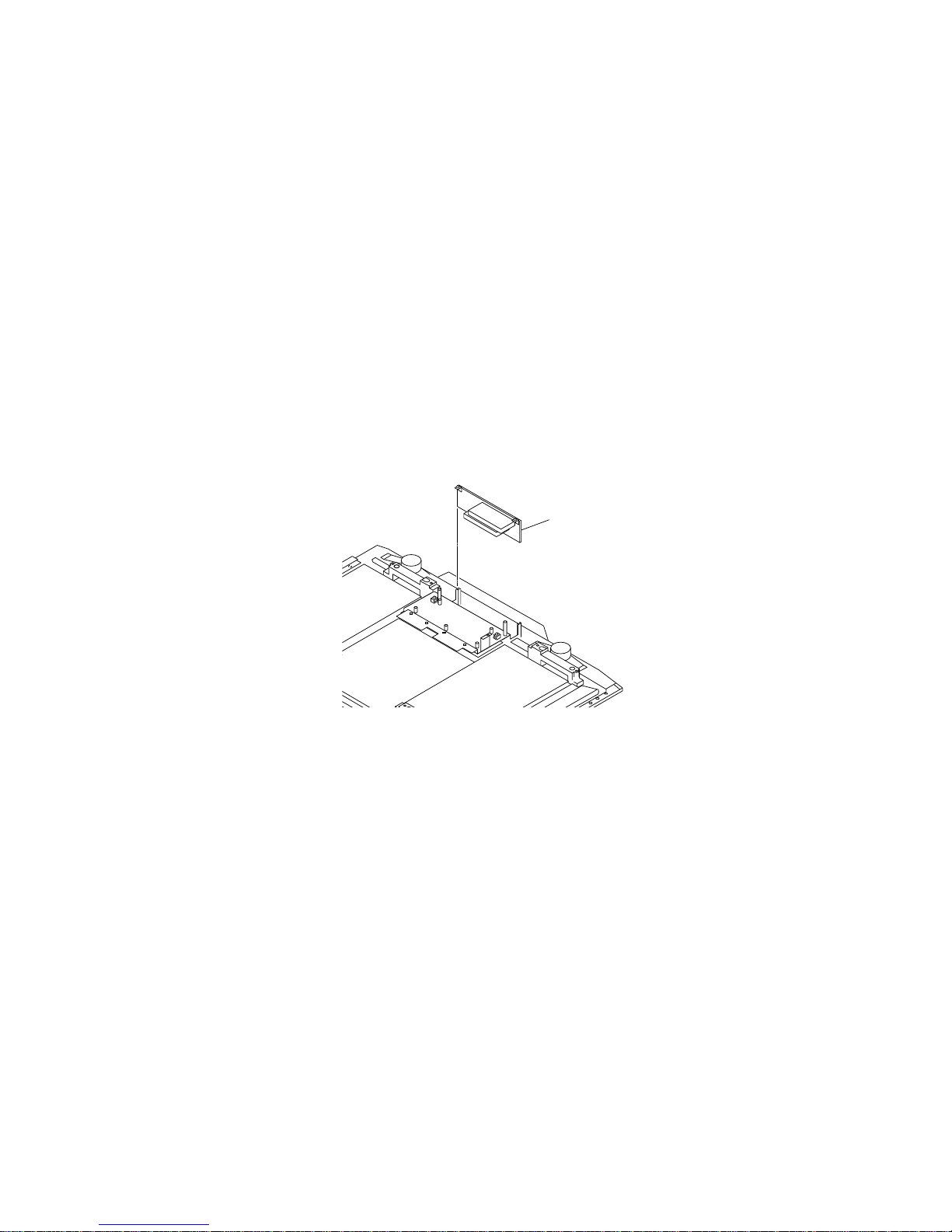

1-6. TU BOARD REMOVAL
1TU board

KZ-32TS1U(U/C) 1-7
1-7. H1 BOARD REMOVAL
2Two screws
(+BVTP 3x12)
1Screw
(+BVTP 3x12)
4H1 board
3H1 earth plate

KZ-32TS1U(U/C) 1-8
1-8. H2 BOARD REMOVAL
2Four screws
(+PSW 3x6)
1Three screws
(+BVTP 4x16)
4H2 board
3Insulation
panel H

KZ-32TS1U(U/C) 1-9

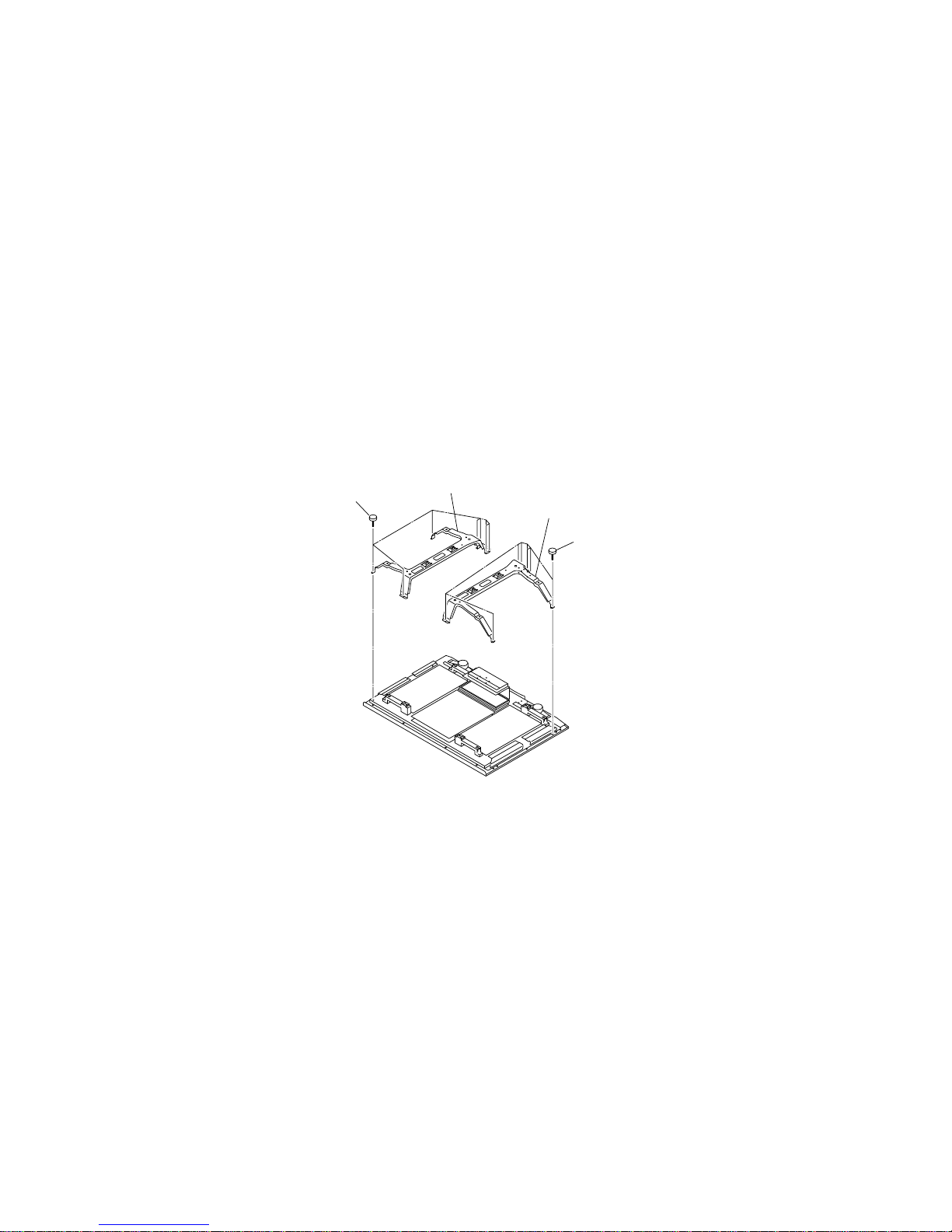

1-9. SUPPORTS REMOVAL
3Eight screws
(+BVTP 4x16)
1Eight screws
(+BVTP 4x16) 4Support (right)
2Support (left)

KZ-32TS1U(U/C) 1-10
1-10. SWITCHING REGULATOR REMOVAL
1Support pcb
2Switching regurator

KZ-32TS1U(U/C) 1-11

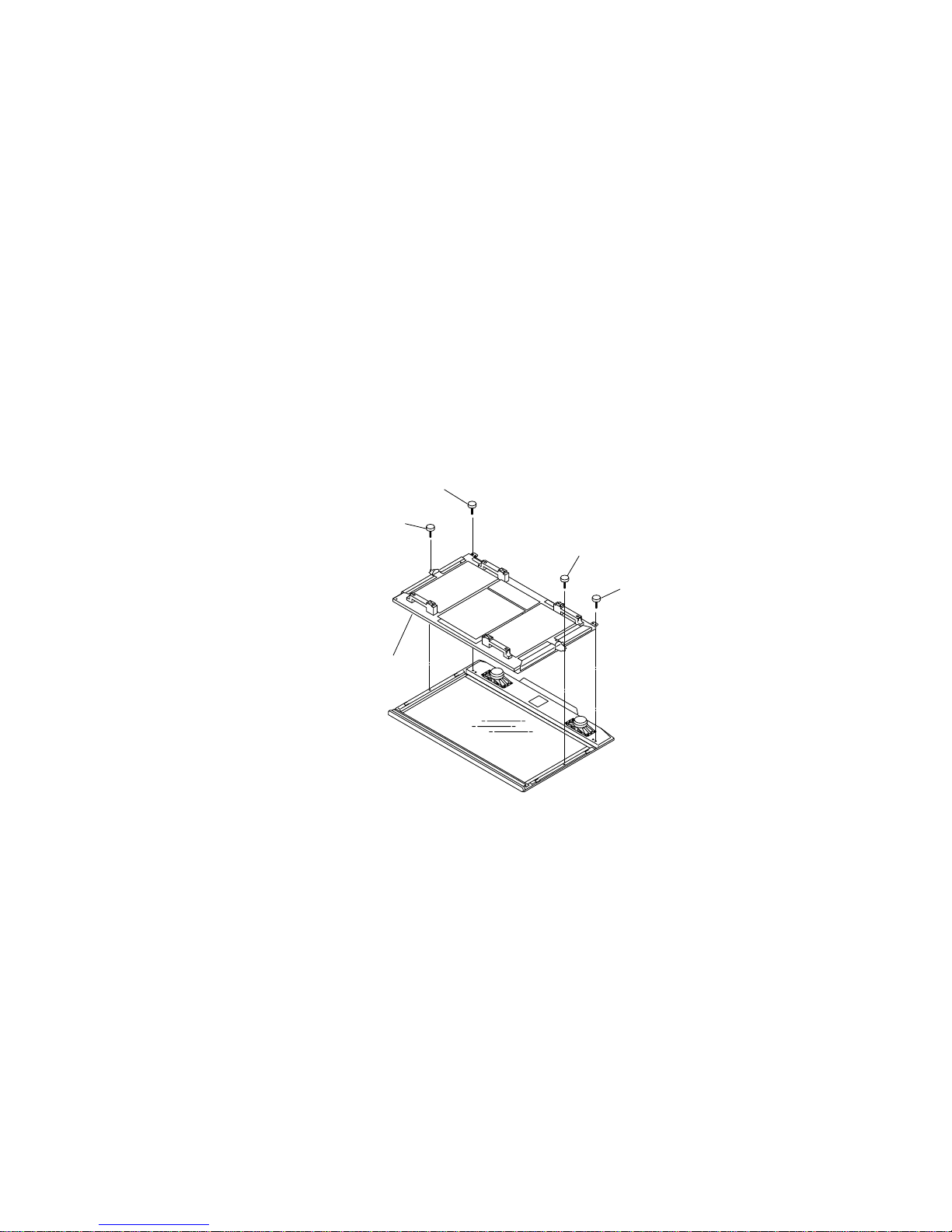

1-11. PLASMA DISPLAY PANEL REMOVAL
2Screw
(+PSW 5x12)
1Screw
(+BVTP 4x16)
1Screw
(+BVTP 4x16)
2Screw
(+PSW 5x12)
3Plasma display panel

KZ-32TS1U(U/C) 2-1
<Service Mode>
The service mode is not displayed in the normal state. It is displayed by
entering a pass code.
All hidden menus are displayed when you enter the pass code below.
The uppermost item of the displayed menus is a service mode menu.
Pass code: Enter in the standby state (when the red LED lights) as follows:
Screen display →5 →Vol+ →Power ON
== Service Mode Menu ==
1) EEP ROM Initialize
2) Chroma Decoder
3) AD Converter
4) White Balance
5) General
6) Manual Control
7) Preset Edit
8) Service Status
SECTION 2
ADJUSTMENTS
2-1. White Balance Adjustment
1. Set the service mode then select White Balance menu.
2. Select Large in the Window menu to output an internal adjustment signal.
3. Set the color temperature to "High".
4. Adjust the white balance so that the color temperature is set to the value
below during R, G, and B gain adjustments.
Color Temperature: 10000K (x=0.281 y=0.288 ±0.005)
5. Set the color temperature to "Middle".
6. Adjust the white balance so that the color temperature is set to the value
below during R, G, and B gain adjustments.
Color Temperature: 8000K (x=0.295 y=0.305 ±0.005)
7. Set the color temperature to "Low".
8. Adjust the white balance so that the color temperature is set to the value
below during R, G, and B gain adjustments.
Color Temperature: 6500K (x=0.314 y=0.324 ±0.005)

KZ-32TS1U(U/C) 2-2
2-2. CalibrationAdjustment ofA/D Converter and
Video Coder
2-2-1.Preparation foradjustment
1. Set [RGB MODE] of the Custom Setup menu in the service mode to
[Other].
2. Set the [Cal Mode] of the AD Converter in the service mode to [ON].
2-2-2.RGBinput adjustment
1. Input All white 90 IRE signal of VGA (640x480/60Hz) to the RGB input
terminal.
2. Select RGB Calibration from the AD Converter menu then, Adjust the R
and B gain in the menu and balance so that the detection values of R and
B is approximate to the detection value of G.
3. Adjust the Sub Contrast (RGB) and then, adjust the detection values of R,
G, and B to the set value.
Detection set value: 230 ± 3
4. Set the RGB input signal to All gray 20 IRE signal of VGA (640x480/
60Hz).
5. Adjust the RGB Bias and then, adjust the detection values of R, G, and B
to the set value.
Detection set value: 51 ± 3
6. Repeat step 1 to 5 described above until the detection set value is ob-
tained.
2-2-3.Component inputadjustment
1. Input All white 90 IRE signal of 1080/60i to the component input termi-
nal.
2. Select YUV Calibration from the AD Converter menu.
3. Adjust the Sub Contrast (YUV) and then, adjust the detection values of G
to the set value.
Detection set value: 230 ±3
4. Set the component input signal to All gray 20 IRE signal of 1080/60i .
5. Adjust the Sub Bright (YUV) and then, adjust the detection values of G
to the set value.
Detection set value: 51 ±3
6. Adjust the CB Offset (YUV) and then, adjust so that the detection value
of B is the same as G value.
7. Adjust the CR Offset (YUV) and then, adjust so that the detection value
of R is the same as G value.
8. Repeat step 5 to 7 until the detection set value in step 5 above is obtained.
9. Repeat step 3 to 8 until the detection set value in steps 3 and 5 above are
obtained.

KZ-32TS1U(U/C) 2-3
2-2-4.Videoinputadjustment
1. Input All white 90 IRE signal of NTSC to the video input terminal.
2. Select Video Calibration from the AD Converter menu.
3. Adjust the Sub Contrast (Video) and then, adjust the detection values of
G to the set value.
Detection set value: 230 ± 3
4. Set the video input signal to All gray 20 IRE signal of NTSC.
5. Adjust the Sub Bright (Video) and then, adjust the detection values of G
to the set value.
Detection set value: 51 ± 3
6. Adjust the CB Offset (Video) and then, adjust so that the detection value
of B is the same as G value.
7. Adjust the CR Offset (Video) and then, adjust so that the detection value
of R is the same as G value.
8. Repeat step 5 to 7 until the detection set value in step 5 above is obtained.
9. Repeat step 3 to 8 until the detection set value in step 3 and 5 above are
obtained.
2-2-5.Video coderinputadjustment
1. Input All white 30 IRE signal of SECAM to the video input terminal.
2. Select By Adj from the Chroma decoder menu.
3. Adjust the By Adj (SECAM) and then, adjust so that the detection value
of B is the same as G value.
4. Select Ry Adj from the Chroma decoder menu.
5. Adjust the Ry Adj (SECAM) and then, adjust so that the detection value
of R is the same as G value.
6. Repeat step 3 to 5 until the detection values of R, G, and B reach the
allowable error range.
Allowable error ± 5
7. Set [Cal Mode] to [OFF] after the A/D calibration adjustment is
completed.

KZ-32TS1U(U/C) 2-4
2-3. Adjustment of sub-color and sub-hue
1. Input an NTSC SMPTE 75% color-bar signal to VIDEO 1.
2. Set the image quality to the AV professional standard state.
3. In the service mode, put the unit into the Blue Only mode.
4. Adjust the NTSC sub-color and sub-hue while viewing the screen.
4-1. Set the sub-color value to 8 and adjust so that, in a C Out level, the
brightness of (1) and (A) is the same as that of (4) and (D). In a sub-
hue, adjust so that the brightness of (2) and (B) is the same as that of
(3) and (C). Confirm the C Out level and sub-hue again. (The C Out
level and sub-hue require tracking several times.)
5. Input a PAL SMPTE 75% color-bar signal to VIDEO 1.
6. Adjust the PAL sub-color while viewing the screen.
6-1. In a sub-color, adjust so that the brightness of (1) and (A) is the same
as that of (4) and (D).
If the adjustment is omitted, set the sub-color value to 10.
7. Input a SECAM SMPTE 75% color-bar signal to VIDEO 1.
8. Adjust the SECAM sub-color while viewing the screen.
8-1. In a sub-color, adjust so that the brightness of (1) and (A) is the same
as that of (4) and (D).
If the adjustment is omitted, set the sub-color value to 9.
9. Cancel the Blue Only mode.
(1)
(A) (2) (B) (3) (C) (4) (D)
SMPTE color-bar signal

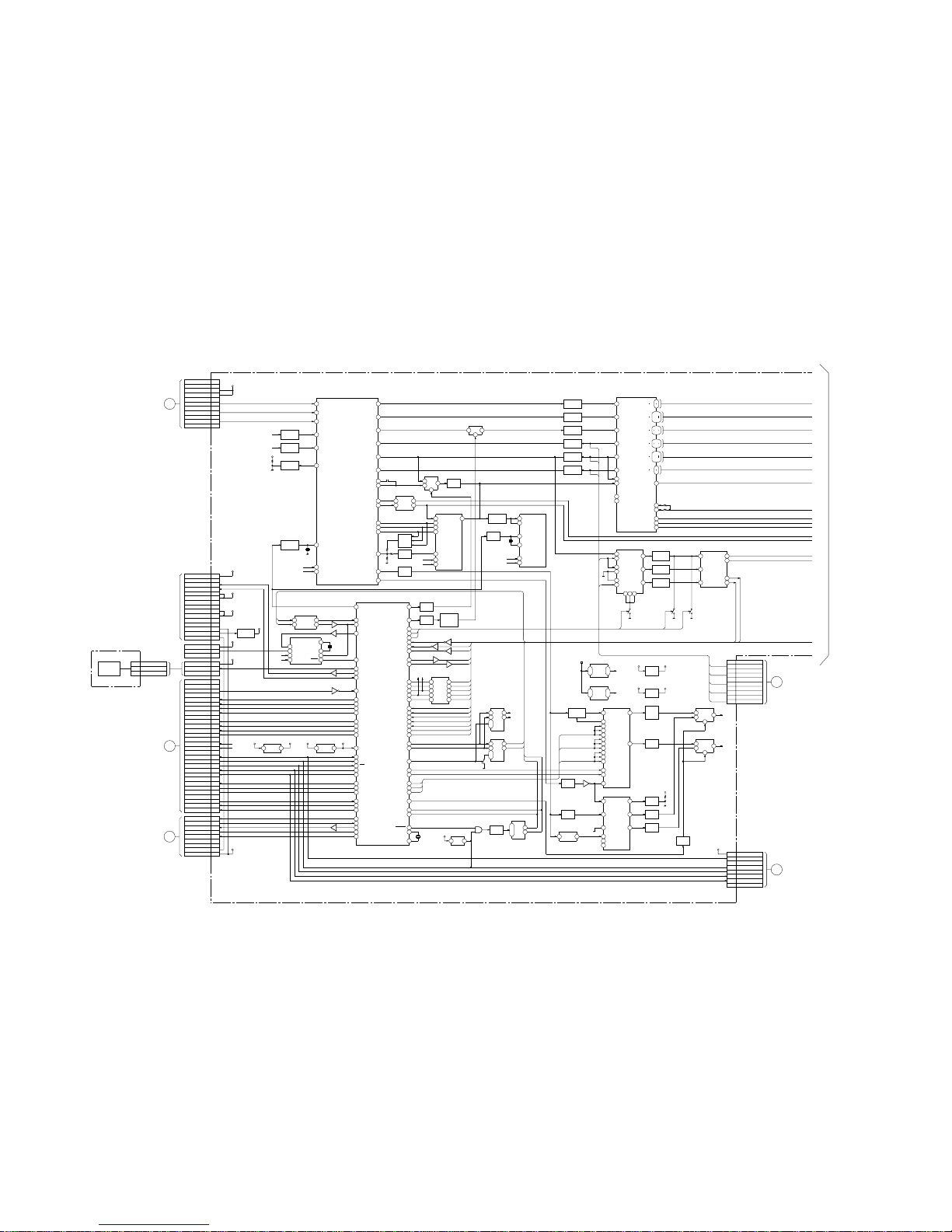

KZ-32TS1U(U/C) 3-1
11
10
9
8
7
6
5
4
3
2
1
GND
VID_SIG
GND
Y_SIG
GND
C_SIG
GND
AN5V
AN5V
GND
GND 5V-3
43
44
1
C2
CVBS/Y2
CVBS/Y1
COMB C/FORCED
COMB Y
7
5
Q9,12,14
F 3
COM.Y
COM.C F 2
Q5,13
Q1 10 SCP
5V-3
Xtal
38
SC
13
SDA
14
Q34
X1
16.2MHz
SC _ S
SDA_ S
23
22
21
17
19
18
2
11
Cr OUT
Cb OUT
Y OUT
Cr1
Y1
Cb1
SYNC IN
Y FOR SYNC
VS
HS
R2
G2
B2
YS/YM
CVBS OUT(2VPpp)
FSC OUT 46
3
36
33
34
35
9
4
CO OR DECODER
IC2
BUFF
Q28
Q29
BUFF
Q23,24,30
BUFF
Q33
BUFF
Q31
BUFF
Q32
BUFF
13
2
IC5
IC3
5
1
6
7
BUFF
Q3
5
26
IC1 BUFF
3
18
2
3
5 HIN
R
G
B
BOX
SC
SDA
14
15
17
Q6,8,10
7VIDEO
IC4
MAIN V CHIP/CC
Q11
Q2,4
F 1
IO
ADIN6
11
AUTO WIDE
IC6
Q17,19,21
XI26
XO
25
X2
14.318MHz
16
15 SC
SDA
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
A13V
AN 6V
AN 6V
GND
GND
DIG5V
DIG5V
GND
GND
DIG3.3V
DIG3.3V
THERMO
POWER
GND
STBY 5V
3
2
1
GND
C OCK
STBY5V
3
2
1
GND
KEY
STBY5V
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
CONT 1
RGB 3
Q SENS
GND
FAN DETECT
FAN FB
FAN DRIVE
GND
F ASH MODE
FWE
CPU RESET
UART RX
UART TX
GND
SDA S
SC S
GND
INE MUTE
AUDIO MUTE
PF
D3 DETECT
GND
INPUT SE
POWER SW
ED B
EDA
GND
SIRCS
GND
STBY5V
9
8
7
6
5
4
3
2
1
A6V
A13V
GND
GND
RESET
CPS
C K
SO
SI
STBY 5V
3.3V-2
5V-2
5V-3 REG
IC7
5V-3
STBY 5V
STBY 5V
7CE
32KOUT
1
SI
4
SC K
2
TX
C K 6
3
8
9OSC_IN
OSC_OUT
SO
INTR
IC1003
32.768k
X1001
17
182
3
IC1011
6
5
2
3
IC1009
6
116
111
90
41 DEC_ENA
PDP_IRQ
4W_RX
RTC_CS
RTC_IRQ
KEY
POWRE
THERMO
SIRCS
ED A
ED B
POWER SW
INPUT SE ECT
D3_DET
PF_SW
A MUTE
INE MUTE15
16
17
95
14
12
100
99
18
106
28
97
35
IC1006(1/2)
35
IC1006(2/2)
IC1017
46
STBY 3.3VSTBY 5V 5V-2 STBY 5V
12
IC1020
87 NC
SC _ S
SDA_ S
22
23
71
74
120
9
102
89
101
85
86
61
60
59
62
84
TXD2(FWR)
RXD2(FWR)
RES
FWE
MD2
PWM0
FAN_FB
NC
Q_SENS
CONT1
RGB3
TU_TX
TU_RX
TU_C K
CS_TU
TUNER RESET
IC1012(1/2)
118
AN6V
43
45
40
64
63
29
30
33
1
2
3
19
115
117
112
65
66
4
114
113
27
26
53
55
39
47
46
48
49
50
51
5
58
67
75
77
CC VID/YUV
PICTURE AGC
SYNC SW
SOG DUTY 1
SOG DUTY 2
H.SYNC
V.B K
V.SYNC
PDP_CPU
PDP_ACT
SYSTEM_RESET
SC P SW
4W_C K
4W_TX
OSD_CS
H STATUS
V STATUS
VIDEOuMUTE
SC_CS
P D_CS
PANE DET1
PANE DET2
SDA_ S
SC _ S
SO SYS N/M
NTSC/PA
VEH1
VEH2
VEH3
COMF SW
SDA_HS
SC _HS
SDTOVF
XTA
EXTA
IC1004
Q7
SW
Q18
AMP/BUFF
Q15,16,20
Q22,26,27
IC1012(2/2)
34
65
21
26
62
IC1018
9
3
4
5
6
1
17
16
15
14
IC1018 BUFFTX C K
SYS_HS
VB K
SYS_VS
PDP_CPU
PDP_ACT
SYS_RESET
SC_P
SCK_4W
STX_4W
CS_OSD
H_STATUS
V_STATUS
VMUTE
CS_SC
CS_P D
PANE DET1
PANE DET2
5
2
6
3
1
7
IC1019
IC1015
7
1
3
6
2
5
SDA_ S
SC _ S
SDA_HS
SC _HS
X1002
12.288MHz
IC1005
12
STBY 3.3V
2
1
4Q1001
Q1002
1
2
3
6
5
IC1007
15
14
25
29
33
26
30
34
27
31
35
46
47
45
VIN
RBT
C7
C3
D7
C6
C2
D6
C5
C1
D5
N/M
PA /NTSC
FSC
6
Q205
Q207
Q211
8Q206
Q209
YOUT
COUT
IC205 3 INE COMB
Q203,204
Q208,210
VEH1
VEH2
VEH3
42
IC204
BUFF
Q201
52
88
96
76
59
60
50
84
83
FSCI
AYI
ACI
CSI
SC
SDA
FSCO
AYO
ACO
IC206 SD COMB
Q216
Q213
2 1
SYNC SEP
IC207
IN CS
Q202
BUFF
Q212
Q217
Q215
Q218
Q214
SW
3.3V-2
7
6
1
5
IC208
COM.Y
COM.C
IC209
5
1
6
7
1
38
7
IC201
AVDD
DVDD
IC202
7
8
3
1
3.3V-2
IC401
5V-4 REG 5V-4AN6V
5V-4 VCC
VCC REG
IC402
8
7
6
5
4
3
2
1
GND
F ACH MODE
FWE
CPU RESET
UART RX
GND
UART TX
STBY5V
STBY5V
10
9
8
7
6
5
4
3
2
1
DSUB_V
GND
DSUB_H
GND
B/U
GND
G/Y
GND
R/V
GND
R/V
G/Y
B/U
DSUB_H
DSUB_V
139
124
133
141
126
136
135
132
R/V
G/Y
B/U
10
9
R/CRIN1
B/YIN1
B/CBIN1
R/CRIN2
G/YIN2
B/CBIN2
SOGIN2
SOGIN1
SDA
SC
34
41
58
56 60
64
53
5145
49
28
2421
31
22
87
88
78 81
85
75
68
103
111
112
113
109
101
IC403
DSYNC/DIVOUT
SYNCIN1
SYNCIN2
C PIN
UN OCK
1/2C K
RR0
RR7
R 7
R 0
BR7
BR0
B 7
B 0
GR7
GR0
G 7
G 0
13
12
3
5
1
2
X1
X0
Z1
Z0
Y1
Y0
14
4
15
X
Z
Y
IC405
11 10 9
ABC
Q406
DSUB_H
DSUB_V 8
6
4
BUFF
Q407-416
Q402
BUFF
Q403
BUFF
Q404 Q405
SYNC_SW SOG_DUSY1 SOG_DUTY2
13
14
19
18
VD
HD
V.PO
H.PO
GREENIN
C/H
VIN
IC404 SYNC SEP
H_STATUS V_STATUS
PDP_SDA
PDP_SC
CN101
CN102
CN103
CN1001
CN1004
CN1003
CN401
CN1002
STBY5V
KEY
GND
1
2
3
CN4501
KEY MATRIX
S4502-4505
H2(KEY INPUT)
CN3002
Q BOARD
TO
F
E
TO
Q BOARD
CN3008
CN3001
Q BOARD
TO
A
D
TO
Q BOARD
CN3003
TO POWER BOARD
CN1
MAIN CPU
B(1/2)(MAIN CPU,CO OR DECODER,SYSTEM IC)
TO 2/2
CN6003
TU BOARD
TO
G
SC _ S
SDA_ S
Q35
SW
SC _ S
SDA_ S
PDP_IRQ
SRX_4W
5V REG3.3V REG
SECTION 3
DIAGRAMS
3-1. BLOCK DIAGRAMS
