Features
This unit is a portable GPS unit to receive and record position
information.
Using this unit and the supplied software, you can:
•Check the locations of where you took pictures on a trip, etc.
•Apply position information to the pictures you took, organize the
pictures by shooting date, and edit them on the computer.
1
Turn on the unit, before you start taking pictures with your
digital camera, camcorder or digital single lens reflex camera
(hereinafter collectively called “camera”). The unit records
the GPS log (moving route) during your trip until the power is
turned off.
2
Launch the supplied software (Picture Motion Browser) on the
computer. Then, connect the camera to the computer with a
USB connection. You can easily import the pictures to your
computer from your camera.
Record the GPS log using the GPS unit (page 18)
Import pictures to the computer using “Picture Motion
Browser” (page 25)

GB
7
GB
3
•Launch the supplied software (GPS Image Tracker) and
import the GPS log recorded on the unit to your computer.
•Match the imported pictures with the GPS log files, then
apply the position information of where you took the
pictures.
4
You can easily check the locations of where you took the
pictures on the map using the “Map View” function of
“Picture Motion Browser”.
Apply position information to the pictures using “GPS
Image Tracker” (page 28)
Check your pictures on the map using “Picture Motion
Browser” (page 31)

GB
8
Precautions
When using this unit, please keep the following in mind.
On a battery
A battery is not supplied
An LR6 (size AA) alkaline battery or an HR6 (size AA) Nickel-Metal
Hydride battery is necessary for recording log data in this unit. Purchase a
battery before using the unit.
Notes on a Nickel-Metal Hydride battery
•Charge the Nickel-Metal Hydride battery before using the unit for the
first time. Refer to instructions supplied with the battery on charging.
•The battery can be charged even if it is not completely discharged. Also,
even if the battery is not fully charged, you can use the partially charged
capacity of the battery as is.
•If you do not intend to use the battery for a long time, use up the existing
charge and remove it from the unit, then store it in a cool, dry place.
This is to maintain the battery’s functions.
On recorded data on the unit
If you turn the power off or remove the battery while using the unit, the
log data may be damaged. Be sure to replace the battery with a new one
after you turn the power off.
Compensation for damaged log data will not be made
If position information (GPS log files) is not recorded properly due to
malfunction of the recording memory or the system, compensation for
damaged log data or pictures with position information will not be made.
On use and storage
•Before you use the unit, make sure that the unit works properly by
checking its operation.
•Do not shake or strike this unit hard. In addition to malfunctions and an
inability to record the log, this may cause recorded data breakdown.
•This unit is neither dust-proof, nor splash-proof, nor water-proof.

GB
9
GB
Do not use/store the unit in the following places.
•In an extremely hot, cold or humid place
In places such as in a car parked in the sun, the unit body may become
deformed and this may cause a malfunction.
•Under direct sunlight or near a heater
The unit may become discolored or deformed, and this may cause a
malfunction.
•Near strong magnetic place
•In sandy or dusty places
Be careful not to let sand or dust get into the unit. This may cause the
unit to malfunction, and in some cases this malfunction cannot be
repaired.
On carrying the unit
•Do not sit on a chair etc., with the unit in the back pocket of your pants
or skirt, as this may cause malfunction or damage the unit.
On cleaning the unit
Cleaning the unit surface
Clean the unit surface with a soft cloth slightly moistened with water,
then wipe the surface with a dry cloth. Do not use the following as they
may damage the finish or the casing.
•Chemical products such as thinner, benzine, alcohol, disposable cloths,
insect repellent, sunscreen or insecticide, etc.
•Do not touch the unit with the above on your hand.
•Do not leave the unit in contact with rubber or vinyl for a long time.
Note on applying position information to still images taken with
digital still cameras or digital video cameras other than Sony
products
We cannot guarantee the processing of still images taken with non-Sony
digital still cameras or digital video cameras with the supplied software.
If you apply position information to these images, some of the data
information may be changed. This may happen even if the files are Exif
2.1-compliant JPEG files taken with non-Sony products. If you copy the
processed images to your digital still camera or digital video camera to
view, or try using with the accompanying software, some of the functions
may become unavailable.

GB
10
We recommend that you save the images under different file names after
applying position information, or backup the images before processing.
Also please note that the functions which will be unavailable after
processing with the program depend on each manufacturer.

GB
11
GB
What is GPS?

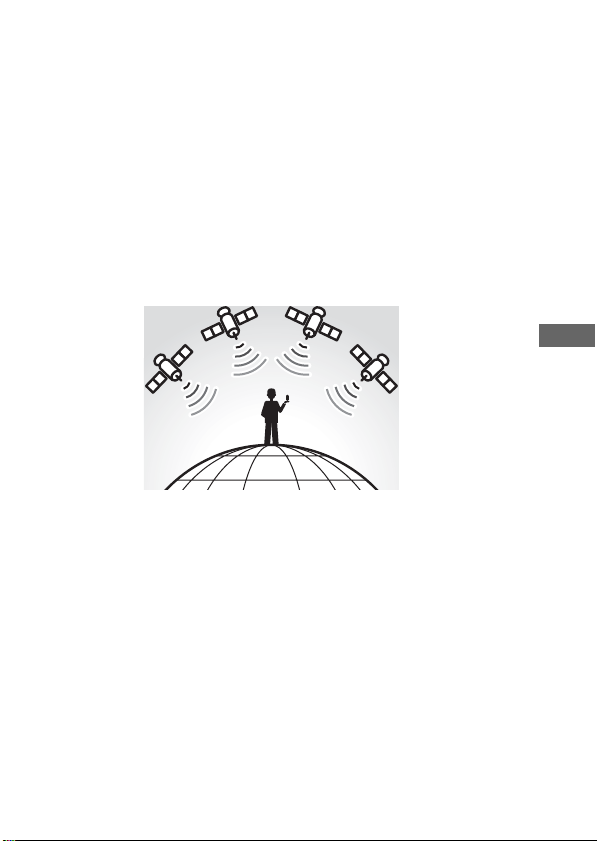

The GPS is a navigational system that calculates position from accurate
US aviation satellites. This system allows you to track down your exact
location on the earth. The GPS satellites are located in six orbits, 20,000
km above us. The GPS consists of a total of 24 GPS satellites: Four of the
satellites are placed into each orbit, and at least three satellites are
required to pinpoint your location. A GPS receiver receives radio signals
from the satellites, and calculates the present location based on the orbital
information (almanac data) and travel time of the signals, etc.
Measuring a location is called “tracking”. A GPS receiver can track down
the location’s latitude and longitude by receiving signals from three
satellites.

GB
12
Notes
•The positions of GPS satellites vary. Depending on the location and
time you use a GPS receiver, it may take longer for tracking or the
receiver may not track the location at all.
•“GPS” is the system tracking location by receiving radio signals from
GPS satellites. Avoid using the unit in the places where radio signals are
blocked or reflected, such as a shadowy place surrounded by buildings
or trees, etc. Use the unit in open sky environments.
•You may not record a GPS log at the locations or in the situations where
the radio signals from the GPS satellites do not reach to the unit as
follows.
–In tunnels, indoors or under shades of buildings.
–Between tall buildings or at narrow streets surrounded by buildings.
–At underground locations, surrounded by dense trees, under an
elevated bridge or at the locations where magnetic fields are generated
such as near high voltage cables.
–Near the devices that generate the radio signals of the same frequency
band as the unit: near the 1.5 GHz band mobile telephones, etc.
•The unit may not track when you are moving at the speed of about 500
km/hour (300 miles/hour) or faster.
GPS

GB
13
GB
On tracking errors
Error caused by position of GPS satellites
The unit automatically tracks your present location when the unit receives
radio signals from three or more GPS satellites. The tracking error caused
by the GPS satellites is about to ±10 m. Depending on the environment of
the location, the tracking error can be greater. In this case, your actual
location may not match with the location on the map based on GPS
information.
Error during tracking process
This unit records position information every fifteen seconds.
When you have a picture taken at any moment other than the moments
when the unit records your position, the position information at that
moment can be provided using the supplied software “GPS Image
Tracker”. A rough position can be calculated by measuring the distances
between the locations before and after the picture is taken. In this case,
the actual position may not match completely with the location on the
map based on GPS information.
On error due to incorrect clock setting on a camera
When the clock setting on your camera is incorrect, you cannot apply the
correct position information to the pictures. The position information is
applied to the pictures based on the time information of the GPS log files
and the time stamps of the pictures. So if the time stamps are incorrect,
you cannot match the pictures with the GPS log files properly. Adjust the
clock setting of your camera properly. Refer to the operating instructions
of your camera on how to set the clock settings.
• When you changed the clock setting of your camera abroad, etc., modify the time
stamp of the pictures to time setting of the GPS log using “Picture Motion
Browser”.

GB
14
1Carabiner attachment loop 2Antenna portion
3(Power) button 4GPS lamp
5BATT (Battery) lamp 6MEM FULL (Memory Full) lamp
7Battery cover
8CLEAR button 9Jack cover
0(USB) jack
1
2
3
4
5
7
6
8
9
0
Preparing
Identifying parts

Preparing
GB
15
GB
Attaching the carabiner
Attach the supplied carabiner to the carabiner attachment loop of the unit
in the following procedure.
1Detach the attachment string from the main body of the
carabiner as illustrated below (1) and draw the string
through the carabiner attachment loop of the unit (2).
2Thread the carabiner string through the carabiner loop (3),
then attach it in the main body (4).
Attachment
string Main body of the
carabiner

GB
16
Inserting a battery
The following batteries are acceptable.
•LR6 (size AA) alkaline battery*
•HR6 (size AA) Nickel-Metal Hydride battery (recommended for use at
low temperatures)
* When an LR6 (size AA) alkaline battery is used, the battery life is shorter at a low
temperature.
1Slide the battery cover.
2Insert a battery into the unit with the + side of the battery
facing up.

Preparing
GB
17
GB

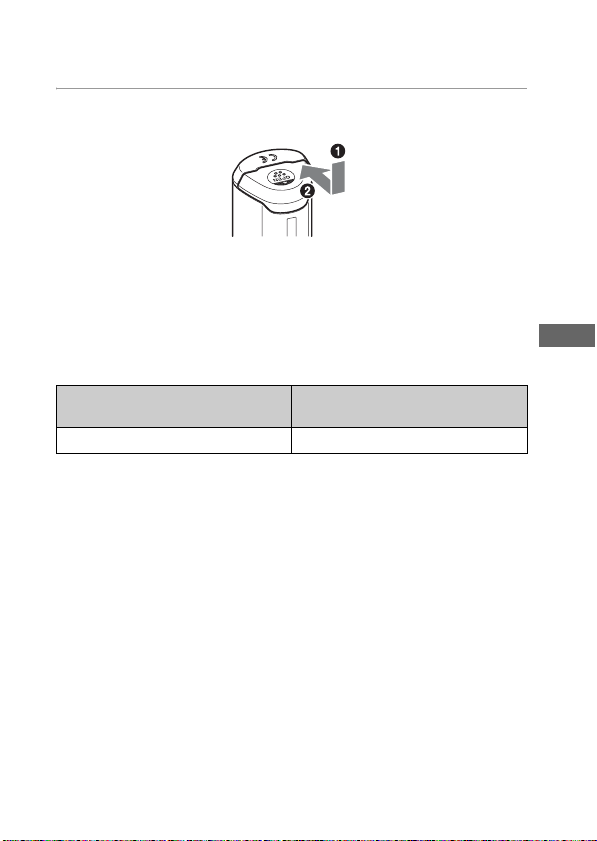

3Close the battery cover.
To remove the battery
Turn the power off and hold the unit with the battery cover up, then
remove the battery.
Be sure not to drop the battery.
Battery duration (When used at 25 °C (77 °F))
•When you use the unit at low temperatures, we recommend you use a
Nickel-Metal Hydride battery.
•The battery duration may differ from the above depending on the
situation or the environmental condition.
Cautions
If you mishandle the battery, there is a danger of leakage or explosion. Be
sure to observe the following.
–Insert a battery with the correct polarity +/–.
–Do not charge a dry battery.
–Remove the battery when you do not use the unit for a long time.
Otherwise, it may result in leakage of the battery.
LR6 (size AA) Sony alkaline battery
(not supplied)
HR6 (size AA) Sony Nickel-Metal
Hydride battery (not supplied)
about 10 hours about 14 hours

GB
18
This unit can record your position and time (GPS log files) in the internal
memory. When you turn on the power, tracking starts, and GPS log
recording starts. The unit tracks the location automatically and records
the position every fifteen seconds after tracking starts.

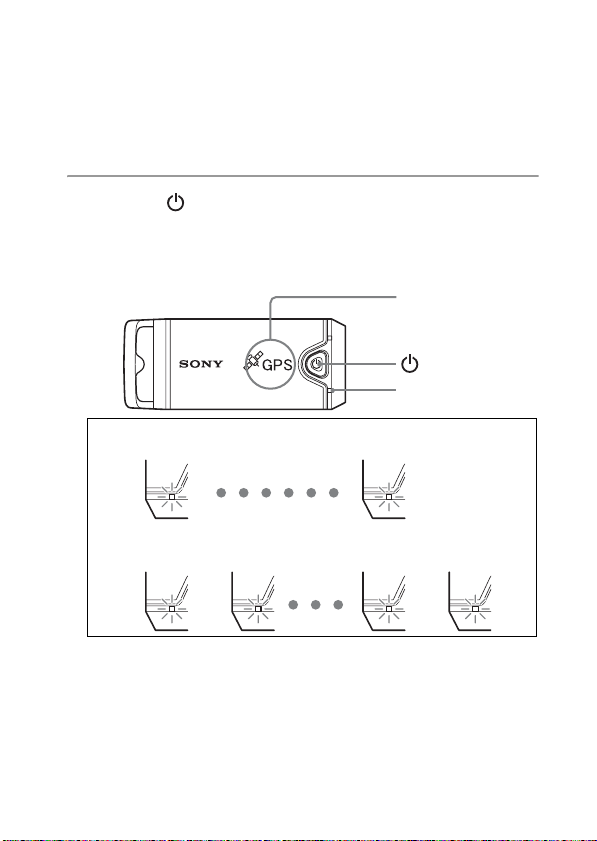

1Press the (Power) button longer to turn on the unit.
Direct the antenna portion of the unit to the sky in open sky environments and
hold it for about a minute until the GPS lamp is in the tracking process.
The GPS lamp status differs as illustrated below depending on the operating
status of the unit.
•When it is difficult to make tracking and while the GPS lamp is in
searching, direct the antenna portion of the unit upward and wait for a
while. If the unit cannot track even after waiting for five minutes, you
may be in a location where the radio signals from GPS satellites cannot
be reached. Change the location and try again.
(Power) button
While tracking*
flashes once slowly
GPS lamp
2 seconds
flashes once slowly
While searching*
flashes twice rapidly
1 second
flashes twice rapidly
Antenna portion
* tracking: the unit is tracking and recording the GPS log.
searching: the unit is searching for the GPS satellites and GPS log recording
hasn’t started.
Using the unit
Record the GPS log using the GPS unit

Using the unit
GB
19
GB
2Take pictures with a camera.
3Press the (Power) button longer to turn the unit off after
using.
•The GPS log recorded on the unit is stored as a log file during the time
the unit is turned on.
Tips
• Tracking may be difficult depending on the environmental condition. Check the
status of the GPS lamp at times.
• You can merge two GPS log files recorded separately due to on/off of the power
into one file using the supplied software. The position information will be
completed by this procedure. Be aware that once you merge the log files into one,
it cannot be separated again.
GPS

GB
20

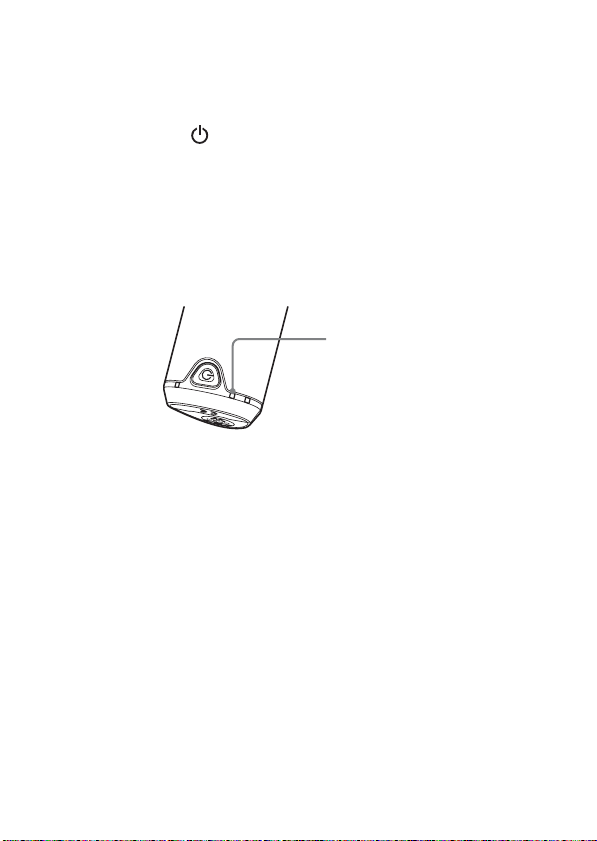

Checking remaining battery power
•You can check the remaining battery power on the status of the BATT
lamp by pressing (Power) button shorter with the power turned on.
Lights in green: 70 % or more power remains.*
Flashes green: 20 % to 70 % power remains.*
When the available remaining power becomes 20 % or lower, the BATT
lamp flashes red. When the remaining power becomes even lower, the
BATT lamp flashes more frequently and the unit is deactivated for
tracking. Replace the battery with a new one.
* This function may not operate properly when using a Nickel-Metal Hydride
battery.
The unit consumes more battery power while searching than while
tracking.
Even if the unit calculates the remaining battery power and makes the
BATT lamp flash red while searching, when the unit switches from
searching to tracking, you may be able to use the unit longer.
BATT lamp
