SERVICE MANUAL
Sony Corporation
Home Audio Division
Published by Sony Techno Create Corporation
US Model
Canadian Model
9-887-229-01
2006D04-1
© 2006.04
Ver. 1.0 2006.04
SPECIFICATIONS
SA-FT1H/WPFT1/
SS-CNPFT1/MSPFT1/SRPFT1
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
With 6 ohm loads, from 45 – 180 Hz; rated 120 watts per
channel minimum RMS power, with no more than 10% total
harmonic distortion from 250 milliwatts to rated output.
SS-MSPFT1 (front speakers)
Speaker system 2 way, magnetically
shielded
Speaker units Woofer: 8 cm, cone type
Tweeter: 2.5 cm, balanced
dome type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity
Maximum input power: 110 W
Sensitivity level 84 dB (1 W, 1 m)
Frequency range 140 Hz - 50,000 Hz
Dimensions (w/h/d) Approx. 108 ×215 ×44 mm
with table top stand Approx. 108 ×224 ×44 mm
(Diameter of base:
150 mm)
Mass Approx. 0.5 kg
with table top stand Approx. 0.6 kg
SS-SRPFT1 (surround speakers)
Speaker system 1 way, magnetically
shielded
Speaker units Full range: 8 cm, cone type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity
Maximum input power: 110 W
Sensitivity level 84 dB (1 W, 1 m)
Frequency range 140 Hz - 20,000 Hz
Dimensions (w/h/d) Approx. 108 ×215 ×44 mm
with table top stand Approx. 108 ×224 ×44 mm
(Diameter of base:
153 mm)
Mass Approx. 0.45 kg
with table top stand Approx. 0.55 kg
• SA-FT1H is composed of following models.
COMPONENT MODEL NAME
FRONT/SURROUND SPEAKER SS-MSPFT1/SRPFT1
CENTER SPEAKER SS-CNPFT1
SUBWOOFER SA-WPFT1
– Continued on next page –
SA-WPFT1 SS-MSPFT1
SS-SRPFT1 SS-CNPFT1
HOME THEATRE SPEAKER SYSTEM

2
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
SS-CNPFT1 (center speaker)
Speaker system 2 way, magnetically
shielded
Speaker units Woofer: 3 ×12 cm (×2),
cone type
Tweeter: 2.5 cm, balanced
dome type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity
Maximum input power: 110 W
Sensitivity level 84 dB (1 W, 1 m)
Frequency range 150 Hz - 50,000 Hz
Dimensions (w/h/d) Approx. 430 ×45 ×44 mm
with table top stand Approx. 430 ×56 ×50 mm
Mass Approx. 0.5 kg
with table top stand Approx. 0.6 kg
SA-WPFT1 (subwoofer)
Speaker system Active subwoofer,
magnetically shielded
Speaker units Woofer: 20 cm, cone type
Enclosure type Acoustically Loaded
Bass reflex
Reproduction frequency range 30 Hz - 180 Hz
Continuous RMS power output 120 W (6 ohms 80 Hz,
10% THD)
Input
LINE IN (input pin jack)
General
Power requirements 120 V AC, 60 Hz
Power consumptions 70 W
0.3 W (standby mode)
Dimensions (w/h/d) Approx. 430 ×408 ×187 mm
Mass Approx. 10 kg
Supplied accessories
Speaker cord (short) (3)
Speaker cord (long) (2)
Audio connecting cord (1)
Table top stand cover (4)
Table top stand base (4)
Cushion (8)
Rear pad (16)
Screw (M5) (4)
Screw (M3) (8)
Design and specifications are subject to change without notice.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM
or battery-operated AC voltmeter. The “limit” indication is 0.75
V, so analog meters must have an accurate low-voltage scale.
The Simpson 250 and Sanwa SH-63Trd are examples of a
passive VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)
To Exposed Metal
Parts on Set
0.15 µ F1.5k
Ω
AC
voltmeter
(0.75V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.

3
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
TABLE OF CONTENTS
1. DISASSEMBLY
1-1. Back Panel Section .......................................................... 5
1-2. AMP Section ................................................................... 5
1-3. Heat Sink Section ............................................................ 6
1-4. Control/AC Board ........................................................... 6
1-5. Main Board ...................................................................... 7
2. DIAGRAMS
2-1. Block Diagram ................................................................ 9
2-2. Printed Wiring Boards –Main Section–........................... 10

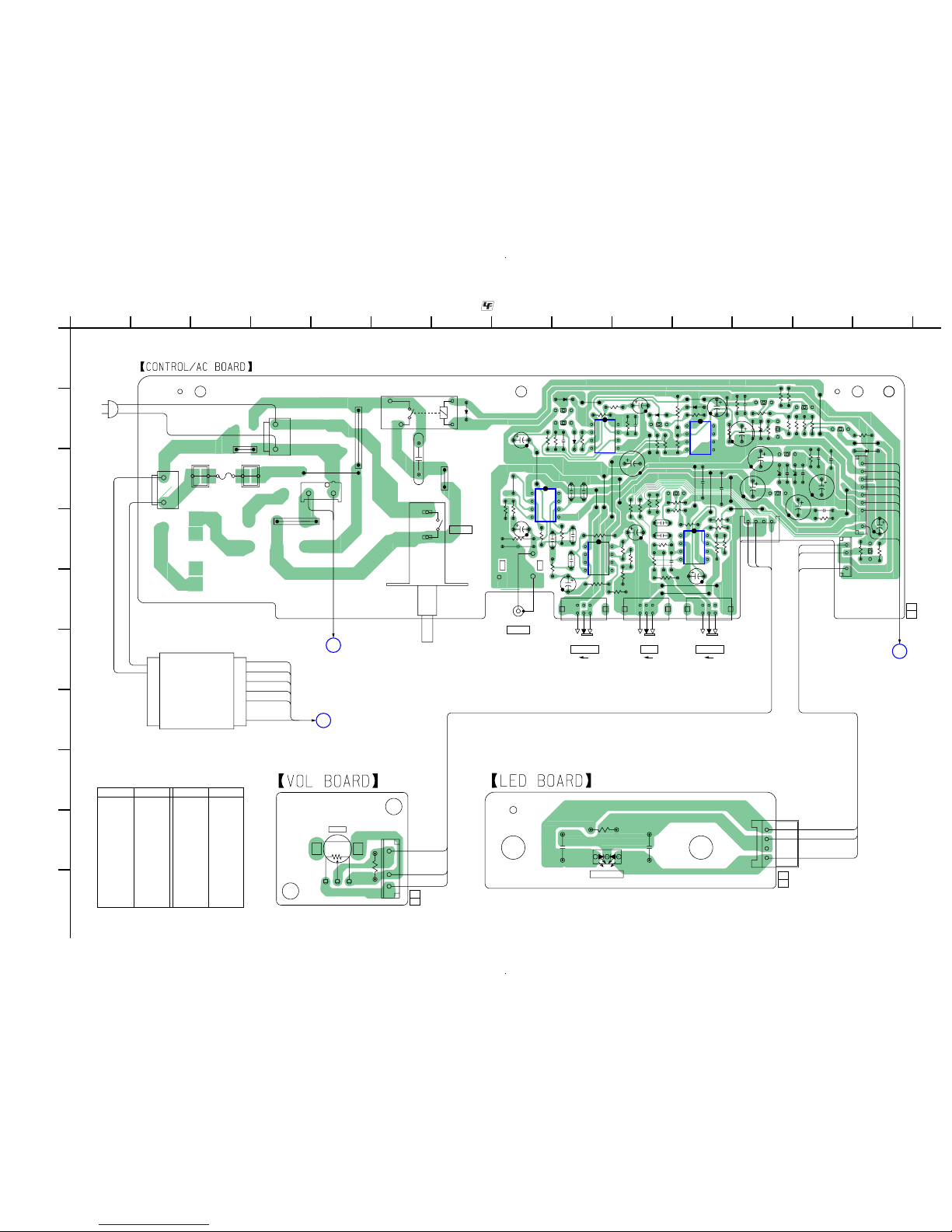

2-3. Printed Wiring Boards –Control Section– ....................... 11
2-4. Schematic Diagram –Main Section– ............................... 12
3. EXPLODED VIEWS
3-1. Subwoofer Front Section (SA-WPFT1) .......................... 13

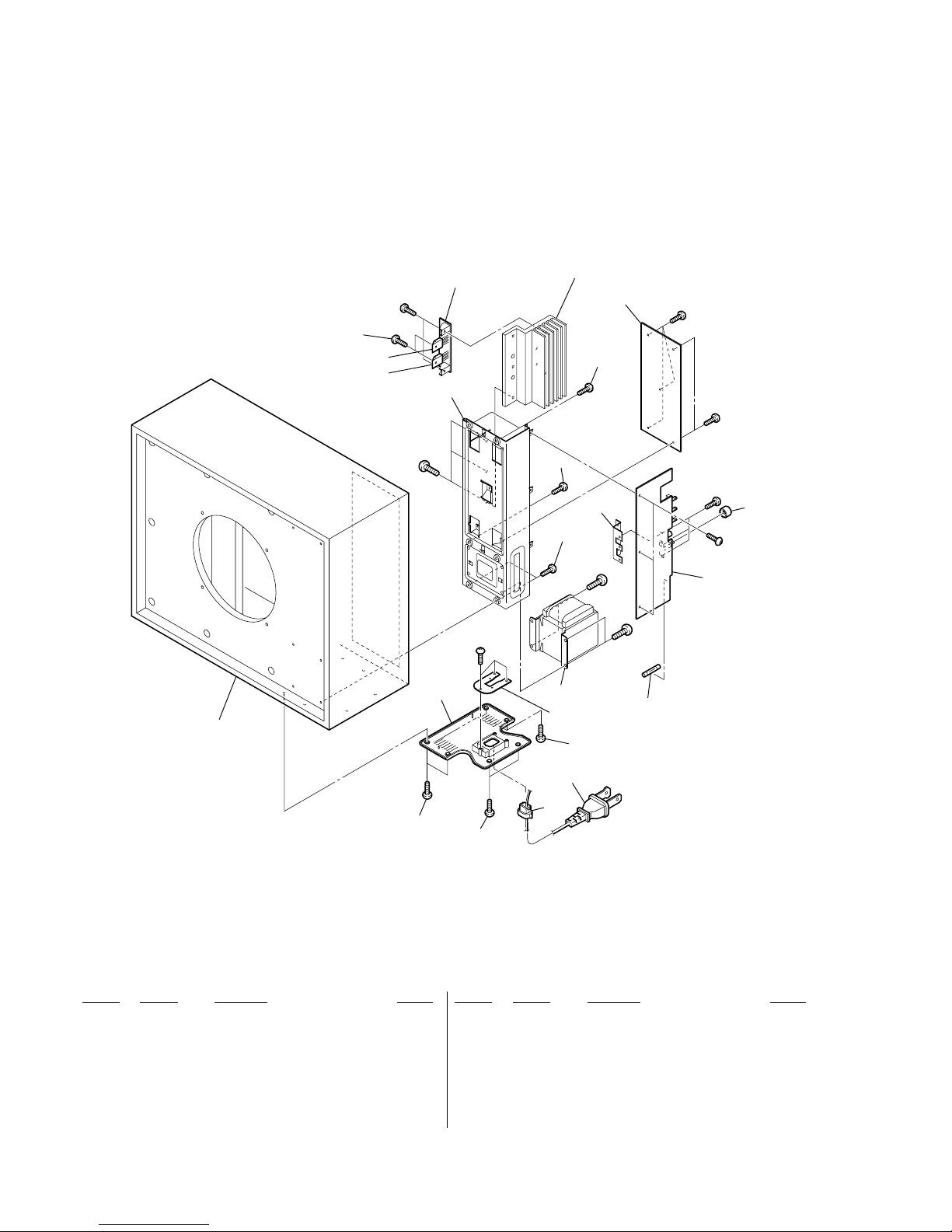

3-2. Subwoofer AMP Section (SA-WPFT1) .......................... 14

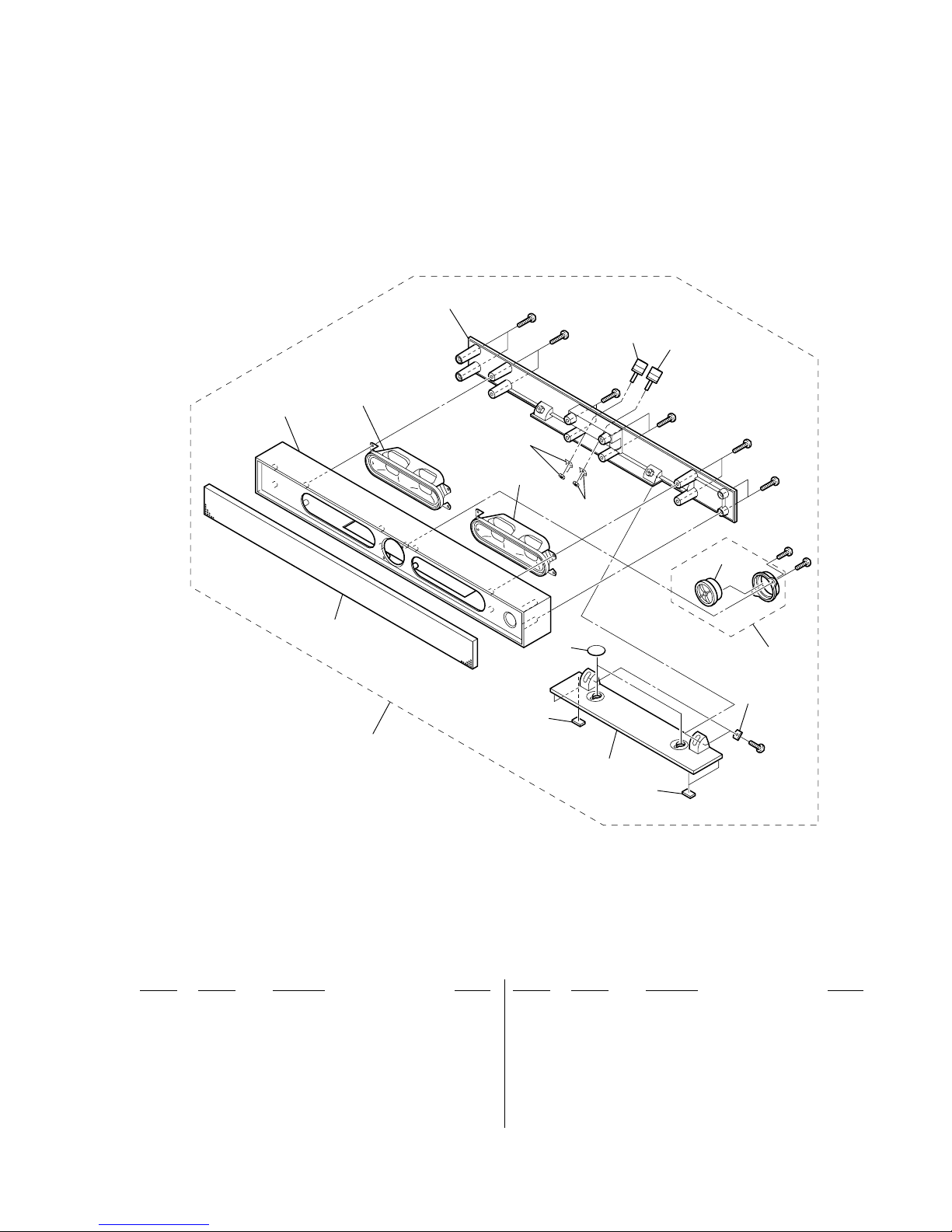

3-3. Center Speaker Section (SS-CNPFT1) ............................ 15

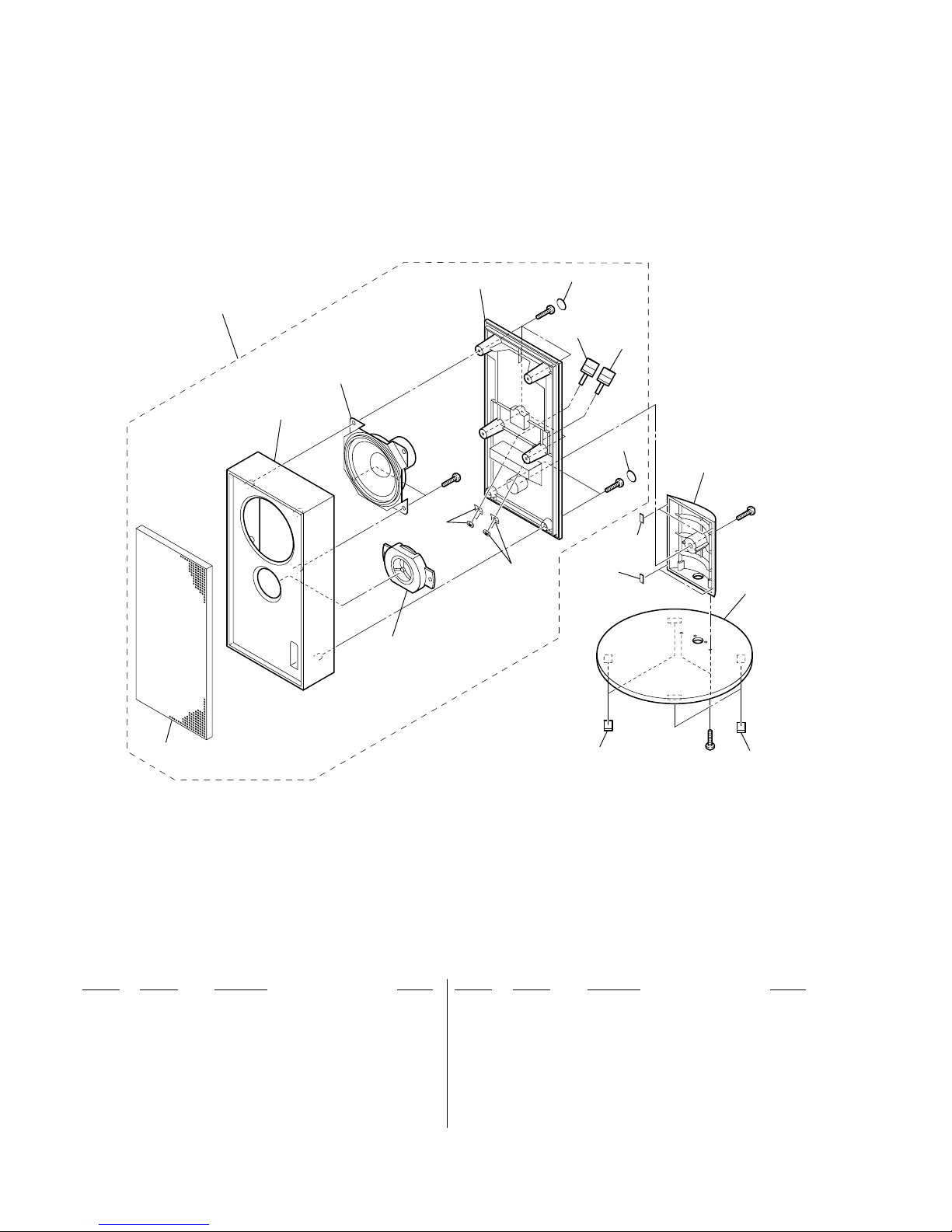

3-4. Front/Surround Speaker Section
(SS-MSPFT1/SRPFT1) ................................................... 16
4. ELECTRICAL PARTS LIST .................................. 17

4
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
SECTION 1
DISASSEMBLY
•The equipment can be removed using the following procedure.
1-1. BACK PANEL SECTION
(Page 5)
1-3. HEAT SINK SECTION
(Page 6)
1-4. CONTROL/AC BOARD
(Page 6)
SET
1-2. AMP SECTION
(Page 5)
1-5. MAIN BOARD
(Page 7)

5
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1

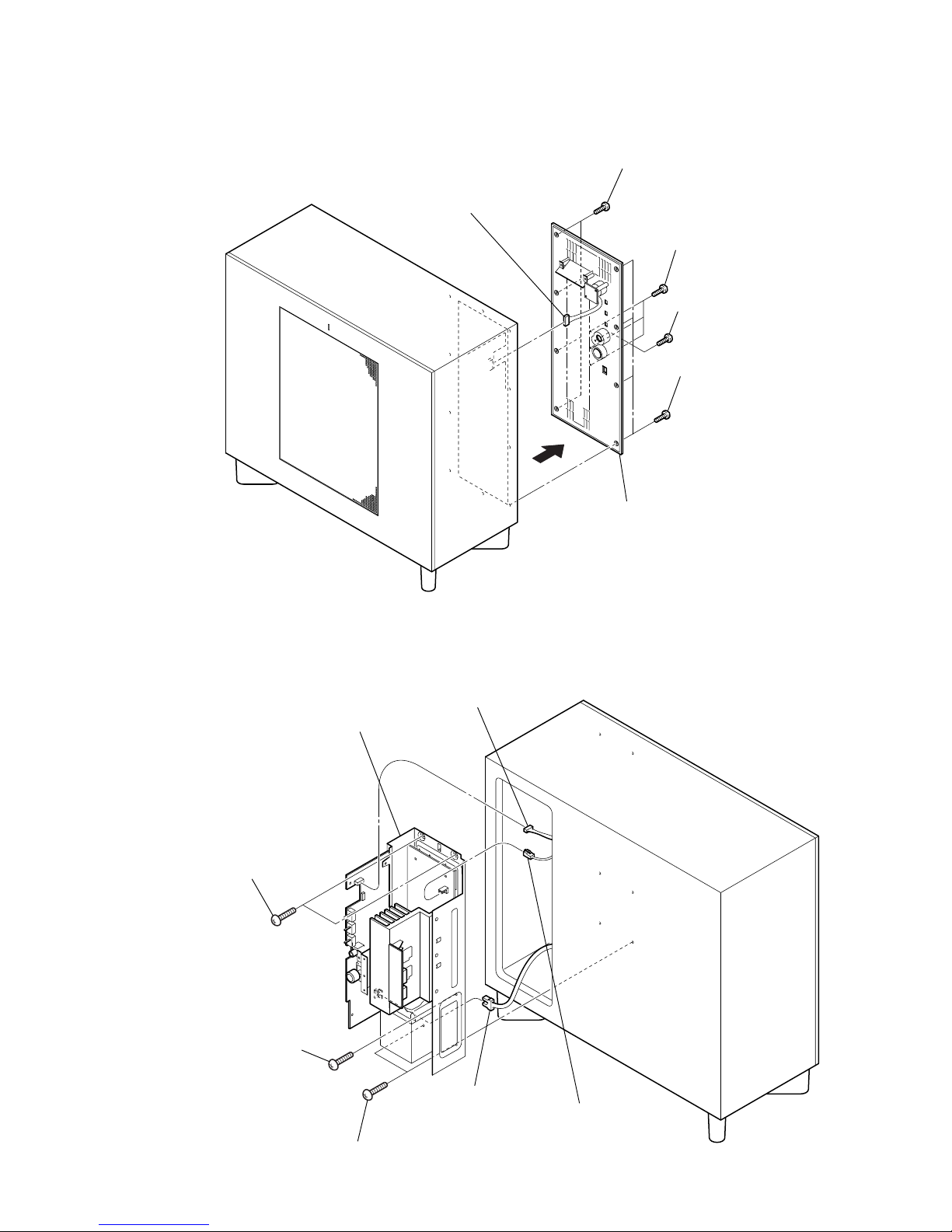

1-2. AMP SECTION
Note: Follow the disassembly procedure in the numerical order given.
1-1. BACK PANEL SECTION
1 screw
(+BVTP 3 × 8)
2 three screws
(+BVTP 3 × 8)
3 four screws (1)
(3.5 × 16), tapping
4 four screws (1)
(3.5 × 16), tappin
g
7 back panel section
5
6 CNP102 (4P)
4 two screws (1)
(3.5 × 16), tapping
7 AMP section
5 screw (1)
(3.5 × 16), tapping
6 two screws (1)
(3.5 × 16), tapping
1 CNP901 (2P)
2 CNP501 (2P)
3 CN602 (3P)

6
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
1-3. HEAT SINK SECTION
1-4. CONTROL/AC BOARD
1 CNP701 (3P)
2 CNP711 (5P)
3 three screws
(+BVTT 4 × 8)
4 heat sink section
1 CNP103 (8P)
2 CNP902 (3P)
5 CONTROL/AC board
3 CNP904 (3P)
4 three screws
(+BVTP 3
× 8)

7
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
1-5. MAIN BOARD
1 CNP401 (6P)
2 three screws
(+BVTP 3 × 8)
4 MAIN board
3 two screws
(+BVTP 3 × 8)

8
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
SECTION 2
DIAGRAMS
• Circuit Boards Location
LED board
CONTROL/AC boar
d
POWER AMP board
MAIN board
VOL board
Note on Schematic Diagrams:
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•2: nonflammable resistor.
•C: panel designation.
Note on Printed Wiring Boards:
•X: parts extracted from the component side.
•: Pattern from the side which enables seeing.
•A: B+ Line.
•B: B– Line.
•Voltage is dc with respect to ground under no-signal
(detuned) condition.
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
no mark : POWER ON
∗: Impossible to measure
•Signal path.
F: LINE
Note:
The components identi-
fied by mark 0or dotted
line with mark 0are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
C
B
These are omitted.
E
Q
B
These are omitted.
C
Q
Q
E
BCE

SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
99
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
2-1. BLOCK DIAGRAM
5 7
LINE
BUFFER
3 7
AUDIO
LEVEL
DETECT
BASS
BOOST PHASE
AMP
SP101
SPEAKER
3 1
LPF 5 7
HPF
6 7
LEVEL
COMPARATOR
3 1 5
6 7 2 1
2 6
1
4
3
AMP
BASS BOOST
Q101
-14V REG.
Q103
LED DRIVE
Q608
RELAY DRIVE
Q606
POWER
SAVE
SWITCH
Q605
+3.7 REG.
Q604
LED DRIVE
Q630
+14V REG.
Q102
RECT
D802–805
RECT
D301–304
RECT
D801
T1
MAIN POWER
TRANSFORMER
T202
SUB
TRANSFORMER
AC IN -
R801
R802
RY901
+
-
D504
D605
+14V
-14V
+7.8V
+7.8V
+3.7V
PRE
AMP
Q701–707
DC DETECT
OVER LOAD
AC OFF
RELAY DRIVER
POWER
AMP
Q708–711
OVER CURRENT
DETECT
Q731
DELAY
SWITCH
Q505
BUFFER
Q601,602
+7.8V
D600
IC101 (2/2) IC101 (1/2) IC102 (2/2) IC102 (1/2) IC103 (2/2)
IC103 (1/2)
RY501
PROTECT CONTROL
IC500
+IN
-IN
+B
+B
-B
-B
IC602
IC601
CURRENT
SOURCE
Q603
J101
LINE IN
S101
AUTO
OFF
POWER SAVE
S103
OFF
ON
BASS BOOST
D202
ON/STANDBY
RV101
LEVEL
S102
NORMAL
REVERSE
PHASE
S902
F901
2.5A
POWER
•Signal path
: LINE
+
-

SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
1010
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
•Refer to page 8 for Circuit Boards Location. : Uses unleaded solder.
2-2. PRINTED WIRING BOARDS — MAIN SECTION —
1
A
B
C
D
E
F
G
H
I
J
234567891011 12 13 14
JW502
JW501
T202
SUB
TRANSFORMER
JW202
JW203
JW204
JW205
JW206
JW210
JW211
JW212 JW214
JW215
JW216
JW217
JW218
JW207
JW201
JW223
JW221
JW220
JW219
JW222
JW226
CN601
1
8
JW227
JW200
JW225
JW228
JW209
JW213
JW224
JW229
JW208
CN702
BLK
BLK
BLU
ORG
BLK
BRN
BLK
YEL
GRN
RED
ORG
BLK
BRN
BLK
YEL
GRN
BLK
RED
C801
C802
C806
D802 D805
R801
D803 D804
R508
C807
D303
R506
R507
C513
R511
Q731
D502
R802
D304
C808
R711
C714
C509 C510
R512
R716
D504
R514
C301
R500
Q505
C805
R513
R704
EP1
D302
C709
R714
C511
R713
C708
R712
C713
R703
YEL WHT RED
WHT WHT
BLK ORG YEL BRN GRN WHT BRN BLK BLU RED BLK
R715
C705
R705
R708
D703
D704
R710
C704
Q706
Q705
R515
C706
Q704
R702
C703
D301
C702
C707
C701
Q703
D702
D701
R709
R706
C302
D801
RY501
CNP501
CNP401
6
1
CNP904
1
2
C505
R509
R510
C508
C507
R701
R516
R723
Q701
D505
D503
R707
Q702
R724
C504
Q707
C506
JW230
C804
C803
JW304
JW302
JW310
JW311
CNP701
115
18
3
R720
R722
CNP711
R717
Q709
C715
R719
C710
C711
1-869-295-
SP101
SPEAKER
Q708
R718
R721
Q711
C716
C712
Q710
EP2 EP3
(11)
11
1-869-293-
(11)
11
CONTROL/AC
BOARD
CNP103
A
T1
MAIN
TRANSFORMER
(CONTROL/AC BOARD)
B
CONTROL/AC
BOARD
CNP903
C
IC500
1
4
8
5
(Page 11)
(Page 11) (Page 11)
D301 E-3
D302 E-4
D303 E-4
D304 E-3
D502 G-9
D503 G-8
D504 H-8
D505 F-9
D701 I-10
D702 I-10
D703 G-12
D704 G-12
D801 H-5
D802 H-7
D803 H-7
D804 H-7
D805 H-7
IC500 G-8
Q505 G-9
Q701 I-11
Q702 I-11
Q703 G-12
Q704 G-11
Q705 H-12
Q706 G-12
Q707 H-12
Q708 A-11
Q709 A-8
Q710 C-10
Q711 B-10
Q731 F-8
• Semiconductor
Location
Ref. No. Location

SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
11 11
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
1
A
B
C
D
E
F
G
H
I
J
234567891011 12 13 14
R103
JW126
C613
R102
JW111
JW113
JW106
JW127
JW129
JW116
JW103
JW122
JW115
JW114
JW104
JW128
JW102
JW107
CN903
1
2
C105
CNP102
14
R616
R111
R108
Q630
13
R630
R631
D601
D901
R603
R609
R125
R127
C103
R110
R104
C102
IC101
1 8
4 5
1 8
4 5
1 8
4 5
1 8
4 5
1 8
4 5
R112
IC102
IC103
R105
R101
C112
C116
R126
Q102 D605
R114
Q101
R601
C120
C121
Q103
R605
R123
R124
C127
C128
C601
IC601
IC602
C603
C602
R602
R606
D600
Q601
Q602
R621
R117
C605
R109
R128
Q604
Q606
Q608
R610 R608
R614
R116
C612
R615
R607
C101
C630
YEL
WHT
BRN
BLK
BLU
RED
BLK
WHT
R620
R100
CN602
S101 S102 S103
J101
S902
CNP901
RY901
CNP103
18
FH901
F901
T1
MAIN POWER
TRANSFORMER
ORG
WHT
RED
BLK
ORG
YEL
BRN
GRN
AC IN
FH951
C902
CNP902
12
D602
R622
R623 R624
JW105
JW117
R611
JW911
JW912
WHT WHT
JW913
JW100
JW914
R130
R106
R129
R901
C608
D604
R10
C111
C109 C104
C118
D102
C123
D101
C122
C125
C124
Q605
R618
C611
R613
C606
C607
Q603
D603
C604
R604
C108
C119
R118
R119
R122
R121
R120
WHT BLK PNK
C117
C114
R115
C115
CN101
13
RV101
LEVEL
PNK
BLK
WHT
1-869-571-
R113
D202
ON/STANDBY
R619 GRY
GRY
BLU
GRY
GRY
BLU
C610
CN201
14
C609
(11)
11
1-869-296-
(11)
11
1-869-294-
(11)
11
POWER SAVE
OFF AUTO
PHASE
REVERSE NORMAAL
BASS BOOST
OFF ON
LEVEL IN
POWER
MAIN BOARD
CNP401
B
MAIN BOARD
CNP904
C
MAIN BOARD
CN601
A
•Refer to page 8 for Circuit Boards Location. : Uses unleaded solder.
2-3. PRINTED WIRING BOARDS — CONTROL SECTION —
(Page 10)
(Page 10)
(Page 10)
D101 C-13
D102 C-12
D202 I-9
D600 B-9
D601 B-9
D602 B-11
D603 B-10
D604 B-12
D605 C-14
D901 B-7
IC101 C-8
IC102 D-9
IC103 D-11
•Semiconductor Location
Ref. No. Location Ref. No. Location
IC601 B-9
IC602 B-11
Q101 C-11
Q102 C-12
Q103 C-12
Q601 B-9
Q602 B-9
Q603 B-10
Q604 B-12
Q605 B-12
Q606 B-13
Q608 B-13
Q630 D-14

SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
1212
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
2-4. SCHEMATIC DIAGRAM — MAIN SECTION —
D901
D701
D702
D601
C102 C112
R117
R118
C116
R119
R120
R121
R122
C601 R601
R602
R603
R604 R606 R608
R609 R610
C605
R615
R614
C602
D802
D803
D805 D804
D304
D302
D303
D301
C101
C122
C125
C606
C705
C807
C808
D703
D704
D600
EP1
IC601(1/2)IC601(2/2)
IC602(1/2)
IC602(2/2)
Q710
Q601
Q701
Q702
Q703
Q705
Q704
Q711
R10
R500
R100
R101
R112
R508
R514
R515
R611
R613
R703
R705
R706
R707 R708
R709
R710
R711
R713 R714 R715
R717
R718
R719
R720
R721
S902
JW911
JW912
JW501
JW502
C607
C802
JW913
JW914
C706
C711
C712
C801
C714 R723
R509
C124
C123
C701
C713
D503
D504
D505
R516
R605
R110
R111
C111
C121
C118
C119
RV101
R607
R511
R712
C301
IC101(1/2)
IC101(2/2) IC102(1/2)
IC102(2/2)
IC103(1/2)IC103(2/2)
C120
C127
C128
C505
C507
C508
C603
C604
C702
C703
C704
C710
C715
C716
C805
C806
CNP102
CNP401
CNP501
CNP901
Q708
Q709
R506
R125
R102 R103
J101
C707
C511
R701
R704
R631
CNP103
CN601
D605
C302
CN702
Q706
Q602
R105
R104
C104
C108 C109
R109
R108
C114
C115 R116
R114 R128
CN602
R123
R124
CNP701
CNP711
Q707
R623
R616
R620
R624
R622
CN201
CN101
R619
C609
C610
C504
CNP41
D502
RY501
R801
R802
D101
D102
R630
R901
C611
D604
C612
C608
C513
R724
R512 C509 C510R513
C103
C105
R126
D602
D603
R716
C709
RY901
Q604
Q605
Q606 Q608
Q630
R129
R127
R113
S103
R106R130
R115
C117
S102
Q101
Q102
Q103
R621
R618
Q505
Q731
R507
C803
C804
D801
CN903
CNP904
CNP902
CNP91
T1
T202
FH951
F901
FH901
D202
Q603
S101
C708 R510
C506
R702
IC500
C630
R722
SP101
C902

13
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
SECTION 3
EXPLODED VIEWS
1A-1173-229-A FRONT PANEL ASSY
22-349-022-11 SCREW, +BVTP (4X20) (TYPE1)
34-874-614-62 SCREW (1) (3.5X16), TAPPING
42-649-021-11 KNOB (VOL)
52-591-720-01 FOOT
SP101 1-826-369-11 LOUD SPEAKER (20cm)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
•The mechanical parts with no reference
number in the exploded views are not supplied.
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
•Accessories are given in the last of this parts list.
3-1. SUBWOOFER FRONT SECTION
(SA-WPFT1)
RR
The components identified by
mark 0or dotted line with mark.
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
1
2
3
3
3
3
3
35
5
5
5
5
5
2
4
not supplied
not supplied
not supplied
not supplied
(LED board)
not supplied
(VOL board)
not supplied
not supplied
SP101 #1
#1
#1
#1
#1
#1

14
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
51 A-1159-930-A MAIN BOARD, COMPLETE
52 2-591-718-11 KNOB, PUSH
53 A-1159-931-A CONTROL/AC BOARD, COMPLETE
054 1-783-820-11 CORD, POWER
*55 3-703-244-00 BUSHING (2104), CORD
56 4-874-614-62 SCREW (1) (3.5X16), TAPPING
57 3-905-609-01 SCREW (TRANSISTOR)
0F901 1-533-418-12 FUSE, GLASS CYLINDRICAL (DIA. 5)
(2.5A/125V)
Q708 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q709 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0T1 1-443-965-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
3-2. SUBWOOFER AMP SECTION
(SA-WPFT1)
51
52
53
54
56
56
56
56
56
56
57
55
not supplied
not supplied
(POWER AMP board)
not supplied
not supplied
not supplied
not supplied
not supplied
#2
#1 #1
#1
#1
#1
#1 #2
F901
T1
Q708
Q709
#2

15
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
101 A-1173-217-A OVERALL ASSY
102 2-670-947-01 GRILLE
103 1-780-294-11 SCREW TERMINAL (T205)
104 1-780-295-11 SCREW TERMINAL (T110)
105 X-2050-863-1 TWEETER ASSY
106 2-677-720-01 COVER, STAND
107 2-670-949-01 PLASTIC WASHER
108 4-977-358-01 CUSHION
109 2-670-948-01 STAND
SP201 1-825-913-11 SPEAKER (2.5cm)
SP202 1-826-370-11 LOUD SPEAKER (3X12cm)
SP203 1-826-370-11 LOUD SPEAKER (3X12cm)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
3-3. CENTER SPEAKER SECTION
(SS-CNPFT1)
103 104
105
106
108
108
109
107
101
102
#1
#3
#4
#4
#4
#4
#4
#4
#1
not supplied
not supplied
supplied
with 103
supplied
with 104
SP201
SP202
SP203

16
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
3-4. FRONT/SURROUND SPEAKER SECTION
(SS-MSPFT1/SRPFT1)
151 A-1173-065-A OVERALL ASSY (SS-MSPFT1)
151 A-1173-731-A OVERALL ASSY (SS-SRPFT1)
152 2-670-783-01 GRILLE
153 2-682-853-01 REAR PAD
154 2-677-714-01 COVER, REAR
155 1-780-294-11 SCREW TERMINAL (T205)
156 1-780-295-11 SCREW TERMINAL (T110)
157 2-670-785-01 COVER, BACK
158 2-670-786-01 BASE
159 4-977-358-01 CUSHION
SP301 1-826-373-11 LOUD SPEAKER (8cm) (SS-MSPFT1)
SP302 X-2108-885-1 TWEETER ASSY (SS-MSPFT1)
SP401 1-826-373-11 LOUD SPEAKER (8cm) (SS-SRPFT1)
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#5 7-682-576-04 SCREW +B 5X12
152
151
154
154
153
153
155 156
157
158
159
159
not supplied
supplied
with 155
supplied
with 156
not supplied
SP301 (SS-MSPFT1)
SP401 (SS-SRPFT1)
SP302 (SS-MSPFT1)
#4
#4
#4
#4
#5

17
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
SECTION 4
ELECTRICAL PARTS LIST
A-1159-931-A CONTROL/AC BOARD, COMPLETE
***************************
1-533-217-41 HOLDER, FUSE
< CAPACITOR >
C101 1-128-813-11 CERAMIC 220PF 5% 50V
C102 1-126-964-11 ELECT 10uF 20% 50V
C103 1-131-679-31 FILM 0.01uF 5% 50V
C104 1-136-165-00 FILM 0.1uF 5% 50V
C105 1-131-686-31 FILM 0.033uF 5% 50V
C108 1-131-700-31 FILM 0.47uF 5% 50V
C109 1-131-700-31 FILM 0.47uF 5% 50V
C111 1-126-964-11 ELECT 10uF 20% 50V
C112 1-126-964-11 ELECT 10uF 20% 50V
C114 1-136-165-00 FILM 0.1uF 5% 50V
C115 1-136-165-00 FILM 0.1uF 5% 50V
C116 1-126-964-11 ELECT 10uF 20% 50V
C117 1-128-813-11 CERAMIC 220PF 5% 50V
C118 1-127-888-11 CERAMIC 0.1uF 10% 50V
C119 1-127-888-11 CERAMIC 0.1uF 10% 50V
C120 1-126-933-11 ELECT 100uF 20% 16V
C121 1-126-933-11 ELECT 100uF 20% 16V
C122 1-127-888-11 CERAMIC 0.1uF 10% 50V
C123 1-127-888-11 CERAMIC 0.1uF 10% 50V
C124 1-128-813-11 CERAMIC 220PF 5% 50V
C125 1-128-813-11 CERAMIC 220PF 5% 50V
C127 1-126-947-11 ELECT 47uF 20% 35V
C128 1-126-947-11 ELECT 47uF 20% 35V
C601 1-126-964-11 ELECT 10uF 20% 50V
C602 1-126-964-11 ELECT 10uF 20% 50V
C603 1-128-821-11 CERAMIC 0.001uF 5% 50V
C604 1-128-821-11 CERAMIC 0.001uF 5% 50V
C605 1-104-661-11 ELECT 330uF 20% 16V
C606 1-127-888-11 CERAMIC 0.1uF 10% 50V
C607 1-126-934-11 ELECT 220uF 20% 16V
C608 1-127-888-11 CERAMIC 0.1uF 10% 50V
C611 1-128-813-11 CERAMIC 220PF 5% 50V
C612 1-126-916-11 ELECT 1000uF 20% 6.3V
C630 1-126-961-11 ELECT 2.2uF 20% 50V
0C902 1-117-703-11 CERAMIC 0.0047uF 250V
< CONNECTOR >
CN602 1-691-765-11 PLUG (MICRO CONNECTOR) 3P
*CNP102 1-564-519-11 PLUG, CONNECTOR 4P
CNP103 1-691-770-11 PLUG (MICRO CONNECTOR) 8P
CNP901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
*CNP902 1-564-321-21 PIN, CONNECTOR (3.96mm PITCH) 2P
< DIODE >
D101 8-719-110-42 DIODE RD15ESB3
D102 8-719-110-42 DIODE RD15ESB3
D600 8-719-991-33 DIODE 1SS133T-77
D601 8-719-991-33 DIODE 1SS133T-77
D602 8-719-991-33 DIODE 1SS133T-77
D603 8-719-991-33 DIODE 1SS133T-77
D604 8-719-947-13 DIODE MTZJ-T-72-4.7B
D605 8-719-991-33 DIODE 1SS133T-77
D901 8-719-991-33 DIODE 1SS133T-77
< IC >
IC101 8-759-167-88 IC NJM4565D
IC102 8-759-167-88 IC NJM4565D
IC103 8-759-167-88 IC NJM4565D
IC601 8-759-700-42 IC NJM2904D
IC602 8-759-700-42 IC NJM2904D
< JACK >
J101 1-770-377-21 JACK, PIN 1P (LINE IN)
< TRANSISTOR >
Q101 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q102 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q103 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q601 8-729-029-40 TRANSISTOR DTA124ESA
Q602 8-729-029-86 TRANSISTOR DTC124ESA
Q603 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q604 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q605 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q606 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q608 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q630 8-729-119-78 TRANSISTOR 2SC2785-HFE
< RESISTOR >
R10 1-247-863-11 CARBON 22K 5% 1/4W
R100 1-247-879-11 CARBON 100K 5% 1/4W
R101 1-247-831-11 CARBON 1K 5% 1/4W
R104 1-249-434-11 CARBON 27K 5% 1/4W
R105 1-249-434-11 CARBON 27K 5% 1/4W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
•Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
•-XX and -X mean standardized parts, so
they may have some difference from the
original one.
•RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
•CAPACITORS
uF : µF
•COILS
uH : µH
The components identified by
mark 0or dotted line with mark.
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
CONTROL/AC

18
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
R106 1-249-429-11 CARBON 10K 5% 1/4W
R108 1-247-863-11 CARBON 22K 5% 1/4W
R109 1-249-429-11 CARBON 10K 5% 1/4W
R110 1-247-831-11 CARBON 1K 5% 1/4W
R111 1-247-871-11 CARBON 47K 5% 1/4W
R112 1-247-831-11 CARBON 1K 5% 1/4W
R114 1-249-429-11 CARBON 10K 5% 1/4W
R115 1-247-831-11 CARBON 1K 5% 1/4W
R116 1-247-887-00 CARBON 220K 5% 1/4W
R117 1-247-831-11 CARBON 1K 5% 1/4W
R118 1-247-895-00 CARBON 470K 5% 1/4W
R119 1-247-847-11 CARBON 4.7K 5% 1/4W
R120 1-249-429-11 CARBON 10K 5% 1/4W
R121 1-249-429-11 CARBON 10K 5% 1/4W
R122 1-249-429-11 CARBON 10K 5% 1/4W
R123 1-249-421-11 CARBON 2.2K 5% 1/4W
R124 1-249-421-11 CARBON 2.2K 5% 1/4W
R125 1-249-429-11 CARBON 10K 5% 1/4W
R126 1-247-831-11 CARBON 1K 5% 1/4W
R127 1-247-847-11 CARBON 4.7K 5% 1/4W
R128 1-249-427-11 CARBON 6.8K 5% 1/4W
R129 1-249-429-11 CARBON 10K 5% 1/4W
R130 1-249-421-11 CARBON 2.2K 5% 1/4W
R601 1-247-863-11 CARBON 22K 5% 1/4W
R602 1-247-863-11 CARBON 22K 5% 1/4W
R603 1-247-895-00 CARBON 470K 5% 1/4W
R604 1-247-895-00 CARBON 470K 5% 1/4W
R605 1-249-429-11 CARBON 10K 5% 1/4W
R606 1-247-887-00 CARBON 220K 5% 1/4W
R607 1-247-879-11 CARBON 100K 5% 1/4W
R608 1-249-429-11 CARBON 10K 5% 1/4W
R609 1-249-429-11 CARBON 10K 5% 1/4W
R610 1-247-879-11 CARBON 100K 5% 1/4W
R611 1-247-871-11 CARBON 47K 5% 1/4W
R613 1-249-421-11 CARBON 2.2K 5% 1/4W
R614 1-247-879-11 CARBON 100K 5% 1/4W
R615 1-247-871-11 CARBON 47K 5% 1/4W
R616 1-247-871-11 CARBON 47K 5% 1/4W
R618 1-249-413-11 CARBON 470 5% 1/4W
R620 1-247-831-11 CARBON 1K 5% 1/4W
R621 1-249-419-11 CARBON 1.5K 5% 1/4W
R622 1-247-871-11 CARBON 47K 5% 1/4W
R623 1-247-879-11 CARBON 100K 5% 1/4W
R624 1-247-831-11 CARBON 1K 5% 1/4W
R630 1-247-847-11 CARBON 4.7K 5% 1/4W
R631 1-247-871-11 CARBON 47K 5% 1/4W
R901 1-249-401-11 CARBON 47 5% 1/4W F
< RELAY >
0RY901 1-755-541-11 RELAY
< SWITCH >
S101 1-786-490-11 SWITCH, SLIDE (POWER SAVE)
S102 1-786-490-11 SWITCH, SLIDE (PHASE)
S103 1-786-490-11 SWITCH, SLIDE (BASS BOOST)
0S902 1-572-267-51 SWITCH, PUSH (AC POWER) (1 KEY) (POWER)
*************************************************************
LED BOARD
**********
< CAPACITOR >
C609 1-127-888-11 CERAMIC 0.1uF 10% 50V
C610 1-127-888-11 CERAMIC 0.1uF 10% 50V
< CONNECTOR >
*CN201 1-566-779-11 PIN, CONNECTOR (PC BOARD) 4P
< DIODE >
D202 8-719-064-11 LED SPR-325MVW (ON/STANDBY)
< RESISTOR >
R619 1-249-429-11 CARBON 10K 5% 1/4W
*************************************************************
A-1159-930-A MAIN BOARD, COMPLETE
*********************
< CAPACITOR >
C301 1-127-888-11 CERAMIC 0.1uF 10% 50V
C302 1-126-768-11 ELECT 2200uF 20% 16V
C504 1-128-813-11 CERAMIC 220PF 5% 50V
C505 1-126-965-11 ELECT 22uF 20% 50V
C506 1-104-658-11 ELECT 100uF 20% 10V
C507 1-127-880-11 CERAMIC 0.022uF 10% 50V
C508 1-126-963-11 ELECT 4.7uF 20% 50V
C509 1-126-967-11 ELECT 47uF 20% 50V
C510 1-126-967-11 ELECT 47uF 20% 50V
C511 1-127-888-11 CERAMIC 0.1uF 10% 50V
C513 1-127-880-11 CERAMIC 0.022uF 10% 50V
C701 1-102-824-00 CERAMIC 470PF 5% 50V
C702 1-126-964-11 ELECT 10uF 20% 50V
C703 1-126-923-11 ELECT 220uF 20% 10V
C704 1-128-560-11 ELECT 22uF 20% 100V
C705 1-128-825-11 CERAMIC 0.0022uF 5% 50V
C706 1-102-947-00 CERAMIC 10PF 0.5PF 50V
C707 1-128-813-11 CERAMIC 220PF 5% 50V
C708 1-102-973-00 CERAMIC 100PF 5% 50V
C709 1-128-560-11 ELECT 22uF 20% 100V
C713 1-101-880-00 CERAMIC 47PF 5% 50V
C714 1-128-813-11 CERAMIC 220PF 5% 50V
C801 1-130-777-00 MYLAR 0.1uF 5% 100V
C802 1-130-777-00 MYLAR 0.1uF 5% 100V
C803 1-127-813-11 ELECT 3300uF 20% 71V
C804 1-127-813-11 ELECT 3300uF 20% 71V
C805 1-127-888-11 CERAMIC 0.1uF 10% 50V
C806 1-127-888-11 CERAMIC 0.1uF 10% 50V
C807 1-104-666-11 ELECT 220uF 20% 25V
C808 1-104-666-11 ELECT 220uF 20% 25V
< CONNECTOR >
CNP401 1-785-104-11 PIN, CONNECTOR (3.96mm PITCH) 6P
CNP501 1-564-320-00 PIN, CONNECTOR (3.96mm PITCH) 2P
CNP904 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAINCONTROL/AC LED

19
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
< DIODE >
D301 6-500-522-11 DIODE 10EDB40-TA2B5
D302 6-500-522-11 DIODE 10EDB40-TA2B5
D303 6-500-522-11 DIODE 10EDB40-TA2B5
D304 6-500-522-11 DIODE 10EDB40-TA2B5
D502 8-719-991-33 DIODE 1SS133T-77
D503 8-719-991-33 DIODE 1SS133T-77
D504 8-719-991-33 DIODE 1SS133T-77
D505 8-719-991-33 DIODE 1SS133T-77
D701 8-719-991-33 DIODE 1SS133T-77
D702 8-719-991-33 DIODE 1SS133T-77
D703 8-719-991-33 DIODE 1SS133T-77
D704 8-719-991-33 DIODE 1SS133T-77
D801 6-501-003-21 DIODE D6SBN20-7003
D802 6-500-522-11 DIODE 10EDB40-TA2B5
D803 6-500-522-11 DIODE 10EDB40-TA2B5
D804 6-500-522-11 DIODE 10EDB40-TA2B5
D805 6-500-522-11 DIODE 10EDB40-TA2B5
< GROUND TERMINAL >
EP1 1-537-738-21 TERMINAL, GROUND
< IC >
IC500 6-708-609-01 IC uPC1237C-A
< TRANSISTOR >
Q505 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q701 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q702 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q703 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q704 8-729-214-51 TRANSISTOR 2SA1145-O
Q705 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q706 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q707 8-729-270-51 TRANSISTOR 2SC2705-O
Q731 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
< RESISTOR >
R500 1-247-863-11 CARBON 22K 5% 1/4W
R506 1-247-879-11 CARBON 100K 5% 1/4W
0R507 1-215-865-11 METAL OXIDE 220 5% 1W F
R508 1-249-393-11 CARBON 10 5% 1/4W F
R509 1-247-863-11 CARBON 22K 5% 1/4W
R510 1-247-879-11 CARBON 100K 5% 1/4W
R511 1-249-393-11 CARBON 10 5% 1/4W F
R512 1-249-439-11 CARBON 68K 5% 1/4W
R513 1-249-431-11 CARBON 15K 5% 1/4W
R514 1-249-429-11 CARBON 10K 5% 1/4W
R515 1-249-429-11 CARBON 10K 5% 1/4W
R516 1-249-429-11 CARBON 10K 5% 1/4W
R701 1-247-831-11 CARBON 1K 5% 1/4W
R702 1-249-401-11 CARBON 47 5% 1/4W F
R703 1-247-871-11 CARBON 47K 5% 1/4W
R704 1-247-831-11 CARBON 1K 5% 1/4W
R705 1-249-411-11 CARBON 330 5% 1/4W
R706 1-249-408-11 CARBON 180 5% 1/4W
R707 1-249-411-11 CARBON 330 5% 1/4W
R708 1-249-429-11 CARBON 10K 5% 1/4W
R709 1-247-863-11 CARBON 22K 5% 1/4W
R710 1-249-407-11 CARBON 150 5% 1/4W F
R711 1-249-393-11 CARBON 10 5% 1/4W F
R712 1-247-871-11 CARBON 47K 5% 1/4W
R713 1-249-408-11 CARBON 180 5% 1/4W F
R714 1-249-408-11 CARBON 180 5% 1/4W F
R715 1-249-401-11 CARBON 47 5% 1/4W F
R716 1-249-393-11 CARBON 10 5% 1/4W F
R723 1-247-847-11 CARBON 4.7K 5% 1/4W
R724 1-249-429-11 CARBON 10K 5% 1/4W
0R801 1-217-637-00 FUSIBLE 1 5% 1/4W F
0R802 1-217-637-00 FUSIBLE 1 5% 1/4W F
< RELAY >
0RY501 1-755-170-11 RELAY (12V)
< TRANSFORMER >
0T202 1-443-516-11 TRANSFORMER, POWER
*************************************************************
POWER AMP BOARD
*****************
< CAPACITOR >
C710 1-126-967-11 ELECT 47uF 20% 50V
C711 1-102-973-00 CERAMIC 100PF 5% 50V
C712 1-102-973-00 CERAMIC 100PF 5% 50V
C715 1-128-560-11 ELECT 22uF 20% 100V
C716 1-128-560-11 ELECT 22uF 20% 100V
< CONNECTOR >
CNP701 1-691-765-11 PLUG (MICRO CONNECTOR) 3P
CNP711 1-691-767-11 PLUG (MICRO CONNECTOR) 5P
< TRANSISTOR >
Q708 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q709 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q710 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q711 8-729-141-30 TRANSISTOR 2SC3623A-LK
< RESISTOR >
R717 1-249-414-11 CARBON 560 5% 1/4W
R718 1-247-871-11 CARBON 47K 5% 1/4W
R719 1-249-421-11 CARBON 2.2K 5% 1/4W
R720 1-249-406-11 CARBON 120 5% 1/4W F
R721 1-249-406-11 CARBON 120 5% 1/4W F
R722 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
*************************************************************
VOL BOARD
**********
< RESISTOR >
R113 1-247-871-11 CARBON 47K 5% 1/4W
< VARIABLE RESISTOR >
RV101 1-225-483-21 RES, VAR, CARBON 20K (LEVEL)
*************************************************************
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN VOLPOWER AMP

20
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
MISCELLANEOUS
***************
054 1-783-820-11 CORD, POWER
103 1-780-294-11 SCREW TERMINAL (T205)
104 1-780-295-11 SCREW TERMINAL (T110)
155 1-780-294-11 SCREW TERMINAL (T205)
156 1-780-295-11 SCREW TERMINAL (T110)
0F901 1-533-418-12 FUSE, GLASS CYLINDRICAL (DIA. 5)
(2.5A/125V)
Q708 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q709 6-702-390-01 TRANSISTOR MN2488-OPY-MK
SP101 1-826-369-11 LOUD SPEAKER (20cm)
SP201 1-825-913-11 SPEAKER (2.5cm)
SP202 1-826-370-11 LOUD SPEAKER (3X12cm)
SP203 1-826-370-11 LOUD SPEAKER (3X12cm)
SP301 1-826-373-11 LOUD SPEAKER (8cm) (SS-MSPFT1)
SP302 X-2108-885-1 TWEETER ASSY (SS-MSPFT1)
SP401 1-826-373-11 LOUD SPEAKER (8cm) (SS-SRPFT1)
0T1 1-443-965-11 TRANSFORMER, POWER
*************************************************************
ACCESSORIES
************
1-769-329-21 CORD, CONNECTION (PIN-PIN) (for AUDIO)
(2.5m) (BLACK)
1-790-503-12 CORD, SPEAKER (10m)
1-790-503-32 CORD, SPEAKER (3.5m)
2-633-267-11 FOOT
2-669-596-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
2-682-853-01 REAR PAD
7-682-576-04 SCREW +B 5X12
7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
Ref. No. Part No. Description Remark
