Sony BDV-E770W / T77 User manual

SONY
...,...-......--- TM
S/u-ragD;sc
Blu-ray Disc/DVD
Home Theatre System
Operating Instructions
BDV-E770W / T77
©2010 Sony Corporation
4-178-242-12(
1)

2
US
WARNING
To reduce the risk of fire
or electric shock,
do not
expose this apparatus
to
rain or moisture.
Do not in,tall the appl iance ina
confined space. such as abookcase
or built-in cabinet.
To reduce the risk
of fire. do not
coverthe ventilation opening of the
apparatu, with nev'.'paper,.
tablecloths. curtains. etc. Do not
place the naked tlame sources such
as lighted candles on the apparatus.
To reduce the risk
of fire or electric
shock. do not expose this apparatus
to dripping or ,plashing. and do not
place objects filled with liquids,
such as vases, on the apparatus.
Do not expose batteries or
apparatus with battery-installed to
excessive heat such as sunshine,
fire
or the like.
To prevent injury. this apparatus
must
be securely attached to the
floor/wall
in accordance with the
installation instructions.
Indoor use only.
CAUTION
The use of optical instruments with
this product will increase eye
hazard. As the laser beam used
in
this Blu-ray Disc /DVD Home
Theatre System
is harmful to eyes.
do not attempt to disassemble the
cabinet.
Refer servicing to qual ified
personnel only.
This appliance
is classified as a
CLASS 3R LASER product.
Visible and invisible laser radiation
is emitted when the laser protecti ve
illlusi n~ hopened. ,I) he ,lire [(l
avoid direct eye exposure.
This marking
is located on the laser
protective housing inside the
enclosure.
CLASS 1LASER PRODUCT
LUOKAN 1LASERLAITE
KLASS 1LASERAPPARAT
This appliance is classified as a
CLASS ILASER product.
Thi,
marki ng is located Oil the rear
exterior.
Precautions
On power sources
•The unit is not disconnected from
the mains as long as
it is
connected to the AC outlet. even
if the unit itself has been turned
off.
•As the main plug
is used to
disconnect the unit from the
mains. connect the unit to
an
easily accessible AC outlet.
Should you notice
an abnormality
in the unit. disconnect the main
plug from the AC outlet
immediately.
These following indications are
located on the rear exterior.
~ This symbol is intended to
ili alert the user to the
presence
of ulllnsulated
"dangerous voltage" within the
product's enclosure that may
be of
sufficient magnitude to constitute a
ri,k
of electric shock to persons.
JI\ This symbol is intended to
ill alert the user to the
•presence
of important
nperating and maintenann'
(servicing) instructions
in the
literature accompanying the
appliance.
Owner's Record
The model alld serial Ilumber, arc
located at the rear exterior
of the
control unit. Record the serial
number
in the space provided
Ixlow. Rel'cr
tll thcm \\ hene\ er \ llll
call upon your Sony dealer
regarding this product.
!\1odel
No. BDV-F770W/BI)V
T77
Serial No
The following FCC statement
applie, only
to thc \ehilln of thi'
model manufactured for sale
in the
U.S.A. Other versions lllay
not
comply with FCC technical
regulations.
NOTE:
This equipment has been tested and
found
to comply with the limits for
aClass Bdigital device. pursuant to
Part
15 of the FCC Rules. These
limits are designed to provide
reasonable protection agai nst
harmful interference
in aresidential
installation. This equipment
generates, uses, and can radiate
radio frequency energy and. if not
installed and used
in accordance
with the instructions. may cause
harmful interference
to radio
communications. However. there
is
no guarantee that interference will
not occur in aparticular
in,tallarion. If thi, equipment does
cause harmful interference to radio
or television reception. which can
be determined by turning the
equipment
off and on. the user i,
encouraged to try to correct the
interference by one or more of the
following mea,ures:
-Reorient or relocate the recei\i
ng
antenna (aerial).
-Increase the separation hetween
the equipment and receiver.
Connect the equipment into
an
outlet on acircuit ditler~'nt frolll
that to \vhich the rel'el\
cr I,
connected.
-Consult the dealer or
an
experienced radio/TV technician
for help.

apparatus combination to avoid
injury from tip-over. For
the USB Wireless
LAN Adapter (UWA.
BR100)
Regulatory Information
Pursuant to FCC regulations, you
are cautioned that any changes
or
modifications not expressly
approved
in this manual could void
your authority to operate this
equipment.
To prevent radio interference to the
licensed service, this device is
intended to be operated indoors and
away from windows to provide
maximum shielding.
Equipment (or
its transmit antenna) that is
installed outdoors
is subject to
licensing.
Only use Wireless
LAN indoors
when using it with IEEE 802.11 a
(5 GHz).
High power radars are allocated as
primary users (meaning they have
priority)
of 5250-5350 MHz and
5650-5850
MHz and these radars
could cause interference and/or
damage to this device.
This device uses 5
GHz band for
wireless LAN communication and
the maximum gain
of the antenna in
this device is 5dBi.
This equipment complies with
FCC/IC radiation exposure limits
set forth for an uncontrolled
environment. This equipment
should be installed and operated
with minimum distance 20
em
between the radiator and your body
(excluding extremities: hands,
wrists and feet).
This device and its antenna(s) must
not be co-located or operating with
any other antenna or transmitter
except Grant condition.
The telephone number
below is for
FCC-related matters only.
Ifyou have any questions about this
product, contact Sony
Customer
Information Service Center at 1-
800-222-7669 or visit http://
www.sony.com/on the Internet.
ENERGYSTAR®
is aU.S. registered
mark.
•
Ij~i§;J4i'4;1
As an ENERGY
STAR® partner,
Sony Corporation has determined
that this product meets the
ENERGY STAR® guidelines for
energy efficiency.
13) Unplug this apparatus during
lightning storms
or when
unused for long periods
of time.
14) Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus
has been damaged in any way,
such as power-supply cord
or
plug is damaged, liquid has
been spilled or objects have
fallen into the apparatus, the
apparatus has been exposed to
rain or moisture, does not
operate normally,
or has been
dropped.
For the wireless
transceiver (EZW·
RT1O/EZW·RT1OA)
This equipment must not be co-
located or operated
in conjunction
with any other antenna or
transmitter.
This equipment
complies with FCC
radiation exposure limits set forth
for uncontrolled equipment and
meets the FCC radio frequency
(RF) Exposure Guidelines
in
Supplement Cto OET65.
This equipment should be installed
and operated with at least 20cm and
more between the radiator and
person's body (excluding
extremities: hands, wrists, feet and
ankles).

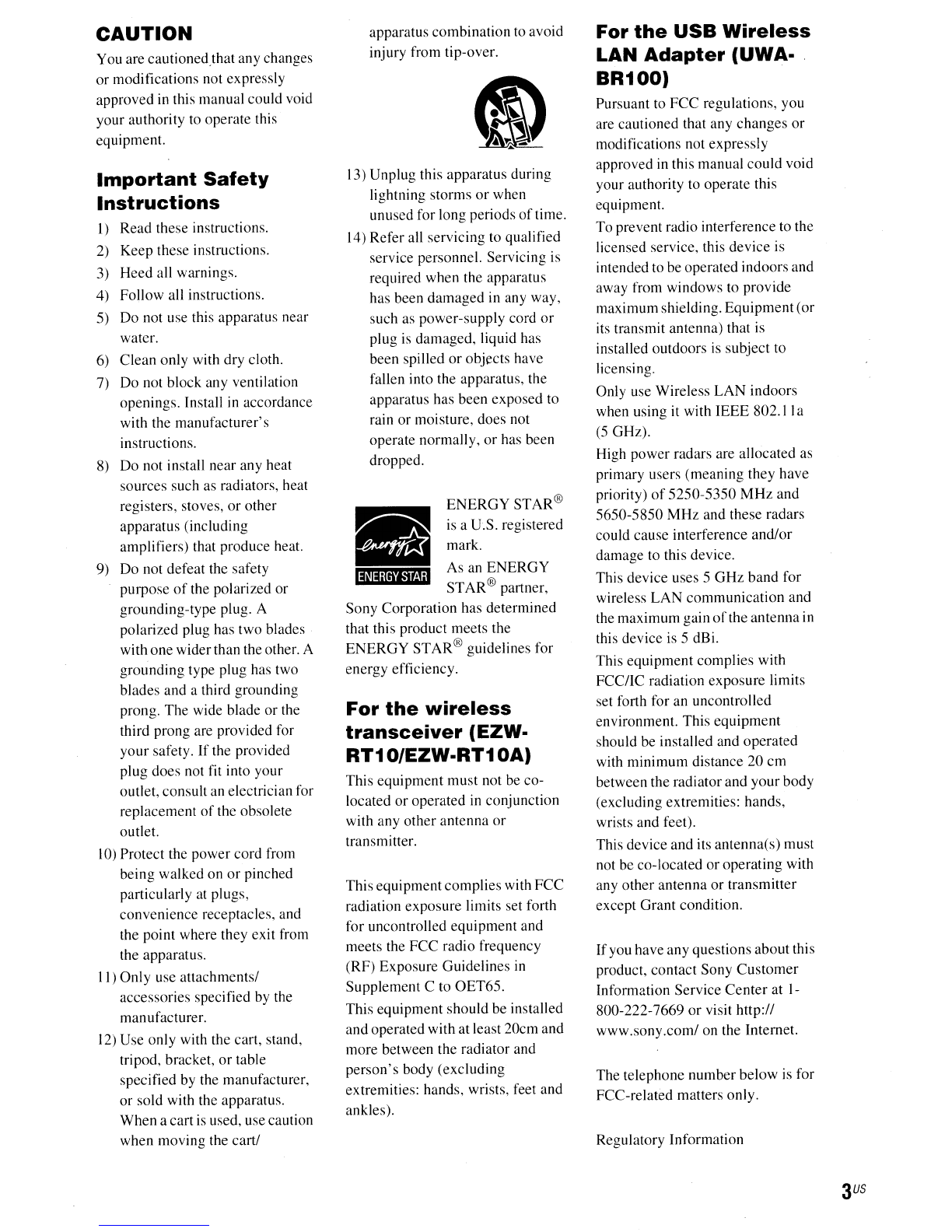

CAUTION
You are cautionedthat any changes
or modifications not expressly
approved in this manual could void
your authority to operate this
equipment.
Important Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings. Install in accordance
with the manufacturer's
instructions.
8) Do not install near any heat
sources such as radiators, heat
registers, stoves,
or other
apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety
purpose
of the polarized or
grounding-type plug. A
polarized plug has two blades
with one widerthan the other. A
grounding type plug has two
blades and athird grounding
prong. The wide blade or the
third prong are provided for
your safety. If the provided
plug does not fit into your
outlet, consult an electrician for
replacement
of the obsolete
outlet.
10) Protect the power cord from
being walked on
or pinched
particularly at plugs,
convenience receptacles, and
the point where they exit from
the apparatus.
II) Only use attachments/
accessories specified by the
manufacturer.
12) Use only with the cart, stand,
tripod, bracket,
or table
specified by the manufacturer,
or sold with the apparatus.
When acart is used, use caution
when moving the cart/
3
US

4
US
Declaration of Conformity ~Ii
Trade Name: SONY
Model UWA-BR 100
Responsihle Partv: Suny
EllxtruniL"I
IlL
Address: 16530 Via Fsprillo.
San Diego.
C\ '12127 LS.A.
Teleph(lnc ~umher ~."X-')--I2
22.~()
This de\ ICC Clllllplie, \\ilh p,lrl
15 of the FCC rules. Operation is
subjeCl to Ihe foIIO\\'ing t\\U
conditions: II )This
de\ice m,l)
not cause harmful interference.
and
(2) this dC\'ice must accept
any interference received.
including interference that may
cause undesired operation.
Copyrights and
Trademarks
•This product incorporatcs
copyright protection technology
that
is protected hy U.S. patents
and other intellectual property
rights.
Use
of this copyright protection
technology must be authorized by
MacHl\'ision. and
is intended for
home and other limited vieviing
uses only unless otherwise
authorized hy Macrovision.
Reverse engineering or
disassemhly
is prohihited.
•This system incorporates with
Dolby~' Digital and Dolh) Pro
Logic
([J) adaptive matrix
surround decoder and the DTS
"""
Digital Surround System.
", Manufactured under license
from Dolby Laboratories.
Dolby. Pro Logic. and
th~'
double-D symbol are
trademarks
of Dolhy
Laboratories.
"'" Manufactured under liccn,e
under U.S. Patent #'s:
5.451.942: 5.956.674:
5,974.380: 5.978.762:
6,226.616: 6.487.535:
7 .. ".12.195: 7.272.567 «:
other U.S. and \\orld\\ ide
patent, issued &pending.
DTS
is aregistered
trademark and the DTS
logos. Symbol. DTS-HD
,illd DTS-HD l\lastcr Audit'
are trademarks
of DTS. Inc.
\D 1'1l)6-2{){)X DTS. Inc. All
Rights Reserved.
•This
,ystem incorporates High-
Definition Multimedia Interface
(HDMrr\l) technology.
HDMI.
111l' HDMllogo and High-
Definition Multimedia Interface
an: trademarks
or registered
trademarks
of HDMI Licensing
LLC.
•Ja\'a and all
Ja\a-based
trademarks and logos are
trademarks or registered
trademarks
of Sun Microsystems.
Inc.
•
"BD-LIVE" and
"BONUSVIEW" arc trademarks
of Blu-ray Disc Association.
•"Blu-ray Disc"
is atrademark.
•"Blu-ray Disc."
"DVD+RW:'
"DVD-RW:' "DVD+R:' "DVD-
R."
"DVD VIDEO:' and "CD"
logos are trademarks.
•
"BRA VIA" is atradcmark of
Sony Corporation.
•"A
VCHD" and the "A VCHD"
logo are trademarks
of Matsushita
Electric Industrial
Co .. Ltd. and
Sony Corporation.
•
"S-AIR" and its logo are
trademarks
of Sony Corporation.
•
'~'" "XMB:' and "xross media
bar" are trademarks
of Sony
Corporation and Sony Computer
Entertainment Inc.
•
"PLA YSTA TION" is atrademark
uf Sony Computer Entertainmcnt
Inc.
•Music and
\ideo recognition
tcchnology and related data are
pn)\ided by Gracenote@
Gracenote
is the industry stanclard
in music recognition technology
and related content delivery. For
more information, please visit
www.gracenote.com.
('I). D\I). BllI-I:ty I)I~C and
music and \ideo-related d"t:t I I'll III
Graccnlltc. Inc .. copyright (j")
2()(){)-present Gracenutc.
Gracenutc Soft
"arc. cupyright ~)
2()()()-pre'L'nl (J1':I,'I'IIUlL' On,' III'
more patents owned hy Gracenotc
"ppl) to this pnxlucl
:ll1d sel"l ic,'.
See the
Gr:lC~'notc \\ ehs ite I'm a
npnexh,lllsti\ c lislllf applicahk'
Graeenote patents. Gr:tcenote.
CDDB. MusiciD. i\1cdiaVOCS.
tilL' Gr<lCL'nO(L logu <lnL! logol) pl'.
and the "PIl\\cred
hy (iracenolC"
logo arc
L'itlwr rcgi,tered
trademarks
or trademarks of
Gracenote
in lhe United State,
and/or other countries.
!gracenote
•"PhotoTV HD" and the "PhOIOTV
HD" logo are trademarks of Suny
Corporation.
•MPEG Layer
~ audio coding
technology and patents licensed
from Fraunhofer liS and
Thomson.
•iPod
is atrademark of Apple Inc ..
registered in the U.S. and other
countries.
•"Made for iPod" means that
an
electronic accessory has been
designed
to connect ,pecifically
to iPod and has heen certified
bv
the developer to meet Apple
performance standards.
•Apple
is not responsible for the
operation
of this de\'ice or its
compliance with safety and
regulatory standards.
•Other system and product names
are generally trademarks
or
registered trademark, of the
manufacturers. 1"\1 and @mark,
are not indicated
in this docuillent.

About These
Operating
Instructions
•The instructions in these
Operating Instructions
describe the controls on the
remote. You can also use the
controls on the unit if they
have the same or similar
names as those on the remote.
•
In this manual, "disc" is used
as ageneral reference for
BOs, OYOs, Super Audio
COs,
or COs unless otherwise
specified by the text or
illustrations.
•The instructions in this
manual are for BOY-E770W
and BOY-T77. BOY-E770W
is the model used for
illustration purposes. Any
difference
in operation is
clearly indicated in the text,
for example, "BOV-
E770W."
•The items displayed on the
TY screen may vary
depending on the area.
•The default setting is
underlined.
•The system is compatible
with the S-AIR function,
which allows transmission
of
sound between S-AIR
products wirelessly. For
details on theS-AIR function,
see "Using an S-AIR
Product" (page 39).
•Notes or instructions for the
surround amplifier, surround
back amplifier,
or S-AIR
receiver
in these Operating
Instructions refer only to
when the surround amplifier,
surround back amplifier, or
S-AIR receiver is used.
5
US

Table of Contents
About These Operating Instructions 5
Unpacking.. . 7
Index to Parts and Control 8
Getting Started
Step 1: Installing the System 14
Step
2: Connecting the System 17
Step
3: Setting up the
S-AIR Wireless System 24
Step
4: Performing the Easy
Setup 25
Step
5: Selecting the Source 26
Step
6: Enjoying Surround
Sound 27
Playback
Playing a Disc 29
Playing from aUSB Device 30
Enjoying an iPod 30
Playing via a Network 31
Available Options 32
Sound Adjustment
Selecting the Effect to Suit
the Source 34
Selecting the Audio Format. Multilingual
Tracks. or Channel 34
Enjoying Multiplex Broadcast
Sound 35
Using the
Sound Effect J)
Tuner
Listening to the Radio 37
External Audio Device
Using an S-AIR Product 39
Other Operations
Using the Control for HDMI Function for
"BRAVIA" Sync 43
Calibrating the Appropriate Settings
Automatically 45
Setting the Speakers 46
Using the Sleep Timer 4x
Deactivating the Buttons on
the
Unit 48
Controlling Your TV with the Supplied
Remote.. .. .. 4X
Saving Power in Standby Mode 49
Settings and Adjustments
Using the Setup Display 5U
[Network Update] 50
[Screen Settings I............................. 50
[Audio Settings I 51
[BD/DVD Viewing Settings] 52
[Parental
Control Settingsl 53
[Music Settings] 53
[System Settings] 53
[Network Settings] 55
[Easy Setup] 55
[Resetting] 55
Additional Information
Precautions 56
Notes about the Discs 57
Troubleshooting 58
Playable Discs 65
Playable Types of Files 66
Supported Audio Formats 67
Video Output Resolution 67
Specifications 68
Language Code List. 70
Glossary 71
Index 74

Unpacking
•Front speakers (2)
•Surround speakers (2)
•Center speaker
(I)
•Subwoofer (1)
•FM wire antenna (aerial) (1)
•Speaker cords (6, white/redl
blue/gray/greenlpurple)
111111
•Video cord (1)
•Remote commander
(remote) (1)
~
OOODIO 00000 0
Dgggg "080
0=
~DDDD ~ooooCijl
•R6 (size AA) batteries (2)
•Calibration mic (1)
•Surround amplifier (1)
•Wireless transceivers (2)
•Operating Instructions
•Quick Setup Guide
•To stabilize S-AIR reception
•End user license agreement
•Easy Setup Disc (DVD)
•USB Wireless LAN Adapter
(UWA-BRlOO)
•UWA-BRIOO External
cable
For BDV.T77
•HDMI cable (1)
Insert two R6 (size AA) batteries (supplied) by matching the (±) and 8ends on the batteries to the
markings inside the compartment.
7
US

Index to Parts and Control
For more information, refer to the pages indicated in parentheses.
.--
[ .0
J
.....
I
1100
~O .0 ~~O
", .. -0
---0
---.
.......-.
I I
I I
I I I
~~l
7654
BUS
[I] ·11(9 (on/standby)
Turns on the unit, orsets it to standby mode.
[2J Play operation buttons
~ (open/close) (page 29)
Opens or closes the disc tray.
~ (play)
Starts or re-starts playback (resume play).
Plays aslideshow when a disc containing
JPEG image files
is inserted.
•(stop)
Stops playback and remembers the stop
point(resume point).
The resume point for atitle/track is the last
point you played or the last photo for a
photo folder.
FUNCTION
Selects the playback source.
VOLUME +/-
Adjusts the system's volume.
~ ~ (USB) port (page 30)
Used for connecting aUSB device.
~ Front panel display
~ •(remote sensor)
[§] Power indicator
Lights up while the system is turned on.
mDisc tray (page 29)

About the indications in the front panel display
[j]
Displays the current sound format.
[I]
Flashes when the sleep timer is set.
[g] Lights up when outputting 1920 x(page 48)
1080p/24
Hz video signals.
[§]
S-AIR indicator(onlywhen thewireless
rnJ
Lights up when outputting 720p/1080i! transceiver
is inserted into the unit)
1080p video signals from the HDMI Lights up during wireless
OUT jack or 720p/1080i video signals transmission. Flashes when [Standby]
from the COMPONENT VIDEO
OUT is set to [On] and the system is in
jack~.
standby mode while wireless
~
Lights up when the HDMI OUT jack is transmission between the unit and
correctly connected
to an HDCP (High- S-AIR receiver is
not activated. (page
bandwidth Digital Content Protection)- 39)
compliant device with
HDMI or DVI
rnJ
Displays system's status such as
(Digital Visual Interface) input. chapter,title,
or track number, time
[ID
Lights up when astation is received. information, radio frequency, playing
(Radio only) (page
37)
status, surround setting, etc.
[ID
Lights up when stereo sound is
l1m
Lights up when repeat play is
received. (Radio only) (page 37)
activated.
[j]
Displays system'splaying status.
[12J
Lights up when muting is on.
gus

10
US
6
13
[I]
~ (USB) port (page 30)
rnJ
S-AIR ID switch (pages 24, 39)
[gJ
LAN (100) terminal (page 23)
lID
A.CAL MIC jack (pages 25, 45)
~
COMPONENT VIDEO OUT jacks (page
11m
ANTENNA (FM COAXIAL 7511) jack
18) (page 21)
[!J
VIDEO OUT jack (page 18)
[11J
TV (DIGITAL IN OPTICAL) jack (page
[§J
HDMI OUT jack (page 18) 19)
[§] EZW-RT10
slot (page 22)
[1g]
SAT/CABLE (DIGITAL IN COAXIAL)
[I]
AUDIO (AUDIO IN UR) jacks (page 20)
jack (page 20)
~
SPEAKERS jacks (page 17)

Front panel
1 2
Rear panel
[] 11(9 (Power)
Turns the surround amplifier on/off.
[2] S-AIRISTANDBY indicator
You can check the status of wireless
transmission between the main unit and
surround amplifier.
Indicator
Turns green.
Flashes green
quickly.
Flashes green
slowly.
Turns red.
Turns off.
Status
The system is turned on,
wireless transmission is
activated and surround signals
are transmitting.
The system is turned on and
wireless transmission is
activated, but surround signals
are not transmitting.
The system is turned on and
wireless transmission is
deactivated.
The surround amplifier is in
standby mode while the system
is in standby mode or wireless
transmission is deactivated.
The surround amplifier is
turned off:
~ S·AIR ID switch
Selects the S-AIR ID.
@] PAIRING button
Starts pairing.
[§] PAIRING indicator
Indicates the pairing status.
[§] SURROUND SELECTOR switch
Selects the mode for the surround amplifier.
!Il SPEAKERS jacks
rID Wireless transceiver (EZW-RT10) slot
Flashes orange. The wireless transceiver is not
connected.
Flashes red. The surround amplifier's
protection is active.

12
US
o@@@
SYSTEM
o0®®
FAVORITE AUDIO @ SUBTITLE
08 00
II L N
I II II I
PRESET - REPLAY ADVANCE PRESET +
1E!!II.·II·.II-1
TUNING- P.LAY
[B] ~o
Number 5, AUDIO, VOL +, and ~ buttons
have atactile dot. Use the tactile dot as a
reference when operating the remote.
• Cf2]: For TV operations
(For details, see "Controlling
Your TV with
the Supplied Remote" (page 48).)
[0 THEATER(page44)Cf2]
Switches to the optimum video mode for
watching movies automatically.
ONE-TOUCH PLAY (page 44)
Activates One-Touch Play.
TV 116 (on/standby) (page 48) Cf2]
Turns on the TV or sets it to standby mode.
116 (on/standby) (pages 25, 37)
Turns on the system or sets it to standby
mode.
I2J Number buttons (pages 38, 48)
Enters the title/chapter numbers, radio
frequencies, etc.
AUDIO (pages 34, 35)
Selects the audio format/track.
SUBTITLE (page 52)
Selects the subtitle language when
multilingual subtitles are recorded
on aBD-
ROM/DVD VIDEO.
D.TUNING (page 37)
Selects the radio frequencies.
~ Color buttons (YELLOW/BLUEIRED/
GREEN)
Short cut keys for selecting items on some
BD menus (can also be used for Java
interactive operations on BDs).
@] TOP MENU
Opens or closes the BD's or DVD's Top
Menu.
POPUP/MENU
Opens or closes the BD-ROM's Pop-up
Menu, or the
DVD's menu.
OPTIONS (page 32)
Displays the options menu on the TV
screen.
RETURN
Returns to the previous display.
+-IJf'/.J,H
Moves the highlight to adisplayed item.
CD (ENTER)
Enters the selected item.
[§] FUNCTION (pages 26, 37)
Selects the playback source.
HOME (pages 25, 37, 39, 45, 46,50)
Enters or exits the system's home menu.
SOUND MODE (page 34)
Selects the sound mode.

[§] Playback operation buttons
See "Playback" (page 29).
..... /~ (previous/next)
Skip to the previous/next chapter, track, or
file.
.-/ ... (replay/advance)
Briefly replay the current scenes for 10
seconds./Briefly fast forwards the current
scenes for 15 seconds.
~/~ (fast reverse/fast forward)
Fast reverse/fast forward the disc during
playback. Each time you press the button,
search speed changes.
Activates slow-motion play when pressed
for more than one second in pause mode.
Plays one frame at atime when pressed in
pause mode.
~ (play)
Starts or re-starts playback (resume play).
Plays aslideshow when adisc containing
JPEG image files is inserted.
II (pause)
Pauses or re-starts playback.
•(stop)
Stops playback and remembers the stop
point (resume point). The resume point for
atitle/track is the last point you played or
the last photo for aphoto folder. .
Radio operation buttons
See "Tuner" (page 37).
PRESET +/-
TUNING +/-
[I] MUTING
Turns offthe sound temporarily.
VOL +/- (page 37)
Adjusts the volume.
TV VOL +/- em
Adjusts the TV volume.
TV INPUT em
Switches the TV's input source between the·
TV and other input sources.
lID DISPLAY(pages 29, 31)
Displays the playback information onthe
TV screen.
When the function is "TV" or "SAT/
CABLE" and digital signals are input via
the DIGITAL IN jack, displays the stream
information in the front panel display.
[ID ~ (open/close)
Opens or closes the disc tray.
SLEEP (page 48)
Sets the sleep timer.
SYSTEM MENU (pages 27, 32, 35, 37)
Enters the system menu.
FAVORITES
Displays the Internet contents added to the
Favorites List. You can save
18 favorite
Internet contents.
13
US

Front right speaker (R)
Surround right speaker (R)
Center speaker
······T" '; .......
.............. ..
o
Subwoofer
1------- .. -- ------ -- ----- ------- -.---- ----
!\
Front left speaker (L)
Surround left speaker
(L)
Getting Started
14
US
Step 1: Installing the System
For the best possible surround sound, place all speakers at the same distance from the listening position
(0). The distance can be between 0to 23 feet (0.0 to 7.0 meters).
If you cannot place the center speaker and surround speakers at the same distance as (0), place them
within 23 feet (7.0 meters)
of the listening position.
Place the surround speakers to the rear
of the listening position (0).
The subwoofer can be placed anywhere in the room.
..
•Use caution when placing the speakers and/or speaker stands attached to the speakers on aspecially treated (waxed,
oiled, polished, etc.) floor, as staining or discoloration may result.
•Do not lean
or hang on aspeaker, as it may fall down.

Surround right
speaker(R)
Front right speaker
(R)
".
Center speaker
..•....... _-.----_._- .
Subwoofer
Front left speaker
(L)
Surround left
speaker
(L)
""'''''
A':
""",
.30° :30° 'A
4SJ-- " : _ .. / <~5 ~"
-------~---_. "
""
/: '"
"-< '" .
'$ ci'
Surround back left speaker (L) Surround back right speaker (R)
(optional) ,________ (optional)
For the position of the surround back speakers, refer the illustration below (0).
15
US
To add the optional surround back speakers
You can enjoy 7.1 surround sound by purchasing the Wireless Surround Speaker Kit (WAHT-SBP2,
optional). The optional product lineup differs depending on the area.
Caution
•Contact ascrew shop or installer regarding the wall material or screws to be used.
•Use screws that are suitable for the wall material and strength. As aplaster board wall is especially fragile, attach
the screws securely to abeam and fasten them to the wall. Install the speakers ona vertical and flat wall where
reinforcement is applied.
•Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength or
improper screw installation, natural calamity, etc.
1m
•To use the surround back speakers, set [Surround Back] (page 46) in [Speaker Settings] to [Yes] while performing
the Easy Setup (page 25).

Hole on the back of
the speaker
For the other speakers
Hole on the back of
the speaker
219mm
(8% inches)
Color tube
Front left speaker (L): White
Front right speaker (R): Red
Centerspeaker: Green
Surround left speaker (L): Blue
Surround right speaker (R): Gray
Rear of the speaker
G\\\\\\\\\\\\\\1> t-- 4mm (3/16 inch)
~ ~
30 mm (1 3/
16
inches)
For the center speaker
16
US
To install the speakers on a wall
Before installing the speakers on awall, connect the speaker cord to the speaker.
Be sure to match the speaker cords to
th~ appropriate terminals on the speakers: the speaker cord with
the color tube to
®, and the speaker cord without the color tube to e.
1Prepare screws (not supplied) that are suitable for the hole on the back ofeach speaker.
See the illustrations below.
2Fasten the screws to the wall.
3Hang the speakers on the screws.

17
US
Blue.
{Surround left speaker (L))
Rear or bottom of the speaker
Gray·
{Surround right speaker (R))
Rear panel of the surround amplifier
~j;:::=~
Connector·
White
{Front left speaker (L))
Rear panel of the unit
Green
~--- (Center speaker)
~----\$~~~~ __ Purple
Red (Subwoofer)
{Front right
speaker (R))
For connecting the system, read the information on the following pages.
Do not connect the AC power cord (mains lead)
of the unit to awall outlet (mains) until all the other
connections are made.
Step 2: Connecting the System
The connector of the speakercords and the color tube are color-coded depending on the type of speaker.
Connect the speaker cords to match the color
of the SPEAKERS jacks of the unit.
Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with
the color tube to ffi, and the speaker cord without the color tube to
8. Do not catch the speaker cord
insulation (rubber covering) in the speaker terminals.
To connect speaker cords to the unit and surround amplifier
When connecting to the unit and surround amplifier, insert the connector until it clicks.
To connect speaker cords to the speaker.
-
•When you connect another component with avolurpe control, tum down the volume of the other components to a
level where sound is not distorted.

18
US
This connection sends avideo signal to the TV.
Depending on the jacks on your TV, select the connection method.
To the HDMIIN jack
of the TV.
To the video input
jack of the TV.
To the component
video input jacks of
the TV.
eVideo cord (supplied) ---~
*The HDMI cable is supplied with BDV-Tn only.
Rear panel of the unit
oComponent video
cable (not supplied)
Method 1: HDMI cable (0) connection
If your TV has an HDMIjack, connect to the TV with an HDMI cable. Picture quality will be improved
compared to using the component video cable connection
or the video cord connection.
When connecting with the HDMI cable, you need to select the type
of output signal (page 51).
Method 2: Component video cable (0) connection
If your TV does not have an HDMIjack, but has component video inputjacks, connect to the TV with
acomponent video cable. Picture quality will be improved compared to using the video cord
connection.
When connecting
with the component video cable, you need to select the type of output signal (page
51).
Method 3: Video cord (e) connection
If you do not have an HDMI cable or acomponent video cable, temporarily make this connection.

This connection sends an audio signal to the unit from the TV. To listen to TV sound via the system,
perform this connection.
Rear panel of the unit
To the digital optical out jack of
the TV.
With adigital audio connection, the system receives aDolby Digital multiplex broadcast signal and
you can enjoy multiplex broadcast sound.
-
•When you connect the TV and the unit with an audio cord, see "Connecting the other components" (page 20).
About Audio Return Channel
If your TV is compatible with the Audio Return Channel function, an HDMI cable connection also
sends adigital audio signal from the TV. You do not need to make aseparate audio connection for
listening to TV sound. For details
of the Audio Return Channel function, see [Audio Return Channel]
(page 54).
19
U5

When you connect the system and other components to the TV, video signals from the system and the
components are sent to the TV. and audio signals from the components are sent to the system as
follows.
You can enjoy connected components via the
system's speakers.
•
VCR or digital satellite receiver, etc. (not supplied), which has adigital coaxial output jack: e
• VCR, digital satellite receiver, PlayStation, or portable audio source, etc. (not supplied): G
To the audio out jacks of the VCR,
digital satellite receiver, PlayStation,
or portable audio source, etc.
=!::::=:.. :Audio signal
Signal flow
........... :Video signal
4:) Digital coaxial cord
(not supplied)
To the digital coaxial out jack
of the VCR or digital satellite
receiver, etc.
TV
D
~
0001
II I
I .
~
System
~
I-----l
r ... l
20
US
Rear panel of the unit
