Sony DAV-DZ100K User manual

©2005 Sony Corporation
2-635-400-E1(2)
DVD Home Theatre
System
Operating Instructions
DAV-DZ100K/DZ500KF
*DAV-DZ500KF only
*

2GB
DAV-DZ100K/DZ500KF3
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
To prevent fire, do not cover the ventilation of the
apparatus with news papers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Don’t throw away the battery with
general house waste, dispose of it
correctly as chemical waste.
This appliance is
classified as a CLASS 1
LASER product. This
markingislocatedonthe
rear exterior.
Precautions
Safety
• If anything falls into the cabinet, unplug the unit and
have it checked by qualified personnel before
operating it any further.
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet (mains), even if the unit itself has been turned
off.
• Unplug the unit from the wall outlet if you do not
intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never by
the cord.
Installing
• Allow adequate air circulation to prevent internal
heat buildup.
• Do not place the unit on surfaces (rugs, blankets, etc.)
or near materials (curtains, draperies) that may block
the ventilation slots.
• Do not install the unit near heat sources such as
radiators, or air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration, or
shock.
• Do not install the unit in an inclined position. It is
designed to be operated in a horizontal position only.
• Keep the unit and discs away from equipment with
strong magnets, such as microwave ovens, or large
loudspeakers.
• Do not place heavy objects on the unit.
• If the unit is brought directly from a cold to a warm
location, moisture may condense inside the DVD
Home Theatre System and cause damage to the
lenses. When you first install the unit, or when you
move it from a cold to a warm location, wait for about
30 minutes before operating the unit.
Disposal of Old
Electrical & Electronic
Equipment (Applicable
in the European Union
and other European
countries with separate
collection systems)
This symbolonthe productoron
its packaging indicates that this
product shallnot be treated as household waste. Instead
it shall be handed over to the applicable collection
point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative
consequences for the environment and human health,
which could otherwise be caused by inappropriate
waste handling of this product. The recycling of
materials will help to conserve natural resources. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
WARNING

3GB
Thank you for purchasing Sony DVD Home
Theatre System. Before operating this system,
please read this manual thoroughly and retain it
for future reference.
Welcome!

4GB
Welcome!................................................3
About This Manual .................................6
This System Can Play the Following
Discs .................................................7
Guide to the Control Menu Display......10
Getting Started
Unpacking.............................................13

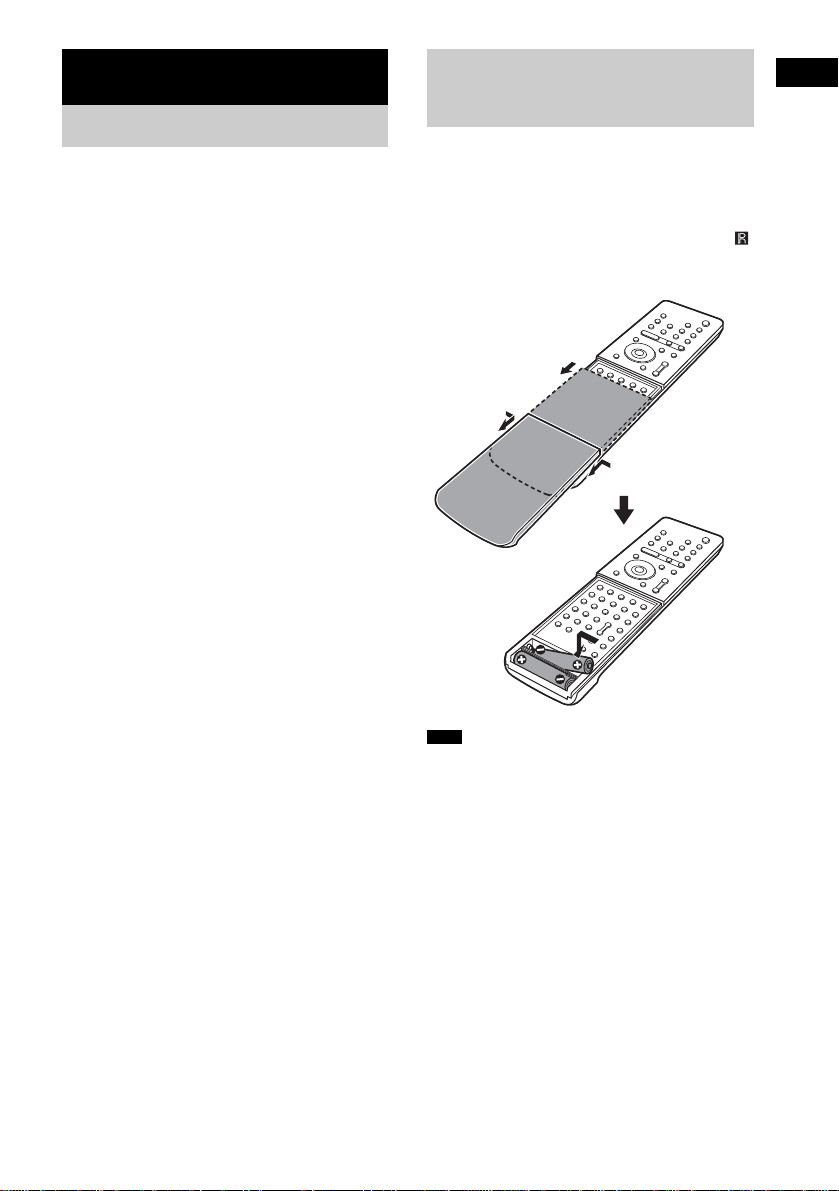

Inserting Batteries into the Remote.......13
Hookup Overview.................................14
Step 1: Speaker System Hookup...........15
Step 2: Antenna (Aerial) Hookup.........24
Step 3: TV Hookup...............................25
Step 4: Other Component Hookup........29
Step 5: Connecting the AC Power Cord
(Mains Lead)...................................30
Step 6: Turning off
the Demonstration...........................30
Step 7: Performing the Quick Setup .....31
Speaker Setup........................................33
Playing Discs
Playing Discs ........................................34
Using the DVD’s Menu........................38
Selecting [ORIGINAL] or [PLAY LIST]
on a DVD-RW................................39
Selecting a Playback Area for a Super
Audio CD........................................39
Playing VIDEO CDs with PBC Functions
(Ver.2.0)..........................................40
(PBC Playback)
About MP3 Audio Tracks and JPEG
Image Files .....................................41
Playing DATA CDs with MP3 Audio
Track and JPEG Image Files..........43
Playing Audio Tracks and Images as a
Slide Show with Sound...................45
Enjoying DivX® Videos.......................47
Adjusting the Delay Between the Picture
and Sound.......................................49
(A/V SYNC)
Searching for a Particular Point on
a Disc..............................................50
(Scan, Slow-motion Play, Freeze
Frame)
Searching for a Title/Chapter/Track/
Scene, etc........................................ 51
Searching by Scene............................... 53
(Picture Navigation)
Viewing Information About the Disc... 54
Sound Adjustments
Changing the Sound .............................58
EnjoyingSurround Soundby UsingSound
Field................................................ 60
Enjoying TV or VCR Sound from All
Speakers ......................................... 62
Using the Sound Effect......................... 63
Using Various Additional
Functions
Changing the Angles ............................ 64
Displaying the Subtitles........................ 64
Locking Discs....................................... 65
(CUSTOM PARENTAL
CONTROL, PARENTAL
CONTROL)
Other Operations
Controlling the TV with the Supplied
Remote ........................................... 69
Using the THEATRE SYNC
Function.......................................... 70
Enjoying the Sound of Other
Components.................................... 71
Enjoying Multiplex Sound ................... 72
(DUAL MONO)
Enjoying the Radio............................... 73
Enjoying Karaoke................................. 74
Using the Sleep Timer.......................... 77
Changing the Brightness of the Front
Panel Display.................................. 77
Returning to the Default Settings ......... 78
Table of Contents

5GB
Settings and Adjustments
Using the Setup Display........................79
Setting the Display or Sound Track
Language ........................................80
[LANGUAGE SETUP]
Settings for the Display.........................81
[SCREEN SETUP]
Custom Settings....................................82
[CUSTOM SETUP]
Settings for the Speakers.......................83
[SPEAKER SETUP]
Additional Information
Precautions............................................86
Notes about the Discs............................87
Troubleshooting....................................87
Self-diagnosis Function ........................90
(When letters/numbers appear in
the display)
Specifications........................................91
Glossary ................................................93
Language Code List..............................96
Index to Parts and Controls...................97
DVD Setup Display List.....................102
AMP Menu List ..................................103
Index ...................................................104

6GB
• The instructions in this manual describe the
controls on the remote. You can also use the
controlson the system if they have the same or
similar names as those on the remote.
• The instructions in this manual are for DAV-
DZ100KandDAV-DZ500KF.DAV-DZ100K
is the model used for illustration purposes
only. Any difference in operation is clearly
indicated in the text, for example, “DAV-
DZ500KF only.”
• The Control Menu items may be different
depending on the area.
• “DVD” may be used as a general term for
DVD VIDEOs, DVD+RWs/DVD+Rs, and
DVD-RWs/DVD-Rs.
• Measurements are expressed in feet (ft) for
North American models.
• The following symbols are used in this
manual.
*1MP3 (MPEG1 Audio Layer 3) is a standard format
defined by ISO/MPEG which compresses audio
data.
*2DivX®is a video file compression technology,
developed by DivXNetworks, Inc.
*3DivX, DivX Certified, and associated logos are
trademarks of DivXNetworks, Inc. and are used
under license.

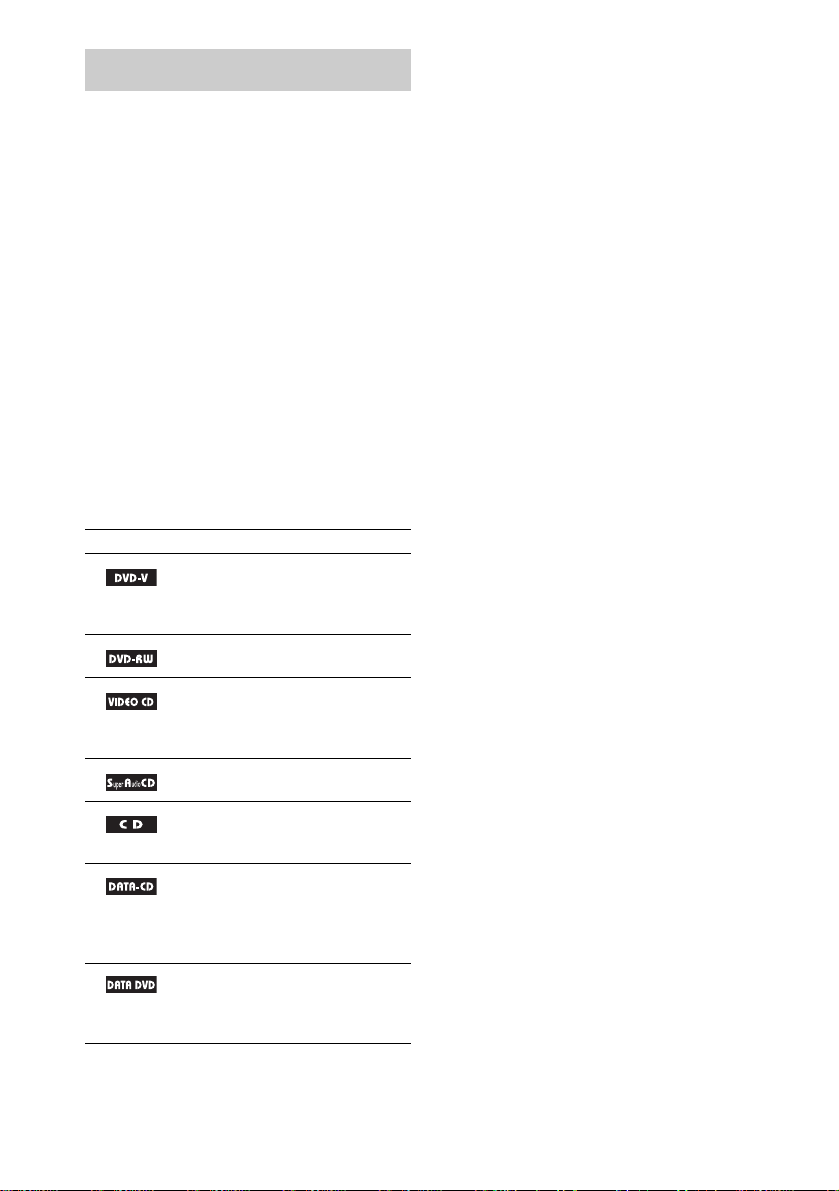

About This Manual
Symbol Meaning
Functions available for DVD
VIDEOs, DVD-Rs/DVD-RWs in
video mode, and DVD+Rs/
DVD+RWs
Functions available for DVD-RWs
in VR (Video Recording) mode
Functions available for VIDEO
CDs (including Super VCDs or CD-
Rs/CD-RWs in video CD format or
Super VCD format)
Functions availableforSuperAudio
CDs
Functions available for music CDs
or CD-Rs/CD-RWs in music CD
format
Functions available for DATA CDs
(CD-ROMs/CD-Rs/CD-RWs
containing MP3*1audio tracks,
JPEG image files, and DivX*2*3
video files)
Functions available for DATA
DVDs (DVD-Rs/DVD-RWs/
DVD+Rs/DVD+RWs) containing
DivX*2*3video files

7GB

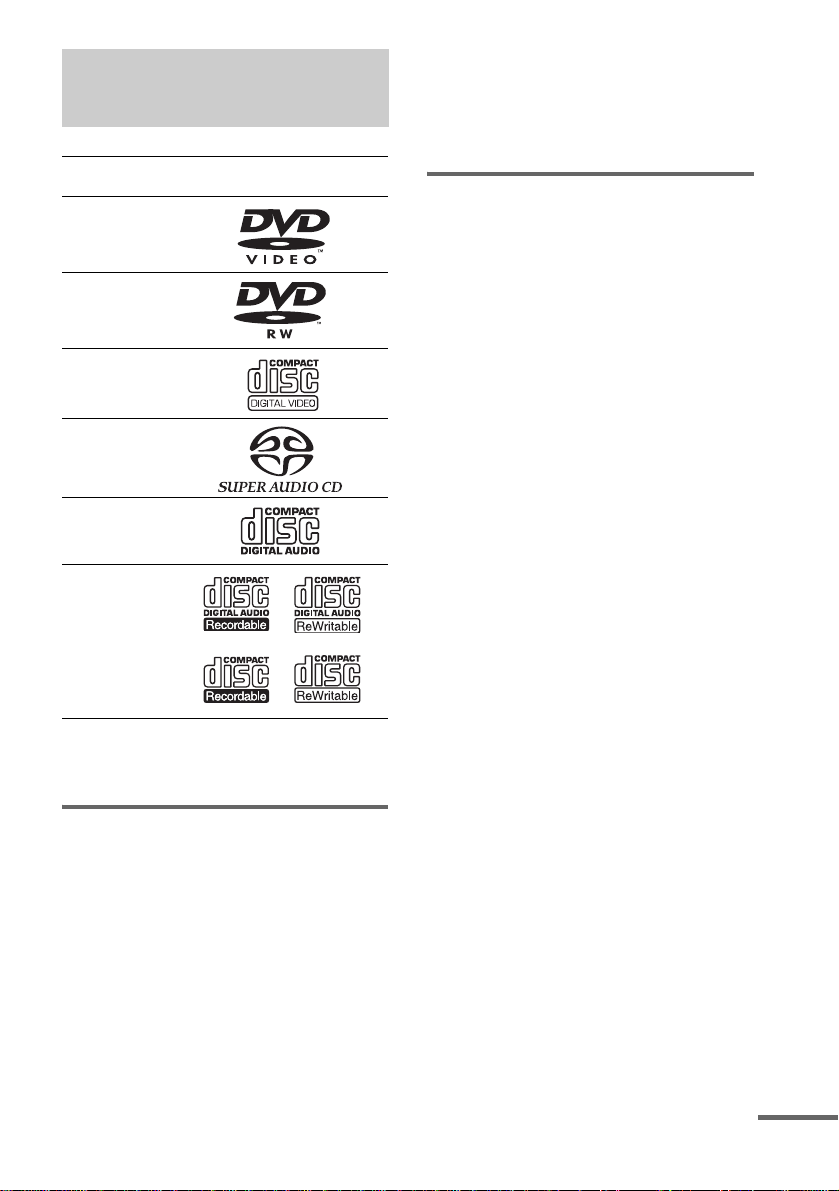

The “DVD VIDEO” logo and “DVD-RW” logo are
trademarks.
Note about CDs/DVDs
The system can play CD-ROMs/CD-Rs/CD-
RWs recorded in the following formats:
– audio CD format
– video CD format
– MP3 audio tracks, JPEG image files, and
DivX video files of format conforming to ISO
9660 Level 1/Level 2, or its extended format,
Joliet
The system can play DVD-ROMs/DVD+RWs/
DVD-RWs/DVD+Rs/DVD-Rs recorded in the
following formats:
– DivX video files of format conforming to
UDF.
Example of discs that the
system cannot play
The system cannot play the following discs:
• CD-ROMs/CD-Rs/CD-RWs other than those
recorded in the formats listed on page 7
• CD-ROMs recorded in PHOTO CD format
• Data part of CD-Extras
• DVD Audios
• DVD-RAMs
Also, the system cannot play the following
discs:
• A DVD VIDEO with a different region code
(page 9, 94).
• A disc that has a non-standard shape (e.g.,
card, heart).
• A disc with paper or stickers on it.
• A disc that has the adhesive ofcellophane tape
or a sticker still left on it.

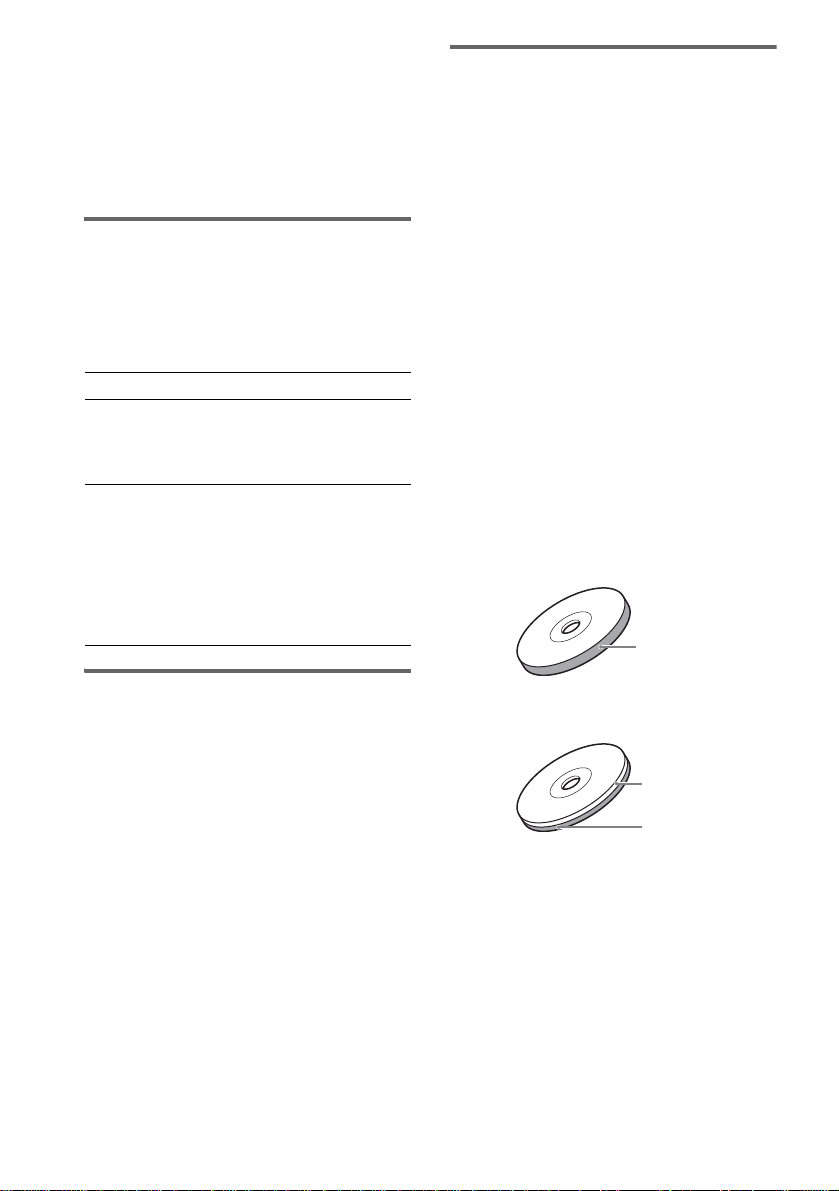

Notes about CD-R/CD-RW/DVD-R/
DVD-RW/DVD+R/DVD+RW
In some cases, CD-R/CD-RW/DVD-R/DVD-RW/
DVD+R/DVD+RW cannot be played on this system
due to the recording quality or physical condition of the
disc, or the characteristics of the recording device and
authoring software.
The disc will not play if it has not been correctly
finalized. For more information, see the operating
instructions for the recording device.
Note that discs created in the Packet Write format
cannot be played.

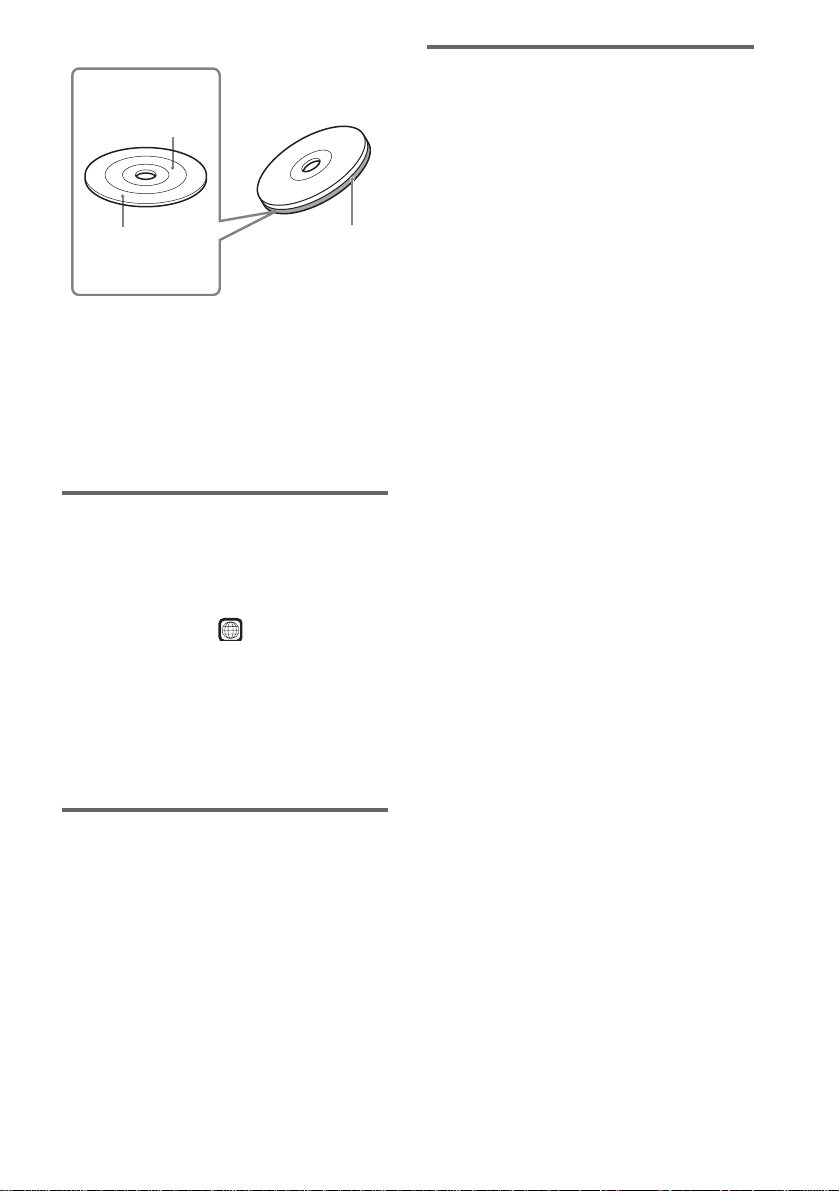

Music discs encoded with
copyright protection
technologies
This product is designed to play back discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with copyright
protection technologies are marketed by some record
companies. Please be aware that among those discs,
there aresome that do not conform to the CD standard
and may not be playable by this product.
This System Can Play the
Following Discs
Format of
discs Disc logo
DVD VIDEO
DVD-RW
VIDEO CD
Super Audio
CD
Audio CD
CD-R/CD-RW
(audio data)
(MP3 files)
(JPEG files)
continued

8GB
Note on DualDisc
A DualDisc is a two sided disc product which
mates DVD recorded material on one side with
digital audio material on the other side.
However, since the audio material side does not
conform to the Compact Disc (CD) standard,
playback on this product is not guaranteed.
Note on PBC (Playback
Control) (VIDEO CDs)
This system conforms to Ver. 1.1 and Ver. 2.0 of
VIDEO CD standards. You can enjoy two kinds
of playback depending on the disc type.
About Multi Session CD
• This system can play Multi Session CDs when
an MP3 audio track is contained in the first
session. Any subsequent MP3 audio tracks
recorded in later sessions can also be played
back.
• This system can play Multi Session CDs when
a JPEG image file is contained in the first
session. Any subsequent JPEG image files
recorded in later sessions can also be played
back.
• If audio tracks and imagesin music CD format
or video CD format are recorded in the first
session, only the first session will be played
back.
About the Super Audio CD
Super Audio CD is a new high-quality audio
disc standard where music is recorded in the
DSD (Direct Stream Digital) format
(conventional CDs are recorded in the PCM
format). The DSD format, using a sampling
frequency 64 times higher than that of a
conventional CD, and with 1-bit quantization,
achieves both a wide frequency range and a wide
dynamic range across the audible frequency
range, and so provides music reproduction
extremely faithful to the original sound.
Types of Super Audio CDs
There are two types of discs, depending on the
Super Audio CD layer and CD layer
combination.
• Super Audio CD layer: A high-density
signal layer for Super Audio CD
•CDlayer*
1: A layer that is readable by a
conventional CD player
A Super Audio CD layer consists of the 2
channel area or the multi-channel area.
• 2 channel area: An area in which 2 channel
stereo tracks are recorded
• Multi-channel area: An area in which multi-
channel (up to 5.1 channels) tracks are
recorded
Disc type You can
VIDEO CDs
without PBC
functions
(Ver. 1.1 discs)
Enjoy video playback (moving
pictures) as well as music.
VIDEO CDs
with PBC
functions
(Ver. 2.0 discs)
Play interactive software using
menu screens displayed on the
TV screen (PBC Playback), in
addition to the video playback
functions of Ver. 1.1 discs.
Moreover, you can play high-
resolution still pictures, if they
are included on the disc.
Single layer disc
(a disc with a single Super Audio CD layer)
Super Audio CD
layer
Hybrid disc*2
(a disc with a Super Audio CD layer and a CD layer)
Super Audio CD
layer*3
CD layer*3

9GB
*1You can play the CD layer on a conventional CD
player.
*2Since both layers are on one side, it is not necessary
to turn the disc over.
*3To select a layer, see “Selecting a Playback Area for
a Super Audio CD” (page 39).
*4To selectanarea,see“SelectingaPlaybackAreafor
a Super Audio CD” (page 39).
Region code
Your system has a region code printed on the
backof theunit andwillonly playDVDs labeled
with the same region code.
DVD VIDEOs labeled will also play on this
system.
If you try to play any other DVD VIDEO, the
message [Playback prohibited by area
limitations.] will appear on the TV screen.
Depending on the DVD VIDEO, no region code
indication may be given even though playing the
DVD VIDEO is prohibited by area restrictions.
Note on playback operations
of DVDs and VIDEO CDs
SomeplaybackoperationsofDVDsand VIDEO
CDs may be intentionally set by software
producers. Since this system plays DVDs and
VIDEO CDs according to the disc contents the
software producers designed, some playback
features may not be available. Also, refer to the
instructions supplied with the DVDs or VIDEO
CDs.
Copyrights
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this
copyright protection technology must be
authorized by Macrovision, and is intended for
homeandotherlimitedviewingusesonlyunless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
This system incorporates with Dolby*1Digital
and Dolby Pro Logic (II) adaptive matrix
surround decoder and the DTS*2Digital
Surround System.
*1Manufactured under license from Dolby
Laboratories.
“Dolby,” “Pro Logic,” and the double-D symbol are
trademarks of Dolby Laboratories.
*2Manufactured under license from Digital Theater
Systems, Inc.
“DTS” and “DTS Digital Surround” are trademarks
of Digital Theater Systems, Inc.
Super Audio CD
layer
Multi channel area*4
2 channel area*4
ALL

10GB
Use the Control Menu to select a function and to view related information. Press DISPLAY
repeatedly to turn on or change the Control Menu display as follows:
Control Menu display
The Control Menu display 1 and 2 will show different items depending on the disc type. For details
about each item, see the pages in parentheses.
Example: Control Menu display 1 when playing a DVD VIDEO.
Guide to the Control Menu Display
DISPLAY
Control Menu display 1
m
Control Menu display 2 (appears for certain discs only)
m
Control Menu display off
,
OFF
T 1 : 3 2 : 5 5
1 8 ( 3 4 )
1 2 ( 2 7 )
DVD VIDEO
Quit:
REPEAT
ENTER DISPLAY
DISC
TITLE
CHAPTER
OFF
Currently playing title number*1
Playing time*4
Total number of chapters*2
Options
Current setting
Total number of titles*1
Playback status
(NPlayback, X
Pause,
xStop, etc.)
Function name of
selected Control
Menu item
Operation message
Selected item
Control Menu items
Typeofdiscbeing
played*3
Currently playing chapter number*2

11GB
*1Displays the scene number for VIDEO CDs (PBC is on), track number for VIDEO CDs/Super Audio CDs/CDs,
album number for DATA CDs. DivX video album number for DATA DVDs/DATA CDs.
*2Displays the index number for VIDEO CDs/Super Audio CDs, MP3 audio track number, or JPEG image file
number for DATA CDs. DivX video file number for DATA DVDs/DATA CDs.
*3Displays Super VCD as “SVCD.” Displays “MP3” in the Control Menu display 1 or “JPEG” in the Control Menu
2 for DATA CDs.
*4Displays the date for JPEG files.
To turn off the display
Press DISPLAY.
List of Control Menu items
Item Item Name, Function, Relevant Disc Type
[TITLE] (page 51)/[SCENE] (page 51)/[TRACK] (page 51)
Selects the title, scene, or track to be played.
[CHAPTER] (page 51)/[INDEX] (page 51)
Selects the chapter or index to be played.
[INDEX] (page 51)
Displays the index and selects the index to be played.
[TRACK] (page 51)
Selects the track to be played.
[ORIGINAL/PLAY LIST] (page 39)
Selects the type of titles (DVD-RW) to be played, the [ORIGINAL] one, oran edited [PLAY
LIST].
[TIME/TEXT] (page 52)
Checks the elapsed time and the remaining playback time.
Input the time code for picture and music searching.
Displays the DVD/CD text or the MP3 track name.
[MULTI/2CH] (page 39)
Selects the playback area on Super Audio CDs when available.
[PROGRAM] (page 36)
Selects the track to play in the order you want.
[SHUFFLE] (page 37)
Plays the track in random order.
[REPEAT] (page 37)
Plays the entire disc (all titles/all tracks/all albums) repeatedly or one title/chapter/track/album
repeatedly.
[PARENTAL CONTROL] (page 65)
Sets to prohibit playback on this system.
[SETUP] (page 79)
[QUICK] Setup (page 31)
Use Quick Setup to choose the desired language of the on-screen display, the aspect ratio of
the TV, and the size of the speakers you are using.
[CUSTOM] Setup
In addition to the Quick Setup setting, you can adjust various other settings.
[RESET]
Returns the settings in [SETUP] to the default setting.
continued

12GB
* These items are not displayed when playing a DATA CD with DivX video file.
• The Control Menu icon indicator lights up in green when you select any item except [OFF]
([PROGRAM], [SHUFFLE], [REPEAT] only). The [ORIGINAL/PLAY LIST] indicator lights up in green when
you select [PLAY LIST] (default setting). The [MULTI/2CH] indicator lights up in green when you select the
multi-channel playback area on a Super Audio CD.
[ALBUM] (page 51)
Selects the album to be played.
[FILE] (page 51)
Selects the JPEG image file or DivX video file to be played.
*[DATE] (page 57)
Displays the date the picture was taken by a digital camera.
*[INTERVAL] (page 46)
Specifies the duration for which the slides are displayed on the screen.
*[EFFECT] (page 47)
Selects the effects to be used for changing slides during a slide show.
*[MODE (MP3, JPEG)] (page 45)
Selects the data type; MP3 audio track (AUDIO), JPEG image file (IMAGE) or both
(AUTO) to be played when playing a DATA CD.
Tip
t

Getting Started
13GB
7
Check that you have the following items:
•Speakers(5)
• Subwoofer (1)

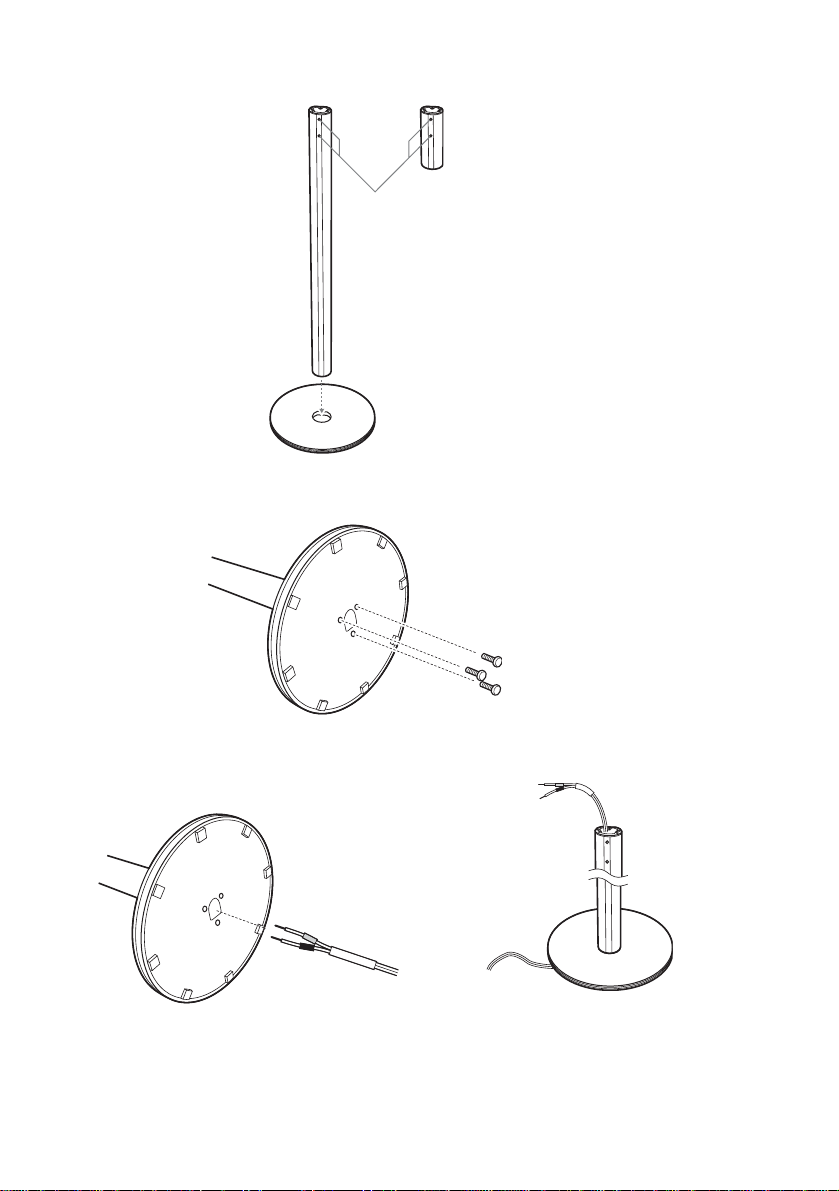

• Posts (long ×4, short ×4) (DAV-DZ500KF
only)
• Bases (4) (DAV-DZ500KF only)

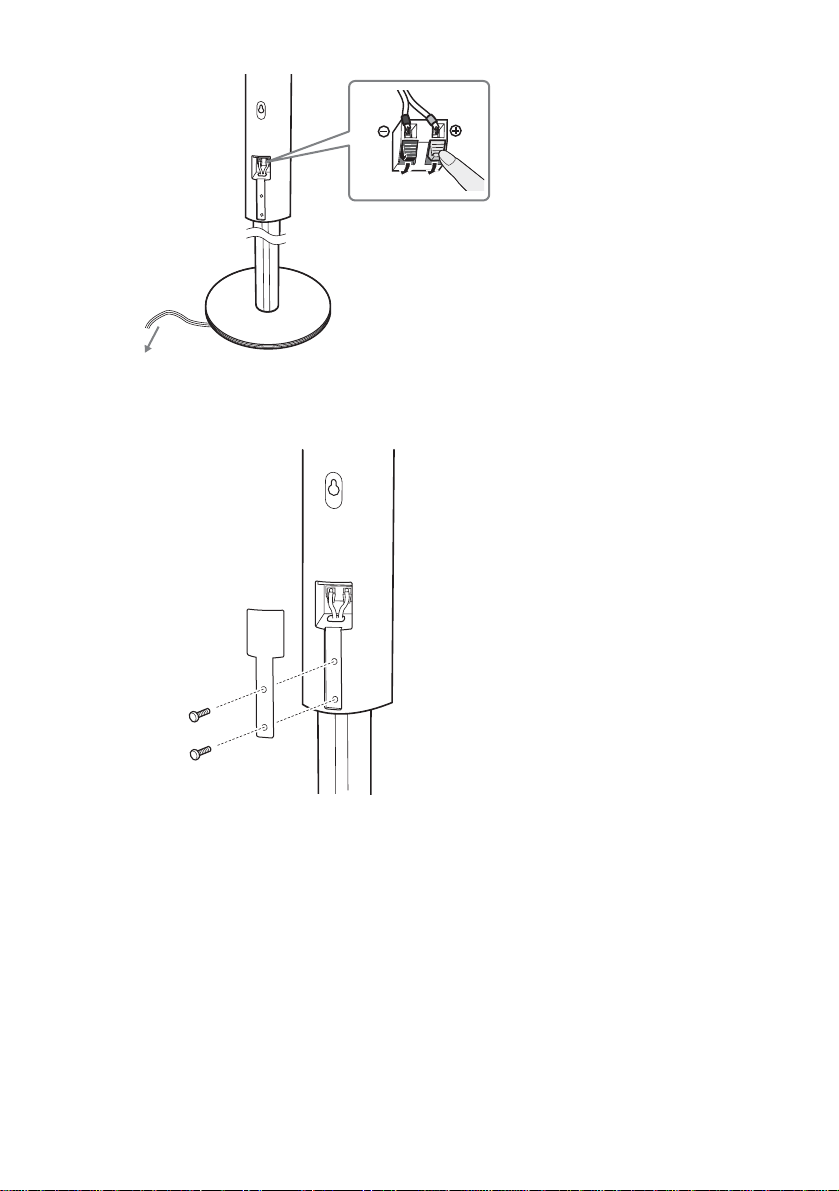

• Terminal covers (4) (DAV-DZ500KF only)
• Screws (20) (DAV-DZ500KF only)
• AM loop antenna (aerial) (1)
• FM wire antenna (aerial) (1)
• Speaker cords (5 m ×4, 15 m ×2)
(16.5 ft. ×4, 49.5 ft. ×2)
• Video Cord (1)
• Remote Commander (remote) (1)
• Size AAA (R03) batteries (2)
• Wall-mount pads (DAV-DZ500KF only)
• Foot pads* (DAV-DZ100K only)
• Operating Instructions
• Speaker and TV connections (card) (1)
• Microphone (1)
• DVD KARAOKE disc (1)
• KARAOKE PROGRAM LIST (1)
* To prevent speaker vibration or movement while
listening, attach the supplied foot pads to the bottom
face of the speakers.
You can control the system using the supplied
remote. Insert two size AAA (R03) batteries by
matching the 3and #ends on the batteries to
the markings inside the compartment. When
using the remote, point it at the remote sensor
on the system.
• Do not leave the remote in an extremely hot or humid
place.
• Do not use a new battery with an old one.
• Do not drop any foreign object into the remote casing,
particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from
the sun or lighting apparatus. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an extended
period of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
Getting Started
Unpacking
Inserting Batteries into
the Remote
Note
1Slide open the cover.
2Remove the
cover by pinching
the sides.
2

14GB
Perform all connections and settings by following Steps 1 to 7.
“Step 1: Speaker System Hookup” (page 15)
“Step 2: Antenna (Aerial) Hookup” (page 24)
“Step 3: TV Hookup” (page 25)
“Step 4: Other Component Hookup” (page 29)
“Step 5: Connecting the AC Power Cord (Mains Lead)” (page 30)
“Step 6: Turning off the Demonstration” (page 30)
“Step 7: Performing the Quick Setup” (page 31)
Video signal is sent to the TV, and is output from the TV screen; audio signals are processed by this
system and output from the speakers of this system. You can also enjoy sound of other sources, such
as TV programs, in addition to DVDs or CDs.
Hookup Overview

Getting Started
15GB
Connect the supplied speaker system using the supplied speaker cords by matching the colors of the
jacks to those of the cords. Do not connect any speakers other than those supplied with this system.
To obtain the best possible surround sound, specify the speaker parameters (distance, level, etc.) on
page 83.
Required cords
Speaker cords
The connector and the color tube of the speaker cords are the same color as the label of the jacks to be
connected.
Attaching the speaker stand to the speaker
(DAV-DZ500KF only)
Before connecting the speakers, attach the speaker stand to the speaker.
• Spread a cloth on the floor to avoid damaging the floor.
• You can use the speaker without the speaker stand by installing it on the wall (page 22).
Step 1: Speaker System Hookup
Note
Tip
(+)
(–)
Color tube Black
Gray
(–)
(+)
continued

16GB
1Insert the post into the base.
The long post is for floor use, the short post is for tabletop use.
2Secure the base to the post by screws.
3Draw the speaker cord through the hole on the base, then stand it up.
Post (long) Post (short)
Screw holes
Base
or
Screws (3)
Bottom of the base
Speaker cord
Bottom of the
base
,

Getting Started
17GB
4Draw the speaker cord through the hole on the speaker.
5Mount the speaker on the post.
• Do not catch the speaker cord between the speaker and the post.
• Do not drop the speaker when mounting.
Note
Speaker cord
Speaker ,
Hole
Speaker
,
continued

18GB
6Connect the speaker cord to the speaker, then adjust the length of the speaker cord.
7Attach the terminal cover to the speaker by screws.
Adjust the length of the speaker cord.
Screws (2)
Terminal cover

Getting Started
19GB
Connecting the speakers
DAV-DZ100K
SPEAKER
COAXIAL
FM75
Y
P B /C B P R /C R
AM
S VIDEO
AUDIO IN VIDEO IN
RL
VIDEO
(DVD ONLY)
DVD ONLY
MONITOR OUT
COMPONENT VIDEO OUT
VIDEO
FRONT R FRONT L SURR R SURR L CENTER WOOFER
Center speaker
Front speaker (L)
Subwoofer Surround speaker (L)
Front speaker (R)
Color label
Color label
Surround speaker (R)
continued

20GB
DAV-DZ500KF
• Do not set the speakers in an inclined position.
Note
SPEAKER
COAXIAL
FM75
Y
P B /C B P R /C R
AM
S VIDEO
AUDIO IN VIDEO IN
RL
VIDEO
(DVD ONLY)
DVD ONLY
MONITOR OUT
COMPONENT VIDEO OUT
VIDEO
FRONT R FRONT L SURR R SURR L CENTER WOOFER
Front speaker (R)
Center speaker
Front speaker (L)
Surround speaker (R) Subwoofer Surround speaker (L)
Rear side of the front
speaker Rear side of the front
speaker
Rear side of
thesurround
speaker
Rear side of
thesurround
speaker
