1
Refrigerant
This refrigerator contains ammable refrigerant (R600a:
isobutane) and insulation blowing gas (cyclopentane).
Observe the following rules to prevent ignition and
explosion.
■Do not damage the refrigeration system, such as
using sharp objects in the freezer. Or cause the
refrigerant to leak.
■Do not use mechanical devices or other means to
accelerate the defrosting process.
■Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
■Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
■Do not use ammable sprays, such as spray paint
near the refrigerator.
■In the case of failure of the refrigeration system, do
not touch the wall socket and use open ames.
Open the window and air out the room. Then ask a
service agent approved by SHARP for service
Power cord, Plug, Socket
Read carefully the following rules to prevent electric
shock or re.
■Make sure to protect the power cord from being
damaged during installation or moving. If the power
plug or cord is loose, do not insert the power plug.
■Do not place multiple portable socket-outlets or
portablepower supplies at the rear of the refrigerator.
■Connect the power plug into the wall socket rmly and
directly. Do not use an extension cord or adapter plug.
■Connect the power plug to the socket with the required
rated voltage.
■Connect the earth pin to the earth terminal properly.
■Do not touch the power plug with wet hands.
■Disconnect from the main electricity supply by
removing the main plug from the socket.
Do not remove by pulling the power cord.
■Dust deposited on the power plug may cause re.
Wipe it off carefully.
■Pull out the plug if the refrigerator is not used for a
long time.
■If the exible supply cord is damaged, it must be
replaced by service agent approved by SHARP in
order to avoid a hazard.
Installation
■Do not install the refrigerator in a damp or wet
location. It may cause the damage to the insulation
or electrical leak. Dew may also appear on the outer
cabinet and it causes rust.
■The refrigerator should be installed atly and rmly on
the oor.
In use
■Do not store explosive substances such as aerosol
cans with a ammable propellant in this appliance.
■Do not store temperature-sensitive products such as
pharmaceutical products in the refrigerator.
There are high risks of changes in product quality .
■Do not attempt to change or modify this refrigerator.
This may result in re, electric shock or injury.
■Do not place bottled drinks and cans in the freezer
compartment.
■Do not place any object on the top of refrigerator.
If the object falls down from the top, it may cause
injury.
■This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
■Children should be supervised to ensure that they do
not play with the appliance.
Safety information
WARNING This means that there are high risks of death or serious injury.
CAUTION This means that there are high risks of material damage or personal injury.
CAUTION Fire marks means this refrigerator has risk of re accident.
WARNING
Household use only
Thank you very much for buying this SHARP product. Before using your SHARP
refrigerator, please read this operation manual to ensure that you gain the
maximum benet from it.
• This refrigerator is intended for making ice cubes, refrigerating and freezing food.
• This refrigerator is for household use only, with ambient temperature indicated
in the table. The climate class is specied on the rating plate. If the refrigerator
operates out of range (ambient temperature range) of the climate class which
is rated for that model, it may not be able to maintain satisfactory internal
temperatures. If the refrigerator is used at colder temperatures, the refrigerator
will not be damaged up to a temperature of +5°C.
• The refrigerator should not be subjected to temperatures of -10°C or below for a
long period of time.
Climate
class
Acceptable range of
ambient temperature
SN +10°C to 32°C
N +16°C to 32°C
ST +16°C to 38°C
T+16°C to 43°C
01_TINS-C131CBRZ_EN.indd 101_TINS-C131CBRZ_EN.indd 1 31/1/2566 BE 14:3531/1/2566 BE 14:35
2
ENGLISH
Disposal
■Ensure that the refrigerator presents no danger to
children while being stored until disposal. (e.g. remove
the magnetic door seals to prevent child entrapment.)
■This refrigerator should be disposed appropriately.
Take the refrigerator to a professional recycling plant
for ammable refrigerant and insulation blowing
gases.
Transportation
■When you install or move your refrigerator, use curing
mat to protect the oor from being damaged.
■Carry the refrigerator securely.
If you lift up the refrigerator improperly, it may cause
injury.
CAUTION
In use
■Do not touch the compressor unit or its peripheral
parts, as they become extremely hot during operation
and the metal edges may cause injury.
■Do not touch foods or metal containers in the freezer
compartment with wet hands. This may cause
frostbite.
■Do not use other than potable water to make ice
cubes
■Do not place bottled drinks and cans in the freezer
compartment.
■Do not open or close the door when somebody put
a hand near the door. There is a risk that the other
people may catch their ngers in the door.
■Do not put oversized object in the pockets of the door.
If the object falls down from the pockets, it may cause
injury.
■Make sure to handle the glass shelves with care to
install or uninstall. If you drop the glass shelves, it
may break or cause injury.
Trouble
■If you smell something burning, pull out the power
plug immediately. Then ask a service agent approved
by SHARP for service.
■In case of gas leak, ventilate the area by opening
window. Do not touch the refrigerator or the power
socket.
Care and Cleaning
■Unplug the refrigerator rst to prevent electric shock.
■Do not splash water directly on the outer cabinet or
the interior. This may lead to rusting and deterioration
of the electrical insulation.
■ Do not use the doors to carry the refrigerator.
■Make sure to contact the authorized service center
before you install or move the refrigerator.
01_TINS-C131CBRZ_EN.indd 201_TINS-C131CBRZ_EN.indd 2 31/1/2566 BE 14:3531/1/2566 BE 14:35
3
Installation Free standing type

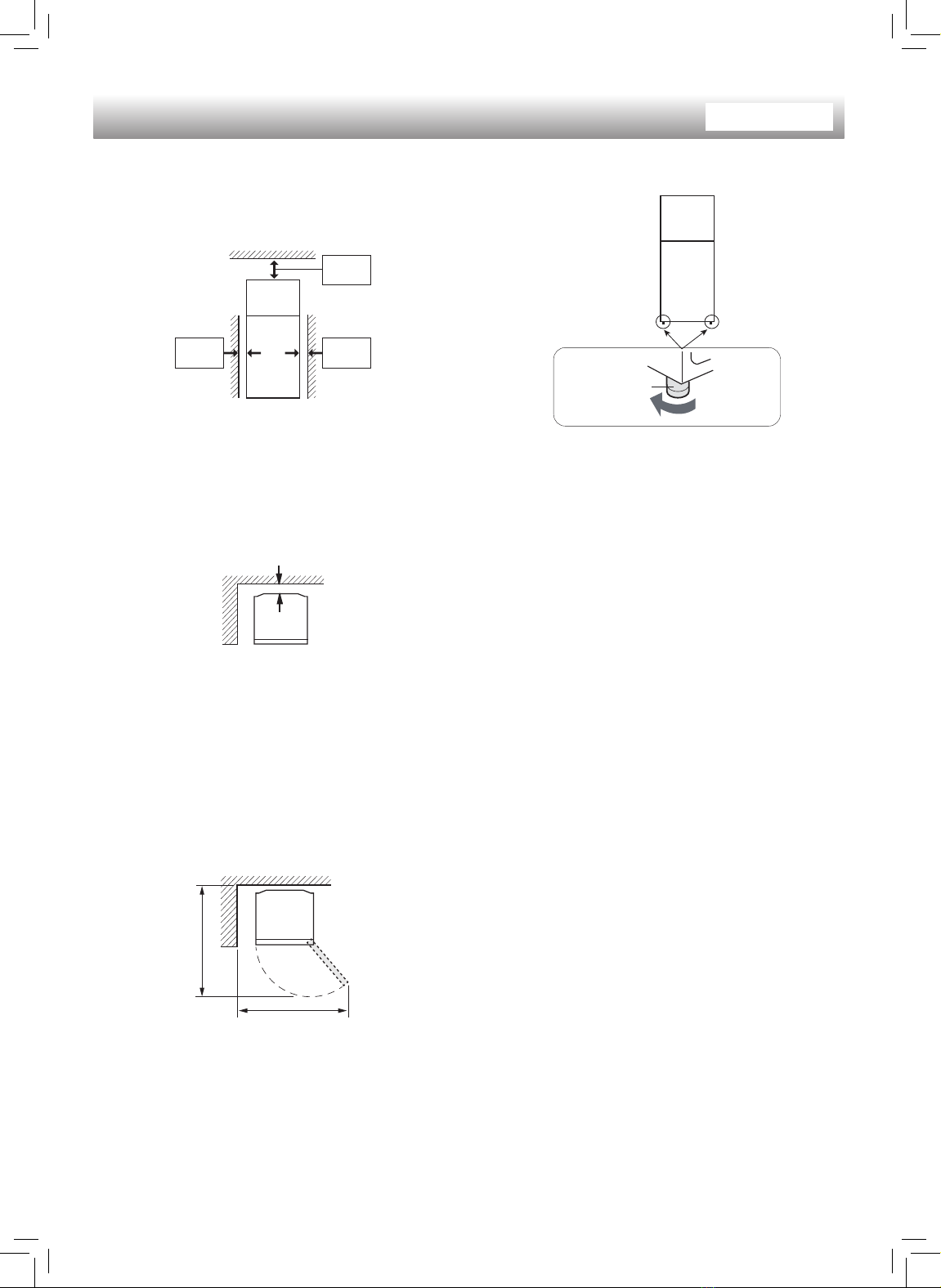

1 Keep adequate ventilation space around the
refrigerator.
The picture shows the minimum required space for
installing the refrigerator. The measurement condition
of energy consumption is conducted under a different
space dimension.
2 Use the adjustable foot to place the refrigerator
atly and rmly on the oor.
Before using your refrigerator
• Clean the inside parts with a cloth soaked in warm
water.
If soapy water is used, wipe it off thoroughly
with water.
• Remove packing materials (cushion and blue tapes etc.).
Rear clearance
The space between the rear of the refrigerator and the
wall should be 50mm or more, and less than 75mm. If
the space is wider than 75mm, you may get injured by
touching compressor and its peripheral parts which are
extremely hot during the operation.
Note
• By keeping greater space, the refrigerator may consume
a less amount of power consumption.
• If use the refrigerator in the smaller space dimension
than gured, it may cause temperature rise in the unit,
loud noise and failure.
• Do not push the refrigerator against the wall. The wall
surrounding the refrigerator may get dirty or discolored
because of the air ow caused by heat radiation.
Note
• Place your refrigerator to access the plug.
• Keep your refrigerator out of direct sunlight and do not
place next to heat generating appliance.
• Do not use shipping materials as a stand.
Place the refrigerator on a hard oor, not directly
on the earthen oor.
In the case of placing the refrigerator on the earthen
oor, use an appropriate base such as a wooden board
under the refrigerator.
Overall space required in use
60mm
or more 60mm
or more
90mm
or more
Adjustable
foot
1113mm
980mm
Recommendations
This appliance is intended to be used in household and
similar applications such as
• Staff kitchen areas in shops, ofces and other working
environments;
• Farm houses and by clients in hotels, motels and other
residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.
01_TINS-C131CBRZ_EN.indd 301_TINS-C131CBRZ_EN.indd 3 31/1/2566 BE 14:3531/1/2566 BE 14:35
4
ENGLISH

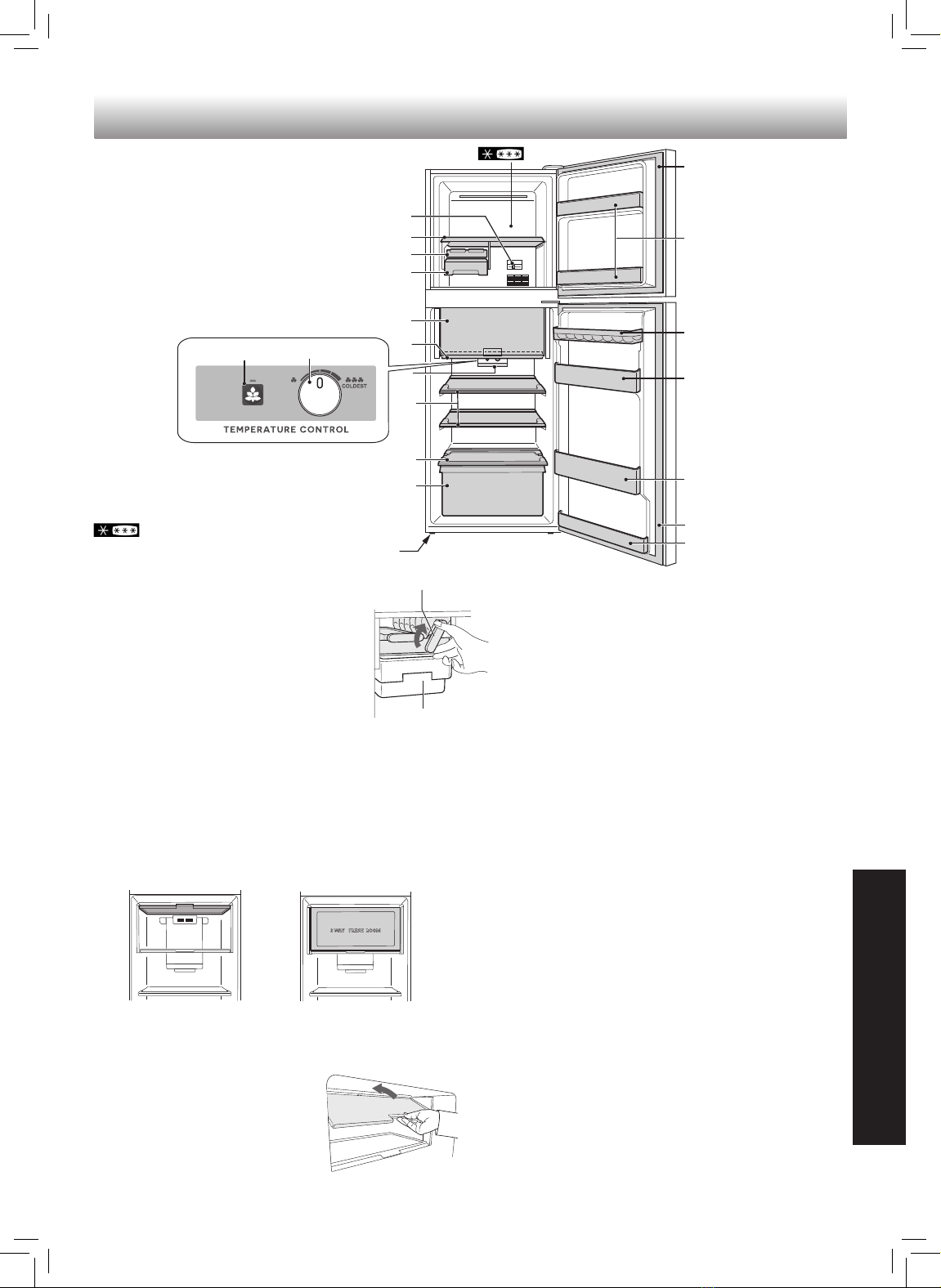

Description
1. Temperature control lever
2. Freezer shelf
3. Ice cube maker
1) Do not overfill this tray with water.
Otherwise the ice cubes will join
together when frozen.
2) When ice cubes are made, turn the
lever clockwise to put the ice into
the ice cube box.
4. Ice cube box
Note
To prevent the ice cube box from being damaged,
do not pour oil into the box or make ice in it.
5. Two-way fresh room door
6. Fresh shelf
7. Energy saving button
8. Temperature control knob
9. LED light
10. Refrigerator shelf
11. Vegetable shelf
12. Vegetable case
13. Adjustable foot
14. Magnetic door seal
15. Freezer door pocket
16. Egg pocket
17. Refrigerator door pocket
18. Bottle pocket
19. Utility pocket
Deodorizing unit
Deodorizing catalyst is installed on the routes of cold
air. There is no need to operate and clean.
If you wish to store large items within
your refrigerator
• You may remove any shelves or any pockets
numbered 2,3,4,6,10,11,12,15,16,17,18,19
in the picture above.
• Energy consumption of this model is measured
without the ice cube maker and the ice cube box
in accordance with the international standards.
15
5
10
11
12
6
13
1
2
3
4
14
16
18
14
19
17
78
9
Lever
Ice cube box
Open
Use the space as
refrigerator room.
Use the space as
fresh room.
Close
How to open Two-way fresh room door
1) Lift up the door.
2) Insert the door into the frame
and push it back to the stopper.
It is locked properly.
4 Star Freezer
01_TINS-C131CBRZ_EN.indd 401_TINS-C131CBRZ_EN.indd 4 31/1/2566 BE 14:3531/1/2566 BE 14:35
5

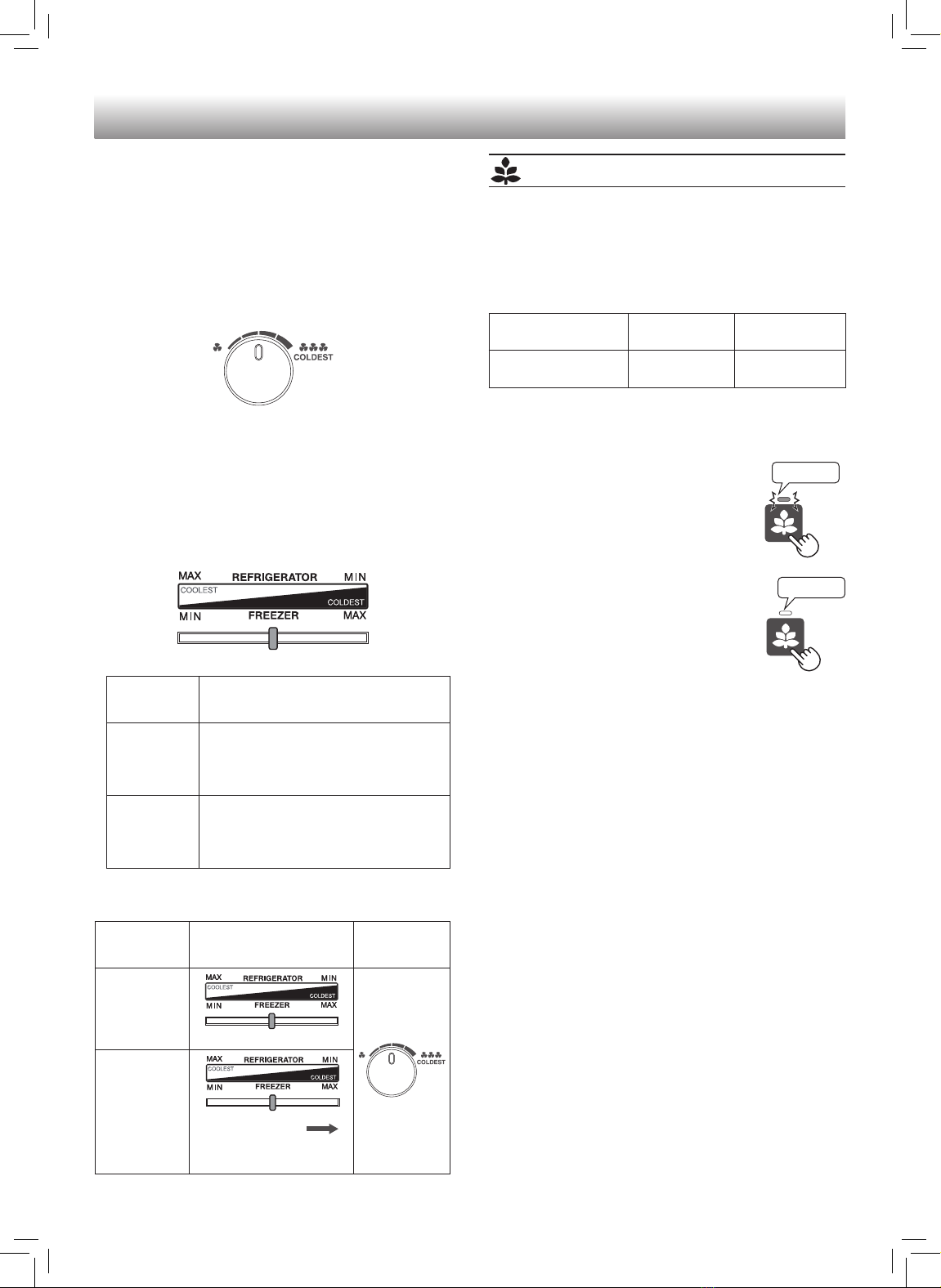

Controlling temperature
Note
• The efficiency of power saving depends on the
usage environment (controlling temperature,
ambient temperature, frequency of opening or
closing the door, amount of food).
How to start the operation
Press “Energy saving” button.
How to cancel the operation
Press “Energy saving” button again.
Temp. control lever Temp.
control knob
Normal
TEMP. CONTROL
In winter
(Colder than
10°C)
TEMP. CONTROL
• Set to the right.
• Do not set to left side.
Position of
the lever Condition
Left
• Cold air ows into the
refrigerator compartment more.
• The refrigerator compartment is
cooled well.
Right
• Cold air ows into the freezer
compartment more.
• The freezer compartment is
cooled well.
Recommended temperature settings are
shown below.
Lighting
Turn off
Temp. control knob
(in the refrigerator compartment)
The default setting of this knob is shown in below
picture.This knob is for adjusting the cooling
strength of the refrigeration system according to
the temperature in the refrigerator compartment.
When the knob is turned to “COLDEST” side,
both compartments (refrigerator compartment
and freezer compartment) are cooled well.
Use this mode when you want to switch the
refrigerator to energy-saving operation.
While this mode is operating, the inside
temperature of the refrigerator and freezer
compartment becomes higher than the normal
operation as follows.
Temp. control lever
(in the freezer compartment)
Set the lever to the center for normal use.
This lever is to open or close the air passage to
the refrigerator compartment.
When the lever is slide to “COLDEST” side, only
the freezer compartment is cooled well.
Freezer
compartment
Refrigerator
compartment
Under “Energy
saving” mode
Approx.
3°C plus
Approx.
4°C plus
Cancel this mode when you feel the beverages
are no cooled enough or ice making takes
longer time.
Energy saving
TEMP. CONTROL
01_TINS-C131CBRZ_EN.indd 501_TINS-C131CBRZ_EN.indd 5 31/1/2566 BE 14:3531/1/2566 BE 14:35
6
ENGLISH
• Ensure that the food is of the freshest possible quality to maximize the storage life of perishable food. The following
is a general guide to help promote longer food storage.
• Food has a limited storage life. Make sure not to exceed use-by date indicated by manufacturer.
Tips for saving energy
Storing food
IN
OUT
Advice for preventing dew or
frost inside the refrigerator
• Keep the door securely closed. If the food falls down,
it may cause a gap between the cabinet and the door.
Move it back to the shelf or the pocket.
• Food with high-moisture should be stored in airtight
container or sealed tightly.
Advice for storing food
• Evenly place the food on the shelves to allow the
cooling air to circulate ef ciently.
• Opening the door for long periods can cause
a signicant increase of the temperature in the
compartments of the appliance.
• Hot foods should be cooled before storing. Storing hot
foods increases the temperature in the unit and the
risk of food spoilage.
• Do not block the outlet and inlet of the cool air
circulating circuit with foods or containers; otherwise
the foods is not be evenly cooled throughout the
refrigerator.
• Do not place food directly in front of cold air outlet.
This may lead to the food freezing.air to circulate
efciently.
Fruit / Vegetables
Fruit and vegetables should be loosely enclosed in a
plastic material e.g. wrap, bags (do not seal) and placed
in the vegetable case to minimize moisture loss.
Dairy Products & Eggs
• Most dairy products have their best-before date on
the outer packaging which informs the recommended
temperature and shelf life of the foods.
• Eggs should be stored in the Egg pocket.
Meats / Fish / Poultry
• Place on a plate or a dish and cover with paper or
plastic wrap.
• For larger cuts of meat, sh, or poultry, place to the
rear of the shelves.
• Ensure all cooked food is wrapped securely or placed
in an airtight container.
For best freezing
• Quality of foods should be fresh.
• Freeze small quantities of food at a time in order to
freeze them quickly.
• Food should be properly sealed or covered tightly.
• Place foods in the freezer evenly.
• Label bags or containers to keep an inventory of
freezing food.
*Notes for fresh food
- Fresh food (securely wrapped) should be stored
in limited time to prevent spoilage and badly
affecting other stored foods.
■Install the refrigerator in a well-ventilated area and
keep the space to ventilate.
■The amount of energy consumption of this model is
measured as shown in the picture below.
■Keep your refrigerator out of direct sunlight, and do
not place it next to heat generating appliance.
■Avoid opening the door as much as possible.
■Hot foods should be cooled before storing.
■Place the food evenly on the shelves to allow the
cool air to circulate efciently.
90mm
300mm 300mm
50mm Do not place food on shaded area.
This may lead to the food freezing.
Do not place food directly in
front of cold air outlet.
This may lead to the food
freezing.
01_TINS-C131CBRZ_EN.indd 601_TINS-C131CBRZ_EN.indd 6 31/1/2566 BE 14:3531/1/2566 BE 14:35
7
Care and cleaning
Important
Follow the tips below to prevent cracks on the
inner surfaces and plastic components
• Wipe out food oil adhered to plastic parts.
• Some household chemicals may cause damage, so
use only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not
wiped off thoroughly, it may result in cracks of plastic
parts.
Cleaning
For hygienic reasons, make sure to do following
things regularly.
■ Remove the accessories (e.g. shelves) from the
cabinet and the door. Wash them by warm soapy
dishwashing water. After that, rinse them in clean
water and dry.
■ Clean the inside with a cloth soaked in warm soapy
dishwashing water. Then, use cold water to wipe off
soapy water thoroughly.
■ Wipe the exterior with a soft cloth each time it gets
dirty.
■ Clean the Magnetic door seal with a toothbrush and
warm soapy dishwashing water.
Defrosting
Defrosting is automatically operated by a unique energy
saving system.
When the compartment
light is blown
Contact the service agent approved by SHARP to
replace the light. The light is not to be replaced other
than by qualied service personnel.
Switching off your refrigerator
If the refrigerator needs to be switched off for an
extended period, the following steps should be taken to
reduce the growth of mold:
1. Remove all food.
2. Remove the power plug from the socket.
3. Clean and dry the interior thoroughly.
4. Keep all the doors open slightly for a few days to dry.
Note
• After cleaning, make sure to put the shelves and the
cases on original position.
• Do not use heavy-duty cleansers or solvents (lacquer,
paint, polishing powder, benzine, boiled water, etc.)
which may cause damages.
• If you pull out the power plug once, wait 5 minutes at
least before connecting the power plug again.
• The glass shelves are heavy to carry. Hold them rmly
when you remove the shelves from the cabinet.
• Do not drop objects inside the refrigerator or strike the
inner wall. This may cause cracks to inner surface.
01_TINS-C131CBRZ_EN.indd 701_TINS-C131CBRZ_EN.indd 7 31/1/2566 BE 14:3531/1/2566 BE 14:35
8
ENGLISH
Before you call for service
Before calling for service, check the following points.
Problem Solution
The outside of the cabinet is
hot when touched.
It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator
noise.
It is normal for the refrigerator to make the following sounds.
• Loud noise is made by the compressor when its operation starts
-- Sound becomes quieter after a while.
• The compressor makes loud noise once a day.
-- Operating sound is made immediately after automatic defrost operation.
• Sound of owing uid (gurgling sound, zzing sound)
-- Sound of refrigerant owing in pipes (sound may become louder from time to time).
• Cracking or crunching sound, squeaking sound
-- Sound produced by expansion and contraction of inner walls and internal parts
during cooling.
Frost or dew appears inside
or outside the refrigerator.
This may occur in one of the following cases. Use a wet cloth for wiping frost and a
dry cloth for wiping dew.
• When the ambient humidity is high.
• When the door is frequently opened and closed.
• When foods containing plenty of moisture are stored. (Wrapping is required.)
The foods in the refrigerator
compartment freeze.
• Is the refrigerator operated for a long time with the temp. control knob set COLDEST?
-- Change the temperature control to the other setting.
• If ambient temperature is low, foods may freeze even if the the temp. control knob is
set leftmost position.
Odors in the compartment. • Wrapping is required for the foods with strong odors.
• Deodorizing unit cannot remove all odors.
The refrigerator door is hard
to open.
The refrigerator door may become hard to open right after closing the freezer door,
because the air temperature and the pressure inside the refrigerator compartment
go down.
Please wait for approximately 10-15 seconds to open the refrigerator door.
If you still require service
Refer to your nearest service agent approved by SHARP.
01_TINS-C131CBRZ_EN.indd 801_TINS-C131CBRZ_EN.indd 8 31/1/2566 BE 14:3531/1/2566 BE 14:35
9
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
SN
N
ST
T
02_TINS-C131CBRZ_TH new.indd 902_TINS-C131CBRZ_TH new.indd 9 1/2/2566 BE 15:311/2/2566 BE 15:31
10
ไทย
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
02_TINS-C131CBRZ_TH new.indd 1002_TINS-C131CBRZ_TH new.indd 10 1/2/2566 BE 15:311/2/2566 BE 15:31
11
1
2
02_TINS-C131CBRZ_TH new.indd 1102_TINS-C131CBRZ_TH new.indd 11 1/2/2566 BE 15:311/2/2566 BE 15:31
12
ไทย
15
5
10
11
12
6
13
1
2
3
4
14
16
18
14
19
17
78
9
02_TINS-C131CBRZ_TH new.indd 1202_TINS-C131CBRZ_TH new.indd 12 1/2/2566 BE 15:311/2/2566 BE 15:31
13

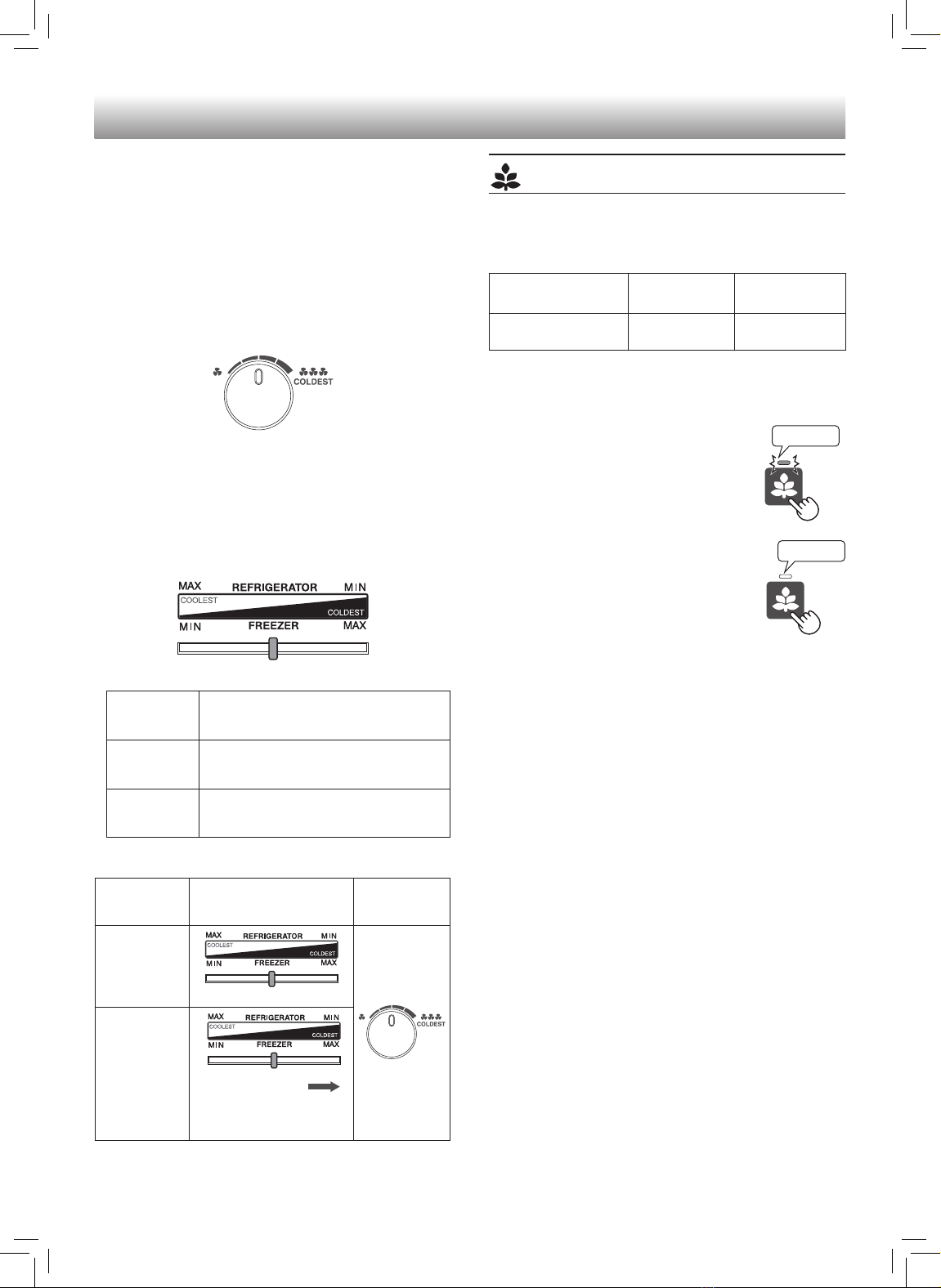

TEMP. CONTROL
TEMP. CONTROL
TEMP. CONTROL
02_TINS-C131CBRZ_TH new.indd 1302_TINS-C131CBRZ_TH new.indd 13 1/2/2566 BE 15:311/2/2566 BE 15:31
14
ไทย
* หมายเหุำาหับกาเก็บอาหาด
■
■
■
■
■
■
02_TINS-C131CBRZ_TH new.indd 1402_TINS-C131CBRZ_TH new.indd 14 1/2/2566 BE 15:311/2/2566 BE 15:31
15
■
■
■
■
02_TINS-C131CBRZ_TH new.indd 1502_TINS-C131CBRZ_TH new.indd 15 1/2/2566 BE 15:311/2/2566 BE 15:31
16
ไทย
02_TINS-C131CBRZ_TH new.indd 1602_TINS-C131CBRZ_TH new.indd 16 1/2/2566 BE 15:311/2/2566 BE 15:31
17
Specication
SHARP Refrigerator and Freezer Automatic Defrosting 4 Star Freezer
MODEL SJ-XP230T SJ-XP260T
Rate Voltage (V~) 220
Rate Frequency (Hz) 50
Number of Phase Single Phase
Power Input (W) 150
Flammable Insulation Blowing Gas CYCLO PENTANE (NON CFC 100%)
Refrigerant R-600a
Mass of the Refrigerant (g) 42
Actual total volume (L/cu.ft.) 224 / 7.9 253 / 8.9
Dimension (mm)
Width 545 545
Depth 586 586
Height 1560 1700
NOTE
Specication and equipment are subject to change without any obligation on the part of
the manufacture with today’s progressive manufacturing.
02_TINS-C131CBRZ_TH new.indd 1702_TINS-C131CBRZ_TH new.indd 17 1/2/2566 BE 15:311/2/2566 BE 15:31
02_TINS-C131CBRZ_TH new.indd 1802_TINS-C131CBRZ_TH new.indd 18 1/2/2566 BE 15:311/2/2566 BE 15:31
TH
TINS-C131CBRZ 22LFhttps://www.th.sharp 1
02_TINS-C131CBRZ_TH new.indd 1902_TINS-C131CBRZ_TH new.indd 19 2/2/2566 BE 10:552/2/2566 BE 10:55
This manual suits for next models
1
Table of contents
Languages:
