Sony SWF-BR100 User manual

SERVICE MANUAL
Sony Corporation
Published by Sony Techno Create Corporation
SWF-BR100
WIRELESS SUBWOOFER
9-893-941-02
2014D33-1
© 2014.04
US Model
Canadian Model
AEP Model
UK Model
Australian Model
Chinese Model
Mexican Model
Chilean Model
New Zealand Model
Hong Kong Model
Taiwan Model
Ver. 1.1 2014.04
• All of the units included in the SWF-BR100 (wire-
less transceiver: UWT-BR100, Audio cable), and
the TV corresponding to SWF-BR100 are required
to confirming operation of SWF-BR100.
Check in advance that you have all of the units.
Refer to the operating instructions of the SWF-
BR100 or operating instructions of the TV corre-
sponding to SWF-BR100 for the operation method.
SPECIFICATIONS
Wireless Subwoofer
(SWF-BR100)
Amplier section
For U.S.A model:
(FTC)
With 4 ohms load, subwoofer
channel driven, from 30 - 150 Hz;
rated 45 W per channel minimum
RMS power, with no more than 1%
total harmonic distortion from 250
milliwatts to rated output.
POWER OUTPUT (reference)
100 W (per channel at 4 ohms,
100 Hz)
For except US model:
POWER OUTPUT (rated)
70 W (4 ohms, 100 Hz, 1% THD)
(Except Chinese model)
70 W (4 ohms, 100 Hz)
(Chinese model)
POWER OUTPUT (reference)
100 W (4 ohms, 100 Hz)
(Except Chinese model)
Speaker System
Subwoofer, sealed enclosure
Speaker Unit
200 mm cone type
Rated impedance
4 ohms
Power requirements
120 V AC, 60 Hz
(US, Canadian and Mexican models)
220V - 240V AC, 50/60 Hz
(UK and Hong Kong models)
240V AC, 50/60 Hz
(Australian and New Zealand models)
220V AC, 50/60 Hz (Chinese model)
110V AC, 50/60 Hz (Taiwan model)
120V - 240V AC, 50/60 Hz (other models)
Power consumption
On: 30W
Standby mode: 0.5W or less
Dimensions (approx.) (w/h/d)
272 mm x 306 mm x 395 mm
10 3/4 in x 12 1/8 in x 15 5/8 in
Mass (approx.)
12.2kg
26 lb 14 3/10 oz
Wireless Transceiver
(UWT-BR100)
Communication system
Wireless Sound Specication
version 3.0
Frequency band
5GHz band
(5.180/5.200/5.210/5.240GHz,
5.736/5.762/5.814GHz)
The frequency bands to use are
dierent by country.
Modulation method
DSSS
Power requirement
5V DC
Power consumption
500 mA
Dimensions (approx.)
19 mm x 27 mm x 91 mm
3/4 in x 1 1/8 in x 3 5/8 in
(w/h/d)
Mass (approx.)
25g
7/8oz
Supplied accessories
Audio cable (1)
Design and specications are
subject to change without notice.

SWF-BR100
2
NOTES ON CHIP COMPONENT REPLACEMENT
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 V AC range are suitable. (See
Fig. A)
1.5 kΩ0.15 μF
AC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC-
TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE
PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON-
NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
1. SERVICING NOTES ............................................. 3
2. DISASSEMBLY
2-1. Disassembly Flow........................................................... 5
2-2. Panel (Cover) .................................................................. 5
2-3. Bottom Plate Block......................................................... 6
2-4. Loudspeaker (20 cm) (SP100) ........................................ 7
2-5. AMP Block ..................................................................... 8
2-6. How to Install the AMP Block........................................ 9
2-7. LED Board...................................................................... 10
2-8. Fuse (H.B.C.) (F900) ...................................................... 11
2-9. RF Modulator (RF100) ................................................... 12
2-10. MAIN Board ................................................................... 13
2-11. Power Cord (AC1) .......................................................... 13
2-12. POWER Board................................................................ 13
3. DIAGRAMS
3-1. Block Diagram................................................................ 14
3-2. Printed Wiring Board - LED Board -.............................. 15
3-3. Schematic Diagram - LED Board -................................. 15
3-4. Printed Wiring Board - MAIN Board (Side A) - ............ 16
3-5. Printed Wiring Board - MAIN Board (Side B) - ............ 17
3-6. Schematic Diagram - MAIN Board (1/2) -..................... 18
3-7. Schematic Diagram - MAIN Board (2/2) -..................... 19
3-8. Printed Wiring Board - POWER Board -........................ 20
3-9. Schematic Diagram - POWER Board - .......................... 21
4. EXPLODED VIEWS
4-1. Bottom Section ............................................................... 28
4-2. Panel Section................................................................... 29
4-3. Module Section ............................................................... 30
4-4. Board Section.................................................................. 31
5. ELECTRICAL PARTS LIST .............................. 32
Accessories are given in the last of the electrical parts list.
TABLE OF CONTENTS

SWF-BR100
3
SECTION 1
SERVICING NOTES
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
ADVANCE PREPARATION WHEN CONFIRMING OP-
ERATION
All of the units included in the SWF-BR100 (wireless transceiver:
UWT-BR100, Audio cable), and the TV corresponding to SWF-
BR100 are required to confirming operation of SWF-BR100.
Check in advance that you have all of the units.
Refer to the operating instructions of the SWF-BR100 or operat-
ing instructions of the TV corresponding to SWF-BR100 for the
operation method.
NOTE OF PERFORMING THE OPERATION CHECK IN
THE STATE THAT HEAT SINK WAS REMOVED
When performing the operation check in the state that this unit was
disassembled, it is possible to perform the operation check in the
state that heat sink was removed. But don’t perform the operation
check in the long time, and perform the operation check in the
volume state as low as possible.
NOTE OF REPLACING THE IC104 ON THE MAIN
BOARD AND THE COMPLETE MAIN BOARD
When IC104 on the MAIN board and the complete MAIN board
are replaced, it is necessary to spread the compound (G747) be-
tween the MAIN board and the heat sink.
Spread the compound (G747) referring to the figure below.
– MAIN Board (Side A) –
IC104
compound (G747)
CAPACITOR ELECTRICAL DISCHARGE PROCESSING
When checking the board, for the electric shock prevention, con-
nect the resistors to both ends of respective capacitor (C936) to
discharge the capacitor (C936).
C936
– POWER Board (Conductor Side) –
800 :/2 W

SWF-BR100
4
MODEL IDENTIFICATION
Distinguish by model number label stuck on the rear side of a main unit.
Note: The printed contents of following figure model number label may be different from the model number label of a main unit.
Part No. Destination
4-530-052-0[] UC2 US, Canadian models (White only)
4-530-053-0[] UCM US, Canadian and Mexican models (for White)
4-530-054-0[] GE3 AEP and Chilean models (White only)
4-530-056-0[] AZ1 Australian and New Zealand models
4-530-057-0[] GE2 UK and Hong Kong models
4-530-059-0[] CN8 Chinese model
4-530-060-0[] TW6 Taiwan model
4-535-821-0[] UCM US, Canadian and Mexican models (for Black)
4-542-391-0[] GE3 AEP, Russian and Chilean models (for White)
4-542-392-0[] GE3 AEP, Russian and Chilean models (for Black)
– Rear view –
MODEL NUMBER LABEL
Part No.
Ver. 1.1

SWF-BR100
5
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. PANEL (COVER)
SET
2-2. PANEL (COVER)
(Page 5)
2-5. AMP BLOCK
(Page 8)
2-6. HOW TO INSTALL THE AMP BLOCK
(Page 9)
2-3. BOTTOM PLATE BLOCK
(Page 6)
2-4. LOUDSPEAKER (20 cm) (SP100)
(Page 7)
2-7. LED BOARD
(Page 10)
2-8. FUSE (H.B.C.) (F900)
(Page 11)
2-9. RF MODULATOR (RF100)
(Page 12)
2-11. POWER CORD (AC1)
(Page 13)
2-10. MAIN BOARD
(Page 13)
2-12. POWER BOARD
(Page 13)
• JIG
When disassembling the unit, use the following jig (for speaker
removal).
Part No. Description
J-2501-238-A JIG FOR SPEAKER REMOVAL
1three screws
(BVTP3 u8) 1three screws
(BVTP3 u8)
hole
hole
boss
boss
– bottom view –
Note 2: Please spread a sheet under a unit
not to injure top panel.
3oweUFoUG VettiQJ
slotpower cord (AC1)
2panel (cover)
Note 1: When installing the panel (cover),
align two bosses and two holes.

SWF-BR100
6
2-3. BOTTOM PLATE BLOCK
2two screws
(BVTP4 u20)
2two screws
(BVTP4 u20)
2two screws
(BVTP4 u20)
3two bosses
3boss
1two cushions (foot)
1two cushions (foot)
3boss
hole
hole
two holes
– bottom view – Note 2: Please spread a sheet under a unit
not to injure top panel.
6bottom plate block
Note 1: When installing the bottom plate block,
align four bosses and four holes.
4Draw out the power cord from
hole of bottom plate block.
5bushing (XL)
Note 3: Before beginning assembly,
if the bushings (XL) have been
removed from the bottom plate,
be sure to reattach the bushings
(XL) to the bottom plate.
5bushing (XL)
Note 3: Before beginning assembly,
if the bushings (XL) have been
removed from the bottom plate,
be sure to reattach the bushings
(XL) to the bottom plate.

SWF-BR100
7
2-4. LOUDSPEAKER (20 cm) (SP100)
1eight screws
(BVTP4 u20)
4loudspeaker (20 cm)
(SP100)
3terminal
(narrow side)
3terminal
(wide side)
2Remove the loudspeaker (20 cm) (SP100)
in the direction of the arrow.
– bottom view –
Note: Please spread a sheet under a unit
not to injure top panel.
+ow to iQVtDOO tKe OoXGVSeDNeU Fm63
loudspeaker (20 cm)
(SP100)
terminal position

SWF-BR100
8
2-5. AMP BLOCK
:LUHVHWWLQJ
Fold the cushion.
1cushion
2connector
(CN106)
3Remove the AMP block in
the direction of the arrow.
4connector
(CN105)
–ERWWRPYLHZ–
Note 2: Please spread a sheet under a unit
not to injure top panel.
5AMP block
Note 1: When installing the AMP block, refer to
“ 2-6. HOW TO INSTALL THE AMP BLOCK ”
on page 9.

SWF-BR100
9
2-6. HOW TO INSTALL THE AMP BLOCK
Note 4: Follow the assembly procedure in the numerical order given.
4
1connector (CN105)
AMP block
AMP block
AMP block
speaker
cabinet
bushing (XL)
bushing (XL)
– bottom view –
Note 1: Please spread a sheet under a unit
not to injure top panel.
2Pull the wire from the LED
board out the rear side.
– sectional view –
3Pull the speaker cable
toward the speaker.
speaker
cable
Note 2: While using your finger to hold the speaker cable
so that it does not get pushed under the amp block,
insert the amp block.
Note 3: When installing the amp block, be careful not crush
the bushings (XL) in the speaker cabinet with
the shafts.
shaft
shaft
CN106
5Insert the wire from the LED board into CN106.

SWF-BR100
10
2-7. LED BOARD
1Insert the jig into the space and slowly
remove the panel (back) block.
Note 1: When using a jig, please work
so as not to injure panel (back)
block and speaker cabinet.
2 All bosses are removed while moving
jig in the direction of the arrow, and
panel (back) block is removed.
2 All bosses are removed while moving
jig in the direction of the arrow, and
panel (back) block is removed.
4 two screws
(BVTP 2.6)
6 connector (CN801)
7 LED board
5 panel (back) block
– bottom view –
total six bosses
1Insert the jig into the space and slowly
remove the panel (back) block.
Note 1: When using a jig, please work
so as not to injure panel (back)
block and speaker cabinet.
Note 2: Please spread a sheet under a unit
not to injure top panel.
3Draw out the wire from
hole of speaker cabinet.

SWF-BR100
11
2-8. FUSE (H.B.C.) (F900)
hole
hole
rib
rib
1six screws
(BVTP3 u8) 1six screws
(BVTP3 u8)
3fuse (H.B.C.)
(F900)
2case (top)
Note: When installing the case (top),
align two ribs and two holes.

SWF-BR100
12
2-9. RF MODULATOR (RF100)
2screw
(BVTP3 u8)
1connector
(CN108)
4three claws
4two claws
7RF modulator
(RF100)
2screw
(BVTP3 u8)
6housing (bottom)
5housing (top) block
3flexible flat cable (FFC1)
RF modulator block
Terminal face is
below side.
flexible flat cable (FFC1)
:LUHVHWWLQJ
Note: When installing the flexible flat
cable, ensure that the colored line
is not slanted after insertion.
flexible flat cable
colored line
connector

SWF-BR100
SWF-BR100
1313
2-10. MAIN BOARD
2two screws
(BVTP3 u10)
5pillar
5pillar
4screw
(BVTP3 u8)
4screw
(BVTP3 u8)
4two screws
(BVTP3 u8)
3heat sink (AMP)
6MAIN board
1connector
(CN104)
5pillar
4screw
(BVTP3 u8)
4screw
(BVTP3 u8)
2-12. POWER BOARD
2-11. POWER CORD (AC1)
+RZWRLQVWDOOWKHFRUGEXVKLQJ)%6
power cord
(AC1)
cord bushing
(FBS001)
claw
to POWER board
2cord bushing
(FBS001)
3power cord
(AC1)
1connector
(CN900)
80 ± 5 mm
2four screws (BVTP3 u8)
3POWER boar
d
1connector (CN104)
Note: When the complete MAIN board is replaced, refer to “NOTE OF
REPLACING THE IC104 ON THE MAIN BOARD AND THE
COMPLETE MAIN BOARD” on page 3.

SWF-BR100
SWF-BR100
1414
SECTION 3
DIAGRAMS

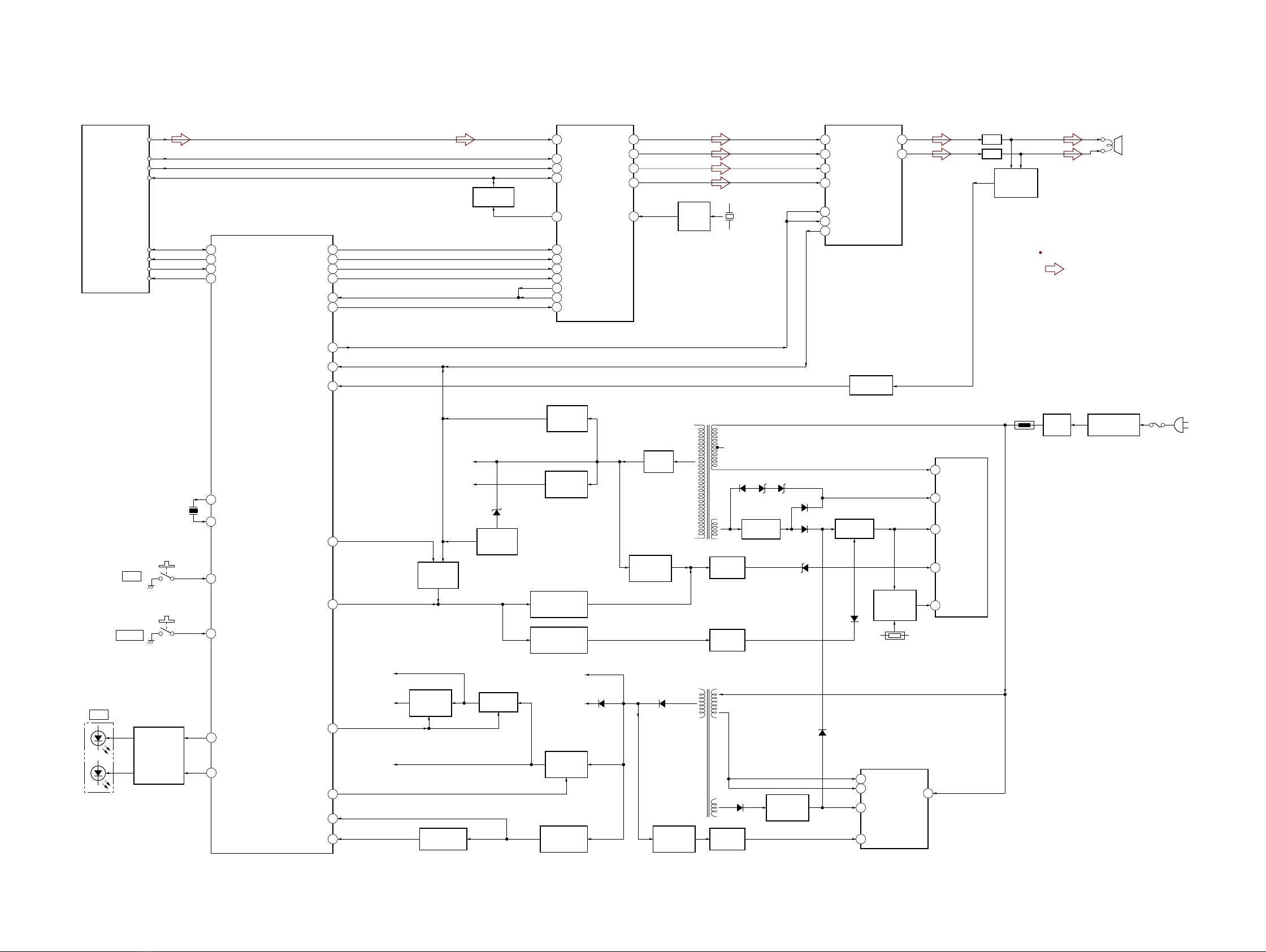

3-1. BLOCK DIAGRAM
X101
49.152MHz
CLOCK
BUFFER
IC107
OVER LOAD
DETECT
Q106
L.P.F.
L.P.F.
POWER AMP
IC104
DC DETECT
Q105
PWM_B
6PWM_A
8
PWM_D
16 PWM_C
18
: AUDIO
STREAM PROCESSOR
IC105
31 DATA
30 BCK
29 LRCK
21 SCDT
22 SCSHIFT
23 SCLATCH
27 INIT
FLAGL
19 SOFTMUTE
OUTL1 11
OUTL2 9
OUTR1 6
OUTR2 4
XFSOIN 48
24 FLAGR
25
OUT_D
OUT_C 31
28
/SD
5
/RESET_AB
7
/RESET_CD
17
36 XFSIIN
14 XFSOOUT
PRESCALER
IC103
S801
I/1
POWER
DETECT
Q104
D111
PCON1 (3.3V) 26
SYSTEM CONTROLLER
IC111
WS_SDA75
WS_SCL
76
WS_GPIO2 (INT)
69
WS_RESET
70
DRIVER_RST(EN) 38
DRIVER_SD 65
DAMP_SCDT 33
DAMP_SHIFT 35
DAMP_LATCH 42
DAMP_INIT 40
DAMP_OVF 41
DAMP_SMUTE 43
DC_DET 18
PVDD_SD_EN 64
PCON_PVDD 37
KEY_PW
72
KEY_PAIR73
13
11
X100
8MHz
XIN
XOUT
57 LED_RED
56 LED_GREEN
LED DRIVE
Q109, 111
S802
SECURE
SHUNT
REGULATOR
IC950
AC1
(AC IN)
F900
TH900
D911
RECT
D900
POWER CONTROL
IC910
T901
SUB POWER
TRANSFORMER
DRAIN8
DRAIN
7
ISOLATOR
PC901
ISOLATOR
PC902
VCC
2
FB4
1
POWER CONTROL
IC920
D
T902
MAIN POWER
TRANSFORMER
D924
D928
D925, 926
OVER LOAD
PROTECT
Q921, 922
4VCC
7OCP/BD
5OLP/SS
TH920
RECT
D940
D902
6FB
REGULATOR
Q923
D950
POWER ON/OFF
CONTROL
Q960
ISOLATOR
PC903
POWER VOLTAGE
CONTROL
Q961, 962
+3.3V
REGULATOR
IC108
RF +3.3V
AUDIO +3.3V
+1.8V
REGULATOR
IC106
AUDIO +1.8V
RESET SWITCH
Q102
!RESET! 10
AC_CUT 17
VCC +3.3V
VDD
RESET SIGNAL
GENERATOR
IC101
PCON2 (1.8V) 25
+12V
REGULATOR
IC109
+12V
32V
D112
D901
D929 D930 D931
SHUNT
REGULATOR
IC940
POWER
DETECT
Q108
SHUT DOWN
SWITCH
Q103
REGULATOR
Q920
B+ SWITCH
Q901
B+ SWITCH
Q110, 112
SIGNAL PATH
SP100
D801
(GRN)
(RED)
I/1
RF100
RF MODULATOR
(WS001)
WS_DATA_W
WS_BCK_W
WS_LRCK_W
256fs_MCLK
WS_SDA
WS_SCLK
WS_INT (GPIO)
WS_RST (PU)
START_UP 5
LINE FILTER
LF901, LF902

SWF-BR100
SWF-BR100
1515
For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ωand 1/4 W or less unless otherwise
specified.
• f: Internal component.
• 2: Nonflammable resistor.
• 5: Fusible resistor.
• C: Panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• A: B+ Line.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : POWER ON
• Voltages are taken with VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F: AUDIO
For Printed Wiring Boards.
Note:
• X: Parts extracted from the component side.
• Y: Parts extracted from the conductor side.
• f: Internal component.
• : Pattern from the side which enables seeing.
(The other layers’ patterns are not indicated.)
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
Note: When the complete MAIN board is replaced, refer to
“NOTE OF REPLACING THE IC104 ON THE MAIN
BOARD AND THE COMPLETE MAIN BOARD” on
page 3.
Note: When the complete MAIN board is replaced, refer to
“NOTE OF REPLACING THE IC104 ON THE MAIN
BOARD AND THE COMPLETE MAIN BOARD” on
page 3.
• Indication of transistor.
C
B
These are omitted.
E
Q
CEB
These are omitted.
Caution:
Pattern face side:
(SIDE B)
Parts face side:
(SIDE A)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
The components identified by mark 0
or dotted line with mark 0are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une marque
0sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifié.
3-2. PRINTED WIRING BOARD - LED Board - • : Uses unleaded solder.
15
K
KA A
R800
R801
CN801
C801 C802
S801
S802
D801
CL800
CL801
CL802
CL803
CL804 CL805
CL806
CL807
CL808
CL809
LED BOARD (SIDE A) LED BOARD (SIDE B)
1-889-753-
11
(11)
1-889-753-
11
(11)
MAIN BOARD
CN106
A
B
C
1 2 3
/
/
SECURE
WR1
A
D801
K
AK
(RED)
(GRN)
S801, 802
>01P
3-3. SCHEMATIC DIAGRAM - LED Board -
0.1
C802
0.1
C801
CL802
CL808
CL801
CL806
CL805
CL809
CL804
CL800
CL803
CL807
5P
CN801
KEY_POWER 1
KEY_PAIR 2
GND 3
4LED(G)
5LED(R)
CL-165HR/HG5-D-T
D801
R801
680
R800
220
S801
(RED)
(GRN)
S802
SECURE
LED BOARD
12
B
3
A
4
C
WR1
BOARD
(1/2)
>01S
MAIN
CN106
(Page 18)
(Page 16)

SWF-BR100
SWF-BR100
1616
3-4. PRINTED WIRING BOARD - MAIN Board (Side A) - • : Uses unleaded solder.
1
8
9
1
1
5
2
26
1
25
3
1
4
5
5
1
4
3
1
75
25
51
26
50
100
76
1
4
2
3
12
43
1
5
1
3
6
4
7
44
23
1
22
1
1
13
64
12
36
25 24 13
37 48
8
14
3
1
3
1
4
6
4
64
3
6
1
1
4
R210
R214
R215
R216
R217
R219
R221
R222
R223
R224
R225
R226
R227
R230
R231
R232 R233
R234
R235 R236
C200
C203
C205
R242
R243
R246
R247
R248
R249
R250
R252
R257
R258
R259
CL113
CL116
CL119
CL121
CL123
CL124
CL125
CL126
CL129
CL130
CL131
CL132
CL134
CL135
CL136
CL137
CL138
CL139
CL140
CL142
CL143
CL145
Q102
CL146
CL147
Q103
Q104
CL149
Q105
Q106
SL100
Q108
SL101
Q109
Q111
CL150
CL151
CL152
RB102
CL153
RB103
CL154
Q110
CL155
CL156
Q112
CL157
CL158
CL159
L102
L103
CL160
CL162 CL161
CL163
CL164
CL165
CL166
SL122
CL170 CL173
CL171
CL172
CL174
FB100
FB101
FB102
R103 R104
R105
R107
R109
R110
R111
R112
R113
R115
R117
R118
R119
CN102
R120
CN104
R121
CN105
CN106
R124
CN108
R125
R126
R127
R130
C101
C102
C103
C104
C105
C106
C107
C108
C109
R146
R147
R148
R149
X100
C110
X101
C114
C115
R151
C116
R152
R153
R154
C118
C119
R158
R159
R160
C122
C125
C126
C127
R164
R165
C129
R167
C130
C131
C132
C133
C134
C135
R171
C136
R172
C137
R173
R174
C138
R175
C139
R176
R177
R178
R179
C140
C141
R180
JL128 R181
R182
R183
C148
R184
R185
C149
R186
R187
R188
JL130
JL131
JL132
JL133
JL134
JL135
C152
JL136
C153
JL137
C154
JL138
R190
R191
JL139
C155 C156
R192
R193
C157
R194
C158
R195
R196
R197
R198
JL141
R199
JL143
C160
D101
JL145
C161
C162
JL146
C163
C164
C165
C166
C167
C170
D111
C172
D112
JL157
ET100
C174
C175
C177
C178
C179
IC101
IC103
C184
IC104
IC105
C185
IC106
C186
C187
IC107
C188
IC108
IC109
C189
C191
IC111
C194
C195
C196
C197
C198
C199 R200
R202 R203
R205
R206
R208
R209
MAIN BOARD (SIDE A)
E
AK
AK
K
A
E
E
EE
1-889-752-
11
(11)
(CHASSIS)
POWER BOARD
CN901
LED
BOARD
CN801
WR2
X100
(NC)
WR1
RF100
RF MODULATOR
(WS001)
SP100
WR3
A
B
C
1 2 3 4 5 6 7 8 9 10
D
EFFC1
>01P
>02P
Note: When the IC104 on the MAIN board is replaced, refer to
“NOTE OF REPLACING THE IC104 ON THE MAIN
BOARD AND THE COMPLETE MAIN BOARD” on page 3.
(Page 15)
(Page 20)

SWF-BR100
SWF-BR100
1717
3-5. PRINTED WIRING BOARD - MAIN Board (Side B) - • : Uses unleaded solder.
CL100
CL101
CL102
CL103
CL104
CL105
CL106
CL107
CL108
CL109
CL110
CL111
CL112
CL114
CL115
CL117 CL122
CL128
CL133
CL141
CL144
CL148
CL168 CL169
CL175
CL176
CL177
CL178
CL179
CL180
CL181
CL182
CL183
CL185
CL186
CL187
JL104
JL105
JL106
JL107
JL108
JL109 JL110
JL111
JL112
JL113
JL114
JL115
JL116
JL117
JL118
JL119
JL120 JL121
JL122
JL123
JL124
JL125
JL126
JL127
JL129
JL140
JL142
JL144
JL147
JL148
JL150
JL151
JL152
JL153
JL154
JL155
JL156
JL158
JL159
JL160
JL161
JL171 JL172
JL173
JL174
MAIN BOARD (SIDE B)
1-889-752-
11
(11)
A
B
C
D
1 2 3 4 5 6 7 8 9

SWF-BR100
SWF-BR100
1818
3-6. SCHEMATIC DIAGRAM - MAIN Board (1/2) - • See page 22 for Waveforms. • See page 22 for IC Block Diagrams. • See page 26 for IC Pin Function Description.
3.5
2.1
3.5
03.5
4.1 0
0.1 4.1
4.1 0
4.1
4.1
0
4.1
0
3.5
3.5
3.3
3.5
0

3.5
0.5
3.5
0.5
0
0
0
0
3.5

1.8
0 2
3.5 3.5 3.5
3.2
0
3.5
3.5
3.2 3.5 0 3.4 2.9 0 3.5 3.5 3 3.5 3.5 3.5
1
0.1
C103
0.1
C107
0.022
C114
0.01
C108
0.1
C101
0.01
C105
0.1
C110
0.1
C116
0.22
C106
0.1
C104
0.1
C102
C154
470p
C163
470p
C164
470p
C153
470p
16V
100
C178
16V
100
C115
6.3V
1000
C203
C170
1000
6.3V
6.3V
C200
470
CL140
CL166
CL119
CL115
CL109
CL106
CL100
CL105
CL102
CL103
CL107
CL122
CL121
CL101
CL165
CL164
CL112
CL163
CL117
CL 111
CL114
CL139
CL138
CL124
CL128
CL136
CL176
CL135
CL170
CL132
CL174
CL131
CL171
CL130
CL113
CL129
CL173
CL134
CL133
CL172
CL175
CL177
CL178
CL179
CL180
CL181
CL182
CL110
CL183
CL168 CL169
CL123
CL108
CL137
5P
CN106
KEY_POWER 1
KEY_PAIR 2
GND 3
4LED(G)
5LED(R)
9P
CN102
D-GND 1
TXD1 2
RTS1 3
3.3V 4
CLK1 5
RXD1 6
CNVSS 7
RESET 8
D-GND 9
26P
CN108
1VDD3.3V
2GND
3
256fs_MCLK
4NC --> GND
5NC
6NC
7
PU(TX)/PD(RX)(GPIO)
8
WS_INT(GPIO)
9NC
10NC
11GND
12GND
13Debug
14
NC(IRQ)
15NC --> 3.3V
16NC(Open)-->3.3V
17
WS_RST(PU)
18WS_SCLK
19WS_SDA
20
WS_DATA_Z(Open)
21
WS_DATA_X(Open)
22WS_LRCK_W
23GND
24WS_BCK_W
25WS_DATA_Y(Open)
26WS_DATA_W
DA2J10100L
D101
CRH02(T5R,SONY,XM)
D111
FB102
FB100
PST8435UL
IC101
1
GND
2
VDD
3CD
4OUT
JL144
JL114
JL120
JL121
JL150
JL 111
JL106
JL116
JL108
JL104
JL148
JL110
JL122
JL125
JL126
JL117
JL109
JL155
JL154
JL129
JL119
JL174
JL173
JL172
JL171
JL118
JL107
JL112
JL113
JL115
JL124
JL123
JL105
RN1902
Q109
1
2
34
5
6
RN2902
Q111
1
2
34
5
6
R5F3650ECDFB
IC 111
1
-
2
-
3
-
4
-
5
-
28
SDA2
29
SDA1
30
SCL1
71
!INT5!
72
KEY_PW
73
KEY_PAIR
74
-
75
WS_SDA
96
VREF
97
AVC C
98
SIN4
99
SOUT4
100
(JIG)
26
PCON1(3.3V)
27
SCL2
6
BYTE
7
CNVSS
8
-
9
-
10
!RESET!
11
XOUT
12
VSS
31
CLK1
32
!RTS1!
33
DAMP_SCDT
34
-
35
DAMP_SHIFT
36
-
37
PCON_PVDD
66
!INT6!
67
WS_F_DET(82)
68
WS_DET(82)
69
WS_GPIO2(INT)
70
WS_RESET
64
PVDD_SD_EN
65
DRIVER_SD
91
MODEL
92 -
93
-
94
AVSS
95
-
89
!KI1!
90
DEST
13
XIN
14
VCC3.3V
15
CEC
16
-
17
AC_CUT
18
DC_DET
19
-
20
SCL5
21
-
22
SDA5
23
-
24
-
25
PCON2(1.8V)
38
DRIVER_RST(EN)
39
!HOLD!
40
DAMP_INIT
41
DAMP_OVF
42
DAMP_LATCH
43
DAMP_SMUTE
44
WR
45
MC_TXD7
46
MC_RXD7
47
MC_CLK7
48
MC_RTS7
49
-
50
-
52
-
53
-
54
-
55
-
56
LED_GREEN
57
LED_RED
58
-
59
-
60
VCC3.3V
61
-
62
VSS
63
-
51
-
77
-
78
!RTS6!
79
-
80
-
81
(WS_RF_FB)
82
-
83
-
84
-
85
-
86
-
87
-
88
!KI2!
76
WS_SCL
LSCR523UBFS8TL
Q102
100
RB102
1k
R164
10k
R121
R154 100
47k
R112
47k
R118
47k
R127
10k
R109
4.7k
R111
R130
10k
100k
R249
4.7k
R148
R227
0
R226
0
4.7k
R110
0R120
10k
R104
100k
R117
1k
R103
R125
100
R107
22k
R124
1M
R147 10k
R146 47k
R215
100
R214
100
47k
R126
R119
10k
100
R259
R149 100
R159
330
R160 220
R250 10k
R158
100
R252
10k
R153 100
100k
R258
10k
R113
1k
R105
8MHz
X100
CL185
CL186
CL187
JL158
JL159
JL160
JL161
CL126
CL125
100
R246
100
R247
100
R248
R152 100
R151 100
R210
0
R257 0
100k
R115
0.1
C109
1k
R242
RXD1
CNVSS
RESET
BCK
DATA
RESN
SCL
SDA
GPI02
LRCK
RTS1
TXD1
CLK1
DETECT
GPI02
TXD1
RXD1
CLK1
RTS1
RESN
SDA
256FS
DETECT
SCL
CNVSS RESET CL116
RESET SIGNAL GENERATOR
IC101
CL104
IC111
SYSTEM CONTROLLER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
17
(1/2)MAIN BOARD
RESET SWITCH
LED DRIVE
Q109, 111
RF100
MODULATOR
(WS001)
RF
FFC1
WR1
(NC)
10 11 12 13 14 15
G
H
I
F
1
C
J
D
6
E
K
2
B
3
A
45 789
BOARD
CN801
>01S
LED
>101S
BOARD
(2/2)
MAIN
(Page 15)
(Page 19)

SWF-BR100
SWF-BR100
1919
3-7. SCHEMATIC DIAGRAM - MAIN Board (2/2) - • See page 22 for Waveforms. • See page 22 for IC Block Diagrams.
1.7
3.2
3.5
0.7
0.5
1.7
3.2
3.2
3.5
3.2
3.2 3.5 1.6 1.6 1.2 3.2 1.7 1.6
1.5
3.2
3.2
1.6
1.6
3.2
1.6 3.2 3.2 1.6 1.6 1.6
3.4
0
0
0.6
3.2 1.5
1.5
1.6 3.2 1.6 1.6 1.6 3.2 3.2
1.6 3.2 1.7 1.6 1.6 3.2
3.2 1.7
3.5
32.2
0.9
11. 9
32.2
3.5

2.9
0
11. 9
2.9
1.6

1.6
1.1
3.2
3.2
11. 9
11. 9
1.6
1.6

0
0.6 0
11.9
27.3
32.2
16
32.2
32.2
32.2
32.2
32.2
16
27.3
27.1
16.1
16.1
27.1
11.9
3.3 4.1
3.5
0 3.2
3.3
2.5
2.9
0
0
15.9
0
15.9
15.9 15.9
2
3
6
4
5
C191
0.001
C196
0.001
0.01
C166
0.1
C130
0.1
C126
0.1
C127
0.1
C134
0.1
C137
C149
0.1 0.1
C148
0.1
C129
7p
C185 C184
7p
C172
2.2
C174
2.2
C140
2.2
C152
2.2
2.2
C165
2.2
C177
0.1
C135
0.1
C161
0.1
C186
0.1
C125
0.01
C122
1
C162
C205
0.1 1
C158
10
C155
10
C167
1
C179
0.1
C198
C118
0.1
0.1
C157
0.1
C197
35V
470
C160
35V
470
C156
16V
C141
100
16V
100
C199
50V
47
C195
16V
47
C119
35V
470
C139
16V
100
C175
35V
470
C138
CL158
CL152
CL155
CL145
CL149
CL153
CL162
CL160
CL147
CL151
CL141
CL143
CL156
CL142
CL144
CL157
CL154
CL146
CL161
CL148
CL150
CL159
4P
CN105
SW(–)1
SW(–)2
3 SW(+)
4 SW(+)
8P
CN104
32V1
232V
32V3
GND4
GND5
GND6
MAIN-ON7
E4V8
DZ2J056M0L
D112
E
ET100
FB101
IC108
S-1170B33UC-OTSTFG
1
EN
2
Vss
3
NC
4
VIN
5
VOUT
TC7SHU04FU
IC107
1
NC
23
GND
45
VCC
43
12
MM3411A18URE
IC106
1
CE
2
VSS
3
VOUT
4
VIN
141312111098
7654321
TC74LCX74FT(EKJ)
IC103
1/CLR
1D
1CLK
1/PRE
1Q
1/Q
GND2/Q
2Q 2/PRE 2CLK 2D 2/CLR VCC
44
38
39
40
41
42
43
7
6
5
4
3
2
1
37
36
35
34
33
32
8
9
10
11
28
29
30
31
17
16
15
14
13
12
27
26
25
24
2322
21
20
19
18
CXD9981TN
IC104
GVDD_B
/DTW
NC
NC
/SD
PWM_A
/RESET_AB
PWM_B
OC_ADJ
GND
AGND
VREG
M3
M2
M1
PWM_C
/RESET_CD
PWM_D
NC
NC
VDD
GVDD_C
GVDD_D
BST_D
NC
PVDD_D
PVDD_D
OUT_D
GND_D
GND_C
OUT_C
PVDD_C
BST_C
BST_B
PVDD_B
OUT_B
GND_B
GND_A
OUT_A
PVDD_A
PVDD_A
NC
BST_A
GVDD_A
12345678
9101112
13
14
15
16
17
18
19
20
21
22
23
24
25 26 27 28 29 30 31 32 33 34 35 36
37
38
39
40
41
42
43
44
45
46
47
48
CXD9843AR
IC105
XVSS
VSUBC
VSSR
OUTR2
VDDR
OUTR1
VSSR
VSSL
OUTL2
VDDL
OUTL1
VSSL
XOVSS
XFSOOUT
XOVDD
DVDD
DVSS
NSPMUTE
SOFTMUTE
PGMUTE
SCDT
SCSHIFT
SCLATCH
FLAGR
FLAGL SFLAG INIT MCKSEL LRCK BCK DATA BFVDD BFVSS TEST DVDD XFSIIN
FSOCKO
FSOI
HPOUTR2
HPVSSR
HPOUTR1
HPVDDR
HPOUTL2
HPVSSL
HPOUTL1
HPVDDL
XVDD
XFSOIN
12345
SI-3010KM-TLA
IC109
VCONT VIN GND VOUT SENSE
JL157
JL145
JL139
JL152
JL134
JL142
JL136
JL128
JL127
JL130
JL132
JL147
JL156
JL153
JL141
JL151
JL140
JL138
JL131
JL137 JL135
JL143
JL146
JL133
10uH
L103
10uH
L102
HN1A01FU
Q106
1
2
3
4
5
6
HN1C01FU
Q103
1
2
3
4
5
6
HN1C01FU
Q104
1
2
3
4
5
6
2SB1690KT146
Q110
LSCR523UBFS8TL
Q105
LTC014EUBFS8TL
Q108
LTC014EUBFS8TL
Q112
100
RB103
22
R217
R174
220k
R180
2.2k
100
R185
100
R188
10k
R171
0
R192
R182
100k
22k
R205
R208
0
33k
R186
0
R200
R203
100k
10k
R167
R233
10k
390
R221
0
R194
R235
470
R173
120
R181
100
10k
R165
R176
220
R183
220
100
R198
R179
220
R178
220
47k
R172
1.5k
R184
0
R195
0
R197
150
R206
10k
R225
100
R196
100
R193
R222
100
R202
100k
1M
R219
100k
R190
22k
R175
0
R230
1k
R224
10k
R223
100
R177
R236
470
SL101
SL122
49.152MHz
X101
10k
R232
100k
R231
R234
47k
1k
R243
C194
0.1
0.1
C133
R216
0
R209
0
0.1
C131
0.1
C132
0.1
C187
0.1
C188
0.1
C189
SL100
100
R191
4.7k
R187
C136
2.2
100k
R199
LRCK BCK DATA
256FS
+12V REGULATOR
IC109
IC108
+3.3V REGULATOR
IC106
+1.8V REGULATOR
IC103
PRESCALER
IC107
CLOCK BUFFER
IC105
STREAM PROCESSOR
IC104
POWER AMP
3
1
2
4
7
5
6
9
8
10
11
13
12
14
15
16
17
(2/2)MAIN BOARD
(CHASSIS)
WR2
SP100
OVER LOAD DETECT
DC DETECT
POWER DETECT
SWITCH
SHUT DOWN
Q110, 112
B+ SWITCH
POWER DETECT
10 11 12 13 14 15
G
16
H
I
F
1
C
J
D
6
E
K
2
B
3
A
45 789
>101S
BOARD
(1/2)
MAIN
BOARD
CN901
>02S
POWER
WR3
Note: When the IC104 on the MAIN board is replaced, refer to
“NOTE OF REPLACING THE IC104 ON THE MAIN
BOARD AND THE COMPLETE MAIN BOARD” on page 3.
(Page 21)
(Page 18)

SWF-BR100
SWF-BR100
2020
3-8. PRINTED WIRING BOARD - POWER Board - • : Uses unleaded solder.
+–
1
6
1
3
1342
1
1
3
4
7
5
56
110
4
2
5
7
3
1
8
14
3
4
3
3
4
4
1
2
1
1
2
2
1
3
9
D940
IC920
D950
JS903
JS904
JS905
F900
Q901
Q920
PC901
PC902
PC903
EB901 EB902
VDR900
R900
R911
R913
CN900
CN901
R921 R922
R923
FR910
R924
R926
C900
FH900 FH901
C904
TH900
A001
A002
C907
C911
C914
C917
C919
LF902
LINE FILTER
LF901
LINE FILTER
C921
C922
C924
C927
C936
C937
C940
C941
C951
JW902
JW903
JW904
JW905
JW907
JW908
JW909
D900
D901
JW910
JW913
JW914
JW915
JW917
JW918
D910
D911
JW920
D920
D924
T901
SUB POWER
TRANSFORMER
T902
MAIN POWER
TRANSFORMER
IC910
1
2
4
3
IC940
IC950
CL900
CL901
CL902
CL903
CL904
CL905
CL909
CL910
CL911
CL912
CL913 CL914
CL915
CL916
CL917
CL918
CL920
CL921
CL922
CL923
CL924
CL925
CL926
CL927
CL928
CL929
CL930
CL940
CL941
CL942
CL943
CL950
CL951
CL952
CL953
CL960
CL962
CL963
CL964
Q921
Q922
Q923
Q960
Q961
R901
Q962
R902R903
R904
R905
R910
R914
R915
R916
R920
R925
R927
R929
R930
R931
R932
R940
R941
R942
R943
R944R945
R946 R947
R949
R950 R951
C916
R953
R955 R956
R957
JL900
JL901
R959
JL902
JL903
JL904
JL905
JL906
JL908
R960
TH920
JL909
R961
C925
R962
R963
C928
C929
JL911
JL912
JL913
JL914
2
1
3
4
C930
JL915
C931
C932
JL917
JL919
C943
C944
C946
C947
C952
C953
C954
C960
D902
D912
D913
D914
D915
D916
D922 D923
D925
D926
D927
D928
D929
D930 D931
D932
4
1
5
8
POWER BOARD
A
A
A
K
K
K
K
K
KA
A
A
A
KKK
E
A
K
A
A
E
E
E
AK
E
E
AK
A
A
A
A
K
A
A
K
K
K
K
KA
KA
K
AK
1-889-754-
11
(11)
(CHASSIS)(CHASSIS)
MAIN
BOARD
CN104
CAM901
PATTERN
SPARK-GAP
AC1
(AC IN)
E
E
WR2
A
B
C
D
1 2 3 4 5 6 7 8
>02P
(Page 16)
