Sony SU-WL31 Instructions (SU-WL31 Wall-Mount... User manual

© 2005 Sony Corporation
2-636-628-12 (2)
SU-WL31
Wall-Mount Bracket
Instructions
Mode d’emploi
Instrucciones
Gebrauchsanweisung
Instructies
Istruzioni
GB
DE
ES
NL
IT
FR

2(GB)
On Safety
Products by Sony are designed with safety in mind.
If the products are used incorrectly, however, it may
result in a serious injury through fire, electric shock,
the product toppling over, or the product dropping. Be
sure to observe the precautions for safety to prevent
such accidents.
CAUTION
Specified products
The following products might be out of stock or discontinued.
Also, some models are not sold in some regions.
LCD Color TV KDL-V32A1s*KLV-V32A1s*
KDL-V32XBR1 KDL-V26A1s*
KLV-V26A1s*KDL-V26XBR1
KDL-S32A1s*KLV-S32A1s*
KDL-S26A1s*KLV-S26A1s*
KDL-S23A1s*KLV-S23A1s*
*In the actual model names, the “s” indicates numbers
and/or characters specific to each model.
This Wall-Mount Bracket is designed for use with the
specified products above.
For other TVs and monitors, refer to their operating
instructions to check if this Wall-Mount Bracket can be
used.
Some TVs and monitors are supplied with a leaflet
explaining how to install the Wall-Mount Bracket
(“Installing the Wall-Mount Bracket”).
Thank you for purchasing this product.
To US customers
Sufficient expertise is required for installing this
product. Be sure to subcontract the installation to
Sony dealers or licensed contractors and pay
special attention to safety during the installation.
Sony is not liable for any damages or injury caused
by mishandling or improper installation.
To customers in other areas
Sufficient expertise is required for installing this
product. Be sure to subcontract the installation to
Sony dealers or licensed contractors and pay
special attention to safety during the installation.
Sony is not liable for any damages or injury caused
by mishandling or improper installation. Your
Statutory Rights (if any) are not affected.
WARNING
If the safety precautions are not observed or the
product is used incorrectly, it may result in serious
injury or fire.
This instruction manual shows the correct handling of
the product and important precautions necessary to
prevent accidents. Be sure to read this manual
thoroughly and use the product correctly. Keep this
manual available for future reference.
To Sony dealers
Sufficient expertise is required for installing this
product. Be sure to read this instruction manual
thoroughly to do the installation work safely. Sony is
not liable for any damages or injury caused by
mishandling or improper installation. Please give this
manual to the customer after installation.

3(GB)

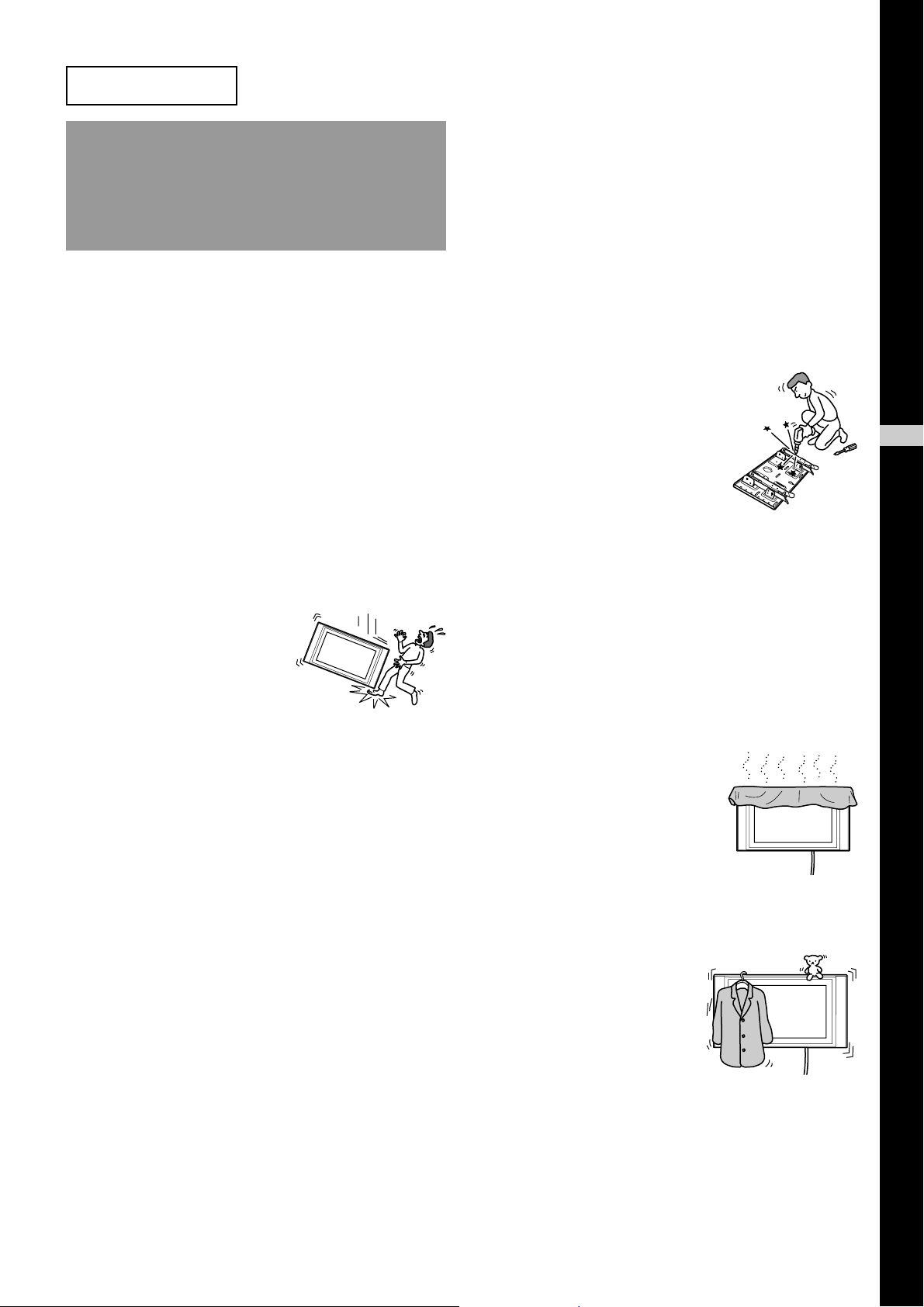

English
GB
To Customers
WARNING
If the following precautions are not observed,
serious injury or death through fire, electric
shock, the product toppling over, or the product
dropping can result.
Be sure to subcontract the
installation to licensed contractors
and keep small children away during
the installation.
If the Wall-Mount Bracket or the TV is not installed
correctly, the following accidents may occur. Be sure
licensed contractors carry out installation.
• The TV may fall and cause a serious injury such as a
bruise or a fracture.
•If the wall on which the Wall-Mount Bracket is
installed is unstable, uneven, or not perpendicular to
the floor, the unit may fall and cause injury or
property damage. The wall should be capable of
supporting a weight of at least four times the TV

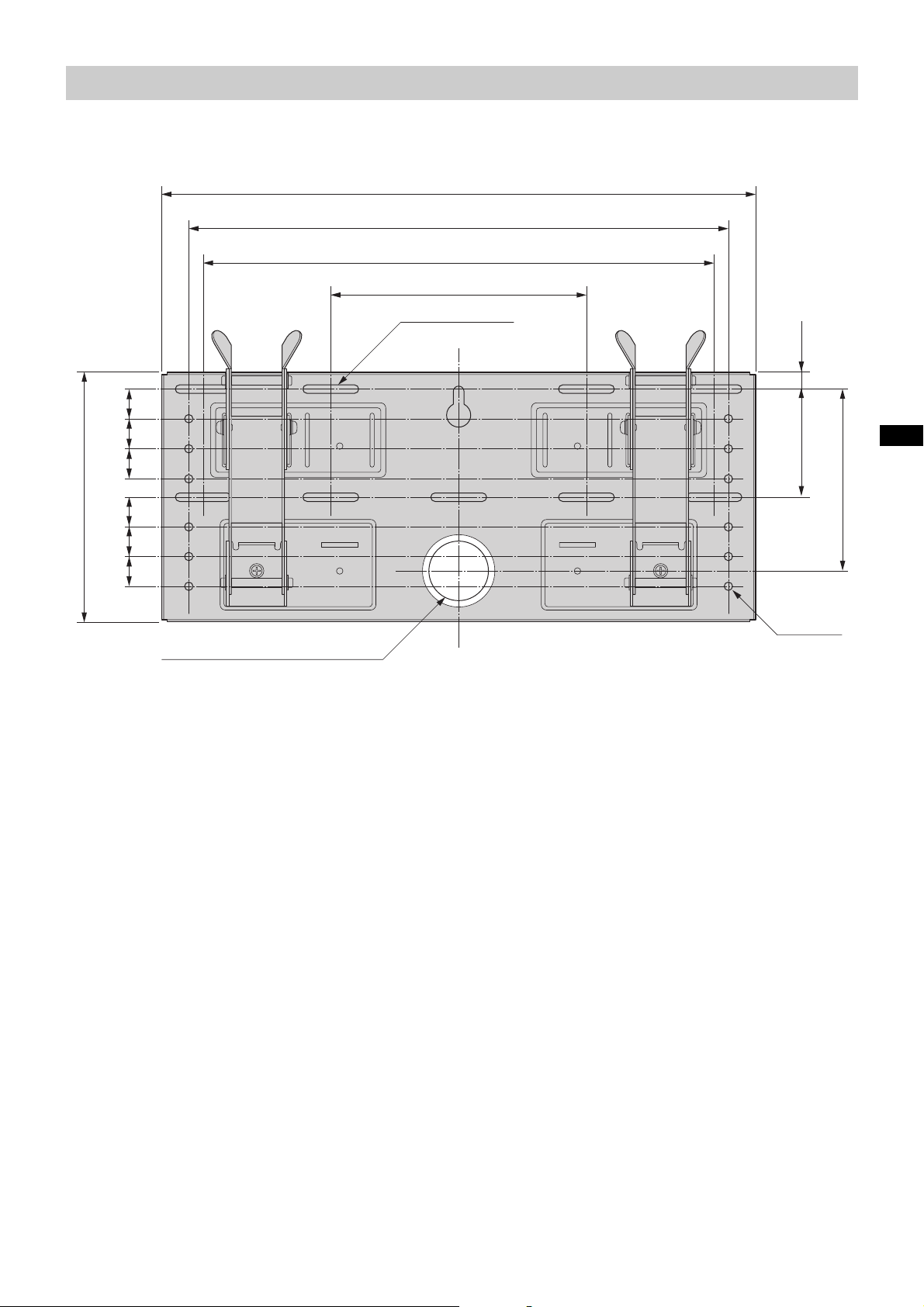

weight. (See the TV installing dimensions table on
page 16 for the weight of each TV.)
•If the installation of the Wall-
Mount Bracket on the wall is
not sufficiently sturdy, the
unit may fall and cause
injury or property damage.
Be sure to subcontract moving or
dismounting of the TV to licensed
contractors.
If persons other than licensed contractors transport or
dismount the TV, it may fall and cause injury or
property damage. Be sure that two or more persons
carry or dismount the TV.
Do not spill liquid of any kind on the
TV.
If you allow the TV to get wet, this may result in a fire
or an electric shock.
Do not remove screws, etc., after
mounting the TV.
If you do so, the TV may fall and cause injury or
property damage.
Do not disassemble or make
alterations to the parts of the Wall-
Mount Bracket.
If you do so, the Wall-Mount
Bracket may fall and cause
injury or property damage.
Do not mount any equipment other
than the specified product.
This Wall-Mount Bracket is designed for use with the
specified product only. If you mount equipment other
than specified, it may fall or break, and cause injury or
property damage.
Do not cover the ventilation hole of
the TV.
If you cover the ventilation hole
(with a cloth, etc.), heat may
build up inside and cause fire.
Do not apply any load other than
the TV on the Wall-Mount Bracket.
If you do so, the TV may fall
and cause injury or property
damage.

4(GB)

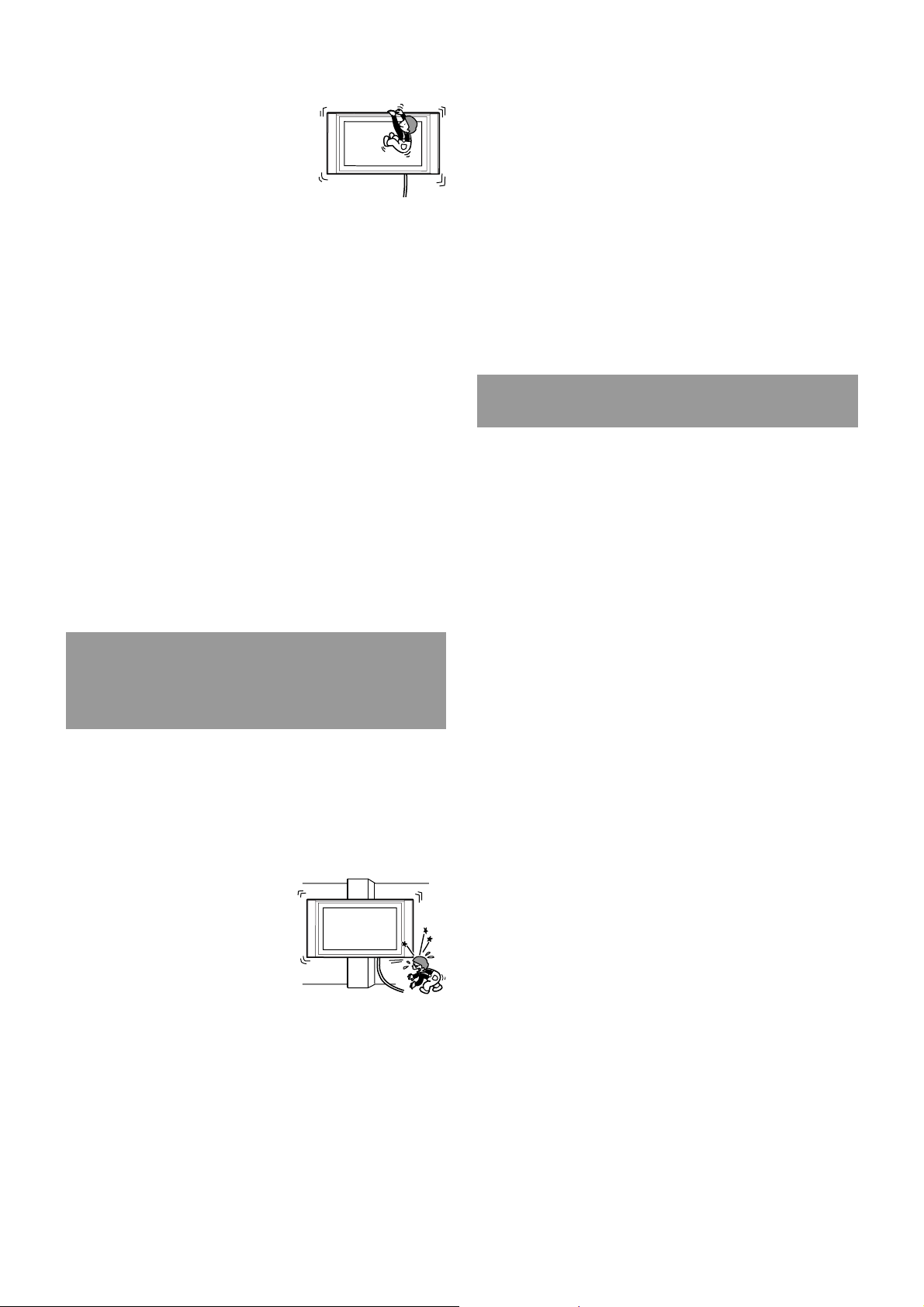

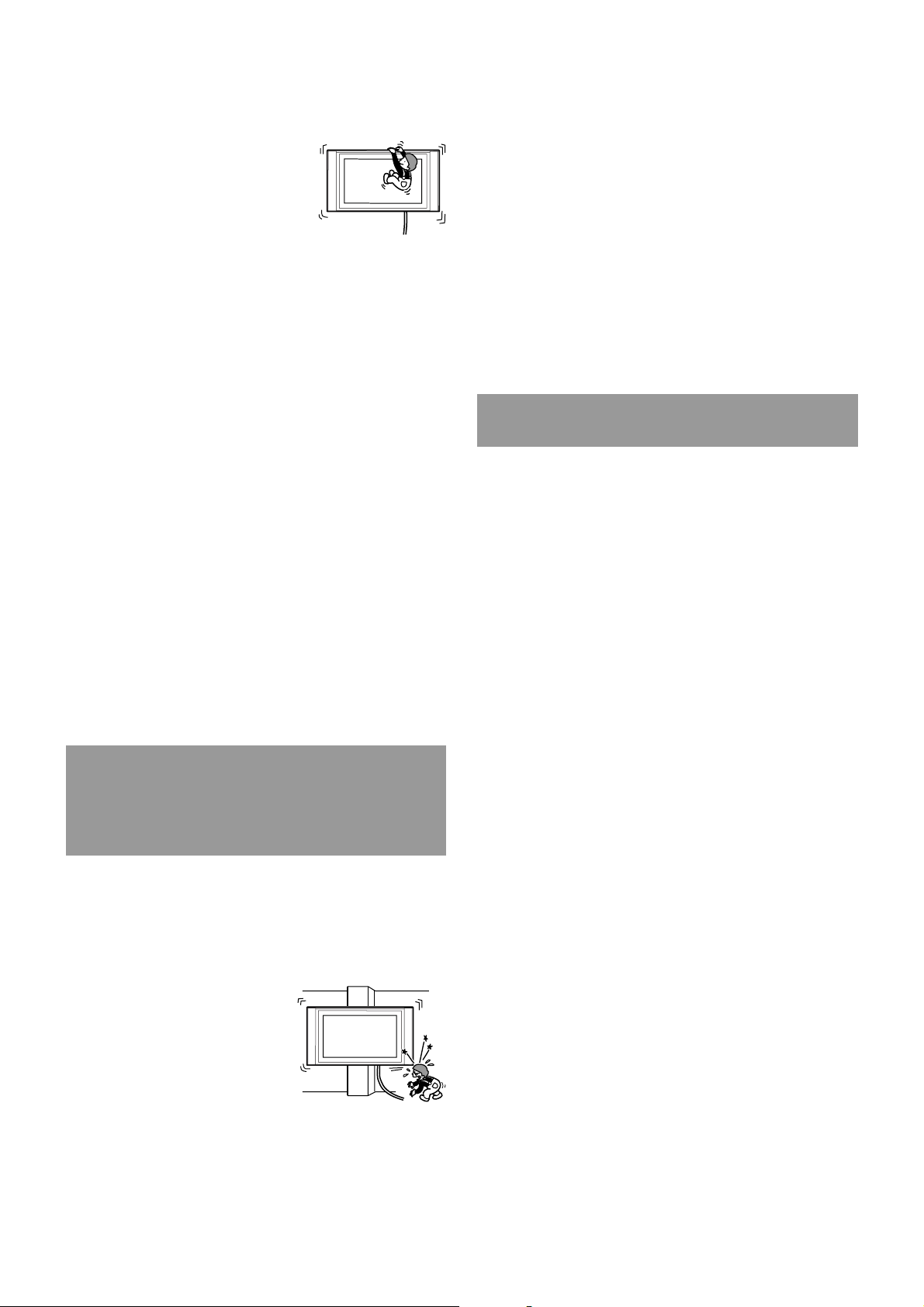

Do not lean on or hang from the TV.
Do not lean on or hang from the
TV as it may fall on you and
cause serious injury.
Do not expose the TV to rain or
moisture.
It may cause a fire or an electric shock.
Never place the TV in hot, humid or
excessively dusty places, or in the
place where the TV is subjected to
mechanical vibrations.
If you do so, it may cause a fire or an electric shock.
Keep flammable objects or open
flames (e.g. candles) away from the
TV.
To prevent a fire, keep flammable objects or open
flames (e.g. candles) away from the TV.
CAUTION
If the following precautions are not observed,
injury or property damage may occur.
Do not install the Wall-Mount
Bracket on wall surfaces where the
corners or the sides of the TV
protrude away from the wall
surface.
Do not install the Wall-Mount
Bracket on wall surfaces such as
a pillar, where the corners or the
sides of the TV protrude away
from the wall surface. If a
person or object happens to hit
the protruded corner or side of
the TV, it may cause injury or
property damage.
Do not handle the product with
excessive force during cleaning or
maintenance.
Do not apply excessive force on the topside of the TV.
If you do so, the TV may fall and cause injury or
property damage.
Do not install the TV over or under an
air-conditioner.
If the TV is exposed to water leaks or air current from
an air-conditioner for a long time, it may cause a fire,
an electric shock or a malfunction of the TV.
Precautions
•If you use the TV installed on the Wall-Mount
Bracket for a long time, the wall behind or above the
TV may become discolored or the wallpaper may
come unstuck, depending on the material of the
wall.
•If the Wall-Mount Bracket is removed after installing
it on the wall, the screw holes are left.
•If you have routed 300-ohm feeder cables behind the
wall, we recommend that you change them to 75-
ohm coaxial cables.
If it is necessary to continue to use 300-ohm feeder
cables, be sure there is sufficient space available
between the TV and the feeder cables behind the
wall before installing. Consult your licensed
contractor regarding an appropriate location (free
from radio noise, etc.) before installing.

5(GB)
Installing the Wall-
Mount Bracket
WARNING to Customers
Sufficient expertise is required for installing this
product. Be sure to subcontract the installation to
Sony dealers or licensed contractors and pay
special attention to safety during the installation.
To Sony Dealers
The following instructions are for Sony Dealers
only. Be sure to read safety precautions described
above and pay special attention to safety during
the installation, maintenance and checking of this
product.
Be sure to install the Wall-Mount
Bracket securely to the wall
following the instructions in this
instruction manual.
If any of the screws are loose or
fall out, the Wall-Mount Bracket
may fall and cause injury or
property damage. Be sure to use
the appropriate screws for the
material of the wall and install
the unit securely, using five or
more M6 (or equivalent) screws.
To Sony Dealers
Be sure to use the supplied screws
and attachment parts properly
following the instructions given in
this instruction manual. If you use
substitute items, the TV may fall,
and cause bodily injury to someone
or damage to the TV.
Be sure to assemble the bracket
properly following the instructed
procedure explained in this
instruction manual.
If any of the screws are loose or fall out, the TV may
fall, and cause bodily injury to someone or damage to
the TV.
Be sure to tighten the screws
securely in the designated position.
If you fail to do so, the TV may fall, and cause bodily
injury to someone or damage to the TV.
Be careful not to subject the TV to
shock during installation.
If the TV is exposed to shock, it may fall or break apart.
This may cause injury.
Be sure to install the TV on a wall
that is both perpendicular and flat.
If you fail to do so, the TV may fall and cause injury.

6(GB)
Step 1:
Checking the parts
required for the
installation
1Prepare five or more M6 or
equivalent screws (not supplied)
and a screwdriver. Select screws
suitable for the material of the
wall.
2Unpack the carton and check to
see that all the following items
are included.
After proper installation of the TV,
secure the cables properly.
If people or objects get tangled in the cables, this may
result in injury or damage to the TV.
Do not allow the AC power cord or
the connecting cable to be pinched.
If the AC power cord or the
connecting cable is pinched
between the unit and the wall
or is bent or twisted by force,
the internal conductors may
become exposed and cause a
short circuit or an electrical
break. This may cause a fire or
an electric shock.
Be careful not to hurt your hands or
fingers during the installation.
Be careful not to hurt your hands or fingers when
installing the Wall-Mount Bracket or the TV.
The screws needed to secure the
Wall-Mount Bracket to the wall are
not supplied.
Use the appropriate screws for the wall material and
structure when mounting the Wall-Mount Bracket.

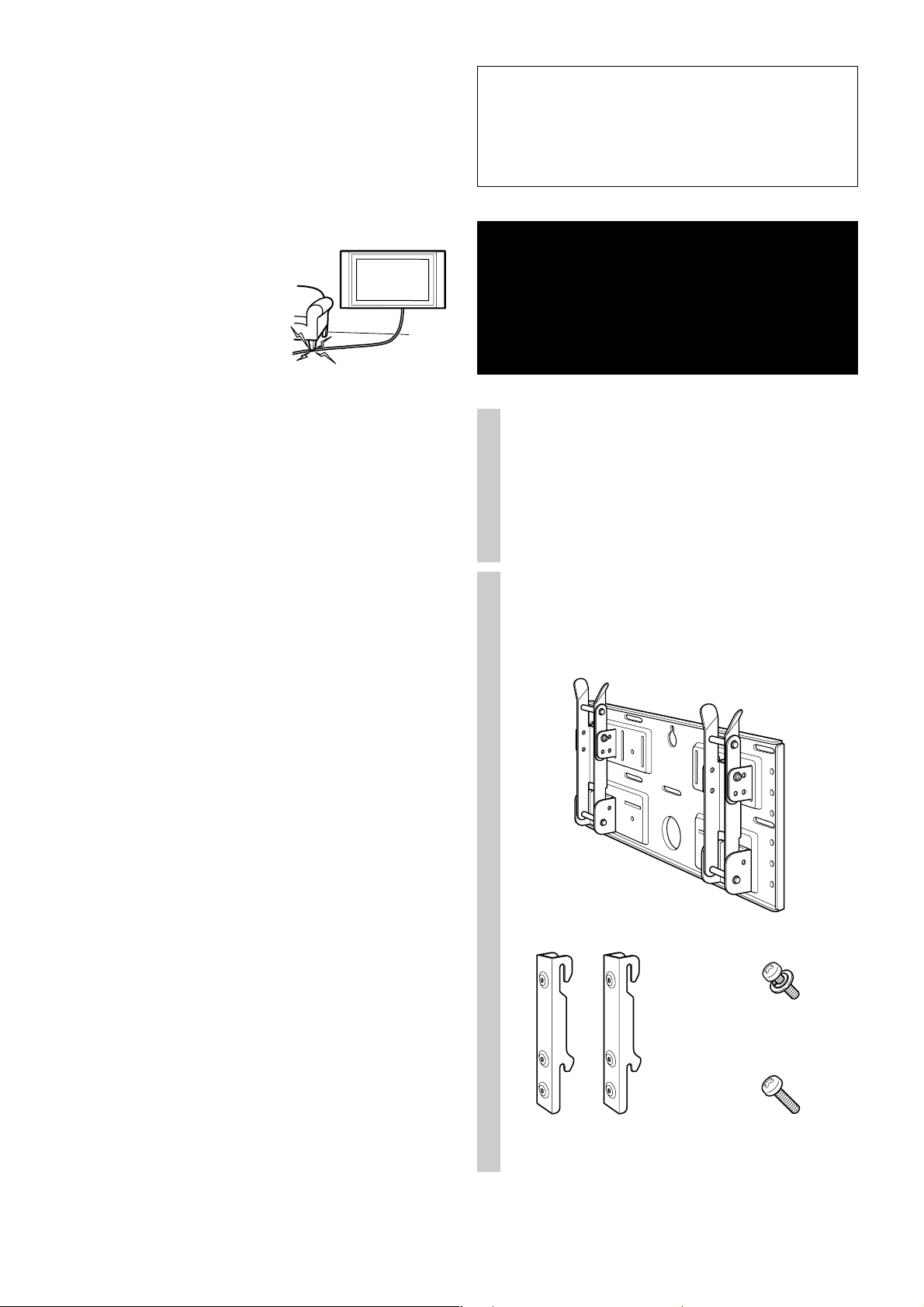

Mounting Hook Unit (2)
Plate Unit (1)
Before installation
If your TV is supplied with a leaflet explaining
how to install Wall-Mount Bracket (“Installing the
Wall-Mount Bracket”), be sure to refer to the leaflet
before installation.
Screw (+PSW5 ×L16) (4)
Screw (+B5 ×L12) (2)

7(GB)

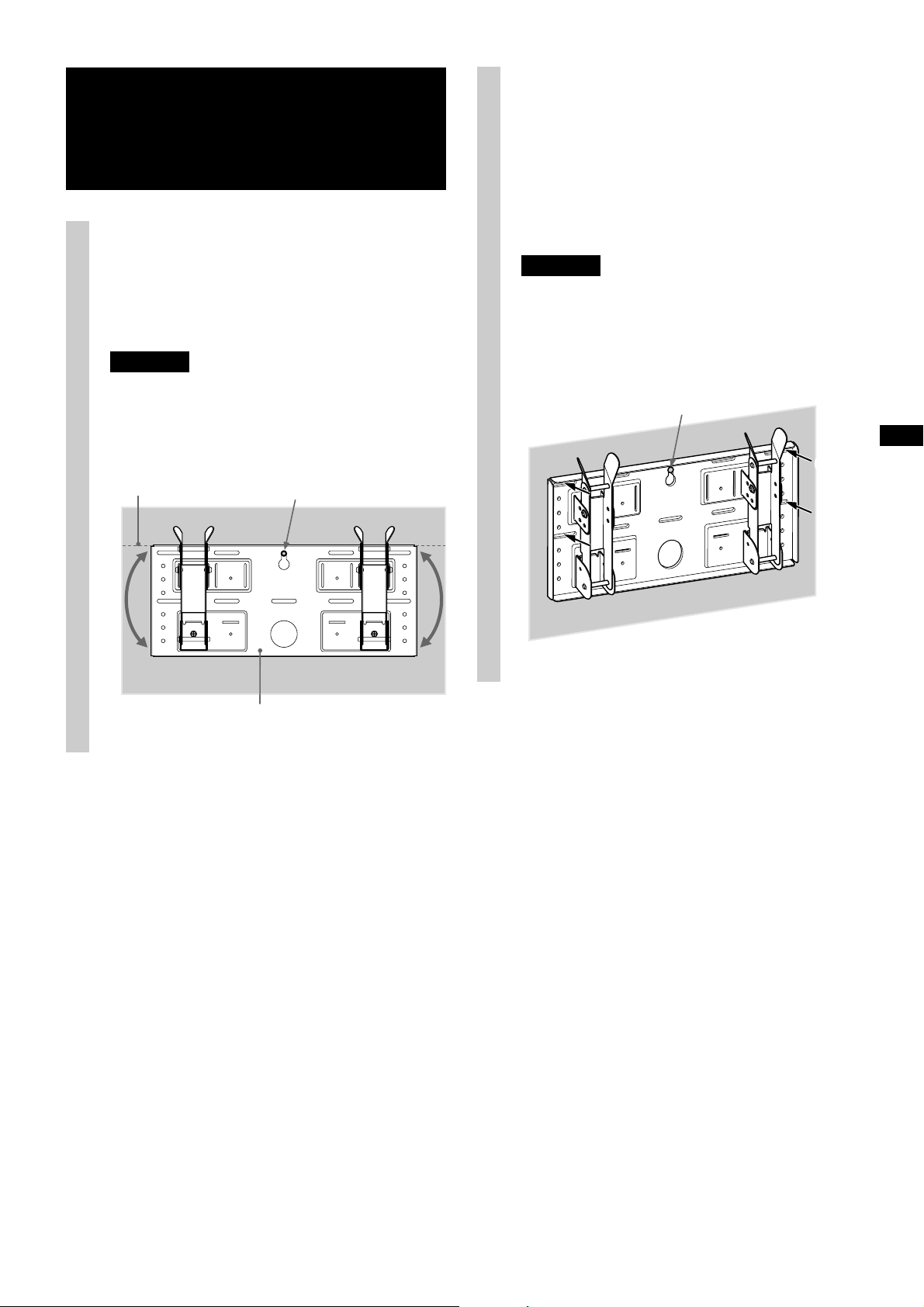

Step 2:
Changing the position
of the arm bases
(Except for the TV
KDL-S23A1s*/
KLV-S23A1s*)
*In the actual model names, the “s” indicates numbers
and/or characters specific to each model.
If you are installing the TV KDL-S23A1s*/KLV-
S23A1s*, do not change the position of the arm
bases.

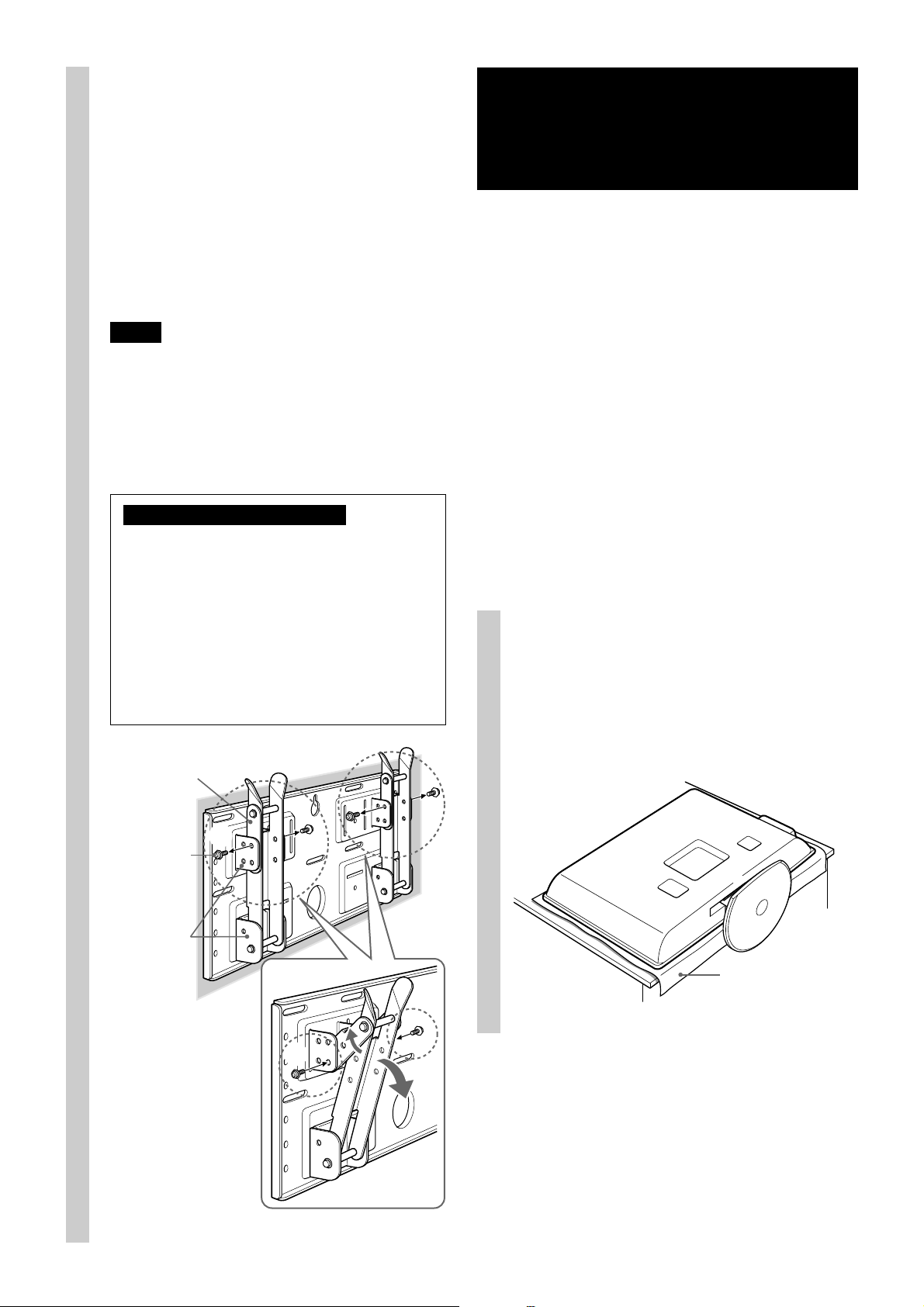

1Remove the four angle adjust screws (two on
each side) that secure the stabilizer arms to
the left and right arm bases A.
2Remove the screws that secure the left and
right arm bases Bto the Plate Unit.
3Remove the screws that secure the left and
right arm bases Ato the Plate Unit.
4Move the arm bases Ato the inner position,
inserting them into the top left and right
inner slots, and replace the screws from
step 3.
5Move each assembly (stabilizer arm and arm
base B) to the inner position, inserting the
arm bases Binto the bottom left and right
Inner slots, and replace the screws from
step 2.
6Secure the stabilizer arms using the angle
adjust screws from step 1.
2
5
6
6
5
3
2
5
1
1
4
4
Arm base AAngle adjust screw
Arm base B
Arm base B
Stabilizer arm
Stabilizer arm
Angle adjust screw
Note
When using an electric screwdriver, set the torque
setting to approximately 2 N·m {20 Kgf·cm}.

8(GB)
Step 3:
Deciding on the
installation location
1Allow for suitable clearance
between the TV and the ceiling
and protruding parts of the wall
as shown in the diagram below
and decide on the installation
location.
Tip
Refer to the TV installing dimensions table on page
16.
Unit: mm (inches)
100
(3
15
⁄
16
)
100
(3
15
⁄ 16 )
100
(3
15
⁄ 16 )
300
(11
13
⁄
16
)
2Referring to page 17, determine
the positions of the screws.
If you intend to route the cables
in the wall, also determine the
position of the cable hole and
bore a hole in the wall.
WARNING
The wall that the TV will be installed on should be
capable of supporting a weight of at least four times
that of the TV (page 16).
Make sure of the strength of the wall the TV will be
installed on. Reinforce the wall sufficiently, if
necessary.

9(GB)
Step 4:
Installing the Plate Unit
on the wall
1Temporarily secure the Plate
Unit to the wall using a screw.
Align the Plate Unit to make it
level with the floor.
WARNING
•The screw used in this procedure is not supplied.
•Select a screw suitable for the material and the
structure of the wall.
Align the unit so that it is
exactly level.
Plate Unit
Hole used for
temporarily attaching the
Plate Unit
2
1
2Secure the Plate Unit to the wall
using four or more M6 or
equivalent screws (not
supplied).
1Tighten the screws firmly so that the Plate
Unit can support the weight of the display.
2Tighten the screw used in procedure 1.
WARNING
The wall that the TV will be installed on should be
capable of supporting a weight of at least four times
that of the TV (page 16). Make sure of the strength of
the wall the TV will be installed on. Reinforce the wall
sufficiently, if necessary.

10 (GB)
Step 5:
Preparing for the
installation of the TV
The procedure differs depending on
the TV. Apply the procedure
appropriate for the TV you are
installing.
KDL-V32A1s*/KLV-V32A1s*/
KDL-V32XBR1 ............................................ A
KDL-V26A1s*/KLV-V26A1s*/
KDL-V26XBR1 ............................................ B
KDL-S32A1s*/KLV-S32A1s* ................... C
KDL-S26A1s*/KLV-S26A1s* ................... D
KDL-S23A1s*/KLV-S23A1s* ................... E
*In the actual model names, the “s” indicates numbers
and/or characters specific to each model.
1Detach the Table-Top Stand from
the TV.
1Place the TV, with its screen facing down, on
a stable, cloth-covered work surface.
ABCDE
Soft cloth
3Adjust the angle of the stabilizer
arms.
When installing the TV perpendicularly (0
degrees), adjustment of the arms angle (step 1
and 2below) is not necessary. Make sure that
each stabilizer arm is screwed in securely.
1Remove all four angle adjust screws.
2Put them into the screw holes corresponding
to the desired angle (5, 10, 15 or 20 degrees)
and tighten them firmly.
Notes
•Be sure to adjust the angles of the right and left
arms to the same angle.
• Be careful not to pinch your fingers when adjusting
the angle of arms.
• When using an electric screwdriver, set the torque
setting to approximately 2 N·m {20 Kgf·cm}.
•Make sure that four arm bases are screwed in
securely.
Notes on the adjustment angles
• When installing TV or monitor models other
than those specified on page 2 (depending on
the model’s size and dimensions, etc.), the
adjustment angles listed (0, 5, 10, 15, 20
degrees) for the stabilizer arms may be limited.
•For the available adjustment angles of the
stabilizer arms when installing TV or monitor
models other than those specified on page 2,
refer to the operating instructions or the leaflet
(“Installing the Wall-Mount Bracket”) supplied
with the TV or monitor.
2
1
Stabilizer arm
Arm Bases A
and B
Angle adjust
screw

11 (GB)
2Rotate the cable holder by 90 degrees, and
pull the cable holder out (ABonly).
AB
3Remove the screws that hold the hinge cover
to the TV and detach the hinge cover from
the TV (CDEonly).
CD
E
4Remove the four screws that hold the Table-
Top Stand to the TV and detach the Table-Top
Stand from the TV.
AB
CDE
2Attach the Mounting Hook Units
to the TV with the supplied four
screws (+PSW5 ×L16).
A
Cable holder
D
C
Hinge
cover
Hinge cover
Hinge cover
Screw (+PSW5 ×L16)
Mounting Hook
Unit
These will be used in
procedure 2 (Conly).

12 (GB)
Step 6:
Installing the TV on the
Plate Unit
WARNING
Be sure to complete the installation before connecting the
AC power cord to the wall outlet. If you allow the AC
power cord to be pinched under or between pieces of
equipment, this may result in a short circuit or an electric
shock.
Be careful not to stumble over the AC power cord or the
TV, as you may hurt yourself.
1Connect the AC power cord and
the connecting cable(s) supplied
with the TV to the TV.
Connect the AC power cord and the connecting
cable(s) to the connectors on the rear side of the
TV. For details on connecting the AC power cord
and the connecting cable(s), refer to the
instruction manual of the TV.
When you route the cord and the cable in the
wall, feed them through the hole you bored
(page 17).
Notes
•You cannot connect the cables to the TV after
installing it on the Plate Unit.
•Subcontract the cable routing in the wall to licensed
contractors.
B
C
D
E
Screw (+PSW5 ×L16)
Mounting Hook
Unit
Screw (+PSW5 ×L16)
Mounting Hook
Unit
Screw (+PSW5 ×L16)
Mounting Hook
Unit
Hole for cable routing
Mounting Hook
Unit
Screw (+PSW5 ×L16)
Retighten two screws
removed in 3of procedure 1
in the screw holes at either
end.

13 (GB)
2Install the TV onto the Plate
Unit.
1Insert the screws (+B5 ×L12, supplied) for
securing the Mounting Hook Unit into the
screw holes on the outer left and right sides
of the arm bases B, and then tighten them
temporarily.
Note
If the temporarily attached screws for securing the
Mounting Hook Unit protrude inside the arm bases,
the lower hooks of the Mounting Hook Units cannot
be fitted in.
Tighten the screws to halfway
so that they do not protrude
from the opposite side.
2Hitch the upper hooks of the two Mounting
Hook Units on to the support shafts of the
stabilizer arms.
3Place the lower hooks of the two Mounting
Hook Units so that they touch the front side
of the arm bases B.
4Slightly push the TV toward the Plate Unit
and upward, to hitch the lower hooks of the
two Mounting Hook Units on to the arm
bases B.
5Confirm the eight hooks are firmly hooked
on the four shafts on the Plate Unit.
6Firmly tighten the securing screws screwed in
temporarily in step 1.
WARNING
Tighten the securing screws firmly (one each on
the left and right arm bases). If the screws are not
tightened enough, the TV could become detached
from the Plate Unit and fall, causing damage
and/or injury.
2
3
4
Arm base B

14 (GB)

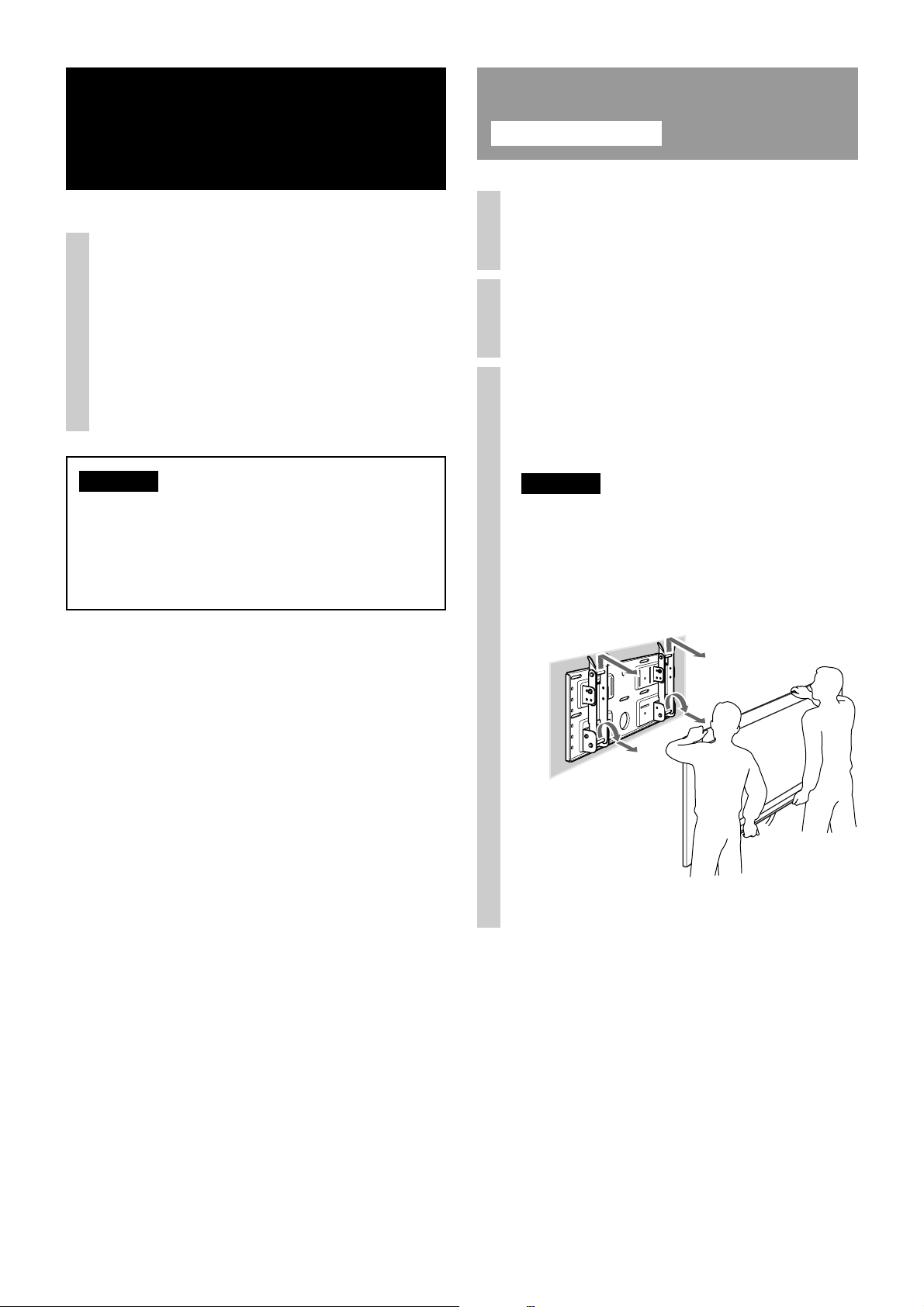

When removing the TV
1Unplug the AC power cord from
the wall outlet.
2Remove the two securing screws
on the right and left arm bases.
3Be sure that two or more
persons hold the TV and slide it
upward to remove the TV.
WARNING
•Be sure that two or more persons hold the TV when
carrying it.
• Be careful not to allow the cords and cables to get
hung up when removing the TV.
•Be careful not to hurt your hands or fingers when
removing the TV.
To Sony Dealers
Confirming the
completion of the
installation
Check the following points.
• Eight hooks of the Mounting Hook Units are
firmly hooked on the four shafts of the
stabilizer arms.
•The cord and the cable are not twisted or
pinched.
•The two securing screws on the arm bases
are securely tightened.
WARNING
Incomplete installation may cause the product falling
and result in injury or product damage. Also, improper
placement of the AC power cord, etc., may cause fire or
electric shock through a short circuit.
Be sure to confirm the completion of the installation for
safety.

15 (GB)
Specifications
Unit: mm (inches)
Weight: 3.4 kg (7 lb 8 oz)
Design and specifications are subject to change without
notice.
PLATE UNIT
40
(1 9⁄16)
270 (10
5
⁄
8
)
MOUNTING HOOK UNIT
210 (8
9
⁄
32
)
245 (9
21
⁄
32
)
500 (19 11⁄16)

16 (GB)
TV installing dimensions table
500 (19 11/16)
210
(8 9/32)
14 (9/16)
A
B
D
E
500 (19 11/16)
210
(8 9/32)
14
(9/16)
A
B
D
E
B
F
G
H
C
Figures in the above table may differ slightly depending on the installation.
*In the actual model names, the “s” indicates numbers and/or characters specific to each model.
** The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV.
CAUTION
This Wall-Mount Bracket is designed for use with the specified products above.
For other TVs and monitors, refer to their operating instructions to check if this Wall-Mount Bracket can be used.
Some TVs and monitors are supplied with a leaflet including the TV/monitor installing dimensions table
(“Installing the Wall-Mount Bracket”).
TV Dimensions Unit: mm (inches) Length for each mounting angle Unit: mm (inches) Weight
TV Model ABCDE Mounting FGHWeight ×4**
angle (αº)
0º 166 (6 5/8) 281 (11 1/8) 269 (10 5/8)
KDL-V32A1s*5º 204 (8 1/8) 271 (10 3/4) 278 (11)
KLV-V32A1s*808 550 111 38 307 10º 240 (9 1/2) 257 (10 1/8) 288 (11 3/8) 18.7 kg 74.8 kg
KDL-V32XBR1 (31 7/8) (21 3/4) (4 3/8 ) (1 1/2) (12 1/8) 15º 275 (10 7/8) 241 (9 1/2) 297 (11 3/4) 41lb 4oz 164lb 14oz
20º 307 (12 1/8) 221 (8 3/4) 305 (12 1/8)
0º 159 (6 3/8) 211 (8 3/8) 262 (10 3/8)
KDL-V26A1s*5º 190 (7 1/2) 202 (8) 270 (10 3/4)
KLV-V26A1s*675 473 103 4 265 10º 221 (8 3/4) 190 (7 1/2) 280 (11 1/8) 13.8 kg 55.2 kg
KDL-V26XBR1 (26 5/8) (18 5/8) (4 1/8) (3/16) (10 1/2) 15º 250 (9 7/8) 175 (7) 288 (11 3/8) 30lb 7oz 121lb 11oz
20º 277 (11) 158 (6 1/4) 296 (11 3/4)
0º 155 (6 1/8) 256 (10 1/8) 308 (12 1/4)
5º 190 (7 1/2) 248 (9 7/8) 318 (12 5/8)
KDL-S32A1s*792 564 99 15 323 10º 224 (8 7/8) 237 (9 3/8) 326 (12 7/8) 16.9 kg 67.6 kg
KLV-S32A1s*(31 1/4) (22 1/4) (4) (19/32) (12 3/4) 15º 257 (10 1/8) 223 (8 7/8) 334 (13 1/4) 37lb 4oz 149lb 1oz
20º 288 (11 3/8) 206 (8 1/8) 340 (13 1/2)
0º 146 (5 3/4) 168 (6 5/8) 306 (12 1/8)
5º 173 (6 7/8) 160 (6 3/8) 314 (12 3/8)
KDL-S26A1s*658 474 90 35 271 10º 200 (7 7/8) 150 (6) 322 (12 3/4) 12.9 kg 51.6 kg
KLV-S26A1s*(26) (18 3/4) (3 5/8) (1 7/16) (10 3/4) 15º 226 (9) 138 (5 1/2) 329 (13) 28lb 7oz 113lb 12oz
20º 250 (9 7/8) 124 (5) 335 (13 1/4)
0º 148 (5 7/8) 155 (6 1/8) 256 (10 1/8)
5º 174 (6 7/8) 146 (5 3/4) 266 (10 1/2)
KDL-S23A1s*566 411 93 15 241 10º 199 (7 7/8) 136 (5 3/8) 274 (10 7/8) 9.4 kg 37.6 kg
KLV-S23A1s*(22 3/8) (16 1/4) (3 3/4) (19/32) (9 1/2) 15º 224 (8 7/8) 124 (5) 282 (11 1/8) 20lb 11oz 82lb 12oz
20º 248 (9 7/8) 110 (4 3/8) 289 (11 1/2)
Screen center line
KDL-S26A1s*/KLV-S26A1s*/
KDL-S23A1s*/KLV-S23A1s*
KDL-V32A1s*/KLV-V32A1s*/KDL-V32XBR1/
KDL-S32A1s*/KLV-S32A1s*/KDL-V26A1s*/
KLV-V26A1s*/KDL-V26XBR1
Hole used for temporarily
attaching the Plate Unit

17 (GB)
Wall processing dimensions diagram
Hole for cable routing
Unit: mm (inches)
500 (19
11
/ 16 )
210 (8
9
/
32
)
25
(31/32)
25
(31/32)
25
(31/32)
91 (3
19
/
32
) 14 (
9
/
16
)
148 (5
13
/
16
)
25
(31/32)
25
(31/32)
25
(31/32)
454 (17
7
/ 8 )
430 (16
15
/ 16 )
215 (8
15
/ 32 )
φ60 (2
3
/ 8 )
12-φ7 (φ
9
/ 32 )
9-7×40 (
9
/ 32 × 1
9
/ 16 )
Slot hole

2(FR)
Sécurité
Les produits Sony sont conçus pour vous offrir le
maximum de sécurité.
Toutefois, si les produits sont utilisés de façon
incorrecte, ils peuvent entraîner des blessures graves
en provoquant un incendie ou l’électrocution, ou
encore la chute de l’appareil hors de son support.
Veillez à observer les consignes de sécurité préconisées
pour éviter de tels accidents.
ATTENTION
Produits spécifiés
Les produits suivants risquent de ne plus être en stock ou de ne
plus être fabriqués.
De plus, certains modèles ne sont pas vendus dans toutes les
régions.
Téléviseur KDL-V32A1s*KLV-V32A1s*
couleur LCD KDL-V32XBR1 KDL-V26A1s*
KLV-V26A1s*KDL-V26XBR1
KDL-S32A1s*KLV-S32A1s*
KDL-S26A1s*KLV-S26A1s*
KDL-S23A1s*KLV-S23A1s*
*Dans les noms de modèle réels, « s» indique des chiffres
et/ou des caractères propres à chaque modèle.
Ce support de fixation murale est conçu pour être
utilisé avec les produits spécifiés ci-dessus.
Pour les autres téléviseurs et moniteurs, reportez-vous
au mode d’emploi pour savoir si vous pouvez utiliser
le support de fixation murale.
Certains téléviseurs et moniteurs sont fournis avec un
dépliant qui explique comment installer le support de
fixation mural (« Installation du support de fixation
mural »).
Nous vous remercions d’avoir fait
l’acquisition de ce produit.
Pour les clients aux États-Unis
Une certaine expérience est requise pour installer
ce produit. Veillez à confier l’installation à des
revendeurs Sony ou à des installateurs agréés et
portez une attention particulière aux consignes de
sécurité pendant l'installation. Sony ne saurait être
tenue responsable de tout dommage ou de toute
blessure découlant d’une mauvaise utilisation ou
d’une installation incorrecte.
Pour les clients des autres pays
Une certaine expérience est requise pour installer
ce produit. Veillez à confier l’installation à des
revendeurs Sony ou à des installateurs agréés et
portez une attention particulière aux consignes de
sécurité pendant l'installation. Sony ne saurait être
tenue responsable de tout dommage ou de toute
blessure découlant d’une mauvaise utilisation ou
d’une installation incorrecte. Vos droits légaux
(éventuels) ne sont pas affectés.
AVERTISSEMENT
Le non-respect des consignes de sécurité ou
l’utilisation incorrecte de ce produit peut provoquer un
incendie ou des blessures graves.
Ce mode d’emploi indique comment manipuler le
produit correctement et contient des précautions
essentielles à prendre pour éviter tout accident. Lisez
attentivement ce mode d’emploi et veillez à utiliser le
produit correctement. Conservez ce mode d’emploi
pour toute référence ultérieure.
À l’attention des détaillants Sony
Une certaine expérience est requise pour installer ce
produit. Lisez ce mode d’emploi attentivement afin de
procéder à l’installation en toute sécurité. Sony ne
saurait être tenue responsable de tout dommage ou de
toute blessure découlant d’une mauvaise utilisation ou
d’une installation incorrecte. Une fois l’installation
terminée, veuillez remettre ce manuel d’installation au
client.

3(FR)
Français
FR
À l’attention des clients
AVERTISSEMENT
Le non-respect des consignes suivantes peut
être fatal ou entraîner des blessures graves en
provoquant un incendie ou l’électrocution, ou
encore la chute de l’appareil hors de son
support.
Veillez à confier l’installation à des
installateurs agréés en tenant les
petits enfants à l’écart pendant
l’installation.
Si le support de fixation murale ou le téléviseur n’est
pas installé correctement, les accidents suivants
peuvent se produire. Veillez à confier l’installation à
des installateurs agréés.
•Le téléviseur peut tomber et causer des blessures
graves comme des hématomes ou des fractures.
• Si le mur sur lequel le support de fixation murale est
fixé est instable, inégal ou non perpendiculaire au
sol, l’appareil risque de tomber et de provoquer des
blessures ou des dommages matériels. Le mur doit
pouvoir supporter un poids équivalent à au moins
quatre fois le poids du téléviseur. (Reportez-vous au
tableau des dimensions d’installation du téléviseur à
la page 16 pour obtenir le poids de chaque
téléviseur.)
•Si l’installation du support de
fixation murale n’est pas
assez solide, l’appareil risque
de tomber et de provoquer
des blessures ou des
dommages matériels.
Veillez à confier le déplacement ou le
démontage du téléviseur à des
installateurs agréés.
Si des personnes autres que des installateurs agréés
transportent ou démontent le téléviseur, celui-ci peut
tomber et provoquer des blessures ou des dommages
matériels. Deux personnes au moins doivent porter ou
démonter le téléviseur.
Ne renversez aucun liquide sur le
téléviseur.
Si le téléviseur est mouillé, un incendie ou
l’électrocution pourrait se produire.
Ne retirez pas les vis, etc. après
l’installation du téléviseur.
Dans ce cas, le téléviseur pourrait tomber et provoquer
des blessures ou des dommages matériels.
Ne démontez pas et ne modifiez pas
les pièces du support de fixation
murale.
Dans ce cas, le support de
fixation murale pourrait tomber
et provoquer des blessures ou
des dommages matériels.
N’installez aucun appareil autre que
ceux spécifiés.
Ce support de fixation murale est conçu pour être
utilisé avec les produits spécifiés uniquement. Si vous
installez un appareil autre que ceux qui sont spécifiés,
il pourrait tomber ou se briser et provoquer des
blessures ou des dommages matériels.
Ne couvrez pas les orifices de
ventilation du téléviseur.
Si vous couvrez les orifices de
ventilation (avec du tissu ou
tout autre matériau), l’appareil
pourrait surchauffer et
provoquer un incendie.
N’installez aucune charge autre que
le téléviseur sur le support de
fixation murale.
Dans ce cas, le téléviseur
pourrait tomber et provoquer
des blessures ou des dommages
matériels.

4(FR)
Ne vous appuyez pas sur le
téléviseur et ne vous y suspendez
pas.
Ne vous appuyez pas sur le
téléviseur et ne vous y
suspendez pas, car il risque de
tomber et de causer des
blessures graves.
N’exposez pas le téléviseur à la pluie
ou à l’humidité.
Dans ce cas, un incendie ou l’électrocution pourrait se
produire.
N’installez jamais le téléviseur dans
un endroit extrêmement chaud,
humide ou poussiéreux ou dans un
endroit où il serait soumis à des
vibrations mécaniques.
Dans ce cas, un incendie ou l’électrocution pourrait se
produire.
Tenez les objets inflammables et les
flammes nues (bougie, etc.) à l’écart
du téléviseur.
Pour éviter les risques d’incendie, ne placez pas
d’objets inflammables ni de corps incandescents (une
bougie, par exemple) à proximité du téléviseur.
ATTENTION
Le non-respect des consignes suivantes peut
entraîner des blessures ou des dommages
matériels.
N’installez pas le support de fixation
murale sur une surface où les coins
ou les côtés du téléviseur
dépasseraient.
N’installez pas le support de
fixation murale sur une surface
verticale telle qu’une colonne,
où les coins ou les côtés du
téléviseur dépasseraient de la
surface murale. Si une personne
ou un objet venait à heurter le
coin ou les côtés du téléviseur,
ceci risquerait de provoquer des
blessures ou des dommages
matériels.
N’appliquez aucune force excessive
sur le produit au cours de l’entretien
ou du nettoyage de l’appareil.
N’exercez aucune pression excessive sur le dessus du
téléviseur. Dans ce cas, le téléviseur pourrait tomber et
provoquer des blessures ou des dommages matériels.
N’installez pas le téléviseur sur ou
sous un climatiseur.
L’exposition prolongée du téléviseur à des fuites d’eau
ou à des courants d’air provenant du climatiseur
pourrait provoquer un incendie, l’électrocution ou des
problèmes de fonctionnement du téléviseur.
Précautions
•Si vous utilisez le téléviseur fixé au support de
fixation murale pendant une longue période, le mur
situé derrière le téléviseur ou au-dessus de celui-ci
peut se décolorer, ou encore le papier peint peut se
décoller, selon le matériau du mur.
•Les trous des vis restent apparents si vous démontez
le support de fixation murale après son installation.
•Si vous avez fait passer des câbles d’alimentation de
300 ohms dans les parois murales, nous vous
recommandons de les remplacer par des câbles
coaxiaux de 75 ohms.
Toutefois, s’il est nécessaire de continuer à utiliser
des câbles d’alimentation de 300 ohms, un espace
suffisamment important doit être prévu entre le
téléviseur et les câbles d’alimentation dans les parois
murales avant de procéder à l’installation. Avant de
procéder à l’installation, consultez votre installateur
agréé pour choisir un emplacement approprié (à
l’abri des interférences radio, etc.).
