Sony VPL-VW5000 User manual

Video Projector
Operating Instructions
Before operating the unit, please read this manual and supplied Quick Reference
Manual thoroughly and retain it for future reference.
VPL-VW5000
4-584-922-01 (2)
© 2016 Sony Corporation

2
Table of Contents
Location of Controls
Front/Right Side .......................................................... 3
Rear/Bottom ................................................................ 4
Remote Control ........................................................... 5
Connections and Preparations
Installing the Unit ....................................................... 6
Adjusting the Picture Position .................................... 6
Connecting to Video Equipment or a Computer ....... 10
Connecting to a VCR ........................................... 10
Connecting to a Computer ................................... 11
Projecting
Projecting the Picture ................................................ 12
Turning Off the Power ......................................... 12
Watching 3D Video Images ...................................... 12
Using the 3D Glasses ........................................... 12
Using the Picture Position ......................................... 13
Selecting the Aspect Ratio According to the Video
Signal ..................................................................... 14
Selecting the Picture Viewing Mode ......................... 16
Using the Menus
Operation through the Menus ................................... 17
Picture Menu ............................................................. 19
Advanced Picture Menu ............................................ 23
Screen Menu ............................................................. 24
Setup Menu ............................................................... 26
Function Menu .......................................................... 28
Items Locked by Settings Lock ........................... 30
Installation Menu ...................................................... 31
Information Menu ..................................................... 33
About the Preset Memory .................................... 33
Using Network Features
Displaying the Control Window of the Unit with a Web
Browser .................................................................. 34
Operating the Control Window ................................. 35
Switching the Page ............................................... 35
Setting the Access Limitation .............................. 35
Confirming the Information Regarding the
Unit ................................................................... 35
Error Handling
Troubleshooting ........................................................ 36
About Indicators ........................................................ 38
Message Lists ............................................................ 39
Others
Updating the Software .............................................. 40
About HDR (high dynamic range) ............................ 40
About DCI specification ........................................... 40
About x.v.Color ......................................................... 40
About the Simulated 3D Feature ............................... 40
Specifications ............................................................ 41
Preset Signals ....................................................... 42
Input Signals and Adjustment/Setting Items ....... 43
Compatible 3D Signals ........................................ 43
Aspect Mode ........................................................ 44
Storage Conditions of Adjustment/Setting
Items ................................................................. 44
Projection Distance and Lens Shift Range ................ 46
Dimensions ............................................................... 50
NOTICES AND LICENCES
FOR SOFTWARE USED IN THIS PRODUCT .... 51
Index ......................................................................... 59

3

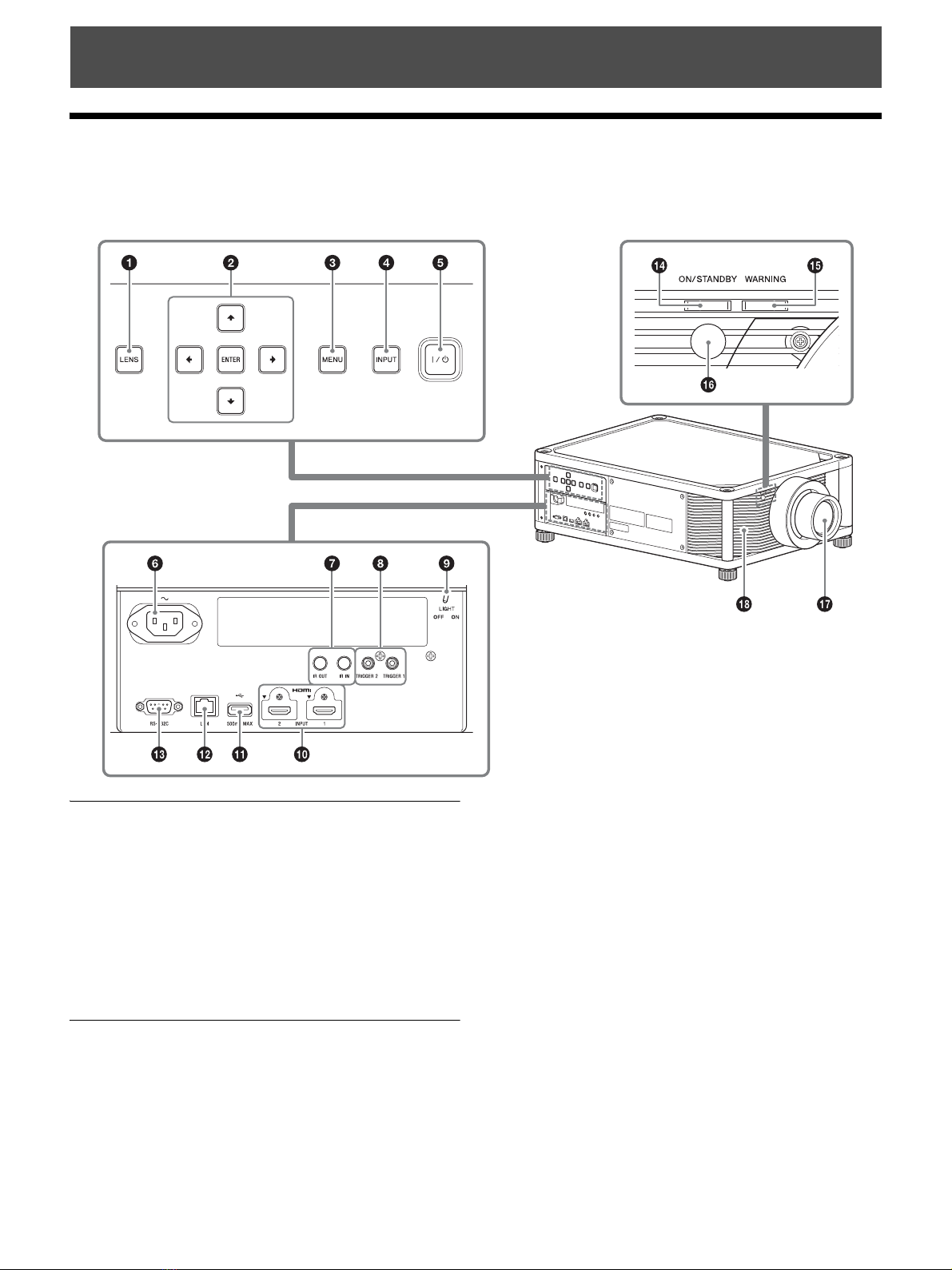

Front/Right Side
The buttons on the control panel function the same as those on the remote control.
Control panel
aLENS button (page 6)
bM/m/</,(arrow)/ENTER button (page 17)
cMENU button (page 17)
dINPUT button (page 12)
e[/1(On/Standby) button (page 7)
Connectors
f-AC IN socket (page 7)
gIR IN/IR OUT connector
IR IN: Inputs the signals to control the projector.
When connecting to the IR IN connector, the remote
control detector does not work with the remote
control.
IR OUT: Outputs the control signals received at the
projector to the connected devices. When operating
the projector with the remote control, the connected
devices can also be operated.
hTRIGGER 1/TRIGGER 2 connector (page 31)
iConnector light switch
Turns on/off the connector lights.
jHDMI 1/HDMI 2 connector (page 10)
kUSB connector (page 40)
lLAN connector (page 34)
Location of Controls
Connectors
Control panel

4
mREMOTE connector
Connects to a computer, etc. for remote control.
Indicators and remote control detector
nON/STANDBY indicator (page 38)
oWARNING indicator (page 38)
pRemote control detector (page 6)
Others
qLens
rVentilation holes (intake)
If you look through the projection lens while the unit is
projecting, the light may damage your eyes. Take special
caution when using the unit around children.
Rear/Bottom
aRemote control detector (page 6)
bVentilation holes (exhaust)
cFeet (adjustable) (page 8)
Note

5
Remote Control
aLIGHT button
Illuminates the buttons on the remote control.
bInfrared transmitter
c?/1(On/Standby) button (page 7)
dINPUT button (page 12)
eCALIBRATED PRESET buttons (page 16)
fLENS ADJUSTMENT buttons (page 7)
gPOSITION button (page 13)
hRESET button (page 18)
iM/m/</,(arrow)/ (enter) buttons
(page 17)
jMENU button (page 17)
kMOTIONFLOW button (page 20)
lASPECT button (page 14)
mCOLOR SPACE button (page 22)
nCOLOR TEMP button (page 20)
oGAMMA CORRECTION button (page 21)
p3D button (page 12)
qREALITY CREATION button (page 19)
rADVANCED IRIS button
This function is not provided in this projector.
sCONTRAST ENHANCER button (page 20)
tSHARPNESS button (page 20)
uCONTRAST button (page 20)
vBRIGHTNESS button (page 20)

6
This section describes how to install the unit and screen, how to connect the equipment from which you want to project
the picture, etc.

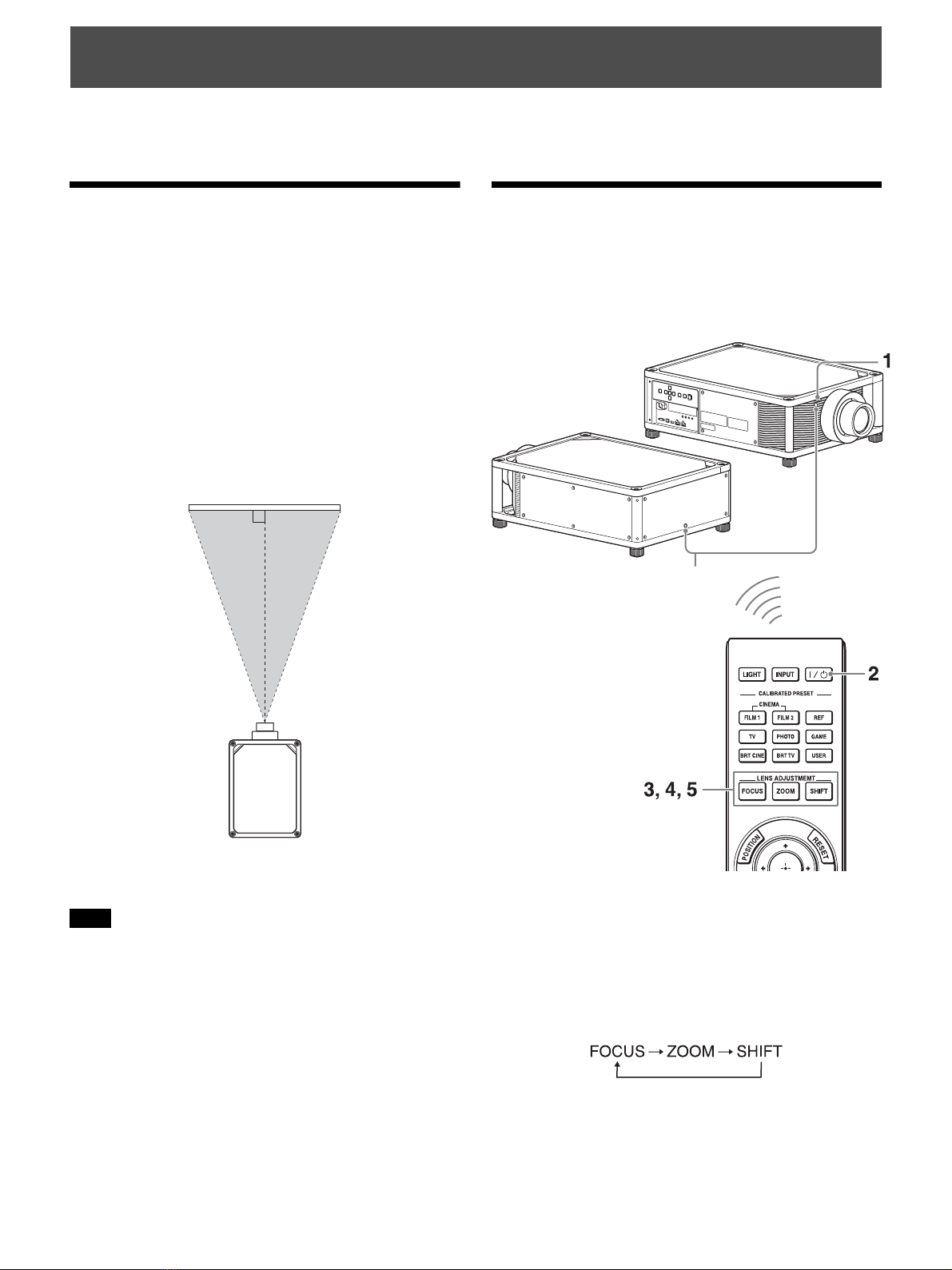

Installing the Unit
The installation distance between the unit and a screen
varies depending on the size of the screen or whether or not
you use the lens shift features. Install this unit so that it fits
the size of your screen. For details on the distance between
the unit and the screen (the projection distance) and the
size of projected video, see “Projection Distance and Lens
Shift Range” (page 46).
1Position the unit so that the lens is parallel to the
screen.
Top view
2Project an image on the screen and adjust the picture
so that it fits the screen (page 6).
When using a screen with an uneven surface, stripes pattern may
rarely appear on the screen depending on the distance between the
screen and the unit or the zooming magnifications. This is not a
malfunction of the unit.
Adjusting the Picture
Position
Project an image on the screen and then adjust the picture
position.
Tips
•The?/1(On/Standby), INPUT, MENU, and M/m/</,/
ENTER buttons on the side panel of the unit function the same as
those on the remote control. The LENS button functions in the
same way as the LENS ADJUSTMENT (FOCUS, ZOOM,
SHIFT) buttons of the remote control.
• When adjusting the lens, each time you press the LENS button on
the unit, the lens adjustment function switches between “Lens
Focus,” “Lens Zoom” and “Lens Shift.”
Connections and Preparations
Note
Screen
Remote control detector

7
Depending on the installation location of the unit, you may not be
able to control it with the remote control. In this case, point the
remote control at the remote control detector of the unit or the screen.

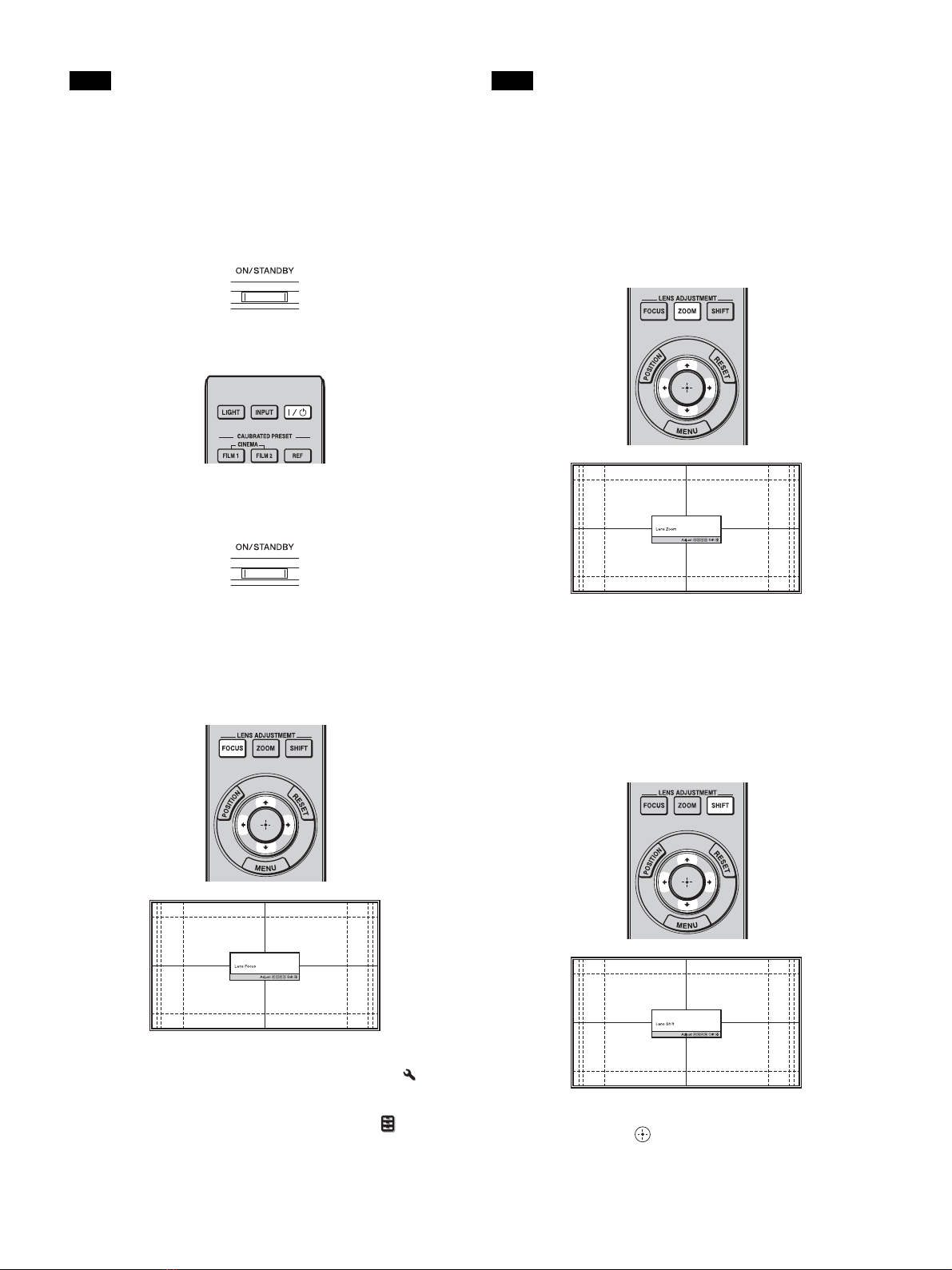

1After connecting the AC power cord to the unit, plug
the AC power cord into a wall outlet.
The ON/STANDBY indicator lights in red and the
unit goes into standby mode.
2Press the ?/1(On/Standby) button to turn on the unit.
The ON/STANDBY indicator flashes in green, and
then lights in green.
3Adjust the focus.
Press the LENS ADJUSTMENT (FOCUS) button to
display the Lens Focus adjustment window (test
pattern). Then adjust the focus of the picture by
pressing the M/m/</,buttons.
Tips
• When “Lens Control” is set to “Off” on the Installation menu,
you cannot adjust the focus, the picture size or the proper position
by pressing the FOCUS, ZOOM or SHIFT buttons (page 31).
• When “Test Pattern” is set to “Off” on the Function menu, the
test pattern is not displayed (page 29).
Adjust the lens by using buttons on the remote control or the control
panel of the unit. Never make adjustments by directly turning the
lens with your hands, which may cause damage or malfunction to the
unit.
4Adjust the picture size.
Press the LENS ADJUSTMENT (ZOOM) button to
display the Lens Zoom adjustment window (test
pattern). Then adjust the size of the picture by
pressing the M/m/</,buttons.
To make the picture larger, press M/,.
To make the picture smaller, press m/<.
5Adjust the picture position.
Press the LENS ADJUSTMENT (SHIFT) button to
display the Lens Shift adjustment window (test
pattern). Then adjust to the proper position of the
picture by pressing the M/m/</,buttons.
Tip
Whenever you press the button, the test pattern disappears.
Note
Lights in red.
Flashes in green for
tens of seconds and
then lights in green.
Note

8
When adjusting the picture position, do not touch the lens unit,
otherwise your fingers may be pinched by the moving parts.

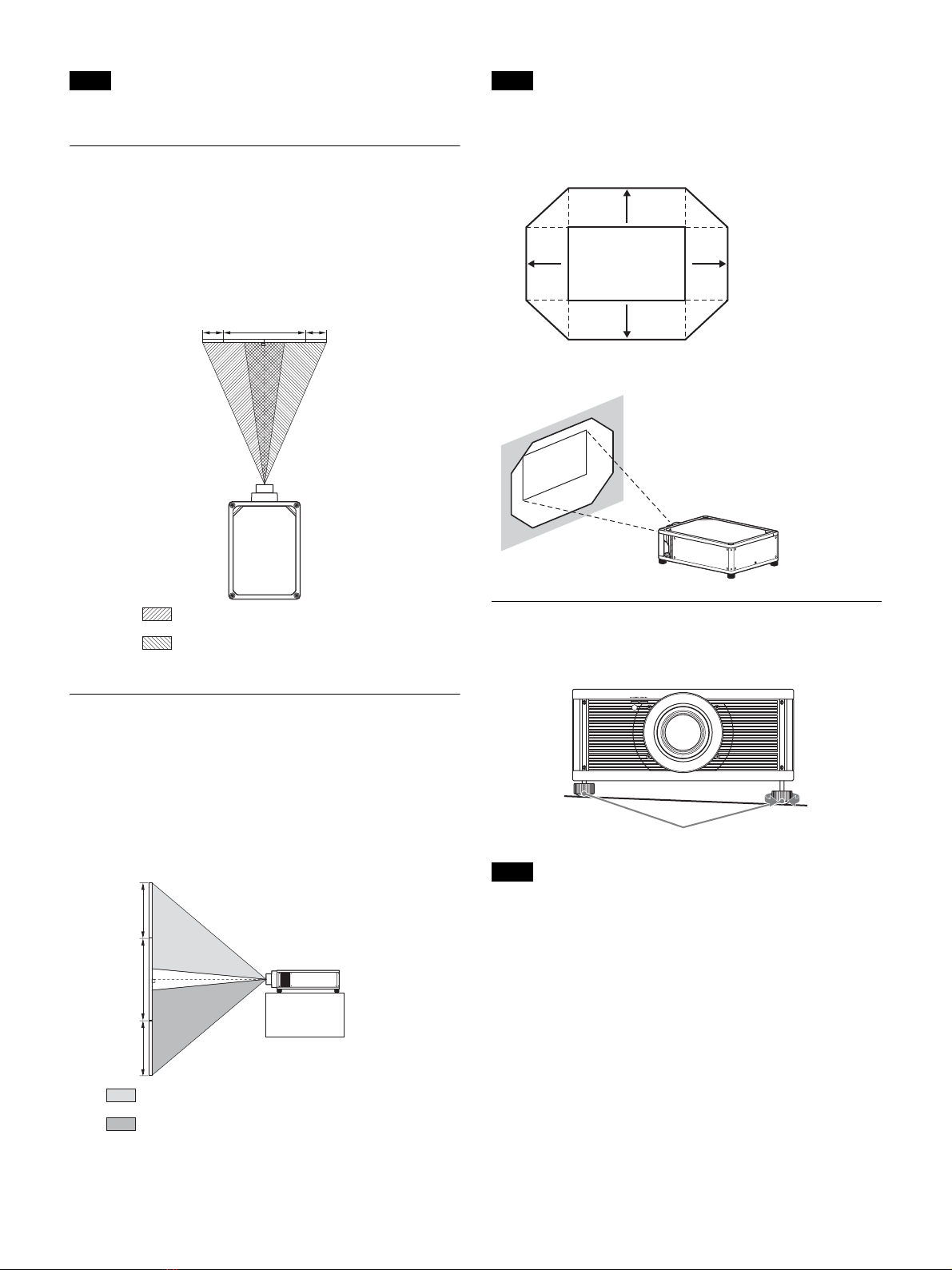

To adjust the horizontal position
Press </,.
The picture projected on the screen moves right or left by
a maximum of 31% of the screen width from the center of
the lens.
Top view
To adjust the vertical position
Press M/m.
The picture projected on the screen moves up or down by
a maximum of 80% of the screen height from the center of
the lens.
Side view
The range to move the picture projected on the screen can be
adjusted only within the octagon area illustrated below. For details,
see “Projection Distance and Lens Shift Range” (page 46).
Range of movement of the projected picture
To adjust the tilt of the installation surface
If the unit is installed on an uneven surface, use the feet
(adjustable) to keep the unit level.
• If the unit is tilted up or down, the projected image may be
trapezoidal.
• Be careful not to catch your finger when turning the feet
(adjustable).
Note
31% 31%1 screen width
: Picture position when moving the
picture to the left at maximum
: Picture position when moving the
picture to the right at maximum
80%
80%
1 screen
height
: Picture position when moving the
picture upward at maximum
: Picture position when moving the
picture downward at maximum
Note
Notes
0.8V
0.31H
H: Width of the projected picture
V: Height of the projected picture
0.31H
0.8V
Projected Picture
Feet (adjustable)
Tu r n t o
adjust.

9
Lens adjustment window (test pattern)
1.78:1 (16:9)
2.35:1
1.85:1
1.33:1 (4:3)
The dashed lines show the screen sizes of each
aspect ratio.

10

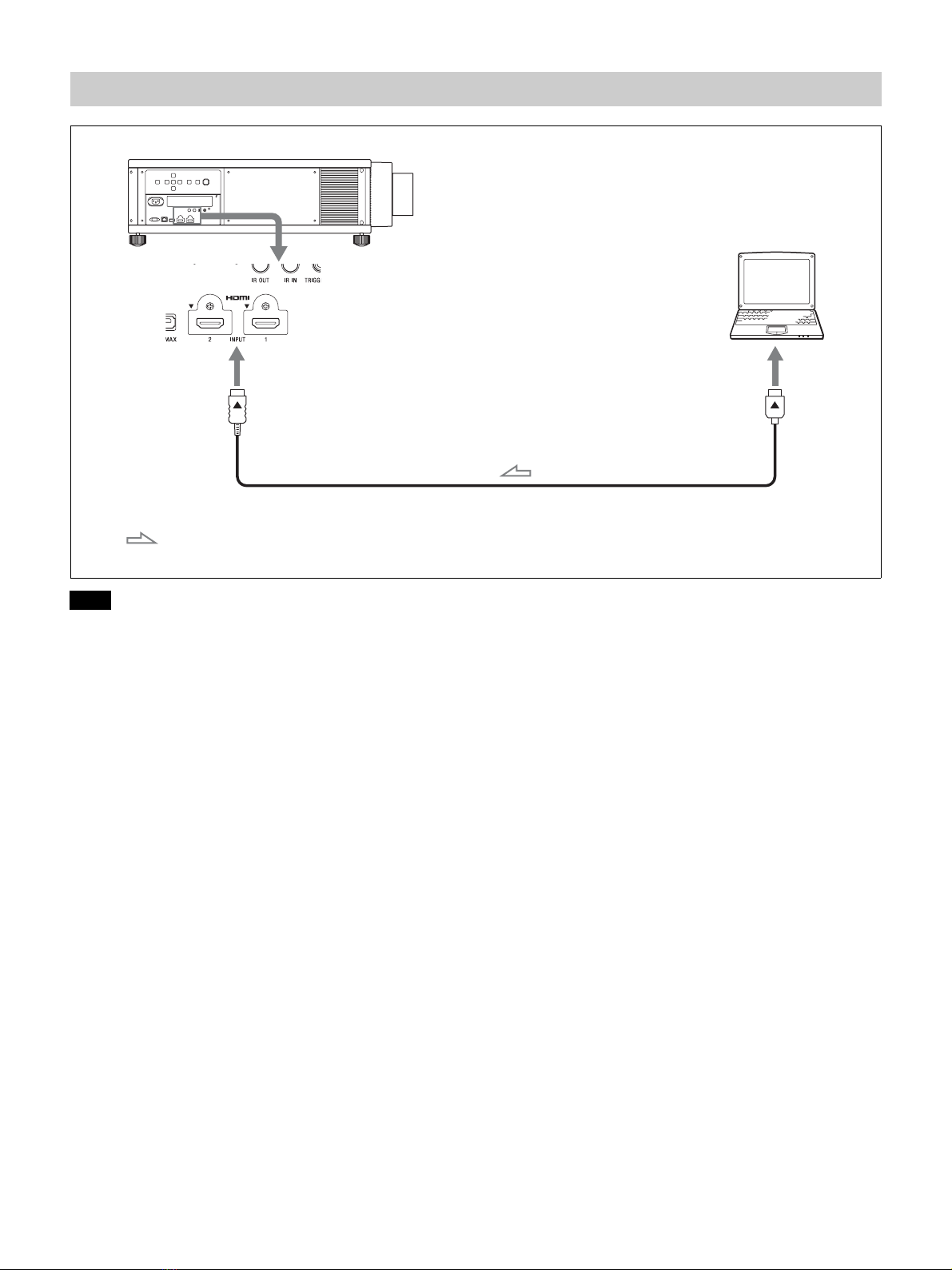

Connecting to Video Equipment or a Computer
You can enjoy high picture quality by connecting a DVD player/recorder, Blu-ray Disc player/recorder, or PlayStation®
equipped with HDMI output to the HDMI input of the unit.
When making connections, be sure to do the following:
• Turn off all equipment before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs properly; poor connection at the plugs may cause a malfunction or poor picture quality. When
pulling out a cable, be sure to pull it out from the plug, not the cable itself.
• Refer to the operating instructions of the connected equipment.
• Use a high-speed HDMI cable. With a standard HDMI cable, images of 1080p, DeepColor, 3D video and 4K video may not be displayed
properly.
• When connecting an HDMI cable to the unit, make sure the Vmark on the upper part of the HDMI input of the unit and the vmark on the
connector of the cable are faced at each other.
• If the picture from equipment connected to the unit with an HDMI cable is not correct, check the settings of the connected equipment.
Connecting to a VCR
Notes
Right side of the unit Equipment with HDMI output connectors
Speakers
to HDMI output
HDMI cable (not supplied)
: Video signal flow Use a high speed HDMI cable on which the cable type logo is specified.
(Sony products are recommended.)
AV amplifier

11
• Use a high-speed HDMI cable. With a standard HDMI cable, images of 1080p, DeepColor, 3D video and 4K video may not be displayed
properly.
• When connecting an HDMI cable to the unit, make sure the Vmark on the upper part of the HDMI input of the unit and the vmark on the
connector of the cable are faced at each other.
• If the picture from equipment connected to the unit with an HDMI cable is not correct, check the settings of the connected equipment.
• If you set your computer, such as a notebook type, to output the signal to both computer’s display and this equipment, the picture of the
equipment may not appear properly. Set your computer to output the signal to only the external monitor. For details, refer to the computer’s
operating instructions supplied with your computer. For settings of the computer, consult with the manufacturer of the computer.
Connecting to a Computer
Notes
Right side of the unit
to monitor output
HDMI cable (not supplied)
: Video signal flow Use a high-speed HDMI cable on which the cable type logo is specified.
(Sony products are recommended.)
Computer

12
.
This section describes how to operate the unit to view a picture from the equipment connected to the unit. It also describes
how to switch the screen size according to the picture.

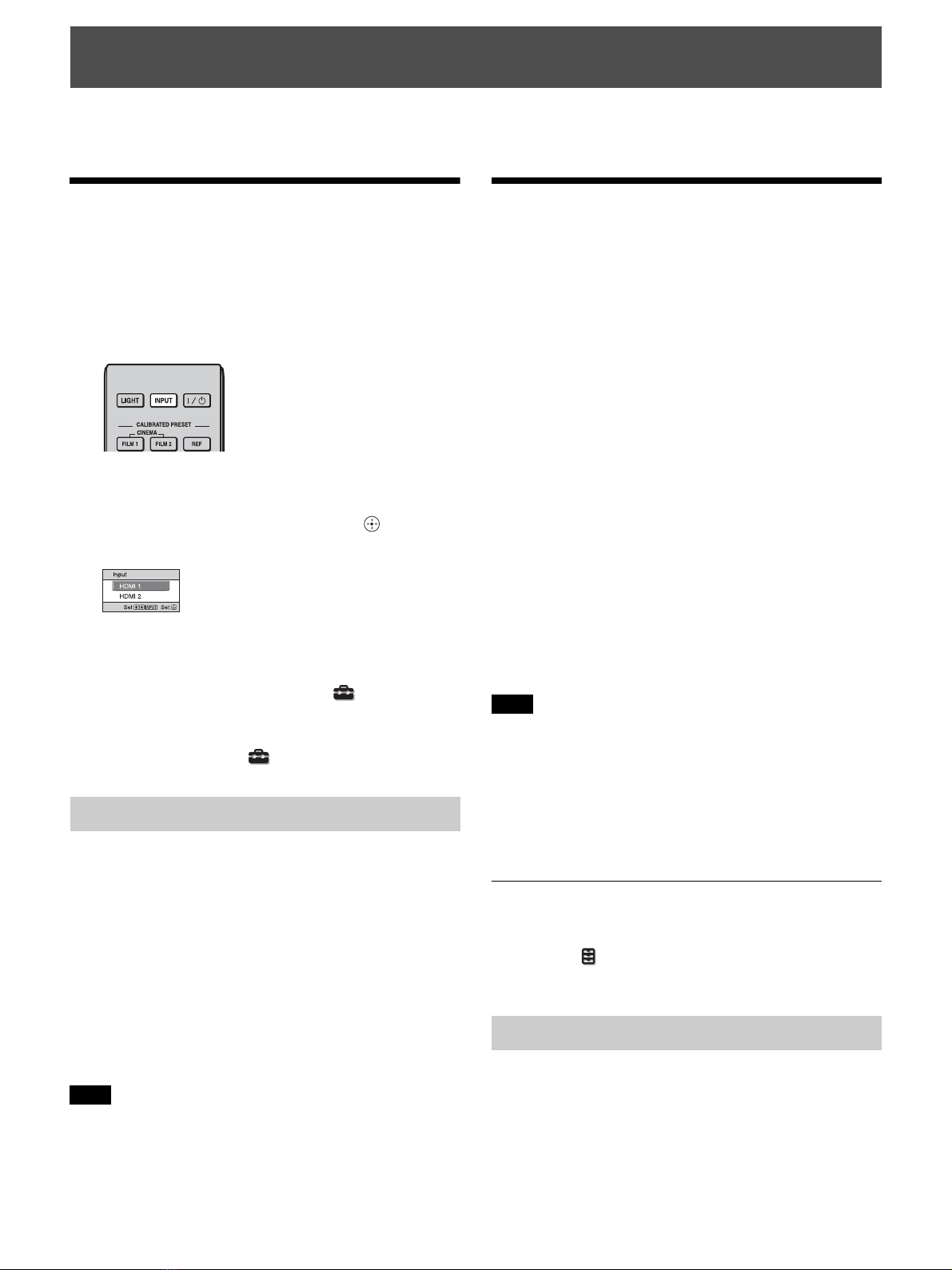

Projecting the Picture
1Turn on both the unit and the equipment connected to
the unit.
2Press INPUT to display the input palette on the
projection surface.
3Select the equipment from which you want to display
images.
Press INPUT repeatedly or press M/m/ (enter) to
select the equipment from which to project.
Tips
• When “Status” is set to “Off” on the Setup menu, the input
palette does not appear. Press the INPUT button to switch between
input terminals sequentially.
• You can change the language for the menu and on-screen displays
in “Language” on the Setup menu (page 26).
1Press the ?/1(On/Standby) button.
The message “POWER OFF?” appears.
2Press the ?/1(On/Standby) button again before the
message disappears.
The ON/STANDBY indicator flashes in green and the
fan continues to run to reduce the internal heat.
The fan stops and the ON/STANDBY indicator
changes from flashing green to remaining red.
You can disconnect the AC power cord.
Never disconnect the AC power cord while the unit is turned on.
You can turn off the unit by holding the ?/1(On/Standby) button for
about 1 second, instead of performing the above steps.
Watching 3D Video
Images
You can enjoy powerful 3D video images, such as from 3D
games and 3D Blu-ray Discs, using the optional Active 3D
Glasses (TDG-BT500A).
1Turn on the HDMI equipment for 3D compatibility
connected to the unit, then play the 3D content.
For details on how to play 3D content, refer to the
operating instructions for the connected equipment.
2Turn on the unit and project the 3D video image.
For details on how to project the image, see
“Projecting the Picture” (page 12).
3Turn on the 3D glasses, and then put them on so that
they fit comfortably.
For details on how to use the 3D glasses, see “Using
the 3D Glasses” (page 12).
Tip
The factory default setting for “2D-3D Display Sel.” is “Auto” to
allow projecting 3D video images automatically when the unit
detects 3D signals.
• It may not be possible to display 3D video image, depending on
the type of signal. Set the “2D-3D Display Sel.” to “3D,” and “3D
Format” to “Side-by-Side” or “Over-Under” to suit the format of
the 3D content you want to watch (page 28).
• Use the 3D glasses within the communication range (page 13).
• There are differences in perception of 3D video images among
individuals.
• When the temperature of the usage environment is low, the 3D
effect may be diminished.
Adjusting/Setting the 3D functions
You can adjust/set the 3D functions by pressing the 3D
button on the remote control or with the “3D Settings” of
the Function menu. For details, see “3D Settings”
(page 28).
1Turn on the 3D glasses, and register them on the unit.
For details on how to register the 3D glasses, refer to
the operating instructions supplied with the 3D
glasses.
Projecting
Turning Off the Power
Note
Example: To view the picture from the video equipment
connected to the HDMI 1 connector of this unit.
Notes
Using the 3D Glasses

13
2Put on the 3D glasses.
Precautions for use
Misoperation may occur if:
• The viewing position is too far from the projector
• There are other communication devices, such as a
wireless LAN (IEEE802.11 b/g/n) or a microwave with
a bandwidth of 2.4 GHz, near the unit
3D glasses communication range
The following figure indicates the communication range of
the 3D glasses. If you try to watch 3D video images from
a distance greater than the communication range or install
the unit outside the communication range, the 3D glasses
may not be able to display the images properly. Also, the
distance varies depending on the environment of the room
and installation environment of the unit.
Top or side view
Using the Picture
Position
You can store up to five combinations of lens settings
(focus, picture size, picture position), aspect ratio, and
blanking. These settings can be recalled.
1Press POSITION.
The Picture Position selecting palette is displayed.
2Press POSITION repeatedly, or press M/m/ to
select the position.
The settings of the position selected is recalled.
Store or delete lens settings, aspect ratio, and blanking
in the “Picture Position” of the Screen menu
(page 24).
The position where the lens settings, aspect ratio, and
blanking are not stored is displayed as “---.”
Image of the lens moving
In the example below, the images with aspect ratio of
1.78:1 (16:9) and 2.35:1 are projected on a 2.35:1 screen.
Projector
10 m10 m
10 m
10 m
When a 1.78:1 (16:9) image is input
When a 2.35:1 image is input
Press the POSITION button.
The 2.35:1 image expands to fill the screen.

14
• After you have selected and confirmed the lens position, the lens
starts to move. Do not touch, or place anything near, the lens,
otherwise it may cause injury or a malfunction.
• If you press any button on the remote control or the unit while the
lens is moving, the lens stops. In this case, select the lens position
again or adjust the lens manually.
• The Picture Position function is not guaranteed to reproduce the
lens settings precisely.
• When you use the subtended screen angle of two or more aspects
using lens zoom, install the unit within the specified parameters
referring to “Projection distance” (page 47). With some setting
positions, the range of lens shift may be restricted, even though the
unit is installed within the specified parameters.
Selecting the Aspect
Ratio According to the
Video Signal
You can select an aspect ratio best suited for the video
signal received.
Press ASPECT.
Each time you press the button, you can select the “Aspect”
setting.You can also select it using the menu (page 25).
Notes

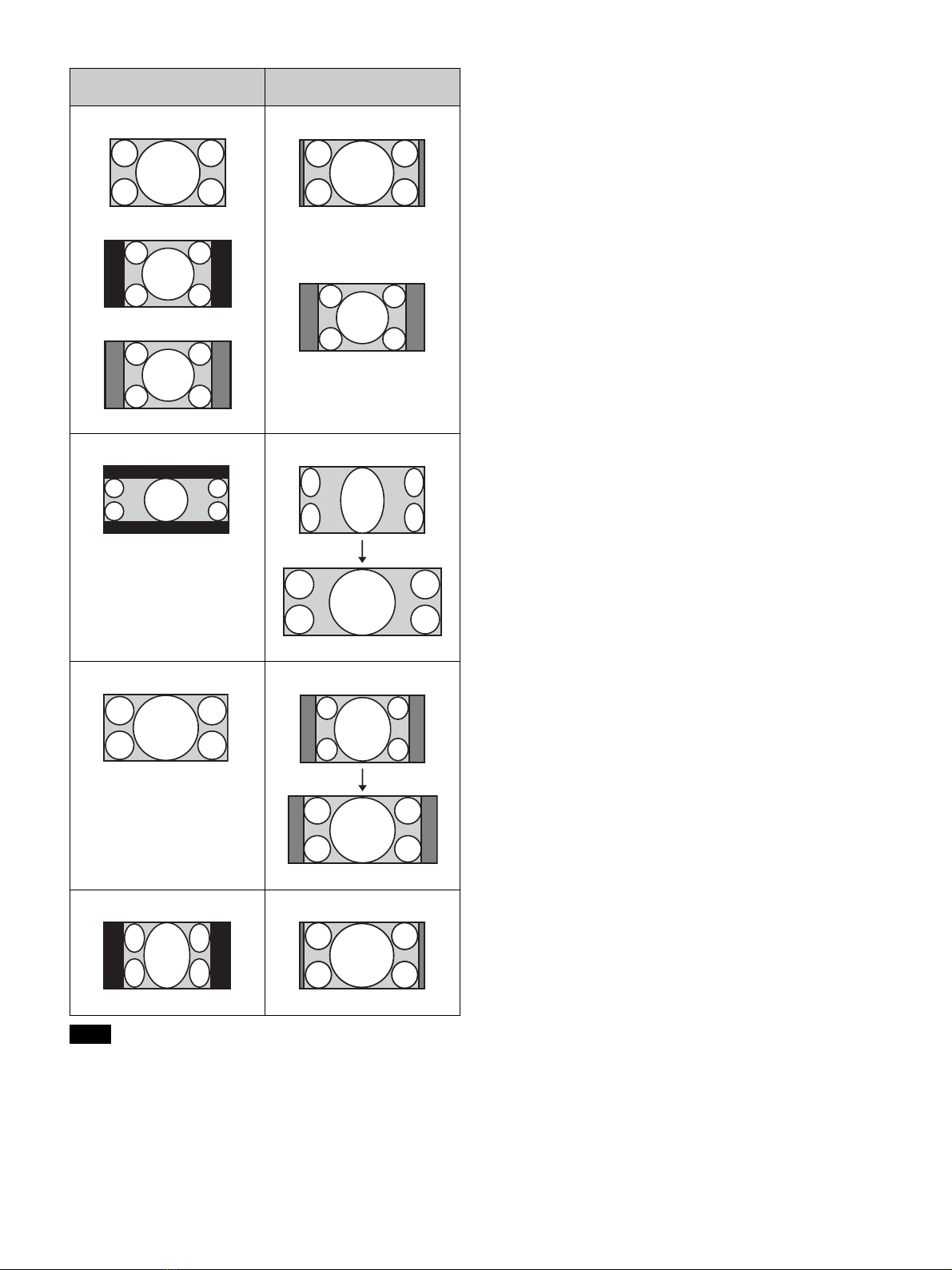

Original image (for 16:9
display)
Recommended setting and
resultant images
ASPECT
button
1.85:1
Squeezed 1.85:1
1.85:1 Zoom
2.35:1
Squeezed 2.35:1
2.35:1 Zoom

15
Selectable aspect modes vary depending on the input signal
(page 44).
Notes on switching the “Aspect” setting
• Select the aspect mode taking into account that changing
the aspect ratio of the original picture will provide a
different look from that of the original image.
• Note that if the unit is used for profit or for public
viewing, modifying the original picture by switching the
aspect may constitute an infringement of the rights of
authors or producers, which are legally protected.
Note
Original image (for 16:9
display)
Recommended setting and
resultant images
1.78:1 (16:9)
1.33:1 (4:3)
1.33:1 (4:3) with side panels
Normal
2.35:1
V Stretch
When using an anamorphic lens
16:9
Squeeze
When using an anamorphic lens
Squeezed
Stretch

16

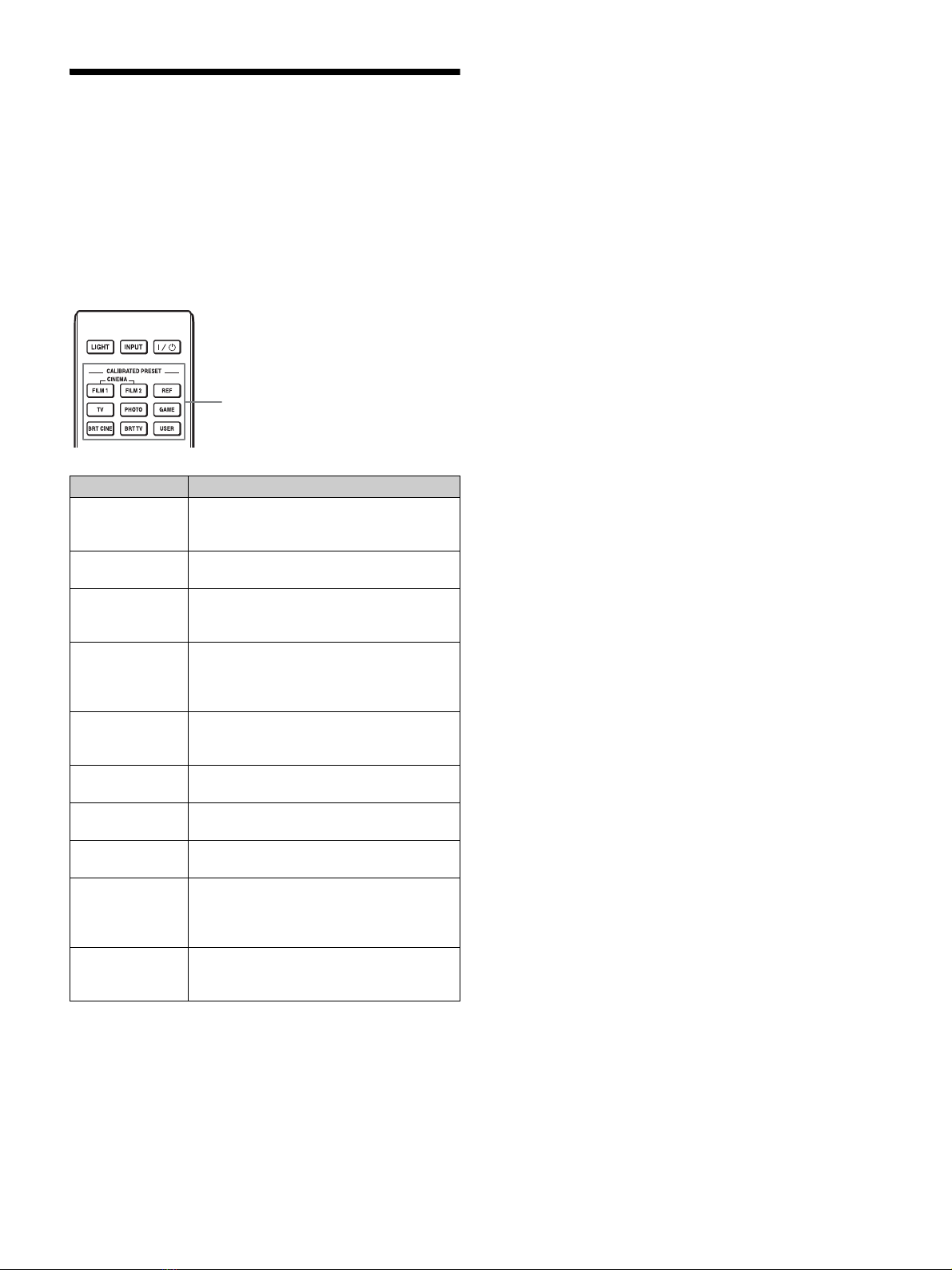

Selecting the Picture
Viewing Mode
You can select the picture viewing mode that best suits the
type of video source or room conditions.
You can save and use different preset modes for 2D/3D
respectively.
Press one of the CALIBRATED PRESET buttons.
*1: The CINEMA DIGITAL mode is not available on the remote
control.
*2: The USER1 mode is selected by pressing the USER button. The
USER2 mode and USER3 mode are not available on the remote
control.
Setting items Description
CINEMA FILM 1 Picture quality suited to reproducing the
highly dynamic and clear images typical of
master positive film.
CINEMA FILM 2 Picture quality suited for HDR content, with
the highest dynamic range and many colors.
CINEMA
DIGITAL *1Picture quality suited to reproducing digital
cinema-like images resembling DCI
specifications (page 40).
REF A picture quality setup suitable for when you
want to reproduce faithfully the original
image quality, or for enjoying image quality,
without any adjustment.
TV Picture quality suited for watching TV
programs, sports, concerts, and other video
images.
PHOTO Ideal for projecting still images taken with a
digital camera.
GAME Picture quality suited to gaming, with well-
modulated colors and fast response.
BRT CINE Picture quality suited for watching movies in
a bright environment, such as a living room.
BRT TV Picture quality suited for watching TV
programs, sports, concerts, and other video
images in a bright environment, such as a
living room.
USER1, USER2,
USER3 *2Adjusts the picture quality to suit your taste
then saves the setting. The factory default
setting is the same as “REF.”
CALIBRATED PRESET buttons

17
This section describes how to make various adjustments and settings using the menus.
The menu displays used for the explanation may be different from the actual menu display.
Operation through the
Menus

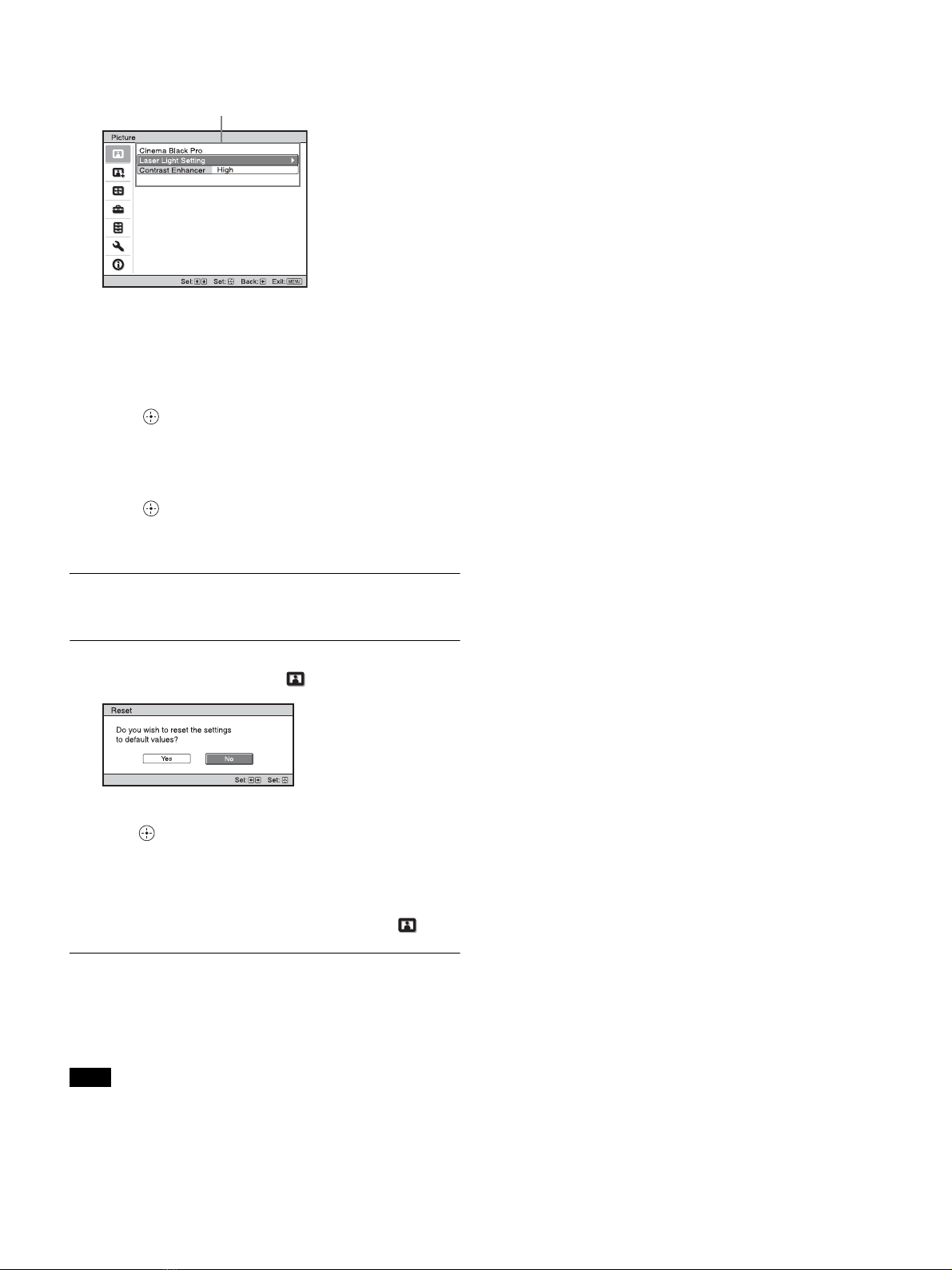

The unit is equipped with an on-screen menu for making
various adjustments and settings. If you select an item
name followed by an arrow (B), the next menu window
with setting items appears.
1Press MENU.
The menu window appears.
2Press M/mto select a menu item, and press ,or .
The items that can be set or adjusted with the selected
menu appear. The item presently selected is shown in
white.
3Press M/mto select an item you want to set or adjust
and press ,or .
The setting items are displayed in a pop-up menu, in
a setting menu, in an adjustment menu or in the next
menu window.
Pop-up menu
Setting menu
Adjustment menu
Using the Menus
Note
Setting items

18
Next menu window
4Make the setting or adjustment of an item.
When changing the adjustment level
To increase the value, press M/,.
To decrease the value, press m/<.
Press to store the setting and restore the original
menu screen.
When changing the setting
Press M/mto change the setting.
Press to restore the original screen.
You can restore the original screen using <
depending on the selected item.
To clear the menu
Press MENU.
To reset the picture that has been adjusted
Select “Reset” from the Picture menu.
When the screen display appears, select “Yes” using <
and press .
All of the following settings are reset to its factory preset
value:
“Reality Creation,” “Cinema Black Pro,” “Motionflow,”
“Contrast,” “Brightness,” “Color,” “Hue,” “Color Temp.,”
“Sharpness,” and “Expert Setting” on the Picture menu
To reset the items that have been adjusted
Select an item in the menu screen, and display the pop-up
menu, the setting menu, or the adjustment menu.
Press RESET on the remote control to reset only the
selected settings to its factory preset value.
The RESET button on the remote control is available only when the
adjustment menu or the setting menu is selected.
Note
Setting items

19
Picture Menu
The Picture menu is used for adjusting the picture.
Item names in brackets represent those printed on the remote control.
Setting items Description
Calib. Preset [CALIBRATED
PRESET]
You can select the picture viewing mode that best suits the type of video source or the environment.
You can save and use different preset modes for 2D/3D respectively.
Cinema Film 1: Picture quality suited to reproducing the highly dynamic and clear images typical of
master positive film.
Cinema Film 2: Picture quality suited for HDR content, with the highest dynamic range and many
colors.
Cinema Digital: Picture quality suited to reproducing digital cinema-like images resembling DCI
specifications (page 40).
Reference: A picture quality setup suitable for when you want to reproduce faithfully the original image
quality, or for enjoying image quality, without any adjustment.
TV: Picture quality suited for watching TV programs, sports, concerts, and other video images.
Photo: Ideal for projecting still images taken with a digital camera.
Game: Picture quality suited to gaming, with well-modulated colors and fast response.
Bright Cinema: Picture quality suited for watching movies in a bright environment, such as a living
room.
Bright TV: Picture quality suited for watching TV programs, sports, concerts, and other video images in
a bright environment, such as a living room.
User 1, User 2, User 3: You can adjust the picture quality to suit your taste, and save the setting. The
factory default setting is the same as “Reference.”
Tip
Any adjustments to picture quality settings are saved for each input.
Reset Resets all currently selected Calib. Preset mode settings to their default values (page 18).
Tip
Reset does not affect settings saved for the Custom 1 to 5 items of “Color Temp.”
Reality Creation [REALITY
CREATION]
Adjusts the detail and noise processing of images. (Super-resolution function)
On: Adjusts the settings of “Reality Creation.”
Database: Select “Normal” or “Mastered in 4K.”
“Mastered in 4K” provides image quality suitable for Blu-ray Disc™ “Mastered in 4K” releasing
from Sony Pictures Home Entertainment.
Resolution: When you increase the setting value, the texture and detail of the picture become sharper.
Noise Filtering: When you increase the setting value, the noise (picture roughness) becomes less
prominent.
Test: On/Off: Changes “On” and “Off” at a certain frequency to check the effect of “Reality
Creation.”
Tip
The display position of status during the test works together with the “Menu Position” setting
(page 26).
Off: The “Reality Creation” function is not applied.

20
Cinema Black Pro
Laser Light Setting Dynamic Control: Adjusts the range of movement of the laser light control.
Full: Automatically optimizes the laser light control and signal processing according to the brightness
level of the input source. This results in a bright and high contrast image.
Limited: Suppresses the movement and brightness of the laser light control, making the picture
quality suitable for viewing in a dark room.
Off: The “Dynamic Control” function is not applied.
Output: The higher the setting, the brighter the picture. The lower the setting, the darker the picture.
Tip
Adjust “Output” according to the brightness of the picture.
Contrast Enhancer
[CONTRAST ENHANCER]
Corrects the level of bright and dark parts automatically to optimize contrast according to a scene.
Increases image sharpness and makes image dynamic.
High/Middle/Low: You can adjust the contrast enhancer.
Off: The contrast enhancer function is not applied.
Motionflow [MOTIONFLOW] Impulse: Reproduces original picture quality. Provides cinema-like picture, which may flicker.
Combination: Reduces motion blur while maintaining brightness for high-speed picture content.
Smooth High: Provides smoother picture movement; especially effective for film-based content.
Smooth Low: Provides smoother picture movement for standard use.
True Cinema: Images, such as a movie created in 24 frames per second, are reproduced at the original
framerate.
Off: The “Motionflow” function is not applied.
Tips
• Select “Off” if the selected “Smooth High,” “Smooth Low,” “Impulse,” “Combination,” or “True
Cinema” results in a distorted picture.
• When selecting “Impulse,” the picture becomes dark. Also, it may flicker.
• Depending on the picture content, you may not see the effect visually even if you have changed the
settings.
• Only “Off” or “Impulse” is available when a signal with a resolution of 4096 × 2160 is input.
Contrast
[CONTRAST]
Adjusts the contrast.
Higher values increase the sharpness in images, while lower values decrease the sharpness.
Brightness
[BRIGHTNESS]
Adjusts the brightness of the picture.
The higher the setting, the brighter the picture. The lower the setting, the darker the picture.
Color Adjusts the color density.
The higher the setting, the greater the intensity. The lower the setting, the lower the intensity.
Hue Adjusts the color tone.
The higher the setting, the more greenish the picture becomes. The lower the setting, the more reddish
the picture becomes.
Color Temp.
[COLOR TEMP]
Adjusts the color temperature.
D93: Equivalent to 9,300 K color temperature normally used in TVs. Gives white colors a blue tint.
D75: Equivalent to 7,500 K color temperature used as an ancillary standard illuminant. Gives a neutral
tint between “D93” and “D65.”
D65: Equivalent to 6,500 K color temperature used as a standard illuminant. Gives white colors a red
tint.
DCI: DCI specification (page 40) color temperature.
D55: Equivalent to 5,500 K color temperature used as an ancillary standard illuminant. Gives white
colors an even redder tint.
Custom 1 to 5: Enables you to adjust, set, and store your favorite color temperature.
The factory default settings are as follows.
Custom 1: Same as the “D93” color temperature setting.
Custom 2: Same as the “D75” color temperature setting.
Custom 3: Same as the “D65” color temperature setting.
Custom 4: Same as the “DCI” color temperature setting.
Custom 5: Setting that prioritizes brightness.
Tip
You can adjust each item to a color temperature according to your preference.
Sharpness
[SHARPNESS]
Sharpens the outline of the picture, or reduces the noise.
The higher the setting, the sharper the picture. The lower the setting, the softer the picture, thus reducing
the noise.
Setting items Description
Other manuals for VPL-VW5000
1
Table of contents
Other Sony Video Projector manuals
