Front/Right Side
Warning indicators
aON/STANDBY indicator
(page 49)
bWARNING indicator (page 49)
Connectors
cLAN connector (page 43)
dUSB connector (page 51)
eHDMI 1/HDMI 2 connector
(page 13)
fREMOTE connector
Connects to a computer, etc. for remote
control.
gIR IN connector
Inputs signals to control the unit.
hTRIGGER 1/TRIGGER 2
connector (page 39)
Others
iLamp cover (page 52)
j3D Sync Transmitter
Located on the inside of the lamp cover.
kVentilation holes (exhaust)
lVentilation holes (intake)
(page 54)
mRemote control detector
(page 8)
Location of Controls
Warning indicators

5

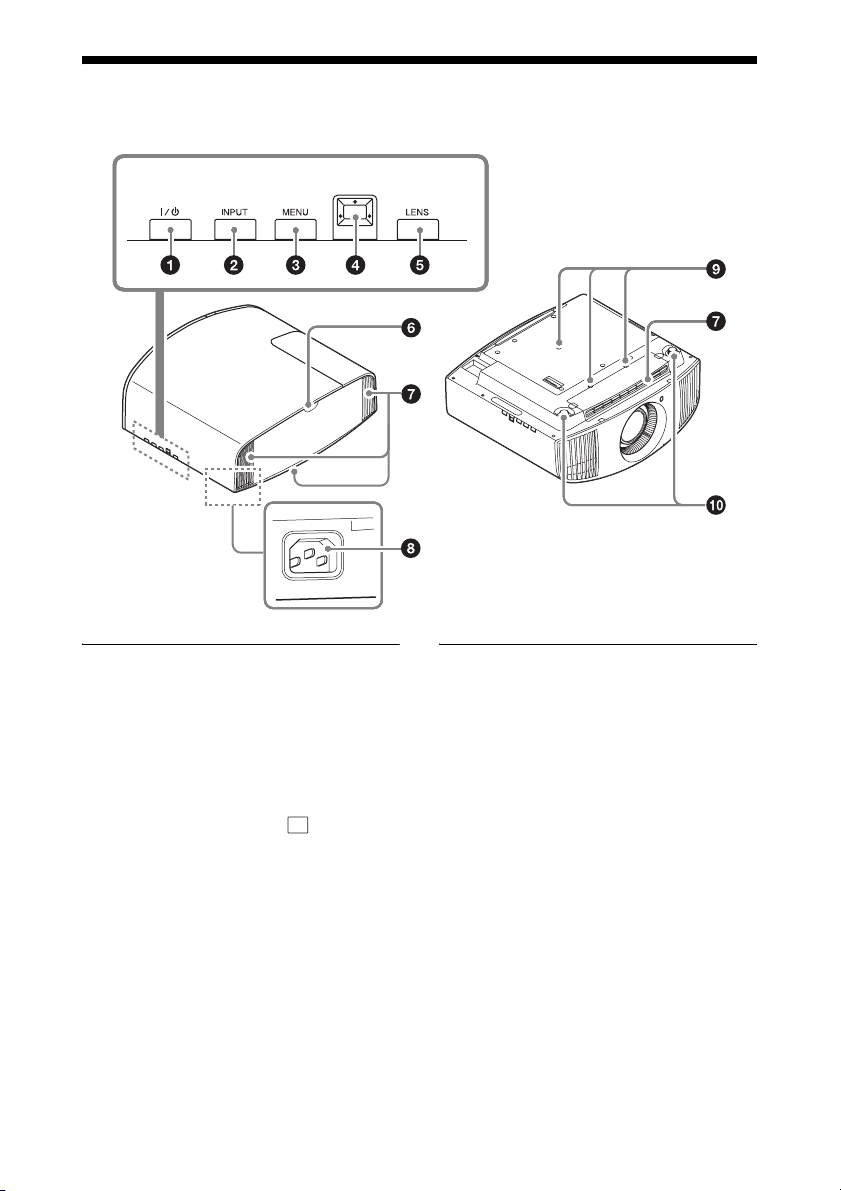

Rear/Left Side/Bottom
The buttons on the control panel have the same names as those on the remote control.
Control panel
a?/1(ON/STANDBY) button
(page 8)
bINPUT button (page 15)
cMENU button (page 23)
dM/m/</,(arrow)/ (enter)
button (page 23)
eLENS button (page 8)
Others
fRemote control detector
(page 8)
gVentilation holes (intake)
(page 54)
hAC IN socket (page 8)
iProjector suspension support
attaching hole (page 70)
jFront feet (adjustable) (page 11)
Control panel

6
Remote Control aLIGHT button
Illuminates the buttons on the remote
control.
bInfrared transmitter
c?/1(ON/STANDBY) button
(page 8)
dINPUT button (page 15)
eCALIBRATED PRESET buttons
(page 22)
fLENS ADJUSTMENT buttons
(page 9)
gPOSITION button (page 17)
hRESET button (page 24)
iM/m/</,(arrow)/ (enter)
buttons (page 23)
jMENU button (page 23)
kMOTIONFLOW button (page 27)
lASPECT button (page 19)
mCOLOR SPACE button (page 30)
nCOLOR TEMP button (page 27)
oGAMMA CORRECTION button
(page 28)
p3D button (page 16)
qREALITY CREATION button
(page 26)
rADVANCED IRIS button
(page 26)
sCONTRAST ENHANCER button
(page 26)
tSHARPNESS +/– button
(page 28)
uCONTRAST +/– button (page 27)
vBRIGHTNESS +/– button
(page 27)

7
This section describes how to install the unit and screen, how to connect the equipment from
which you want to project the picture, etc.
Installing the Unit
The installation distance between the unit
and a screen varies depending on the size of
the screen or whether or not you use the lens
shift features. Install this unit so that it fits
the size of your screen. For details on the
distance between the unit and the screen (the
projection distance) and the size of projected
video, see “Projection Distance and Lens
Shift Range” (page 65).
1Position the unit so that the lens is
parallel to the screen.
Top view
2Project an image on the screen and
adjust the picture so that it fits the
screen (page 8).
When using a screen with an uneven surface,
stripes pattern may rarely appear on the screen
depending on the distance between the screen
and the unit or the zooming magnifications.
This is not a malfunction of the unit.
Connections and Preparations
Screen
Note

8
Adjusting the Picture
Position
Project an image on the screen and then
adjust the picture position.
Tips
• The ?/1(ON/STANDBY), INPUT, MENU,
and M/m/</,/ (joystick) buttons on
the side panel of the unit function the same as
those on the remote control. The LENS
button functions in the same way as the
LENS ADJUSTMENT (FOCUS, ZOOM,
SHIFT) buttons of the remote control.
• When adjusting the lens, each time you press
the LENS button on the unit, the lens
adjustment function switches between “Lens
Focus,” “Lens Zoom” and “Lens Shift.”
Depending on the installation location of the
unit, you may not be able to control it with the
remote control. In this case, point the remote
control at the remote control detector of the
unit or the screen.
1After connecting the AC power cord to
the unit, plug the AC power cord into
a wall outlet.
The ON/STANDBY indicator lights in
red and the unit goes into standby mode.
2Press the ?/1(ON/STANDBY) button
to turn on the unit.
The ON/STANDBY indicator flashes in
green, and then lights in green.
Remote control
detector
Note
Lights in red.
Flashes in green for
tens of seconds and
then lights in green.

9
3Adjust the focus.
Press the LENS ADJUSTMENT
(FOCUS) button to display the Lens
Focus adjustment window (test pattern).
Then adjust the focus of the picture by
pressing the M/m/</,buttons.
Tips
• When “Lens Control” is set to “Off” on the
Installation menu, you cannot adjust the
focus, the picture size or the proper position
by pressing the FOCUS, ZOOM or SHIFT
buttons (page 39).
• When “Test Pattern” is set to “Off” on the
Function menu, the test pattern is not
displayed (page 37).
Adjust the lens by using buttons on the remote
control or the control panel of the unit. Never
make adjustments by directly turning the lens
with your hands, which may cause damage or
malfunction to the unit.
4Adjust the picture size.
Press the LENS ADJUSTMENT
(ZOOM) button to display the Lens
Zoom adjustment window (test pattern).
Then adjust the size of the picture by
pressing the M/m/</,buttons.
To make the picture larger, press M/,.
To make the picture smaller, press m/
<.
Note

10
5Adjust the picture position.
Press the LENS ADJUSTMENT
(SHIFT) button to display the Lens Shift
adjustment window (test pattern). Then
adjust to the proper position of the
picture by pressing the M/m/</,
buttons.
Tip
Whenever you press the button, the test
pattern disappears.
When adjusting the window position, do not
touch the lens unit, otherwise your fingers may
be pinched by the moving parts.
To adjust the horizontal position
Press </,.
The picture projected on the screen moves
right or left by a maximum of 31% of the
screen width from the center of the lens.
Top view
Note
31% 31%1 screen width
: Picture position when moving the
picture to the left at maximum
: Picture position when moving the
picture to the right at maximum

11
To adjust the vertical position
Press M/m.
The picture projected on the screen moves
up by a maximum of 85% or moves down by
a maximum of 80% of the screen height
from the center of the lens.
Side view
The range to move the picture projected on the
screen can be adjusted only within the octagon
area illustrated below. For details, see
“Projection Distance and Lens Shift Range”
(page 65).
Range of movement of the projected
To adjust the tilt of the installation
surface
If the unit is installed on an uneven surface,
use the front feet (adjustable) to keep the unit
level.
• If the unit is tilted up or down, the projected
image may be trapezoidal.
• Be careful not to catch your finger when
turning the front feet (adjustable).
Note
85%
80%
1 screen
height
: Picture position when moving the
picture upward at maximum
: Picture position when moving the
picture downward at maximum
Notes
0.85V
0.31H
H: Width of the projected picture
V: Height of the projected picture
0.31H
0.8V
Projected Picture
Front feet (adjustable)
Tur n to
adjust.

12

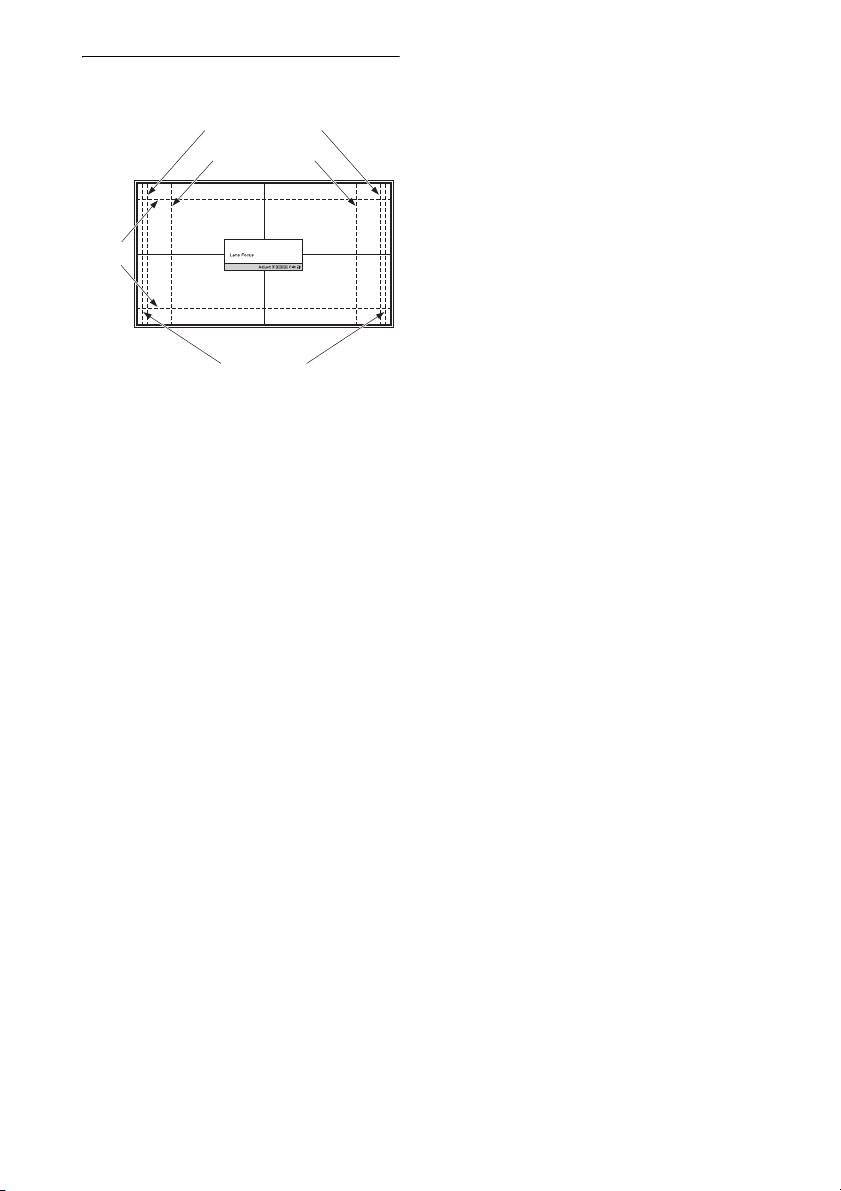

Lens adjustment window (test
pattern)
1.78:1 (16:9)
2.35:1
1.85:1
1.33:1 (4:3)
The dashed lines show the screen sizes of each
aspect ratio.

13

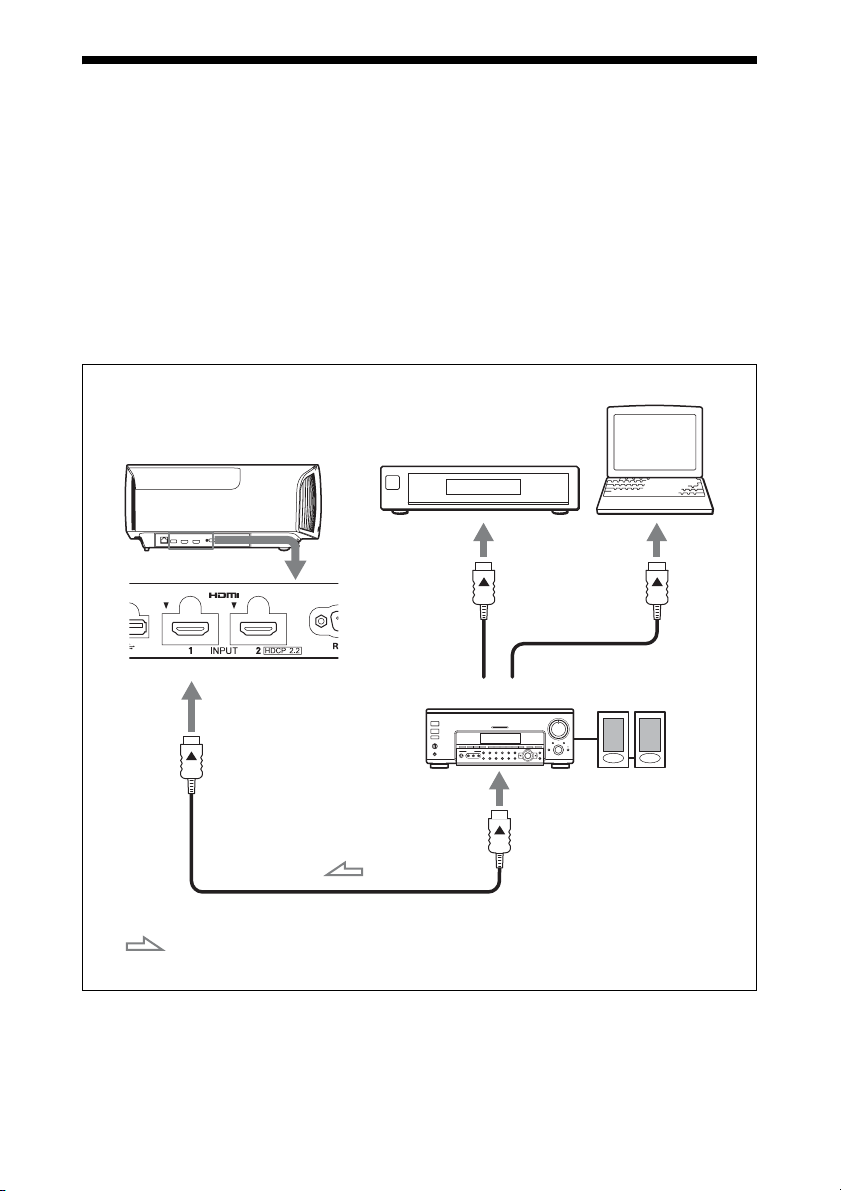

Connecting to Video Equipment or a
Computer
You can enjoy high picture quality by connecting a DVD player/recorder, Blu-ray Disc player/
recorder, or PlayStation®equipped with HDMI output to the HDMI input of the unit.
When making connections, be sure to do the following:
• Turn off all equipment before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs properly; poor connection at the plugs may cause a malfunction or poor
picture quality. When pulling out a cable, be sure to pull it out from the plug, not the cable
itself.
• Refer to the operating instructions of the connected equipment.
Right side of the unit
AV amplifier Speakers
Equipment with HDMI
output connectors
Computer
to HDMI output
HDMI cable (not supplied)
: Video signal flow Use a high speed HDMI cable on which the cable type logo
is specified. (Sony products are recommended.)

14
• Use a high-speed HDMI cable. With a standard HDMI cable, images of 1080p, DeepColor, 3D
video and 4K video may not be displayed properly.
• When connecting an HDMI cable to the unit, make sure the Vmark on the upper part of the HDMI
input of the unit and the vmark on the connector of the cable is set at the same position.
• If the picture from equipment connected to the unit with an HDMI cable is not correct, check the
settings of the connected equipment.
• If you set your computer, such as a notebook type, to output the signal to both computer’s display
and this equipment, the picture of the equipment may not appear properly. Set your computer to
output the signal to only the external monitor. For details, refer to the computer’s operating
instructions supplied with your computer. For settings of the computer, consult with the
manufacturer of the computer.
• Even if the cable is connected to the HDMI INPUT 1 connector, the signal compatible with HDCP
2.2 cannot be displayed correctly. Be sure to connect the cable to the HDMI INPUT 2 connector.
Notes

15

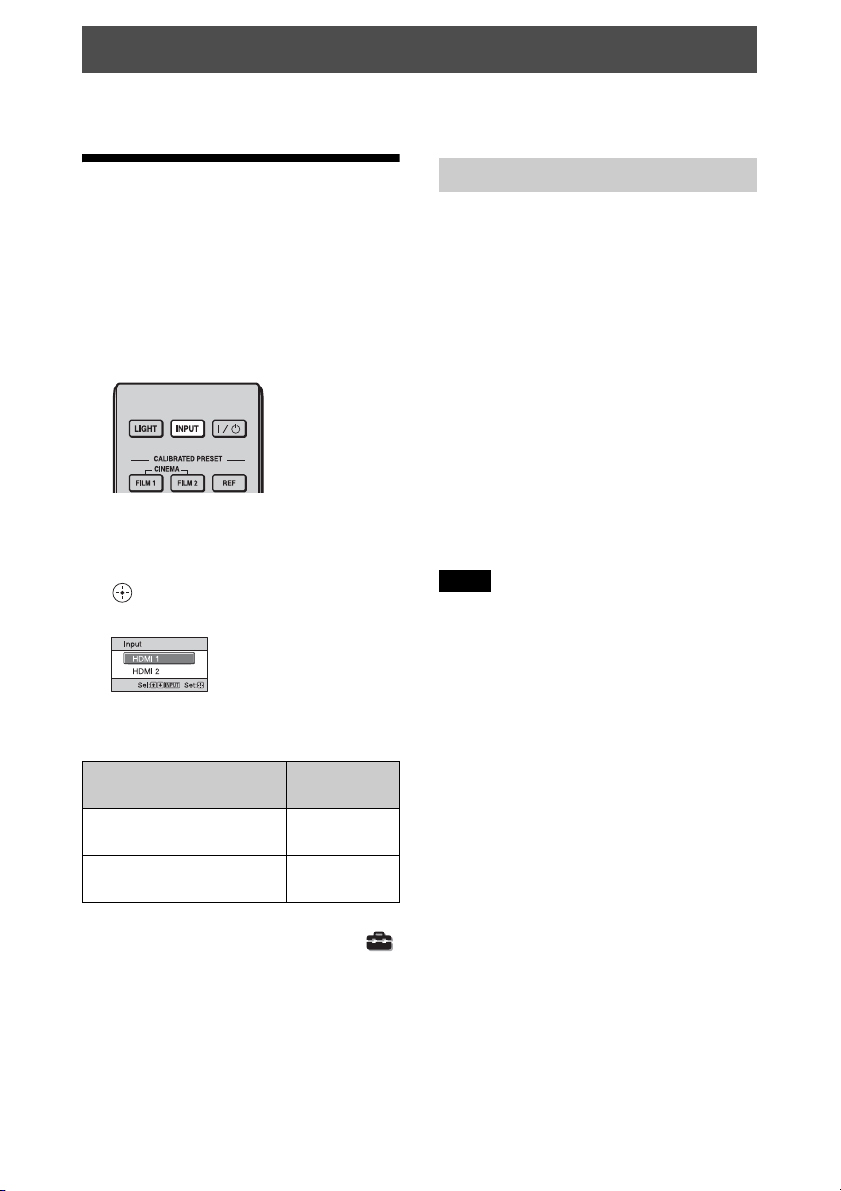

This section describes how to operate the unit to view the picture from the equipment connected
to the unit. It also describes how to adjust the quality of the picture to suit your taste.
Projecting the
1Turn on both the unit and the
equipment connected to the unit.
2Press INPUT to display the input
palette on the screen.
3Select the equipment from which you
want to display images.
Press INPUT repeatedly or press M/m/
(enter) to select the equipment from
which to project.
Tip
When “Status” is set to “Off” on the Setup
menu, the input palette does not appear. Press
the INPUT button to switch between input
terminals in sequence.
1Press the ?/1(ON/STANDBY)
button.
A message “POWER OFF?” appears on
the screen.
2Press the ?/1(ON/STANDBY) button
again before the message disappears.
The ON/STANDBY indicator flashes in
green and the fan continues to run to
reduce the internal heat.
The fan stops and the ON/STANDBY
indicator changes from flashing green to
remaining red.
The power is turned off completely, and you
can disconnect the AC power cord.
Never disconnect the AC power cord while the
indicator is flashing.
You can turn off the unit by holding the ?/1
(ON/STANDBY) button for about 1 second,
instead of performing the above steps.
Projecting
To view the picture from Press INPUT
to display
Equipment connected to the
HDMI 1 connector
HDMI 1
Equipment connected to the
HDMI 2 connector
HDMI 2
Example: To view the picture from the
video equipment connected to the HDMI
1 connector of this unit.
Turning Off the Power
Note

16
Watching 3D Video
Images
You can enjoy powerful 3D video images,
such as from 3D games and 3D Blu-ray
Discs, using the optional Active 3D Glasses
(TDG-BT500A).
1Turn on the HDMI equipment for 3D
compatibility connected to the unit,
then play the 3D content.
For details on how to play 3D content,
refer to the operating instructions for the
connected equipment.
2Turn on the unit and project the 3D
video image onto the screen.
For details on how to project the image,
see “Projecting the Picture” (page 15).
3Turn on the 3D glasses, and then put
them on so that they fit comfortably.
For details on how to use the 3D glasses,
see “Using the 3D Glasses” (page 16).
Tips
• The factory default setting for ”2D-3D
Display Sel.” is “Auto” to allow projecting
3D video images automatically when the unit
detects 3D signals.
• To convert 3D video images to 2D video
images, set “2D-3D Display Sel.” to “2D”
(page 36).
• It may not be possible to display 3D video
image, depending on the type of signal. Set
the “2D-3D Display Sel.” to “3D,” and “3D
Format” to “Side-by-Side” or “Over-Under”
to suit the format of the 3D content you want
to watch (page 36).
• Use the 3D glasses within the
communication range (page 16).
• There are differences in perception of 3D
video images among individuals.
• When the temperature of the usage
environment is low, the 3D effect may be
diminished.
Adjusting/Setting the 3D functions
You can adjust/set the 3D functions by
pressing the 3D button on the remote control
or with the “3D Settings” of the Function
menu. For details, see “3D Settings”
(page 36).
1Turn on the 3D glasses, and register
them on the unit.
For details on how to register the 3D
glasses, refer to the operating
instructions supplied with the 3D
glasses.
2Put on the 3D glasses.
3Turn toward the screen.
Precautions for use
Misoperation may occur if:
• The viewing position is too far from the
projector
• There are other communication devices,
such as a wireless LAN (IEEE802.11 b/g/
n) or a microwave with a bandwidth of 2.4
GHz, near the unit
3D glasses communication range
Figure below indicate the communication
range of the 3D glasses. If you try to watch
3D video images from a distance greater
than the communication range or install the
unit outside the communication range, the
3D glasses may not be able to display the
images properly. Also, the distance varies
depending on the environment of the room
and installation environment of the unit.
Notes
Using the 3D Glasses

17
Top or side view Using the Picture
Position
You can store up to five combinations of lens
settings (focus, picture size, picture
position), aspect ratio, and blanking. These
settings can be recalled.
1Press POSITION.
The Picture Position selecting palette is
displayed.
2Press POSITION repeatedly, or press
M/m/ to select the position.
The settings of the position selected is
recalled.
Store or delete lens settings, aspect ratio,
and blanking in the “Picture Position” of
the Screen menu (page 32).
The position where the lens settings,
aspect ratio, and blanking are not stored
is displayed as “---.”
Projector
10 m10 m
10 m
10 m

18
Image of the lens moving
In the example below, the images with
aspect ratio of 1.78:1 (16:9) and 2.35:1 are
projected on a 2.35:1 screen.
• After you have selected and confirmed the
lens position, the lens starts to move. Do not
touch, or place anything near, the lens,
otherwise it may cause injury or a
malfunction.
• If you press any button on the remote control
or the unit while the lens is moving, the lens
stops. In this case, select the lens position
again or adjust the lens manually.
• The Picture Position function is not
guaranteed to reproduce the lens settings
precisely.
• When you use the subtended screen angle of
two or more aspects using lens zoom, install
the unit within the specified parameters
referring to “Projection distance” (page 66).
With some setting positions, the range of lens
shift may be restricted, even though the unit
is installed within the specified parameters.
Notes
When a 1.78:1 (16:9) image is input
When a 2.35:1 image is input
Press the POSITION
button.
The 2.35:1 image expands to fill the screen.

19
Selecting the Aspect Ratio According to the
Video Signal
You can select an aspect ratio best suited for
the video signal received.
Press ASPECT.
Each time you press the button, you can
select the “Aspect” setting.You can also
select it using the menu (page 33).
ASPECT
button
Original image Recommended setting and resultant images
1.85:1
Squeezed 1.85:1
1.85:1 Zoom
2.35:1
Squeezed 2.35:1
2.35:1 Zoom

20
Original image Recommended setting and resultant images
1.78:1 (16:9)
1.33:1 (4:3)
1.33:1 (4:3) with side panels
Normal
2.35:1
V Stretch
When using an anamorphic lens
16:9
Squeeze
When using an anamorphic lens
