SONY.
4-485-164-02 (1)
Video Projector
Quick Reference Manual
Before operating the unit, please read this manual thoroughly and retain it for
future reference.
VPL-VW600ES
VPL-VW350ES
4-K S>~D Hi:lml
Silicon X-tal Reflective Display
11111111111111111111111111111
4485164020

2

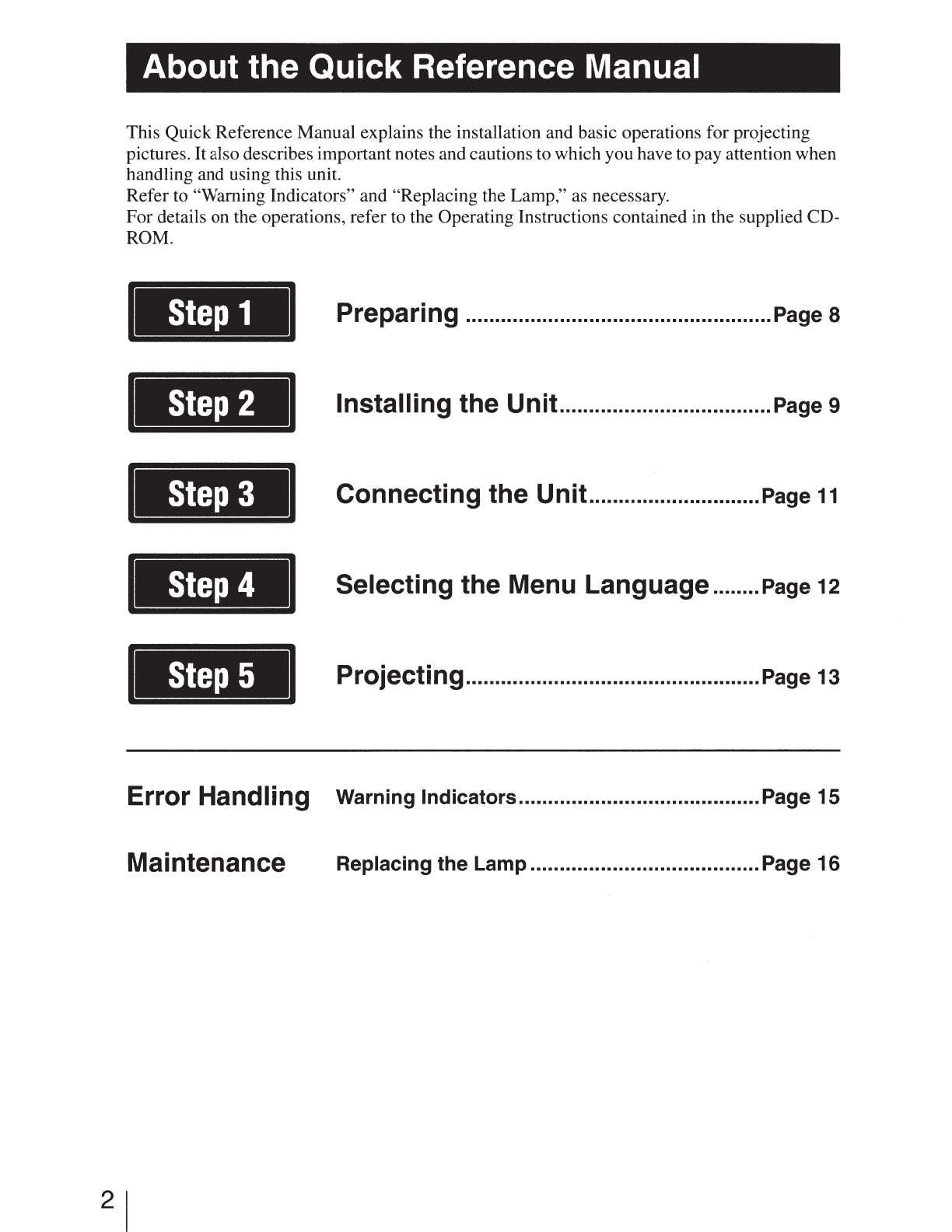

About the Quick Reference Manual
This Quick Reference Manual explains the installation and basic operations for projecting
pictures. It also describes important notes and cautions to which you have to pay attention when
handling and using this unit.
Refer to "Warning Indicators" and "Replacing the Lamp," as necessary.
For details on the operations, refer to the Operating Instructions contained in the supplied CD-
ROM.
Preparing .................................................... Page 8
Installing the Unit .................................... Page 9
Connecting the Unit ............................. Page 11
Selecting the Menu Language ........ Page 12
Projecting .................................................. Page 13

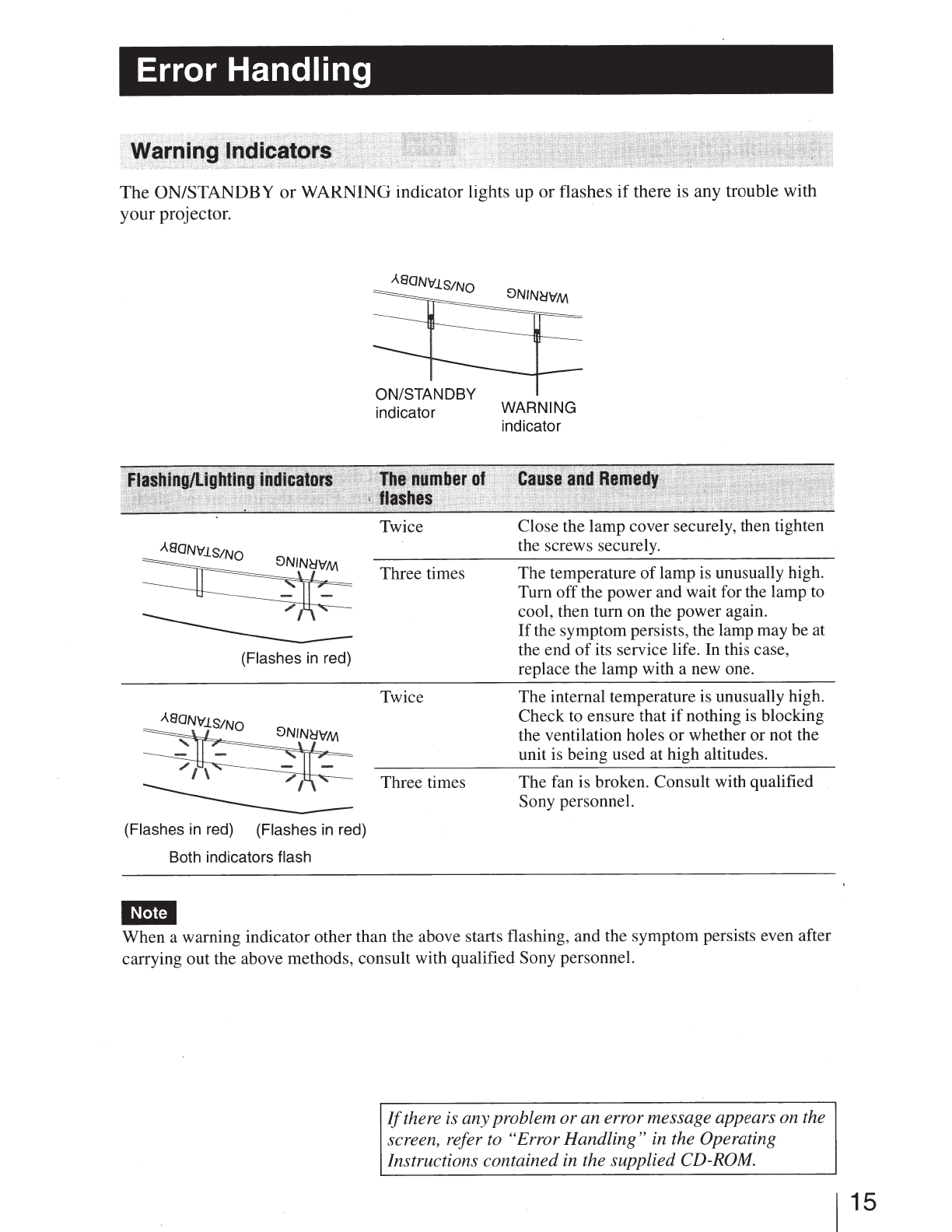

Error Handling Warning lndicators.........................................Page 15

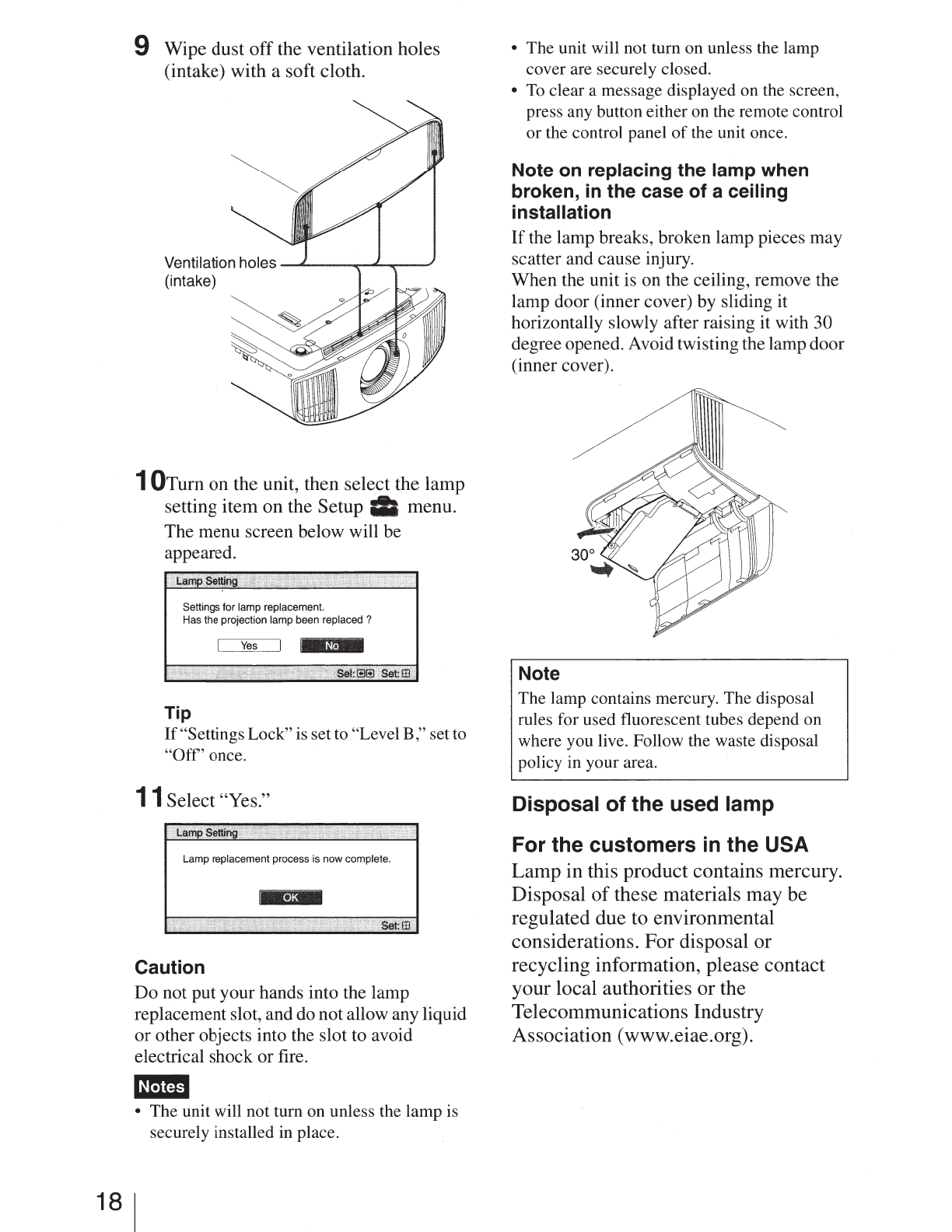

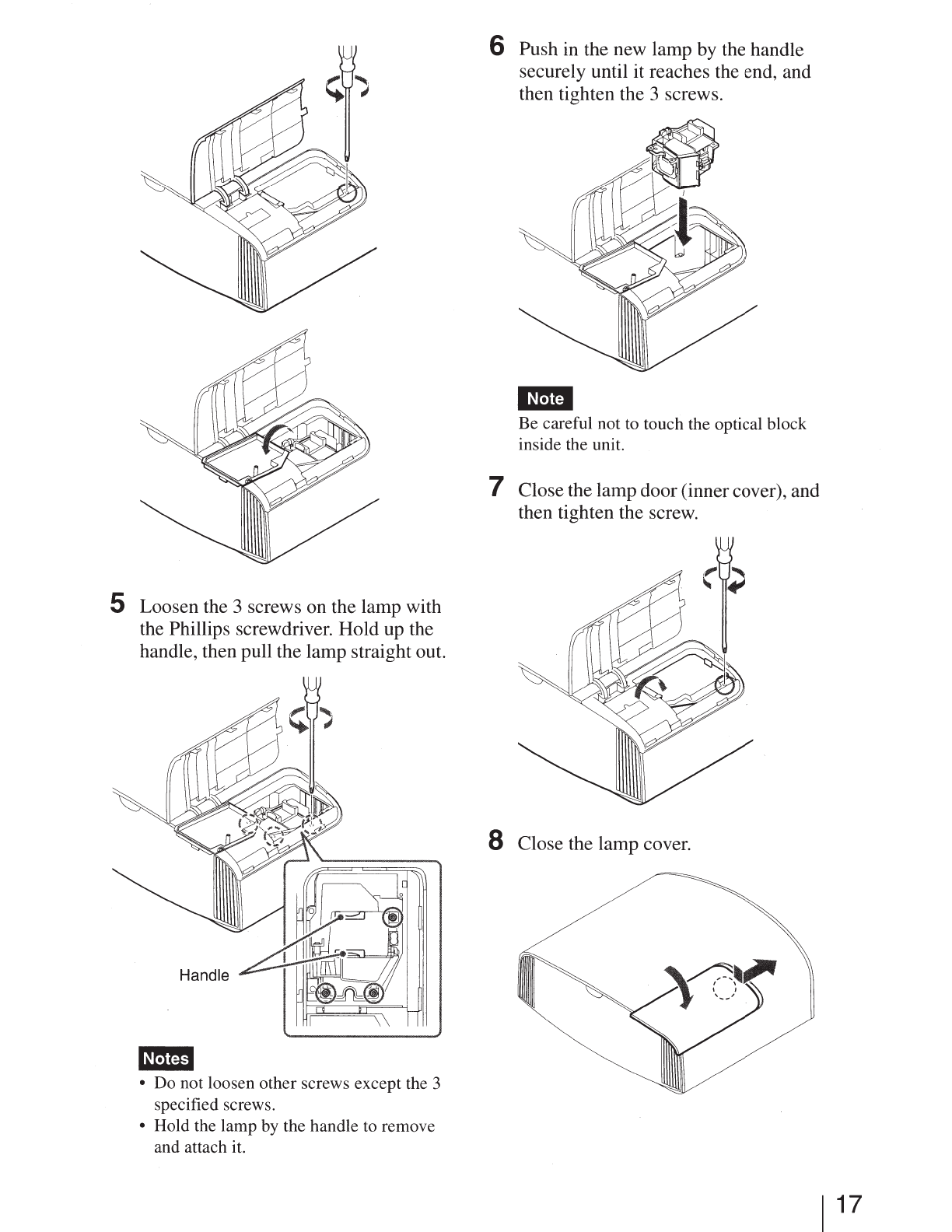

Maintenance Replacing the Lamp .......................................Page 16

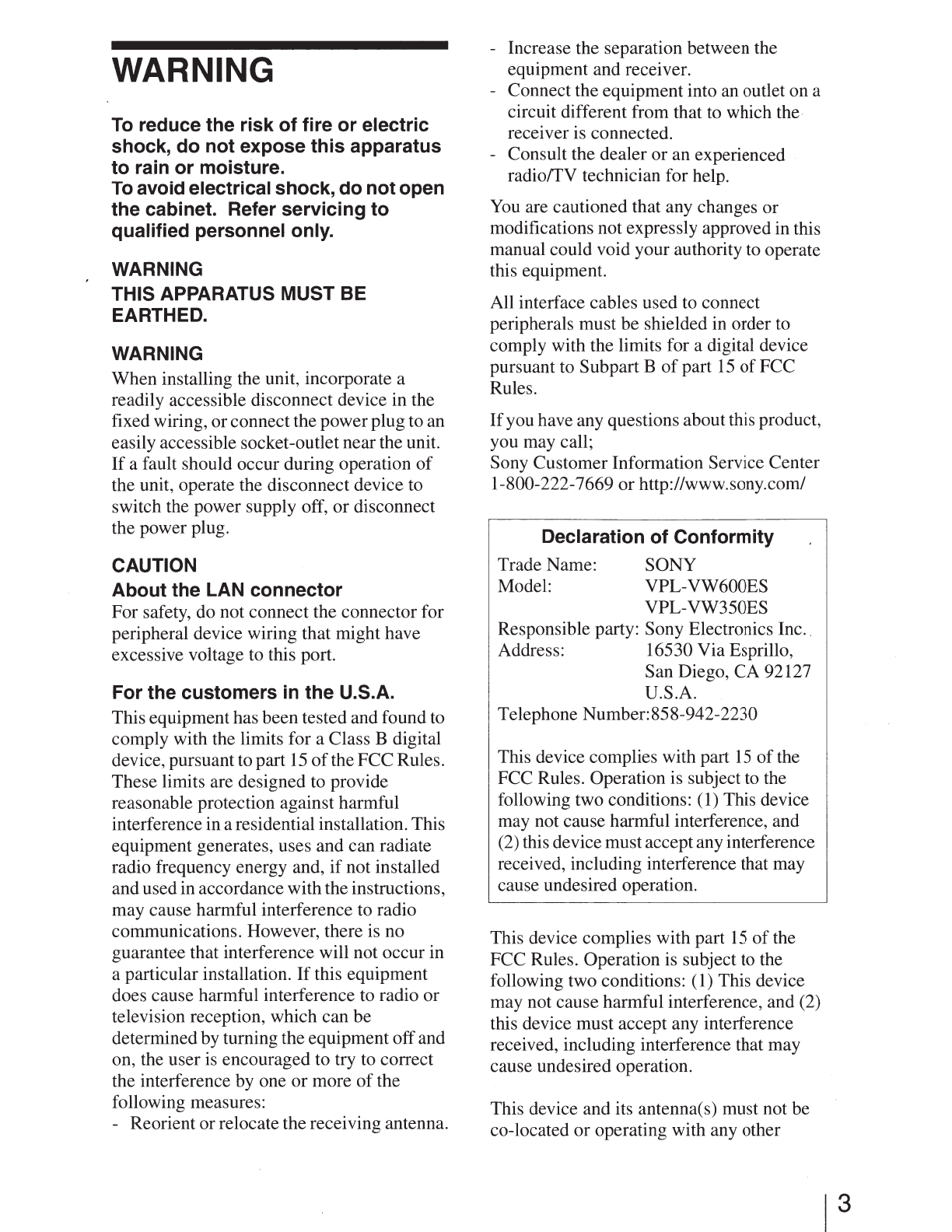

WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus
to rain or moisture.
To avoid electrical shock, do notopen
the cabinet. Refer servicing to
qualified personnel only.
WARNING
THIS APPARATUS MUST BE
EARTHED.
WARNING
When installing the unit, incorporate a
readily accessible disconnect device in the
fixed wiring, orconnectthe powerplug to an
easily accessible socket-outlet near the unit.
If a fault should occur during operation of
the unit, operate the disconnect device to
switch the power supply off, or disconnect
the power plug.
CAUTION
About the LAN connector
For safety, do not connect the connector for
peripheral device wiring that might have
excessive voltage to this port.
For the customers
in the U.S.A.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuantto part
15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in aresidential installation. This
equipment generates, uses and can radiate
radio frequency energy and,
if not installed
and used in accordance withthe instructions,
may cause harmful interference to radio
communications. However, there
is no
guarantee that interference will not occur in
a particular installation.
If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment offand
on, the user
is encouraged to try to correct
the interference by one or more
of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the
equipment and receiver.
-Connect the equipment into an outlet on a
circuit different from that to which the.
receiver is connected.
-Consult the dealer or an experienced
radioffV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
All interface cables used to connect
peripherals must be shielded in order to
comply with the limits for a digital device
pursuant to Subpart B
of part 15 of FCC
Rules.
If you have any questions about this product,
you may call;
Sony Customer Information Service Center
1-800-222-7669 or http://www.sony.com/
Declaration of Conformity
Trade Name: SONY
Model: VPL-VW600ES
VPL-VW350ES
Responsible party: Sony Electronics Inc
..
Address: 16530 Via Esprillo,
San Diego, CA 92127
U.S.A.
Telephone Number:858-942-2230
This device complies with part
15 of the
FCC Rules. Operation is subject
to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device mustacceptany interference
received, including interference that may
cause undesired operation.
This device complies with part
15 of the
FCC Rules. Operation is subject to the
following two conditions: (
1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
This device and its antenna(s) must not be
co-located
or operating with any other
3

4
antenna or transmitter except Grant
condition.
This Equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment and meets the
FCC radio frequency (RF) Exposure
Guidelines. This equipment has very low
levels
of RF energy that are deemed to
comply without testing
of specific
absorption rate (SAR).
Caution
on replacement/disposal of
the battery for the 3D glasses
Danger
of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent
type recommended by the manufacturer.
When you dispose
of the battery, you must
obey the law in the relative area or country.
For the customers
in the U.S.A.
SONY LIMITED
WARRANTY- Please
visit http://www.sony.com/psalwarranty
for important information and complete
terms and conditions
of Sony's limited
warranty applicable to this product.
For the customers
in Canada
SONY LIMITED
WARRANTY- Please
visit http://www.sonybiz.ca/solutions/
Support.do for important information and
complete terms and conditions
of Sony's
limited warranty applicable to this product.
For the customers
in Europe
Sony Professional Solutions Europe -
Standard Warranty and Exceptions on
Standard Warranty.
Please visit http://www.pro.sony.eu/
warranty for important information and
complete terms and conditions.
For the customers
in Korea
SONY LIMITED
WARRANTY- Please
visit http://bpeng.sony.co.kr/handler/
BPAS-Start for important information and
complete terms and conditions
of Sony's
limited warranty applicable to this product.
Precautions
On safety
• Check that the operating voltage of your
unit
is identical with the voltage of your
local power supply.
• Should any liquid or solid object fall into
the cabinet, unplug the unit and have it
checked by qualified personnel before
operating it further.
• Unplug the unit from the wall outlet
if it is
not to be used for several days.
•
To disconnect the cord, pull it out by the
plug. Never pull the cord itself.
• The wall outlet should be near the unit and
easily accessible.
• The unit is not disconnected to the
AC
power source (mains) as long as it is
connected to the wall outlet, even
if the
unit itself has been turned off.
• Do not look into the lens while the lamp is
on.
• Do not place your hand or objects near the
ventilation holes. The air coming out is
hot.
On preventing internal heat build-
up
After you turn off the power with the 1/(9
(ON/STANDBY) button, do not disconnect
the unit from the wall outlet while the
cooling fan
is still running.
Caution
This unit
is equipped with ventilation holes
(intake) and ventilation holes (exhaust). Do
not block orplace anything near these holes,
or internal heat build-up may occur, causing
picture degradation or damage to the unit.
On repacking
Save the original shipping carton and
packing
material~ they will come in handy if
you ever have to ship your unit. For
maximum protection, repack your unit
as it
was originally packed at the factory.

On watching 3D video images
Safety precautions
• You should only use the 3D glasses for
watching 3D video images.
•
If you observe flickering or flashing, turn
off the lighting in the room.
• Not for use by children without proper
adult supervision.
• Be careful not to pinch your fingers in
hinges
of the 3D glasses when bending the
temple frames.
• Do not drop or modify these 3D glasses.
•
If these glasses are broken, keep broken
pieces away from your mouth or eyes.
On LCD Projector
The LCD projector is manufactured using
high-precision technology.
You may,
however, see tiny black points and/or bright
points (red, blue, orgreen) that continuously
appear on the LCD projector. This is a
normal result
of the manufacturing process
and does not indicate a malfunction.
Also, when you use multiple LCD projectors
to project onto a screen, even
if they are of
the same model, the color reproduction
among projectors may vary, since color
balance may be set differently from one
projector to the next.
On condensation
If the room temperature where the projector
is installed changes rapidly, or
if the
projector is moved suddenly from a cold to a
warm place, condensation in the projector
may occur. As the condensation may cause
malfunction, be careful in adjusting
temperature settings
of the air conditioner. If
condensation occurs, leave the projector
turned on for about two hours before use.
SONY WILL NOT BE LIABLE FOR
DAMAGES OF ANY KIND
RESULTING FROM A FAILURE TO
IMPLEMENT PROPER SECURITY
MEASURES ON TRANSMISSION
DEVICES, UNAVOIDABLE
DATA
LEAKS RESULTING FROM
TRANSMISSION SPECIFICATIONS,
OR SECURITY PROBLEMS OF ANY
KIND.
5

6
Notes on Installation
and Usage
Do not place the unit in the following
situations, which may cause malfunction or
damage to the unit.
Near walls
To maintain the performance and reliability
of the unit, leave space between walls and
the unit
as illustrated.
30cm
(11 7;8
inches)
30cm
(11 7;8
inches)
30
em
(11 7;8
inches)
Air from air conditioners or the ventilation
holes
of this unit orotherdevices, may cause
oscillation on the screen. Be sure not to
install this unit in the area where the air from
air conditioners or the ventilation holes
of
these devices reach to the front side of this
unit.
Poorly ventilated location
Leave space of more than 30 em ( 11
7
I8
inches) around the unit.
Hot and humid
Locations subject to direct cool or
warm air from an air-conditioner
Installing the unit in such a location may
cause a malfunction
of the unit due to
moisture condensation or rise in
temperature.
Near a heat or smoke sensor
Malfunction of the sensor may occur.
..........
......
....
Very dusty and extremely smoky
locations ·
Do not do any of the following while using
the unit.

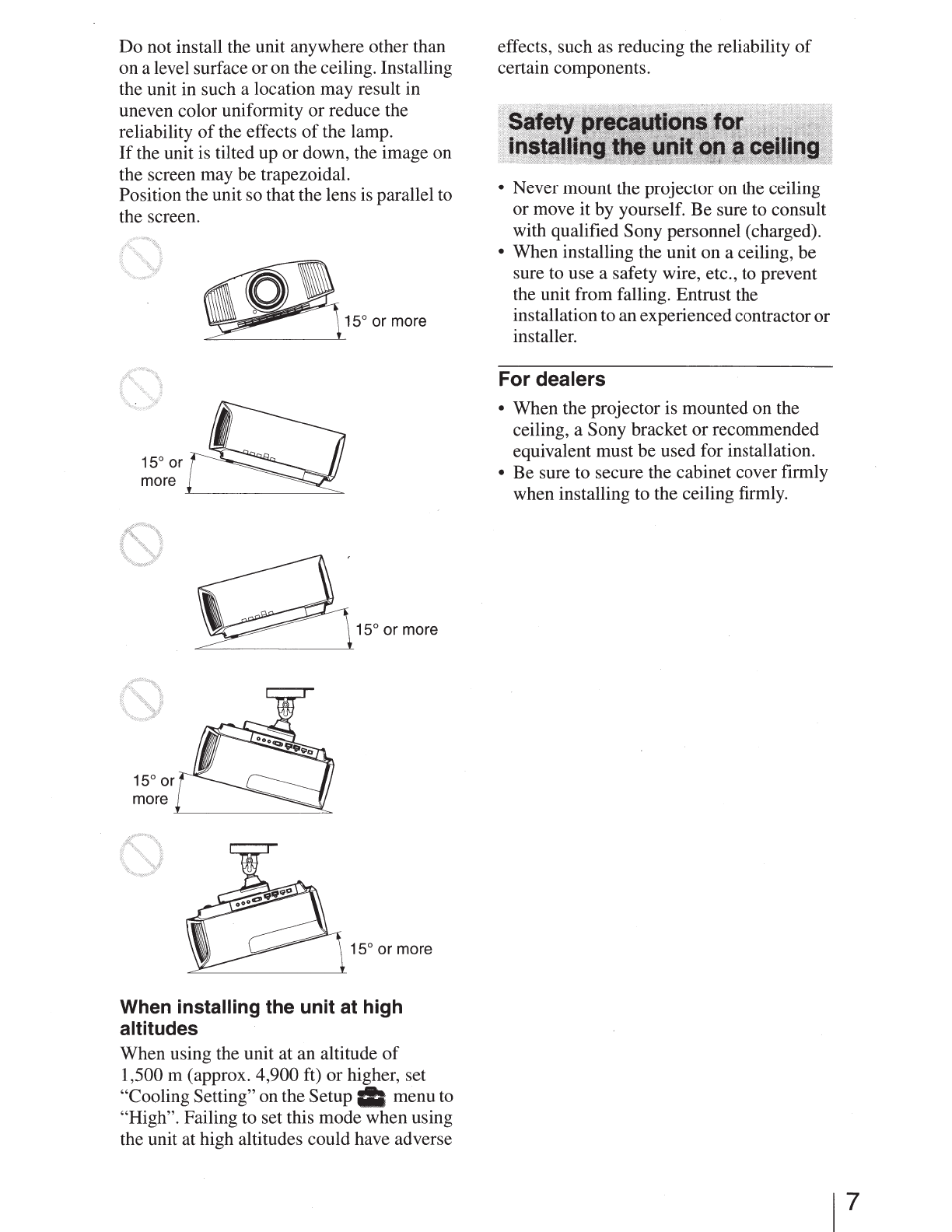

Tilting front/rear and left/right
Avoid using the unit tilted at an angle of
more than 15 degrees.

Do not install the unit anywhere other than
on a level surface oron the ceiling. Installing
the unit in such a location may result in
uneven color uniformity or reduce the
reliability
of the effects of the lamp.
If the unit is tilted up or down, the image on
the screen may be trapezoidal.
Position the unit so that the lens is parallel to
the screen.
15° or
more
15° or
more
15° or more
15°
or more
15° or more
When installing the unit at high
altitudes
When using the unit at an altitude of
1,500 m (approx. 4,900 ft) or higher, set
"Cooling Setting" on the Setup • •menu
to
"High". Failing to set this mode when using
the unit at high altitudes could have adverse
effects, such as reducing the reliability
of
certain components.
• Never mount the projector on the ceiling
or move it by yourself. Be sure to consult
with qualified Sony personnel (charged).
• When installing the unit on a ceiling, be
sure to use a safety wire, etc., to prevent
the unit from falling. Entrust the
installationto an experiencedcontractoror
installer.
For dealers
• When the projector is mounted on the
ceiling, a Sony bracket or recommended
equivalent must be used for installation.
• Be sure to secure the cabinet cover firmly
when installing to the ceiling firmly.
7

8
Preparing
Checkthe carton to make sure it contains the
following items:
• Remote control (
1)
VPL-VW600ES: RM-PJ24
VPL-VW350ES: RM-PJ28
• Size AA (R6) manganese batteries (2)
• Lens cap (1)
When you purchase the projector, a lens
cap is on the lens. Remove the lens cap
before you use the projector.
•
AC power cord for the projector (1)
• Quick Reference Manual (this manual) (1)
• Operating Instructions (CD-ROM) (1)
CAUTION
Push and slide to
open.
Insert the batteries 0
side first.
Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent
type recommended by the manufacturer.
When you dispose
of the battery, you must
obey the law in the relative area or country.
Installing batteries
Two size AA (R6) batteries are supplied for
Remote Control.
To avoid risk of explosion, use size AA (R6)
manganese
or alkaline batteries.
Caution about handling the remote
control
• Handle the remote control with care. Do
not drop or step on it, or spill liquid
of any
kind onto it.
• Do not place the remote control in a
location near a heat source, a place subject
to direct sunlight, or a damp room.
The manual can be read on a computer with
Adobe Reader installed.
You can download Adobe Reader free from
the Adobe website.
1 Open the index.html file in the CD-
ROM.
2 Select and click on the manual that
you want to read.
I~Mtj
If you have lost or damaged the CD-ROM, you
can purchase a new one from your Sony dealer
or Sony service counter.

Installing the Unit
1 Position the unit so that the lens is
parallel to the screen.
2 Afterconnecting the AC power cord to
the unit,
plug the AC power cord into
a wall outlet.
Front of the unit
ASON\tlS!NO
:::::U:::: Lights in red.
---------------
3 Press the 1/(!) (ON/STANDBY) button
to turn
on the unit.
Front of the unit
ASON\tlS!NO
=::::u::::
---------------
Flashes in green for
tens of seconds and
then lights
in green.
4 Project an image on the screen, then
adjust the focus, size,
and position.
VPL-VW600ES
0 Adjust the focus.
Press the LENS ADJUSTMENT
(FOCUS) button to display the Lens
Focus adjustment window (test pattern).
Then adjust the focus
of the picture by
pressing the tl.f.l+-1_. buttons.
8 Adjust the picture size.
Press the LENS ADJUSTMENT .
(ZOOM) button to display the Lens
Zoom adjustment window (test pattern).
Then adjustthe size
of the picture by
pressing the tl.f.l+-1_. buttons.
E) Adjust the picture position.
Press the LENS ADJUSTMENT
(SHIFT) button to display the Lens Shift
adjustment window (test pattern). Then
adjust to the proper position
of the
picture by pressing the tl.f.l+-1_.
buttons.
VPL-VW350ES
0 Adjust the focus.
Press the PATTERN button repeatedly to
display the Lens Focus adjustment
window (test pattern). Then adjust the
focus
of the picture by pressing the tl.f.l
+-1_. buttons.
8 Adjust the picture size.
Press the PATTERN buttonrepeatedly to
display the Lens Zoom adjustment
window (test pattern). Then adjust the
size
of the picture by pressing the tl.f.l
+-1_. buttons.
E) Adjust the picture position.
Press the PATTERN button repeatedly to
display the Lens Shift adjustment
window (test pattern). Then adjust to the
9

10
proper position of the picture by
pressing the
tlf·l~l-+ buttons.
Lens adjustment window {test
pattern)
~
~·:::~ ((~~~~) ~
II I II
II I II
i'-----1 -------------- -------------- :---ii
I I I II
I I II
I II
I II
I II
I II
2.35:1 11---'-'-------'-:---1 ::
I II
I II
I II
f~------ -------~
1.85:1
The dashed lines showthe screen sizes ofeach
aspect ratio.
For more information, refer to
"Connections and Preparations"·in the
Operating Instructions contained in the
supplied CD-ROM.

Connecting the Unit
When making connections, be sure to do the following:
• Turn off all equipment before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs properly; poorconnection at the plugs may cause a malfunction orpoor
picture quality. When pulling out a cable, be sure to pull it out from the plug, not the cable
itself.
• Refer to the operating instructions
of the connected equipment.
Right side of the unit
Hom•
' '
l=) l=)
1 INPUT 2
t
@~
RE
Equipment with HOMI
output connectors
I~ Jl
t
AV amplifier
Computer
D
t
Speakers
t to HDMI output
HDMI cable (not supplied)
~ : Video signal flow Use a high speed HOMI cable on which the cable type logo
is specified. (Sony products are recommended.)
For more information, refer to "Connections and
Preparations" in the Operating Instructions contained in
the supplied CD-ROM.
11

12
Selecting the Menu Language-
You can select the language for displaying
the menu and other on-screen displays. The
factory default setting is English.
To change
the current menu language, set the desired
language with the menu screen.
1 Press MENU.
The menu appears.
2 Press t;~ to select the Setup ill
menu, and press ... or 8.
The setting items of the selected menu
appear.
3 Press t I~ to select "Language," and
press
... or 8.
4 Press tl~/~1 ... to select a
language, and press
8.
The menu changes to the selected
language.
To clear the menu
Press MENU.

Projecting
1 Turn on both the unit and the
equipment connected to the unit.
2 Press INPUT to display the input
palette on the screen.
3 Select the equipment from which you
want to display images.
Press INPUT repeatedly or press t;.J.;
8 (enter) to select the equipment from
which to project.
Input
lii•J&ii-
HDMI2
~)lm)E!n$i¢6ll
Example: To view the picture from the
video equipmentconnected tothe HOMI
1 connector of this unit.
1 Press the 1/C) (ON/STANDBY)
button.
A message "POWER OFF?" appears on
the screen.
2 Press the 1/C) (ON/STANDBY) button
again before the message disappears.
The ON/STANDBY indicator flashes in
green and the fan continues to run to
reduce the internal heat.
The fan stops and the ON/STANDBY
indicatorchanges from flashing green to
remaining red.
The power is turned
off completely, and you
can disconnect the AC power cord.
•~mtJ
Never disconnect the AC power cord while the
indicator
is flashing.
You can tum off the unit by holding the 1/~
(ON/STANDBY) button for about 1 second,
instead
of performing the above steps.
For more information, refer to
"Projecting" in the Operating Instructions
contained in the supplied CD-ROM.
13

Press one
of
the CALIBRATED PRESET
buttons.
CINEMA FILM 1
CINEMA FILM 2
REF
TV
GAME
BRTCINE
BRTTV
USER
I
LIGHT
I'INPUT I
E:ZQ]
-
CALIBRATED
PRESET
-
CINEMA
88~
01PHOTol8
jeRT
CINE
II
BRTTV
I
~
CALIBRATED
PRESET buttons
Picture quality suited to reproducing the highly dynamic and
clear images typical
of
master positive film.
Picture quality suited to reproducing the rich tone and color
typical
of
a movie theater, based on the tones changed for FILM
1.
A picture quality setup suitable for when you want to reproduce
faithfully the original image quality, or for enjoying image
quality, without any adjustment.
Picture quality suited for watching
TV
programs, sports,
concerts, and other video images.
Ideal for projecting still images taken with a digital camera.
Picture quality suited to gaming, with well-modulated colors
and fast response.
Picture quality suited for watching movies in a bright
environment, such as a living room.
Picture quality suited for watching
TV
programs, sports,
concerts, and other video images in a bright environment, such
as a living room.
Adjusts the picture quality to suit your taste then saves the
setting. The factory default setting is the same as "REF."
For more information, refer to "Projecting" in the
Operating Instructions contained in the supplied CD-
ROM.

Error Handling
The ON/STANDBY
or
WARNING indicator lights up or flashes
if
there is any trouble with
your projector.
(Flashes
in
red)
(Flashes
in
red)
(Flashes
in
red)
Both indicators flash
•~m•
ON/STANDBY
indicator
Twice
Three times
Twice
Three times
WARNING
indicator
Close the lamp cover securely, then tighten
the screws securely.
The temperature
of
lamp is unusually high.
Turn offthe power and wait for the lamp
to
cool, then tum on the power again.
If
the symptom persists, the lamp may be at
the end
of
its service life. In this case,
replace the lamp with a new one.
The internal temperature is unusually high.
Check
to
ensure that
if
nothing is blocking
the ventilation holes or whether or not the
unit is being used at high altitudes.
The fan is broken. Consult with qualified
Sony personnel.
When a warning indicator other than the above starts flashing, and the symptom persists even after
carrying out the above methods, consult with qualified Sony personnel.
If
there is anyproblem
or
an error message appears on the
screen, refer to "Error Handling" in the Operating
Instructions contained in the supplied CD-ROM.
15

16
Maintenance
The lamp used for the light source has a
certain lifespan. When the lamp dims, the
color balance
of the picture becomes
strange, or "Please replace the Lamp."
appears on the screen, the lamp may be
exhausted. Replace the lamp with a new one
(not supplied) without delay.
Tip
The lifespan of the lamp used for the light ·
source changes depending on the installation
environment or use conditions.
You can use the
lamp longer by avoiding turning the lamp off
until several minutes pass after turning the
lamp on.
Tools you need to get started:
• Projector Lamp (Optional)
VPL-VW600ES: LMP-H260
VPL-VW350ES: LMP-H230
• Standard Phillips screwdriver
• Cloth (for scratch protection)
Caution
• The lamp remains hot after the unit is
turned offwith the 1/(9 (ON/STANDBY)
button.
If you touch the lamp, you may
bum your fingers. When you replace the
lamp, wait for at least 1 hour for the lamp
to cool.
• Do not touch the surface
of the lamp. If
you touch it, wipe offthe fingerprints with
a soft cloth.
• Pay special attention to replacing the lamp
when the unit
is installed on the ceiling.
• Whenreplacing the lamp
of a unit which is
on the ceiling, do not stand directly under
the lamp cover. When removing the lamp
door (inner cover), avoid twisting it.
If the
lamp explodes, fragments may cause
InJury.
• When removing the lamp unit, make sure
it remains horizontal, then pull straight up.
Donot tilt the lamp unit.
If you pull out the
lamp unit while tilted and
if the lamp
breaks, the pieces may scatter, causing
InJury.
already been turned off.
1 Tum off the unit and unplug the AC
power cord.
2 When setting the unit on a flat surface
such as a
desk etc., put a cloth to
prevent the surface from being
scratched.
Place the unit on the cloth.
•~M5
Be sure that the unit is placed on a stable
surface.
3 While pressing the ~~ ~} part indicated
in the
lamp cover illustration, slide CD
and then open ® the lamp cover.
4 Loosen the lamp door (inner cover)
screw with a Phillips screwdriver,
and
then open the lamp door.

5 Loosen the 3 screws on the lamp with
the Phillips screwdriver. Hold up the
handle, then pull the lamp straight out.
•~MiiJ
• Do not loosen other screws except the 3
specified screws.
• Hold the lamp by the handle to remove
and attach it.
6 Push in the new lamp by the handle
securely until it reaches the end, and
then tighten the 3 screws.
•~mo
Be careful not to touch the optical block
inside the unit.
7 Close the lamp door (innercover), and
then tighten the screw.
8 Close the lamp cover.
17

18
9 Wipe dust off the ventilation holes
(intake) with a soft cloth.
Ventilation holes -1&......----"'---..r----
(intake)
1 0Turn on the unit, then select the lamp
setting item on the Setup & menu.
The menu screen below will be
appeared.
Tip
If "Settings Lock" is set to "Level B ," set to
"Off' once.
11 Select "Yes."
Caution
Do not put your hands into the lamp
replacement slot, and do not allow any liquid
or other objects into the slot to avoid
electrical shock
or fire.
•~MtiJ
• The unit will not turn on unless the lamp is
securely installed in place.
• The unit will not turn on unless the lamp
cover are securely closed.
•
To clear a message displayed on the screen,
press any button either
on the remote control
or the control panel
of the unit once.
Note on replacing the lamp when
broken,
in the case of a ceiling
installation
If the lamp breaks, broken lamp pieces may
scatter and cause injury.
When the unit is on the ceiling, remove the
lamp door (inner cover) by sliding it
horizontally slowly after raising it with 30
degree opened. Avoid twisting the lamp door
(inner cover).
Note
The lamp contains mercury. The disposal
rules for used fluorescent tubes depend on
where you live. Follow the waste disposal
policy in your area.
Disposal of the used lamp
For the customers
in the USA
Lamp in this product contains mercury.
Disposal
of these materials may be
regulated due to environmental
considerations. For disposal or
recycling information, please contact
your local authorities or the
Telecommunications Industry
Association (www.eiae.org).

© 2013 Sony Corporation Printed
in
Japan

Operating Instructions
Before operating the unit, please read this manual and supplied Quick
Reference Manual thoroughly and retain them for future reference.
VPL-VW350ES
4-567-964-01 (1)
Video Projector
