Sony AXS-R5 User manual

SONY:
PORTABLE MEMORY
RECORDER
Operating Instructions
Mode d'emploi
o
(1)
a
<
AXS-R5
AXSM
© 2013 Sony Corporation Printed in Japan

1
English
Before operating the unit, please read this manual thoroughly and retain it for
future reference.
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To avoid electrical shock,
do not open the cabinet.
Refer servicing
to qualified personnel only.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only
with the same or equivalent type recommended by the manufacturer.
When
you dispose of the battery, you must obey the law in the relative area or
country.
Do
not install the appliance in a confined space, such as book case or built-in cabinet.
IMPORTANT
The nameplate is located on the bottom .
WARNING
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
For the customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation
of this equipment in a residential area is likely to cause harmful interference
in which
case the user will be required to correct the interference at his own expense.
You are cautioned
that any changes or modifications not expressly approved in
this manual could
void your authority to operate this equipment.
All interface cables used to connect peripherals must be shielded in order to comply
with the limits for a digital device pursuant to Subpart B of part 15 of FCC Rules.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and
(2) this device must accept any interference received, including interference
that may cause undesired operation.

2

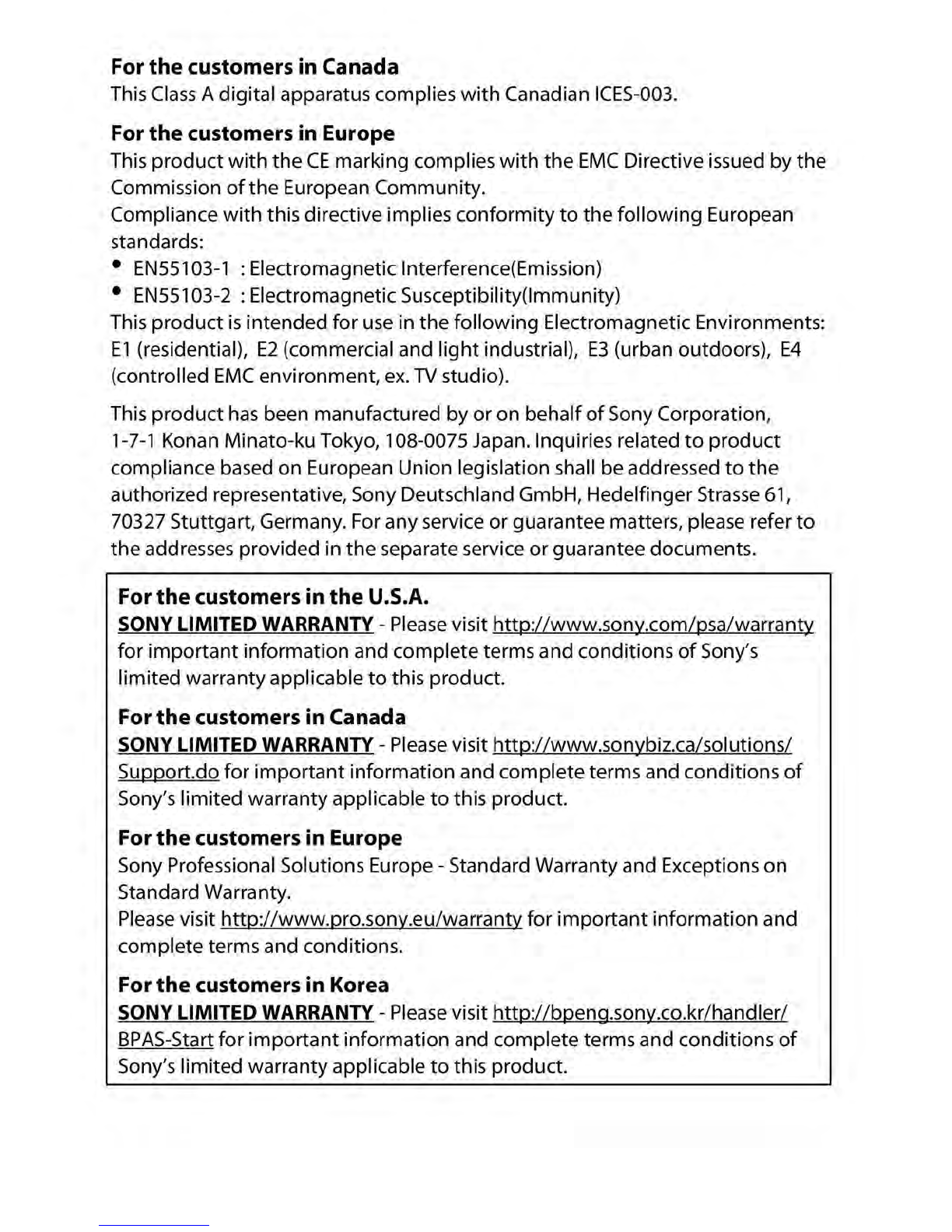

For the customers in Canada
This Class A digital apparatus complies with Canadian ICES-003.
For the customers in Europe
This product with the CE marking complies with the EMC Directive issued by the
Commission
of the European Community.
Compliance with this directive implies conformity
to the following European
standards:
EN551 03-1 :Electromagnetic lnterference(Emission)
ENS 5103-2 :Electromagnetic Susceptibility(lmmunity)
This product
is intended for use in the following Electromagnetic Environments:
E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors), E4
(controlled EMC environment, ex. TV studio).
This
product has been manufactured by or on behalf of Sony Corporation,
1-7-1 Kanan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product
compliance based on European Union legislation shall be addressed to the
authorized representative, Sony Deutschland GmbH, Hedelfinger Strasse 61,
70327 Stuttgart, Germany. For any service or guarantee matters, please refer to
the addresses provided in the separate service or guarantee documents.
For the customers in the U.S.A.
SONY LIMITED WARRANTY- Please visit http://www.sony.com/psa/warranty
for
important information and complete terms and conditions of Sony's
limited warranty applicable
to this product.
For the customers in Canada
SONY LIMITED WARRANTY- Please visit http://www.sonybiz.ca/solutions/
Support.do for
important information and complete terms and conditions of
Sony's limited warranty applicable to this product.
For the customers in Europe
Sony Professional Solutions Europe- Standard Warranty and Exceptions on
Standard Warranty.
Please visit http://www.pro.sony.eu/warranty for important information and
complete terms and conditions.
For the customers in Korea
SONY LIMITED WARRANTY- Please visit http://bpeng.sony.co.kr/handler/
BPAS-Start for important information and complete terms and conditions of
Sony's limited warranty applicable to this product.

3
Features
The AXS-RS is a portable memory recorder that uses newly developed AXS
memory cards as the recording media. It features a toggle connector for
connection to PMW-F5/F55 and other camcorders, and the HXR-IFR5 interface
unit.
It supports simple
development of RAW data recorded on AXS memory cards
inserted in
the recorder for playback on an external monitor.
Recording,
monitor playback, and other operations can be controlled from the
connected camcorder.
Name and Function of Parts {Figures A and B
Note
Always disconnect the battery pack and DC IN connector DC supply cable before
connecting
or disconnecting another device to or from this recorder.
Refer to the operating instructions for the connected camcorder when using this recorder.
1 Battery pack mounting unit
Supplies power from a battery pack, or from
an AC supply using an AC adapter.
For safety, use
only the following Sony genuine battery pack and AC adapter.
Battery pack: BP-FL75/L80S
AC adapter: AC-DN2B/DN10
Notes
Before installation, charge the battery pack using a battery charger.
Charging
the battery pack immediately after use when the temperature of
the battery pack is high may not fully charge the battery pack.
2 Battery release lever
Push to release the lock, allowing the battery pack to be removed.
3 Memory slot cover open/close button
Slide
to open the cover when inserting/removing an AXS memory card.
4 AXS memory card slot
Insertion slot for an AXS memory card. Insert an AXS memory card all the way
into the slot with the AXS logo mark facing the battery side.
Supported
AXS memory cards: AXS-512S24
5 EJECT button
Push to eject the AXS memory card from the memory card slot.

4
TALLY

5
Note
If a memory card is ejected while the ACCESS lamp is lit red, data on the card
is not guaranteed. All data on the memory card may become corrupted.
Memory cards should be ejected only when
the ACCESS lamp is lit green.
6 Release lever
Slide the release button to unlock and then lift the lever when mounting a
camcorder on
the recorder or when removing a camcorder from the recorder.
7 DC OUT connector
Supplies DC power to peripheral devices, such as a monitor or LED light.
Connect only devices
with current consumption rating of 1.8 A or lower to
the DC OUT connector. If an overcurrent condition is detected, the indicator
turns on and
output stops. Check the connection with peripheral devices and
then
turn on the power supply again.
8 DC IN connector
Supplies DC power to the recorder using the optional DC power supply cable.
9 AUX OUT connector
Connects to an external monitor for developed video, audio, and timecode
output using a 1.5G HD SDI (1920 x 1 080/Edge Crop) signal. It is not suitable
for on-set grading or main line recording.
An interlaced signal
is output when the frame rate is 59.94P or SOP, and a
progressive (Pure-P) signal
is output at other frame rates.
The relationship between
the connected device and output is described
below.
When connected
to HXR-IFR5
If recording format is 4K: EE and playback video are output.
If recording format is 2K: Only playback video is output; EE video is not
output.
When connected to PMW-FS/FSS
If PMW-FS/FSS is earlier than Ver 3.0: EE
1l and playback video are output.
If PMW-FS/FSS is Ver 3.0 or later: Only EEll video is output; playback video
is not output. Playback video is available from each PMW-FS/FSS output,
according to the PMW-FS/FSS settings.
1) EE signal is not output when in High Frame Rate mode or in Slow & Quick
Motion mode.
Only video can be output in an EE signal. The output format varies with the
connected device.
For details, refer to the operation manual forthe connecteddevice.

6
10 Camera mount connector
Connects to a camcorder and provides both signal and power .
Note
A data transfer error may occur if there is any dust or other matter adhering
to the camera mount connector. If the connector is dirty, clean the connector
using a cotton swab.
For details about connecting camcorders, refer to the operating instructions for the
camcorder.
11 TALLY lamp
Lights while recording is in progress.
It flashes when an error or warning condition occurs. The main causes are
indicated below. For other causes, refer to the operation manual for the
connected camcorder.
Flashing
(1 time/sec): Remaining media warning (about 5 minutes)
Flashing (4 times/sec): No remaining media or an error occurred
12 ACCESS lamp
Lights when the inserted AXS memory card is being accessed and during
recording/playback .
Red:
During data access and when shutting down
Green: When not accessing a memory card in recording/playback mode
Off : When a valid memory card is not inserted
1 POWER indicator
Lights when power is supplied from the camcorder.
14 SELECT button/indicator
Lights when playback mode is enabled. When the indicator is not lit, pressing
the SELECT button enables playback mode.
Notes
Always make a test recording, and verify that it was recorded successfully.
SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT
LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF FAILURE
OF THIS UNIT OR ITS RECORDING MEDIA, EXTERNAL STORAGE SYSTEMS OR ANY
OTHER MEDIA OR STORAGE SYSTEMS TO RECORD CONTENT OF ANY TYPE.
Always verify that the unit is operating properly before use. SONY WILL
NOT
BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED
TO, COMPENSATION
OR REIMBURSEMENT ON ACCOUNT OF THE LOSS
OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT,
EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE
WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

7
Specifications
General
Power supply
Power consumption
Operating temperature
Operating
humidity
Storage temperature
Dimensions
Mass
Input/Output Connectors
Extension interface connector
AUX OUT connector
DC IN connector
DC OUT connector
Battery connector
Recording format
Video
Audio
Recording/playback time
4K
2K
Note
11 V to 17 V DC
Approx. 23 W (4K 23.98P)
0
octo 40 oc (32 oF to 104 oF)
20% to 90%
-20 octo +60 oc (-4 oF to+ 140 °F)
106 mm x 124 mm x 65.5 mm
(4
1
/4 in. X 5 in. X 2 5 /s in.) (Width X Height X Depth)
*Refer to the dimensions diagram at the end of
these instructions.
Approx.
0.7 kg (1 lb. 8.7 oz.)
144-pin (1 ), supplies power
BNC type (1)
4-pin XLR, male (1)
4-pin round type, female (1)
S-pin (1)
FSSRAW format (16-bit linear)
Linear
PCM (48 kHz/24 bit), 4-channel
Approx. 60 minuts (23.98P)
or 24 minutes
(59.94P)
Approx. 240 minutes (23.98P) or 96 minutes
(59.94P)
(Using AXS-512524 media)
The recording and playback
time will vary a little, depending on the usage
conditions and
the memory characteristics.
Accessories
Operating Instructions (1)
Warranty (1)
Design and specifications are subject to change without notice.

8
Dimensions
117(45 5/8)
mm (inches)
