Soulution 520 User manual

Preamplifier 520
User manual
soulution
nature of sound

Preamplifier 520
User manual
Page 1
Dear client
We are proud that you decided yourself for a soulution product. You have acquired a
preamplifier with outstanding sonic performance which you will enjoy for many
years.
We understand your eagerness to get started but even though please study this
manual step by step before you integrate the preamplifier 520 in your High Fidelity
system. This manual contains also useful tips for the optimisation of your overall
HiFi-system.
If there are any questions regarding the start-up or operation of your preamplifier
please do not hesitate to contact your dealer.
Have fun!
Your soulution team

soulution
nature of sound
Page 2
CE-Declaration of Conformity
Spemot AG declares that this product is in conformance with the following direc-
tives and standards:
Low Voltage Directive 2006/95/EG (EN/IEC 60065:2002)
Electromagnetic Compatibility 2004/108/EG (EN 55013:2001, EN 55020:2002,
EN 61000-3-2:2006, EN61000-3-3:1995)
FCC-Notice
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are de-
signed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harm-
ful interference to radio communications. However there is no guarantee that inter-
ference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
-adjust or relocate the receiving antenna
-increase the separation between the equipment and the receiver
-connect the equipment into a mains outlet on a circuit different from that to
which the receiver is connected
-consult the dealer or an experienced radio/TV technician for help
-
Disposal
According to the Directive 2002/96/EG of the European Parliament used
consumer-electro technical appliances have to be disposed separately
and have to be indicated with the following symbol.
In the case of disposal of this component please do so in conformity with legal and
environmental regulations.

Preamplifier 520
User manual
Page 3
Table of contents
1Technical Highlights............................................................................ 4
2Safety advice: ................................................................................. 5
3Scope of delivery................................................................................. 6
4Rear side ............................................................................................ 6
5Front side ........................................................................................... 8
6Remote control ................................................................................. 10
7Program-Mode .................................................................................. 11
8Trouble shooting ............................................................................... 14
9Service ............................................................................................. 14
10 Safety functions ................................................................................ 15
11 Warranty........................................................................................... 15
12 Specification .................................................................................... 16
13 Dimensions....................................................................................... 17
Quick-start
Unpacking
Unpack your preamplifier 520
Keep the packing for future transportations
Treat the top class surface with care
Positioning
Position the preamplifier 520 on a stable base.
Cooling air must be able to escape unrestricted.
Cabling
Disconnect all appliances of your system from the mains
Connect the 520 with your amplifier
Connect the 520 with your source components
Connect all appliances of your system with the mains
While changing cables the 520 must remain disconnect
from the mains.
Programming
Default values for all functions are programmed.
No additional programming is required for the start-up.
Switch-on
Switch-on the 520 preamplifier
Select a moderate volume level
Switch-on your source components and your amplifier
Check the cabling before switch-on

soulution
nature of sound
Page 4
1Technical Highlights
Layout
The audio section is physically separated from the digital circuits. For minimal in-
terferences they are additionally shielded.
Power supply
The preamplifier 520 has separate power supply units for the audio section as well
as for its digital section. A multi-stage filter network reduces potential interferences
to a minimum.
Volume control
Relays switched high precision metal foil resistors form an 80 steps (1 dB) volume
control. Each channel has its own volume control resistor network. The volume con-
trol allows also adjusting the balance. Depending on the balance setting the volume
of the left or right channel is decreased. In order to avoid unpleasant click-noise
and harmful voltage peaks while changing the volume the preamplifier 520 dispos-
es over an additional volume control path only active while actually changing the
volume. This parallel volume control is realised with a Programmable Gain Amplifier
(PGA) which is able to adjust the volume without any noise. As soon as the new vol-
ume level is set, the signal path is switched back to the high end resistor network.
Output stage
The output stage is optimised for velocity, precision and impulse current rating.
Thanks to its low output impedance of 10the output stage is stable on every load
(also long cables are driven without problems).

Preamplifier 520
User manual
Page 5
2Safety advice:
User manual
Follow the safety advices
Keep this user manual.
Mains supply
Exclusively use 3 phase power cords with ground conductor.
Unplug the 520 from the mains in the following cases:
before you manipulate with cables
before cleaning
during thunder storms
before you leave for longer periods
Cabling
While manipulating with cables the 520 has to remain discon-
nected from the mains. Wrong cabling may cause damages to
your 520, amplifier and loudspeakers. Excessive volumes due to
inappropriate handling may cause hearing damages.
Transport
Use only with the cart, stand, tripod, bracket or table specified by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving cart/apparatus combination to avoid in-
jury or tip over.
Packing
In order to omit condensation of water inside your preamplifier
520, let it warm up within the packing.
Please keep the original packing for future transports.
Operation
Never run your preamplifier 520
with opened housing
with closed cooling-slots
with high ambient temperatures (>40°C)
close to heat sources like radiators, etc.
with extremely high humidity for example in humid cellars
close to water (Sink, bathtub, or similar equipment)
Cleaning
Use a soft and dry towel. We suggest using a non abrasive micro
fibre towel. Please do not use any solvents or liquidities
Service
Service by a qualified person required if
the mains-cable or the mains connectors are damaged
foreign substances or liquidity have entered the 520
the 520 has seen rain
the 520 seems to malfunction
the 520 has fallen to the floor or the housing is damaged

soulution
nature of sound
Page 6
3Scope of delivery
-Preamplifier 520
-Remote control
-Power cord
-Phono-Termination-Plug
-User manual
4Rear side
Mains (A)
Connect the preamplifier 520 with the mains supply. After switch-on, the 520
changes to operating condition OFF (red LEDs in display, consumption <0.5W).
Only switch-off the mains connection in operating condition OFF.
Input IN 1...IN2 (B) & Input IN 3...IN 4 (C)
Use top quality cables for the connection to your source components. For long ca-
bles we suggest using the balanced connections.
A
I

Preamplifier 520
User manual
Page 7
Phono MC- Input IN 5 (D)
If required the subsonic filter RIAA-IEC can be activated. A dip-switch controlled
resistor network allows for optimal adjustment of the termination impedance.
Micro-Switch
Open
S1
S2
S3
S4
S5
S6
Impedance in 
1000
500
405
300
215
100
20
Never connect a line source to the input IN 5.
Output (E)
Due to the exceptional load stability there are no restrictions regarding the selection
of your connecting cables. We recommend using balanced cables. For short cable
lengths also unbalanced cables represent a high quality connection.
Gain (@ Volume 80)
IN 1 & IN 2
IN 3 & IN 4
IN 5 (Phono)
Balanced-Out (XLR)
+10dB
+16dB
+70dB
Unbalanced-Out (RCA)
+4dB
+10dB
+64dB
A potential a humm-loop may be suppressed by the Ground-Lift (page 12) function.
Omit feedback-loops while connecting recording devices.
LINK (F)
The LINK-connection allows controlling the switch-on of other soulution products.
Start-Mode (page 12) defines the behaviour of the 520 after switch-on.
RS 232 Interface (G)
All functions can be controlled through the RS 232 interface.
Type label (H)
The type label shows the serial number and the nominal rating of your product.

soulution
nature of sound
Page 8
5Front side

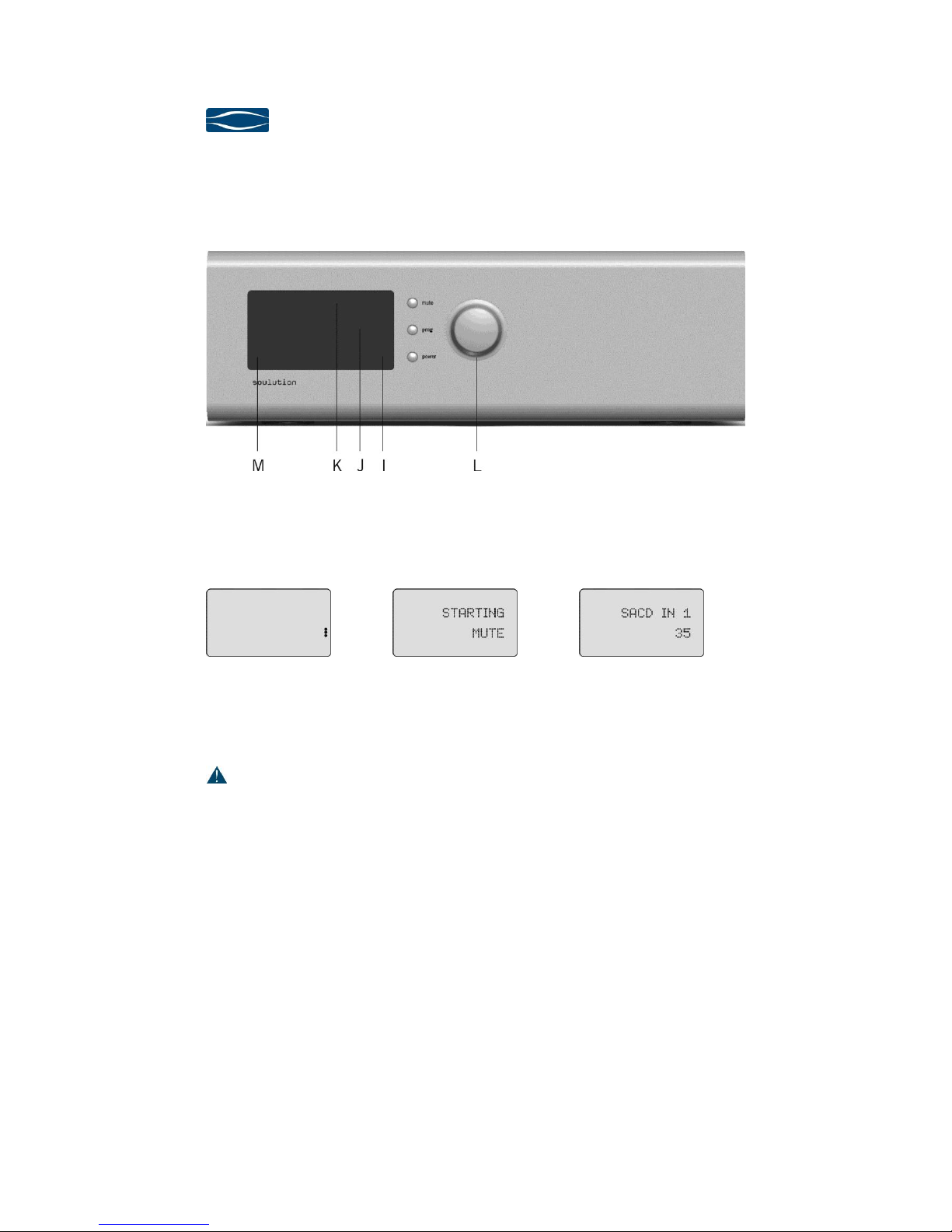

Power (I)
The Power button defines the operating condition ON or OFF (red LEDs). In operat-
ing condition OFF the audio circuits are completely disconnected from the outputs.
Operating condition OFF
Start-up
Normal operation
We suggest switching off the 520 (power consumption in < 0.5W) while not listen-
ing to music. It can easily be activated with the remote control.
Unplug your 520 from the mains before you manipulate with cables, before
cleaning, during thunder storms or before you leave for longer periods.
LINK-System:
The preamplifier 520 remains in MUTE until all connected LINK-components are
switched on (Display LINK Connect). If an error occurs within a LINK-component
the display shows LINK ERROR.
When the preamplifier 520 is switched off all connected LINK components are
switched off simultaneously (operating condition OFF).

Preamplifier 520
User manual
Page 9
Mute (J)
In case of an emergency the safety function Mute allows
disconnecting all inputs from the outputs (wrong cabling,
feedback loops, etc.).
Prog (K)

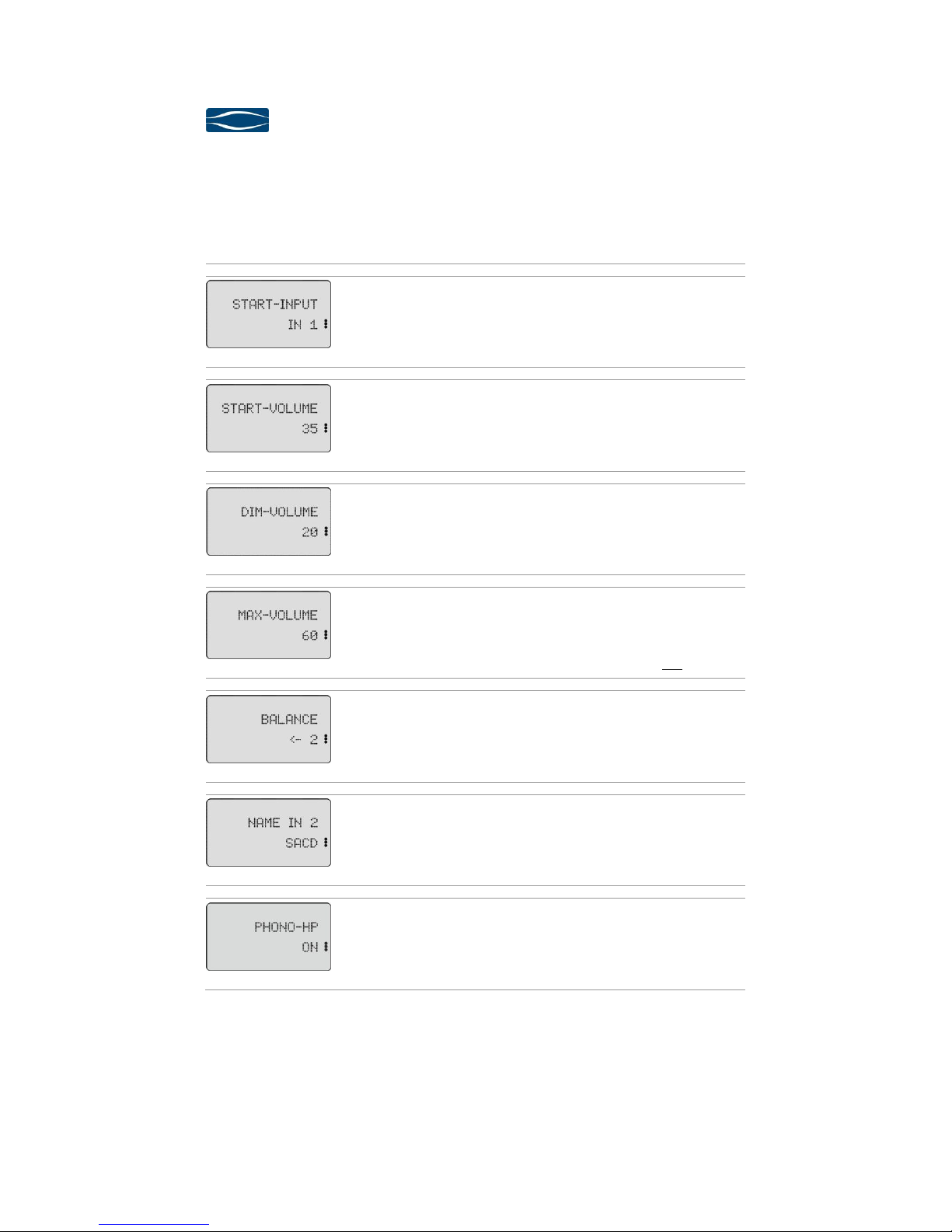

Several Program-Functions allow adjusting the 520 to your individual requirements.
The Prog-button switches the 520 to Programming-Mode.
Volume (L)
The Volume knob controls the functions Volume +/-, Input-Select and is used for
the Programming.
Volume +/-
The 520 has a volume control range of 79 dB.
We suggest limiting the maximal volume level.
Volume-Dim
A short push (de)activates the Volume-Dim function (Dis-
play for example „D 20“). As long as the Volume-Dim
function is active the volume can not be altered.
Change to
Input-Select Mode
Input-Select

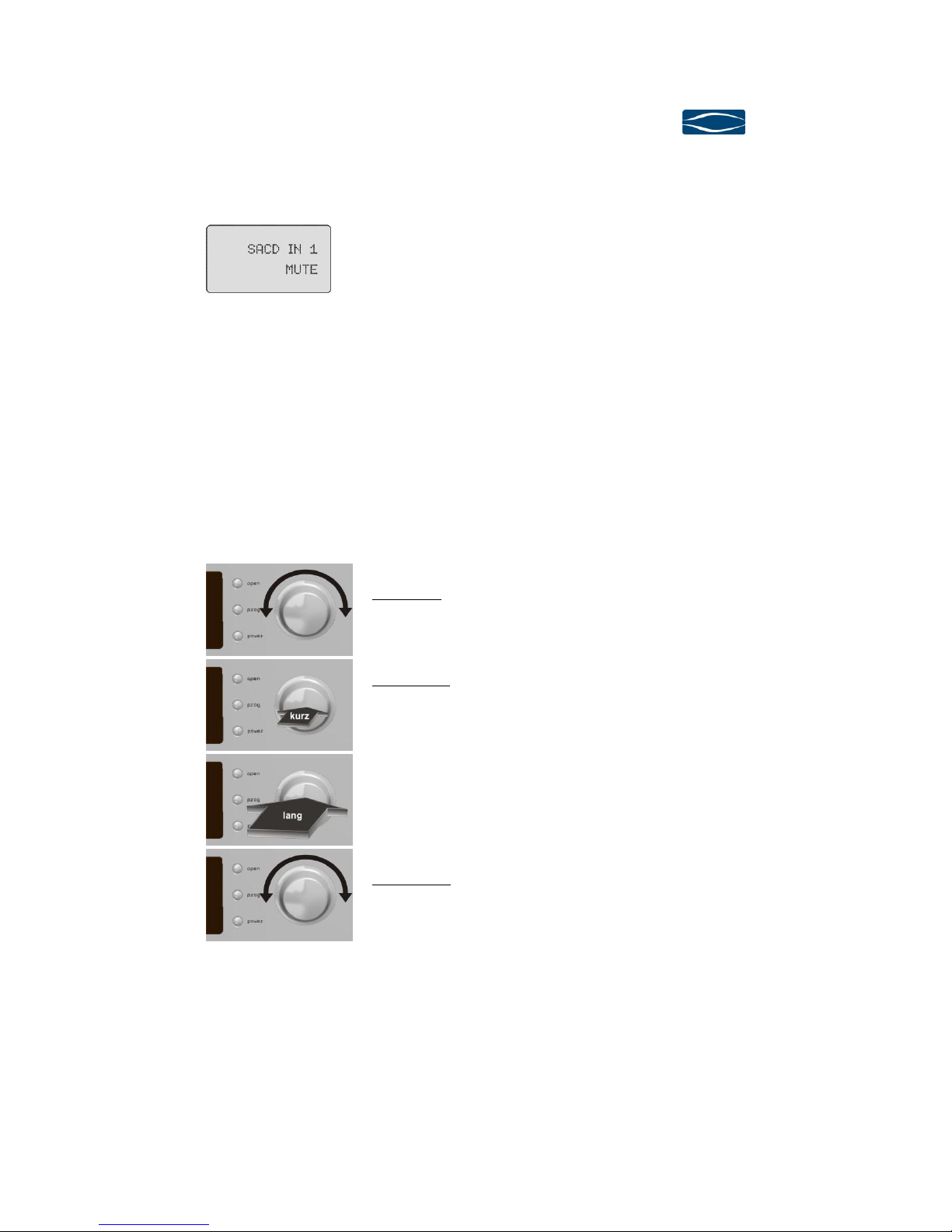

The new input can be selected and will be activated after
timeout of approx. 3 sec.
Display / IR-receiver (M)
The display shows all relevant information of your preamplifier 520.

soulution
nature of sound
Page 10
6Remote control
Taste
Pre-Modus
CD-Modus
(1) IR-transmitter
Operation until 5m distance and angel of ±45°.
(2,3) 
Volume +/-
(4) DIM /
Volume-Dim
Play/Pause
(5/6) 
Select +/-
Next / Previous track
(7) 
Enter Function for Program-Mode
(8) P
(De)activates Program-Mode
(9)
Mute
-
(10)
ON / OFF
(11)
-
Open/Close
(12) PRE
-
Activates PRE-Mode
(13) CD
Activates CD-Mode
-
Change of Remote Ctrl ID:
Press the respective buttons for approx. 5 seconds.
ID 1: (6), (5), (10)
ID 2: (6), (5), (9)
Exchange of batteries (2 x AAA):
Open the battery tray on the rear side.
Insert the batteries into the tray as indicated.
Ensure correct polarity of the batteries.
Close the tray with corresponding screw.
Dispose the exhausted batteries

Preamplifier 520
User manual
Page 11
7Program-Mode
General
The preamplifier 520 can be adjusted to your individual setup. It is already pro-
grammed with default settings. Further programming is not mandatory.
We recommend to adjust the Start-Volume and to set the Max-Volume.
Function
Push on the Prog button switches the preamplifier 520
between operating-mode and programming-mode.
Timeout after 10 seconds.
Rotating of the Select knob allows selecting the desired
Program-Function
Push on the Select knob for approval of the selected
function. Now the value domain of the selected Pro-
gram-Function is active. (red LEDs in display).
Rotating of the Select knob allows for adjusting the de-
sired value.
Push on the Select knob for approval of the respective
value.

soulution
nature of sound
Page 12
7.1 Program-Functions
Function
Values
Remarks
IN 1, IN 2, IN 3,
IN 4, IN 5
Defines which input shall be active after
start-up.
1..30..50
Defines the Start-Volume level. In the val-
ue domain it changes to the Start-Volume
level.
1..30..50
Defines the Dim-Volume level. In the value
domain it changes to the Dim-Volume lev-
el.
50...80
The maximal volume can be limited. Espe-
cially for high efficiency loudspeakers this
function should be activated. In the value
domain the volume level does not change.
<- 9...0...9 ->
Balance defines the level difference be-
tween left and right channel.
OFF, AUX, CD,
DAC, DVD,
PHON, SACD,
TUNE, etc.
The inputs IN 1…IN 5 can be renamed
individually.
ON, OFF
Phono-High-Pass (de)activates the subson-
ic filter (RIAA-norm). OFF should be used
only for top quality LP’s and decoupled
turntables.

Preamplifier 520
User manual
Page 13
Function
Values
Remarks
OFF, IN 1, In 2,
IN3, IN 4,
The volume and balance settings of the
preamp do not have any influence in the
Surround-IN.
20..50..80
Defines the output level for the Surround-
IN. The setting is ignored if Surround-IN is
set to OFF.
OFF = connected
ON = disconn.
(Dis)connects the ground of the balanced
outputs.
1 = low
2 = medium
3 = high
The intensity of the display can be adjust-
ed in three steps.
1, 2
Defines the identification of the 520. The
identification of the remote control has to
be defined accordingly
Activates the default values (bold) for all
functions.

soulution
nature of sound
Page 14
8Trouble shooting
Error
Action
No display
Check the cabling to the mains supply.
Eventually replace the fuse.
No music
Check
-the cabling to the source components and the amplifier.
-if proper input has been selected
-if the source component is in MUTE
-if the amplifier is switched on
POWER FAIL
In case of a short circuit in the power supply the unit
switches off automatically. The display shows POWERFAIL.
OVERCURRENT
If the current at the output is higher than 0.2 A the MUTE
function is activated and the display shows OVERCURRENT.
If you can not identify the error please disconnect the preamplifier 520 from the
mains supply and contact your soulution dealer.
9Service
If your soulution product needs service please contact your soulution dealer. For fur-
ther information see www.soulution-audio.com

Preamplifier 520
User manual
Page 15
10 Safety functions
Overcurrent
For currents > 0.2 Ampere at the output the preamplifier 520
shuts down automatically.
Power supply
The power supply is monitored for correct operation. In case of
an error the 520 gets shut down automatically.
Fuse
Model 220-240 V 2A/T 250V micro fuse 5x20mm
Model 100-120 V 4A/T 250V micro fuse 5x20mm
11 Warranty
All soulution products are guaranteed against defects in material and workmanship
for five years from date of purchase.
The guarantee is void if the product has been subject to misuse or negligence or has
been modified, repaired or opened by a non authorised person without written au-
thorisation of Spemot AG.
For the return transport to our premises please use exclusively the original packag-
ing. Transport damages are not subject to this guarantee, repairs will be charged.
We recommend effecting transport insurance.
If you do not posses the original packaging no more please contact your soulution
dealer.
Basic repairs may be completed by your soulution dealer. Please clarify whether he
is able to do the work before you send the product back to us.

soulution
nature of sound
Page 16
12 Specification
Specification
Data
General
Nominal Voltage
Model 100-120V
100 - 120
V, 50-60 Hz
Model 220-240V
220-240
V, 50-60 Hz
Power consumption
ON
150
W
Standby
<0.5
W
Input
(IN 1...IN 5)
Impedance
balanced (IN 1...IN 2)
10
k
unbalanced (IN 3...IN 4)
47
k
Phono (IN 5)
adjustable
Output
Gain
RCA-In XLR-Out
-63...+16
dB
RCA-In RCA-Out
-69...+10
dB
XLR-In XLR-Out
-69...+10
dB
XLR-In RCA-Out
-75...+4
dB
Frequency response
DC-500
kHz
THD+N
<0.001
%
Signal-to-Noise Ratio
>120
dB
Crosstalk
<-120
dB
Output impedance
10

LINK-Out
12
V
Dimensions
Dimensions
442x448x143
mm
Weight
ca. 20
kg
Technical specifications are subject to change without prior notification.

Preamplifier 520
User manual
Page 17

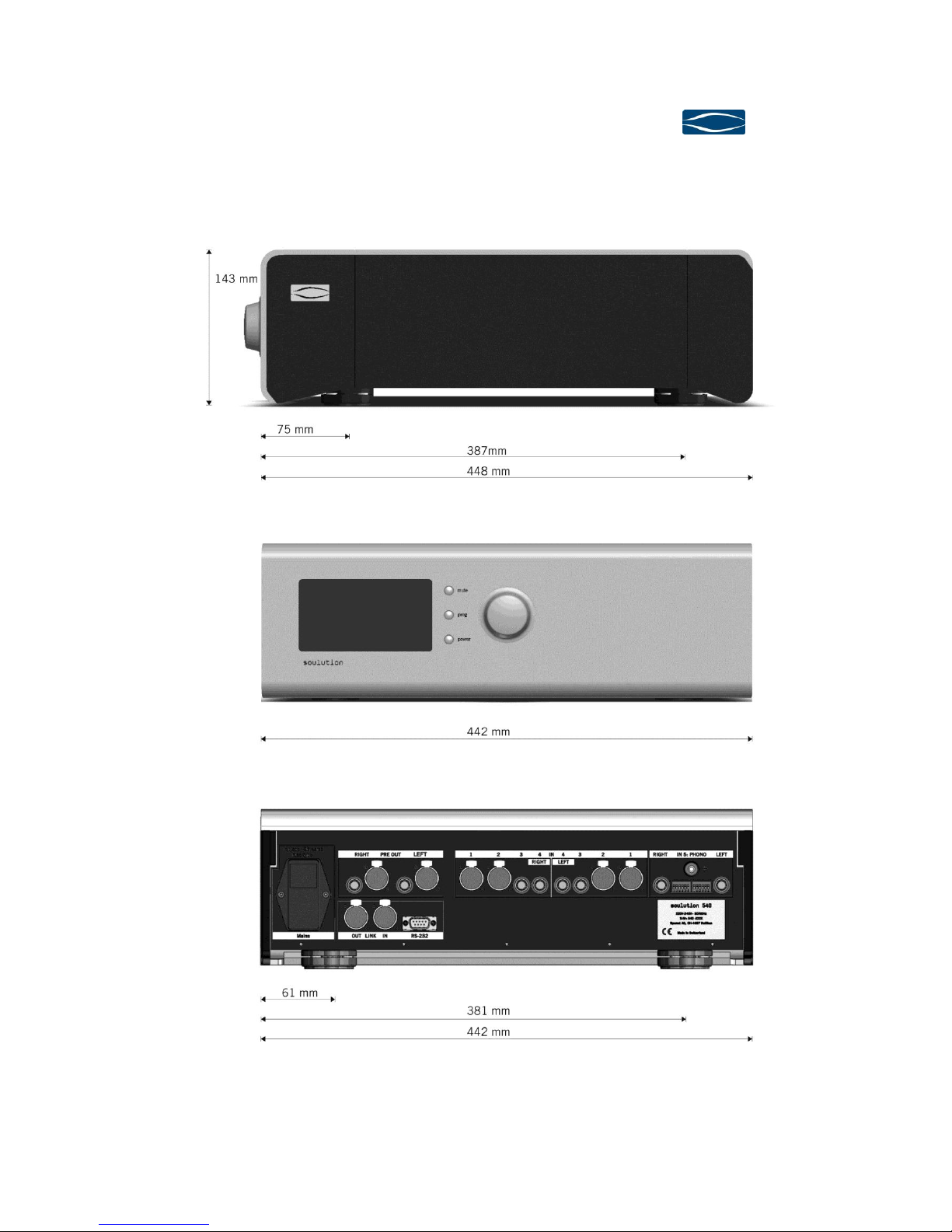

13 Dimensions
