SoundDigital 400.2D EVO User manual

400.2D EVO
400.4D EVO
800.4D EVO
400.4S EVO
800.4S EVO

1 EVO Amplifier
1 Owner’s Manual
1 Allen wrench 2.5mm*
2 Cables for High Input
1 Promotional Sticker
*Only in "S" version

ØIf you have questions about the installation of this
equipment, get in touch with our tech support or with a
professional specialized in car audio installation;
ØBefore proceeding with the installation of any electric
equipment on your vehicle, unplug the negative (-) terminal of
the battery to avoid fires, injuries or damages;
ØUse your sound system safely, exposure to continuous
sound pressure over 85dB may cause irreversible hearing
loss.
ØDo not install the amplifier in places exposed to water, dirt
or humidity;
ØTo prevent injuries to the user or damage to the amplifier,
read all the safety instructions written on this manual;
ØThis equipment is for use in automotive DC voltage
batt er ie s, be tw ee n 1 2. 6 a nd 14 .4 vo lt s. B e f o r e
installing the equipment, check the voltage of the
batteries;
ØSecurely mount the amplifier so that it does not come loose
in the event of collision or a suddent jolt to the vehicle. Avoid
mounting it on mettalicparts of the vehicle, because it may
cause an ground loop (you might have noise issues).
SAFETY INSTRUCTIONS
Congratulations on acquiring a product with the highest
quality and technology!
The SounDigital products are developed to assure
maximum efficiency and reability to your sound system.
Dear Customer,
The main characteristics of Class D amplifiers are: audio
quality, efficiency, versatility and compact design. Here are
the advantages of these characteristics:
Class D Amplifiers:
Audio Quality – Class D amplifiers used to have a limited
response in the past and they used to have a worse
performance regarding higher frequencies than Class AB
amps, despite being more efficient. Introducing new
technologies, SounDigital developed a Class D amplifier
superior to the Class AB ones in efficiency and performance.
Efficiency – The SounDigital Class D amplifiers have a total
efficiency (power source + output) higher than 60%, assuring
a battery consumption and a heating lower than the expected.
Versatility of Uses –The flat response of all the frequencies
of SounDigital amplifiers allows them to be used in all the
kinds of systems: SPL, Sound Quality, Trio Eletrico and
Pancadao, meeting the needs with extreme quality.
Compact Design – The high efficiency and technology allow
our amplifiers to be really compact, making it easy to install
them in vehicles where you have limited space.
IMPORTANT INFO
Read this manual and follow its instructions and information
carefully. It contains extremely important information to have
your amplifier working properly. If you feel the need to contact our
Tech Support, you can reach our technicians through the e-mail
[e-mail].
IMPORTANT INFO
To know our complete line of amplifiers and accessories, visit
www.soundigitalusa.com.
We recommend the use of SounDigital original accessories
for a better performance. The crossovers and voltmeters
offered by SounDigital follow the same quality standards as
our amplifiers, assuring an excellent quality and high power
sound system to our customers.
This “Warning” sign alerts the user of
important info. Not following this
instructions may cause injuries to the user
or damage to the equipment.
Warning!
1

ØWhen passing cables through metallic walls, use rubber O-
rings to avoid cable cutting and short circuits.-
ØMake sure the place chosen for the installation of the
amplifier will not interfere with the proper working of the
vehicle;
ØClean the amplifier periodically with a brush or dry cloth to
assure the thermal efficiency of the heatsink;
ØBe careful when making holes in the vehicle. Make sure
you're not making holes in the fuel tank, br ake lines or e
electrical cables of the vehicle;
ØMake sure the cables are properly fixed throughout the
ins allationt ;
ØWear gloves, safety g s and all necessary PPE during lasse
the installation of SounDigital amplifiers.
ØBefore proceding with the installation, unplug the negative
from all of the batteries;
Installation Sequence
ØMount the amplifier in such a way you have access to the
connectors;
ØThis product may reach temperatures over 60°C/140°F.
Make sure it is cold before touching it;
ØInstall the power cables on the vehicle in a proper way.
From the battery to the bussbar, fuse holder or circuit breaker.
Chose the appropriate size for the cable (see Technical Specs
Table ). Make all of the connections to the bussbars, fuse
holders or circuit breakers, with no fuses installed and with the
circuit breakers in the "Off" position;
ØConnect the audio output cables to the amplifiers and the
acoustic boxes, observing the positive (+) and negative (-)
polarities;
ØInstall the signal input cables in a proper way, distant from
the power cables;
ØConnect the power cables in to the amplifier, observing the
polarity. Connect all the positive cables from the fuse holder or
circuit breaker to the positive conector of the amplifier and all
the negative power cables from the bussbar or from the
batteries, to the negative connector of the amplifier;
ØConnect the remote cable to the REM terminal on the
amplifier and to a 12V power supply activated by a switch key
or to the remote power output of the head unit;
ØInstall the remote cable with the power cables, using a
section of 15 AWG (1.5mm²) or thicker;
ØBefore powering the system, verify all the connections and
make sure there are no mistakes or short-circuits on the
power and ground cables;
ØReconnect the ground of the batteries;
ØInstall the audio output cables with the appropriate section ,
distant from the power and audio input cables;
ØCheck if the remote key is in the "Off" position and if the
head unit is turned off, then place the fuses in the fuse holders
or switch the circuit breakers on.
ØConnect the RCA to the head unit and amplifiers;
The max. distance for the installation of the
fuse/circuit breaker is one foot away from the
battery.
Warning!
2

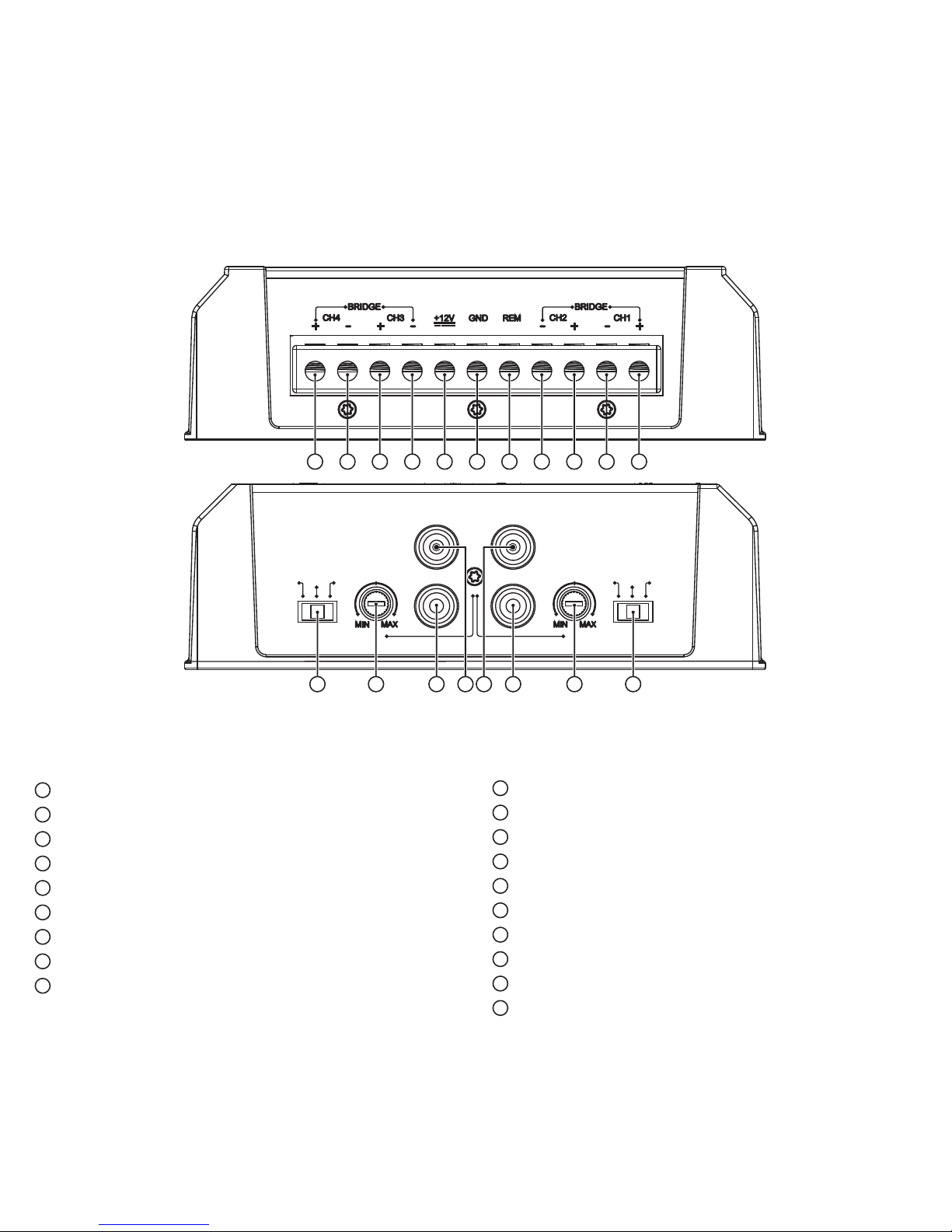

PANELS DESCRIPTION
400.2D EVO
1Protection Fuse 30A;
2Positive power supply connector (+12V);
3Negative power supply connector (GND);
4Remote power supply connector (REM);
5Negative speaker connector (-) CH1;
6Positive speaker connector(+) CH1 and
negative (-) CH2;
7Positive speaker connector (+) CH2;
Audio input RCA connector CH1;
8
11 Selector switch crossover CH1 and CH2.
9Audio input RCA connector CH2;
10 Gain control CH1 and CH2;
18 Selector switch crossover CH3 and CH4.
17 Gain Control CH3 and CH4;
16 Audio input RCA connector CH3;
Positive speaker connector (+) CH4;
10
15 Audio input RCA connector CH4;
14 Audio input RCA connector CH2;
13 Audio input RCA connector CH1;
12 Gain control CH1 and CH2;
11 Selector switch crossover CH1 e CH2;

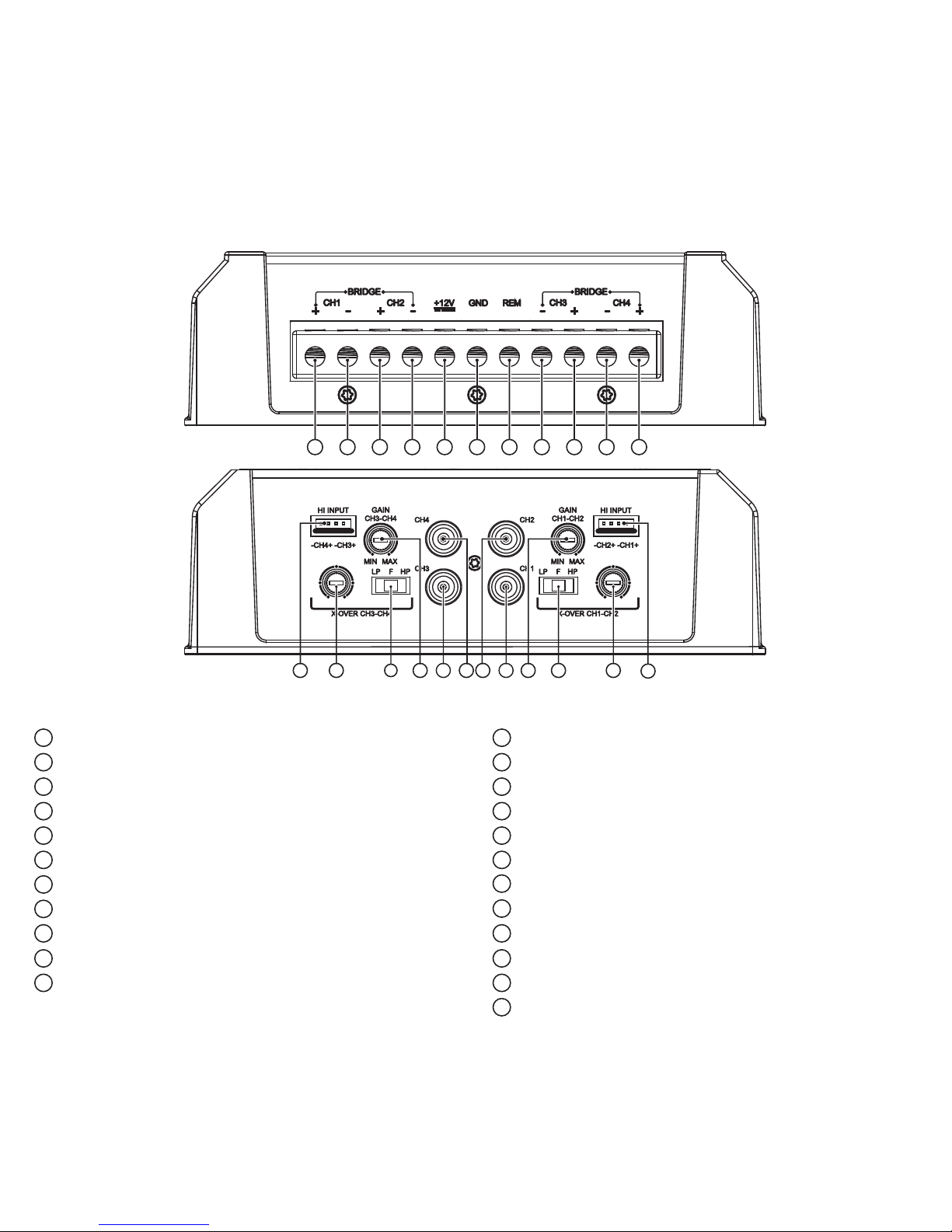

400.4D EVO
Protection Fuse 30A;
1
9Positive speaker connector (+) CH3 and negative (-) CH4;
8Negative speaker connector (-) CH3;
7Negative speaker connector (-) CH2;
6Negatiive speaker connector (-) CH1 and positive (+) CH2;
5Positive speaker connector (+) CH1;
4Remote power supply connector (REM);
3Negative power supply connector (GND);
2Positive power supply connector (+12V);
CH2 CH4
CH1 CH3
CONTROLS
LP HPFULL
X-OVER
CONTROLS
GAIN
LP HPFULL
X-OVER
GAIN
18171615
14
13
1211
+12V GND REM
CH1 CH3CH2 CH4
+
- -
+
BRIDGE
FUSE
BRIDGE
3
+
- -
+
1 2 4 5 68910
7
3

Positive Speaker connector (+) CH4;
10
11 High level audio input CH3 and CH4;
Protection fuse 30A;
1
9Positive Speaker connector (+) CH3 and negative (-) CH4;
8Negative Speaker connector (-) CH3;
7Negative Speaker connector (-) CH2;
6Negative Speaker connector (-) CH1 and positive (+) CH2;
5Positive speaker connector (+) CH1;
4Remote power supply connector (REM);
3Negative power supply connector (GND);
2Positive power supply connector +12V;
18 Audio input RCA connector CH1;
17 Audio input RCA connector CH2;
16 Audio input RCA connector CH4;
15 Audio input RCA connector CH3;
14 Gain Control CH3 and CH4;
13 Selector switch of crossover CH3 and CH4;
12 Variable crossover control CH3 and CH4;
19 Gain control CH1 and CH2;
20 Selector switch of crossover CH1 and CH2;;
21 Variable crossover control CH1 and CH2;
22 High level audio input CH1 and CH2.
+12V GND REM
CH1 CH3CH2 CH4
+
- -
+
BRIDGE
FUSE
BRIDGE
3
+
- -
+
1 2 4 5 68910
7
50
850Hz
45Hz
450
80
50
850Hz
45Hz
450
80
17 18
16
1512 212013 14 11 19 22
400.4S EVO
PANELS DESCRIPTIONS
4

CH2 CH4
CH1 CH3
CONTROLS CONTROLS
GAIN
LP HPFULL
X-OVER
LP HPFULL
X-OVER
GAIN
19181716
15
13
7
32 4 5 6 8 9101
12 14
11
Positive speaker connector (+) CH4;
1
9Positive speaker connector (+) CH2;
8Negative speaker connector (-) CH2;
7Remote power supply connector (REM);
6Negative power supply connector (GND);
5Positive power supply connector (+12V);
4Negative speaker connector (-) CH3;
3Positive speaker connector (+) CH3;
2Negative speaker connector (-) CH4;
Negative speaker connector (-) CH1;
10
19 Selector switch of crossover CH3 and CH4.
18 Gain control CH3 and CH4;
17 Audio input RCA connector CH3;
16 Audio input RCA connector CH4;
15 Audio input RCA connector CH2;
14 Audio input RCA connector CH1;
13 Gain control CH1 and CH2;
12 Selector switch of crossover CH1 and CH2;
11 Positive speaker connector (+) CH1;
800.4D EVO
PANELS DESCRIPTIONS
5

Negative Speaker connector (-) CH4;
10
18
17
16
15
14
13
12
11 Positive speaker connector (+) CH4;
Positive Speaker connector (+) CH1;
1
9Positive speaker connector (+) CH3;
8Negative Speaker connector (-) CH3;
7Remote power supply connector (REM);
6Negative power supply connector (GND);
5Positive power supply connector +12V;
4Negative Speaker connector (-) CH2;
3Positive speaker connector (+) CH2;
2Negative Speaker connector (-) CH1;
19
20
21
22
Audio input RCA connector CH1;
Audio input RCA connector CH2;
Audio input RCA connector CH4;
Audio input RCA connector CH3;
Gain Control CH3 e CH4;
Selector switch of crossover CH3 and CH4;
Variable crossover control CH3 and CH4;
Gain Control CH1 and CH2;
Selector switch of crossover CH1 and CH2;
Variable crossover control CH1 and CH2;
High level audio input CH1 and CH2.
High level audio input CH3 and CH4;
23
50
850Hz
45Hz
450
80
50
850Hz
45Hz
450
80
18 19
17
1613 222114 15 12 20 23
7
32 4 5 6 8 9101 11
800.4S EVO
PANELS DESCRIPTIONS
7

ATTENTION: Before proceeding with the installation of your SounDigital amplifier, unplug the negative (-) terminal of the battery.
The versatility of the SounDigital multi-channel amplifiers, allows the
installation in 1 or 2 channel mode.

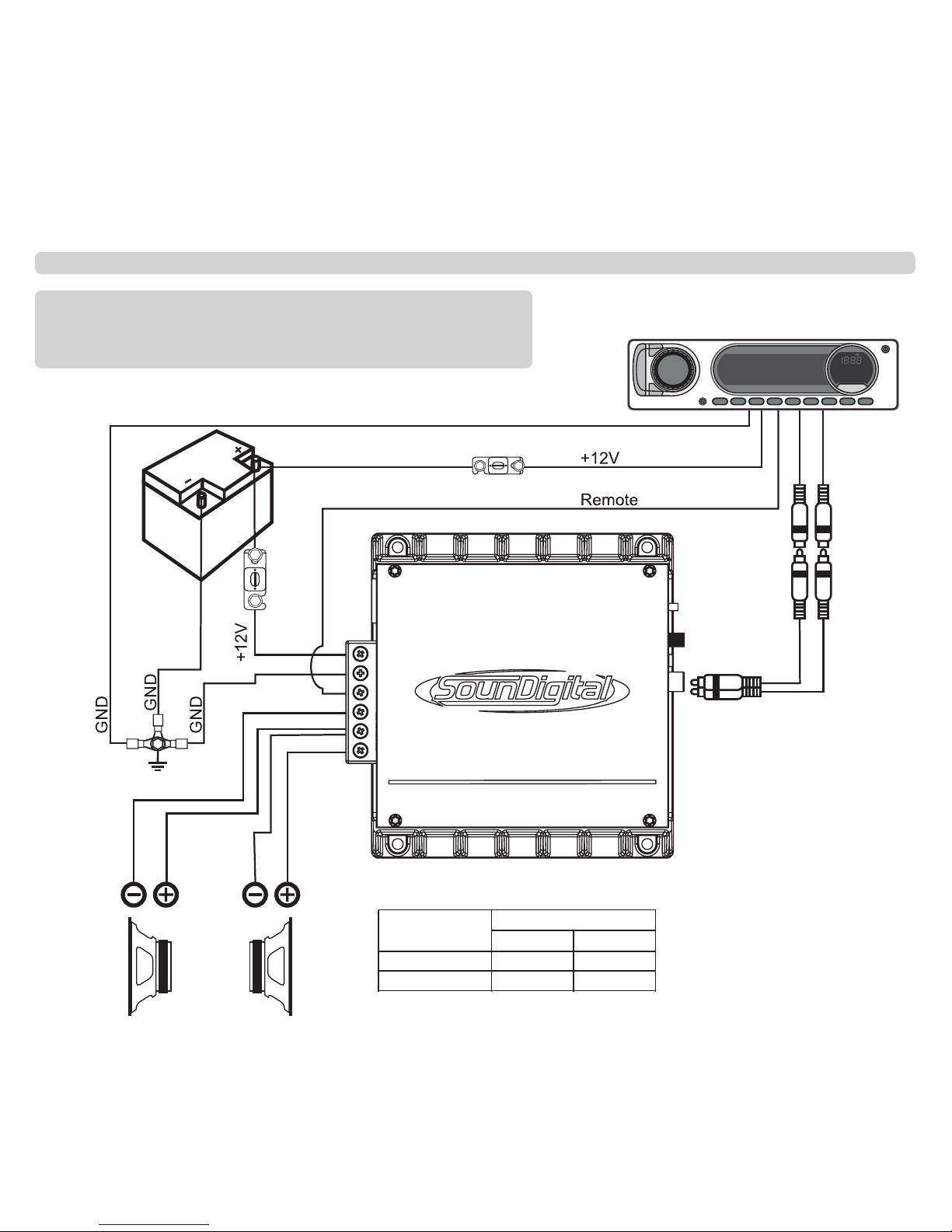

Bellow is the schematic for the 2-channel mode:
RCA Cable
(Audio Signal)
Fuse
20A
MODEL
4 Ω
2
Ω
2Ω
1Ω
400.2D EVO
400.2D EVO 4 Ω
2Ω
Min. Impedance
Bridge per Channel
400.2D EVO INSTALLATION
6

400.4D EVO / 400.4S EVO INSTALLATION
Fuse
20A
ATTENTION: Before proceeding with the installation of your SounDigital amplifier, unplug the negative (-) terminal of the battery.
The versatility of the SounDigital multi-channel amplifiers, allows the
installation in 4, 3 or 2 channel mode.
Below is the schematic for the 4-channel mode:
RCA Cable
(Audio Signal)
MODEL Min. Impedance
Bridge per Channel
4
4
Ω
Ω
2
2
Ω
Ω
400.4D EVO
400.4S EVO
4
4
Ω
Ω
8

The versatility of the SounDigital multi-channel amplifiers, allows the
installation in 4, 3 or 2 channel mode.
Below is the schematic for the 3-channel mode:
ATTENTION: Before proceeding with the installation of your SounDigital amplifier, unplug the negative (-) terminal of the battery.
800.4D EVO / 800.4S EVO INSTALLATION
Fuse 40A
MODEL Min. Impedance
Bridge per Channel
4
4
Ω
Ω
2
2
Ω
Ω
1
1
Ω
Ω
2
2
Ω
Ω
800.4D EVO 4Ω
800.4S EVO 4Ω
800.4D EVO 2Ω
800.4S EVO 2Ω
RCA Cable
(Audio Signal)
9

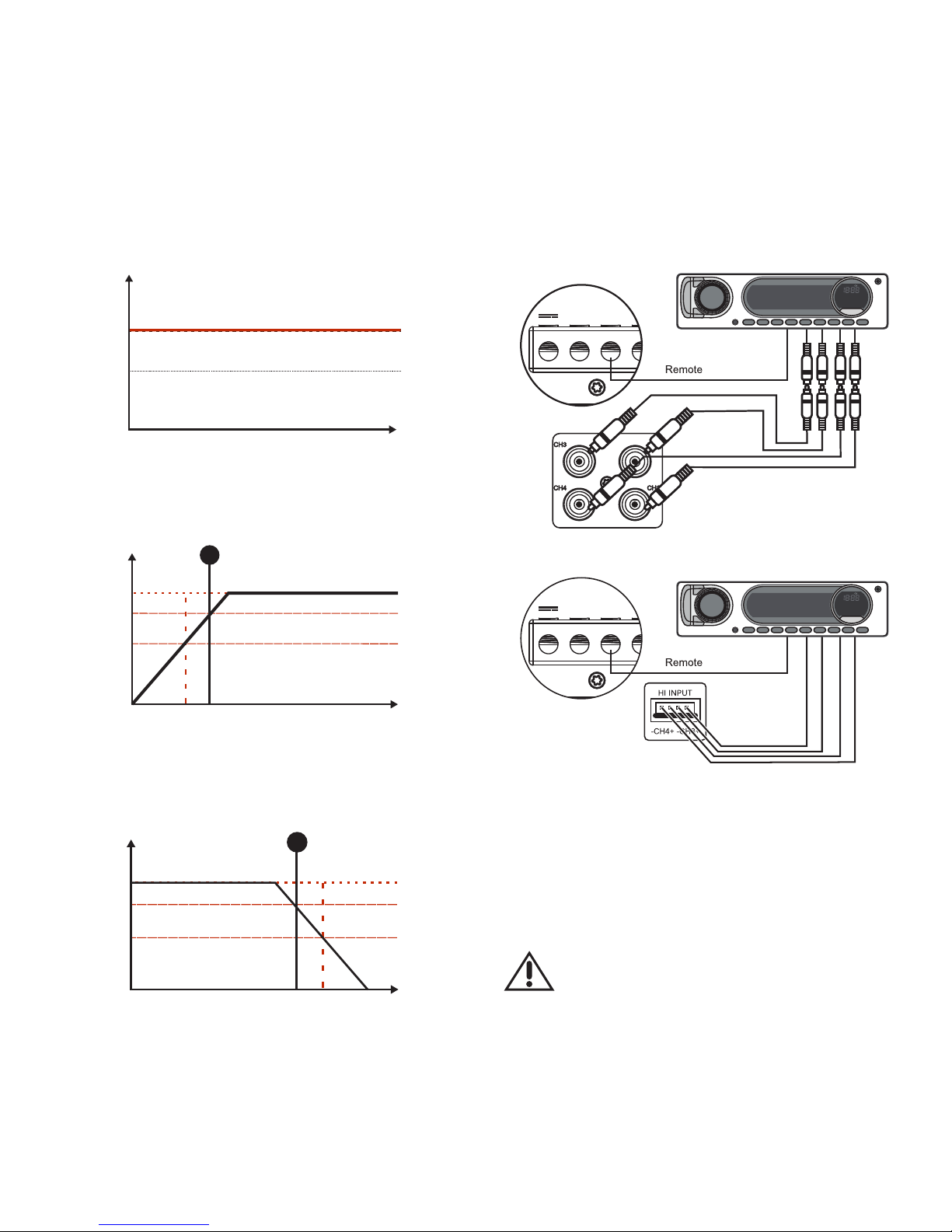

INPUT CONNECTIONS
Hi Inputs (400.4S EVO and 800.4S EVO)
+12V GND REM +
+12V GND REM +
X XX
ØHigh input must be used when the main unit does not have
RCA outputs.
ØWhen high inputs is used, no remote connection is
required, the amplifier recognizes the audio signal and
switches on.
ØIf your source unit is not able to turn on the amplifier through
the high level input, the remote input should be connected
normally.
RCA and hi inputs should not be used
simultaneously or you may damage the
amplifier.
Warning!
RCA Cable
(Audio Signal)
RCA Inputs
0dB
-12dB
dB
Hz

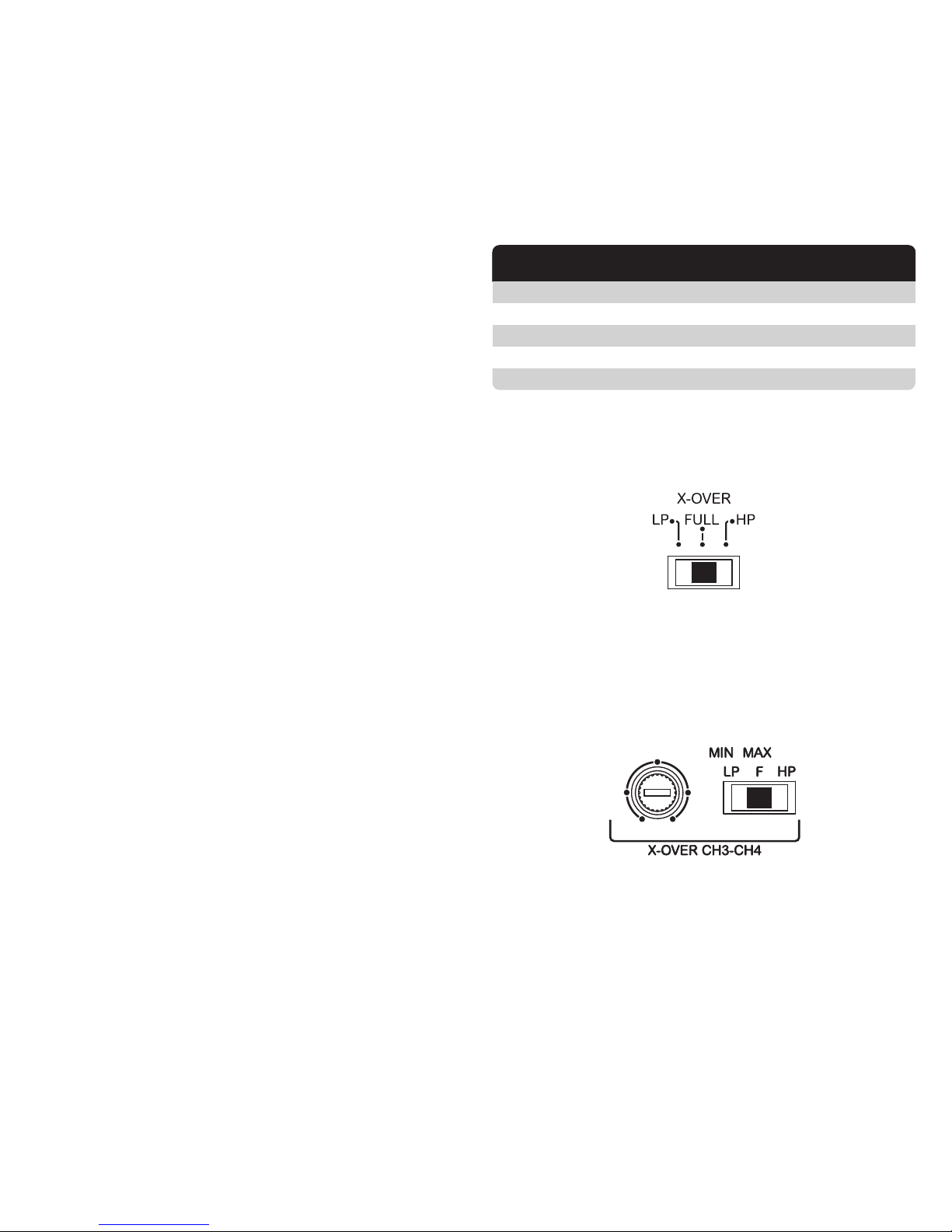

ØSwitch key at "HP" - Set in the variable control between
45Hz and 850Hz ("A") where you want to perform the high
pass cut filter;
ØSwitch key at "LP" - Set in the variable control between
45Hz and 850Hz ("B") where you want to perform the low
pass cut filter;
ØSwitch Key at position "F" (Full Range): All the frequencies
are reproduced.
-3dB
c/2
ƒ
High
Pass
c
ƒ
High
Pass
A
0dB
-15dB
dB
Hz
-3dB
0dB
-15dB
Low
Pass
B
c
ƒc*2 ƒ
Low
Pass
dB
Hz
10

CROSSOVER SET UP
400.2D EVO, 400.4D EVO and 800.4D EVO
"Full" All the frequencies are reproduced;
"LP "only frequencies below 80Hz are reproduced;
"HP " only frequencies over 80Hz are reproduced.
ØSet the source unit's fader control to center position;
This procedure is the same for both gain controls;
ØScrewdriver 1/8"
ØDigital AC voltmeter;
PROCEDURES FOR SETTING THE GAIN
Necessary equipament:
Ø Turn the gain control all the way down.
Set up procedure
ØDisconnect the output cables from the amplifier outputs;
ØTurn off all processing (bass, treble, loudness, EQ, etc.);
ØMedia with sine wave test tone (60Hz) recorded at 0db;
ØSet the source unit volume to 3/4 of full volume.
ØSet the crossover switch to "Full" or "F" and play a 60 Hz
sine wave test track;
ØOnce you have adjusted the amplifier to its correct voltage
output, turn off the source unit and reconnect the speaker(s).
ØIncrease the “Input Sens.” control until the target voltage is
observed with the voltmeter (see the chart to the right);
ØConnect the AC voltmeter to the speaker output connectors
of the amplifier. Make sure you test the voltage at the correct
connectors (+ and –);
4Ω / 200W
2Ω / 400W
4Ω / 400W
4Ω / 400W
2Ω / 400W
Bridge/
Power
Impedance/
Power
2Ω / 100W
1Ω / 200W
2Ω / 200W
2Ω / 200W
1Ω / 200W
Model
400.4D EVO / 400.4S EVO
800.4D EVO / 800.4S EVO
800.4D EVO / 800.4S EVO
400.2D EVO
400.2D EVO
14.4 V
14.4 V
20.0 V
20.0 V
14.4 V
Voltage
Output
Stereo
28.2 V
28.2 V
40.0 V
40.0 V
28.2 V
Voltage
Output
Bridge
400.4S EVO e 800.4S EVO
"F" All the frequencies are reproduced;
"LP " Set in the variable control on Low Pass Function;
"HP " Set in the variable control on High Pass Function.
50
850Hz
45Hz
450
80
11

4.2" (106mm)
5" (128mm)
5.4" (138mm )
(5")126mm
5.6" (143mm)
1.8" (45.5mm)
Weight:
400.2D EVO :1.5lbs(0.7kg)
400.4D EVO :1.5lbs(0.7kg)
400.4S EVO :1.7lbs (0.8kg)
12
TECHNICAL SPECS
*Power at 12.6V @ 60Hz following the ANSI / CTA-2006B standard with a maximum THD of 1%
400.2D EVO 2Ω
1 x 121W
1 x 220W
1 x 400W
2 x 220W
2 x 400W
N/A
5Hz to 20kHz
80Hz
9V to 16V
99dB
0.022%
0.031%
0.5 to 6V
19A
39A
81.60%
7" x 3.5" x 5.9"
8 AWG (8mm²)
2 x 15 AWG (1,5mm²)
20A
35 Ah
2.09lbs
80Hz
400.2D EVO 4Ω
1 x 220W
1 x 400W
N/A
4 x 55W
4 x 100W
N/A
5Hz to 20kHz
80Hz
9V to 16V
99dB
0.022%
0.031%
0.5 to 6V
19A
39A
81.60%
55
7" x 3.5" x 5.9"
8 AWG (8mm²)
2 x 15 AWG (1,5mm²)
20A
35 Ah
2.09lbs
80Hz
400.4D EVO
2 x 110W
2 x 200W
N/A
4 x 55W
4 x 100W
N/A
5Hz to 20kHz
80Hz
9V to 16V
88dB
0.006%
0.009%
0.5 to 6V
20A
40A
79.00%
55
7" x 3.5" x 5.9"
8 AWG (8mm²)
2 x 15 AWG (1,5mm²)
20A
35 Ah
2.09lbs
80Hz

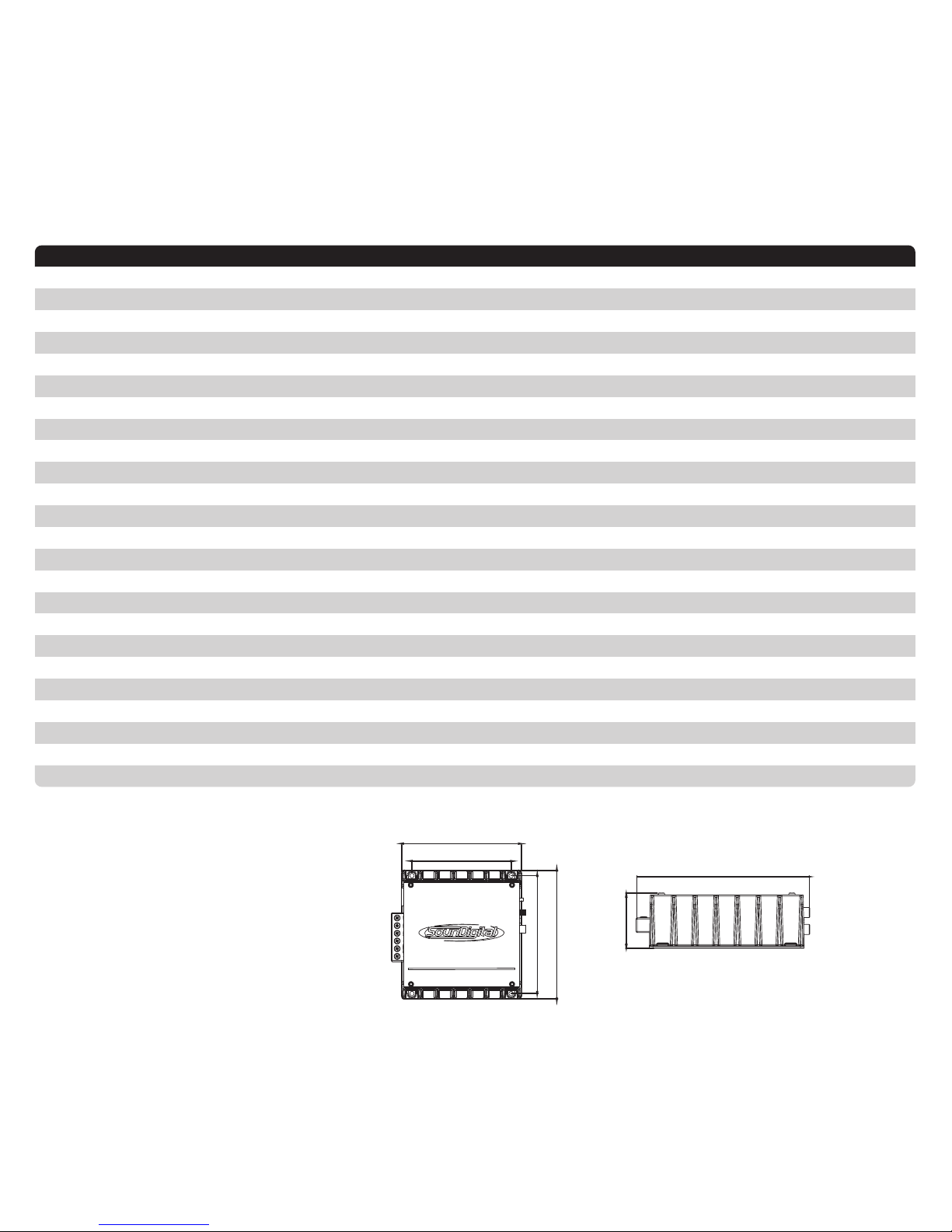

DIMENSIONS
400.2D EVO / 400.4D EVO / 400.4S EVO
55
PARAMETER
Bridge RMS Power @ 8Ω*
Bridge RMS Power @ 4Ω*
Bridge RMS Power @ 2Ω*
RMS Power per channel @ 4Ω*
RMS Power per channel @ 2Ω*
RMS Power per channel @ 1Ω*
Frequency response (-3db)
Crossover 12dB/oct HP
Operating voltage
SNR
THD+N (50% Rated Power)
THD+N (10% Rated Power)
Input sensivity
Current draw (music)
Max current draw (resistive load 1kHz @ 12,6V)
Total efficiency(full power @12,6V)
Damping factor
Gross weight
Giftbox dimensions (LxAxP)
Size of recommended cable (power)
Size of recommended cable (output)
Fuse/Circuit breaker (music)
Recommended capacity of the battery
Crossover 12dB/oct LP

*Power at 12.6V @ 60Hz following the ANSI / CTA-2006B standard with a maximum THD of 1%
TECHNICAL SPECS
13
800.4D EVO 2Ω
2 x 120W
2 x 220W
2 x 400W
4 x 60W
4 X 110W
4 x 200W
5Hz to 20kHz
9V to 16V
99dB
0.5 to 6V
39A
78A
81.60%
55
10.2" x 3.5" x 6.9"
7 AWG (10mm²)
2 x 15 AWG (1.5mm²)
40A
60 Ah
2.97lbs
80Hz
80Hz
800.4D EVO 4Ω
2 x 220W
2 x 400W
N/A
4 x 110W
4 X 200W
N/A
5Hz to 20kHz
80Hz
9V to 16V
99dB
0.5 to 6V
39A
78A
81.60%
55
10.2" x 3.5"x 6.9"
7 AWG (10mm²)
2 x 15 AWG (1.5mm²)
40A
60 Ah
2.97lbs
80Hz
DIMENSIONS
400.2D EVO / 400.4D EVO / 400.4S EVO
6.9" (176mm) 7.8" (198mm)
5.8" (147mm)
5.3 (135mm)
8.4" (213mm)
1.8" (45.5mm)
Weight
800.4D EVO :2.5lbs (1.1kg)
800.4S EVO :2.6lbs (1.2kg)
PARAMETER
Bridge RMS Power @ 8Ω*
Bridge RMS Power @ 4Ω*
Bridge RMS Power @ 2Ω*
RMS Power per channel @ 4Ω*
RMS Power per channel @ 2Ω*
RMS Power per channel @ 1Ω*
Frequency response (-3db)
Crossover 12dB/oct HP
Operating voltage
SNR
Input sensivity
Current draw (music)
Max current draw (resistive load 1kHz @ 12,6V)
Total efficiency(full power @12,6V)
Damping factor
Gross weight
Giftbox dimensions (LxAxP)
Size of recommended cable (power)
Size of recommended cable (output)
Fuse/Circuit breaker (music)
Recommended capacity of the battery
Crossover 12dB/oct LP
0.022%
0.031%
0.022%
0.031%
THD+N (50% Rated Power)
THD+N (10% Rated Power)

*Power at 12.6V @ 60Hz following the ANSI / CTA-2006B standard with a maximum THD of 1%
400.4S EVO
2 x 110W
2 x 200W
N/A
4 x 55W
4 x 100W
N/A
5Hz to 20kHz
45Hz to 850Hz
45Hz to 850Hz
9V to 16V
88dB
0.5 to 6V
20A
40A
79.00%
55
7" x 3.5" x 5.9"
8 AWG (8mm²)
2 x 15 AWG (1,5mm²)
20A
35 Ah
2,09lbs
800.4S EVO 2Ω
2 x 120W
2 x 220W
2 x 400W
4 x 60W
4 X 110W
4 x 200W
5Hz to 20kHz
45Hz to 850Hz
45Hz to 850Hz
9V to 16V
99dB
0.5 to 6V
39A
78A
81.60%
55
10.2" x 3.5" x 6.9"
7 AWG (10mm²)
2 x 15 AWG (1.5mm²)
40A
60 Ah
2.97lbs
800.4S EVO 4Ω
2 x 220W
2 x 400W
N/A
4 x 110W
4 X 200W
N/A
5Hz to 20kHz
LP - 45Hz to 850Hz
HP - 45Hz to 850Hz
9V to 16V
99dB
0.5 to 6V
39A
78A
81.60%
55
10.2" x 3.5"x 6.9"
7 AWG (10mm²)
2 x 15 AWG (1.5mm²)
40A
60 Ah
2.97lbs
TECHNICAL SPECS
14
PARAMETER
Bridge RMS Power @ 8Ω*
Bridge RMS Power @ 4Ω*
Bridge RMS Power @ 2Ω*
RMS Power per channel @ 4Ω*
RMS Power per channel @ 2Ω*
RMS Power per channel @ 1Ω*
Frequency response (-3db)
Crossover 12dB/oct HP
Operating voltage
SNR
Input sensivity
Current draw (music)
Max current draw (resistive load 1kHz @ 12,6V)
Total efficiency(full power @12,6V)
Damping factor
Gross weight
Giftbox dimensions (LxAxP)
Size of recommended cable (power)
Size of recommended cable (output)
Fuse/Circuit breaker (music)
Recommended capacity of the battery
Crossover 12dB/oct LP
THD+N (50% Rated Power)
THD+N (10% Rated Power)
0.006%
0.009%
0.022%
0.031%
0.022%
0.031%

ØExposure to adverse conditions (weather, humidity, etc.);
ØDamage caused by fall, impact or natural depreciation, caused by transport and/or handling, risks or smashing's;
ØProduct was purchased more than 12 months ago.
ØIncorrect installation or non-conformity with the Manual;
ØMaintenance made by unauthorized personnel;
ØAlteration or removal of the seal/serial number;
ØIn case of manufacturing defect or bad quality of raw material the max compensation will be the replacement of the product,
not allowing any kind of compensation payment;
Warranty Covers:
ØComponent or material with manufacturing defects;
ØNew modifications/iterations on a product don't obligate the manufacturer to modify products formerly produced.
ØAny extra information you can get by contacting us at the e-mail address: [email protected];
ØWorkmanship/service needed to repair the equipment;
Observations:
LIMITED WARRANTY
SounDigital warrants the original purchaser that this product shall be free of defects in materials an workmanship for a period of
twelve (12) months from the original date of purchase. Some countries have extended warranty in case the product is installed by
an authorized dealer. This warranty is not transferrable and applies only to the original customer from an authorized SounDigital
dealer.
15
