SoundGate HONZNAUX1 User manual
HONZNAUX1
Purpose
The SoundGate HONZNAUX1 lets you connect a ZuneTM
digital media player directly to the factory radio in the
Acura/Honda vehicles listed below. The HONZNAUX1 supplies
power, charges your Zune device, and allows for remote
control of all Zune device functions (remote sold separately).
Features
The SoundGate HONZNAUX1 utilizes sophisticated microprocessor control, ultra-reliable
surface-mount construction, and advanced software design to flawlessly integrate with Acura/
Honda audio systems. Audio from your Zune device and an additional auxiliary input can be
selected from your factory radio’s controls.
The HONZNAUX1 works in the following vehicles:
ACURA
CL 2.2/2.3 1997-1999
CL 3.0/3.2 1997-2004
Integra 1992-2001
Legend 1992-1995
MDX 2001-2006
NSX 1992-2001
RL 3.5 1997-1998
RSX 2004-2006
TL 2.5/3.2 1996-2003
TSX 2004-2007
Vigor 1992-1996
HONDA
Accord 1992-2002
Civic 1992-2005
CRV 1998-2006
Element 2003-2006
Insight 2000-2005
Odyssey 1995-2005
Pilot 2003-2007
Prelude 1992-2002
S2000 2000-2005
www.soundgate.com
Rev 20080404
If you experience problems, call SoundGate Technical Support
2
WARNINGS
Before You Begin
WARNING
DO NOT DISASSEMBLE OR ALTER
Doing so may result in an accident, fire, or electric shock.
Do not block your view
Do not mount product or any added audio/video equipment where it can block your view through the windshield or
block your view of dashboard indicators and displays.
Do not block safety devices
Do not mount product or any added audio/video equipment where it can obstruct the operation of any safety device,
such as the airbag.
Distraction warning
Do not allow product or any added audio/video equipment to distract you while you are driving.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL
Before starting any installation work , wait 90 seconds after turning the ignition switch to the LOCK position and disconnecting the negative (-) terminal
from the battery. The supplemental restraint system (SRS), or airbag(s) is equipped with a backup power source. If installation work is started less than 90
seconds after disconnection of the negative (-) battery terminal, the SRS may deploy. When the negative (-) terminal cable is disconnected from the battery,
the clock and audio systems’ memory may be erased. Before starting installation work, make a record of the clock and audio systems’ memory settings.
When installation is complete, reset the clock and audio systems to their previous settings. Power tilt, power telescopic steering column, power seats, power
mirrors, power shoulder belt anchorage, and other power accessories may or may not be equipped with a memory function; consider keeping a record of
these settings as well.
When installation is complete, readjust the features to their previous settings.
Never use a backup power supply (such as another battery) during installation work in an attempt to avoid losing these memory settings.
CAUTION
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS
Cables or wiring that obstruct or get caught on places such as the steering wheel, shift lever, brake pedals, etc. can
be extremely hazardous.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST
Moisture or dust may result in product failure.
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS
The wiring and installation of this product requires special technical skills and experience.
USE ONLY SPECIFIED ACCESSORY PARTS
Use of other than specified parts may damage product internally.
FOLLOW THE OPERATIONAL AND INSTALLATION MANUALS.
YOU SHOULD READ AND FAMILIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR TO
INSTALLING AND USING THIS UNIT. IN ADDITION, YOU MUST CAREFULLY READ AND FOLLOW THE INSTALLATION
SCHEMATICS AND INSTRUCTIONS FOR THE PRODUCT AND THE VEHICLE IN WHICH IT IS BEING INSTALLED. FAILURE
TO FOLLOW INSTALLATION INSTRUCTIONS MAY DAMAGE THE PRODUCT AND THE VEHICLE, WILL VOID THE PRODUCT
WARRANTY, AND MAY VOID THE VEHICLE WARRANTY.
CHECK YOUR LOCAL LAWS
Some States/Provinces or other governmental jurisdictions (such as cities) may have laws that prohibit the operation
of a video screen within the sight of the driver. If you have purchased such a product, you should use the product
only in locations where it is legal to do so, and if you do use the product, set up the screen so it is only visible to
passengers.
TROUBLESHOOTING
Should this product fail to operate properly, please contact your Dealer or SoundGate Technical Support
at 800-256-0808.
3
PRODUCT OVERVIEW
HONZNAUX1 Overview
Optional remote control (available
separately). Allows full control of a
connected Zune device’s functions
Inline fuse. The red wire of the power
connector is fused to protect your Zune
device and vehicle systems. The red wire
requires a 12V, 1500mA fuse.
Power connector. Connect black wire to bare-metal
chassis. Connect red wire to a +12V switched (ignition)
power source.
Zune Dock Connector. Connect to ZuneTM
digital media player.
RCA component A/V outputs. Yellow = Video, Red = Audio Right,
White = Audio Left. Connect the audio outputs to the matching locations
of the HONZNAUX1 components on the next page
4
PRODUCT OVERVIEW
HONZNAUX1 Option A
HONZNAUX1 Module
HONZNAUX1 Harness Option A
14-pin Male Connector. Remove your factory radio and
connect the 14-pin male connector to the rear panel. Read
the instructions on page 6 for further details.
Connect the male RCA Left (white) and Right (red)
audio cables (from the component-set on page 3) to
“INPUT A” on the HONZNAUX1 module—please
read page 6 for details.
Connect an optional auxiliary
input to “INPUT B”—see
page 6 for details.
5

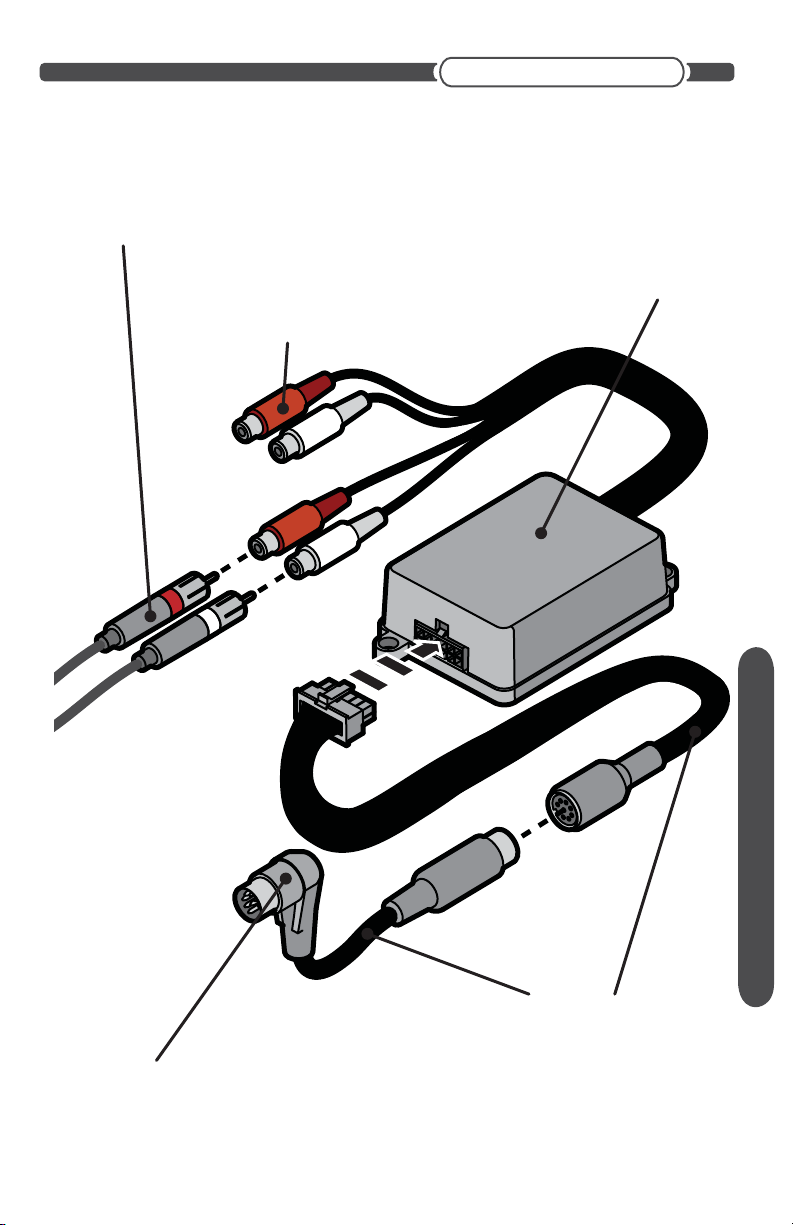

PRODUCT OVERVIEW
HONZNAUX1 Option B
8-pin Male DIN Connector. Remove your factory radio and
connect the 8-pin male DIN connector to the rear panel. Read
the instructions on page 6 for further details.
HONZNAUX1 Module
HONZNAUX1 Harness Option B
Connect the male RCA Left (white) and Right (red)
audio cables (from the component-set on page 3) to
“INPUT A” on the HONZNAUX1 module—please
read page 6 for details.
Connect an optional auxiliary
input to “INPUT B”—see
page 6 for details.
6
INSTALLATION / OPERATION
Installation
BEFORE YOU BEGIN:
Turn the ignition off.1.
Ensure the factory radio is turned off.2.
Installation
Gain access to the factory radio’s rear panel. The HONZNAUX1
connects directly to the rear panel of the factory radio. Full or partial
disassembly of the dash will be necessary. If you are unsure of this procedure, please consult
a factory service manual or have the work performed by a mobile electronics specialist. Pay
special attention to warnings or instructions regarding working near airbags, other safety
devices, or security systems.
1
1
Connect the HONZNAUX1 harness to the factory radio. The
HONZNAUX1 comes with two vehicle-specific harnesses. Carefully review
both harness options on pages 4 and 5 and compare both harnesses with the connectors on
your factory radio’s rear panel. Use the harness that matches your radio’s connectors. Plug
the male connector of the appropriate HONZNAUX1 harness into the matching location on the
factory radio’s rear panel.
2
2
Assemble the components shown on page 3 and connect them to
the HONZNAUX1 module. Use the diagrams on pages 3-5 to assemble
the components that will connect to and control your Zune device.
Power connector wiring. Connect the black wire of the power connector shown on page 3
to a clean, bare-metal chassis ground. When in doubt, measure the resistance between
potential grounding points and the vehicle battery using a multimeter. Choose a grounding
point with equivalent resistance as other grounded components in the audio system. Connect
the red wire to a +12V switched (ignition) power source. This wire requires a 12V, 1500mA
inline fuse. MAKE CERTAIN THAT REPLACEMENT FUSES MATCH THESE SPECIFICATIONS.
RCA connections. The HONZNAUX1 module has two pairs of female RCA connectors labelled
“INPUT A” and “INPUT B”. For simplicity, connect the male RCA audio cables (from the RCA
component A/V output breakout shown on page 3) to the female RCA connectors labelled
“INPUT A”; this connects your Zune device to “INPUT A”. You may optionally connect an
additional low-level audio input source to “INPUT B”.
3
3
7
INSTALLATION / OPERATION
Installation
Operation
HONZNAUX1 Operation
To activate the HONZNAUX1, enter CD-changer mode by pressing the factory radio’s•
CD button or using the Mode button to switch to CD-changer mode (make sure you
have music playing on your Zune Device).
Press• Random, Scan, or Repeat twice to switch between INPUT A (your Zune device)
and INPUT B (optional auxiliary source).
The factory radio will display• Disc1 when INPUT A (your Zune device) is selected.
When INPUT B (optional auxiliary source) is selected, the factory radio will display
Disc2.
To deactivate the HONZNAUX1, simply source to AM/FM or the internal factory CD•
player.
Mount all components. Mount the HONZNAUX1 module behind or
under the dash (mounting hardware not included). Be careful not to
drill into wiring or vehicle mechanisms. You are solely responsible for securely fastening the
HONZNAUX1 in your vehicle. Make certain that wires and cables cannot be damaged by
screws, clips, or sharp, exposed pieces of metal.
Ensure that the Zune dock connector is left in a convenient place for connection to your Zune
device. Plug the Zune dock connector in straight. Do not insert the connector at an angle or
wiggle the connector during insertion.
Please read the Operation section below and test the installation before reassembling the
vehicle dash, trim panels, and audio systems.
4
4
Controlling your Zune device
The HONZNAUX1 will not provide control of your Zune device unless you attach the optional
remote, which is available separately. Please visit www.soundgate.com or your local mobile
audio dealer for details on the HONZNAUX1 remote’s availability.
IMPORTANT
Some Honda/Acura radios do not support source switching from the factory radio’s
controls. Test your radio before reassembling the audio system; if you cannot switch
between INPUT A and INPUT B, call SoundGate technical support for a solution.
SoundGate Technical Support: 1-800-256-0808
