Soundolier Duo User manual

2006 Mitek Corporation.Soundolier & Duo are trademarks of Mitek.All rights reserved.
wireless speaker torchiere
sound & light together
SOUNDOLIER
light

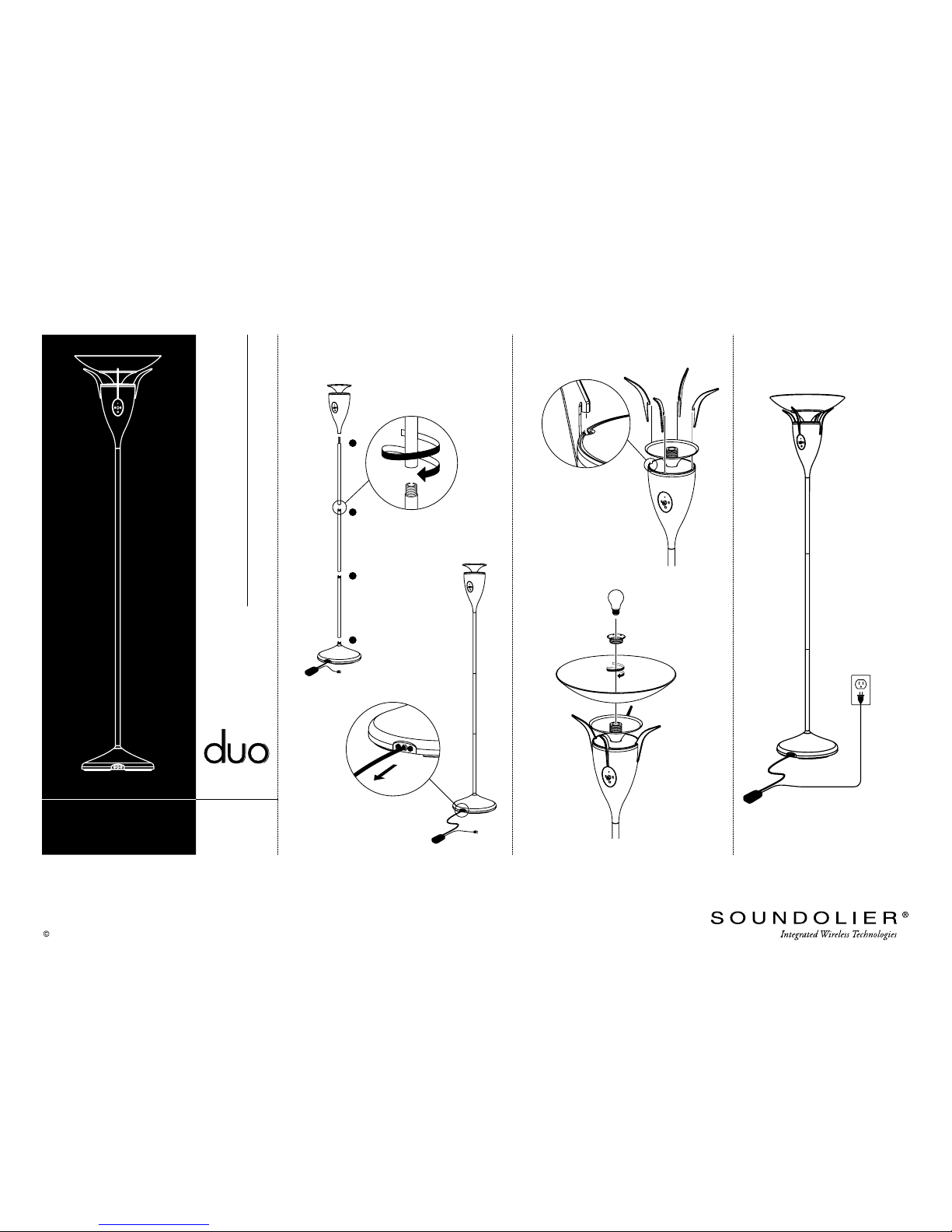

assembly guide
5
120 Volt
50/60Hz
only
2
pull out excess cord
3
optional
4
1
a
b
c
d
WARNING
do not over
tighten
&
sound
page 1

2006 Mitek Corporation.Soundolier & Duo are trademarks of Mitek.All rights reserved.

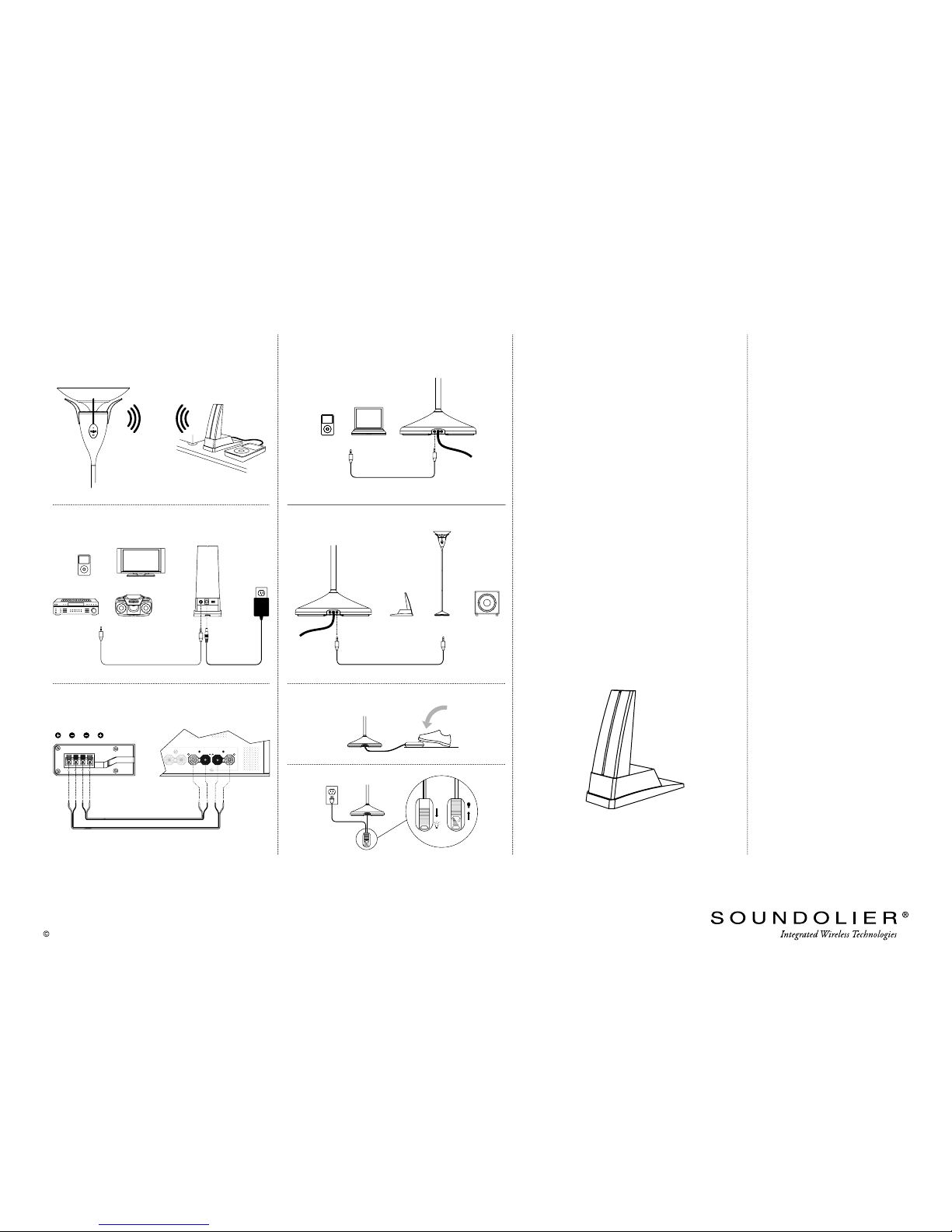

setup guide
source line in
transmitter wiring - option a
transmitter wiring - option b
input directly to duo
output directly from duo
built-in dimmer
audio power switch
wireless mode
200ft
(max.
line of
sight)
source
on/off
3.5mm stereo cable not included 3.5mm stereo cable not included
CENTER
SPEAKERS
SURROUND
LR
speaker wire not included
additional output
line out powered
sub
additional
lamp
extend
range
3.5mm stereo cable not included
transmitter sold separately
right left
transmitter
bottom view source
specifications
NDM447MKC002496 RevA 10/06
dimensions
• height: 76” (193cm)
• diameter: 15 ¾” (40cm)
• weight: 37lbs (16.8kg)
• power requirement:
120VAC, 50/60Hz
lamp
• detachable cosmetic arms
• 1” (25mm) sleek pole
• metallic black finish
• brushed metal accents
• 100W A19, medium screw
(E26) bulb suggested
(not included)
• floor foot dimmer
audio
• selectable stereo wireless
or 3.5mm stereo input
• 3.5mm stereo line output
• selectable left, right, or
mono speaker output
speaker
• 5 ¼” (133mm) paper cone
full range speaker
• patent pending 360°
sound dispersion
wireless
• 2.4GHz stereo receiver
• 4 selectable signal channels
• 20Hz-20kHz full range audio
• 200ft (60m) maximum
line of sight reception
important safety
instructions
fcc compliant
To avoid the risk of electrical shock, the Soundolier
Duo is designed with a polarized plug. Align the
wider prong with the matching outlet socket to
supply power. DO NOT FORCE THE PLUG INTO THE
OUTLET. If it does not fit, consult a qualified
electrician. Improper use may result in electric
shock or fire.
Do not hang or attach items that were not
intended for use with the Duo. Additional weight
may make the unit unstable and top heavy,
resulting in damage or possible injury if tipped over.
Lamp: FCC Title 47, Part 15 & Part 18
Wireless Transmitter: FCC Title 47, Part 74
maestro wireless
transmitter (sold separately)
Duo is designed for use wirelessly with the
maestro wireless transmitter available from
your soundolier dealer.
page 2

2006 Mitek Corporation.Soundolier & Duo are trademarks of Mitek.All rights reserved.
interface guide
feature 1: line in/wireless - push button
feature 2: left/right - used as rear speakers
in home theater feature 6: wireless transmission channel select
feature 7: volume control - on the lamp
feature 4: wireless
signal detection
input signal wired directly
to base of duo for wireless signal broadcast
from transmitter green light = wireless signal red light = no signal
line in
wireless
line in
wireless
ch.
1
4
2
3
if wireless signal interferes with other devices, change
both the duo and the transmitter to different
corresponding channels
possible devices of interference include cordless phones,
satellite radio, and wireless computer networks
right
left
mix
ch.
1
4
2
3
right
left
mix
ch.
1
4
2
3
right
le
mix
ch.
right
le
mix
ch.
right
left
mix
right
left
mix
feature 5: unique
360˚sound dispersion
SOUNDOLIER
feature 3: mix - receive two-channel signal
right
left
mix
warranty
Soundolier products purchased in the United
States from authorized dealers are
guaranteed against defects in material and
workmanship for a period of 90 days, the
warranty period begins the day the product is
purchased by the end user. This warranty is
limited to the original retail purchaser of the
product. Product found to be defective
during that period will be repaired or
replaced by Soundolier at no charge. This
warranty is void if it is determined that
unauthorized parties have attempted repairs
or alterations of any nature. Warranty does
not extend to cosmetics or finish. Before
presuming a defect is present in the product,
be certain that all related equipment and
wiring is functioning properly. Soundolier
disclaims any liability for other incurred
damages resulting from product defects. Any
expenses incurred in the removal and
reinstallation of product is not covered by this
warranty. Soundolier's total liability will not
exceed the purchase price of the product.
Shipping charges incurred to send the
product in for warranty service, shall be paid
by the customer. Return shipping from service
center to the customer will be paid by
Soundolier. Proof of purchase is required
when requesting service, so please retain your
sales receipt. Also, a Return Authorization
number (RA) is required before shipping
product back to Soundolier, call 800-556-2888.
Retain original packaging for all WARRANTY
contact information
Thank you for purchasing the Soundolier Duo.
Please register your product by calling us at
1-800-225-5689. For technical assistance or if
you have any questions/comments, please
contact us by phone or by email:
[email protected].
Mitek Corporation
4545 East Baseline Rd
Phoenix, AZ 85042
