ACS-1500 Series Professional Active Column Speaker System which can cover the usage area from
small to large Designed for hi-end professional sound performance especially for frequency response
up to 40Hz  18KHz ± 3dB, Power maximum 1800 Watts Amplifier Class D with DSP processor 5 Preset
for optimum performance.And can stream wireless music via Bluetooth Support ideal lifesound concert,
event, shopping mall, meeting room - training, fitness, restaurant, hotel banquet room.
This series includes ACS-1500S (subwoofer), ACS-1500C (column speaker)
INTRODUCTION
FEATURE
Subwoofer Component: 15", 3" voice coil
Satellite Components: 4" X 8 Full Range Speaker
Dispersion Angle (H x V): 80 x 20 Degree.
Frequency response: 40Hz  18KHz
Max. SPL / (Peak): 125dB/134dB
Power RMS: 900W / 1800W (MAX)
Built-in Class D Amplifier
Built-In DSP Processor Mode: DEFAULT, MUSIC, DANCE, SPEECH, POP
Built-in Media player: Wireless stereo audio streaming Bluetooth.
Operating voltage AC 220 - 240V, 50/60Hz
.
.
.
.
.
.
.
.
.
.
1

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong.The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the tripod sold with the apparatus.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
2

CAUTION!
3
To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside.
Maintenance and repairs should be exclusively carried out by qualified service personnel.
The warning triangle with lightning symbol indicates dangerous uninsulated voltage
inside the unit, which may cause an electrical shock.
The warning triangle with exclamation mark indicates important operating and
maintenance instructions.
SYSTEM SETUP
1. Whenever possible, place the subwoofer in a corner of the room or along the wall. Place the satellites
as necessary for the desired coverage and stereo image.
2. Confirm the voltage selector is in the correct position, then plug the AC cord into the nearest grounded
(3 wire) outlet.
3. Connect the sat ellite speakers speakon outpu t connectors lo cated on the back of the subwoofer.
Use speakon cables sp ecifically designed for speakers.
4. Attach and/or connect a signal source.

4
FIRST TIME OPERATION
Be for e po wer in g u p t he subw o of er set t he co ntro ls as fo l lo ws ...
• Set the Master Level control to minimum (full counter clock-wise (CCW)).
• Set the SUB VOLUME control to minimum (full counter clock-wise (CCW)).
Now turn the subwoofer on using the ON / OFF toggle switch. Activate the source (iPod, MP3 etc.).
Turn the Subwoofer Volume control clockwise until you achieve the desired level.
CONNECTION
1. To connect a CD player, turntable or mixer use a combination XLR
and 1/4 ” J ac k c onne c to r t o c on nect to th e L INE IN ( 8) in put.
If connecting a powered mixer use the mixers line level signals only.
2. You can LINK additional speakers using the LINK OUT (9) connection.
The amplifier on your speaker will only power this speaker. If you LINK
to a ddi ti o na l s peak e rs t h os e s pea kers mu st be s elf -a m pl ifi ed.
3. You can LIN K t he SU B t o sa tel lit e us ing the S pe aker ou t pu t ( 11)
con nec ti on by Spea kon co nn e ct or.
4. Turn on your mixer/microphones or other signal source, then turn on
your unit, the Power Indicator (1) will be lit. Now you can adjust your
vol ume c o nt rol s to a rea sona ble le ve l .
   
  
 




Product box ACS-1500S (Subwoofer)
ACS-1500S x 1 box.
- Dimensions(WxHxD): 430x520x570 mm.
- Net Weight: 27 Kg.
Power con x 1 pcs.
Power cable x 1 pcs.
User manual x 1 book.
BOX CONTENTS
.
.
.
.
Product box ACS-1500C (Column)
ACS-1500C x 1 box.
- Dimensions(WxHxD): 135x135x980 mm.
- Net Weight: 11 Kg.
Pole x 1 pcs.
.
.

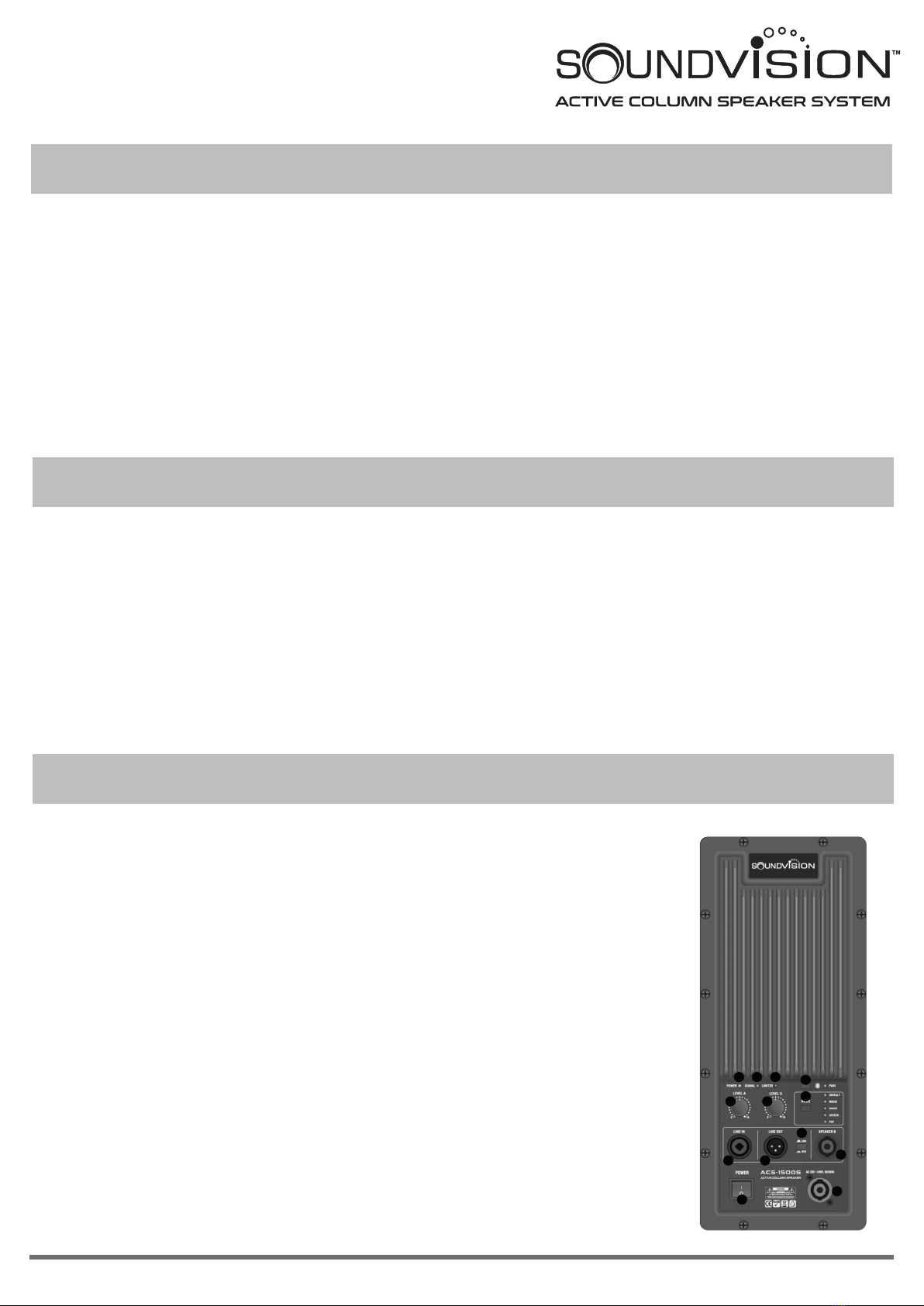

PANEL DESCRIPTION
5
   
  
 





1. POWER INDICATOR
2. SIGNAL INDICATOR : The LED lights up when signal input.
3. LIMIT INDICATOR : illuminated just before the sub amplifier begins to clip and distort. Adjust the sub level control
and signal level from your source so this illuminates only briefly on peaks in the music. Using the system with this
on all or much of the time will result in poor sound quality and damage the speakers and electronics.
4. BLUETOOTH PAIRING BUTTON : Bluetooth can be found automatically and be connected automatically
from second time. If no connection, Bluetooth will be off automatically after 2 seconds. Start to Bluetooth
pairing if press this button, then press again to play after connected, and cancel pairing if press this button
two or three seconds. LED indicator the status: listing said connected already, slow flash indicates the
music is playing, quick flash is means matching.
5. LEVEL A ( VOLUME CONTROL FOR SUBWOOFER ) : Control the volume for subwoofer speaker.
6. LEVEL B ( VOLUME CONTROL FOR SATELLITE ) : Control the volume for satellite speaker.
7. DSP PRESETS : Use this button to toggle through the five different settings.
- DEFAULT This is the default setting for the speaker. Use this setting when the speaker is being used
either on a tripod or pole and facing towards your audience.
- MUSIC Built-in dynamic treble and bass adjustment, and is suitable for the venues that requires
a strong sense of rhythm music.
- DANCE Built-in dynamic mid and bass adjustment, and is suitable for the venues that requires a
strong sense of rhythm dance.
- SPEECH Use this setting when the speaker is being used for Speech only or Spoken Word applications
and facing towards the audience.
- POP POP music mode to enhance mid-range playback effect.
8. LINE IN : Use combination XLR or 1 /4” Jack connect or balanced or unbalanced.
9. LINK OUT : Use XLR connector balanced or unbalanced.
10. MIX / LINK : output switch: MIX (depressed) is for LINK output. LINK (disengaged) is for LINK IN.
11. SPEAKER B ( SATELLITE SPEAKER OUTPUT ) : SPEAKON output connector to satellite.
12. POWER SWITCH : Turns the system On and Off. Ensure the system volume control at minimum when switching on.
13. POWER SUPPLY INPUT CONNECTOR : Use with power con.
PANEL DESCRIPTION (SUBWOOFER/AMPLIFIER FUNCTION)
6

7
SPECIFICATIONS
Model
Transducer
Frequency Response
Rated Power
Amplifier
Sensitivity
Maximum SPL
Nominal Impedance
Built-in DSP Processor
Audio Streaming Wireless
Dispersion Angle (H x V)
Connection
Operating voltage
Dimensions (W x H x D)
Net Weight
ACS-1500S (Subwoofer)
Subwoofer Components :
15", 3" voice coil
40Hz  180Hz ±3dB
600W / 1200W (MAX)
Class D
95dB 1m/1W
125dB/134dB (Peak)
4 
DEFAULT, MUSIC, DANCE, SPEECH, POP
Bluetooth Version 4.0
Line Input: XLR or 1/4” Jack,
Line Output: XLR
AC 220240V, 50/60Hz
430 x 520 x 570mm
27
NOTE: SOUNDVISION products are subject to a process of continuous development.
Specifications are subject to change without notice.
* Bluetooth range is affected by walls, obstructions, and movement. For optimal performance, place the product
in the center of the room so it is unobstructed by walls, furniture, etc.
* Battery life may vary based on temperature, age, and volume usage of product.
ACS-1500C (Column)
Satellite Components :
4" X 8 Full Range Speaker
180Hz  18kHz ±3dB
300W / 600W (MAX)
96dB 1m/1W
125dB/134dB (PEAK)
4 
80° X 20°
SPEAKON
135 x 135 x 980mm
11
