SOUTHERN STATES
OWNER’S MANUAL
Shallow Well Jet Pump
Installation/Operation/Parts
Southern States Cooperative
P.O. Box 26234, Richmond, VA 23230
SS312 (Rev. 4/14/09)

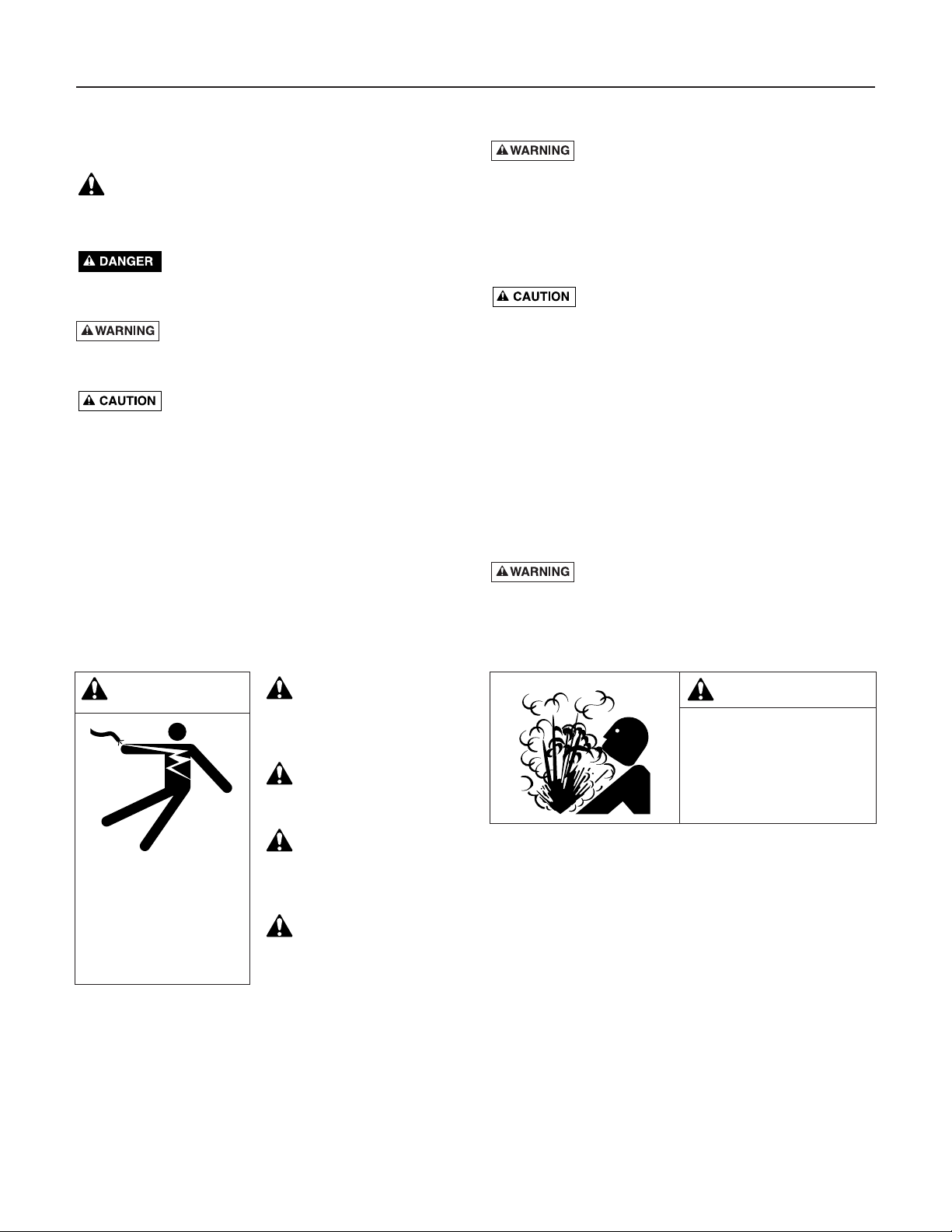

Safety 2
READ AND FOLLOW
SAFETY INSTRUCTIONS!
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for
one of the following signal words and be alert to the
potential for personal injury:
warns about hazards that will cause serious
personal injury, death or major property damage if
ignored.
warns about hazards that can cause serious
personal injury, death or major property damage if
ignored.
warns about hazards that will or can cause
minor personal injury or property damage if ignored.
The label NOTICE indicates special instructions which
are important but not related to hazards.
Carefully read and follow all safety instructions in this
manual and on pump.
Keep safety labels in good condition.
Replace missing or damaged safety labels.
ELECTRICAL SAFETY
Capacitor voltage may be hazardous. To
discharge motor capacitor, hold insulated handle screw-
driver BY THE HANDLE and short capacitor terminals
together. Do not touch metal screwdriver blade or
capacitor terminals. If in doubt, consult a qualified
electrician.
GENERAL SAFETY
Do not touch an operating motor. Modern
motors are designed to operate at high temperatures. To
avoid burns when servicing pump, allow it to cool for 20
minutes after shut-down before handling.
Do not allow pump or any system component to freeze.
To do so will void warranty.
Pump water only with this pump.
Periodically inspect pump and system components.
Wear safety glasses at all times when working on pumps.
Keep work area clean, uncluttered and properly lighted;
store properly all unused tools and equipment.
Keep visitors at a safe distance from the work areas.
Pump body may explode if used as a
booster pump unless relief valve capable of passing full
pump flow at 75 psi is installed.
WARNING
Hazardous pressure!
Install pressure relief
valve in discharge pipe.
Release all pressure on
system before working on
any component.
WARNING
Hazardous voltage.
Can shock, burn, or
cause death.
Ground pump before
connecting to power
supply. Disconnect power
before working on pump,
motor or tank.
Wire motor for correct
voltage. See “Electrical”
section of this manual and
motor nameplate.
Ground motor before
connecting to power
supply.
Meet National Electri-
cal Code, Canadian
Electrical Code, and local
codes for all wiring.
Follow wiring instruc-
tions in this manual
when connecting motor to
power lines.

Table of Contents 3
Thank you for purchasing a top quality, factory tested pump.
Page
General Safety .....................................................................................................2
Installation ........................................................................................................4,5
Connecting Discharge Piping...............................................................................6
Electrical..........................................................................................................7, 8
Preparing To Start The Pump................................................................................8
Troubleshooting ...................................................................................................9
Repair Parts .......................................................................................................10
Warranty ............................................................................................................11

Installation 4
REPLACING AN OLD PUMP
Hazardous voltage. Disconnect power to
pump before working on pump or motor.
Step 1. Drain and remove the old pump. Check the old
pipe for scale, lime, rust, etc., and replace it if
necessary.
Step 2. Install the pump in the system. Make sure that all
pipe joints in the suction pipe are air-tight as well
as water tight.
If the suction pipe can suck air, the
pump will not be able to pull water from the well.
Step 3. Adjust the pump mounting height so that the
plumbing connections do not put a strain on the
pump body. Support the pipe so that the pump
body does not take the weight of piping or fittings.
You have just completed the well plumbing for
your new shallow well jet pump. Please go to
Page 6 for discharge pipe and tank connections.
WELL POINT (DRIVEN POINT)
INSTALLATION (Figure 1)
Step 1. Drive the well, using “drive couplings” and a
“drive cap”. “Drive fittings” are threaded all the
way through and allow the pipe ends to butt
against each other so that the driving force of the
maul is carried by the pipe and not by the
threads. The ordinary fittings found in hardware
stores are not threaded all the way through the
fitting and can collapse under impact. “Drive fit-
tings” are also smoother than standard plumbing
fittings, making ground penetration easier.
Step 2. Mount the pump as close to the well as possible
Step 3. Use the fewest possible fittings (especially elbows)
when connecting the pipe from the well point to the
pump suction port. The suction pipe should be at
least as large as the suction port on the pump
(include a check valve if your pump is not equipped
with one – see Figure 1). Support the pipe so that
there are no dips or sags in the pipe, so it doesn’t
strain the pump body, and so that it slopes slightly
upward from the well to the pump (high spots can
cause air pockets which can air lock the pump). Seal
the suction pipe joints with teflon tape or a teflon
based pipe joint compound. Joints must be air- and
water-tight. If the suction pipe can suck air, the
pump cannot pull water from the well. If one well
point does not supply enough water, consider con-
necting two or three well points to one suction pipe.
You have just completed the suction piping for
your new shallow well jet pump. Please go to
Page 6 for discharge pipe and tank connections
CASED WELL INSTALLATION, 2" OR
LARGER CASING (Figure 2)
Step 1. Mount the pump as close to the well as possible.
Step 2. Assemble the foot valve, strainer, and well pipe
(see Figure 2). Make sure that the foot valve
works freely.
Step 3. Lower the pipe into the well until the strainer is five
feet above the bottom of the well. It should also be
at least 10 feet below the well’s water level while
the pump is running in order to prevent the pump
from sucking air. Install a sanitary well seal.
To Household
Water System
Not
to
Scale
Pump Priming
Tee and Plug
Suction Pipe
From Well
Drive
Coupling
Drive
Point
Check
Valve
Priming
Tee and
Plug
Drive point
belowwater
level
2346 0396
To Household
Water System
Pump Priming
Tee and Plug
Not
to
Scale
Check
Valve
10'
Min.
5–10'
Suction Pipe
From Well
Priming
Tee and
Plug
Foot
Valve
Sanitary
Well Seal
Well
Casing
2347 0396
Figure 1: Driven Point Installation Figure 2: Cased Well Installation

Installation 5
Step 4. Install a priming tee, priming plug, and suction
pipe to the pump (see Figure 2). Connect the pipe
from the well to the pump suction port, using the
fewest possible fittings – especially elbows – as
fittings increase friction in the pipe (however,
include a foot valve – see Figure 2). The suction
pipe should be at least as large as the suction
port on the pump. Use teflon tape or a teflon-
based pipe joint compound on threaded pipe
joints. Support the pipe so that there are no dips
or sags in the pipe, so it doesn’t strain the pump
body, and so that it slopes slightly upward from
the well to the pump (high spots can cause air
pockets which can air lock the pump). Seal the
suction pipe joints with teflon tape or a teflon
based pipe joint compound. Joints must be air-
and water-tight. If the suction pipe can suck air,
the pump cannot pull water from the well.
You have just completed the suction piping for
your new shallow well jet pump. Please go to
Page 6 for discharge pipe and tank connections.
INSTALLATION FOR SURFACE WATER
(Figure 3)
Step 1. The pump should be installed as close to the
water as possible, with the fewest possible fittings
(especially elbows) in the suction pipe. The suc-
tion pipe should be at least as large as the suction
port on the pump.
Step 2. Assemble a foot valve and suction pipe (see
Figure 3). Make sure that the foot valve works
freely. Use teflon tape or a teflon-based pipe joint
compound on threaded pipe joints. Protect the
foot valve assembly from fish, trash, etc, by
installing a screen around it (see Figure 3).
Step 3. Lower the pipe into the water until the strainer is
five feet above the bottom. It should also be at
least 10 feet below the water level in order to
prevent the pump from sucking air.
Step 4. Install a priming tee, priming plug, and suction
pipe to the pump (see Figure 3). Support the pipe
so that there are no dips or sags in the pipe, so it
doesn’t strain the pump body, and so that it
slopes slightly upward from the well to the pump
(high spots can cause air pockets which can air
lock the pump). Seal the suction pipe joints with
teflon tape or a teflon based pipe joint com-
pound. Joints must be air- and water-tight. If the
suction pipe can suck air, the pump cannot pull
water from the well.
You have just completed the plumbing for your
new shallow well jet pump. Please go to Page 6
for discharge pipe and tank connections.
To Household
Water System
Pump Priming
Tee and Plug
Check
Valve
Not
to
Scale
Suction Pipe
From Well
10'
Min.
5–10'
Foot
Valve
Screen
Priming
Tee and
Plug
2348 0396
Figure 3: Surface Water Installation

Discharge Pipe and Pressure Tank Connections 6

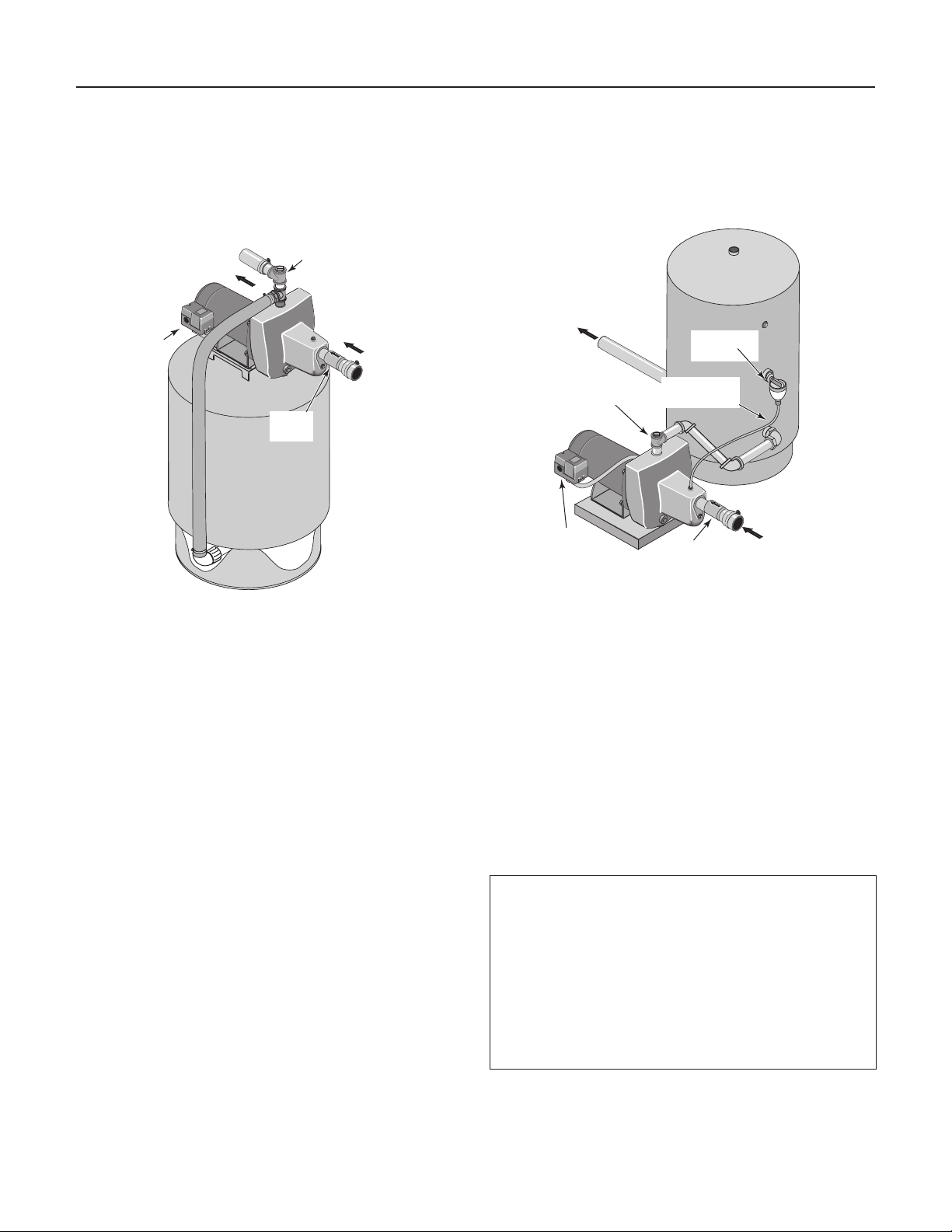

PRE-CHARGE TANK CONNECTION
(Figure 4)
Step 1. Install two tees in the pump discharge port (see
Figure 4). The pipe size must be at least as large
as the discharge port.
Step 2. Run a pipe or reinforced hose from one arm of
the first tee to the port on the pre-charged tank.
Step 3. Connect the other end of the discharge tee to
your plumbing system.
Step 4. Check the pre-charge of air in the tank with an
ordinary tire gauge. The pre-charge should be 2
PSI less than the cut-in setting of the pump’s pres-
sure switch. The pre-charge is measured when
there is no water pressure in the tank. Your new
pump has a 30/50 PSI switch, so adjust the tank
pre-charge pressure to 28 PSI.
Congratulations! You have just completed the
tank connection for your jet pump.
Please go to Page 7 for electrical hookup.
STANDARD TANK CONNECTION
(Figure 5)
Step 1. Install one tee in the pump discharge port (see
Figure 5).
Step 2. Run a pipe from the pump discharge port to the
inlet port of your tank. The pipe size must be at
least as large as the discharge port.
Step 3. Remove the 1/8" NPT pipe plug from the pump Air
Volume Control (AVC) port (see Figure 5). Run tub-
ing from the pump’s AVC port (see Figure 5) to the
port on the AVC mounted on the tank. See instruc-
tions provided with tank and AVC for details. AVC
port location will vary, depending on your pump

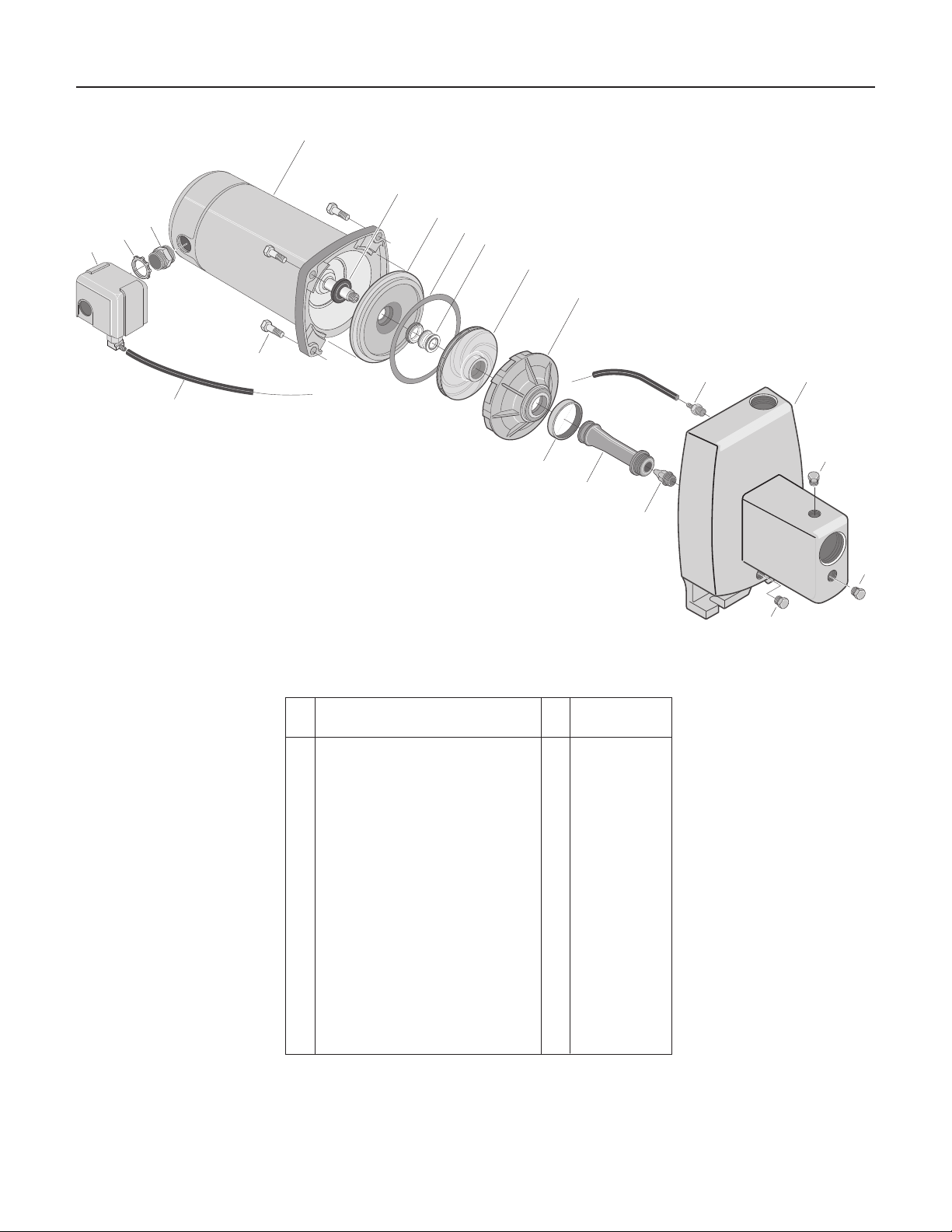

model (see exploded view, Page 11).
Congratulations! You have just completed the
tank connection for your jet pump.
Please go to Page 7 for electrical hookup.
From Well
Pressure
Switch
To Household
Water System
Pump Priming
Tee and Plug
Check
Valve
2349 0396
To Household
Water System
From
Well
Air Volume
Control
Air Volume
Control Tube
Pump
Priming Tee
and Plug
Pressure
Switch
2350 0396
Check
Valve
Figure 4: Pre-charged Tank Connections
Figure 5: Standard Tank Connections
Sealing Pipe Joints
Use only Teflon tape or Teflon based joint com-
pounds for making all threaded connections to the
pump itself. Do not use pipe joint compounds on
plastic pumps: they can react with the plastic in
pump components. Make sure that all pipe joints in
the suction pipe are air tight as well as water tight.
If
the suction pipe can suck air, the pump will not be
able to pull water from the well.

Electrical 7
Disconnect power before working on pump, motor, pressure switch, or wiring.
Hazardous voltage. Can shock, burn, or kill.
Connect ground wire before connecting power supply
wires. Use the wire size (including the ground wire) spec-
ified in the wiring chart. If possible, connect the pump to
a separate branch circuit with no other appliances on it.
Explosion hazard. Do not ground to a gas
supply line.
Motor Switch Settings
Dual-voltage motors (motors that can operate at either
115 or 230 volts), are set at the factory to 230 volts. Do
not change motor voltage setting if line voltage is 230
volts, or if you have a single voltage motor.
NOTE: Never wire a 115 volt motor to a 230 volt line.
NOTE: Wire TEFC motors according to wiring diagram in
junction box on motor. Be sure motor is connected for
correct line voltage.
NOTE: Wire 3-Phase motors according to wiring diagram
on motor. Be sure motor is connected for correct line
voltage.
Remove Motor End Cover
If you have a dual-voltage motor, and will connect it to
115 volts, follow the procedure below.
You will need to remove the motor end cover to change
the voltage setting.
Your motor terminal board (located under the motor end
cover) should look like the one below.
Dial Type Voltage Selector
To change to 115 volts:
1. Make sure power is off.
2. Turn the dial counter-clockwise until 115 shows in the
dial window.
3. Attach the power lead wires to the power lead termi-
nals. Make sure the wires are secure.
4. Attach the ground wire to the green ground screw
5. Reinstall the Motor end cover
Go to Wiring Connections below.
WIRING CONNECTIONS
Fire hazard. Incorrect voltage can cause a
fire or seriously damage the motor and voids the warran-
ty. The supply voltage must be within ±10% of the motor
nameplate voltage.
Install, ground, wire, and maintain your pump in compli-
ance with the National Electrical Code (NEC) or the
Canadian Electrical Code (CEC), as applicable, and with
all local codes and ordinances that apply. Consult your
local building inspector for code information.
DISTANCE IN FEET(METERS) FROM MOTOR TO SUPPLY
0 - 100 101 - 200 201 - 300 301 - 400 401 - 500
Max. Load Branch Fuse (0 - 30) (31 - 61) (62 - 91) (92 - 122) (123 - 152)
Motor HP Volts Amp Rating Amp AWG WIRE SIZE (mm2)
1/2 115/230 9.9/4.9 15 14 (2)/14 (2) 10 (5.5)/14 (2) 10 (5.5)/14 (2) 8 (8.4)/12 (3) 6 (14)/12 (3)
Wiring Chart – Recommended Wire and Fuse Sizes
Motor
End Cover
End Cover Screws
Figure 6: Removing End Cover
Voltage
Change Dial
Ground
Screw
Power Lead
Terminals
Figure 7:Voltage Adjustment Dial

Electrical / Preparing to Start the Pump 8
Connection Procedure:
Step 1. Connect the ground wire first as shown in Figure
8. The ground wire must be a solid copper wire
at least as large as the power supply wires.
Step 2. There must be a solid metal connection between
the pressure switch and the motor for motor
grounding protection. If the pressure switch is not
connected to the motor, connect the green ground
screw in the switch to the green ground screw
under the motor end cover. Use a solid copper
wire at least as large as the power supply wires.
Step 3. Connect the ground wire to a grounded lead in a
service panel, to a metal underground water
pipe, to a metal well casing at least ten feet (3M)
long, or to a ground electrode provided by the
power company or the hydro authority.
Step 4. Connect the power supply wires to the pressure
switch as shown in Figure 8.
PRIMING
Never run pump against closed discharge. To
do so can boil water inside pump, causing hazardous
pressure in unit, risk of explosion and possibly scalding
persons handling pump.
Never run pump dry. Running pump without
water may cause pump to overheat, damaging seal and
possibly causing burns to persons handling pump. Fill
pump with water before starting.
Step 1. Remove the priming plug from the pump and fill
the pump, fill all piping between the pump and
the well, and make sure that all piping in the
well is full. If you have also installed a priming
tee in the suction piping, remove the plug from
the tee and fill the suction piping.
Step 2. Replace all fill plugs.
Step 3. Power on! Start the pump. If you don’t have
water after 2 or 3 minutes, stop the pump and
remove the fill plugs. Refill the pump and piping.
You may have to repeat this several times in
order to get all the trapped air out of the piping.
A pump lifting water 25’ may take as long as 15
minutes to prime.
Step 4. After the pump has built up pressure in the sys-
tem and shut off, check the pressure switch oper-
ation by opening a faucet or two and running
enough water out to bleed off pressure until the
pump starts. The pump should start when pres-
sure drops to 30 PSI and stop when pressure
reaches 50 PSI. Run the pump through one or
two complete cycles to verify correct operation.
This will also help clean the system of dirt and
scale dislodged during installation.
Congratulations on a successful installation.
If you were unsuccessful, please refer to the
Troubleshooting section (Page 9) or call our customer
service technical staff.
Fill pump
and piping
through
priming tee.
2351 0396
Figure 9: Prime the Pump
Figure 8: Motor wiring connections through Pressure
Switch.
Your Pressure Switch should look like the one shown
below. Connect the power supply as shown.
Clamp the power cable to prevent strain
on the terminal screws.
Connect the green (or bare copper) ground wire
to the green ground screw.
Motor wires connect here.
3187 0704H
Power supply wires connect here.
230 Volt: Connect 2 hot wires (black and red)
here and cap the white (neutral) wire. It does
not matter which wire goes to which screw.
115 Volt: Connect one hot wire (black or red)
to one of these screws (it doesn't matter
which one). Connect the white (neutral) wire
to the other screw. Cap any remaining
black or red wires.

SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION
Motor will not run Disconnect switch is off Be sure switch is on.
Fuse is blown or circuit breaker tripped Replace fuse or reset circuit breaker.
Starting switch is defective DISCONNECT POWER; Replace starting switch.
Wires at motor are loose, Refer to instructions on wiring (Page 7). DISCONNECT POWER;
disconnected, or wired incorrectly check and tighten all wiring.
Capacitor voltage may be hazardous. To discharge
capacitor, hold insulated handle screwdriver BY THE HANDLE and
short capacitor terminals together. Do not touch metal screwdriver
blade or capacitor terminals. If in doubt, consult a qualified electrician.
Pressure switch contacts are dirty DISCONNECT POWER and file contacts with emery board or nail file.
Motor runs hot and Motor is wired incorrectly Refer to instructions on wiring.
overload kicks off Voltage is too low Check with power company. Install heavier wiring if wire size is too small
(See Electrical / Wiring Chart).
Pump cycles too frequently See section below on too frequent cycling.
Motor runs but no Pump in new installation did In new installation:
water is delivered* not pick up prime through:
1. Improper priming 1. Re-prime according to instructions.
2. Air leaks 2. Check all connections on suction line, AVC, and ejector with
soapy water or shaving cream.
3. Leaking foot valve or check valve 3. Replace foot valve or check valve.
Pump has lost prime through: In installation already in use:
1. Air leaks 1. Check all connections on suction line and shaft seal.
2. Water level below suction pipe inlet 2. Lower suction line into water and re-prime. If receding water level
in well exceeds 25’ (7.6M), a deep well pump is needed.
Foot valve or strainer is plugged Clean foot valve or strainer.
Ejector or impeller is plugged Clean ejector or impeller.
Check valve or foot valve is stuck shut Replace check valve or foot valve.
Pipes are frozen Thaw pipes. Bury pipes below frost line. Heat pit or pump house.
Foot valve and/or strainer are Raise foot valve and/or strainer above bottom of water source.
buried in sand or mud Clean foot valve and strainer.
Water level is too low for shallow well A deep well jet package may be needed (over 25 ft. to water)
setup to deliver water to deliver water.
Pump does not Water level in well is lower than A deep well jet will be needed if your well is more than 25’ (7.6M)
deliver water to full estimated depth to water.
capacity Steel piping (if used) is corroded or Replace with plastic pipe where possible, otherwise with new steel pipe.
limed, causing excess friction
Piping is too small in size Use larger piping.
Packed well point Backflush well point or sink new point.
Pump delivers water but Pressure switch is out of adjustment or DISCONNECT POWER; adjust or replace pressure switch.
does not shut off or contacts are welded together
pump cycles too Faucets have been left open Close faucets.
frequently Venturi, nozzle or impeller is clogged Clean venturi, nozzle or impeller.
Standard pressure tank is waterlogged Drain tank to air volume control port. Check AVC for defects. Check
and has no air cushion all connections for air leaks.
Pipes leak Check connections.
Foot valves leak Replace foot valve.
Air charge too low in pre-charged tank DISCONNECT POWER and open faucets until all pressure is relieved.
Using tire pressure gauge, check air pressure in tank at valve stem
located on the tank. If less than pressure switch cut-in setting (30-50
PSI), pump air into tank from outside source until air pressure is 2 PSI
less than cut-in setting of switch. Check air valve for leaks (use soapy
solution) and replace core if necessary.
Air spurts from faucets Pump is picking up prime When pump has picked up prime, it should pump solid water with no air.
Leak in suction side of pump Suction pipe is sucking air. Check joints for leaks with soapy water.
Well is gaseous Consult factory about installing a sleeve in the well
Intermittent over-pumping of well. Lower foot valve if possible, otherwise restrict pump discharge
(Water drawn down below foot valve.)
Troubleshooting 9
* (Note: Stop pump;
then check prime
before looking for
other causes.
Unscrew priming
plug and see if water
is in priming hole).

Repair Parts 10
1
2
3
4
5
6
7
8
9A
11 9
10
10
10
9B
16
12
13
14
15
2331 0296
Key NCSSI-02
No. Part Description Qty. 1/2 HP
1 Motor 1 J218-582APKG
2 Water Slinger 1 17351-0009
3 Seal Plate Assembly 1 N3-1043P
4 Gasket, Seal Plate 1 N20-35
5 Shaft Seal 1 U109-6A
6 Impeller 1 J105-40P
7 Volute Diffuser 1 L1-25P
8 Gasket, Diffuser 1 N20-34
9
Pump Body Assembly 1 N176-38
9A Venturi (1) N32P-66
9B Nozzle (1) N34P-17 (#43)
10 Pipe Plug, 1/4" NPT Sq. Hd. 3 *
11 Barbed Fitting, 1/4" NPT 1 U111-211T
12 Tube, 1/4"x14-1/2" 1 U37-672P
13 Pressure Switch 1 U217-1202
14 Locknut, 1/2" 1 U36-112ZP
15 Connector 1 *
16 Capscrew 3/8-16x1-1/4" Lg. Hex Hd. 4 U30-75ZP
REPAIR PARTS LIST
* Standard hardware item, purchase locally.

11
LIMITED WARRANTY
Southern States warrants to the original consumer of the products listed below, that they will be free from defects
in material and workmanship for the Warranty Period from the date of installation as noted.
Product Warranty Period
Jet pumps 1 year
4" Submersibles 5 years
Our warranty will not apply to any product that has been subject to negligence, misapplication, improper installa-
tion or maintenance. In the event a three phase submersible motor is operated with single phase power through a
phase converter, or if three-leg ambient compensated, extra-quick trip overload relays of recommended size are
not used, our warranty is void.
Buyer’s only remedy and Southern States’s only duty is to repair or replace defective products (at Southern States’s
choice). Buyer agrees to pay all labor and shipping charges associated with this warranty and to request warranty
service through the installing dealer as soon as a problem is discovered. If warranty service is requested more than
30 days after the Warranty Period has ended, it will not be honored.
SOUTHERN STATES SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT
DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES.
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL NOT EXTEND BEYOND THE WAR-
RANTY PERIOD PROVIDED HEREIN.
Certain states do not permit the exclusion or limitation of incidental or consequential damages or the placing of lim-
itations on the duration of an implied warranty, therefore, the limitations or exclusions herein may not apply. This
warranty sets forth specific legal rights and obligations, however, additional rights may exist, which may vary from
state to state.
Supersedes all previous publications.
Southern States Cooperative, P.O. Box 26234, Richmond, VA 23230

12
