SOVICO ICD-8101 User manual

ICD-8101

COMPACT DISC PLAYER
2ICD-8101
Welcome 3
Unpacking 3
Before Use 3
Safety Instruction 4
Features 5

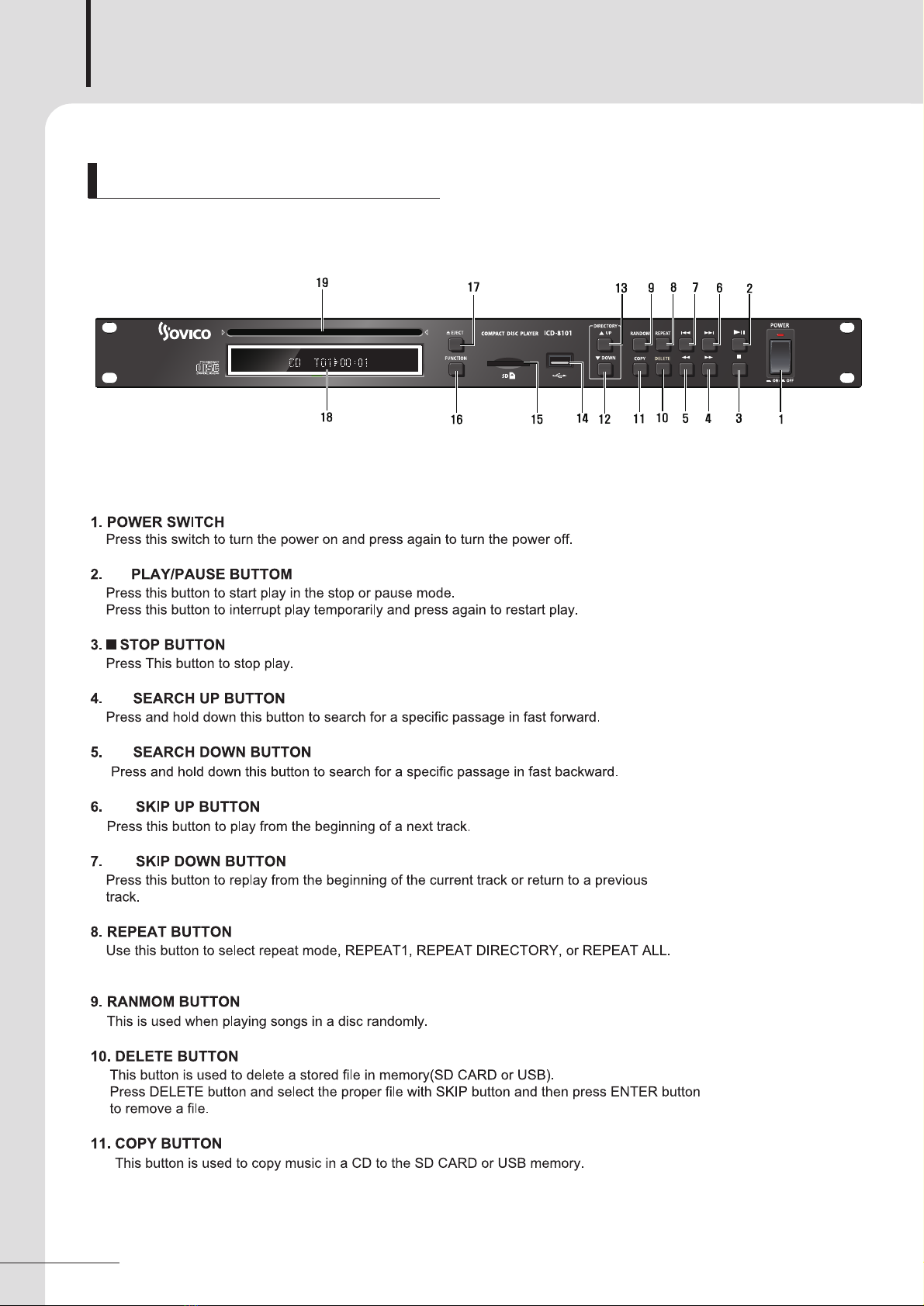

Front Panel 6
Rear Panel 7

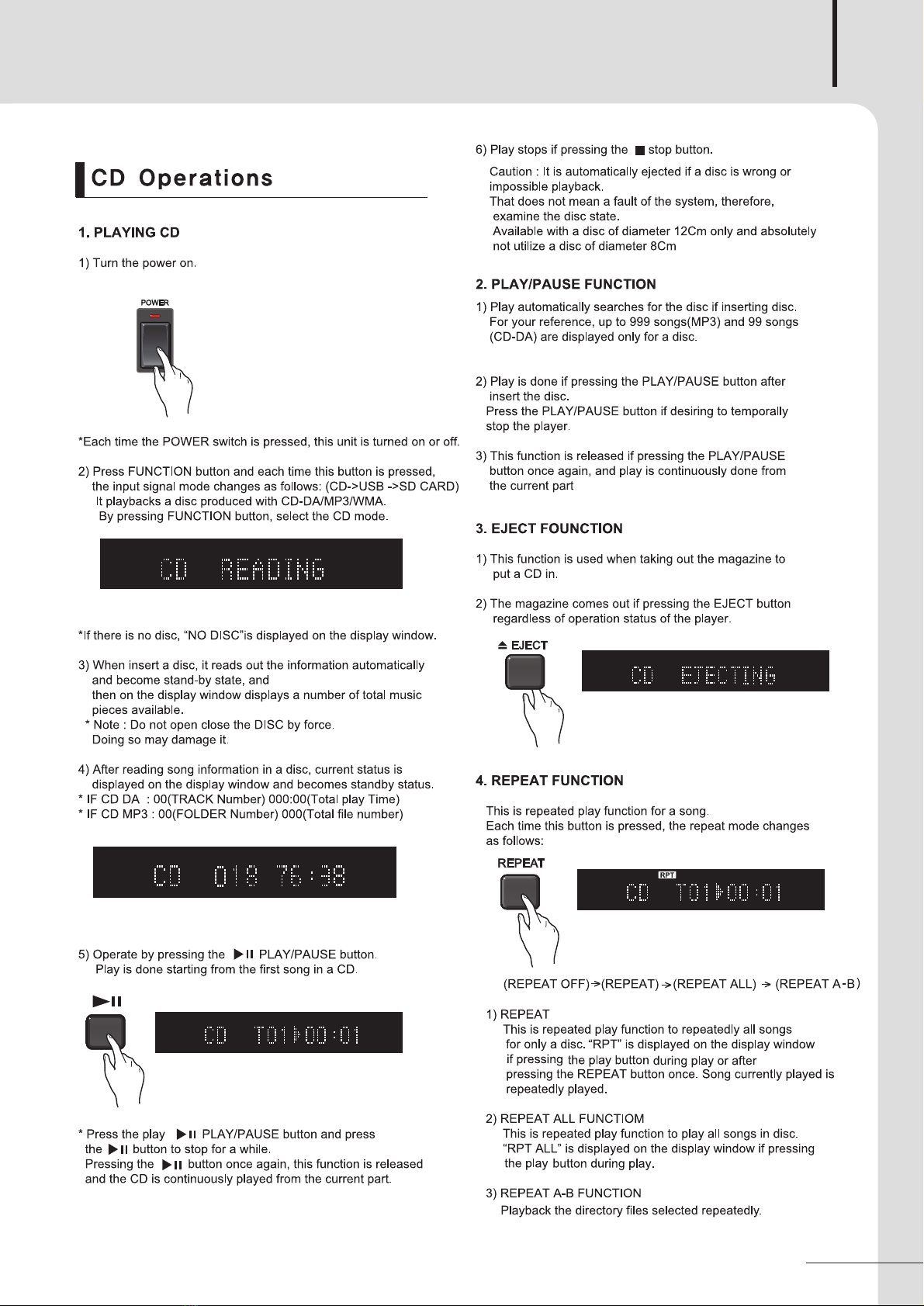

CD/USB/SD CARD Operations 8

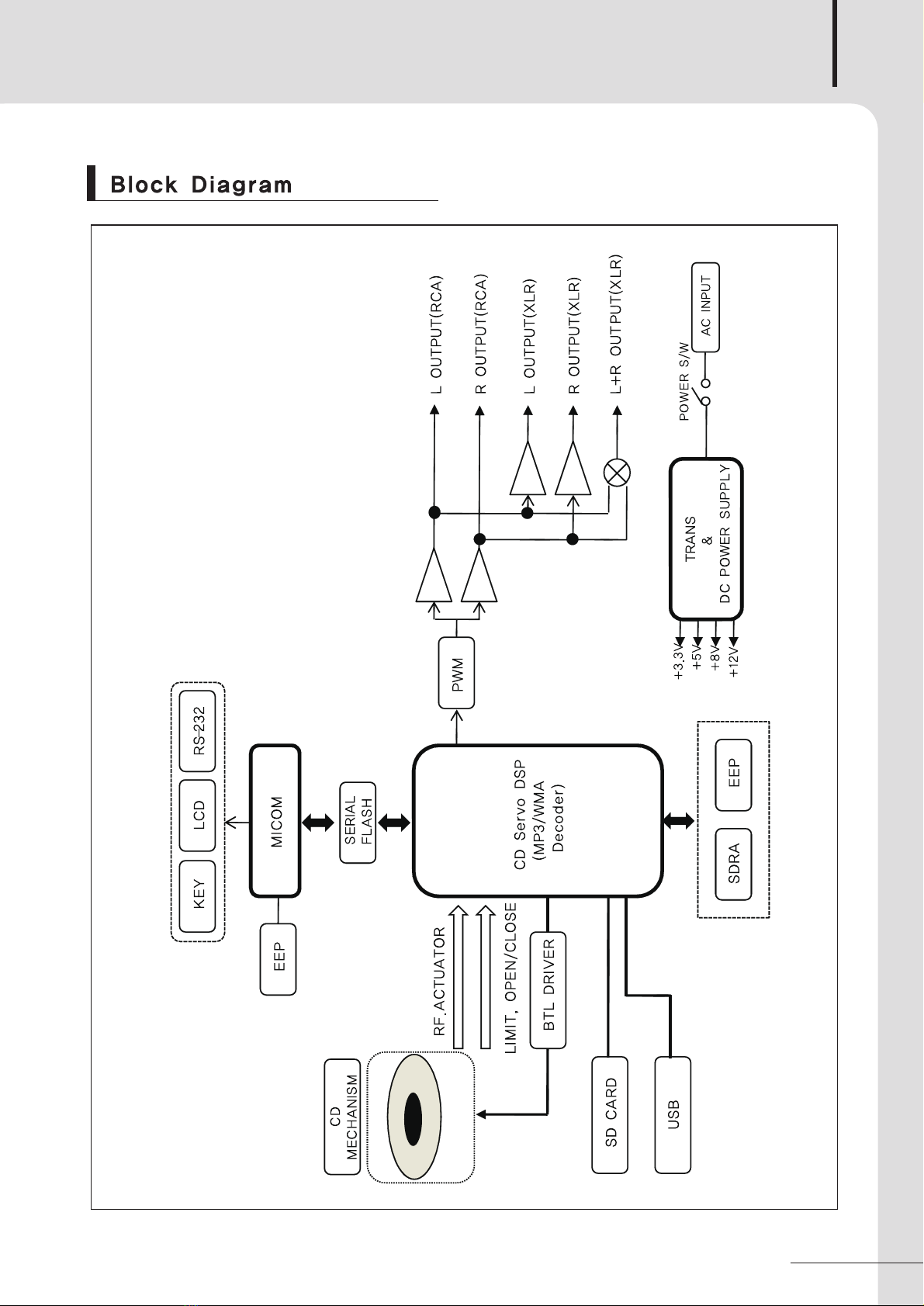

Block Diagram 13
Specifications 14
Service and Warranty 15
Contents

COMPACT DISC PLAYER
ICD-8101 3
Welcome you from management and staffs of Sovico Professional
All of the staffs here at Sovico Professional have dedicated to provide excellent products of value, and we are
glad that you have purchased one of our products.
We sincerely trust that this product will provide satisfactory service, but if anything goes up you do not
satisfy completely, we will endeavor to make things right.
Welcome to Sovico Professional and thank you for joining our worldwide family.
Please inspect all equipment carefully right after unpacking. If you find any damages, contact your supplier
or dealer immediately. Only a shipper may file a damage claim as a carrier for damages which have been
incurred during shipping. Be sure to keep carton boxes and other all packing materials for the carrier’s
inspection. If your packing materials are in good condition, please keep them. If you ever need to return
the unit to Sovico Professional or an authorized service center, you should use only the original factory packing.

WARNING : TO PREVENT FIRE OF ELECTRIC SHOCK HAZARD,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE

To insure proper use of this product, please read owner’s manual carefully and keep this manual in an
easily accessible place for future reference.

CAUTION : TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE THE COVER (OR BACK)
NO USER SERVICABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
This lightening flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of non insulated “dangerous” voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
This exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instruction in the literature accompanying the
products.

COMPACT DISC PLAYER
4ICD-8101
Safety Instruction
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical
and electronic products and batteries should not be mixed with general household waste.
For propertreatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise arise
from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste diposal service or the point of sale where you purchased the items.
Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct method of diposal.
Note for the battery symbol (bottom two symbol examples):
The sign Pb below the symbol for batteries indicates that this batteries contains lead.

Operation
COMPACT DISC PLAYER
ICD-8101 5
■ PC INTERFACE USING THE RE-232C PORT
You can control by connecting a PC to the RS-232C port.
1. Make sure that the voltage (AC 220V or DC 24V) is correct before operating.
2. Press the power switch to turn this unit on or off.
3. Press the FUNCTION button to set the current media to CD, USB or SD CARD.
■ CD COPY
This function is used to copy music in a CD to the SD CARD or USB memory.
Using CD copy function, you can greatly save the lifetime of the CD mechanism.
TO 24-BIT■ REALIZATION OF HIGH QUALITY OF AUDIO WITH DAC CHIP RESPONDING
This player, a high quality of chip is used in DAC to convert digital signal to analog signal.
■ RESPONSE TO MP3/WMA
This player responds to CD-DA and MP3/WMA.
■ CONVENIENT FUNCTION WITH BUILT-IN MICOM
This player provides convenient function such as program play with adoption of MICOM,
random play selecting disc and music adopted by MICOM.
■ ANTI-SHOCK SYSTEM
The CD mechanism has anti-shock function so that it is quite strong against any shock.
■ RANDOM FUNCTION
The function is utilized to playback files randomly not having certain order.
■ DELETE FUNCTION
It is the function to delete unnecessary files stored in the SD CARD or USB memory.
■ BROWSE FUNCTION (SD CARD / USB FLASH DRIVE)
This unit can use SD cards and USB flash drives for playback and dubbing.
■ INTRO CHECK FUNCTION
The beginning of the each track on the CD plays for a few seconds in order.

COMPACT DISC PLAYER
6ICD-8101
▶ ■ ■

▶▶
▶▶
▶▶
■
■
◀◀

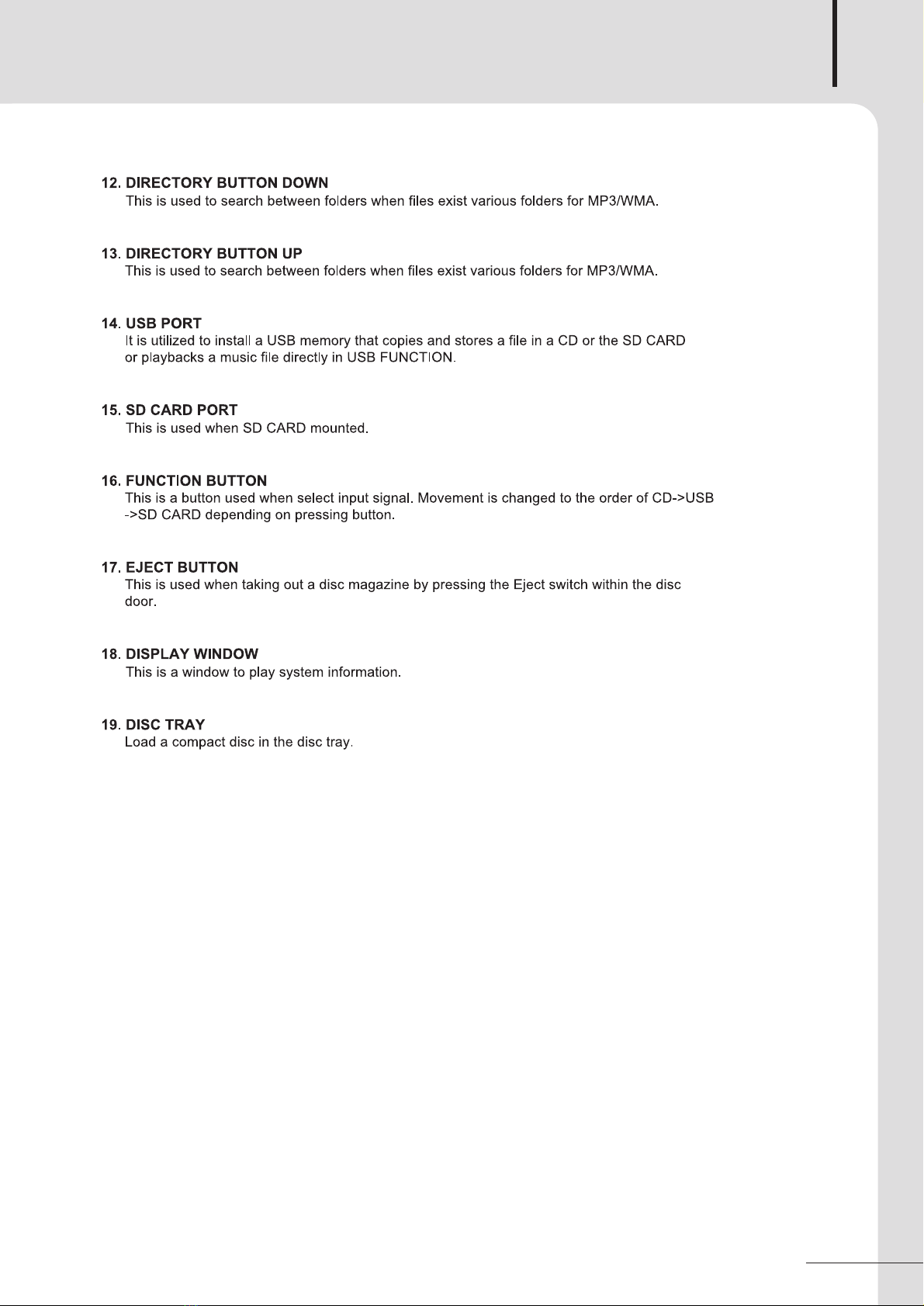

COMPACT DISC PLAYER
ICD-8101 7

COMPACT DISC PLAYER
ICD-8101 9

5) Press the STOP Button to stop COPY.
-MP3 COPY les will be copied to "CDROM-001".
-CD-DA COPY les will be "CDDA-001" DP COPY.

COMPACT DISC PLAYER
ICD-8101 11
7) After the DELETE is done, USB FINISH will appear on the display for a few seconds.

COMPACT DISC PLAYER
12 ICD-8101
When the power is turned on, it is automatically PLAY.
“UNIT ADD 01” will appear on the display.
1) Press and hold STOP button for more than 3 seconds.
- Press the RANDOM button, "OFF".
- Press the REPEAT button, "ON".
1) Press and hold STOP button for more than 3 seconds. “UIT ADD01” will appear on the display.
2) Press the FUNCTION button in this state, “AUTO PLAY OFF” will appear on the display.
4)
3) Use the button below to set "ON" and "OFF".
3)
AUTO PLAY setting
Caution: In case of USB/SD CARD, it is only supported in the following to FAT16, FAT32 system formats.
This function is to set the unit's address when controlling with PC.
Unit Address setting
The unit's address is 08 in the maximum.
2) Enter the number of the unit from 01 to 08 using the buttons below.
- Press the RANDOM button, "UNIT ADD 01"
- Press the REPEAT button, "UNIT ADD 02"
- Press button, "UNIT ADD 03"
- Press button, "UNIT ADD 04"
- Press the COPY button, "UNIT ADD 05"
- Press the DELETE button, "UNIT ADD 06"
- Press button, "UNIT ADD 07"
- Press button, "UNIT ADD 08"

COMPACT DISC PLAYER
ICD-8101 13

COMPACT DISC PLAYER
14 ICD-8101
■ELECTRICAL
esnopseRycneuqerF zHK02~zH02 ± 1dB
T.H.D.(with 20KHz LPF) Less than 0.1%
S/N(with 20KHz LPF) 85dB
Output Level 6dB
ONOMRLX,R/L-RLX,R/L-ACRlanimreTtuptuO
Operation Temperature -10℃~ +40℃
Storage Temperature -20℃~ +60℃
■GENERAL
V42+CD,zH06/05V021~V001CAecruosrewoP
AC 220V~240V 50/60Hz, DC+24V
(Supplied AC main transformer depend on country requirements)
Power consumption 20W
Weight 4.2kg
snoisnemiD )W(284 × 44(H)× 285(D)mm
※Specifications and design are subject to change without notice for improvements.
■ACCESSORIES
INSTRUCTION MANUAL 1EA
2P DC CABLE(150MM) 1EA
2P DE CABLE(200MM) 1EA
AC CORD 1EA
1EARCA CABLE
SCREW 4EA
WASHER 4EA

COMPACT DISC PLAYER
ICD-8101 15
Service and Warranty
TO PURCHASE ADDITIONAL Sovico Professional. GEAR AND ACCESSORIES
To purchase Sovico Professional gear and optional accessories, contact any authorized Sovico Professional distributor.
For a list of Sovico Professional distributors please visit our website at www.Sovicopro.com.
SERVICE AND REPAIR
For replacement parts, service and repairs please contact the Sovico Professional distributor in your country.
Sovico Professional does not release service manuals to consumers, and advice users to not attempt any self repairs,
as doing so voids all warranties.
You can locate a dealer near you at www.Sovicopro.com.
WARRANTY INFORMATION
Warranty terms and conditions vary by country and may not be the same for all products.
Terms and conditions of warranty for a given product may be determined first by locating the appropriate country which
the product was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Sovico Professional directly or the
authorized Sovico Professional distributor for your specific country or region.
CUSTOMER SERVICE AND TECHNICAL SUPPORT
We encourage you to visit our online help and support at http://www.Sovicopro.com
There you can find answers to frequently asked questions, tech tips, downloads, returns instruction and other helpful
information.
We make every effort to answer your questions within one business day.

MEMO
16

COMPACT DISC PLAYER
ICD-8101 17
MEMO

MEMO
18

COMPACT DISC PLAYER
ICD-8101 19
MEMO

5707-00000-745-0S
